TY-2400G - Grill Imarflex - Free user manual and instructions

Product Type	Electric Grill
Model Number	TY-2400G
Brand	Imarflex
Rated Voltage	230 V a.c., 60 Hz
Power Consumption	1300 Watts
Grill Plate Coating	Non-toxic ceramic coating, non-stick
Glass Lid	Yes, included
Base Material	Cool-touch base
Temperature Control	Adjustable thermostat control with pilot light indicator
Preheat Time	Approximately 5 minutes
Overheat Protection	Not specified, but recommended to use medium-low heat
Cord Length	Not specified, standard length
Dimensions	Approximately 40 x 25 x 15 cm (estimated)
Weight	Approximately 2.5 kg (estimated)
Cleaning Instructions	Wipe grill plate with paper towel or soft cloth; cool-touch base and glass lid washable with soap and water; do not immerse thermostat or plate
Safety Precautions	Do not use on metal table, near flammable materials, or with wet hands; unplug before cleaning; not for outdoor use
Intended Use	Household only, not for business purposes
Included Accessories	Grill plate, glass lid, cool-touch base, thermostat control with cord and plug, pilot light indicator
Non-Stick Surface Care	Avoid high heat to prevent discoloration and extend lifespan; use medium to low heat for best results
Warranty	Fill and send warranty card with receipt to [e-mail]

Frequently Asked Questions - TY-2400G Imarflex

What is the power consumption of the Imarflex TY-2400G grill?

The Imarflex TY-2400G grill has a power consumption of 1300 Watts at 230V a.c., 60 Hz.

How do I preheat the grill?

Preheat the grill for about 5 minutes before cooking. The pilot light will turn off when the desired temperature is reached.

Can I use metal utensils on the grill plate?

No, do not place any metal kitchen utensils on the grill plate as they may heat up. Use non-metallic utensils to avoid damage to the non-stick coating.

How should I clean the grill plate?

Wipe the grill plate with paper towels or a soft cloth. Do not use abrasive materials. Do not immerse the grill plate or thermostat control in water.

Is the glass lid dishwasher safe?

The glass lid is washable with soap and water. It is not specified as dishwasher safe, so hand washing is recommended.

What should I do if the power cord is damaged?

If the cord is damaged, it must be replaced with the same type and size. Contact the nearest Authorized Service Center for replacement.

Can I use the grill outdoors?

No, this appliance is intended for household use only and not for outdoor use.

Why does the pilot light turn on and off during cooking?

The pilot light turns on when the grill needs to heat up and turns off when the set temperature is reached. This is normal operation to maintain temperature.

What type of coating does the grill plate have?

The grill plate features a non-toxic ceramic coating that is non-stick. Avoid very high temperatures to prolong its lifespan.

How do I register the warranty?

Fill up the warranty card and send it together with the receipt to the email address [e-mail].

USER MANUAL TY-2400G Imarflex

1300W POWER

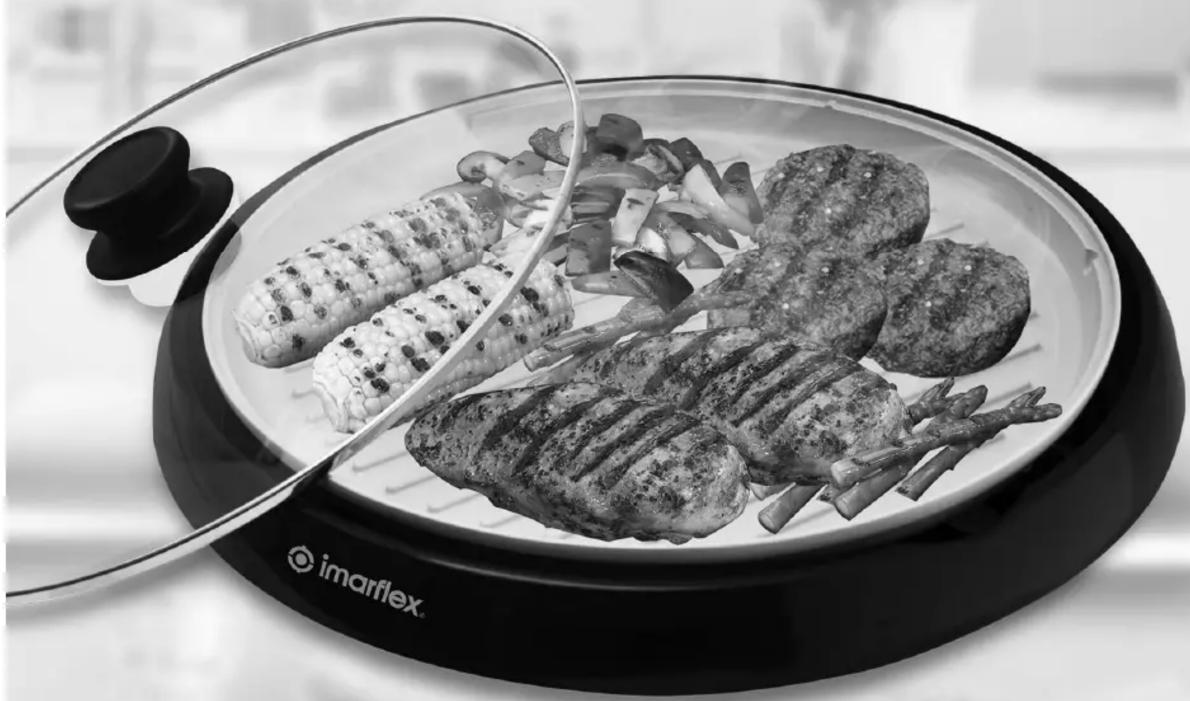

Black-and-white photo of a food tray with various meat dishes and vegetables, no visible text or symbols on the main subject.

SPECIFICATION

MODEL NO. : TY-2400G

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1300 watts

IMPORTANT SAFEGUARD:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Do not use the appliance on any metal table.
3. Do not use the appliance next to devices, which react sensitively to magnet (e.g., radios, TV, cassette recorders, etc.).

4. Keep curtains, furniture, flammable materials, etc. away from the appliance and from the convenience outlet where the appliance is plugged.

5. Before using the appliance, check if the voltage indicated corresponds with the convenience outlet (230Va.c.)

6. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the appliance to the nearest Authorized Service Center.

7. Do not use a two-way socket with another appliance.

8. Do not place the unit near gas stove, an electric burner, in heated oven or near any hot surface.

9. Do not touch the appliance and the power plug with wet hands.

10. Do not allow the cord to touch the hot surface of the unit.

11. Do not place any metal kitchen utensils, knives or other metal objects on the appliance. These may heat up when the appliance is turned on.

12. Do not place any magnetic objects on the grill plate while the appliance is in use.

13. To protect against electric shock, do not immerse the unit in water or any other liquids.

14. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

15. Extreme caution must be taken in moving an appliance containing hot oil or liquids.

16. Make sure that the unit is unplugged before replacing or removing any of its parts or accessories.

17. Do not touch the appliance while cooking is in progress.

18. Do not use the appliance for other than intended use.

19. Use of accessories or equipment not supplied by the manufacturer may cause damage or malfunctioning of your appliance or result in injuries.

20. CAUTION: Never leave the unit unattended while cooking.

21. The appliance is not intended for outdoor use.

22. For household use only, not intended for any business purposes.

23. Save this instruction for future references.

Cartoon illustration of a sad bowl with an orange X mark, showing surprise and shock (no text or symbols)

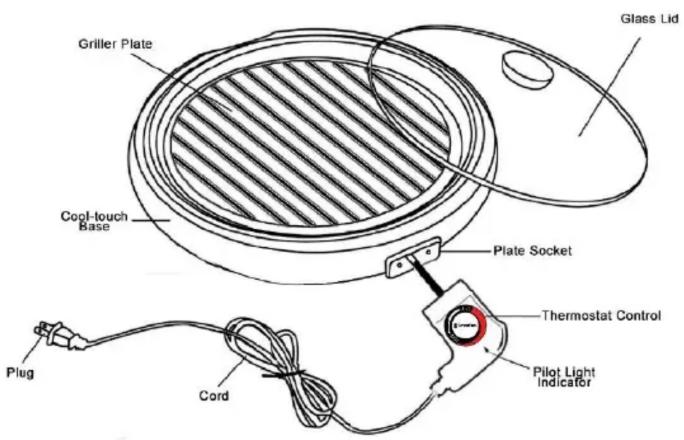

DESCRIPTION OF PARTS

HOW TO USE

1. Insert the Grill Plate into Base by aligning the plate socket into the base hole and push down the Grill Plate.

2. Insert the Thermostat Control on the plate socket Note: Make sure that it is set to "OFF" position before inserting the thermostat control into the plate socket.

3. Plug the unit into the convenience outlet.

4. Place the cover on the top of the grill plate.

5. Preheat the unit for about 5 minutes before cooking. Note: When the Grill Plate reaches the required temperature, the power light indicator will turn off.

6. After preheat, put butter or oil into the grill plate. Note: Putting butter can also add aroma to the food.

7. Place the ingredient or food into the grill plate and cover it with glass lid.

8. Adjust the Thermostat Control according to the cooking requirement.

Illustration of hands connecting a plug to an electrical outlet with arrows indicating direction (no text or symbols)

Note: For best cooking result, kindly use medium to low heat to avoid burnt food, a very high temperatures can also cause discoloration and shorten the life span of any non-stick surface. If higher temperatures are necessary, preheat on medium heat for a few minutes.

1. Once the food is cooked, remove it from the Grill Plate.

2. Turn OFF and unplug the unit every after use. Note: It is normal that the thermostat light indicator will turn on and off. The light indicator turns on when it needs to reach the desired temperature and turns off when it reaches the desired temperature set.

CLEANING AND MAINTENANCE

1. Always unplug the unit from the convenience outlet and allow to cool down before putting ON or taking OFF parts or accessories before cleaning.
2. Wipe the grill plate with paper towels or soft cloth.
3. Do not use abrasive materials to avoid scratches.
4. Do not immerse the grill plate and thermostat control in water or any other liquids.
5. Cool-touch base and glass lid are washable with soap and water.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address [e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China
