USER MANUAL IAP-2150UV Imarflex

Eliminates up to 99.9% of viruses & bacteria

HEPA

H13 FILTER

with PRE-FILTER and ADVANCE CARBON FILTER

air lenizer Circulate fresh air

AIR QUALITY

DISPLAY

Wi-Fi

Enabled

Tuya Smart

CADR: 206CFM

• Filter Replacement Indicator
- Touch Sensitive Control Panel

• Up to 12-hour Timer
• Child-lock Feature

• 3 Speed Settings w/ Sleep Mode & Auto Mode

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the air purifier, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Place the unit on a flat stable surface, keep it away from the edge of the counter or hang it on a safe place to avoid accidents.

5. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.

6. Do not place on or near a gas stove, an electric burner or in a heated oven.

7. Children should be supervised to ensure that they do not play with the appliance.

8. This appliance is not intended to be used by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

9. After using, switch OFF and unplug the unit from the convenience outlet.

10. Do not immerse the unit in water or in any other liquid.

11. Do not use this unit other than its intended use.

12. In case of malfunctions, please bring the unit to the nearest Imarflex Authorized Service Center.

13. Keep the appliance inlet clear of any items that can block the flow of air, like soft furnishings, curtains, or hanging blinds.

14. Air inlet should be kept a minimum of 38cm away from any wall to allow adequate air flow and circulation.

15. Filter assembly is not washable. Do not immerse any part of the filter assembly in water as this can cause damage to the filter.

16. For household use only; not intended for any business purposes.

17. Save this instruction manual for future reference.

INTRODUCTION:

ADVANCE CARBON FILTER

Removes household odors and noxious gases.

PRE-FILTER

Captures large particles, like hair, pet dander and dust.

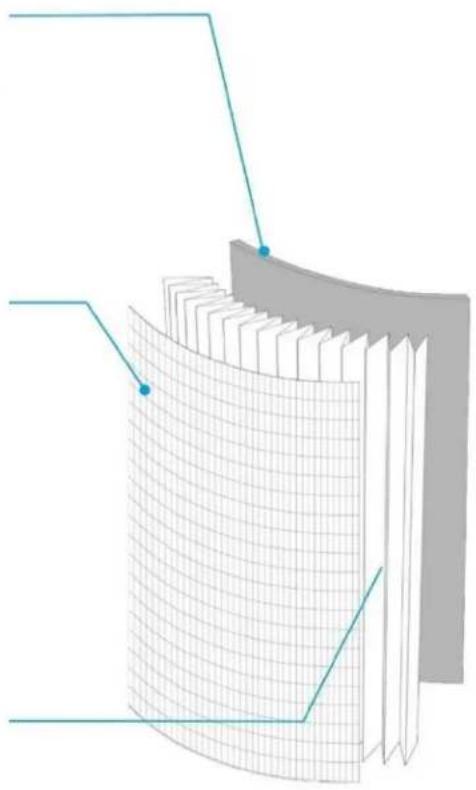

H13 HEPA FILTER

Captures and reduces up to 99.97% of airborne particles, pollen and other allergens.

3D diagram of a curved surface with grid pattern, no text or symbols present

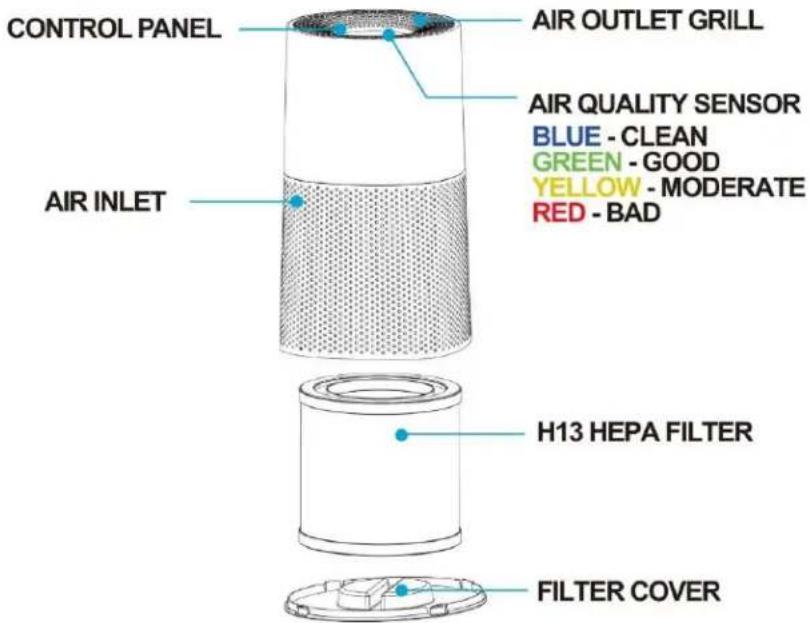

DESCRIPTION OF PARTS:

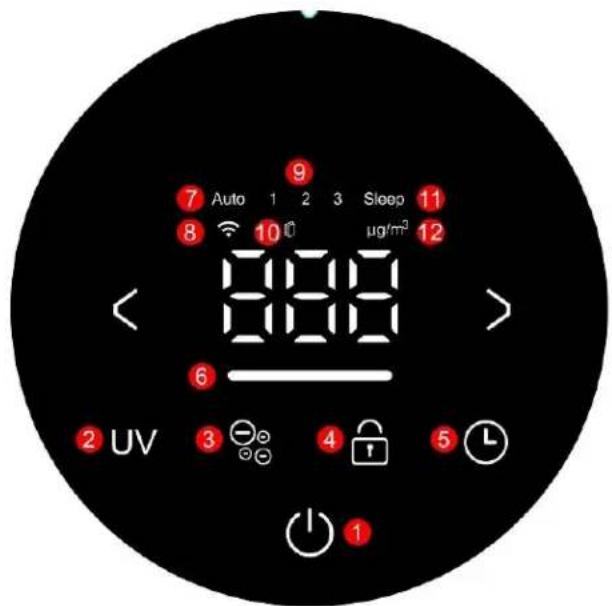

CONTROL PANEL:

1 - Power ON/OFF

2 - UV

3-Anion

4 - Child-lock

5 - Auto-off Timer

6 - Air Quality Sensor

7 - Auto Mode

8 - WIFI

9 - 3-speed Settings

10 – Filter Replacement Indicator

11 – Sleep Mode

12 - Microgram per Cubic Meter of Air Display

4+5 - Filter Reset

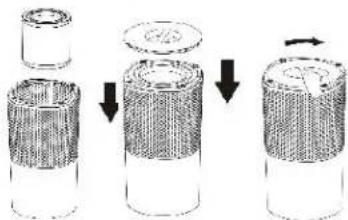

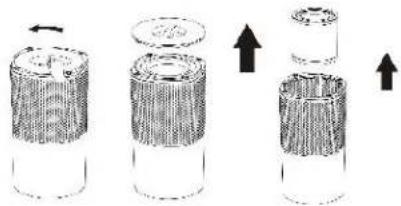

How to Assemble:

1. For Initial use, make sure to remove all packaging materials such as HEPA filter plastic bag and stickers.

a. Remove Bottom Cover

- Take off the bottom cover.

- The bottom cover should face upwards then turn the filter cover clockwise.

- Lift and remove the cover from the base of the unit.

b. Replace HEPA Filter

- Remove the HEPA Filter from the unit. - Take off the plastic bag and mark the date of first use on the blank space of the HEPA filter.

c. Install the Bottom Cover

- Place the HEPA Filter inside the unit body.

- Place the filter cover by positioning the alignment tabs on the cover into the corresponding slots of the unit body.

- Turn the filter cover counterclockwise to lock.

Diagram showing three stages of battery cell filling and upward movement, no text or symbols present

Simple line drawing of a hand holding a cylindrical object over a sheet of paper, next to a separate cylindrical object (no text or symbols)

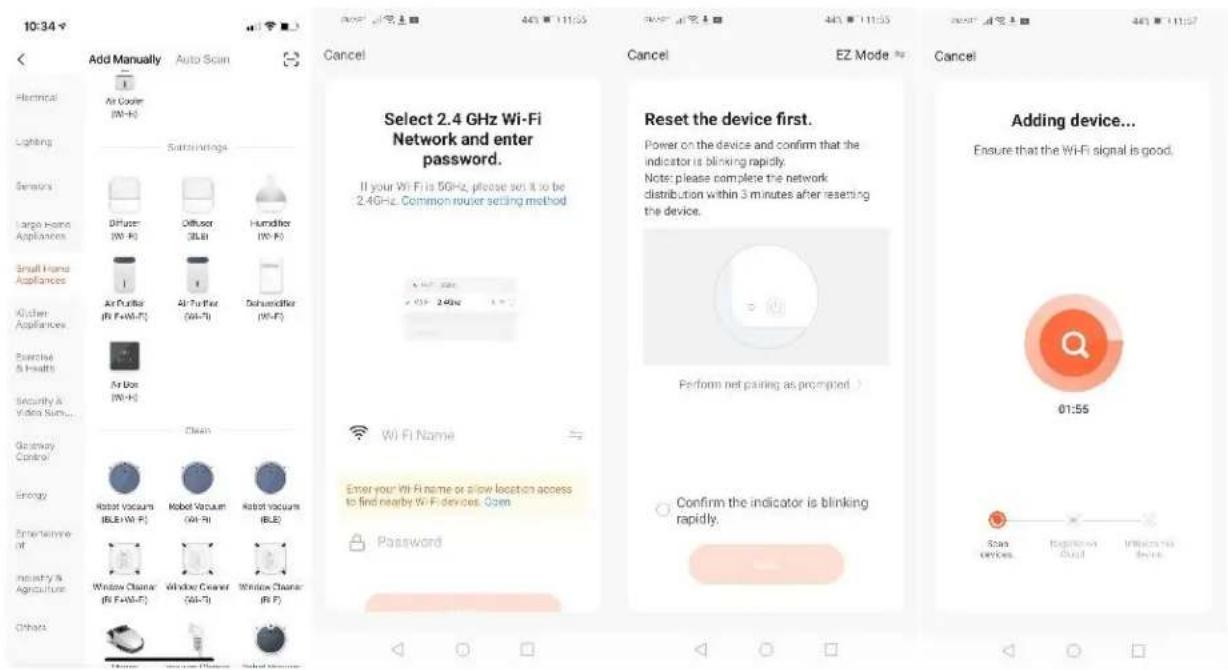

WIFI Set-up:

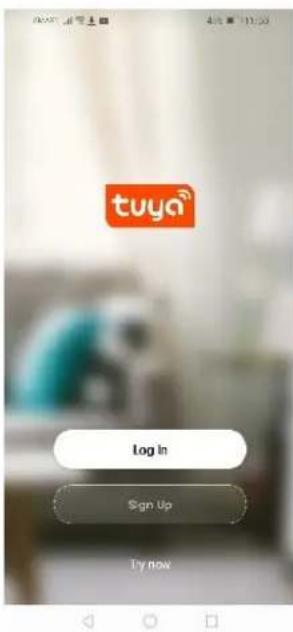

1. Scan the QR CODE to download the TUYA SMART app. You can also download it on Google Play or App Store.
2. Go to the Home Page and tap Sign Up to create a new account.
3. Enter your email address to get the verification code.

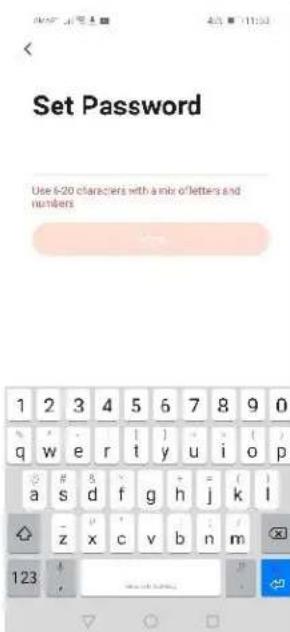

4. Input the verification code on the application, then set your password. Tap Done.
5. Tap + to manually add a device. Small Home Appliances > Surroundings > Air Purifier (WIFI).
6. Select 2.4GHz WIFI Network. Enter your WIFI password and tap Next.
7. Make sure that the machine is powered ON, then tap the O to confirm that the indicator is blinking rapidly. Tap Next.
8. Wait for 2 minutes to finish scanning the device.

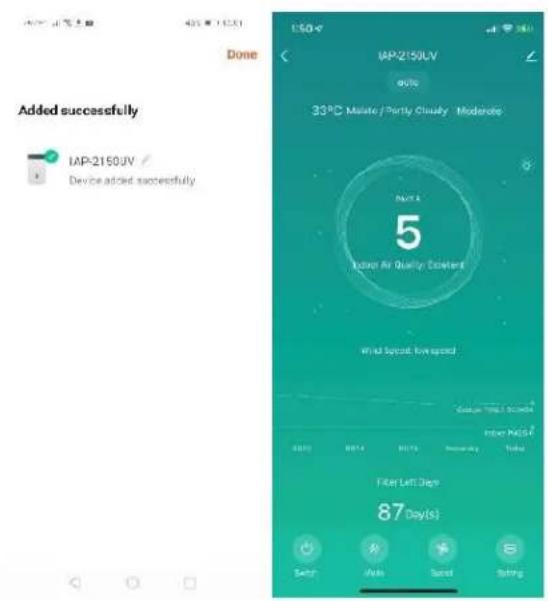

9. Once the device has been successfully added, tap Done.
10. You can now operate your air purifier through your mobile phone.

Procedure 2

Procedure 3

Procedure 4

Procedure 5

Procedure 5
Procedure 8

Procedure 6
Procedure 7

Procedure 9
Procedure 10

How to Use:

1. Make sure that the filter is properly placed before turning ON the unit.

2. Plug the unit into the convenience outlet. A beep sound will be heard and the Power and WIFI indicators will light up.

3. Press the Power button, the air quality sensor, auto mode light indicators will light up.

4. Select the desired speed by pressing < or >.

a. Press the > button once for Speed 1.
b. Press the > button twice for Speed 2.
c. Press the > button (3) times for Speed 3.
d. Press the > button (4) times for Sleep Mode.
e. Press the > button (5) times for Auto Mode.

*Note: It collects air at 360^ from the air inlet and releases clean air at 360^ from the air outlet grill.

5. AUTO MODE

a. When the air quality is less than 49 g/m^3 , the air quality sensor is blue and the speed setting is at low speed.
b. When the air quality is between 50 to 99 g/m ^3 , the air quality sensor is green and the speed setting is at medium speed.
c. When the air quality is between 100 to 149 g/m^3 , the air quality sensor is yellow and the speed setting is at medium speed.
d. When the air quality is more than 150 g/m^3 , the air quality sensor is red and the speed setting is at high speed.

SPEED WATTAGE		WIND SPEED (m/s)	RPM	CADR (CFM)
High 30W 3.5m/s 2050		RPM 206CFM
Medium 13W 2.5m/s 150		ORPM 136CFM
Low 6W 1.5m		/s 1000RPM	77CFM
Sleep	2W	0.5m/s	600RPM	40CFM

6. AUTO-OFF TIMER

a. Select the desired auto-off time.
b. Press the Timer button ⓣ then select the desired auto-off time by pressing the timer button ⓣ repeatedly.
c. Auto-off timer is from 1hr to 12hrs.
d. Once the timer is set, the timer light indicator will light up indicating that the timer will start the countdown.
e. Press the Power button to cancel.
f. When the timer reaches zero, the unit will be on standby mode.

7. CHILD-LOCK

a. Press and hold the Child-lock button ⏻ for 5 seconds to lock / unlock the function.

9. UV

a. Press the UV button.

10. FILTER RESET INDICATOR

a. The filter reset indicator will be flashing indicating that the HEPA Filter needs to be replaced.
b. Turn OFF the unit and unplug the air purifier.
c. Follow the instruction on how to replace filter (How to Assemble – letter B)
d. Plug the unit into a convenience outlet and press the Power button to turn ON the unit.
e. Press and hold TIMER & CHILD-LOCK buttons at the same time for 5 seconds to reset the filter.
f. Forcedly reset the icon (w/o blinking) you may press ionizer + timer. It will forcedly reset the filter replacement icon.

11. WIFI RESET (How to Reset WIFI settings)

a. While the unit is OFF press and hold the ⓣ timer button until the WIFI icon is blinking rapidly. This will confirm that the wifi settings have been reset.

12. ANION

a. Press the Anion button

1. Unplug the unit after every use.

Air Quality Sensor Guide:

COLOR AIR QUALITY μg/m3
Blue Clean Less than 49 μg/m3
Green Good		50-99 μg/m3
Yellow	Moderate	100-149 μg/m3
Red	Bad	More than 150 μg/m3

Cleaning and Maintenance:

1. Unplug the unit from the convenience outlet before moving or cleaning.
2. Wipe the surface with a damp cloth and polish with a soft, dry cloth.
3. Do not use detergents or abrasive cleaners.
4. Do not immerse the unit in water or in any other liquid.
5. Make sure that the unit is completely dry.
6. The HEPA Filter is replaceable and not washable. Do not immerse the filter in water or in any other liquid as this can cause damage to the filter.
   *Note: The filter should be replaced approximately after 6 months of use.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]

Distributed By: Sabretech Technology Inc.

103-113 Sen Gil Puyat Ave. Pasay

Made in China
