Product Type	Air Purifier
Brand	Imarflex
Model	IAP-220Hi
Dimensions (W x D x H)	Approx. 400 x 200 x 500 mm
Weight	Approx. 4.5 kg
Power Supply	AC 220V, 50/60Hz
Power Consumption	30 W
Coverage Area	Up to 30 m²
Filtration Stages	Pre-filter, HEPA, Activated Carbon
HEPA Type	HEPA H13
Airflow Rate	200 m³/h
Noise Level (Max)	45 dB(A)
Speed Settings	3 (Low, Medium, High)
Timer Function	2/4/8 hours
Filter Replacement Indicator	Yes
Control Type	Touch panel with remote control
Features	Auto mode, Sleep mode, Ionizer
Filter Maintenance	Clean pre-filter monthly, replace HEPA every 6-12 months
Safety Features	Overheat protection, child lock
Spare Parts Availability	Filters available from Imarflex service centers
Certifications	CE, RoHS
Warranty	2 years

Frequently Asked Questions - IAP-220Hi Imarflex

How often should I replace the HEPA filter?

Replace the HEPA filter every 6 to 12 months, depending on usage and air quality. The filter replacement indicator will also alert you.

Can I wash the HEPA filter?

No, the HEPA filter is not washable. Only the pre-filter can be cleaned with water. Replace the HEPA filter when needed.

Is the air purifier effective against odors?

Yes, the activated carbon filter helps remove odors, smoke, and VOCs from the air.

Does the purifier have a night mode?

Yes, it has a Sleep mode that reduces fan speed and dims the lights for quiet operation.

How do I clean the pre-filter?

Remove the pre-filter and gently vacuum or rinse it under cold water. Let it dry completely before reinstalling.

What is the recommended room size?

The purifier is suitable for rooms up to 30 m² (approx. 320 sq ft).

Does it have a remote control?

Yes, a remote control is included for convenient operation.

Is there a timer function?

Yes, you can set the timer for 2, 4, or 8 hours.

What should I do if the filter indicator is on?

The filter indicator lights up when the filter needs replacement. Replace the filter and reset the indicator according to the manual.

Can I use the purifier while sleeping?

Yes, the Sleep mode ensures quiet operation, making it ideal for nighttime use.

USER MANUAL IAP-220Hi Imarflex

with PRE-FILTER and ADVANCE CARBON FILTER

air lenizer circulate fresh air

Circulate fresh air

TOUCH

Sensitive CONTROL PANEL

LED

MOOD LIGHT

COLORS

CADR: 76CFM

COVERS UP TO

20sqm

• 3 Speed Settings with Sleep Mode

- Filter Replacement Indicator

- Child-lock Feature

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions carefully.
2. Before using the air purifier, check if the voltage indicated corresponds with the convenience outlet (230Va.c.).
3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest authorized service center.
4. Place the unit on a flat stable surface, keep it away from the edge of the counter or hang it on a safe place to avoid accidents.
5. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet where the unit is plugged in.
6. Do not place on or near a gas stove, an electric burner or in a heated oven.
7. Children should be supervised to ensure that they do not play with the appliance.
8. This appliance is not intended to be used by a person (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
9. After using, switch OFF and unplug the unit from the convenience outlet.
10. Do not immerse the unit in water or in any other liquid.
11. Do not use this unit other than its intended use.
12. In case of malfunctions, please bring the unit to the nearest Imarflex Authorized Service Center.
13. Keep the appliance inlet clear of any items that can block the flow of air, like soft furnishings, curtains, or hanging blinds.
14. Air inlet should be kept a minimum of 38cm away from any wall to allow adequate air flow and circulation.
15. Filter assembly is not washable. Do not immerse any part of the filter assembly in water as this can cause damage to the filter.
16. For household use only; not intended for any business purposes.
17. Save this instruction manual for future reference.

INTRODUCTION:

ADVANCE CARBON FILTER

Removes household odors and noxious gases.

PRE-FILTER

Captures large particles, like hair, pet dander and dust.

H13 HEPA FILTER

Captures and reduces up to 99.97% of airborne particles, pollen and other allergens.

3D diagram of a curved surface with grid pattern, no text or symbols present

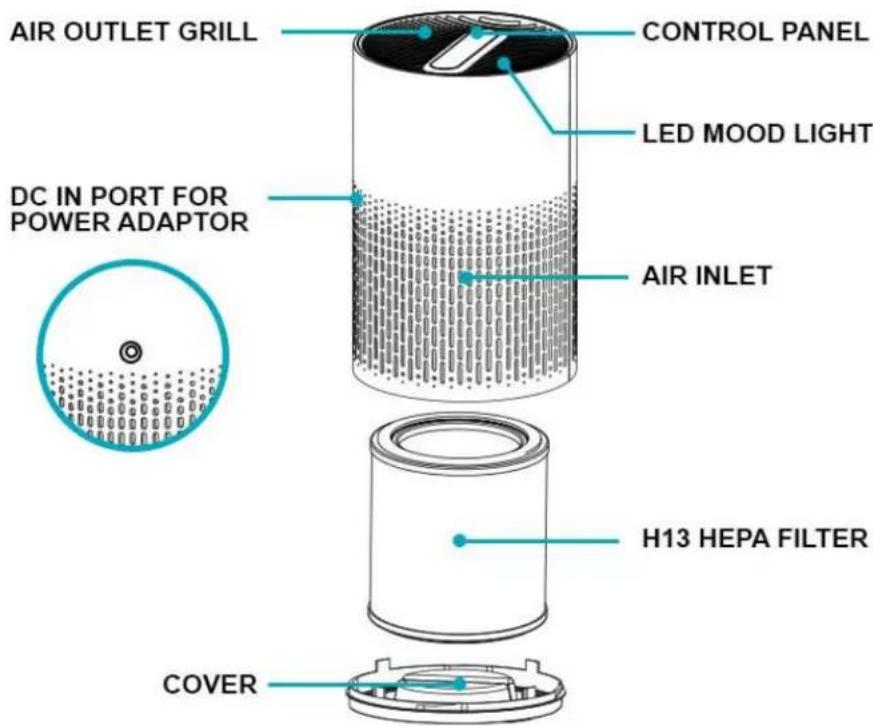

DESCRIPTION OF PARTS:

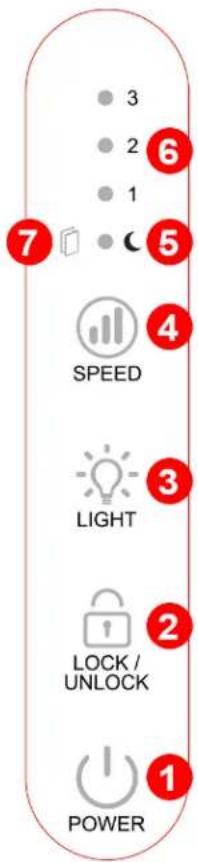

CONTROL PANEL:

1 - Power ON/OFF
2 - Lock/ Unlock
3 – LED Mood Light Color & Filter Reset Button
4 - Speed Control
5 – Sleep Mode Light Indicator
6 - Speed 1, 2, 3 Light Indicator
7 - Filter Replacement Indicator

ICON GUIDE

Filter Replacement Indicator (FLASHING)

Press and Hold for 5 secs to Lock/Unlock

Press to set LED Mood Light Color

Press ⑪ three (3) times to select Sleep Mode

How to Assemble:

1. For Initial use, make sure to remove all packaging materials such as HEPA filter plastic bag and stickers.

a. Remove Bottom Cover

• Take off the bottom cover.
• The bottom cover should face upwards then turn the filter r cover counterclockwise.
• Lift and remove the cover from the base of the unit.

b. Replace HEPA Filter

• Remove the HEPA Filter from the unit.
• Take off the plastic bag and mark the date of first use on the blank space of the HEPA filter.

*Note: The power cord will be packed inside the HEPA Filter. Make sure to remove it accordingly.

Diagram of a hand pressing down on a circular object with an arrow indicating rotation (no text or symbols)

Line drawing of hands holding a cylindrical container with a ring (no text or symbols)

c. Install the Bottom Cover

• Place the HEPA Filter inside the unit body.
• Place the filter cover by positioning the alignment tabs on the cover into the corresponding slots of the unit body.
• Turn the filter cover clockwise to lock.

How to Use:

1. Connect the power adaptor into the DC IN port at the back of the unit.
2. Make sure that the filter is properly placed before turning ON the unit.
3. Plug the unit into the convenience outlet. A sound will be heard.
4. Press the Power button, the Speed Control and Speed#1 light indicators will light up.
5. Select the desired speed by pressing 📄The default speed is Speed#1.

a. Press the Speed button 📄 once for Speed#2.
b. Press the Speed button Ⓞ twice for Speed#3.
c. Press the Speed button ⏻ (3) three times for Sleep Mode C.

*Note: It collects air at 360^ from the air inlet and releases clean air at 360^ from the air outlet grill.

SPEED WATTAGE		WIND SPEED (m/s)	RPM	CADR (CFM)
3 12W 48dB 2150RP		M 76CFM
2 5W	39dB	1500RPM 35CFM
1	2W	32dB	900RPM	26CFM
SLEEP MODE	1W	30dB	500RPM	26CFM

6. LOCK/UNLOCK 🔒

a. Press and hold the Lock/Unlock button ⏻ for 5 seconds to lock/unlock the function. A beep sound will be heard and Lock/Unlock light indicator will light up indicating that the unit is locked.

*Note: Cannot press any function if the unit is locked.

7. FILTER RESET INDICATOR

a. The filter reset indicator will be flashing and tone will be heard indicating that the HEPA Filter needs to be replaced.
b. Turn OFF the unit and unplug the air purifier.
c. Follow the instruction on how to replace filter (How to Assemble – letter B)
d. Plug the unit into a convenience outlet and press the Power button to turn ON the unit.
e. Press and hold Light 🔊 button for 5 seconds to reset the filter.

*Note: HEPA Filter is replaceable and not washable. The filter should be replaced approximately after 6 to 12 months of use.

8. LED MOOD LIGHT COLOR

a. Press 🙏 to select the desired mood light color.

1. Unplug the unit after every use.

Cleaning and Maintenance:

1. Unplug the unit from the convenience outlet before moving or cleaning.
2. Wipe the surface with a damp cloth and polish with a soft, dry cloth.
3. Do not use detergents or abrasive cleaners.
4. Do not immerse the unit in water or in any other liquid.
5. Make sure that the unit is completely dry.
6. The HEPA Filter is replaceable and not washable. Do not immerse the filter in water or in any other liquid as this can cause damage to the filter.
   *Note: The filter should be replaced approximately after 6 to 12 months of use.

REMINDER: Please do not forget to fill up and send the warranty card with a copy of the receipt to our email address [e-mail]
