USER MANUAL PM-660U TOA
The paging microphone is of desk-top type and designed to be used for paging and announcements. It is furnished with an easy-to-use large talk switch and a convenient lock lever. In addition, it comes with a remote control function to activate amplifier's power or chime unit. Refer to the amplifier's instruction manual for details of the remote function and connection.

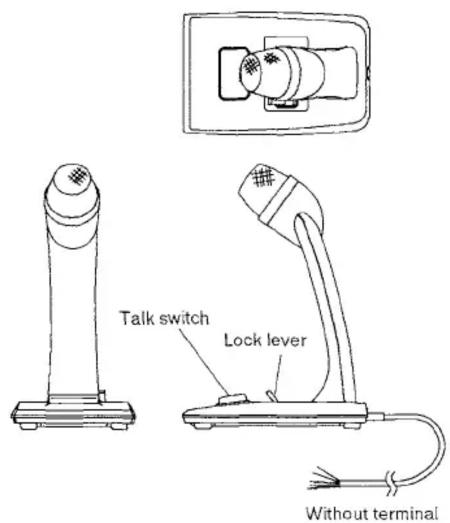

APPEARANCE


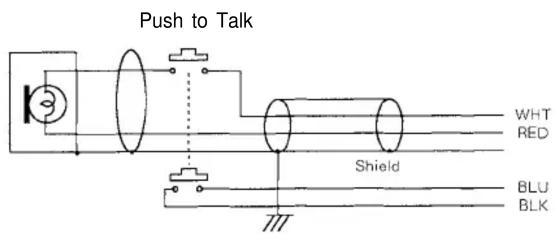

Talk switch Lock lever Without terminalCIRCUIT DIAGRAM
| Model | PM-660U |
| Type | Moving coil microphone |
| Directivity | Unidirectional |
| Rated Impedance | 600 Ω, balanced |
| Rated Sensitivity | - 58 dB (1 kHz, 0 dB=1 V/Pa) |
| Frequency Response | 100 Hz to 10 kHz |
| Connection Cable | 2-core shielded plus 2-core cable |
| Cable Length | 2.5 m |
| Terminal of Cable | None |
| Weight | 440 g |
| Dimensions | 100 (W) × 215 (H) × 150 (D) mm |
| Talk Switch | Push-to-talk type (open-off circuit, with lock lever) |
| Remote Switch | Leaf spring contact (interlocked with talk switch) |
| Finish | Head : Zinc plated steel wire, baked painting (Gray)Body : ABS resin (Gray) |
* Weight given in the above specifications does not include the connection cable.
* Specifications are subject to change without notice.
