Pack 'n Play Quick Connect Playard with Portable Bouncer Bassine - Baby product GRACO - Free user manual and instructions

USER MANUAL Pack 'n Play Quick Connect Playard with Portable Bouncer Bassine GRACO

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

Failure to follow these warnings and the instructions could result in serious injury or death.

Setting Up the Playard

• THIS PRODUCT REQUIRES ADULT ASSEMBLY.
- Keep fingers clear of top corners during setup. Be sure playard is completely set up before use. Check that the four top rails are completely latched, the center of the floor is pushed down, the mattress pad is flat and the straps are securely fastened to the bottom of the unit. Always follow the instructions in the owner's manual to set up the playard.
- Never use this product if there are any loose or missing fasteners, loose joints, broken parts or torn mesh. Check before assembly and periodically during use. Contact Graco at 1-800-345-4109 for replacement parts and instructions if needed. Never substitute parts.

Using the playard

• The playard is for playing or sleeping. When used for playing, never leave child unattended, and always keep child in view. When used for sleeping, you must still provide the supervision necessary for the continued safety of your child.
  • Always keep the playard away from hazards in the area that may injure your child.
• When child is able to pull to standing position, remove large toys and other objects that could serve as steps for climbing out.
• Stop using this product when your child reaches 35 in. (89 cm) in height, weighs more than 30 lb (14 kg), or is able to climb out.
• Do not modify playard or add any attachments that are not listed in the owner's manual, including an add-on bassinet.
• Child can become entrapped and die when improvised netting or covers are placed on top of a playard. Never add such items to confine child in playard.

WARNING

- NEVER leave child in product with side lowered. Be sure side is in raised and locked position whenever child is in product.

Avoiding Suffocation Hazards

- Unlike cribs that have rigid sides, the playard has flexible sides. As a result, the playard mattress pad is specially designed to prevent suffocation. The playard mattress pad has a solid base, a certain length and width, and is less than one inch thick in order to meet safety standards. Using a thicker or a different sized mattress pad may allow a child's head to get between mattress pad and the side of the playard causing suffocation.

• Infants can suffocate

• In gaps between a mattress too small or too thick and products sides
- On soft bedding.

NEVER add a mattress, pillow, comforter or padding. Use ONLY mattress pad provided by Graco. Mattress dimension: 27"x 36" (68.5 cm x 91.4 cm).

- To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

• Never use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.
• NEVER use a water mattress with the playard.
• If a sheet is used with the pad, use only the one provided by Graco for Quick Connect Playards or one specifically designed to fit the dimensions of the mattress pad.

Avoiding Strangulation Hazards

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the playard near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the playard.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
  • NEVER attach strings to toys.

This product is not intended for commercial use.

WARNING

FOR SAFE BATTERY USE:

Keep the batteries out of children's reach.

Any battery may leak battery acid if mixed with a different battery type, if inserted incorrectly (put in backwards) or if all batteries are not replaced or recharged at the same time. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-metal hydride, nickel-cadmium) batteries.

Any battery may leak battery acid or explode if disposed of in fire or an attempt is made to charge a battery not intended to be recharged. Never recharge a cell of one type in a recharger made for a cell of another type.

Discard leaky batteries immediately. Leaky batteries can cause skin burns or other personal injury. When discarding batteries, be sure to dispose of them in the proper manner, according to your state and local regulations.

Remove batteries before storing product for a prolonged period of time. Batteries left in the unit may leak and cause damage.

Recommended type batteries—alkaline disposables, 1-D (LR20-1.5V) (not included). NEVER mix battery types. Change batteries when product ceases to operate satisfactorily.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.

ADVERTENCIA

This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service 1-800-345-4109.

No tools required.

Illustration of a person holding a bag with red arrows indicating movement or force (no text or symbols)

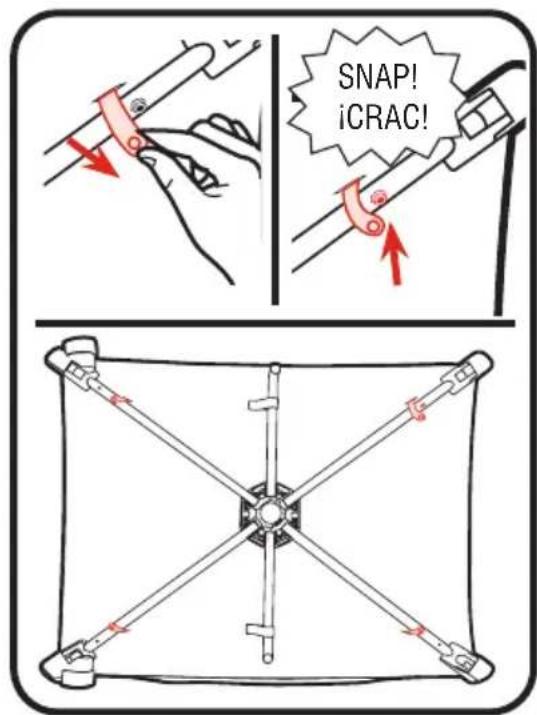

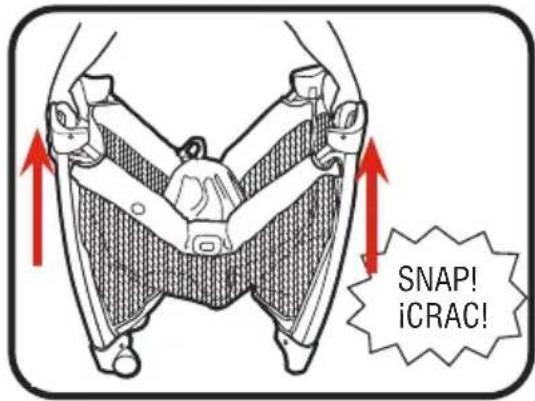

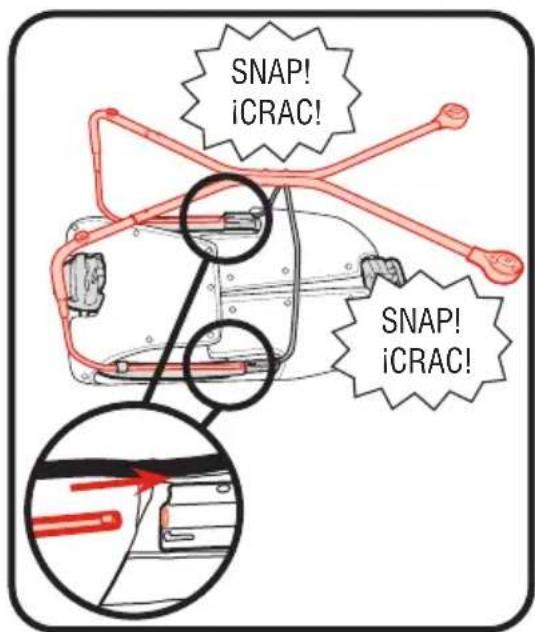

SNAP! iCRAC!

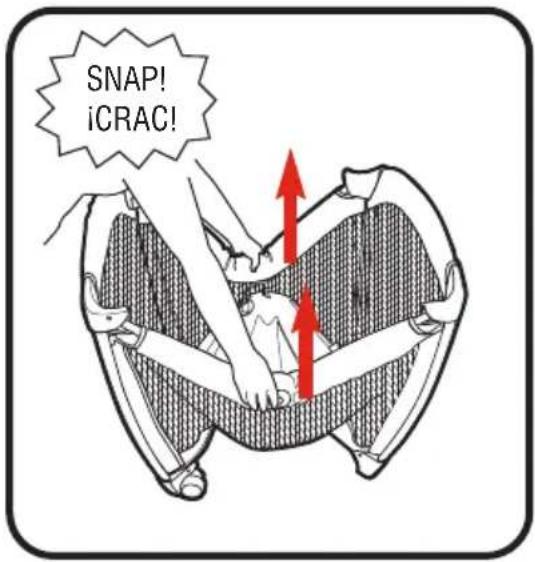

SNAP! iCRAC!

Diagram of a mechanical component with a red arrow indicating a downward force or force, no text or symbols present.

Diagram illustrating a mechanical component with a downward arrow indicating compression or disassembly, accompanied by a magnified view.

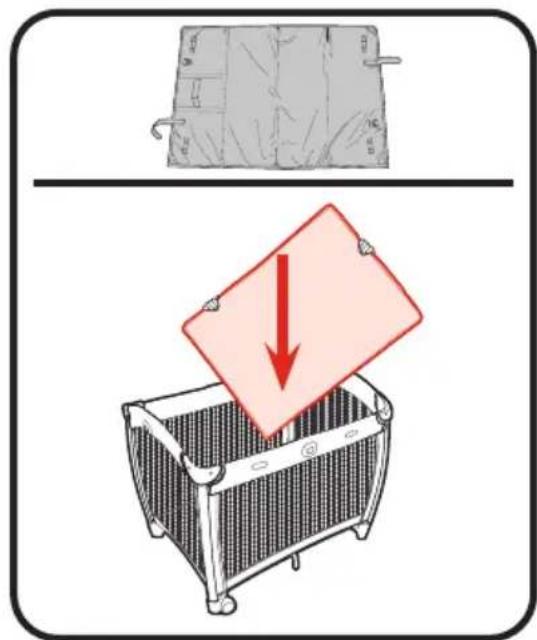

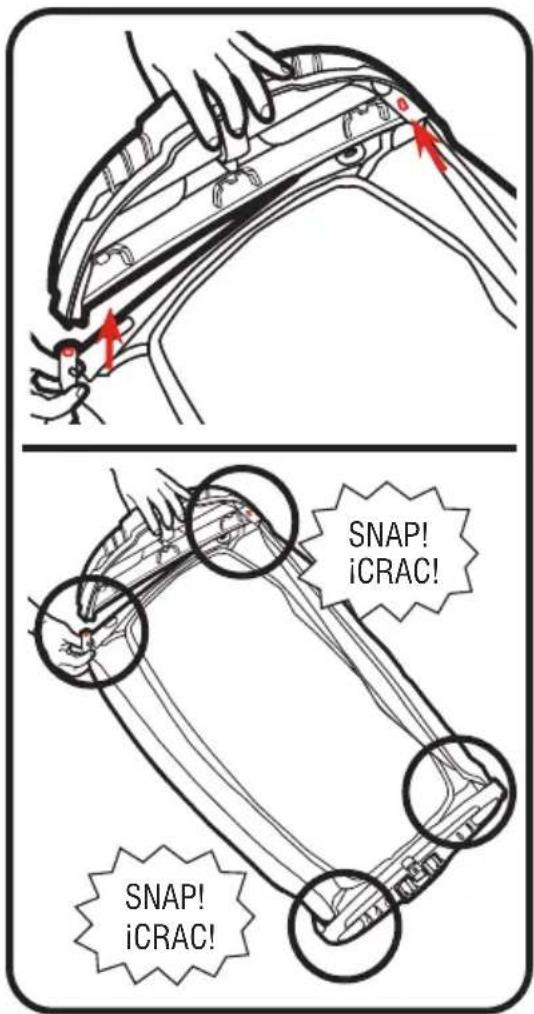

SNAP! iCRAC!

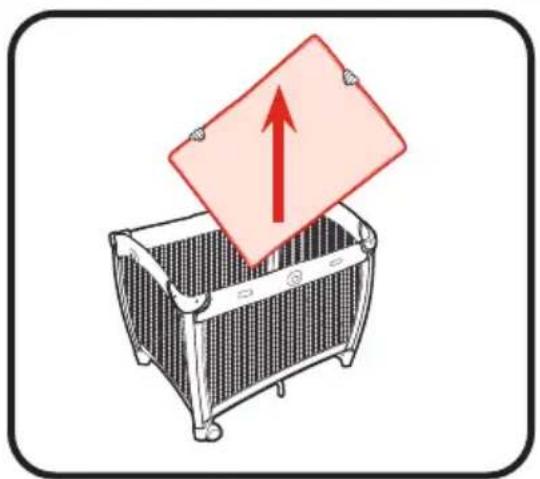

3-B To Fold • Para plegar

Diagram showing a box with heat exchanger and a red upward arrow, indicating heat transfer or movement.

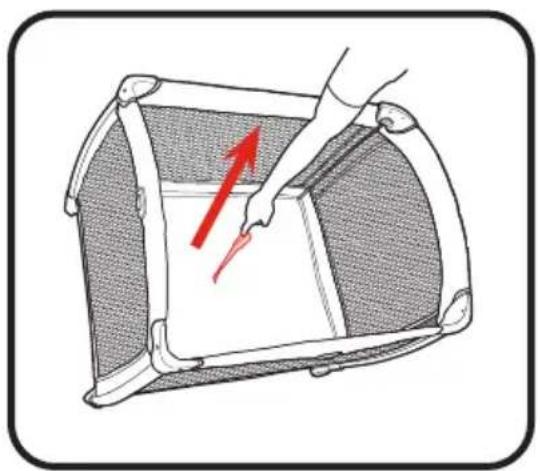

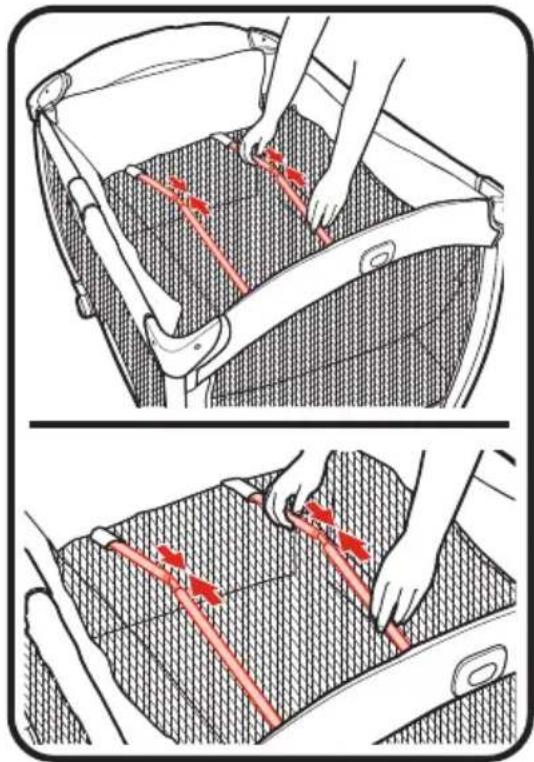

1. Release straps on bottom of playard. Pull mattress fully out of playard.
2. Libere las correas en el fondo del corralito. Saque completamente la almohadilla del colchón del corralito.

Illustration of a hand placing a red arrow into a gray mesh container (no text or symbols)

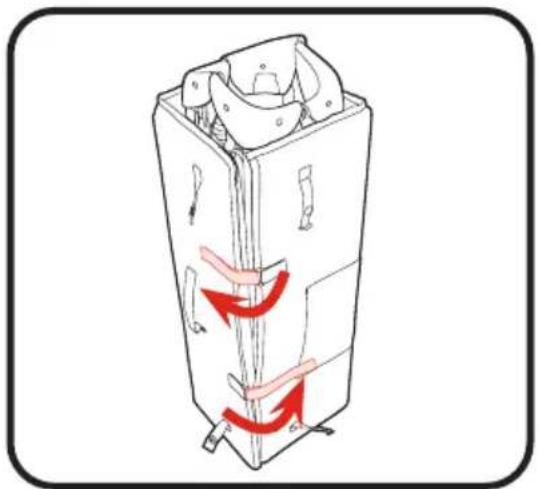

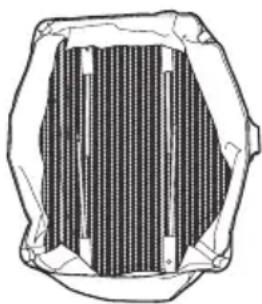

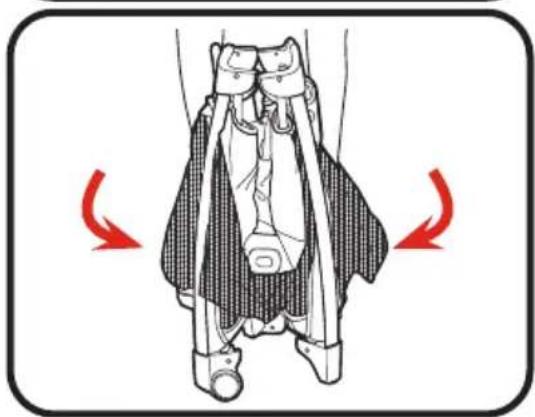

3. Center of floor must be up.

a. Lift up slightly on the top rail.
b. Push in on the button located on the side of the top rail to release the two tubes.
c. Push down.

• If top rails do not unlatch, DO NOT FORCE. Lift the center of the floor higher.
• Both tubes must be released for the top rail to fold.

Illustration of a person adjusting a seatbelt device with a red arrow indicating the seat area (no text or symbols present)

Illustration of a person's torso with two red arrows indicating movement or pressure points (no text or symbols present)

Diagram of a mechanical device with red directional arrows indicating flow or movement (no text or symbols)

Illustration of a person holding a roller with a cloth, no text or symbols present

Illustration of a person holding a bottle with a red object inside, no text or symbols present

SUFFOCATION HAZARD Infants have suffocated:

• In gaps between extra padding and side of the bassinet, and
• On soft bedding.

Use ONLY mattress pad provided by Graco. NEVER add a pillow, comforter, toys or another mattress for padding.

• FALL HAZARD: To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 15 lb (6.8 kg), whichever comes first.
• Use bassinet with only one child at a time.
• Never place a child under the bassinet.
• The bassinet must be fully assembled and installed, including four metal tubes, four corner mounts, two clips and mattress pad, before using. Do not modify bassinet or add any attachments that are not listed in the owner's manual.
• DO NOT store the bassinet in the playard while in use.
• To help prevent heat build-up inside the playard and to avoid overheating your child, when using the bassinet DO NOT use an outdoor canopy.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• If a sheet is used with the pad use only the one provided by Graco or one specifically designed to fit the dimensions of the mattress pad.
• Never place child in bassinet while a bouncer or changer is attached.

Technical line drawing of a mechanical component with internal striped structure (no text or symbols)

C.PlayardBassinet

- Moisés del Corralito

ADVERTENCIA

Illustration of a box with a red upward arrow placed on top, indicating direction or force (no text or symbols present)

Medical illustration showing a hand holding a device with red arrows indicating force or movement, alongside a close-up of the device's internal structure.

Diagram of a baby crib with red arrows indicating measurement or assembly points (no text or symbols present)

Illustration of a baby crib with mesh backrest and red arrows indicating measurement or features (no text or symbols)

Diagram illustrating hand positioning and movement of a car seat, with red arrows indicating direction of movement.

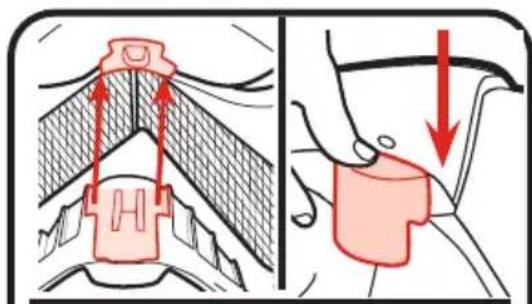

1. Insert tapered end of tube into end of opposite tube. Repeat with other set of bars.

CHECK: Tubes MUST be assembled before placing mattress pad in bassinet.

Diagram showing a baby barn with a red downward arrow pointing to the top panel, indicating a reduction or removal process.

Technical line drawing of a mechanical device with mounting brackets and red arrows indicating force or movement (no text or symbols)

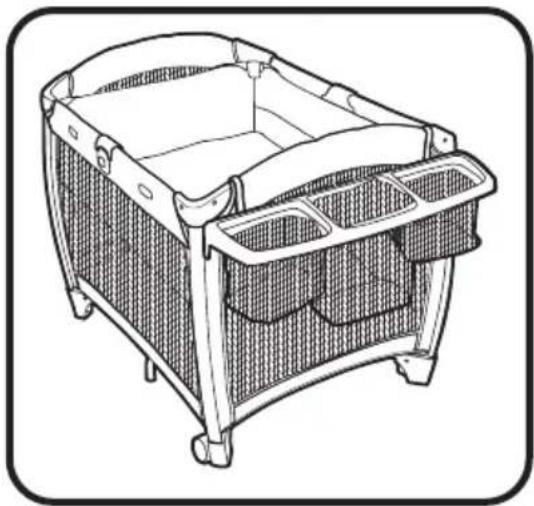

Always keep objects out of child's reach. Remove this accessory when child is able to pull himself up in the playard.

ADVERTENCIA

Line drawing of a three-tiered plastic container with woven material (no text or symbols)

Illustration of hands performing a medical procedure on a car seatbelt (no text or symbols present)

Line drawing of a baby care kit with mesh backrest and curved legs (no text or symbols)

4-C Changing Area • Los cambiadores

WARNING

FALL HAZARD Children have suffered serious injuries after falling from changing area. Falls can happen quickly.

• STAY within arms reach.
- Use changing area only on this playard model.

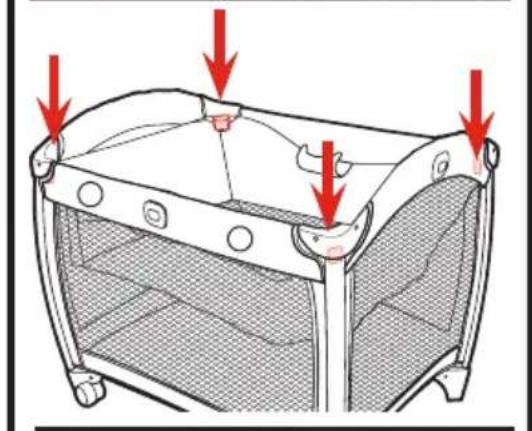

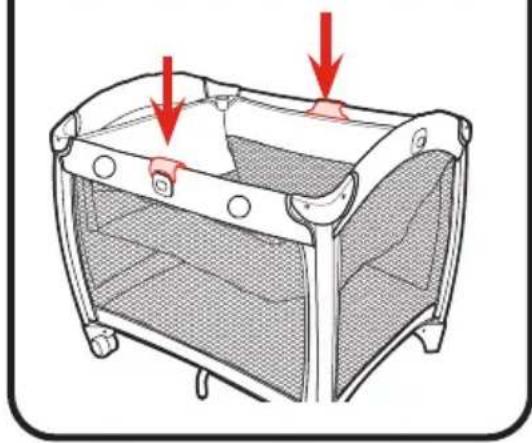

- ALWAYS secure this unit to the support frame by attaching to identified location. Before each use, check the attachment by grasping the sides/ends of the changing area and pulling upward. CHECK that changer fabric is properly attached to the frame before use. Push down on changing area before each use. See instructions.

Suffocation Hazard Babies have suffocated while sleeping on changing area: changing area is not safe for sleep.

• NEVER allow baby to sleep on changing area.
• Weight limit for the changing area is 30 lb (14 kg). Do not use the changing area as extra storage.
• Do not use changing area if it is damaged or broken.

Strangulation Hazard: Never leave changing area in place when a child is in the playard.

• ONLY use with playard bassinet attached.
• NEVER place child in playard bassinet if changer is attached.

ADVERTENCIA

Simple line drawing of a rectangular tray or container with rounded corners and small protrusions (no text or symbols)

L. Changing Area
- Cambiador

Diagram illustrating three-step instructions for using a tool to adjust the screen area, with red arrows indicating rotation.

SNAP! iCRAC! SNAP! iCRAC!

Illustration of a person adjusting a seatbelt device, showing two steps with red arrows indicating movement (no text or symbols present)

Diagram of a car front bumper with red arrows indicating motion or force (no text or symbols)

Prevent serious injury or death: Failure to follow these warnings and the instructions could result in serious injury or death.

• This product is not safe for sleep.

FALL HAZARD: Babies have suffered skull fractures falling while in and from bouncer.

• Use bouncer ONLY on floor.
• To prevent falls and suffocation: ALWAYS use restraints and adjust to fit snugly at all times.
• WHEN USED AS A SEAT ON THE PLAYARD: To prevent falls and suffocation, stop using the product when infant:
• Begins to wiggle out of position or turn over in the product or
  • Head touches the upper edge of the product or
• Weighs more than 15 lb (6.8 kg) (approximately 3 months of age).
• WHEN USED AS A BOUNCER: To prevent falls stop using the product when infant:
• Starts trying to sit up or has reached 18 lb (8.2 kg), whichever comes first.

- Child's movement can slide product.

- NEVER place product on counter tops, tables, etc.

- NEVER use this product as a means to transport an infant in a motor vehicle.

- FALL HAZARD: The carrier can fall from the shopping cart. Do not use on shopping cart.

Prohibition sign with pictogram of person shopping and a red circle indicating no shopping activity

SUFFOCATION HAZARD: Infants

have suffocated:

• When product was placed on a soft surface and tipped over
• NEVER place product on beds, sofas, cushions or other soft surfaces.
• On added pillows, blankets and extra padding.
• ONLY use the pad provided by the manufacturer.
• NEVER place extra padding under or beside infant.
• When trapped between product and adjacent surfaces.
• Always attach the product at the identified locations on playard. Always use the bassinet when using the seat.
• NEVER use product in a different product.
• NEVER use in contained areas (e.g. crib, playard) or next to vertical surfaces (e.g. walls and dressers).
• Never use this seat on any other product.
• Never leave child unattended.

• ALWAYS place child on back.

- Use product with only one child at a time.

• NEVER place a child under the product.

- The product must be fully assembled before using.

Do not modify product or add any attachments that are not listed in the owner's manual.

- NEVER leave bouncer in place when child is in playard.

STRANGULATION HAZARD:

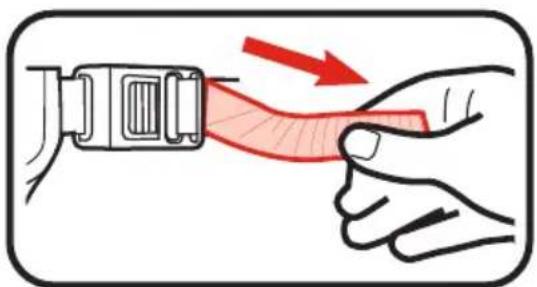

• Children have STRANGLED in loose or partially buckled harness straps. Fully restrain the child at all times.
• NEVER place child in bassinet while product is attached.
• Do not use this product if it is damaged or broken.
• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the seat near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the seat.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
• Make sure canopy is securely attached when in use.
• Canopy for indoor use only.
  • DO NOT store the seat in the playard while in use.
• Never place any objects in seat while child is in it.
  • To prevent serious injury or death, DO NOT REMOVE FOAM.
  • Head support for use only with this product.

ADVERTENCIA

Prohibition sign with pictogram of person shopping and a red circle, indicating no shopping activity

• To prevent serious injury or death, DO NOT REMOVE FOAM.
- Remove and IMMEDIATELY discard the zip tie.

ADVERTENCIA

Simple line drawing of two crossed pipes with circular ends (no text or symbols)

Pure mechanical pipe diagram without any text, numbers, or symbols

Simple line drawing of a curved, elongated object resembling a stylized fish or abstract shape (no text or symbols)

Simple line drawing of a mushroom shape with no text or symbols

Head end (no switch)

Foot end (vibration switch)

Line drawing of a car seatbelt with no text or symbols

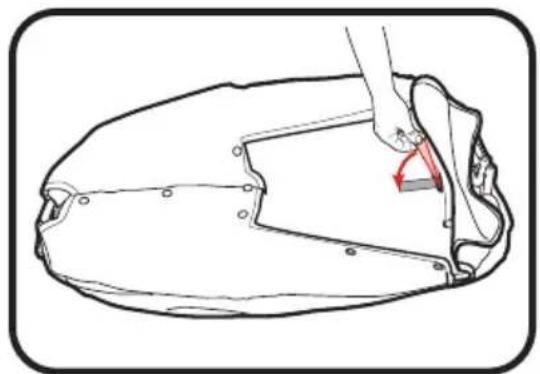

H. Bouncer Fabric with Side Tubes

Line drawing of a mechanical component with a handle and base, no text or symbols present

Line drawing of a mechanical component with a hand pressing a section (no text or symbols)

Cross-sectional diagram of a mechanical component with red arrows indicating internal features (no text or symbols)

Diagram of a mechanical component with two red arrows indicating downward motion, no text or symbols present

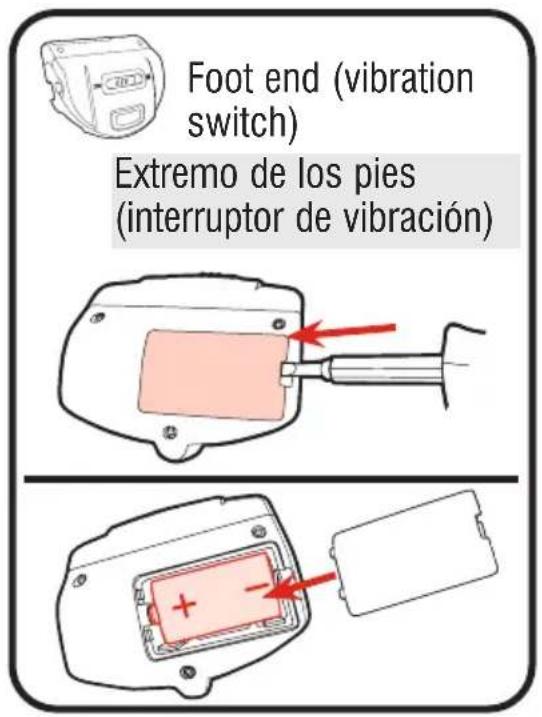

1. Use key or flat head screwdriver to open battery compartment on back of the foot end hub (J) with switch and insert 1-D (LR20-1.5V) (not included). Replace battery compartment door.

2. Utilizando una llave o un destornillador plano, abra el compartimento de las pilas en el reverso del eje del extremo de los pies que tiene el interruptor (J), e inserte una pila D (LR20-1.5V) (no incluida). Vuelva a cerrar la puerta del compartimiento de las pilas.

3. Insert tube ends into both sides of foot end hub (J).

NOTE: Disconnect snaps as needed to align tubes with openings in hub.

Illustration of a hand placing a red object into a container inside a device, with no visible text or symbols.

G. Bouncer Legs

Diagram illustrating a safety harness with red arrows indicating clockwise motion and a prohibition symbol for the bottom view.

Technical diagram showing two views of a helmet with red arrows indicating force directions, likely illustrating safety or movement techniques.

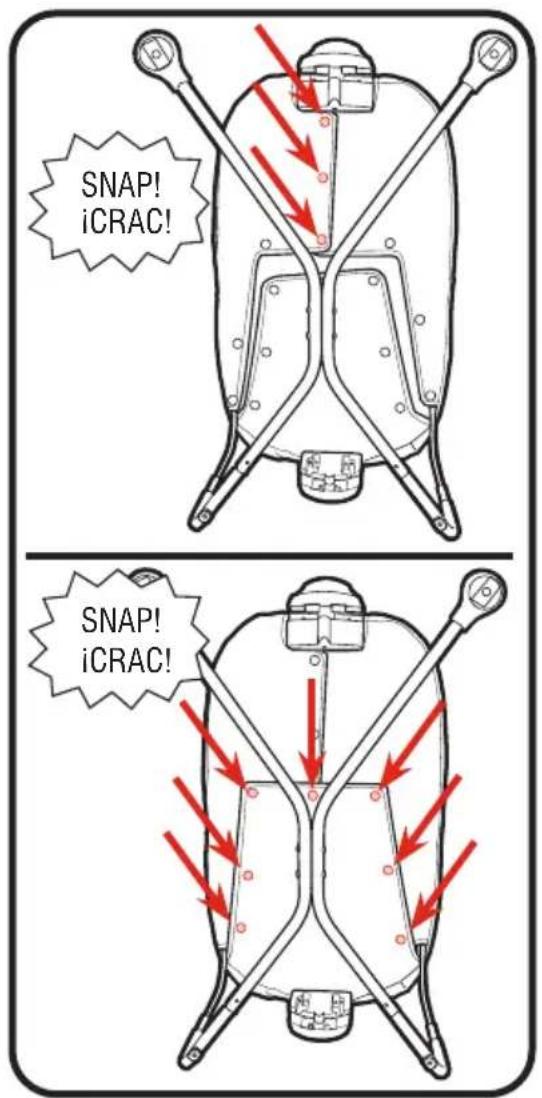

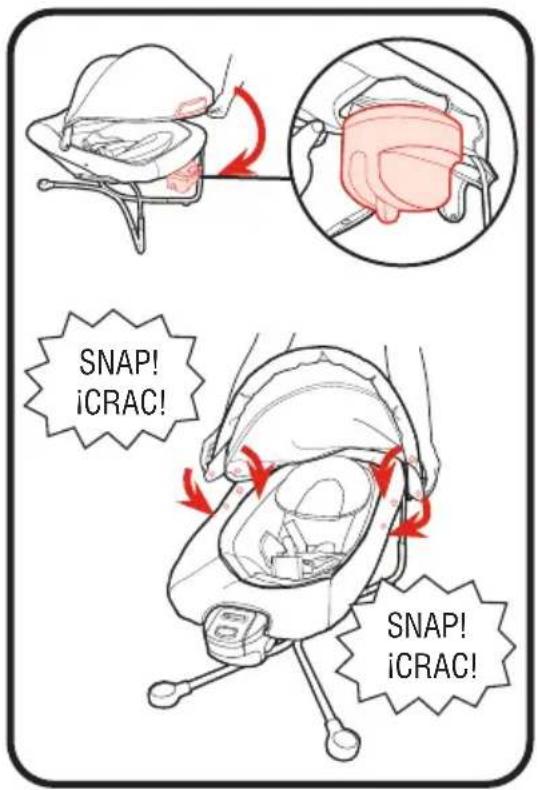

SNAP! iCRAC! SNAP! iCRAC!

SNAP! iCRAC! SNAP! iCRAC!

SNAP! iCRAC! SNAP! iCRAC!

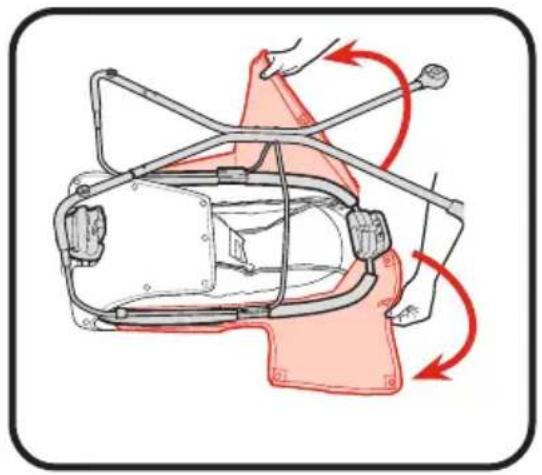

1. Fasten snaps on soft goods.

2. Sujete los broches en los artículos blandos.

3. Wrap canopy (K) around head end hub, and attach the canopy snaps to the sides as shown.

CHECK that canopy is wrapped around head of bouncer.

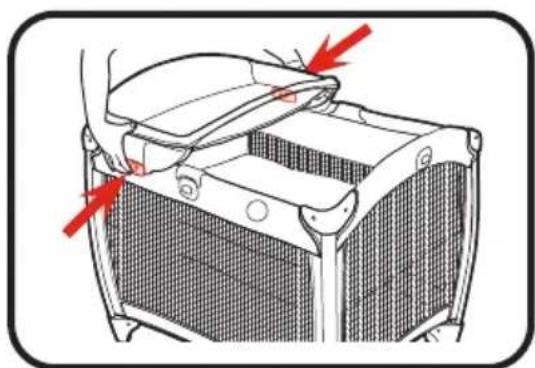

1. To attach bouncer to playard, line up seat handles with lock logo on one of the two attachment positions. Push bouncer onto playard rails.

NOTE: Bassinet must be attached to playard when using bouncer.

Diagram illustrating a baby seat with labeled parts and a red arrow indicating movement or positioning.

Use slide adjuster at waist for tighter adjustment.

Diagram illustrating how to switch a seatbelt, showing correct and incorrect states with red arrows indicating movement.

Illustration of a hand adjusting a belt buckle with a red arrow indicating compression (no text or symbols)

To Use Electronic Switch

Line drawing of a mechanical component with no visible text or symbols

To use integrated electronic switch, slide button to left for low speed or right for high speed vibration.

Diagram illustrating car seat replacement steps with arrows indicating changes in seat positioning and seating arrangement.

Diagram illustrating a baby's seat replacement setup with labeled parts and directional arrow

5-A Care and Maintenance

Illustration of a hand pressing down on a device with a red arrow indicating motion (no text or symbols)

Diagram of a mechanical assembly with red arrows indicating motion or force direction (no text or symbols)

Diagram of a vehicle's internal components with red lines and arrows indicating motion or force (no text or labels)

NOTE: Reverse steps to re-attach.

FROM TIME TO TIME CHECK YOUR PLAYARD for worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco® replacement parts.

• CARRYBAG: Machine wash in cold water on delicate cycle and drip-dry. NO BLEACH.
• CHANGER: Wipe clean with damp cloth. NO BLEACH.
• PLAYARD: Use only household soap or detergent and warm water. DO NOT SUBMERGE PLAYARD IN WATER.
• BASSINET: Hand wash with warm water and household soap. Drip dry. DO NOT SUBMERGE PLAYARD BASSINET IN WATER.
• PLAYARD MATTRESS PAD: Wipe clean with damp cloth. NO BLEACH. DO NOT SUBMERGE MATTRESS PAD IN WATER.
• BOUNCER: Machine wash in cold water on delicate cycle and drip-dry. NO BLEACH. Refer to your care tag on your seat pad for washing instructions.

To purchase parts or accessories or for warranty information in the United States, please contact us at the following:

To register your Graco product from within the U.S.A. visit us online at www.gracobaby.com/productregistration or return registration card provided with your product. We currently do not accept product registrations from those living outside the United States of America.

Line drawing of a mechanical device with internal components and mounting feet (no text or symbols)
