Product Type	Portable Playard with Rocking Bassinet
Brand	Graco
Model	Pack 'n Play Rock 'n Grow
Dimensions (Assembled)	Approx. 30 x 28 x 40 inches (L x W x H)
Weight	Approx. 22 lbs
Material	Steel frame, polyester fabric, foam mattress
Power Source	None (manual rocking mechanism)
Age Range	Newborn to 3 years (max weight 30 lbs)
Mattress Type	Padded foam mattress included
Bassinet Feature	Removable rocking bassinet for newborns
Changing Station	Not included (sold separately?) - estimate: no
Safety Features	Sturdy frame, lockable wheels, non-toxic materials, JPMA certified
Assembly Required	Yes, tool-free assembly with instructions
Cleaning Instructions	Wipe frame with damp cloth; machine wash removable fabric (cold, gentle cycle)
Storage	Folds flat for storage and travel
Spare Parts Availability	Graco customer service for replacement parts
Repairability	Limited; frame repairs recommended by professional; fabric replaceable
Warranty	1-year limited warranty
Country of Origin	China

Frequently Asked Questions - Pack 'n Play Rock 'n Grow GRACO

How do I assemble the Pack 'n Play Rock 'n Grow?

Assembly is tool-free. Follow the step-by-step instructions in the manual. Unfold the base frame until it clicks into place, then attach the rocking bassinet or mattress pad according to your child's age.

What is the weight limit for the rocking bassinet?

The rocking bassinet is intended for infants up to 15 pounds or until the baby can push up on hands and knees. Always check the manual for specific limits.

Can I use the playard for overnight sleeping?

Yes, the Pack 'n Play Rock 'n Grow is designed for supervised sleep. Ensure the mattress is firm and flat, and follow safe sleep guidelines. Do not use the rocking function while baby is sleeping.

How do I clean the fabric?

Remove the fabric covers and machine wash them in cold water on gentle cycle. Air dry or tumble dry low. Wipe the metal frame with a damp cloth and mild soap.

Is the rocking feature safe?

Yes, the gentle rocking motion is designed for supervised awake time. Never leave baby unattended while rocking. Always lock the rocker when not in use.

What is the maximum age/weight for the playard?

The playard is designed for children up to 30 pounds or approximately 3 years old, whichever comes first. Discontinue use once the child can climb out.

Can I use an additional mattress?

Only use the mattress provided by Graco to ensure safety. Adding extra padding creates a suffocation risk.

How do I fold the playard for storage?

First, remove the bassinet and mattress. Then press the buttons on the frame and fold it toward the center. It should click into a compact shape. Refer to the manual for a visual guide.

Are replacement parts available?

Yes, contact Graco customer service or visit their website to order replacement parts like fabric sets or hardware.

Does this model include a diaper changing station?

No, the Pack 'n Play Rock 'n Grow does not have a built-in changing station. It focuses on the rocking bassinet and playard features.

USER MANUAL Pack 'n Play Rock 'n Grow GRACO

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

5-B Replacement Parts • Warranty Information

Failure to follow these warnings and the instructions could result in serious injury or death.

Setting Up the Playard

• THIS PRODUCT REQUIRES ADULT ASSEMBLY.
- Keep fingers clear of top corners during setup. Be sure playard is completely set up before use. Check that the four top rails are completely latched, the center of the floor is pushed down, the mattress pad is flat, and the straps are securely fastened to the bottom of the unit. Always follow the instructions in the owner's manual to set up the playard.
- Never use this product if there are any loose or missing fasteners, loose joints, broken parts or torn mesh. Check before assembly and periodically during use. Contact Graco at 1-800-345-4109 for replacement parts and instructions if needed. Never substitute parts.

Using the Playard

• The playard is for playing or sleeping. When used for playing, never leave child unattended and always keep child in view. When used for sleeping, you must still provide the supervision necessary for the continued safety of your child.
  • Always keep the playard away from hazards in the area that may injure your child.
• When child is able to pull to standing position, remove large toys and other objects that could serve as steps for climbing out.
• Stop using this product when your child reaches 35 in. (89 cm) in height, weighs more than 30 lb (14 kg), or is able to climb out.
• Do not modify playard or add any attachments that are not listed in the owner's manual, including an add-on bassinet.
• Child can become entrapped and die when improvised netting or covers are placed on top of a playard. Never add such items to confine child in playard.

WARNING

- NEVER leave child in product with side lowered. Be sure side is in raised and locked position whenever child is in product.

Avoiding Suffocation Hazards

- Unlike cribs that have rigid sides, the playard has flexible sides. As a result, the playard mattress pad is specially designed to prevent suffocation. The playard mattress pad has a solid base, a certain length and width, and is less than one inch thick in order to meet safety standards. Using a thicker or a different sized mattress pad may allow a child's head to get between mattress pad and the side of the playard causing suffocation.

• Infants can suffocate

- In gaps between a mattress too small or too thick and products sides

- On soft bedding.

- NEVER add a mattress, pillow, comforter or padding. Use ONLY mattress pad provided by Graco. Mattress dimension: 27"x 36" (68.5 cm x 91.4 cm).

- To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

• Never use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.
  • NEVER use a water mattress with the playard.
• If a sheet is used with the pad use only the one provided by Graco that is specifically designed to fit the dimensions of the mattress pad.

Avoiding Strangulation Hazards

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the playard near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the playard.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
  • NEVER attach strings to toys.

This product is not intended for commercial use.

WARNING

FOR SAFE BATTERY USE:

Keep the batteries out of children's reach.

Discard leaky batteries immediately. When discarding batteries, be sure to dispose of them in the proper manner, according to your state and local regulations.

To prevent battery leaks, which can burn skin and eyes:

• Remove battery when storing product for a long time.
• Dispose of used battery immediately.

Recommended type battery—alkaline disposables, 1-D (LR20-1.5V). Change batteries when product ceases to operate satisfactorily.

Troubleshooting: If your device is not functioning properly, check for the following problems:

1. No batteries in electronics module.
2. Batteries dead.
3. Batteries in backwards—check “+” and “-”.
4. Corrosion on battery terminals. Rotate batteries in place against terminals, or clean with sandpaper or steel wool if corrosion is severe.
5. Batteries too weak.

If you still have problems, call our toll-free number: USA 1-800-345-4109.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.

ADVERTENCIA

This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service 1-800-345-4109. No tools required.

E

C

G

H

|

J

DO NOT REMOVE FOAM

NO SAQUE LA GOMA ESPUMA.

L

M

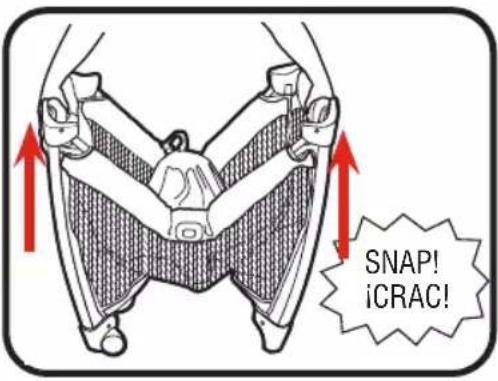

Be sure top rails have become rigid. If not, pull up again until they are rigid. If top rails do not latch, lift the center of the floor higher.

CHECK that fabric covers corners.

3-B To Fold • Para Plegar

3. Center of floor must be up.

a. Lift up slightly on the top rail.
b. Push in on the button located on the side of the top rail to release the two tubes.
c. Push down.

• If top rails do not unlatch, do not force. Lift the center of the floor higher.
• Both tubes must be released for the top rail to fold.

4-A Playard Bassinet • Moisés Del Corralito

WARNING

SUFFOCATION HAZARD Infants have suffocated:

• In gaps between extra padding and side of the bassinet, and
• On soft bedding.

Use ONLY mattress pad provided by Graco. NEVER add a pillow, comforter, toys or another mattress for padding.

• FALL HAZARD: To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 15 lb (6.8 kg), whichever comes first.
• Use bassinet with only one child at a time.
• Never place a child under the bassinet.
• The bassinet must be fully assembled and installed, including four metal tubes, four corner mounts, two clips and mattress pad, before using. Do not modify bassinet or add any attachments that are not listed in the owner's manual.
• DO NOT store the bassinet in the playard while in use.
• To help prevent heat build-up inside the playard and to avoid overheating your child, when using the bassinet DO NOT use an outdoor canopy.
• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• If a sheet is used with the pad use only the one provided by Graco that is specifically designed to fit the dimensions of the bassinet.
• Never place child in bassinet while a seat or changer is attached. STRANGULATION HAZARD:
• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER hang strings on or over the product.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
• NEVER attach strings to toys.

C.PlayardBassinet

- Moisés del Corralito

ADVERTENCIA

4-B Changing Area • Los Cambiadores

WARNING

FALL HAZARD Children have suffered serious injuries after falling from changing area. Falls can happen quickly.

• STAY within arms reach.
- Use changing area only on this playard model.
- ALWAYS secure this unit to the support frame by attaching to identified location. Before each use, check the attachment by grasping the sides/ends of the changing area, and pulling upward. See instructions.

Suffocation Hazard Babies have suffocated while sleeping on changing area: changing area is not safe for sleep.

• NEVER allow baby to sleep on changing area.
• Weight limit for the changing area is 30 lb (14 kg). Do not use the changing area as extra storage.
• Do not use changing area if it is damaged or broken.

Strangulation Hazard: Never leave changing area in place when a child is in the playard.

• Use changing area only on this playard model.
• ONLY use with bassinet attached.
• NEVER place child in bassinet if changer is attached.

ADVERTENCIA

E. Changing Area
- Cambiador

4-C Parent Organizer • Organizador Para Padres

WARNING

Always keep objects out of child's reach. Remove this accessory when child is able to pull himself up in the playard.

ADVERTENCIA

• This product is not safe for sleep.

FALL HAZARD: To prevent falls, stop using the product when infant:

• Begins to wiggle out of position or turn over in the product or
  • Head touches the sew line on the product or

• Weighs more than 15 lb (6.8 kg) (approximately 3 months of age).

• Only use seat on playard when bassinet is attached.

• Child's activity can move product. Never place product near edges of counter tops, tables or other elevated surfaces.
  • NEVER leave child unattended.

SUFFOCATION HAZARD: Infants have suffocated:

• On added pillows, blankets and extra padding.
• ONLY use the pad provided by the manufacturer.
• NEVER place extra padding under or beside infant.
• When trapped between seat and adjacent surfaces.
• Only use on playard when it is securely attached to identified locations.
• NEVER use seat in different product.
• NEVER use in contained areas (e.g. crib, playard) or next to vertical surfaces (e.g. walls and dressers).
• When product was placed on a soft surface and tipped over
• NEVER place product on beds, cribs, sofas, cushions or other soft surfaces.

• ALWAYS place child on back.
- Stay near and watch infant during use. This product is not safe for sleep or unsupervised use. If infant falls asleep, remove infant as soon as possible and place infant on a firm, flat sleep surface such as a crib or bassinet.
• ALWAYS use restraints. Adjust to fit snugly.
- NEVER place child in bassinet while seat is attached.
- Never leave seat in place when a child is in the playard.
- The seat must be fully assembled before using. Do not modify seat or add any attachments that are not listed in the owner's manual.
- Never place seat in the bottom of playard.
- NEVER use this product as a means to transport an infant in a motor vehicle.
- FALL HAZARD: The carrier can fall from the shopping cart. Do not use on shopping cart.

WARNING

STRANGULATION HAZARD:

• Children have STRANGLED in loose or partially buckled harness straps. Fully restrain the child at all times.
• Do not use this seat if it is damaged or broken.
• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the product near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the product.
• NEVER attach strings to toys.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.

- Make sure canopy is securely attached when in use.

- Never place any objects in product while child is in it.

- To prevent serious injury or death, DO NOT REMOVE FOAM.

ADVERTENCIA

DO NOT REMOVE FOAM NO SAQUE LA GOMA ESPUMA.

1. Attach rear rocker tube (M) to rocker frame.

CHECK that buttons are visible in openings on the bottom of the rocker frame.

To Secure Child • Para Asegurar Al Niño

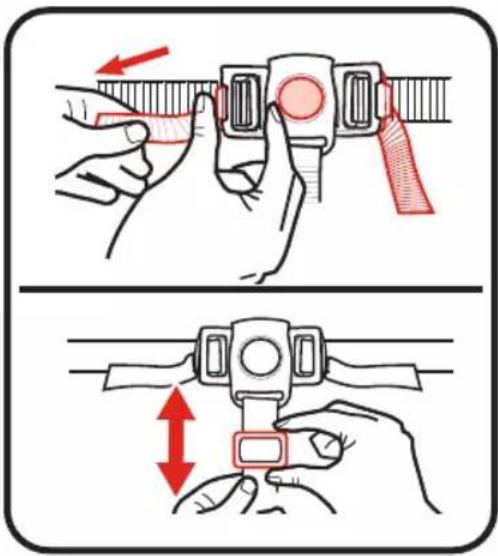

1. Use slide adjuster at waist and crotch for tighter adjustment.

CHECK harness is secured by pulling on it.

To Incline/Recline Seat • Para Inclinar/Reclinar El Asiento

1. To incline, squeeze handles on both sides of frame and move seat to desired position.

NOTE: The most reclined position is only usable when the seat is attached to the playard.

CHECK that both sides of the seat back are latched into the same position and the seat back is level.

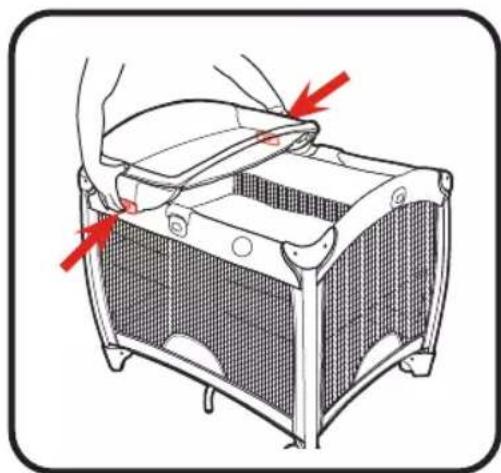

1. To attach seat to playard, recline to most reclined positon.

CHECK that the back of the rocker tubing is up against the housing.

FALL HAZARD: Child's activity can move product. Children have suffered head injuries falling from rockers.

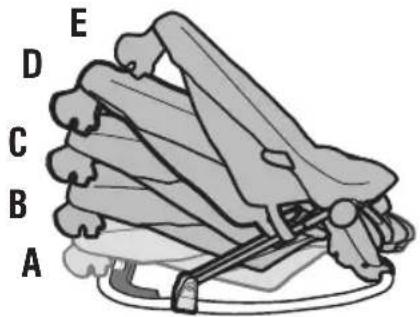

• As a rocker, stop using:
- B and C position when baby starts trying to sit up or has reached 18 lb (8.2 kg), whichever comes first.
- D and E position when baby has reached 40 lb (18.1kg).
- The two most upright positions are only for children who have developed enough upper body control to sit up without tipping forward.
- Always use on floor. Never place product on counter tops, tables or other elevated surfaces.
- Always use restraint system until child is able to climb in and out of the product unassisted. Adjust to fit snugly.
- Stop using as carrier when baby starts trying to sit up or has reached 18 lb (8.2 kg) (approximately 5 months of age), whichever comes first.

SUFFOCATION HAZARD: Babies have suffocated when seats tipped over on soft surfaces.

• NEVER use on a bed, sofa, cushion, or other soft surface.
• Stay near and watch child during use. This product is not safe for sleep or unsupervised use. If baby falls asleep, remove baby as soon as possible and place baby on a firm, flat sleep surface such as a crib or bassinet.
  • ALWAYS place child on back.

STRANGULATION HAZARD:

• Children have STRANGLED in loose or partially buckled harness straps. Fully restrain the child at all times.
• Do not use this product if it is damaged or broken.
• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the product near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the product. • NEVER attach strings to toys. • NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
• Make sure canopy is securely attached when in use.
• DO NOT store the product in the playard while in use.
• Never place any objects in product while child is in it.
• To prevent serious injury or death, DO NOT REMOVE FOAM.
• The product must be fully assembled before using. Do not modify product or add any attachments that are not listed in the owner's manual.
• NEVER use this product as a means to transport an infant in a motor vehicle.

ADVERTENCIA

When the product is used as a ROCKER on the floor, the following are the maximum weights per position:

A. For use when transporting, not for use on floor.

B-C. Infant Rocker: Up to 18 lb (8.2 kg)

D-E. Toddler Rocker: Up to 40 lb (18.1 kg)

When the product is used as a seat on playard, the following are the maximum weights per position: E

A. Newborn seat: Only when the product is attached to the playard, up to 15 lb (6.8 kg).
B-E. Not for use on playard

Stop using on the playard when child's head reaches the sew line on the product.

1. To use as rocker, rotate kickstand up.
2. Para usar como mecedora, gire el soporte hacia arriba.

For larger child you can push canopy back or remove as shown.

Body Support • Support Corporel

Never use this body support on any other product.

To remove, open 3 point buckle and push waist straps through openings in body support.

5-A Care And Maintenance

Reverse steps to re-attach.

NOTE: Webbing tethers MUST wrap around the outside of the tubes before assembling snaps.

FROM TIME TO TIME, CHECK YOUR PLAYARD for worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco® replacement parts.

• CARRY BAG: Machine wash in cold water on delicate cycle and drip-dry. NO BLEACH.
• CHANGER: Wipe clean with damp cloth. NO BLEACH.
• PLAYARD: Use only household soap or detergent and warm water. DO NOT SUBMERGE PLAYARD IN WATER.
• BASSINET: Hand wash with warm water and household soap. Drip dry. DO NOT SUBMERGE PLAYARD BASSINET IN WATER.
• MATTRESS PAD: Wipe clean with damp cloth. NO BLEACH. DO NOT SUBMERGE MATTRESS PAD IN WATER.
• SEAT: Machine wash in cold water on delicate cycle and drip-dry. NO BLEACH. Refer to your care tag on your seat pad for washing instructions.

5-B Replacement Parts • Warranty Information (USA)

To purchase parts or accessories or for warranty information in the United

States, please contact us at the following:

To register your Graco product from within the U.S.A. visit us online at www.gracobaby.com/productregistration or return registration card provided with your product. We currently do not accept product registrations from those living outside the United States of America.
