USER MANUAL Pack 'n Play Newborn Seat DLX GRACO

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

6-B Replacement Parts • Warranty Information

Failure to follow these warnings and the instructions could result in serious injury or death.

Setting Up the Playard

• This product requires adult assembly.
• Keep fingers clear of top corners during setup. Be sure playard is completely set up before use. Check that the four top rails are completely latched, the center of the floor is pushed down, the mattress/pad is flat, the straps are securely fastened to the bottom of the unit and the four corners are tucked under the stiffeners. Always follow the instructions in the owner's manual to set up the playard.

- Never use this product if there are any loose or missing fasteners, loose joints, broken parts or torn mesh. Check before assembly and periodically during use. Contact Graco at 1-800-345-4109 for replacement parts and instructions if needed. Never substitute parts.

Using the playard

• The playard is for playing or sleeping. When used for playing, never leave child unattended and always keep child in view. When used for sleeping, you must still provide the supervision necessary for the continued safety of your child.

• Always keep the playard away from hazards in the area that may injure your child.

• When child is able to pull to standing position, remove large toys and other objects that could serve as steps for climbing out.
• Stop using this product when your child reaches 35 in. (89 cm) in height, weighs more than 30 lb (14 kg), or is able to climb out.
• Do not modify playard or add any attachments that are not listed in the owner's manual, including an add-on bassinet.
• Child can become entrapped and die when improvised netting or covers are placed on top of a playard. Never add such items to confine child in playard.
• NEVER leave child in product with side lowered. Be sure side is in raised and locked position whenever child is in product.
• If refinishing, use a nontoxic finish specified for children's products.

Avoiding Suffocation Hazards

• Unlike cribs that have rigid sides, the playard has flexible sides. As a result, the playard mattress/pad is specially designed to prevent suffocation. The playard mattress/pad has a solid base, a certain length and width, and is less than one inch thick in order to meet safety standards. Using a thicker or a different sized mattress/pad may allow a child's head to get between mattress/pad and the side of the playard causing suffocation.

WARNING

• Infants can suffocate

- In gaps between a mattress too small or too thick and products sides - On soft bedding.

NEVER add a mattress, pillow, comforter or padding. Use ONLY mattress pad provided by Graco.

• To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.
• Never use plastic shipping bags or other plastic film as mattress covers not sold and intended for that purpose. They can cause suffocation.
  • NEVER use a water mattress with the playard.

Avoiding Strangulation Hazards

• Strings and cords can cause strangulation. Keep strings and cords away from child.
• NEVER place the playard near a window where cords from blinds or drapes can strangle a child.
• NEVER hang strings on or over the playard.
• NEVER place items with a string around a child's neck, such as hood strings, pacifier cords, etc.
• NEVER attach strings to toys.

This product is not intended for commercial use.

FOR SAFE BATTERY USE:

Keep the batteries out of children's reach.

Any battery may leak battery acid if mixed with a different battery type, if inserted incorrectly (put in backwards) or if all batteries are not replaced or recharged at the same time. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-metal hydride, nickel-cadmium) batteries.

Any battery may leak battery acid or explode if disposed of in fire or an attempt is made to charge a battery not intended to be recharged. Never recharge a cell of one type in a recharger made for a cell of another type.

Discard leaky batteries immediately. Leaky batteries can cause skin burns or other personal injury. When discarding batteries, be sure to dispose of them in the proper manner, according to your state and local regulations.

Remove batteries before storing product for a prolonged period of time. Batteries left in the unit may leak and cause damage.

Recommended type batteries—alkaline disposables, 1-D (LR20-1.5V). NEVER mix battery types. Change batteries when product ceases to operate satisfactorily.

WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is needed.
• Consult the dealer or an experienced radio/TV technician for help.

ADVERTENCIA

This model may not include some features shown below. Check that you have all the parts for this model BEFORE assembling your product. If any parts are missing, call Customer Service 1-800-345-4109.

Tools required: Philips Screwdriver

G

H

|

N

J

M

3-A Playard Setup • Armado del corralito

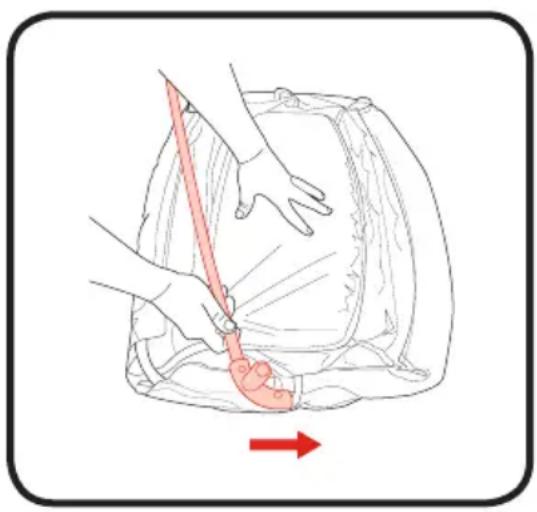

1. Disconnect straps holding mattress around playard.

2. Desconecte las correas que sujetan el colchón alrededor del corralito.

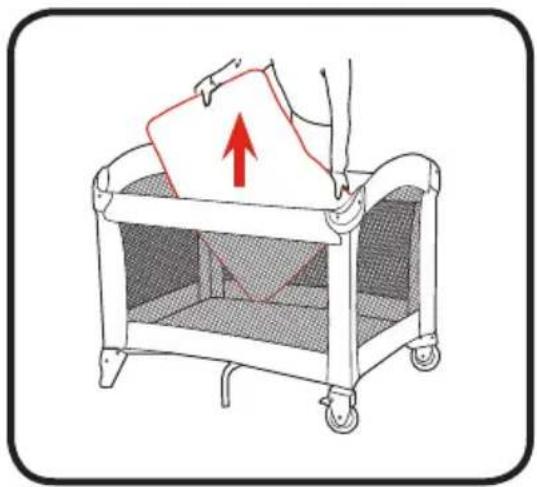

3. Remove mattress from around playard.

4. Saque el colchón del corralito.

4. When setting up, lock rails BEFORE lowering center.

Be sure top rails have become rigid. If not, pull up again until they are rigid. If top rails do not latch, lift the center of the floor higher.

CHECK that fabric covers corners.

3-B Bassinet Set Up • Armado del moisés

WARNING

SUFFOCATION HAZARD Infants have suffocated:

• In gaps between extra padding and side of the bassinet, and
• On soft bedding.

Use ONLY mattress/pad provided by Graco. NEVER add a pillow, comforter or another mattress for padding.

- FALL HAZARD: To help prevent falls, do not use this product when the infant begins to push up on hands and knees or weighs over 15 lb (6.8 kg), whichever comes first.

- Use bassinet with only one child at a time.

- Never place a child under the bassinet.

- The bassinet must be fully assembled and installed, including four metal tubes, eight clips and mattress/pad, before using. Do not modify bassinet or add any attachments that are not listed in the owner's manual.

- DO NOT store the bassinet in the playard while in use.

- With bassinet removed, NEVER use without zipper and buckle secured. Child could get out and be seriously injured.

- To help prevent heat build-up inside the playard and to avoid overheating your child, when using the bassinet DO NOT use an outdoor canopy.

- To reduce the risk of SIDS, pediatricians recommend healthy infants be placed on their backs to sleep, unless otherwise advised by your physician.

- If a sheet is used with the pad use only the one provided by Graco or one specifically designed to fit the dimensions of the bassinet.

- Never place child in bassinet while seat is attached.

ADVERTENCIA

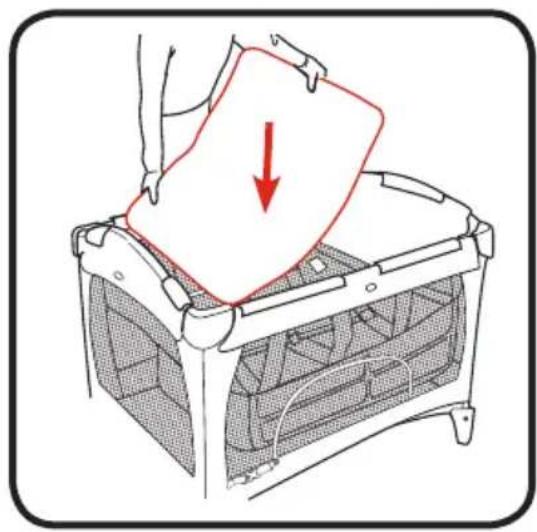

1. You will need to remove the mattress/pad from the bottom of the playard to use inside your travel bed. ALWAYS install mattress in travel bed before using as bassinet.

2. Necesitará sacar el colchón / almohadilla del fondo del corralito para usarlo adentro del moisés. Instale SIEMPRE el colchón en la cama para viajes antes de usarlo como un moisés.

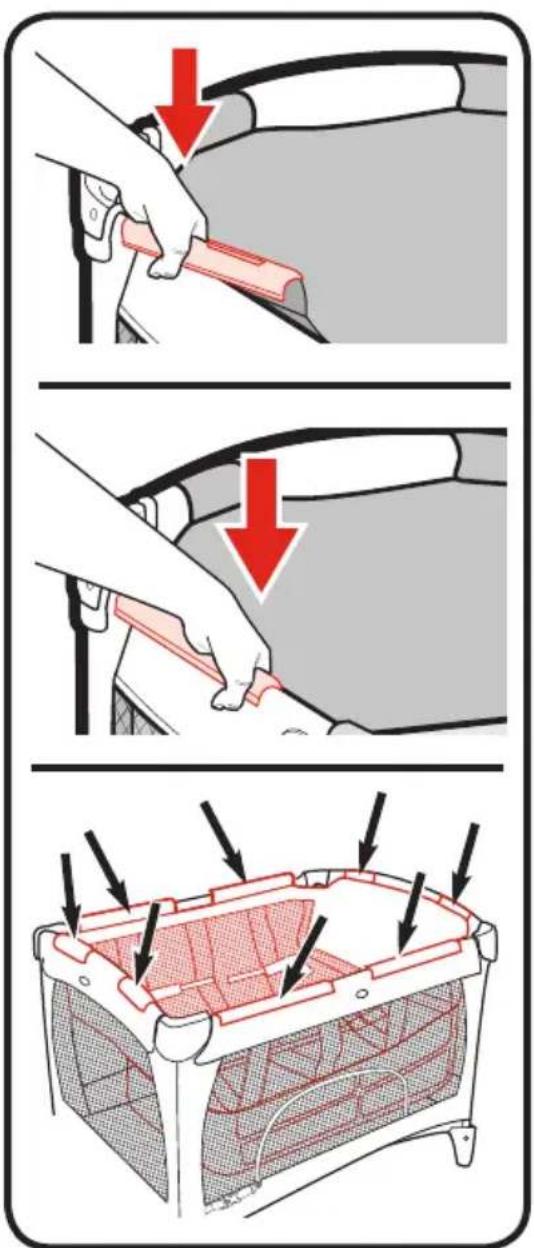

3. Make sure to fasten the bassinet clips to the playard. Always press down on the left side of the clip, then the right as shown. Attach 8 clips on bassinet clips to playard.

4. Tenga la seguridad de sujetar las trabas del moisés al corralito. Oprima siempre hacia abajo en el costado izquierdo de la presilla, luego el derecho como se indica. Sujete las 8 presillas del moisés al corralito.

5. Insert tapered end of bar into end of other bar with hole in it. Repeat with other set of bars.

CHECK: Tubes MUST be assembled before placing mattress/pad in bassinet.

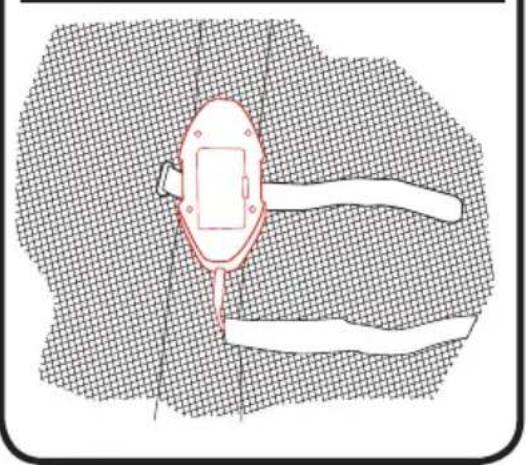

1. Vibration must be fastened tightly and centered on the webbing strap to work properly.
2. El vibrador debe estar bien sujeto y centrado en la correa de red para que funcione correctamente.

Do not exceed 15 lb (6.8 kg) on bassinet organizer.

Always keep objects in bassinet organizer out of childrens reach.

With bassinet removed, NEVER use without zipper and buckle secured. Child could get out and be seriously injured.

ADVERTENCIA

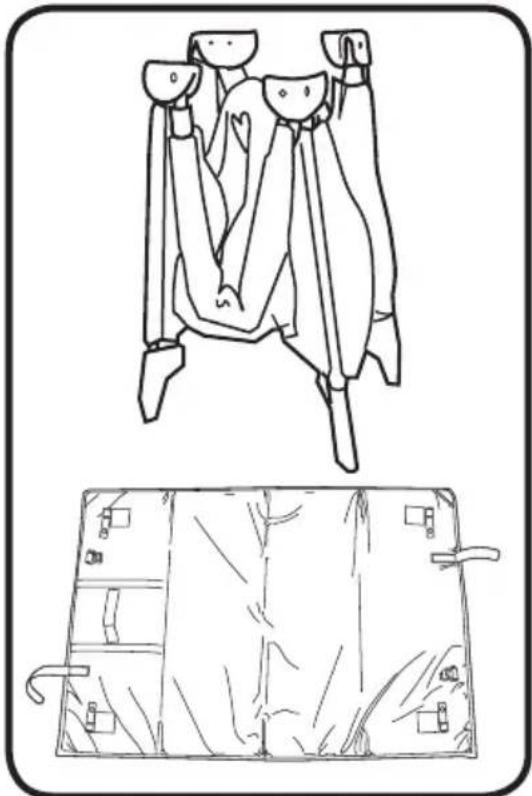

4-A To Fold • Para plegar

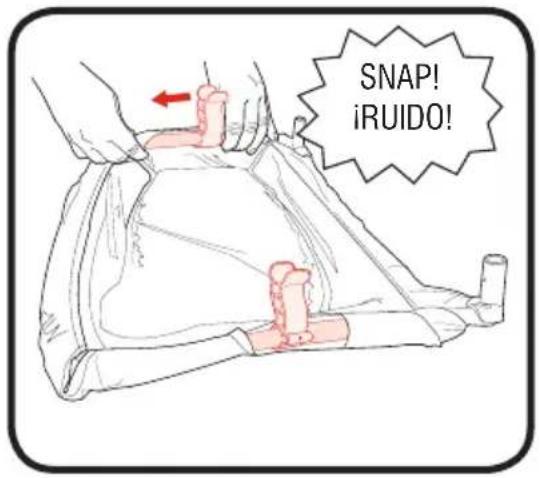

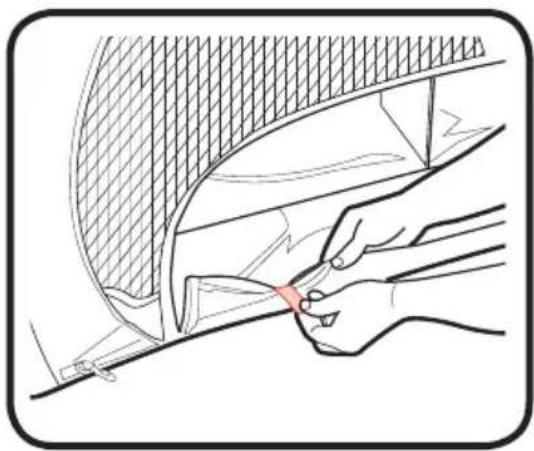

1. Release snap straps on bottom of playard. Pull mattress fully out of playard.
2. Libere las correas con broche en el fondo del corralito. Saque el colchón del corralito.

3. Center of floor must be up.

a. Lift up slightly on the top rail.

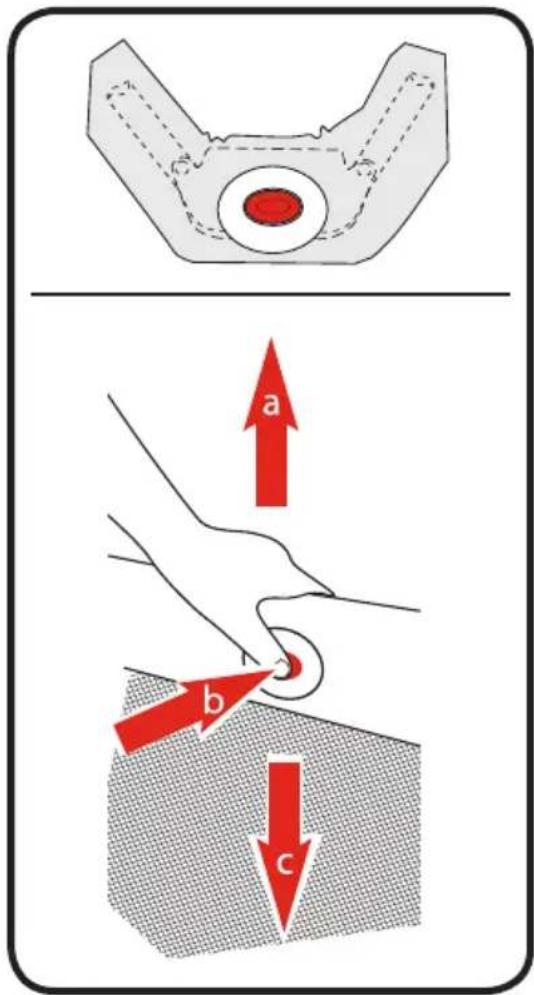

b. Push in on the button located on the side of the top rail to release the two tubes.
c. Push down.
d. Repeat on all four rails until all tubes are released.

- If top rails do not unlatch, DO NOT FORCE. Lift the center of the floor higher.

- Both tubes must be released for the top rail to fold.

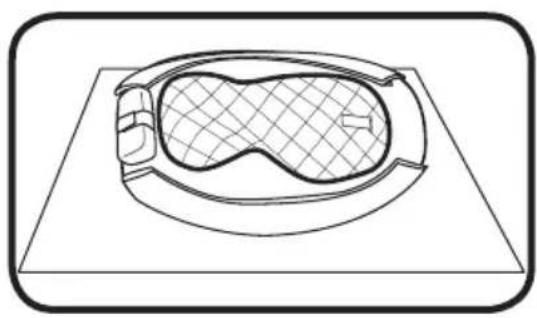

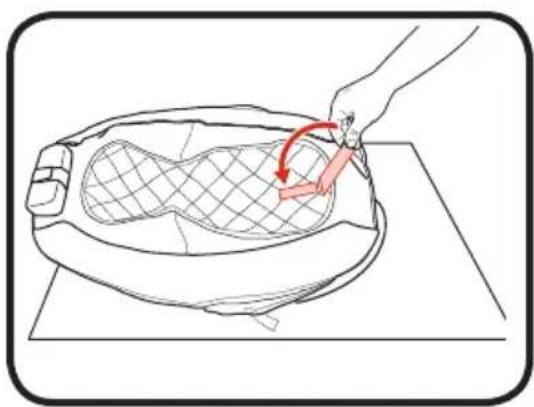

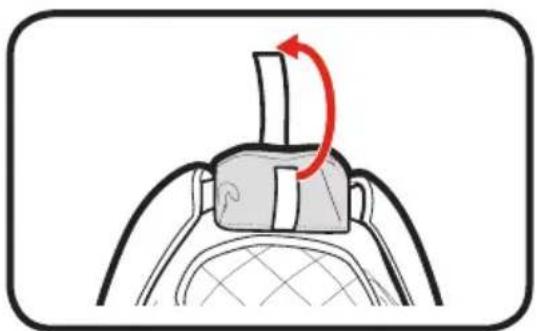

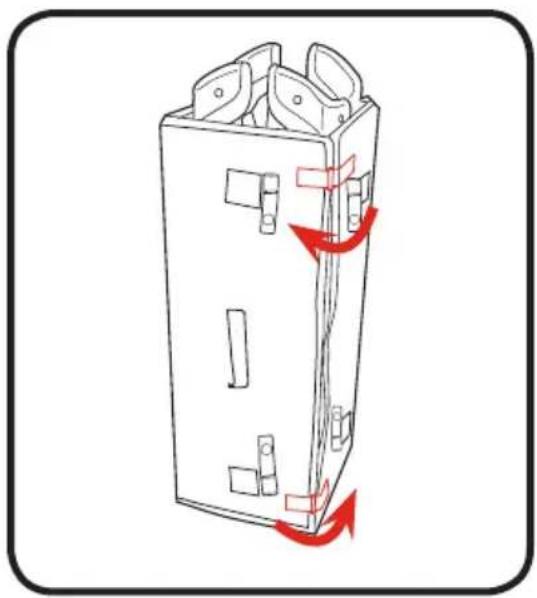

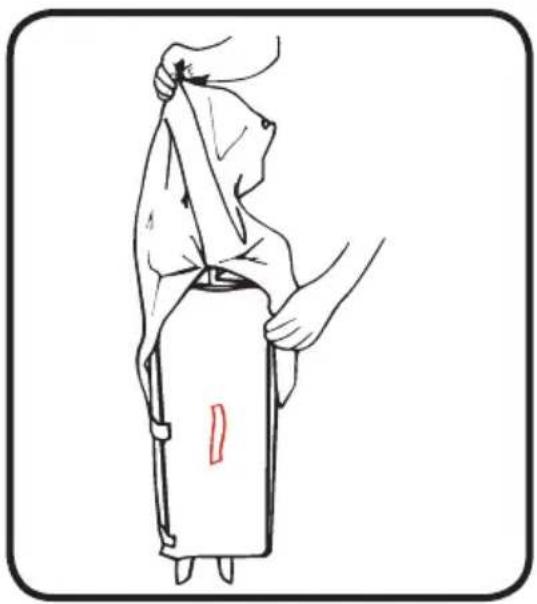

4-B To Cover • Para cubrir

This model may not include some features shown.

The vibration unit may ONLY be used with the bassinet.

WARNING

You must remove the module from the unit when your child can pull up to a standing position.

TO TURN OFF ANY FUNCTION— Press and hold the button for 2 seconds.

LIGHTS—Press once to turn top light (A) on, press twice to turn both lights on, press three times to turn bottom light (B) on, and four times to turn lights off.

VIBRATION—Press once for high, twice for low, three times to turn off. Automatically shuts off in 25 minutes.

MUSIC— Each press will start the next music function in sequence, after the 5th song is selected, the next press will turn music off.

VOLUME— With each press of the volume button, the volume will increase by one preset level. Once at the highest level, the next press will stop the music.

NATURE SOUNDS— Each press will change to the next nature sound. After the 5th sound is selected, the next press will turn sound off.

SONIDOS DE LA NATURALEZA—

TIMER—Press once to set timer to 5 minutes, Press twice for 10 minutes, Press 3 times for 15 minutes.

FALL HAZARD Children have suffered serious injuries after falling from changing table. Falls can happen quickly.

• ALWAYS secure this unit to the support frame by attaching to identified location. Before each use, check the attachment by grasping the sides/ends of the changing table, and pulling upward. See instructions.
  • STAY within arms reach.
• Use changing table only on this playard model.
• Do not use on the floor, bed, counter or other surfaces.

Suffocation Hazard Babies have suffocated while sleeping on changing table: changing table is not designed for safe sleep.

• NEVER allow baby to sleep on changing table.
• Weight limit for the changing table is 30 lb (13.6 kg). Do not use the changing table as extra storage. Always remove the changing table when your child is in the playard.
• Use only the pad provided by Graco.
• Do not use changing table if it is damaged or broken.

Strangulation Hazard: Child can lift changing table and get neck trapped between changing table and playard frame. Always remove the changing table when your child is in the playard.

- Never use changing table on the same side as seat.

ADVERTENCIA

Prevent serious injury or death: follow these warnings and the instructions.

• You are responsible to provide adult supervision when using your seat.
• Seat must be properly attached to bassinet before use.

FALL HAZARD:

To prevent falls, stop using the product when infant:

• Begins to wiggle out of position or turn over in the product or
• Head touches the upper edge of the product or
• Weighs more than 15 lb (6.8 kg) (approximately 3 months of age).

SUFFOCATION HAZARD: Infants have suffocated

• On added pillows, blankets and extra padding.
• ONLY use the pad provided by the manufacturer.
• NEVER place extra padding under or beside infant.
• When trapped between product and adjacent surfaces.
• Always attach the product at the identified locations on playard. Always use the bassinet when using the product.
• NEVER use seat in different product.

- ALWAYS place child on back.

• This product is not safe for sleep.

- Never assemble seat on the same side as the changer.

- Never place any objects in seat while child is in it.

- Use seat with only one child at a time.

- Never place child in bassinet while seat is attached.

ADVERTENCIA

To prevent serious injury or death, DO NOT REMOVE FOAM.

ADVERTENCIA

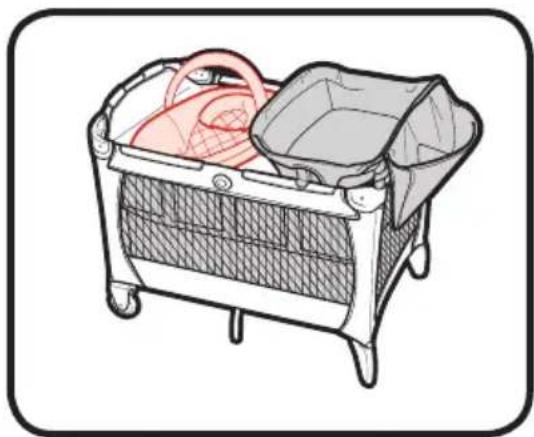

NOTE: Seat should always be attached opposite the changing table.

• Always attach all provided fasteners (strings, straps, clamps, etc.) tightly to playard according to these instructions. Check frequently.
• Do not add additional strings or straps to attach to any other crib or playpen.

ADVERTENCIA

FROM TIME TO TIME CHECK YOUR PLAYARD for worn parts, torn material or stitching. Replace or repair the parts as needed. Use only Graco® replacement parts.

IF PLAYARD IS USED AT THE BEACH, you MUST clean sand off your playard, including the feet, before packing it into cover. Sand in top rail lock may damage it.

TO CLEAN PLAYARD, use only household soap or detergent and warm water.

TO WASH CARRY BAG, machine wash in cold water on delicate cycle and drip-dry. NO BLEACH.

TO WASH BASSINET: Remove electronics module and vibration unit. NEVER remove cord from bassinet. Hand wash with warm water and household soap. Drip dry.

TO WASH SEAT:

1. Remove vibration unit.

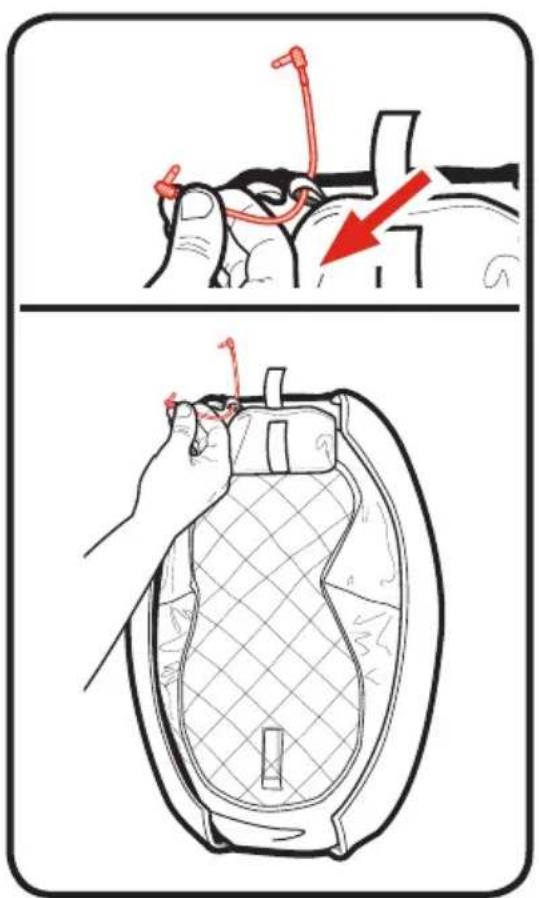

2. Remove small cord as shown below.

Refer to your care tag on your seat for washing instructions.

To purchase parts or accessories or for warranty information in the United States, please contact us at the following:

To register your Graco product from within the U.S.A. visit us online at www.gracobaby.com/productregistration or return registration card provided with your product. We currently do not accept product registrations from those living outside the United States of America.
