USER MANUAL DMX Variable Pump ASTRALPOOL

Industrial cylindrical mechanical device with flanged housing and internal components (no visible text or symbols)

Technical line drawing of a mechanical component with mounting bracket and circular housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Cod. 67411 / Rev. 00

Made in the

EU

VAT: ES

A08246274

[en] We reserve the right to change all or part of the features of the articles or contents of this document, without prior notice.

INSTALLATION, OPERATION AND MAINTENANCE MANUAL

DMX Variable Pump

INDEX

1 GENERAL SAFETY 12

1.1 ELECTRICAL SAFETY 12
1.2 SAFETY IN USE AND CONTACT WITH WATER.... 12
1.3 OPERATION AND MAINTENANCE SAFETY 13

2 INSTALLATION AND ASSEMBLY....13

2.1 FASTENING AND LEVELLING THE UNIT.... 13
2.2 WIRING AND PIPING 14

6 PRODUCT LABELLING....17

7 WARRANTY 17

8 ENVIRONMENT....17

1 GENERAL SAFETY

1.1 ELECTRICAL SAFETY

• Disconnect the unit from the power supply before doing any assembly or maintenance jobs.
• Do not touch the water or get into the water while the unit is connected to the power supply.
• Connect the unit to an equipotential connection. Use one of the fastening unit's points (①).
• Connect the unit to a power supply with an earth connection, protected by the following components:

- An RCD safety switch with a maximum residual current of 30mA .

- A circuit breaker fuse properly sized according to the power consumption of the unit.

- Use an H07RN-F type waterproof cable.

1.2 SAFETY IN USE AND CONTACT WITH WATER

- The fountain water must be under the following conditions:

Water characteristics	Minimum value	Maximum value
Temperature	4 °C	35 °C
pH	6.9	7.8
Free residual chlorine	0.5 ppm	2.0 ppm
Total alkalinity (TAC)	80 ppm	120 ppm
Calcium hardness (CH)	200 ppm	1,000 ppm
Salt level	-	2 g/l
Total dissolved solids (TDS)	-	2,000 ppm

• If the temperature is below 4 °C, empty the unit to prevent it from breaking due to the formation of ice inside it.
• Do not tamper with the factory-fitted waterproof seals. Otherwise, the unit could lose its warranty.

- Put up signs around the fountain in line with the country's or local regulations. Examples of warnings:

• “Water unsafe to drink” “Bathing is forbidden” “Risk of electric shock”.

• Area unfit for road traffic (with or without niche)

• Do not open or handle any of the unit's components other than those for which explanations given in this manual. Otherwise, the unit could lose its warranty

• Do not handle the unit with damp or wet hands.
• Do not handle the unit if is connected to the mains power supply.
• The unit may only be handled by authorized personnel or qualified service engineers. Do not allow unauthorized personnel or unqualified service engineers to handle it.

2 INSTALLATION AND ASSEMBLY

IMPORTANT:

• Read the whole of the manual carefully before installing the unit.
• Check that it is in a good state of repair on removing the packaging.
• Identify all the components prior to their installation.
• Avoiding warnings on this user's guide can lead to improper handling and brakeage of the unit, so the product will lose its warranty.

2.1 FASTENING AND LEVELLING THE UNIT

Place the equipment so that the water level of the fountain is at least 25 cm above the top point of the pump (②).

Components required for unit installation:

Component	Quantity
Chemical anchor: M16 AISI 316 threaded rod and capsule	4
DIN 9021 D.16 A4 flat washer	4
DIN 934 M16 A4 nut	8

5) Install chemical anchors to the roof.
6) Fasten and level the unit to anchors using nuts. Use the second nut to block the first nut in order to avoid untightening due to unit vibrations.

7) [Optional] Mount the lighting:

• Leds Halospot.
• Circular Leds.

8) Mount the nozzle on the water outlet. Use de pipe or thread in function of the project to install.

The assembly of the pipe is necessary to place the nozzle out of the waterjet, and stabilize the flow before the nozzle.

2.2 WIRING AND PIPING

2.2.1 Hydraulic

Connect the rigid pipe and the stainless steel or plastic thread nozzle to the impulsion of the pump (③) (1-1/2" RH).

WARNING: Risk of unit damage. Clean all piping prior to connecting and starting the unit up.

WARNING: Risk of unit damage. Install a 130 m filter before water inlet.

2.2.2 Electric

Connect the main power supply of the equipment to 230V AC using protections with a 30mA differential circuit breaker, a magnetothermal circuit breaker and earth connection.

Connect the DMX wire to the equipment. Use a waterproof DMX wire.

WARNING: Risk of unit damage. Check that all IP68 connectors are properly sealed and they prevent water getting through. Electrical components may become damaged by flooding, causing the unit warranty loss.

The range of DMX channels with which the pump works goes from 0 to 255, having the value 10 as a minimum height of the pump jet, and 255 as the maximum height.

WARNING: Protect the water outlet from wind and do not operate in strong wind. If the unit is installed in a windy area, water outlet could be often displaced.

3.1 OPERATION

- The operation of the unit will depend on the control system installed, which is not supplied with this unit.

A DMX/RDM controller with its respective software is required. We use these ones to configure the channels and directions of DMX that we will use in our equipment in a bidirectional way.

For the correct use of the pump, two different DMX channels are required.

Channel 1 is used to activate de pump:

- 0 - 127 : Pump OFF.

- 127 - 255: Pump ON

Channel 2 is used for the analog output. With this channel we can configure the height of the water jet.

WARNING: The maximum work cycles of the pump are 60 starts/hour.

WARNING: Use the equipment only to pump water with the characteristics described in section 1.2.

WARNING: Do not operate the pump until the water level is 25 cm above the highest point of the pump.

3.2 MANTENIMIENTO

WARNING: Risk of dead due to electric shock. Disconnect the equipment from the main power supply before performing any maintenance.

For the maintenance of the components made of stainless steel, see the manual attached.

It is highly recommendable to activate the device at least once a week to check the proper operation.

Clean the pre-filter of the pump at least once a week.

NOTE: The cleaning frequency of the pump pre-filter will depend on the conditions in which the installation is.

4 TECHNICAL SPECIFICATIONS

Input Voltage	230 V AC
Nozzle diameter	16/20 mm
Power (without illumination)	720W
Water inlet	1 12 ” G
Protection IP rating (IEC 60529)	IP-68
Pump control	DMX512

5 FAQs

Question

¿Why the water jet outlet is defective? (speed, height)

Answer

Check the correct working of the pump. Check inside the nozzle. The nozzle should be empty of stools and without obstructions. Check the obstruction of pre-filter. Check the DMX signal.

Check the electric installation and wiring Check the DMX signal. Check the state of the electrical protections. Check that the impulsion is not obstructed

For other cases or problems detected, contact your service representative (see list of delegations in the product warranty document).

6 PRODUCT LABELLING

IP 684 m
IP68Protection rating	Not operational T < 4 °C	Safe management of waste electrical and electronic equipment Directive 2002/96/EC (WEEE)	The unit's documentation must be read before use	Danger of electric shocks

7 WARRANTY

See attached document "Warranty certificate for fountain units".

8 ENVIRONMENT

At the end of its working life, every wasted component must be correctly managed according to the current environmental regulations of the country in which it is installed.

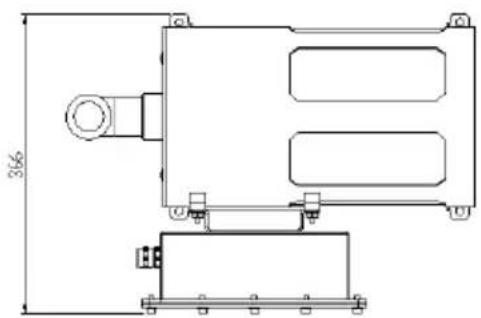

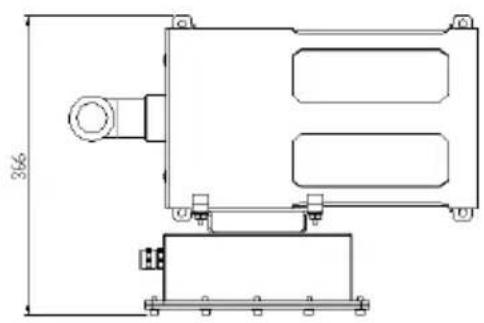

DIMENSIONS [en]

Technical line drawing of a mechanical component with mounting bracket and circular housing (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Cod. 67411 / Rev. 00

Made in the

EU

VAT: ES

A08246274

[en] We reserve the right to change all or part of the features of the articles or contents of this document, without prior notice.
