Brand	AstralPool
Model	57153
Type	Exactus Series Metering Pump (Dosing Pump)
Max Flow Rate	Up to 20 l/h (depending on model)
Max Pressure	Up to 10 bar (depending on model)
Power Supply	230 V a.c. 50 Hz single phase (standard); optional 240 V 50-60 Hz or 110 V 50-60 Hz
Power Consumption	37 W – 82 W (depending on model)
Current Consumption	0.16 – 0.36 A (depending on model)
Net Weight	2.7 – 4.1 kg (depending on model)
Protection Rating	IP 65
Materials	Anti-acid plastic casing; polypropylene pump head (optional PVC, 316 Stainless, PTFE); PTFE diaphragm; FPM (Viton®) valves (optional EPDM, NBR, Silicon)
Operating Temperature	Max ambient 40°C; liquid must remain liquid state
Suction Height	Up to 2 m
Control Types	Manual (MA/AD, MA/MB), mA signal proportional (CC/M), pulse water meter (VFT/MB)
Display	7-segment LED (on microcontroller models)
Level Alarm	Optional (level probe connection); visual and audible alarm when tank empty
Safety Features	Automatic shut-off on empty tank; overload protection; IP65 against dust and water jets
Included Accessories	2 m PVC suction hose, 2 m polyethylene discharge hose, injection valve 3/8 BSP m, filter, instruction manual
Warranty	2 years (excluding normal wear parts: valves, nipples, tubing, filter, injection valve)

Frequently Asked Questions - 57153 ASTRALPOOL

What should I do if the pump is not delivering chemical?

First, check that the suction and discharge valves are clean and not blocked. Also inspect the filter for clogging. If the valves are swollen, replace them with the correct material (e.g., Viton, EPDM, etc.). Ensure the pump is primed properly.
Tip: Remove the suction hose and check for obstructions.

How do I prime the metering pump?

Before finalizing installation, prime the pump by following the sequence in Fig. 8 of the manual. You can also use a syringe to suck liquid from the discharge nipple while the pump operates. If your pump has an air bleed valve, unscrew it until air escapes.
Caution: Always disconnect power before handling chemical lines.

What power supply is required for the AstralPool 57153?

The standard power supply is 230 V a.c. 50 Hz single phase. Optional supplies include 240 V 50-60 Hz or 110 V 50-60 Hz single phase. Check the rating plate on your pump for exact specifications.
Safety: Use a circuit breaker with at least 3 mm contact gap.

How often should I maintain the pump?

Regular maintenance is minimal. Check the pump every 6 months: inspect the pump head, screws, bolts, and seals. For aggressive chemicals, check more frequently. Clean the filter and valves periodically. The manual recommends cleaning hydraulic parts as needed based on application.
Note: No lubrication required.

Can the pump be used for sulphuric acid dosing?

Yes, but with precautions. Replace the PVC suction hose with polyethylene hose. Ensure no water remains in the pump head to avoid violent reactions (mixing with sulphuric acid generates gas and heat). Turn the pump upside-down for 15–30 seconds to drain.
Warning: Always use appropriate personal protective equipment (PPE).

What does the level alarm indicate?

On models with level control (optional), when the chemical tank is empty, the display shows 'FAO' (or 'RLI' on VFT models) and the pump stops with an optical and sound alarm. This prevents the pump from running dry.
Action: Refill the tank and reset the pump.

How do I set the pump for proportional dosing with a 4-20 mA signal?

For EXACTUS CC/M models: press the function button to enter Set 1 mode to define minimum mA input (e.g., 4 mA) and minimum flow. Then Set 2 mode for maximum mA (e.g., 20 mA) and maximum flow. The pump automatically starts in 'METER' mode after programming.
Example: 4 mA = 0 l/h, 20 mA = 10 l/h.

What should I do if the pump pulses but no chemical is injected?

This is often due to blocked or worn valves. Dismount the suction and discharge valves, clean them, and replace if necessary. Check the filter for clogging. Also ensure the injection valve sleeve (no return) is not removed.
Note: If using aggressive chemicals, verify material compatibility.

Is it safe to use the pump with corrosive liquids?

Yes, the pump is designed for aggressive chemicals. The standard pump head is polypropylene (optional PVC, 316 SS, PTFE). Diaphragm is PTFE. Valves are Viton (FPM) standard. Always check chemical resistance chart for the specific liquid. Adhere to safety precautions: wear gloves, goggles, and ensure proper ventilation.
Warning: Do not use with hazardous liquids unless all safety measures are followed.

How do I install the injection valve?

Select an injection point on the plant pipe. Fit a 3/8" female BSP steel connector. Screw the injection valve (with gasket) onto the connector. Connect the discharge hose with the provided tube nut. The sleeve (non-return) inside the valve must not be removed. Refer to Fig. 9 in the manual.
Tip: Keep the injection point at least 1 meter away from electrodes.

USER MANUAL 57153 ASTRALPOOL

Blue Astralbox industrial pump with control panel and orange valve (no visible text or symbols)

ASISTENCIA TECNICA Y OFICINAS COMERCIALES TECHNICAL ASSISTANCE AND SALES OFFICES ASSISTENZA TECNICA E UFFICI COMMERCIALI

GRÁFICO CLORO LIBRE VS POTENCIAL REDOX (pH)

FREE CHLORINE - OXIDATION REDUCTION POTENTIAL (ORP) - pH SKETCH

INDICE

1.0 -NORMAS GENERALES pag. 2

Technical line drawing of a mechanical device with tubing and a water tank (no text or symbols)

Fig. 5

Fig. 6

Four-step diagram showing a mechanical device with a lever and a hand holding a tool, no text or symbols present.

Fig. 7

Fig. 9

Exploded view diagram of a mechanical assembly with internal components (no text or labels)

Fig. 11

1.0 - HINTS AND WARNING 22

1.1 - WARNING 22
1.2 - SHIPPING AND TRANSPORTING THE PUMP 22
1.3 - PROPER USE OF THE PUMP 22
1.4 - RISKS 22
1.5 - TOXIC AND/OR DANGEROUS LIQUID DOSAGE 23
1.6 - ASSEMBLING AND DISMANTLING THE PUMP 23

2.0 - EXACTUS SERIES METERING PUMPS 24

2.1 - OPERATION 24
2.2-COMMON FEATURES 24
2.3 - LIQUID ENDS MATERIALS 25

3.0 - INSTALLATION 26

3.1 - INJECTION VALVE INSTALLATION DIAGRAM 27
3.2 - WIRING CONNECTION AND OUTPUT CONNECTOR FUNCTIONS 28

4.0 - MAINTENANCE 29

5.0 - HOW TO OPERATE WHEN DOSING SULPHURIC ACID 29

6.0 - MANUALLY OPERATED DOSING PUMP EXACTUS MA/AD SERIES 30

6.1 - PUMP CONTROLS 30
6.2-TYPICAL INSTALLATION 30
6.3 - ACCESSORIES 30

7.0 - MICROCONTROLLED DOSING PUMPS EXACTUS MA/M SERIES 31

7.1 - PUMP CONTROLS 31
7.2 - TYPICAL INSTALLATION 31
7.3 - ACCESSORIES 31

8.0 - MICROCONTROLLED DOSING PUMPS EXACTUS CC/M SERIES 32

8.1 - PUMP CONTROLS 32
8.2-TYPICAL INSTALLATION 32
8.3 - ACCESSORIES 32
8.4 - LEVEL CONTROL 33
8.5 - CALIBRATION 33
8.6-PARAMETERS SETTING MODE 33

9.0 - MICROCONTROLLED DOSING PUMPS EXACTUS VFT/M SERIES 35

9.1 - PUMP CONTROLS 35
9.2-TYPICAL INSTALLATION 35
9.3 - ACCESSORIES 35
9.4 - LEVEL CONTROL 35

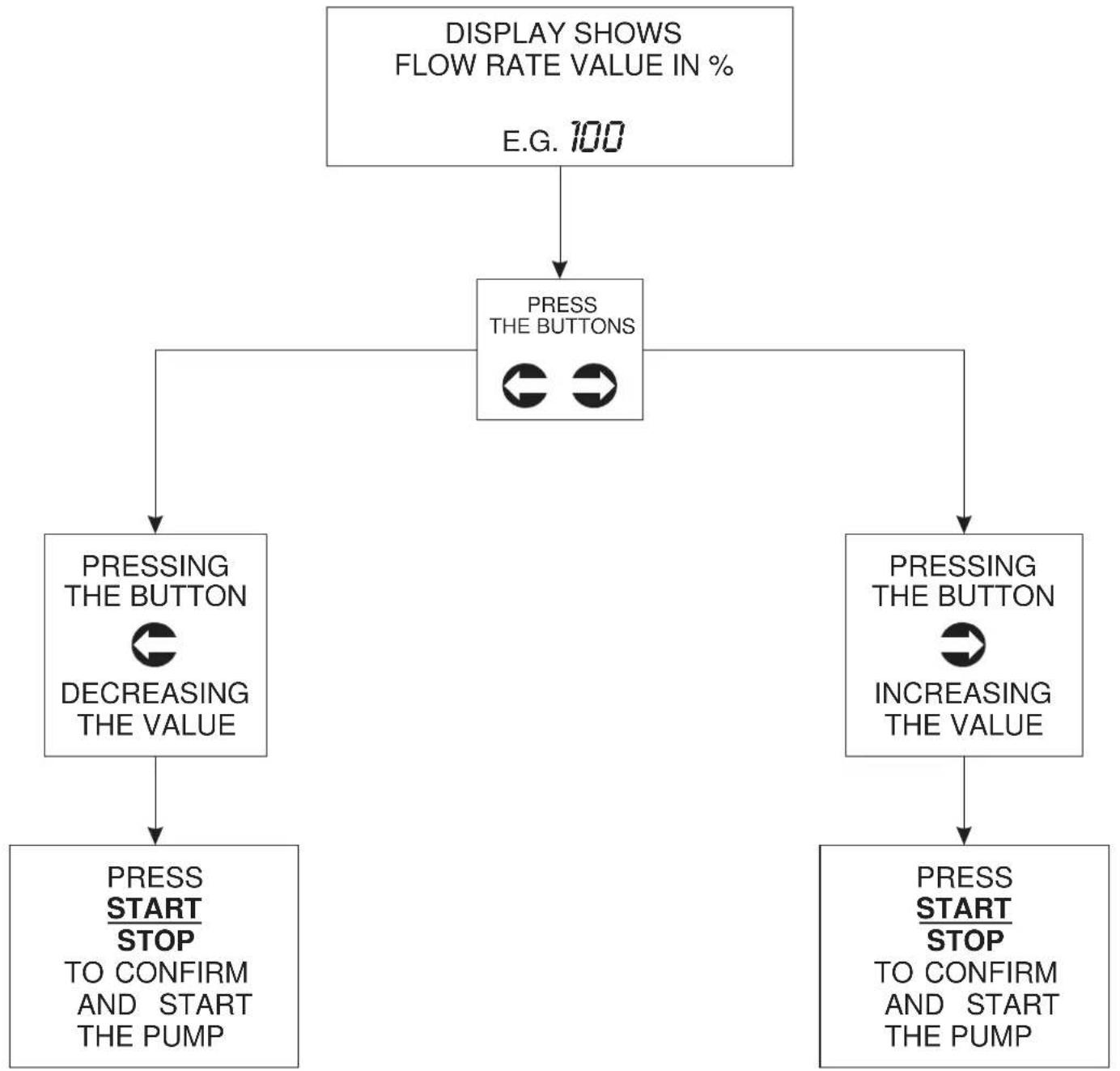

9.5 - GRAPHIC SETTING RAPRESENTATION VFT MICROCONTROLLER PUMP 36-38

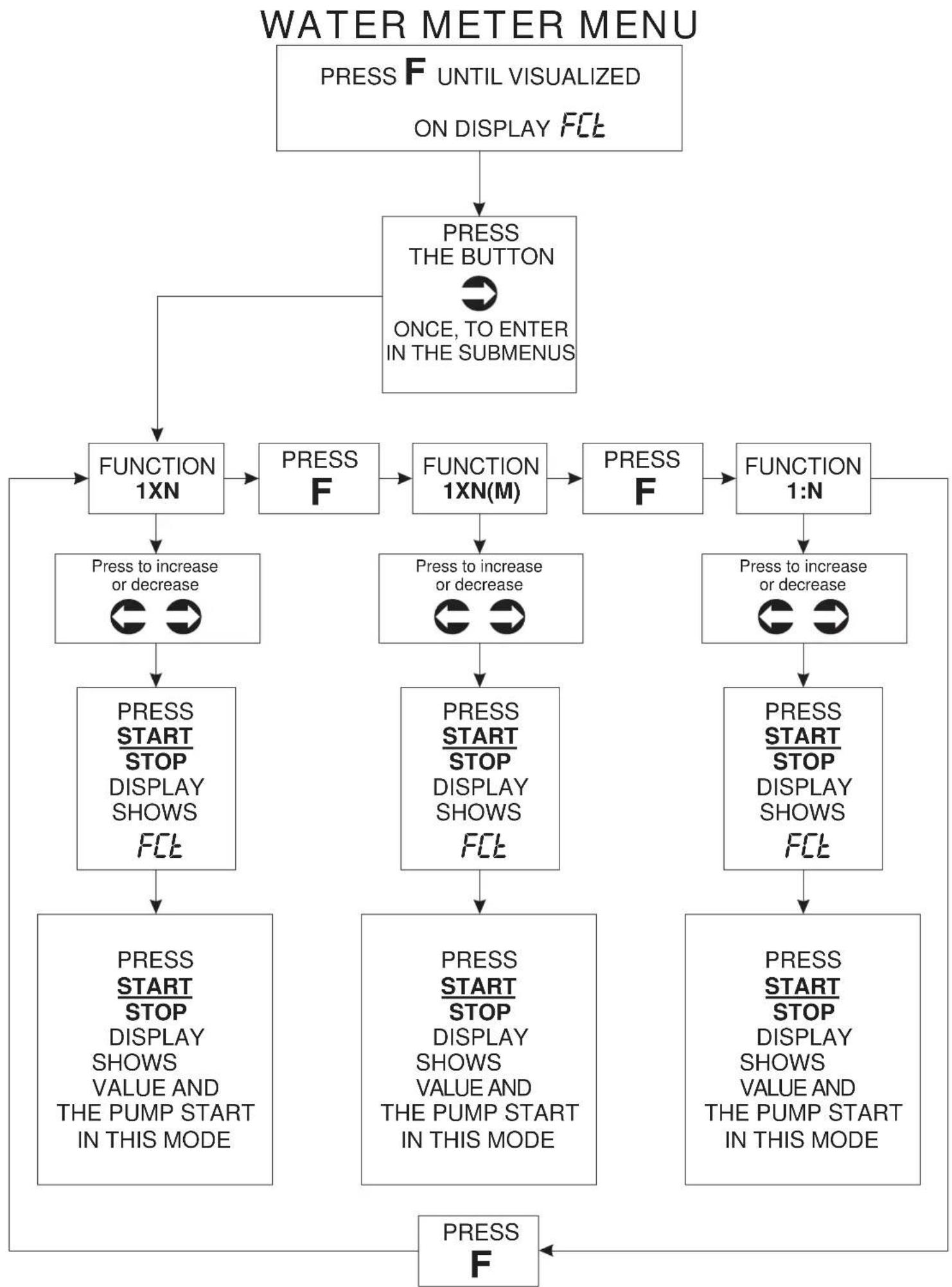

9.6-WATER METER MODE 39

10.0 - TROUBLE SHOOTING COMMON TO EXACTUS SERIES PUMPS 40

10.1-MECHANICAL FAULTS 40
10.2 - ELECTRICAL FAULTS 40

11.0 - ELECTRODE HOLDERS 40

12.0 - ELECTRODE CLEANING AND MAINTENANCE 40

EXPLODED VIEWS 61-63

Please read the warning notices given in this section very carefully because they provide important information regarding safety in installation, use and maintenance of the pump.

• Keep this manual in a safe place, so that it will always be available for further consultation.
• The pump complies with EEC directives No.89/336 regarding "electromagnetic compatibility" and No.73/23 regarding "low voltages", as also the subsequent modification No.93/68.

N.B. The pump has been constructed in accordance with best practice. Both its life and it electrical and mechanical reliability will be enhanced if it is correctly used and subjected to regular maintenance.

1.1 - WARNING:

Any intervention or repair to the internal parts of the pump must be carried out by qualified and authorized personnel. The manufacturers decline all responsibility for the consequences of failure to respect this rule.

GUARANTEE: 2 years (the normal wearing parts are excluded, i.e.: valves, nipples, tube nuts, tubing, filter and injection valve). Improper use of the equipment invalidates the above guarantee. The guarantee is exfactory or authorized distributors.

1.2 - SHIPPING AND TRANSPORTING THE PUMP

The pump should always be moved in a vertical (and never in a horizontal) position. No matter what the means of transport employed, delivery of the pump, even when free to the purchaser's or the addressee's domicile, is always at the purchaser's risk. Claims for any missing materials must be made within 10 (ten) days of arrival, while claims for defective materials will be considered up to the 30th (thirtieth) day following receipt. Return of pumps or other materials to us or the authorized distributor must be agreed beforehand with the responsible personnel.

1.3 - PROPER USE OF THE PUMP

• The pump should be used only for the purpose for which it has been expressly designed, namely the dosing of liquid additives. Any different use is to be considered improper and therefore dangerous. The pump should not therefore be used for applications that were not allowed for in its design. In case of doubt, please contact our offices for further information about the characteristics of the pump and its proper use.
  The manufactures cannot be held responsible for damage deriving from improper, erroneous or unreasonable use of the pump.

1.4 - RISKS

• After unpacking the pump, make sure it is completely sound. In case of doubt, do not use the pump and contact qualified personnel. The packing materials (especially bags made of plastics, polystyrene, etc.) should be kept out of the reach of children: they constitute potential sources of danger.
• Before you connect the pump, make sure that the voltage ratings, etc., correspond to your particular power supply. You will find these values on the rating plate attached to the pump.
• The electrical installation to which the pump is connected must comply with the standards and good practice rule in force in the country under consideration.
• Use of electrical equipment always implies observance of some basic rules: In particular:

1 - do not touch the equipment with wet or damp hands or feet;

2 - do not operate the pump with bare feet (Example: swimming pool equipment);

3 - do not leave the equipment exposed to the action of the atmospheric agents;

4 - do not allow the pump to be used by children or unskilled individuals without supervision;

- In case of breakdown or improper functioning of the pump, switch off, but do not touch. Contact our technical assistance for any necessary repairs and insist on the use of original spares. Failure to respect this condition could render the pump unsafe for use.

- When you decide to make no further use of an installed pump, make sure to disconnect it from the power supply.

Before carrying out any service on the item, check:

1. Disconnect the pins from the mains or by means of a two poles switch with 3 mm minimum distance between the contacts. (Fig. 4).
2. Relieve all the pressure from the pump head and injection tube.
3. Drain or flush all dosing liquid from the pump head. This operation can also be done with the pump disconnected from the plant by turning the pump upside-down for 15 to 30 seconds and without connecting the tubing to the nipples: if this operation is not possible, dismount and remount the pump head using the four mounting screws.

In event of possible losses in the hydraulic system of the pump (breakage of the "0" ring gasket, the valves or the hoses) the pump should immediately be brought to a stop, emptying and depressurizing the delivery hose while taking all due safety precautions (gloves, goggles, overalls, etc.).

1.5 - TOXIC AND/OR DANGEROUS LIQUID DOSAGE

To avoid risk from contact with the hazardous liquids or toxic fumes, always adhere to the notes in this instruction manual:

• Follow the instructions of the dosing liquid manufacturer.
• Check the hydraulic part of the pump and use it only if it is in perfect condition.
• Use only the correct materials for the tubing, valves and seals to suit the liquid to be dosed; where possible shield the tubing with PVC conduit.
• Before disconnecting the metering pump, make sure to flush out and neutralize the pump head with the proper reagent liquid.

1.6 - ASSEMBLING AND DISMANTLING THE PUMP

1.6.1 - ASSEMBLY

All metering pumps are normally supplied fully assembled. For greater clarity, please consult the exploded view of the pump appended at the end of the manual, which shows all the pump details and a complete overview of all the pump components. These drawings are in any case quite indispensable whenever defective parts have to be re-ordered. For the same purpose, the appendix also contains other drawings showing the hydraulic parts (pump head and valves).

1.6.2 - DISMANTLEMENT

Proceed as follows before you dismantle the pump or before performing any other operation on it:

1. Disconnect the pins from the mains or by means of a two poles switch with 3 mm minimum distance between the contacts. (Fig. 4).
2. Relieve all the pressure from the pump head and injection tube.
3. Drain or flush all dosing liquid from the pump head. This operation can also be done with the pump disconnected from the plant by turning the pump upside-down for 15 to 30 seconds and without connecting the tubing to the nipples: if this operation is not possible, dismount and remount the pump head using the four mounting screws. (Fig. 11).

This operation calls for special attention, and you should therefore consult the drawings in Appendix and Chapter 1.4 "RISKS" before you commence work.

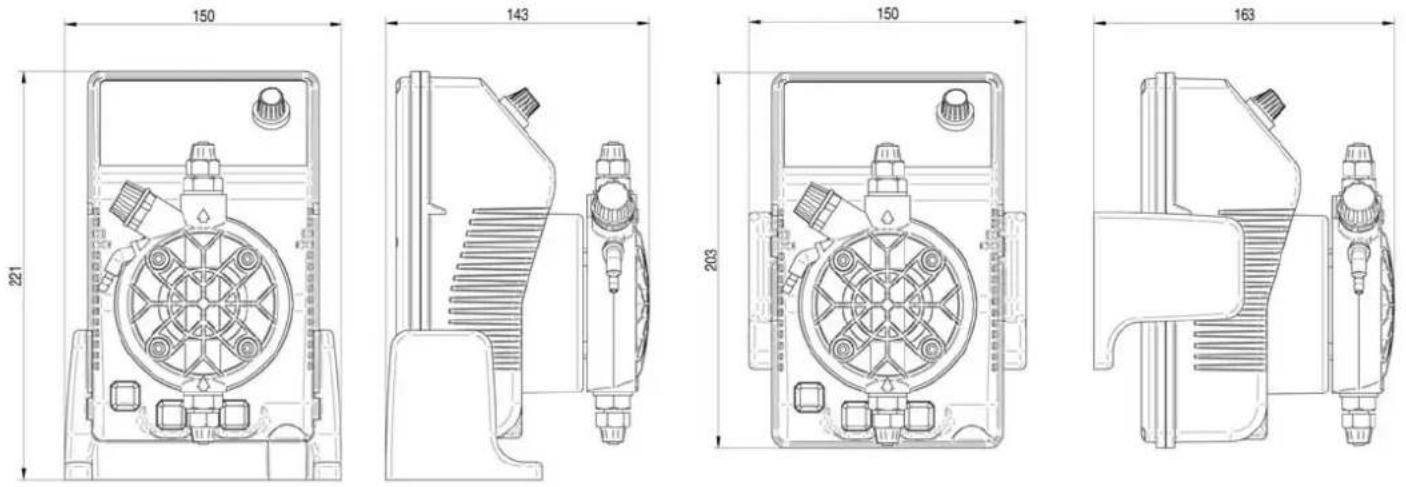

OVERALL DIMENSIONS (Fig. 1)

2.0 - EXACTUS SERIES METERING PUMPS

2.1 - OPERATION

The metering pump is activated by a teflon® diaphragm mounted on a piston of an electromagnet.

When the piston of the electromagnet is attracted, a pressure is produced in the pump body with an expulsion of liquid from the discharge valve. Once the electric impulse is finished a spring brings the piston back to the initial position, with a recall of liquid through the suction valve.

The operation is simple the pump does not need lubrication, therefore maintenance is reduced almost to zero. The materials used for the construction of the pump make it particularly suitable for aggressive liquids.

The metering pump has been designed to feed liquids with capacities from 0 to 20 l/h and pressures from 0 to 10 bar (depending on the model selected).

2.2 - COMMON FEATURES

• The products are manufactured according € regulation.
• IP 65 protection.
• Antiacid plastic casing.
• Control panel protection assured by an adhesive polyester film, weatherproof and resisting UV rays
• Standard power supply:
230 V a.c.50 Hz single phase.
• Optional power supply:
240 V a.c.50-60 Hz single phase;
110 V a.c. 50-60 Hz single phase.

UPON REQUEST:

- Level control setting included (supplied without probe).

2.3 - LIQUID ENDS MATERIALS

DIAPHRAGM: PTFE

PUMP HEAD: Polypropylene; upon request: PVC, 316 Stainless, PTFE

NIPPLES: polypropylene

FILTER: polypropylene

INJECTION NIPPLE: polypropylene

SUCTION HOSE: PVC - flexible

DISCHARGE HOSE: polyethylene

VALVES "lip" type: FPM (viton®), (upon request available in EPDM (Dutral®), NBR, Silycon). "Ball Check" VALVES

upon request type in SS 316 and Glass PYREX. Available with Spring Return and "KALRETZ"Valve.

SEALS: FPM upon request EPDM, NBR, Silycon, PTFE only for ball checks valves

MAIN FEATURES

Tipo Type	Portata max Max flow	Press. max Max press	Max imp./min. Max imp./min.	Dosaggio per imp. Output per stroke	Corsa Stroke	Altez. aspiraz. Suction height	Aliment. elettr. standard Standard power supply	Potenza ass. Power cons.	Corrente ass. Current cons.	Peso netto Net weight
	l/h	bar		ml	mm	m	Volts/Hz	Watts	Ampere	kg
2-5	2	5	120	0,28	0,80	2	230 V 50 -60 Hz	37	0,16	2,7
2-10	2	10	120	0,28	1,20	2	230 V 50 -60 Hz	37	0,16	2,7
4-5	4	5	120	0,56	1,00	2	230 V 50 -60 Hz	37	0,16	2,7
5-7	5	7	120	0,70	1,40	2	230 V 50 -60 Hz	37	0,16	2,7
5-10	5	10	120	0,70	1,80	2	230 V 50 -60 Hz	58	0,25	3,2
10-5	10	5	120	1,40	1,10	2	230 V 50 -60 Hz	58	0,25	3,2
10-10	10	10	120	1,40	2,20	2	230 V 50 -60 Hz	82	0,36	4,1
20-5	20	5	120	2,80	2,00	2	230 V 50 -60 Hz	82	0,36	4,1

Fig. 2

The diagrams of fig. 3 indicate max metering pump flow variation in relation to the working pressure in the plant; the diagrams also include injection valve losses. I.V.P.

Due to production requirements the technical characteristics of our equipment at maximum ratings can vary with a tolerance of 5% which must be taken into account when choosing the type of pump.

a. - Install the pump in a dry place and well away from sources of heat and, in any case, at environmental temperatures not exceeding 40^ C. The minimum operating temperature depends on the liquid to be pumped, bearing in mind that it must always remain in a liquid state.
b. - Carefully observe the regulations in force in the various countries as regards electrical installations (Fig.4). When the supply cable is devoid of a plug, the equipment should be connected to the supply mains by means of a single-pole circuit breaker having a minimum distance of 3 mm between the contacts. Before accessing any of the electrical parts, make sure that all the supply circuits are open.

Fig. 4

c.- Locate the pump as shown in fig. 5 bearing in mind that it may be installed either below or above the level of the liquid to be dosed, though the level difference should not exceed 2 meters. When the process plant in which the pump is installed is operating at atmospheric pressure (no back pressure) and the chemical tank is situated above the plant (Fig. 6), the condition of the injection valve should be checked at regular intervals, because excessive wear and tear could cause additive to drip into the plant even when the pump is shut down. If the problem persist, install a properly calibrate counter-pressure valve (C) between injection point and the valve. In the case of liquids that generate aggressive vapours, do not install the pump above the storage tank unless the latter is hermetically sealed.

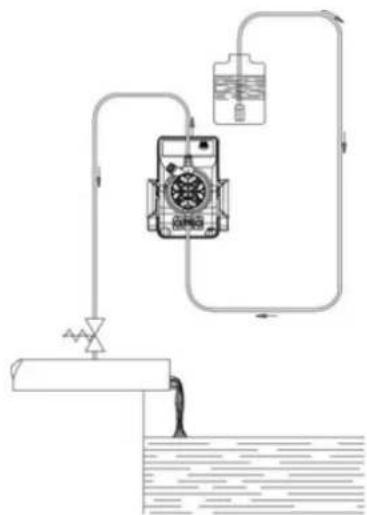

Technical line drawing of a mechanical device with tubing and a container (no text or symbols)

Fig. 5

Fig. 6

d.- The discharge nipple will always remain in the upper part of the pump. The suction nipple, which serves to attach the hose (with filter) leading into the chemical tank, will therefore always be situated in the lower part of the pump.

Four-step diagram showing a mechanical device with a lever and a hand holding a tool, no text or symbols present.

Fig. 7

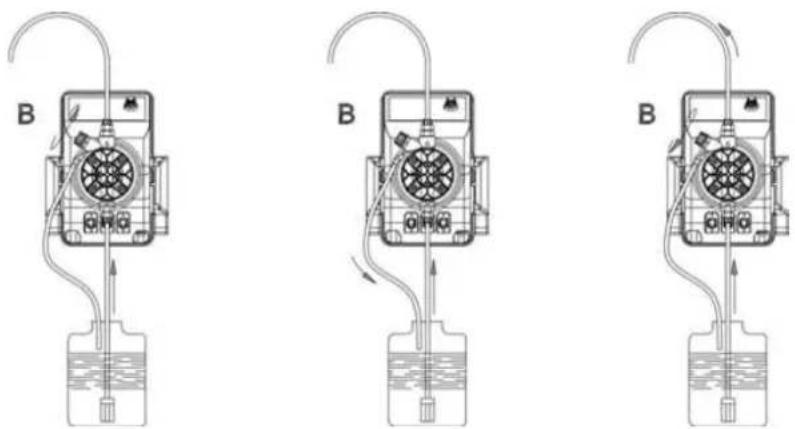

e.- Remove the protection caps from the two nipples, slide the hoses over the connectors, pushing them right home, and then fix them with appropriate tube nuts. (Fig. 7).

Fig. 8

Whenever the pump is dismantled from the pipework, you will be well advised to replace the caps on the connectors to avoid residual liquid being spilled. Before attaching the delivery hose to the plant, prime the metering pump by going through the sequence shown in Fig. 8. Before finalizing the installation of the discharge hose, make sure that the pump strokes will not cause it to move and bump into rigid bodies. In case of priming difficulties, use a normal syringe to suck liquid from the discharge nipple while the pump is in operation, continuing until you actually see the liquid rise in the syringe. Use a short length of suction hose to connect the syringe to the discharge nipple. In case of a pump equipped with an air bleed valve, unscrew the air relief valve B up to all the air in the pump head will be out.

f. - Try to keep both the suction and discharge hose as straight as possible, avoiding all unnecessary bends.
g. - Select the most appropriate injection point on a pipe of the plant to be treated and there fit a 3/8" female steel gas thread connector (similar to BSPm). This connector is not supplied with the pump. Screw the injection valve to the gas connector, inserting a gasket as shown in Fig. 9. Then connect the discharge hose to the conical connector on the injection valve and fix it with the supplied tube nut G. The injection valve also acts as no return valve by means of a cylinder sleeve (elastomer, standard supplied in Viton®).

N.B. The sleeve D must not be removed.

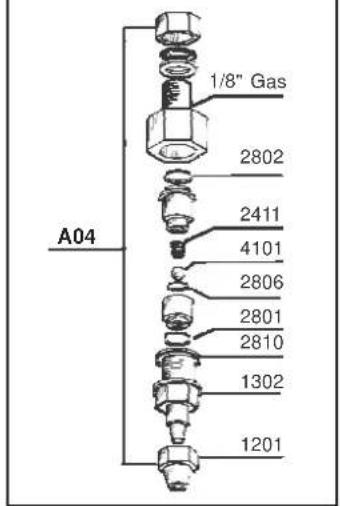

3.1 - INJECTION VALVE INSTALLATION DIAGRAM Fig. 9

A - Pipework
C- Injection valve
M - Conical connector for attaching the discharge hose
N - 3/8" female steel gas thread connector
G - Hose tube nut
T - Polyethylene hose
D - Cylinder sleeve (no return valve)

Fig.9

3.2 - WIRING CONNECTION AND OUTPUT CONNECTOR FUNCTIONS

Fig. 10

Model	Female service connector wire assembly		Functions and technical informations
VFT/MB		POS. 1	Relay service output connectionConfiguration:Pin 1 = Normally Open“ 2 = No connection“ 3 = Common ± = No connection
MA/ADL MA/MB CC/M VFT/MB	[IMAGE]	BLUE To level probePOS. 2	Level probe connectionConfiguration:Pin 1 = No connection“ 2 = No connection“ 3 = Level probe wire“ 4 = Level probe wire
CC/M	' | '	Input mA signalPOS. 3	Input mA signal configuration:Pin 1 = No connection“ 2 = No connection“ 3 = (+) mA signal wire“ 4 = (-) mA signal wire
VFT/MB	[IMAGE]	Topulse emitting water meterPOS. 3	Pulse emitting Water MeterconnectionConfiguration:Pin 1 = No connection“ 2 = No connection“ 3 = Water meter signal wire (+)“ 4 = Water meter signal wire (-)

1. Periodically check the chemical tank level to avoid the pump operating without liquid. This would not damage the pump, but may damage the process plant due to lack of chemicals.
2. Check the pump operating condition at least every 6 months, pump head position, screws, bolts and seals; check more frequently where aggressive chemicals are pumped, especially:
3. pulse and power L.E.D.;
4. the additive concentration in the pipework; a reduction of this concentration could be caused by the wearing of the valves, in which case they need to be replaced (Fig. 11) or by the clogging of the filter which then has to be cleaned as in point 3 here below.

Exploded view diagram of a mechanical assembly with no visible text or symbols

Fig. 11

1. The Company suggests periodically cleaning off the hydraulic parts (valves and filter). We cannot say how often this cleaning should be done as it depends on the type of application, we also cannot suggest what cleaning agent to use as this will depend on the additive used.

Operating suggestions when dosing sodium hypochlorite (most frequent case):

a - disconnect the pins from the mains or by means of a onnipolar switch with 3 mm minimum distance between the contact.

b- disconnect discharge hose from pipework;

c - remove the suction hose (with filter) from the tank and dip it into clean water;

d- switch on the metering pump and let it operate with water for 5 to 10 minutes;

e - switch OFF the pump, dip the filter into a hydrochloric acid solution and wait until the acid finishes cleaning;

f- switch ON the pump again and operate it with hydrochloric acid for 5 minutes in a closed-circuit, with suction and discharge hose dipped into the same tank;

g- repeat the operation with water;

h- re-connect the metering pump to the pipework.

5.0 - HOW TO OPERATE WHEN DOSING SULPHURIC ACID (MAX 50%)

In this case it is essential to bear in mind the following:

1. replace PVC crystal suction hose with polyethilene discharge hose;

2. empty any residual water from the pump head beforehand.

Warning: if the water mixes with sulphuric acidit can produce a large quantity of gas with consequent overheating of the area causing damage to valves and pump head.

This operation can also be done with the pump disconnected from the plant by turning the pump upside-down for 15 to 30 seconds and without connecting the hose to the nipples; if impossible, dismount and remount the pump head (Fig. 11) using the four mounting screws.

EXACTUS MA/AD

Fig. 12

6.0 - MANUALLY OPERATED METERING PUMP EXACTUS MA/AD SERIES

Flow can be controlled manually by setting the pump pulse rate by means of a potentiometer. Possibility of a more precise flow rate setting at low frequencies through the two keys 20% and 100%.

6.1 - PUMP CONTROLS (Fig.12)

1 - Switch off button "STOP"

2 - 100% flow scale read out button

3 - Switch on button "START"

4 - Level alarm LED "yellow" (only for EXACTUS with level alarm, MA/ADL SERIES)

5 - 100% flow scale read out LED "green"

6 - 20% flow scale read out LED "green"

7 - Pulse LED "red"

8 - Power LED "green"

9 - 20% flow scale read out button

10 - Adjustment knob of Injections/min numbers (0÷100% max flow)

6.2 - TYPICAL INSTALLATION (Fig.13)

A Injection valve

B Power supply

C Filter

I Chemical tank

S Process tank

6.3 - ACCESSORIES

• 1 flexible PVC suction hose, transparent crystal type, length 2 m;
  • 1 semirigid polyethylene hose, white, length 2 m;
  • 1 injection valve 3/8 BSP m;
  • 1 filter;
  • 1 instructions/operating booklet.

Fig. 13

EXACTUS MA/MB

Fig. 14

7.0 - MICROCONTROLLED DOSING PUMPS EXACTUS MA/MB SERIES

Manual flow rate adjustment by means 2 buttons (LEFT (3) - RIGHT (1)) shown in figure 14.

Operative range 1-100% flow rate.

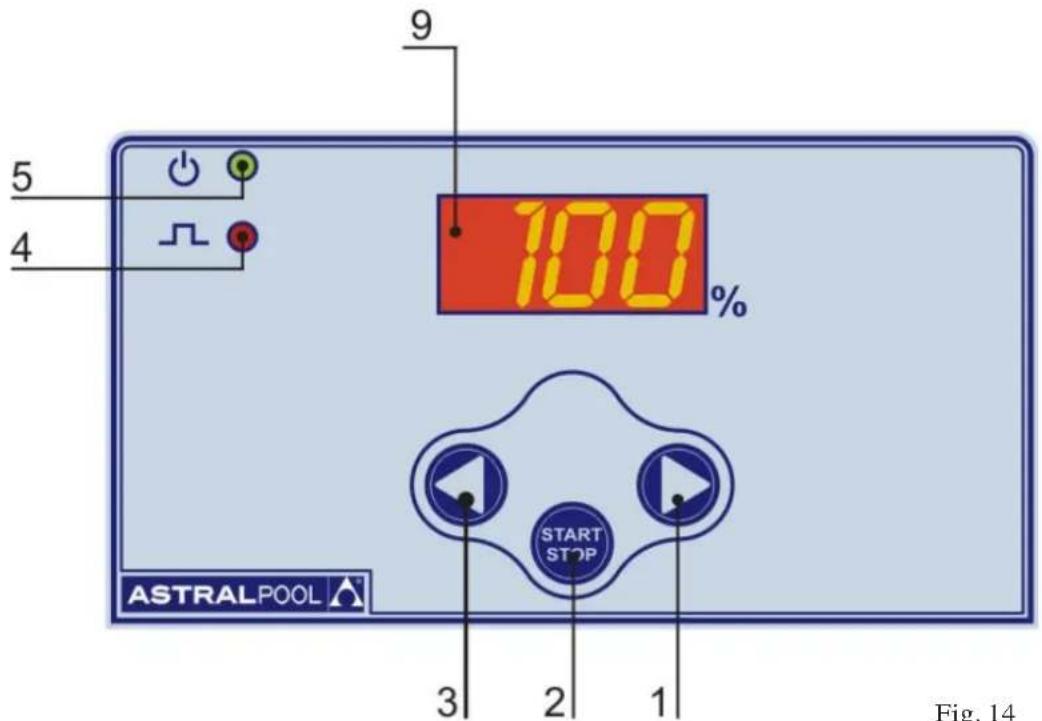

7.1 - PUMP CONTROLS (Fig. 14)

1 - Increasing values button
2 - ON/STAND BY button
3 - Decreasing values button
4 - "red" LED injection pulse flashing
5 - "green/red" LED pump fed/stand by - level probe alarm
6 - 7 segment display

7.2 - TYPICAL INSTALLATION (Fig.15)

A Injection valve
B Power supply
C Filter
S Process tank

I Chemical tank

7.3 - ACCESSORIES

• 1 flexible PVC suction hose, transparent crystal type, length 2 m;
• 1 semirigidpolyethylene hose, white, length 2 m;
• 1 injection valve 3/8 BSP m;
- 1 filter;
• 1 instructions/operating booklet.

Fig. 15

EXACTUS CC/M

8.0 - MICROCONTROLLED DOSING PUMPS EXACTUS CC/M SERIES

The EXACTUS CC dosing pump is a microcontroller unit suitable for operation in proportion to a "mA" input signal. Connected to a transmitter/indicator instrument or other device which supplies a modulated current signal from 0 to 20 mA, the pump pulse frequency will be proportional to the mA signal received: higher the signal higher the pump flow.

8.1 - PUMP CONTROLS (Fig. 16)

1 - "green" LED SET POINT2 function/stand by
2 - "green" LED MANUAL function
3 - Decreasing values button
4 - "green" LED stroke
5 - "Functions selector (mA/manual pulse)
6 - "green" LED mA
7 - "yellow" LED level probe alarm
8 - "red" LED injection pulse flashing
9 - 7 segment display
10 - Increasing values button
11 - Enter button
12 - "green" LED METER function
13 - "green" LED SET POINT1 function/stand by
14 - Function selection button

8.2 - TYPICAL INSTALLATION (Fig.17)

A Injection valve
B Power supply
C Filter
D Level probe
I Chemical tank
S Process tank

8.3 - ACCESSORIES

• 1 flexible PVC suction hose,
transparent crystal type, length 2 m;
• 1 semirigid polyethylene hose, white, length 2 m;
• 1 injection valve 3/8 BSP m;
- 1 filter;
• 1 instructions/operating booklet.

Fig. 17

8.4 - LEVEL CONTROL (UPON REQUEST)

If the dosing pump is supplied with level control setting and upon request floating level switch. When the level of the additive is lower than the switch, level alarm goes ON, the display will show "FAO", the pump is off giving an optical and sound alarm. The level control alarm goes ON with 5 seconds delay.

8.5 - CALIBRATION

Turning on the pump, the instrument switches automatically to the "METER" function.

Pressing button mA pulse (5) will show the actual mA input signal. To go back to strokes/min press again. The manual function is also used when priming the pump. In order to avoid programming and setting errors during the system functioning, the pump is programmed to automatically return to the Meter Mode each time the unit is switched OFF.

8.6 - PARAMETERS SETTING MODE (Fig. 16)

- “Manual” Mode

Turn pump ON

A. On the control panel press button F (14) and start manual mode: ("Manual" LED 2 ON)
B. By means of button 10 (increase) and 3 (decrease), select the number of imp/min. To prime the pump set pulse rate at 75%.
C. Prime the pump.

- “Set 1” Mode

Mode Set 1 is used to select the mA input value/min. dosing pump flow and pulse frequency.

A. Press button 14; Set 1, LED ON. The display will show the pulse frequency previously set.
B. Select the minimum pump output required pressing buttons 3 and 10. If the minimum output is zero set 000.
C. Press button 5 "mA" LED ON:
D. By pressing buttons 3 and 10, you can select the mA input value corresponding to minimum pump output required. Confirm with enter 11. To finish the programming procedure and modify the maximum output value, press button 14 which will automatically change to mode Set 2.

- "Set 2" Mode

Mode Set 2 selects the mA input value/max. dosing pump flow and pulse/frequency.

A. Press button 14 Set 2 LED ON, the display will show the frequency previously set.
B. Press buttons 3 and 10 to set the desired imp/frequency at the maximum pump output required.
C. Press button 5 "mA/pulse", the display will show the value previously set.
D. Pressing 3 and 10 select the mA input value at the maximum pump output required.
E. Press button 11 to enter. The pump will automatically return to “METER” mode and is operational according to the selected functioning mode; two modes are available: direct/reverse.

- Direct Functioning Mode

During production the pumps are programmed for a 4-20 mA direct functioning curve. The pump will start every time the mA signal goes above 4 mA increasing the pulse frequency (and consequently the flow) proportionally to the mA input signal up to maximum imp/min frequency available. E.G. Set 1 minimum signal 4 mA, minimum output. Set 2 maximum signal 20 mA, maximum output.

- Reverse Functioning Mode

Reverse functioning is when the mA signal increases and pump output proportionally decreases. Select the maximum mA signal required with mode Set 1 (in relation to the min. output).

E.G. Set 1 maximum signal 20 mA, minimum output.

Set 2 minimum signal 4 mA, maximum output.

WARNING: Reverse functioning can only be selected when mode Set 1 is always higher than the mA signal.

Example n° 1: PUMP MODEL EXACTUS-CC, 10 L/H, 5 BAR, SIGNAL 4-20 mA.

Signal 4 mA = 0 l/h (0% pump flow rate)

Signal 12 mA = 5 l/h (50% pump flow rate)

Signal 20 mA = 10 l/h (100% pump flow rate)

Example n° 2: SAME MODEL, BUT WITH INVERSE SIGNAL: 20 - 4 mA

Signal 4 mA = 10 l/h (100% pump flow rate)

Signal 12 mA = 5 l/h (50% pump flow rate)

Signal 20 mA = 0 l/h (0% pump flow rate

EXACTUS VFT/MB

Fig. 22

9.0 - MICROCONTROLLED DOSING PUMPS EXACTUS VFT/MB SERIES

The pump is equipped with a modern microcontroller allowing design of a extremely compact and reliable electronic device.

9.1 - PUMP CONTROLS (Fig. 22)

1 - Increasing values button
2 - ON/STAND BY button
3 - Decreasing values button
4 - "green" LED 1:N function
5 - "green" LED 1XN (M) function/water meter
6 - "green" LED 1XN function/manual mode
7 - "red" LED injection pulse flashing
8 - "green/red" LED pump fed/stand by
9 - 7 segment display
10 - function selection button

9.2 - TYPICAL INSTALLATION (Fig.23) A

Injection valve

B Power supply
C Filter
D Level probe
I Chemical tank
K Pulse emitting water meter
S Process tank

9.3 - ACCESSORIES

• 1 flexible PVC suction hose, transparent crystal type, length 2 m;
  • 1 semirigid polyethylene hose, white, length 2 m;
  • 1 injection valve 3/8 BSP m;
• 1 filter;
  • 1 instructions/operating booklet.

9.4 - LEVEL CONTROL

The dosing pump is supplied with level control setting. When the chemical tank is empty, on display (9) it appears RLI and the pump goes in stand by. The level control has 5 seconds of delay.

Fig. 23

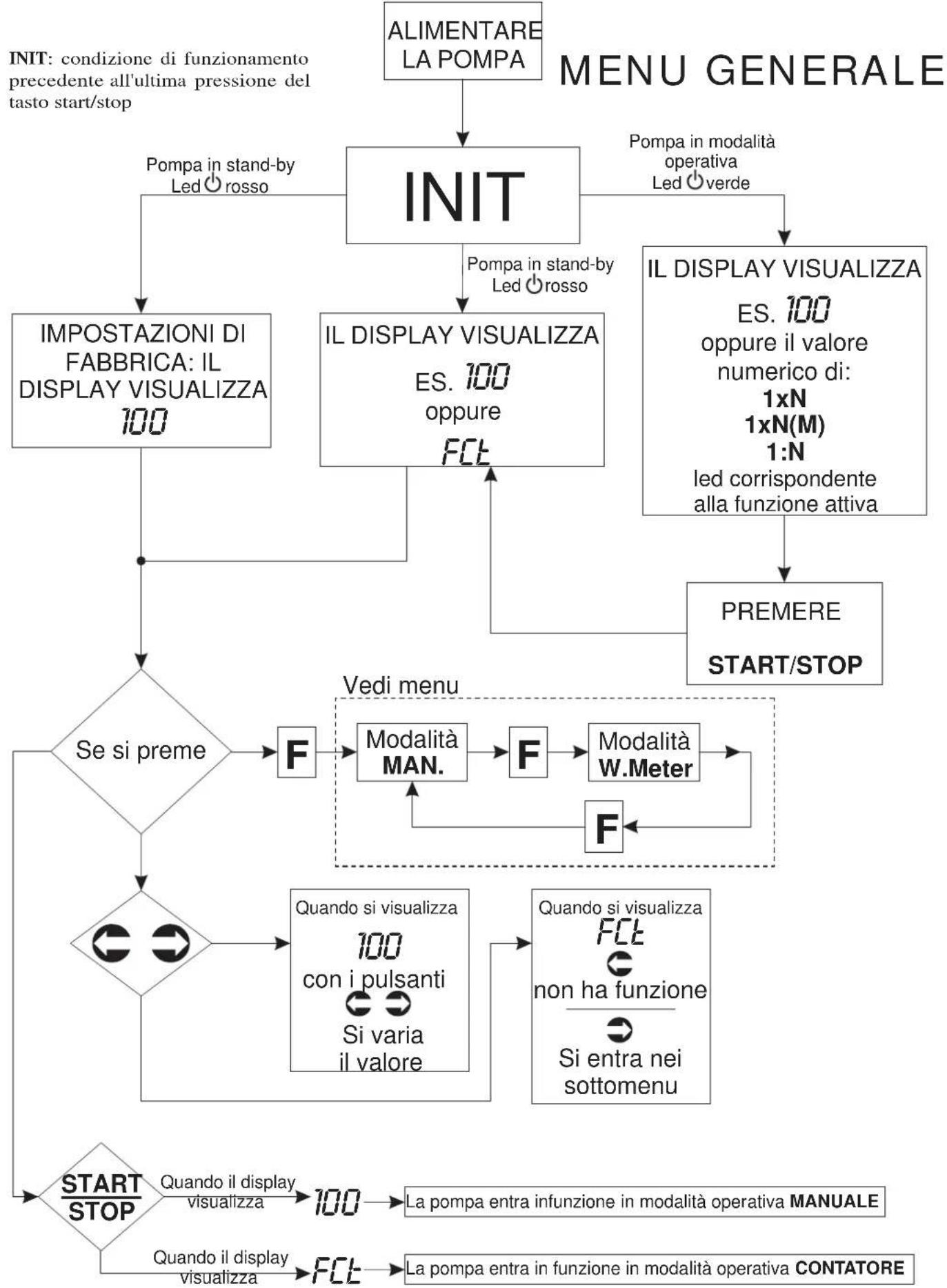

9.5 - GRAPHIC SETTING RAPRESENTATION VFT MICROCONTROLLED PUMP

INIT: working condition set before the last pressing Start/Stop button

MANUAL MENU

9.6 - WATER METER MODE

1XN Mode

The pump is operated by an impulse produced by an external device (e.g. pulse emitting water meter) and it supplies a number of injections equal to the value visualized on the display "N" (set by the operator). In case during the dosing of the "N strokes" other pulses arrive, these are neglected.

Let's see how the pumps works with an example:

-Pump set in watermeter 1XN mode

- Set value on "20"

- At the time the water meter gives a pulse to the pump, it starts its 20 dosing injection strokes, if during this phase further shuts of the contact occur, these are neglected. Ended up the 20 injections, the pump is waiting for further pulses from the water meter to restart the dosing cycle.

1XN(M) Mode

The pump is operated by an impulse produced by an external device (e.g. pulse emitting water meter) and it supplies a number of injections equal to the value visualized on the display "N" (set by the operator). The injections are distributed with a variable frequency that depends by the time passed between a water meter pulse (produced by water meter) and the other.

Possible impulses (contacts) that may arrive to the pump while is already dosing are saved in the memory of the microcontroller, these will be delivered after the first batch is dosed.

Let's see how the pump works with an example:

The pump receives the first contact and returns a string "N" injections to the maximum frequency(e.g. 120 imps./min).

To the arrival of the second contact, the pump computes the time "T" spent by the arrival of the first one and it returns a string of "N" injections not more to the maximum frequency but to that it allows to uniformly distribute them in the time "T".

In case such time reduces, the pump keeps into consideration the injections "N1" which have not been delivered and add them to the "N" ones still not delivered. There are no problems if the time occurred between the contacts should length. If instead quick contacts occurs and it goes to condition N1 > 4 times N, the pump goes in alarm (on the display RL3 is visualized) but continues working and maintaining all the parameters set before by the operator but not dosing the strokes related to the last water meter pulses "N".

1:N Mode

The pump supplies an injection of chemical only when it has reached a number of pulses (contacts), equal to the value visualized on the display (set by the operator)

Let's see how it works with an example:

-Pump set with water meter 1:N

- Set value on "20"

- While the water meter supplies 20 pulses the pump discharge 1 stroke.

10.1 - MECHANICAL FAULTS

As the system is quite robust there are no apparent mechanical problems. Occasionally there might be a loss of liquid from the nipple because the tube nut has loosened, or more simply the discharge tubing-has broken.

Very rarely there may be losses caused by the breakage of the membrane, or by the membrane seals in which case they have to be replaced by disassembling the four screws of the pump head fig. 12), when remounting the pump head ensure that the screws are replaced properly, along with "O" ring.

After repair, the metering pump will need to be cleaned of additive residues which can damage the pump casing.

① - THE METERING PUMP GIVES PULSES BUT THE ADDITIVE IS NOT INJECTED

a. Dismount the suction and discharge valves, clean them and replace, see position (fig. 12). Should the valves be swollen, check valves material against our chemical resistance compatibility chart and fit correct valves. Standard valves are Viton. Upon request Silicon, EPDM (Dutral), Nitryl and valves, ball check valve, K valve can be supplied.

b. Check clogging of the filter.

ATTENTION: When removing the metering pump from the plant, be careful as there might be some residual additive in the discharge hose.

10.2 - ELECTRICAL FAULTS

① ALL LEDS OFF, THE PUMP DOES NOT PULSE

Check powersupply (socket, plug, power switch ON), if the pump doesn't work contact manufacturer Customer Service, Dealer or Distributor.

② GREEN LED (POWER) ON, RED LED (PULSE) OFF, THE PUMP DOES NOT PULSE

Press the START button. If the pump doesn't work contact manufacturer Customer Service, Dealer or Distributor

③ PUMP PULSES ARE NOT CONSTANT

Check that supply voltage is within +/- 10% of rated voltage.

④ THE DOSING PUMP GIVES ONLY ONE PULSE

Disconnect the equipment and contact manufacturer Customer Service, Dealer or Distributor.

11.0 - ELECTRODE HOLDERS

Three different types of electrode holders are available: monotubular for immersion, electrode cell, and in-line. It is essential to bear in mind that the distance between the injection point and the electrode must never be less than one metre. When this is not possible, an appropriate chemical mixer must be inserted between the injection point and the electrode.

12.0 - ELECTRODE CLEANING AND MAINTENANCE

The formation of deposits on the electrode will produce erroneous readings. The necessary cleaning action depends on the type of deposit under consideration. In the case of thin deposits, shake the electrode in the manner of a thermometer or use a spray of distilled water. Organic residues or particularly resistant deposits should

be removed by chemical means. Mechanical cleaning of the bulb should be resorted to only in extreme cases, but bear in mind that abrasion can lead to irreparable damage. If cleaning does not fully re-establish the efficacy of the electrode, it may be that the electrode has aged. Ageing will show itself in the for of either a measurement error or a slow response.

INDICE

1.0 - NORME GENERALI 42

Technical line drawing of a mechanical device with tubing and a container (no text or symbols)

Fig. 5

Fig. 6

Four-step diagram showing a mechanical device with a lever and a hand holding a tool, no text or symbols present.

Fig. 7

Fig. 9

3.2 - CABLAGGI E FUNZIONI DEI CONNETTORI USCITA

Fig. 10

Exploded view diagram of a mechanical assembly with internal components (no text or labels)

Fig. 11

Fig. 23

9.5 - RAPPRESENTAZIONE GRAFICA PROGRAMMAZIONE POMPA VFT A MICRO

POS.	ELENCO DEI PARTICOLARI	SPARE PARTS LIST
1	CASSA ASTRAL	CASING
2	COPERCHIO POSTERIORE	BACK COVER
3	SUPPORTO POMPA	PUMP SUPPORT BRAKET
4	CORPO POMPA	PUMP HEAD
5	GUARNIZIONE COPERCHIO	BACK COVER GASKET
6	PELLICOLA SERIGRAFATA PANNELLO COMANDI	CONTROL PANEL SERIGRAPHY FILM
7	GUARNIZIONE DI TENUTA POTENZIOMETRO POTENTIOMETER	GASKET
8	MANOPOLA REGOLAZIONE IMPULSI	PULSES ADJUSTMENT KNOB
9	FLANGIA PISTONE	PLUNGER FLANGE
10	DIAFRAMMA IN PTFE	PTFE DIAPHRAGM
11	O-RING CORPO POMPA	O-RING PUMP HEAD
12	VITE M4x8 TS INOX	M4x8 FLATHEAD SCREW
13	PRESSACAVO PG7 + DADO	PG7 CABLE CLAMP
14	CONNETTORE FEMMINA 4 VIE G4W1F G4W1F	FEMALE CONNECTOR
15	ELETTROMAGNETE	COMPLETE ELECTROMAGNET
16	VITE 4x16 TC INOX	4x16 BACK COVER SCREW
17	DISTANZIALE SCHEDA ELETTRONICA	PC BOARD SPACER
18	SCHEDA ELETTRONICA	PC BOARD
19	VITE 2.9x13 AF INOX	2.9x13 CONNECTOR SCREW
20	CONNETTORE MASCHIO 4 VIE G4A5M G4A5M	MALE CONNECTOR
21	GUARNIZIONE CONNETTORE G30 E-2	CONNECTOR GASKET G30E-2

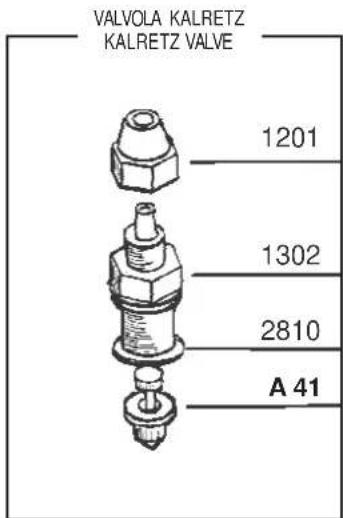

VALVOLE - VALVES

Complete injection valves

VALVOLA INIEZIONE STD. fino a 20 l/h STD. INJECTION VALVE up to 20 l/h

VALVOLA INIEZIONE 90° fino a 20 l/h 90° INJECTION VALVE up to 20 l/h

VALVOLA INIEZ. A SFERA fino a 20 l/h BALL INJECTION VALVE up to 20 l/h

Valvole a labbro - Lip valves

Valvole speciali - Special valves

VALVOLA A SFERA ASPIRAZIONE SUCTION BALL CHECK VALVE

VALVOLA A SFERA MANDATA DISCHARGE BALL CHECK VALVE

Corpo pompa con spurgo manuale Manual air bleed pump head

PARTICOLARI DEL CORPO POMPA

1 CORPO POMPA
2 SPINGIVALVOLA
3 VALVOLA A LABBRO
4 DISTANZIALE PER SPURGO
5 O-RING 2062
6 RACCORDO CORPO POMPA
7 TAPPO PER RACCORDO
8 GHIERA FISSATUBO
9 RONDELLA D4 PIANA
10 VITE M4x35 TC INOX BRUGOLA
11 O-RING 2018
12 BUSSOLA 6x5.5 PER CORPO POMPA
13 RACCORDO PER SPURGO
14 O-RING 2012
15 VITE PER SPURGO
16 TAPPO PER SPURGO
17 MANOPOLA PER SPURGO

PUMP HEAD DETAILS

1 PUMP HEAD
2 VALVE GUIDE
3 LIP VALVE
4 AIR BLEEDSPACER
5 O-RING 2062
6 PUMP HEAD NIPPLE
7 NIPPLE CAP
8 TUBE NUT
9 D4 STAINLESS STEEL WASHER
10 M4x35 STAINLESS STEEL SCREW
11 O-RING 2018
12 6x5,5 PUMP HEAD BUSH
13 AIR BLEED NIPPLE
14 O-RING 2012
15 AIR BLEED SCREW
16 AIR BLEED CAP
17 AIR BLEED KNOB

Elettromagnete Completo - Complete Electromagnet

Filtro Std fino a 20 l/h - Std Filter up to 20 l/h

Note:

Note:

Note:

Note:
