EG-5025 - Grill plate Vivax - Free user manual and instructions

Product Type	Electric Grill Plate
Brand	Vivax
Model	EG-5025
Power Consumption	2200W
Voltage	230V
Frequency	50/60Hz
Heating Element	Embedded M-shaped heater for fast and even heat distribution
Cooking Plates	Grill plate (ribbed) and flat plate; both non-stick
Temperature Control	Thermostatic control probe (removable, constant temperature)
Heat-up Indicator	Yes
Cool-touch Handles	Yes
Removable Grease Tray	Yes, dishwasher-safe
Non-stick Coating	Yes
Safety Features	Grounded plug, overheat protection (implied by thermostat)
Cleaning	Wipe with damp cloth; do not immerse in water; grease tray dishwasher-safe
Storage	Store on a flat surface; ensure drip tray is correctly positioned
Usage	Household use only
Included Accessories	Grease tray, temperature control probe, user manual
Warranty	12 months

Frequently Asked Questions - EG-5025 Vivax

How to preheat the Vivax EG-5025 grill?

Plug in the grill and turn the thermostat knob clockwise to the highest setting. Preheat for at least 5 minutes without food. The heat-up indicator will turn off when the set temperature is reached.

Can I use both the grill plate and flat plate?

Yes, the grill has two sides: a ribbed grill plate for meat and a flat plate for eggs, bacon, pancakes, etc. Simply turn the device over to switch plates.

How to clean the grease tray?

After each use, remove the grease tray, empty it, and wash it in warm soapy water. The tray is dishwasher-safe for easy cleaning.

What should I do if the temperature probe is not working?

First, check that the probe is fully inserted into the socket. If the problem persists, contact an authorized service center. The probe is removable for cleaning and portability.

Is the whole appliance dishwasher-safe?

No, only the grease tray is dishwasher-safe. The main body and electrical parts must not be immersed in water. Clean them with a damp cloth.

Can I use metal utensils on the grill plate?

No, avoid using sharp or metal objects as they can damage the non-stick coating. Use wooden or silicone utensils instead.

How should I store the grill when not in use?

Ensure the appliance is unplugged and completely cooled. Dry all parts thoroughly, especially the probe socket interior. Store on a flat surface in a dry place.

What is the M-shaped heater and its advantage?

The M-shaped heater is embedded into the hotplate, providing fast heat-up, even heat distribution, and long heater life. It ensures consistent cooking results.

Is the grill safe for children to use?

Children aged 8 and above can use the grill under supervision. Keep children under 8 away from the appliance during use as surfaces become hot. Always supervise.

What should I do if the power cord is damaged?

To avoid hazards, the cord must be replaced by the manufacturer, its service agent, or a similarly qualified person. Do not attempt to repair it yourself.

USER MANUAL EG-5025 Vivax

Illustration of a black electric grill with heat exchanger and control panel (no text or symbols)

1. Odstranjiva posuda za mast
2. Indikator rada grijača

1. Hladne ručke i drveno kućište

Close-up of a metallic heating element with vertical slots and a small black button (no text or symbols visible)

Ravna ploča: Idealna je za spremanje raznih jela, uključujući jaja, slaninu, luk, gljive i rajčice.

Ugrađeni grijač u obliku slova M: Grijač se nalazi s donje strane

Diagram of a black grater with heat exchanger and control panel, showing internal components (no text or symbols)

1. Odstranjiva posuda za mast
2. Indikator zagrevanja

1. Hladne ručke

Za lagano nošenje. Pridržavaju vruć tanjir i posudu za okapavanje.

Close-up of a ventilation grille with no visible text or symbols

Ugrađeni grejač u obliku slova M: Grejač je ugrađen (zaliven) u ploču za zagrevanje kako bi se osiguralo brzo zagrevanje i ravnomerna distribucija toplote.

Žlebovi za mast: Ovo služi za efikasno pečenje uz nizak sadržaj masti

3. Odstranjiva posuda za mast

Skuplja masti i sokove tokom pripreme hrane.

Primerena za pranje u perilici posuđa

4. Sonda za kontrolu temperature

Kontrolna sonda je pod termostatskom kontrolom kako bi se osigurala stalna temperatura i odstranjiva je zbog transporta i lakog čišćenja.

PRE PRVE UPOTREBE

Izvadite uređaj i dodatke iz kutije. Odstranite nalepnice, zaštitnu foliju i plastiku sa uređaja.

Illustration of a black grater with heat sink and control panel, showing internal components and mounting points (no text or symbols)

Close-up of a metallic ventilation grille with no visible text or symbols

Close-up of a metallic heating element with vertical fins and a rectangular panel (no visible text or symbols)

This device meets the highest standards, innovative technology and high comfort use.

Read these instructions carefully before using your Grill, and keep it carefully.

If you follow the instructions, your Grill will provide you with many years of good service.

SAVE THESE INSTRUCTIONS CAREFULLY IF YOU SELL OR TRANSFER DEVICE TO OTHER PEOPLE, BE SURE TO INCLUDE THESE INSTRUCTIONS!

IMPORTANT SAFETY INSTRUCTIONS WARNING

The flash with the symbol of arrowhead, inside an equilateral triangle alerts the user about the presence of a dangerous tension not isolated inside the product which can be sufficiently powerful to constitute a risk of electrocution.

The point of exclamation inside an equilateral triangle alerts the user about the presence of important operating instructions and maintenance in the document enclosed in the package.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Do not open the back cover. In no case the user is allowed to operate inside the unit. Only a qualified technician from the manufacture is entitled to operate. By ignoring the safety instructions, the manufacturer can not be hold responsible for the damage.

SAFETY PRECAUTIONS

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved by a person responsible for their safety. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

2. Keep the appliance and its cord out of reach of children less than 8 years. Children should be supervised to ensure that they do not play with the appliance

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Never move the appliance by pulling the cord and make sure the cord can not become entangled.

5. The appliances must be placed on a stable, level surface.

6. The user must not leave the device unattended while it is connected to the supply.

7. This appliance is only to be used for household purposes and only for the purpose it is made for.

8. To protect yourself against an electric shock, do not immerse the cord, plug or appliance in the water or any other liquid.

9. The appliance is not intended to be operated by means of an external timer or a separate remote-control system.

10. Only use the appropriate connector for this device.

11. Do not use this grill near water, in a wet basement or near a swimming pool.

12. Do not let cord hang over edge of table or counter.

13. Failure to maintain the grill in a clean condition could lead to damage of the surface that could adversely affect the

life of the appliance and possibly result in a hazardous situation. Such damages are not included in the warranty.

1. WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless supervised.

continuously

1. Steam cleaner is not to be used.

READ CAREFULLY THIS MANUAL AND KEEP THEM FOR FUTURE REFERENCE!

WARNING: Electric Shock Hazard Improper use of the grounding can result in electric shock.

Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

SETTING UP YOUR GRILL

Names of Grill Parts and Accessories

1. Handles
2. Baking plate
3. Grease tray
4. Temperature control knob

5. Heat up indicator

6. Cool-touch handle


1. Removable grease tray
2. Heat up indicator

1. Cool-touch handles

For easy carrying. Supports the hot plate and drip tray

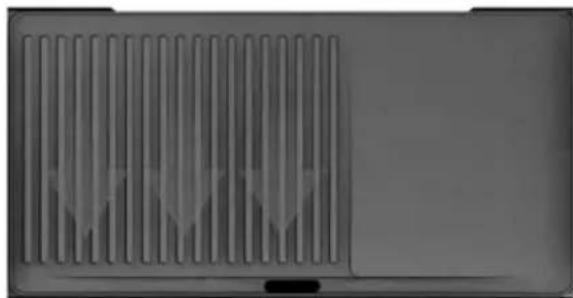

2. Baking plate with embedded M-shape heater

Grill plate : Seals in the juices and flavors of your favorite foods, and allows fats to drip through the grill bars for healthy, fat free cooking

Flat plate : Ideal for cooking a variety of foods including eggs, bacon, onions, mushrooms and tomatoes

Close-up of a metallic heating element with vertical slots and a rectangular base (no text or symbols visible)

Embedded M-shape heater : The M-shape heater is cast into the

hotplate to ensure fast heat-up, even heat distribution and long heater life.

Slopping grooves: To drain the grease efficiently for low-fat healthy grilling

3. Removable grease tray

Collects fats and juices during cooking.

Dishwasher-safe for easy cleaning

4. Temperature control probe

The control probe is thermostatically controlled to ensure constant temperature, and is removable for portability and easy cleaning.

BEFORE FIRST USE

Take the appliance and accessories out the box. Remove the stickers, protective foil or plastic from the device.

• Before using your appliance for the first time, wipe off all removable parts with a damp cloth. Never use abrasive products.
• Place the grease collecting tray below the grease outlet.
• Place the supplied thermostat in the connection of the thermostat.
• Put the power cable into the socket. (Note: Make sure the voltage which is indicated on the device matches the local voltage before connecting the device. Voltage 230V, 50/60Hz, 2200W).
• Turn the thermostat clockwise to the highest setting and allow the device heating at least 5 minutes without food.
• When the device is turned on for the first time, a slight odor will occur.
• This is normal, ensure adequate ventilation. This fragrance is only temporary and will disappear soon.
• We advise to place a heat resistant coating between your table and the appliance (this way you don't get burns on your table or table cloth).
• Place the device in a well ventilated space.

Installation

1. Use Grill on open and dry places

2. Select a level surface that provide enough open space for the intake and/or outlet vents.

3. Plug your Grill into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the unit rating label.

WARNING:

Do not install Grill in the closed spaces, rooms, over a range cooktop or other heat-producing appliance.

The accessible surface is hot during operation

USE

• Pre-heat your appliance on the highest level for a few minutes until the temperature indicator goes off.
• The heating plate should be rubbed in with some food oil.
• Use the temperature know on the thermostat to choose the desired temperature.
• The thermostat regulates a constant temperature. During cooking the indicator light on and off, this is normal, the temperature is always constant adjusted. Never use sharp objects on the grill plate, this will damage the anti-stick coating.

CLEANING AND MAINTENANCE

• Before cleaning, unplug the appliance and wait for the appliance to cool down.
• Never poor cold water on a hot plate, this could damage the device and can cause splashing hot water.
• Wipe the inside and the edges of the appliance with a paper towel or a soft cloth.
• Clean the appliance with a damp cloth. Never use harsh and abrasive cleaners, scouring pad or steel wool, which damages the device.
• Remove and empty the fat collecting tray after each use and wash the tray in warm, soapy water.
• Never immerse the electrical device in water or any other liquid. The device is not dishwasher proof Be sure to unplug the appliance from the power supply.

STORAGE

Always dry the Grill before storing. Ensure the drip tray is correctly positioned.

Store the Grill on a flat surface on your bench top or cupboard.

Important: Before inserting control probe in probe socket, ensure the interior of the socket is fully dry. To do this, wipe interior of socket with a dry cloth or shake out excess water vigorously.

Disposal of electrical and electronic equipment

To protect our environment and to recycle the raw materials used as completely as possible, the consumer is asked to return unserviceable equipment to the public collection system for electrical and electronic.

The symbol of the crossed indicates that this product must be returned to the collection point for electronic waste to feed it by recycling the best possible raw material recycling.

By ensuring this product you will prevent possible negative effects on the environment and human health, which could otherwise be caused due to improper disposal of that product. The recycling of materials from this product, you will help to preserve a healthy environment and natural resources.

For detailed information about the collection of EE products contact M SAN Grupa dd or the dealer where you purchased the product.

EU Declaraton of Conformity

This device is manufactured in accordance with the applicable European standards and in accordance with all applicable Directives and Regulations.

EU declaration of conformity can be downloaded from the following link: www.msan.hr/dokumentacijaartiklala

EG-5025

CZ

Návod k použití

Elektrický gril

VÍTEJTE!

INSTALACE VAŠEHO GRILU

Close-up of a metallic heating element with vertical fins and a small black button (no text or symbols visible)

Illustration of a kitchen grater with heat exchanger and control panel (no text or symbols)

1. Vyberatel'ná nádoba na tuk
2. Indikátor zohrievania

1. Studené rúčky

Close-up of a metallic heating element with vertical slots and a small rectangular component on the right side (no text or symbols visible)

Close-up of a metallic heating element with vertical slots and a small rectangular component on the right side (no text or symbols visible)

Illustration of a black grater with heat sink and control panel, showing internal components (no text or symbols)

Close-up of a metallic heating element with vertical slots and a small black button (no text or symbols visible)

POTPIS I PEČAT PRODAVATELJA

5. JAMSTVO NE OBUHVAĆA

1. Ovim jamstvom M SAN Grupa kao davatelj jamstva u Republici Hrvatskoj jamči besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom jamstvenom listu. Ovim jamstvom jamčimo da će predmet ovog jamstva raditi bez pogreške uzrokovane eventualnom lošom izradom ili lošim materijalom izrade. Svi, eventualno nastali, kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u jamstvenom roku.
2. UVJETI JAMSTVA Jamstveni rok počinje od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet ovog jamstva, obvezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Jamstvo će biti produženo za vrijeme trajanja popravka.
4. Jamstvo se priznaje samo uz račun o kupnji, te uz ovaj jamstveni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
5. Redovnu provjeru, održavanje uz zamjenu dijelova koji se troše normalnom upotrebom, prilagođavanje ili promjene za poboljšanje proizvoda za primjenu koji nisu opisane u tehničkim uputama za korištenje, osim ako je za te preinake predočena suglasnost M SAN GRUPA d.d.
6. Jamstvo se ne priznaje u sljedećim slučajevima:

POTPIS I PEČAT PRODAVCA

1. Ovom izjavom o saobraznosti proizvođač proizvoda, preko KIM TEC CG d.o.o., kao uvoznika i davaoca prava u Crnoj Gori besplatan popravak istog u skladu s vazećim propisima i u skladu s uslovima opisanim u ovoj izjavi o saobraznosti. Ovom izjavom o saobraznosti istićemo da će predmet ovog prava raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biće besplatno otklonjeni u ovlašćenom servisu u predviđenom roku za reklamaciju.
2. USLOVI REKLAMACIJE: Rok za reklamaciju počinje teći od dana kupovine proizvoda i traje 24 mjeseca.
3. U slučaju kvara na proizvodu koji je predmet reklamacije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 15 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 15 dana, biće zamijenjen novim.
4. Pravo na reklamaciju se priznaje uz fiskalni račun o kupovini, ili uz ovu izjavu o saobraznosti koji mora biti ispravno popunjen odnosno mora sadržati datum prodaje, pečat i potpis prodavca.
5. Davalac izjave o saobraznosti osigurava servis i rezervne djelove 7 godina od datuma kupovine.
6. PRAVO NA REKLAMACIJU NE OBUHVATA

POTPIS I PEČAT PRODAVATELJA

GARANCIJSKA IZJAVA

1. Ovom garancijom garantira proizvođač proizvoda, preko KIM TEC d.o.o., kao uvoznika i davatelja garancije u Republici Bosni i Hercegovini besplatan popravak istog u skladu s važećim propisima i u skladu s uvjetima opisanim u ovom garantnom listu. Ovom garancijom garantiramo da će predmet ove garancije raditi bez greške uzrokovane eventualnom lošom izradom i lošim materijalom izrade. Svi eventualno nastali kvarovi biti će besplatno otklonjeni u ovlaštenom servisu u garantnom roku.

UVJETI GARANCIJE:

Garantni rok počinje teći od dana kupnje proizvoda i traje 12 mjeseci, osim za Vivax Imago televizore (CRT, LCD, PDP) za koje jamstvo traje 24 mjeseca

1. U slučaju kvara na proizvodu koji je predmet ove garancije, obavezujemo se da ćemo isti popraviti u najkraćem mogućem roku, a najkasnije u roku od 45 dana. Ako se proizvod ne može popraviti ili se ne popravi u roku od 45 dana, biti će zamijenjen novim. Ako popravak proizvoda traje duže od 10 dana, garancija se produljužuje za vrijeme trajanja popravka.
2. Garancija se priznaje samo uz račun o kupnji, te uz ovaj garantni list koji mora biti ispravno popunjen odnosno mora sadržavati datum prodaje, pečat i potpis prodavatelja.
3. Davalac garancije osigurava servis i rezervne dijelove 7 godina od datuma kupnje.

GARANCIJA NE OBUHVAĆA:
