LVM 86 I - Dishwasher Saivod - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Saivod
Model	LVM 86 I
Energy Class	A+
Place Settings	14
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	45 kg
Power Supply	220-240 V ~ 50 Hz, 10 A
Water Connection	Cold water, 0.04-1.0 MPa
Programs	Eco, Intensive, Quick, Glass, Pre-wash
Noise Level	47 dB
Water Consumption	10 L per cycle (Eco)
Energy Consumption	0.93 kWh per cycle (Eco)
Features	Delay start, half load, adjustable rinse aid
Safety	Child lock, anti-flood system
Maintenance	Clean filter, rinse aid refill, descaling
Spare Parts	Filter, spray arms, detergent dispenser, drain hose
Repairability Index	7.5/10
Warranty	2 years

Frequently Asked Questions - LVM 86 I Saivod

How do I install the dishwasher?

Ensure the water supply and drain are correctly connected. Level the appliance using the adjustable feet. Refer to the installation manual for detailed steps.

What detergent should I use?

Use any dishwasher detergent (powder, gel, or tablets). For best results, choose a product with rinse aid and salt functions.

How do I start a wash cycle?

Load the dishes, add detergent, select the desired program using the control panel, and press Start. Close the door securely.

What does the 'Eco' program do?

The Eco program cleans normally soiled dishes with less energy and water. It runs longer but is more environmentally friendly.

How do I clean the filter?

Remove the filter assembly at the bottom of the tub. Rinse under running water and scrub with a soft brush. Reinstall securely. Clean every 1-2 months.

Why is the dishwasher not draining?

Check if the drain hose is kinked or clogged. Also inspect the filter for blockages. Restart the machine after clearing.

How do I enable the child lock?

Press and hold the Child Lock button (usually indicated with a padlock icon) for 3 seconds until a beep sounds and the indicator lights up.

What does the salt indicator mean?

The salt indicator flashes when the water softener needs regeneration. Refill the salt compartment with dishwasher salt.

Can I use the dishwasher with half load?

Yes, select the Half Load option (if available) to save water and energy. It automatically adjusts the cycle.

What if an error code appears?

Refer to the error code table in the manual. Common codes: E1 (water inlet), E4 (overflow). Turn off the appliance, wait 30 seconds, and restart. If persistent, contact customer support.

USER MANUAL LVM 86 I Saivod

Exterior view of a stainless steel kitchen appliance with digital display (no visible text or symbols)

Lea este manual

Estimado cliente,

Informed by technical. 24

1 Cucharas soperas

(2) AD = BD = 1

2 Tenedores

1. 本次股东大会

3 Cuchillos

Exterior view of a modern office building (no signage)

Two-panel image showing hands assembling a mechanical component, one with a wire mesh and the other with a small inset view (no text or symbols visible)

Pega de ajuste

Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.

- Keep it to refer to it at a later date.

■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

- To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

- If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

- The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

This user manual shall also be got from the manufacturer or responsible vendor.

1) Safety Information....1

2) Quick operation guide.... 5

3) Operation Instruction....7 Control Panel....7 Dishwasher Features....7

4) Prior using for the first time....8 A.Water Softener....8 B.Loading the Salt into the Softener....9 C.Fill the Rinse Aid Dispenser....9 D.Function of Detergent....10

5) Loading the Dishwasher Basket.... 13 Attention before or after loading the Dishwasher Baskets.... 13 Loading the upper Basket.... 14 Loading the Lower Basket.... 14 Cullery Basket.... 14

6) Starting a washing program....15 Wash Cycle Table....15 Turning on the Appliance....16 Change the program....16 At the end of the Wash Cycle....16

7) Maintenance and cleaning....17 Filtering System....17 Caring for the Dishwasher....18

8) Installation Instruction....19 Positioning the Appliance....19 About Power Connection....19 Water Connection....20 Start of dishwasher....21

9) Troubleshooting Tips....22 Before calling for service....22 Error codes....23 Technical Information....24

Loading the baskets according to En50242

GB

1. IMPORTANT SAFETY INFORMATION

.NIMPORTANT SA

WARNING!

When using your dishwasher, follow the precautions listed below:

■ This appliance is intended to be used in household and similar applications such as:
-staff kitchen areas in shops, offices and other working environments;
-farm houses;
-by clients in hotels, motels and other residential type environments;
-bed and breakfast type environments.
■ This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
■ If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
■The ventilation openings must not be obstructed by a carpet
■ This appliance is for indoor use only, for household use only.
■ To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
■ Please unplug before cleaning and maintenance the

EARTHING INSTRUCTIONS

■ This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with a cord having an equipment-earthing conductor and a grounding plug.
■ The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances.
■ Improper connection of the equipment-earthing conductor can result in the risk of an electric shock.
- Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.
■ Do not modify the plug provided with the appliance; If it does not fit the outlet.
■ Have a proper outlet installed by a qualified electrician.
■ Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
■ Do not operate your dishwasher unless all enclosure panels are properly in place.
■ Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
■ Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
■ When loading items to be washed:

■2) Warning: Knives and other utensils with sharp points must be loaded in the basket with their points down or placed in a horizontal position.
- Check that the detergent powder is empty after completion of the wash cycle.
■Do not wash plastic items unless they are marked dishwasher safe or the equivalent.
■For plastic it emsoit so checked, e m manufacturer's recommendations.
■Use only det ergent and rins e add itives des igned anautomatic dish washer.
■Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
■Children should be supervised to ensure that they do not play with the appliance.
■The door should not be left open, since this could increase the risk of tripping.
■During installation, the power supply must not be excessively or dangerously bent or flattened.
■Do not tamper with controls.
■The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.
■The maximum number of place settings to be washed is 14.
■The maximum permissible inlet water pressure is 1MPa.
■The minimum permissible inlet water pressure is 0.04MPa.

Disposal

When the time comes to eliminate this product, please consider the environmental impact and take it to recognised recycling facility instead of disposing it with general household waste. Take the equipment to a waste disposal site. Plastic and metal parts that are used in the construction of this appliance can be separated into pure grade which allow recycling. Ask to your service centre for details. Everyone of us can participate on the environmental protection.

■ Dispose of the dishwasher packaging material correctly.
■ All packaging materials can be recycled.
■ Plastic parts are marked with the standard international abbreviations:

PE — for polyethylene, e.g. sheet wrapping material

PS — for polystyrene, e.g. padding material

POM—polyoxymethylene, e.g. plastic clips

PP—polypropylene, e.g. Salt filler

ABS—Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

■ Packaging material could be dangerous for children!
■ For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.
■ Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling.
■ By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
■ For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service.
■ DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

1. Quick operation guide
   For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance	Press the Power switch button to switch on the appliance. Open the door.
Fill the detergent bag bagout	Compartment A:With each wash cycle.Compartment B:For programs with pre-wash only.(Follow the user instructions)
Check the lease alt level	Mechanical indicator C:Electric indicator on control panel if provided.
Check the regeneration salt level	(On modes with water softener system only.)Free the indicator on control panel if provided.If there is no salt warning light in the control panel(for some models), you can estimate when to fill the salt into the softener by the number of cycles the dishwasher has run.	[TD46]
Look the baskets	Slope off any large amount of towerer float. After rements of burnt feed in pans,then level the baskets. Raise to the dishwasher working instructions.
Select a program	Close the door press the program button until the selected program lights up.(See the section entitled Operation instruction.)
Running the dishwasher	Turn on the water tap and press the StandPause button. The machine will start workingafter about 10 seconds.
Changing the program	1. A running cycle can only be modified off. It has been running for a short time. Otherwise the detergentmay have always been removed and the water already drained. If there is the case, the detergentdeposmer must be rolled.2. Push the StandPause button then press the program button more than 3 seconds to cancel the running program.3. Select a new program.
Ask forgotten disas in the dishwasher	2. Push the evening button to stop the machines.2. Open the door.3. Add the kindergarten dish.4. Close the door. Pass passes the evening button, the dishwasher willstart running again after 10 seconds.
If the appliance is switched off during a wash cycle	If the appliance is switched off during a wash cycle, when switchedon again, please be selected the washing cycle and opens the dishwasheraccording to the original Powercase scale.	WARNING!Open the door carefully.Het steam may escapewhen the door is opened
Switch off the appliance	When the working cycle has finished, the butter of thediameter will round 8 times. Pass step.Furn off the appliance using the Power button.

GB

3.Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions

before using it for the first time.

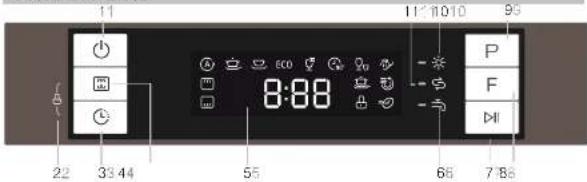

Control Panel

1. On/Off Button: to switch On/Off the appliance;

2. Child lock function: press Delay button and Alt

button simultaneously to lack the program;

1. Delay Button . Press the button to add the delay time,

2. All button: Dial zone wash function, press the button

to select either upper basket or lower basket loaded 5. Display screen to show the reminting time and the

state(ruption state, delay time etc.)

Upper spray indicator:

Lower spray indicator

Child lock indicator: A

Extra cleaning indicators:

Extra drying indicators:

Express indicators

6.Water faucet indicator:

1. Start /Pause button: To start the selected washing

program or pause the washing program when the

machine is working starting up or not;

1. Function Button. To select extra drying or extra

cleaning function of express.

These functions Only can be Normal, ECO Class 90min

3 Program Button: To Press the button to select

appropriate Program:

1. Rinse Aid Indicator

Indicates when the dispenser needs to be refilled:

1. And salt indicator:

Indicates when the dispenser needs to be refilled;

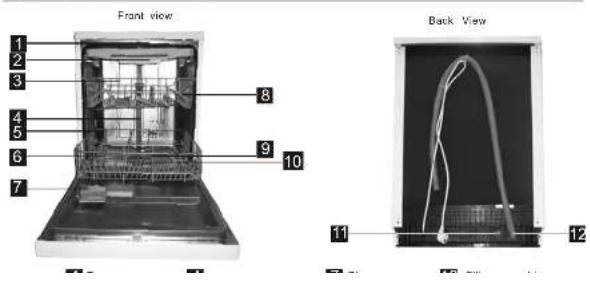

Dishwasher Features

4. Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener

B. Add 1.5Kg dishwasher salt and then full fill the salt container with water

Fill the rinse aid dispenser

D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have

a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, like harder use

The higher the content of these immaterals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in v

The character should be justified according to the hardness of the water in your area. Your health Water Authority can advise you on the hardness of the water in your areas.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of

the water used. This is intended to optimise and customise the level of salt consumption.

Please follow the steps below for adjustment in salt consumption.

1. Switch on the appliance;

2. Press the Start/Pause button for more than 5 seconds to start the water

softener sel model within 60 seconds after the appliance was

switched on;

1. Press the Start/Pause button to select the proper set according to

your local environment, the sets will change in the following

sequence: H1->H2->H3->H4->H5->H6;

1. Press the ON/OH button to and the set up model.

VATER HARNESS				Selector Position	Sell concompressor (gram-cyase)
‘dH’	‘tH’	‘Clarke’	mmol/l
	0-50-50-2	34	2-6	H1	0
3.11	12-20	7-14	1.0-2.0	H2	9
12-12.1-3.2	21-30	15-21		H3	12
18-22.31-40.2	23.3-1-4.0			H4	20
20-30.1-4.0	4-1-50	20-42		H5	30
31-51.1-43.1-48.1-4.8				H6	30

Note:1

pH=1.25 Clarke=1.76 ^f H=0.178mmol/l

dlt: German degree

注：Extrab digumen

1. French degree

Clark. British degree

Note:2

The manufactory setting: H3 (EN 50242)

Contact your local water board for information on the hardness of your water supply.

A

NOTE:

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not specifically designed for the use in a dishwasher, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

■ Only till with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1

After the lower basket has been removed, unscrew and remove the cap from the wall container.
E Place the end of the funnel (supplied) into the hole and introduce about 1.5kg of dishwasher salt.
Full fill the salt container with water. It is normal for a small amount of water to come out of the salt container.
■ After filling the container, screw the can lightly back clockwise.
The salt warning light will stop being after the salt container has been filled with salt.
Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use a short program). Otherwise the filler system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.
   If there is no salt warning light in the control panel (for some Models), you can ashmats when to fill the salt into the softener by the cycles that the dishwasher has run.

2. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive salt.

C. Fill the Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. The rinse aid dispenser is located inside the door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can eatmate the amount from the colour of the optical level indicator. C located next to the cap. When the rinse-aid container is full, the whole indicator will be dark. As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1/4 full.

As the rinse aid diminishes, the size of the black dot

on the rinse aid level indicator changes, as illustrated below.

Full

374 full

172401

① 1/4 full - Should refill to eliminate spotting

Empty

C (Rinse-Aid indicator)

To open the dispenser, turn the cap to the "spon" (left) arrow and lift it out.

Pour the nase aid into the dispenser, being careful not to overfill.

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

A NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming

during the next wash. Don't forget to replace the cap before you close dishwasher door.

Adjusting Rinse Aid Dispenser

Adjust lowor

(Rinse)

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

D. Function of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose.

GB

Detergents

There are 3 sorts of detergents

1. With phosphate and with chlorine

2. With phosphate and without chlorine

3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6" cilt. If detergents without phosphate are used in the case of hard water often white spots appear an dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, detergents can be split in two basic types:

■ conventional, alkaline detergents with caustic components

■ low alkaline concentrated detergents with natural enzymes

Detergent Tablets

Detargent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short programs. Therefore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start at each wash cycle following the instructions provided in the wash cycle table. Your dishwasher uses less detergent and rinse aid than Conventional dishwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled items need more detergent. Always add the detergent just before starting the dishwasher, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

A NOTE:

■ If the lid is closed: press release button. The lid will spring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher

Fill in Detergent

Fill the detergent dispenser with detergent.

The marking indicates the dosing levels, as illustrated on the right:

A The place of main wash cycle detergent placed.

B The place of pre-wash cycle detergent placed

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging

Close the lid and press until it looks in place.

If the dishes are heavily soiled, place an additional

detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.

A NOTE:

■ You find information about the amount of detergent for the single programme on the last page.

■ Please aware, that according to the level soiling and the specific hardness of water differences are possible

■ Please observe the manufacturer's recommendations on the detergent packaging.

Close the Detergent compartment

If your dishes are only moderately dirty,

you may be able to use less detergent

than recommended.

- compartment.

Press down the lid {1} until it clicks

shui [2].

- If you are using detergent in tablet form,

read the manufacturer

recommendations on the packaging in

order to

determine where the tablets should be closed inside the dishwashers to a, in

placed inside the dishwasher (e.g. in pulley basket, detergent compartment.

etc.).

Make sure that the lid on the detergent

compartment is closed, even if you are

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further
information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately
after the program has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wopden, ham china ar
mother-of-pearl handles

■ Plastic items that are not heat resistant

■ Older cutlery with glued parts that are not

temperature resistant

■ Bonded cutlery items or dishes

■ Pewter or copper items

■ Crystal glass

■ Steel items subject to rusting

■ Wooden platters

■ Items made from synthetic libres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes.

■ Silver and aluminum parts have a tendency to discolour during washing

■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pane.

It is not necessary to rinse the dishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots/pans, etc. are faced downwards.

2. Curved items, or ones with recesses, should be loaded aslant so that water can run off.

3. All utensils are stacked securely and can not tip over.

4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cups, glasses, pane etc. With the opening facing downwards so that water cannot collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie inside one another, or cover each other.
  ■ To avoid damage to glasses, they must not touch.
  ■ Load large items which are most difficult to clean into the lower basket.
  ■ The upper basket is designed to hold more delicate and lighter dishes such as glasses, coffee
  and tea cups
  ■ Long bladed knives stored in an upright position are a potential hazard!
  ■ Long and/or sharp items of cutlery such as carving knives must be positioned
  horizontally in the upper basket.
  Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they will not get moved by the spray of water.

Please be reminded that

■ Pots, serving bowls, etc, must always be placed top down

Deep pots should be slanted to allow water to flow out.

The Bottom Basket features folding spikes so that larger or more pets and pana can be loaded.

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper flower basket. The height of the upper basket can be adjusted by lift up the basket for the upper position, and up press the handle to lower the upper basket. see the picture below.

Lift the basket for upper position

Up press the handle to lower the basket

Adjust handle

Loading the Lower Basket

We suggest that your place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Folding back the cup shelives

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Folding Spikes of Lower Basket

For better stacking of pots and par the spikes can be folded down as show in the picture right.

GB

Cutlery Basket

Cutlory should be placed in the cutlory rack separately from each other, in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance.

6.Starting a washing program

Wash Cycle Table
NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/men	Running time(min)	Energy (kW)	Water (L)	Rinse Aid
Auto	Auto sensing wash, lightly normally or heavily soiled crockery, with or with cut dried-on food	Pre-wash (45 g)Autowash(45-55 g)RinseRinse(65 g)Drying	5/30 g(Packtime)	150	0.9-1.3	11-15	★
Intensive	For heaviest soiled crockery, and normally soiled pots, pens,dishes etc with dried on soiling.	Prewash 60 °C)Wash 60 °C)RinseRinseRinse20 °C)Drying	5/36 g(Packtime)	175	1.6	17.5	★
Normal	For normally soiled pads, such as pots, slates, glasses and lightly soiled pens.	Prewash(45 g)Wash (55 g)RinseRinse (65 g)Drying	5/36 g(Packtime)	165	1.30	13.5	★
ECO(*EN 2242)	This is standard programme, it is suitable to clean normally soiled tobleware and it is the most sufficient programme in terms of its combined economy and water consumption for that type of tableware.	PrewashWash (45 g)Rinse(65 g)Drying	5/36 g(Packtime)	220	0.83	10	★
Glass	For lightly soiled crockery and glass	Pre-washwash(45 g)RinseRinse(60 g)Drying	5/30 g(Packtime)	133	0.9	13	★
90 Min	For normally soiled loads that need quick wash.	Wash 65 °C)RinseRinse (65 g)Drying	35 g(Packtime)	902.5	25		★
Rapid	A shorter wash for lightly soiled loads that do not need drying.	Wash (45 g)Rinse(50 °C)Rinse (55 g)	25 g	30	0.75	11
Pro-wash	To rinse dishes that you plan to wash later that day	Prewash		15	0.02	4

NOTE:

*EN 5 0242. This program is the test cycle. The information for comparability test

in accordance with EN 50242, as follows

■ Capacity: 14 setting

■ Position Upper basket: upper wheels on rails

Kinse and setting: 6

■ P:0.49W; P:0.45W

Left-on mode duration: Power will be cut off automatically after program finished for 30 minutes.

Turning On the Appliance

■ Draw out the lower and upper basket, loose the dishes and push them back.

It is recommended to load the lower basket first, then the upper one (see the section entitlement

NOTE:

When you press the Start/Pause button to pause during washing, the running indicator will stop blinking and the dishwasher will mooping every minute unless you press the Start/Pause button to start.

Change the Program...

Premise:

A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been released, and the appliance may have already drained the wash water. If this is the case, the detergent dispenser must be refilled (see the section entitled "Loading the Detergent").
Press the Start/Pause button, the machine will be in standby state, press the program button more than 3s then you can change the program to the desired cycle setting (see the section entitled "Starting a wash cycle...").

NOTE:

If you open the door during a wash cycle, the machine will pause. The program light will stop blinking and the buzzer will mooring every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

■Press the StartPause button

41 Add forgotten dishes.

1950-1960 October Second Edition

Close the door

Open the door a little to stop the washing

Press the StartBrune button, the dishwasher will run

After the spray arms stop working you can open the door

дляг 10 княшків

completely

At the end of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the Power switch button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to breakege. They will also dry better.

■ Switch Off the Dishwasher
The program light is an but is not blinking, only in this case the programme has ended. 1. Switch off the dishwasher by pressing the Power button. 2. Turn off the water tap!
■ Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance. Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.
■ Unloading the dishwasher
It is normal that the dishwasher is wet inside. Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

▲ WARNING!

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed.

The filter system consists of a coarse filter, a flat (Main filter) and a microfilter(Fine filter).

Foot and soil particles trapped in this filter are pulverized by a special jet on the lower spray arm and washed down to drain.

Larger items, such as pieces of bones or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

This filter holds soil and food residues in the sump area and prevents it from being redpass on the dishes during wash cycle.

Filter assembly

The filler efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filler must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filler after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filler device, pull the cup handle in the upward direction.

▲ WARNING!

The dishwasher must never be used without the filters.

ulproper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils.

1

Step 1: Turn the filter in anti-clockwise direction,

2

Step 2: lift the filter assay up

Remarks:

- Inspect the filters for blocking after every time the dishwasher has been used.

- By unscrewing the coarse filter, you can remove the filter system. Remove any food remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seal and pressing downwards

▲ WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a slightly dampened cloth.

After cleaning, make sure to dry it thoroughly

For the exterior, use a good appliance polish wax.

Never use sharp objects, scouring pads or harsh cleaners on any part of the dishwasher

Cleaning the Door

▲ WARNING!

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.

u) Abrasive agents or some paper towels should not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve

5. Remove the filler at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard

GB

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

8. Installation instruction

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

Levelling the Appliance

Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.

About Power Connection

WARNING!

For personal safety:

• Do not use an extension cord or an adapter plug with this appliance.
  ■ Do not, under any circumstances, cut or remove the earthing
  ■ Connection from the power cord.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Water Connection

Cold Water Connection

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in pipe.

If the water pipes are new or have not been used for an extended period of time, let th

water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water in relation to be blocked and damage the appliance.

risk of the water inlet to be blocked and damage the appliance

A WARNING!

Please close the hydrant after using.

Drain hose Connection

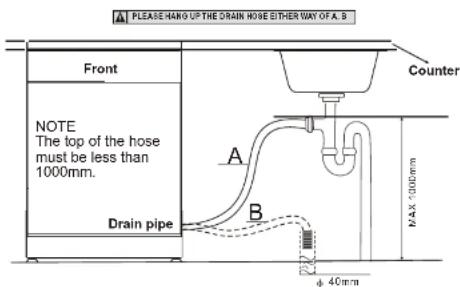

Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. The top of the base must be less than 1000mm.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not linked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height less than 1000 mm (maximum) from the bottom of the dish. The water drain hose should be fixed.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

The dishwasher is level and fixed properly

2 The inlet valve is open

Fill hose connections are fully tightened and not leaking

4 The wires are lightly connected

5 The power is switched on

6 The inlet and drain hoses are knotted

7 All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

9. Troubleshooting Tips

Before Calling for Service

Review the charts on the following pages may save you from calling for service.

Problem Possible Causes What to Do

Technical problems	Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
		Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securelyMake sure the power card is properly plugged into the wall socket
		Water pressure is low	Check that the water supply is connected properly and the water is turned on.
		Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
	water not pumped from dishwasher	Kink in drain hose	Check drain hose.
		Filter clogged	Check the coarse filter(see section filled * Cleaning The Filter *)
		Kitchen sink dogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining, you may need a plumber rather than a servician for dishwashers.
General problems	Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suits.If this occurs, open the dishwasher and let suits evaporate.Add 1 gallon of cold water to the tub. Cross and latch the dishwasher, then select any cycle. Dishwasher will drain out the water all the first step.Open the door after draining is stop and check if the suits is disappeared.Repeat if necessary.
		Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
	Stained tub interior	Detangent with colourant was used	Make sure that the detergent is the one without colourant.
	White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suits.
	There are rust stains on cutlery	The affected items are not corrosion resistant.
		A program was not run after dishwasher salt was added.Traoves of salt have gone into the wash cycle.	Always run the quick wash program ,without any crookary in the dishwasher and without selecting the Turbo function (if present),after adding dishwasher salt.
		The lid of the softer is loose	Check the lip .Ensure the fix is fine.
	Knocking noise in the wash cabinet	A spray aim is knocking against an item in a basket	Interrupt the program, and rearrange the items which are obstructing the spray aim.
	Rattling noise	Items of crockery	Interrupt the program.

GB

Problem Possible Causes What to Do

Unsatis -factory washing result	The dishes are not clean	The dishes were not loaded currently.	See notes in "Loading the Dishwasher Baskets".
		The program was not powerful enough.	Select a more interactive program.See" Wash Cycle Table".
		Not enough detergent was dispensed.	Use more detergent, or change your detergent.
		Items are blocking the path of spray arms.	Rearrange the items so that the spray can rotate freely.
		The filter combination In the base of wash cabinet is not clean or Is not correctly third. This may cause the spray arm jobs to get blocked.	Clean and/or fit the filter combination correctly.Clean the spray arm jets. See "Cleaning the Spray Arms".
	Cloudiness on glassware	Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortless cycle to wash the glassware and to gel them clean.
	Block or gray marks on dishes	Aluminum alters have rubbed against dishes.	Use a mild abrasive cleaner to eliminate these marks.
	Detergent left in dispenser cups	Dishes block detergent cups.	Re loading the dishes properly.
Unsatis -factory drying result	The dishes are not drying	Improper loading	Load this dishwasher as suggested in the directions.
		Too little mass-fed	Increase the amount of mass-fed/still the mass-fed dispenser.
		Dishes are removed too soon	Do not employ your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once I use dishes are barely warm to the touch. Empty the low basket first. This prevents water farm dropping off dishes in the upper basket.
		Wrong program has been selected	In short program the washing temperature is lower.This also lowers cleaning performance. Choose a program with a long washing time.
		Use of pastry with a low-quality costing	Water drainage is more difficult with these items.Cutlery or clothes of the type are not suitable for washing in the dishwasher.

Error Codes

When some malfunctions come on, the appliance will display error codes to warn you:

Codes	Meanings	Possible Causes
E1	Longer inlet time	Fauses is not opened, or water intake is restricted or water pressure is too low.
E2	Not reaching required temperature.	Malfunction of heating element.
E4	Overflow	Some element of dishwasher leaks.

Technical Information

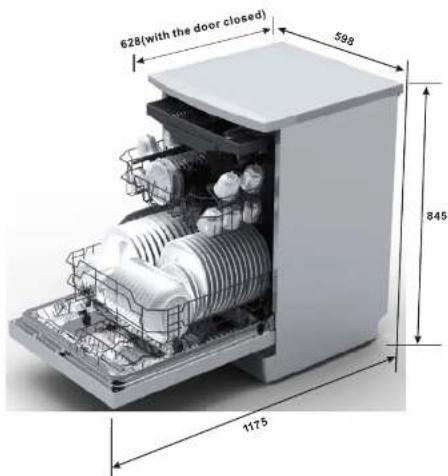

Height:	845mm
Width:	598m m
Depth:	628mm(with the door places)

GB

g the baskets according to En50242:
3. Cutterly basket:

[NO TEXT]

1 Soup spoons		5 Dessert spoons
2 Forks		6 Serving spoons
3 Knives		7 Serving forks
4 Teaspoons		8 Grey ladies

Information for comparability tests in accordance
Capacity: 14 place settings
Position of the upper basket. lower position
Programme: ECO Rinse aid setting: 6 Softener setting: H3

Cutlery basket could be have 5 positions:

Note 1

Position one: lift the left basket up, both left and right baskets are sideling.

M

Position two: adjust the left basket to lower position, left basket is flat and right basket is sideling.

Vonla 3

Position three: lift the right basket up, both left and right baskets are flat.

Vario 4

m = 311

Position Four: Move the right basket from right to left, two basket are overlapping.

Vale G

Position Five: Remove the right basket from the tray,

Technical Data Sheet

Sheet of household dishwasher according to EU Directive 1059/2010:

Manufacturer	SAIVOD
Type / Description	LVM86i
Standard place settings	14
Energy efficiency class 1	A+++
Annual energy consumption 2	237 kWh
Energy consumption of the standard cleaning cycle	0.83 kWh
Power consumption of off-mode	0.45 W
Power consumption of left-on mode	0.49 W
Annual water consumption 3	2800 liter
Drying efficiency class 4
Standard cleaning cycle 5	ECO 45C
Program duration of the standard cleaning cycle	220min
Noise level	47 dB(A) re 1 pW
Mounting	Free standing
Could be built-in	Yes
Height	64.5 cm
Width	59.6 cm
Depth (with connectors)	62.8 cm
Power consumption	1760-2100 W
Rated voltage / frequency	220-240 V ~ 150 Hz
Water pressure (flow pressure)	0.4-10 bar = 0.04-1 MPa

NOTE:

① A + + + (highest efficiency) to D (lowest efficiency)
② Energy consumption 237 RWh per year, based on 260 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used.
3 Water consumption 2000 litres per year, based on 200 standard cleaning cycles. Actual water consumption will depend on how the appliance is used.
4 A (highest efficiency) to G (lowest efficiency)
This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient programme in terms of its combined energy and water consumption for that type of tableware.

The device meets the European standards and the directives in the current version at delivery - LVD 2014/35/EU - ENC 2014/36/EU

Royal Decree-Law 1/2007, of 16 November, grants goods of a durable nature a legal guarantee of 2 years. Damage or faults caused by the following are excluded from the guarantee:

-Incorrect installation (voltage, gas or water pressure, electrical or water connections), reinstallations or housings made by the consumer without applying the correct instructions.

-Accidental causes such as falls, knocks, contact with liquids, insertion of foreign bodies, or any other cause of force majeure.

-Negligent, inadequate or non-domestic use, such as appliances installed in hairdressers, bars, restaurants, hotels, etc.

-Manipulation by technical services other than the official ones of the brand.

-Corrosion and/or rust caused by the normal wear and tear of the appliance or accelerated by adverse environmental conditions.

-Use of accessories or consumables which are not the original ones of the brand.

The following are also excluded from the guarantee: -Components exposed to wear and tear due to normal use (light bulbs, seals, in-sulators, tubes, drains, etc.).

-Non-electromechanical components, aesthetic, plastic, glass or folding components, soap dishes, shelves, grilles, etc.

-Conservation services, cleaning, unblocking, change of direction of door, re-moval of foreign bodies, obstructions, recalibration or fine-tuning, etc.

-Computer products: Elimination of viruses, restoration of programs for this reason, or the reinstallation of the hard disk because it has been wiped.

Technical assistance service:

AREETA S.L.

Please dial 902 656 462 for telephone service or visit the website www.arceta.es

ES

This article is guaranteed for 2 years, in the terms and conditions set out in Act 1/2007 (Spanish legislation). For any queries related to the device purchased, consult El Corte Inglés or HIPERCOR.

Tel. Technical support: (+ 34) 902 656 026
