Product Type	Wall lamp and lamp post
Model Numbers	422-205 to 422-210
Power Supply	Mains power (earthed outlet required)
Bulb Type	Screw-in bulb (not included)
Maximum Bulb Output	Refer to type plate on fitting
Wiring Colors	Brown (live), Blue (neutral), Green/Yellow (earth)
Installation Methods	Wall mounting with plastic expander and screws; Post mounting in ground
Included Hardware	Terminal block, plastic panel, self-tapping screws, plastic expanders, fixed screws, domed screws, transverse screws
Safety Features	Bulb gets hot; do not touch when on; replace broken glass immediately; do not look directly at bulb
Maintenance	Disconnect power before replacing bulb; allow bulb to cool; do not touch bulb with bare hands
Spare Parts Availability	Contact authorized service centre for power cord replacement; consult dealer for other parts
Repairability	Power cord must be replaced by authorized service centre; bulb replacement is user-serviceable
Dimensions	Not specified in manual; typical outdoor lamp dimensions
Weight	Not specified in manual; lightweight for wall/pole mount
Color/Finish	Black and white photo suggests metallic or painted finish

Frequently Asked Questions - 422-206 Anslut

How do I install the wall lamp?

Mount the plastic expander on the wall, insert two screws in the plastic panel, fit the panel in the expander using self-tapping screws, connect the power cord to the terminal block (brown to brown, blue to blue, green/yellow to earth), insert terminal block in panel, mount lamp on fixed screws and tighten with domed screws.

What is the maximum bulb wattage I can use?

Do not exceed the maximum output stated on the type plate on the fitting. Refer to the type plate for exact wattage.

How do I replace the bulb?

Disconnect from the mains power supply, open the lamp cover, allow the bulb to cool, unscrew the old bulb without touching it with bare hands, carefully screw in a new bulb, and replace the cover before switching on.

Can I use this lamp without an earth connection?

No, the fitting must be connected to an earthed power outlet for safety.

What should I do if the lamp glass breaks?

Replace any broken lamp glass immediately. Do not use the lamp while the glass is broken.

How do I install the lamp post?

Mount the post in the ground, connect the power cord to the terminal block (brown to brown, blue to blue, green/yellow to earth), insert terminal block in the post, mount lamp on the post using crosshead screws, and install a bulb.

What wires connect to the terminal block?

Connect the brown wire (live) to a brown wire, the blue wire (neutral) to a blue wire, and the green/yellow wire (earth) to a green/yellow wire.

Can I touch the bulb when it is on?

No, the bulb gets very hot when switched on. Do not touch it until it has cooled sufficiently.

Where can I get replacement parts?

For safety reasons, the power cord must only be replaced or repaired by an authorized service centre. Consult your dealer for other parts.

Is the lamp suitable for outdoor use?

The manual describes wall and post installation outdoors, but ensure the fitting is rated for outdoor use. The manual does not specify IP rating; check the type plate.

USER MANUAL 422-206 Anslut

Installation Instructions for Lamps

422-205 - 422-210

Black and white photo of a street lampshade with a pointed top (no text or symbols visible)

SVENSKA

SÄKERHETSANVISNINGAR

Read these instructions carefully before use!

• Disconnect from the mains power supply before starting installation.
  • The bulb gets very hot when it is switched on. Do not touch the bulb until it has cooled sufficiently.
• The bulb must not exceed the stated maximum output.
• Any lamp glass which breaks must be replaced immediately. Do not use the lamp when the lamp glass is broken.
• Do not look directly into the bulb when it is switched on.
• Note that the fitting must be connected to an earthed power outlet.
• Do not use the lamp if the power cord and/or plug are damaged in any way. For safety reasons, the power cord must only be replaced or repaired by an authorised service centre. Consult your dealer.

DESCRIPTION

ENGLISH

Figure 5

Figure 6

INSTALLATION

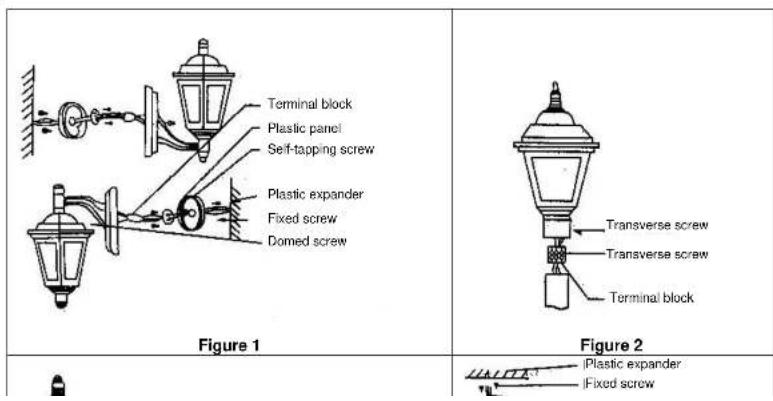

Installation of wall lamp (figure 1)

1. First, mount the plastic expander on the wall where the lamp is to be.
2. Insert two screws in the plastic panel.
3. Fit the plastic panel in the expander using self-tapping screws.
4. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
5. Insert the terminal block in the plastic panel.
6. Mount the lamp on the fixed screws and tighten using domed screws.
7. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

Installation of lamp post (figure 2)

1. Mount the post in the ground.
2. Connect the power cord to the terminal block: a brown wire (L = live) to a brown wire, a blue wire (N = neutral) to a blue wire and a green/yellow wire (earth) to a green/yellow wire (see earth symbol).
3. Insert the terminal block in the post.
4. Mount the lamp on the post using crosshead screws.
5. Screw a new bulb into the bulb holder. Do not exceed the maximum output (see type plate on fitting).

ENGLISH

MAINTENANCE

Replacing the bulb

1. Disconnect from the mains power supply.
2. Open the lamp cover.
3. Unscrew the bulb when it has cooled.
4. Do not touch the bulb with your bare hands.
5. Carefully screw a new bulb into the bulb holder.
6. Put the lamp cover back before switching on the lamp.
