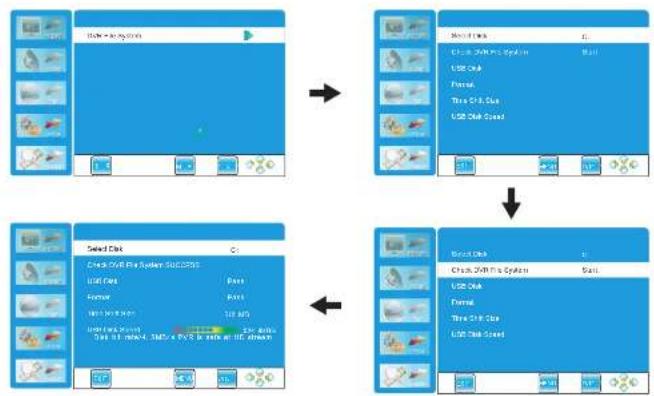

| Product Type | LED TV |
| Model | 24E100SQB |
| Screen Size | 23.6 inches (diagonal) |
| Resolution | 1920 × 1080 pixels (Full HD) |
| Brightness | 250 cd/m² |
| Contrast Ratio (Typical) | 800:1 |
| Response Time | 3 ms |
| Viewing Angle | 160° horizontal / vertical |
| TV System | DMB-TH (Digital), PAL (Analog) |
| Power Supply | DC input (via AC adapter) |
| Inputs | 2× HDMI, 1× VGA, 1× S-Video, 1× YPbPr, 2× USB, 1× RF, 1× AV (Composite) |
| Audio Outputs | 1× SPDIF (Optical), 1× Headphone, 1× AV Audio Out |
| Remote Control | Included with full function keys |
| Multimedia Playback | Photo, Music, Movie, Text via USB |
| Standby Recording | Yes (USB storage required, DTV mode) |
| EPG | Electronic Program Guide (7 days) |
| Wall Mount | Compatible (VESA standard, not specified) |
| Safety Features | Auto standby after 15 min no signal, ventilation holes, overload protection |
| Cleaning Instructions | Use soft dry cloth; avoid solvents, alcohol, or abrasive cleaners |
| Repairability | Qualified service only; use VDiGi accessories recommended |
Frequently Asked Questions - 24E100SQB VDiGi
User questions about 24E100SQB VDiGi
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Television in PDF format for free! Find your manual 24E100SQB - VDiGi and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 24E100SQB by VDiGi.
USER MANUAL 24E100SQB VDiGi
日錄
H錄....1
安全資訊.... 2
預先注意事項.... 4
遥控器 6
面板功能描述.... 7
後置端子及功能描述....8
基本操作及菜單操作....9
频道....10
影像....12
聲音及時間....13
選項....14
多媒體....15
圖片....16
安全資訊
安装/設定
圖片
“FWD”键：按“FWD”键选择快进模式：X2→X4→X8→X16
“REV”键：按“REV”键选择快退模式：X2 > X4 > X8 > X16
Table of Contents....25
Safety Information....26
Precautions....28
Remote Control ....30
Functions of the parallel 3.1
Rear Panel and Descriptions....32
Basic Operation 33
Menu Operation 34
Channel Menu.... 34
Picture Menu.... 36
Sound Menu....37
Time Menu.... 38
Option Menu....39
Media Menu....40
Photo....41
Music....43
Safety information
Installation/Set-up
Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.
Installation
The TV set should be installed near an easily accessible AC power outlet.
Place the TV set on stable, level surface to avoid it form falling down and cause personal injury or damage to the TV.
Only qualified service personnel should carry out wall installations.
For safety reasons, it is strongly recommended that you use V DIGI Accessories.
Transporting
Before transporting the TV set, disconnect all cables.
Two or more people are needed to transport a large TV set
When transport the TV set hand, hold it as shown on the right. Do not put stress on the LCD panel.
When lifting or moving the TV set, hold it firmly from the bottom.
When transporting the TV set, do not subject it to jolts or excessive vibration.
When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.
Ventilation
Never cover the ventilation holes or insert anything in the cabinet.
Leave space around the TV set
Notes:
Do not use the supplied AC adapter on any other equipment.
Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.
Do not modify the AC adapter.
Do not put anything heavy on the AC adapter.
Do not pull on the AC power cord itself when disconnecting the AC power cord.
Do not connect too many appliances to the same AC power outlet.
Do not use a poor fitting AC power outlet.
Prohibited Usage
Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.
Location
Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.
Environment
Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.
Situation
Do not use a small number of units with the cabinet removed, or with attachments next
For children
Do not allow children to climb on the TV set.
Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.
If the following problems occur
Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or V DIGI service centre to have it checked by qualified service personnel.
When:
AC power cord is damaged.
Poor fitting of AC power outlet.
TV set is damaged by being dropped, hit or having something thrown at it.
Any liquid or solid object falls through opening in the cabinet.
Precautions
Viewing the TV
View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.
When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.
Handing and cleaning the screen surface/cabinet of the TV set
Be sure to unplug the AC power cord connected to the TV set form AC power outlet before cleaning.
To avoid material degradation or screen coating degradation, observe the following precautions.
To remove dust form the screen surface/cabinet, wipe gently with a soft cloth of dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.
Never use any type of abrasive pad, alkaline/ acid eclancer, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.
Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.
When adjusting the angle of the TV set, move it slowly so as to prevent the TV set form moving or slipping off from its table stand.
Optional Equipment
Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.
Remote Control
Description of television of remote control
POWER.Switch between working status and standby status
② MUTE: Turn on/off audio
③) 0-9: Press to select channel
4 -/-:Channel digit setup button
⑤ :Switch to the last channel
⑥ EPG:Show electronic program guide
⑦ SOURCE:Input source conversion button
8) MENU:Show the main menu
⑨) EXIT: Exit the OSD menu
10) ENTER: Confirm selection
: Navigate on menu
11) VOL+/-: Change sound volume
12) CH+/-: Change channel
13) SUBTITLE: Select language of subtitle
14) AUDIO: Select audio output
15) USB: Select USB source input
16) DTV: Select DTV source input
17) FAV.LIST: Display/Define favorite channel
18) CH.LIST:Show channel list
19) PICTURE: Select the picture mode
Functions of the panel
Top Panel Buttons
POWER ( ⏻): Tums the TV on and off.
MENU: Displays the TV Main Menu.
INPUT: Displays the Source Select List.
CH: Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control and can be used to select menu options.
CH+: Scans up through the channel list. In the TV menu system, it acts like the up arrow on the remote control and can be used to select menu options.
VOL: Decreases the volume. In the TV menu system, it acts like the left arrow on the remote control and can be used to select menu options.
VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used to select menu options.

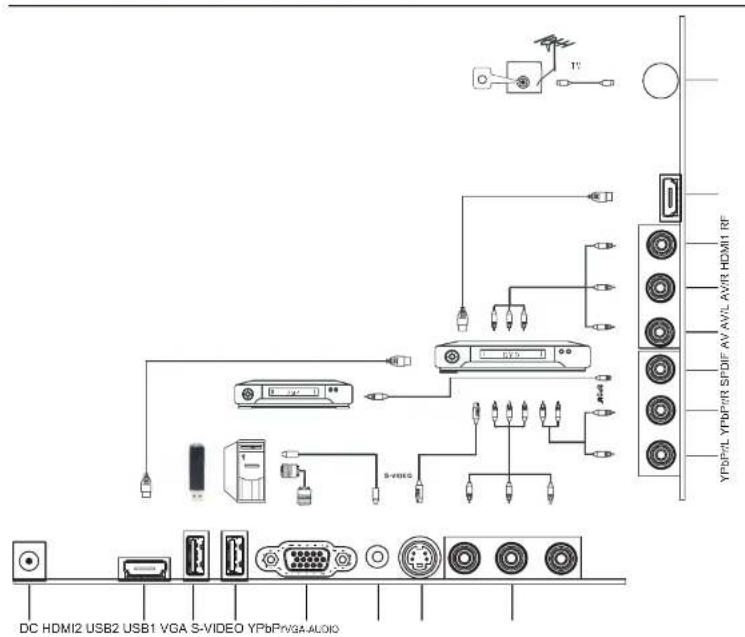

Rear Panel and Descriptions
Basic Operation
Power On /Off
- Connect the TV unit to power source using power cord.
- When the power indicator is in red, the TV is in standby mode. Now press the "POWER" button on remote control or "POWER" button on top panel to turn on the TV. The TV work normally when the power indicator is in blue.
- Switch the TV to standby mode, just press "POWER" button on the remote control or the "POWER" button on top panel. Now the indicator will be in red.
- If unused for a long time in standby mode, please disconnect the power cord from the wall outlet.
Note: The TV set can turn off automatically after 15 minutes while there is no signal input.
Select Viewing Source
Press the "SOURCE" button to display the sources list.
Menu Operation
If you want to adjust the display settings, please follow the instruction below.
Press the "MENU" and "◀/▶" buttons to browse the CHANNEL Menu, Picture Menu. Sound Menu.
Time Menu, Option Menu and Media Menu in turn.
Press ENTER or ▼button to enter the submenu.
Press ▲/▼' button to select items and ◀/▶' button to adjust it.
Press 'MENU' button to return to the previous menu.
Press "EXIT" button to exit "MENU" mode.
Note: When an item in MENU is displayed as gray, it means that the item is not available
or can not be adjusted.
Channel Menu
Press "MENU" and "▼/▲" buttons to select the CHANNEL.
Press ENTERCHITEMS
Press ▶ or ENTER button to enter the shubmeu
Auto Tuning
Channel Menu
DTV Manual Tuning () only available in DTV mode
You can also set program list again one by one by "DTV Manual Tuning" function.
Press to /
, " button select channel
Press ENTER button to search
When a channel is found, the searching process will stop,
the channel will be saved with current channel number
If the program is not your expected one, please press
◀/▶ button to continue the searching.
Press \~ Exonton to exit.
ATV Manual Tuning (only available in TV mode)
If you find one channel is a little weak,
you can adjust the frequency of the channel
It might improve the quality of picture and sound.
Storage TO
Press "▲/▼" button select to storage to channel
NO. from 1 to 100.
ColorSystem
Can't be adjusted
Audio System
Press◀/▶ "button to select Audion System:I—BG—DK.
CurrentCH
Press◀/▶"button to select current channel.
Search
Press◀ "button to seach channel from high to low, until find the channel.
Press" ▶ "button to search channel from low to high, until find the channel.
Eiro Tuno
Channel Menu
Programme Edit
Press to ▲ f▼ button select items
Press red button on delete the channel
Press green button rename the channel
Note : Only the TV channel can be renamed
Press "◀/▶" to select the letter and press"▲/▼" to
change the letter
Press yellow button to move the channel.
Note: The list of programs include TV and DTV.
The programs can be moved only among the same kind.
Press "BLUE" button to skip the channel.
Press "FAV." button set the favorite channel
Picture Menu
Press "MENU" and "▼/▲" buttons to select the PICTURE MENU
Press "▲/▼" button to select items.
Menu Operation
Picture Menu
Tint
Press button to adjust the tint of the picture.
(NTSC mode only)
Color Temperature
Press button to select among normal, warm, and cold mode.
Aspect Ratio
Press budget to select the ratio of the screen: FULL-NORMAL-AUTO-panorama-ZOOM1-ZOOM2.
Noise Reduction
Press bund to select among Auto, weak, middle and strong.
Screen (only available in PC RGB mode)
Press button to enter the submenu.
Press button to select items.
Press build to adjust it.
Press "EXIT" button to adjust it.
Menu Operation
Sound Menu

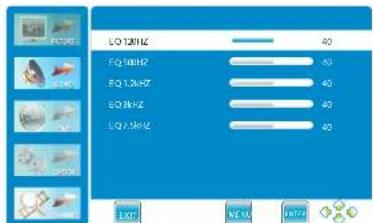

EQ
Press button to POP-UP the submenu, as follow picture to display:
(Only available in the "USER" sound mode).
Press button to change the value.
Balance
Press button to adjust the audio output between left and right speakers.
Auto Volume
Press button to turn on/off the function of auto volume.
Surround Sound
Press button to turn on/off the function of surround sound.
SPDIF Output
Press button to select PCM, Off, AC3.(Only available in DTV)
Time Menu
Press "MENU" and "▼/▲" buttons to select the TIME MENU.
Option Menu
Press "MENU" and buttons to select the Option Menu.
Press ▶ or ENTER button to enter the submenu.
Language
Press button to select between English and Traditional Chinese.
OSD Time Out
Press ◀/▶ button to select among the "OFF", "5SEC"\~10SEC".
"15SEC", "20SEC", "30SEC", "45SEC" and "60SEC" Parameters.
OSD Tran spar ency
Press button to select among the OFF ", "25%", "50%", "75%" and "100%" parameters.
Important Unique Button
EPG only available in DTV mode
Press EPG button to display the Electronic Programme Guide.
You can check the program information for the next 7 days.
(If the information is available from broadcast)
Press "▲/▼" button to select the channel
Press ◀◀/▶'and yellow button to select the time
Press 'INFO' button to show the information of the program.
Media Menu
MEDIA
Press "MENU" and "▼/▲" button to select the "MEDIA".
Press "▶" or ENTER button to enter the submenu
Press "SOURCE" button to POP-UP the Input source menu.
Press "▲/▼ button to select the "STORAGE", and press "►" or ENTER to enter the interface, as follow display:
Press ◀◀/▶ button to select among the "PHOTO", "MUSIC", "MOVIE" and "TEXT" icons. Press ENTER button to confirm.

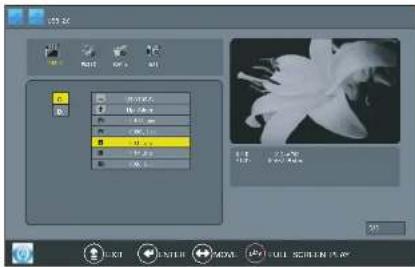

- Press ◀/▶ button to select the "PHOTO"
-
Press ENTER button to enter the submenu
-
Press ◀, ▶, ▲, ▼ button to select the files, and Press ENTER button to oper the file, and Press *▲/▼ button to select the photo, Press ENTER button to confirm, Press it again to unselect the photo.
4.P ress * ▲ / ▼ button to pre view the photo, as follow ow display:
5.P press ENTER button to select the photo, Press it again to unselect.
- Press "PLAY" button to play the photo, as follow display: Pause Press "PAUSE" button to pause playing the photo.
Play Press "PLAY" button to play the selected photo.
Stop
Music
- Press ENTER button into MUSIC interface.
- Press ▲/▼ button to select the files.
- Press ENTER button to open the file
- Press ▲/▼ button to preview the music, and press ENTER
button to confirm to select the music.
(be used for skip in music player), and jpress ENTER button to unselect.
- Press "PLAY" button into music player and playing the selected music, as follow display:
Movie
PAUSE
Press "PAUSE" button to pause the playing music.
PLAY
Press "PLAY" button to play the music.
PREV.
Press "PREV." button to skip the backward music.
NEXT
Press "NEXT" button to skip the forward music.
REV.
Press "REV." button to fast reverse amongx2, x4, x8, andx16 modes.
FWD.
Press ^FWD. \~button to fast forward amongx2,x4,x8 andx16 modes.
STOP
Press "STOP" button to stop and return.
EXIT
Press "EXIT" button to exit, and then can select to view the photo at the same time.
MOVIE
Press ◀, ▶, ▲, ▼ button to select the "MOVIE", Press "OK" button into the "MOVIE" interface. as follow display:
Press button to select the files, and press ENTER button to confirm, as follow display:
- Select the "PATH" icon, and press ENTER button to POP-UP the submenu, and press ◀/▶ button to select between "SELECT" and "UNSELECT" all files, and press ENTER button to confirm.
- Press *▲/▼ button to select the movie, and press ENTER button to confirm the selected movie, and Press ENTER button again to unselect the movie.
- Press the "PLAY" button to play the movie. Press the "PAUSE" button to pause the playing movie. Press "PREV." or "NEXT" button to skip the backward or forward. Press "REV." or "FWD." button to fast reverse or fast forward, press "STOP" or "EXIT" button to return.
- Select the "UP FOLDER" icon, and press ENTER button to return one level the menu.
- Press "EXIT" button to exit.
Text
- Press button ▼ select the
Press button to select be tween the
"PATH" icon, and press ENTER button to POP-UP the submenu, and
"SELECT" and "UNSELECT" all files.
- Press ◀/▶ button to select the file, and press ENTER button open the file or select the UP FOLDER icon, and press ENTER button to return one level the menu.
- Press the '▲/▼' button to select the file, and press ENTER button to confirm.
- Press "PLAY" button to open and play the file, as follow display:
Press "FWD." button to view a next page.
Press "REV." button to view a previous page
Press "STOP" or "EXIT" button to return.
- Press the "EXIT" button to exit.
Standby Record (Only in DTV mode)
- In DTV mode, press EPG button to show programme list within 7 days.
- Press ◀▶▲▼ buttons to select programme, press REC button to enter recording page:
二、When in standby mode, the system will finish recording programme according to the recording task list. Make sure that external USB device is connecting. When the storage device is detected for the first time as a record, you need to format to achieve the following functions: Enter the OPTION menu, press ENTER or ▶ to DVR File System:
三、Play a recorded file Press the DVR.LIST button on the remote control to enter the Record List as shown: Press the YELLOW button repeatedly to list the files named Program, Channel or Time. Press the ▲▼ button to select desired file and press the ▶ or the DISPLAY button to display the information of the program.
Specifications
1.YPbPr/HDMI
| Resolution | Vert.Freq.(Hz) |
| 480i | 60 |
| 480p | 60 |
| 720p | 60 |
| 1080i | 60 |
| 1080P | 60 |
2.VGA
| Resolution Vert.Freq.(Hz) | |
| 14 40 *90 0 | 60 |
| 10 24 *76 8 | 60 |
| 80 0*6 00 | 60 |
| 64 0*4 80 | 60 |
| Model | 24E100SQB | 22E100SQB |
| Panel Size | 23.6inch | 21.53inch |
| Resolution | 1920( H) × 1080( V) | |
| Viewing Angle | 160^ | 170^ |
| Brightness | 250 cd/m^2 | 250 cd/m^2 |
| Contrast Ratio(Typ.) | 800: 1 | 1000:1 |
| Response Time | 3ms | 5ms |
| TV System | DMB-TH;PAL | |
Troubleshooting
| Condition | Explanation/Solution |
| Picture | |
| There is no picture (screen is dark) and no sound. | Check the antenna/cable connection.Connect the TV to the AC power, and open the power supply on the TV.If the indicator lights up in red, press Power button. |
| Ghosting occurs, or double images appear. | Check the antenna/cable connection.Check the antenna/cable location and direction. |
| Only snow and noise appear on the screen. | Check if the antenna/cable is broken or bent.Check if the antenna/cable has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside). |
| The picture is distorted (dotted lines or stripes appear). | Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Check the antenna/cable connections.Keep the antenna/cable TV cable away from other connecting cables. |
| There is picture or sound noise when viewing a TV channel. | Check the antenna/cable connection. |
| Tiny back points and/or bright pointsSound | The screen is composed of pixels. Tiny black points and/or |
| The picture is good, but there is no sound. | Press Vol +/- or Mute key.Check the audio cable L/R connectionWhen using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (COAXIAL) may not be able to output audio signal |
| Channels | |
| You cannot select your desired channel. | Switch between digital and analogue mode, and select the desired digital/analogue channel. |
| Some channels are blank. | The channel is for scrambled/subscription service only. Subscribe to a pay TV service.The channel is used only for data (no picture or sound).Contact the broadcaster for transmission details. |
| You cannot view digital channels. | Contact a local installer to find out if digital transmissions are provided in your area.Check if the antenna/cable is broken or bentUpgrade to a higher gain antenna. |
| General | |
| The TV turns off automatically (the TV enters standby mode). | Check if the “Sleep off” is activated. |
| The remote does not function. | Replace the batteries. |
| HDMI equipment cannot be recognized. | Check that your equipment is compatible with control for HDMI. |
| Not all channels are tuned for cable. | Contact the related cable broadcaster |
- 日錄
- 安全資訊
- 圖片
- Safety information
- Installation
- Transporting
- Ventilation
- Notes:
- Prohibited Usage
- Location
- Environment
- Situation
- For children
- If the following problems occur
- Precautions
- Viewing the TV
- Handing and cleaning the screen surface/cabinet of the TV set
- Optional Equipment
- Remote Control
- Description of television of remote control
- Functions of the panel
- Basic Operation
- Power On /Off
- Select Viewing Source
- Menu Operation
- Channel Menu
- Programme Edit
- Picture Menu
- Tint
- Sound Menu
- EQ
- Balance
- Auto Volume
- Surround Sound
- SPDIF Output
- Time Menu
- Option Menu
- Important Unique Button
- EPG only available in DTV mode
- Media Menu
- MEDIA
- Photo
- Music
- Movie
- PAUSE
- PLAY
- PREV.
- NEXT
- REV.
- FWD.
- STOP
- EXIT
- Standby Record (Only in DTV mode)
- Specifications
- Troubleshooting
Brand : VDiGi
Model : 24E100SQB
Category : Television
