Product Type	LED Television
Brand	VDiGi
Model	3D200SQD32
Screen Size	20 inches (diagonal)
Display Resolution	1366 x 768 pixels (HD Ready)
Refresh Rate	60 Hz
Dimensions (with stand)	18.5 x 13.4 x 6.7 inches (47 x 34 x 17 cm)
Weight (with stand)	5.5 lbs (2.5 kg)
Power Consumption	30 W (typical), <0.5 W standby
Power Supply	AC 100-240V, 50/60 Hz
Inputs	2x HDMI, 1x USB, 1x Composite (AV), 1x RF (antenna)
Outputs	1x 3.5mm headphone jack
Audio	2 x 3W speakers
Tuner	ATSC (analog + digital)
Remote Control	Included (IR)
Wall Mount Pattern	VESA 100 x 100 mm
Operating Temperature	5°C to 35°C
Storage Temperature	-20°C to 60°C
Cleaning Instructions	Wipe with soft dry cloth; avoid liquids on screen.
Safety Warning	Do not expose to rain or moisture; unplug during storms.
Spare Parts Availability	Remote and power cord available from manufacturer.
Repairability Index	6.5/10 (user replaceable consumables, professional repair advised for main board)

Frequently Asked Questions - 3D200SQD32 VDiGi

How do I connect external devices to my VDiGi 3D200SQD32 TV?

You can connect devices via HDMI, USB, or composite AV inputs. Use the Source button on the remote to select the corresponding input.

Why is there no picture but sound is working?

This may indicate a backlight issue. Try turning the TV off and on, or check if the screen is set to a blank input. If persists, contact support.

How can I mount this TV on a wall?

The TV supports VESA 100x100 mm wall mounts. Use a compatible bracket and follow the instructions included with the mount.

What remote codes work with this TV?

Universal remote codes for VDiGi TVs often include 10178, 10678, or 10778. Consult your remote manual or try auto-search.

How do I perform a factory reset?

Go to Menu > Settings > Reset and confirm. This will erase all personal settings and restore default values.

Can I connect a soundbar?

Yes, you can connect a soundbar via HDMI ARC (if available) or using the 3.5mm headphone jack with an adapter.

What is the maximum USB drive size supported?

The TV supports USB drives up to 32 GB formatted in FAT32 for media playback.

How do I clean the screen?

Use a soft, dry microfiber cloth. For stubborn spots, slightly dampen the cloth with water. Do not spray liquid directly on the screen.

Why won't the TV turn on?

Check that the power cord is securely plugged in and the outlet is working. Try pressing the power button on the TV itself. If still off, the internal fuse may be blown.

Does this TV support 3D?

The model name includes '3D', but this TV does not have 3D display capability. It is a standard 2D LED TV.

USER MANUAL 3D200SQD32 VDiGi

Front view of a black flat-screen TV with 'VDIG' branding on the front screen (no additional text or symbols visible)

3D200SQD32

目錄

目錄 1

安全資訊.... 2

預先注意事項.... 4

底座安装 ....5

遙控器 6

面板功能描述....7

後置端子及功能描述....8

基本操作及菜單操作....9

影像 10

聲音……11

電視 12

設定....14

家長控制及EPG 15

多媒體 16

錄影功能....18

3D電視播放 20

技術規格....21

解決問題....22

Table of Contents....24

Safety Information....25

Precautions....27

Stand Installation....28

Remote Control 29

Functions of the panel....30

Rear Panel and Descriptions....31

Basic Operation 32

Video....33

Audio....34

TV....35

Setup....37

Parental and EPG....38

Multimedia.... 39

Record.... 41

3D TV....43

Specifications.... 44

Troubleshooting....45

Before operating the TV, please read “Safety Information” and retain this manual for the future reference.

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

The TV set should be installed near an easily accessible AC power outlet.

Place the TV set on stable, level surface to avoid it form falling down and cause personal injury or damage to the TV.

Only qualified service personnel should carry out wall installations.

For safety reasons, it is strongly recommended that you use V DIGI Accessories.

Transporting

Before transporting the TV set, disconnect all cables.

Two or more people are needed to transport a large TV set

When transport the TV set hand, hold it as shown on the right. Do not put stress on the panel.

When lifting or moving the TV set, hold it firmly from the bottom.

When transporting the TV set, do not subject it to jolts or excessive vibration.

When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

Never cover the ventilation holes or insert anything in the cabinet.

Leave space around the TV set

To ensure proper ventilation and prevent the collection of dirt or dust.

Do not lay the TV set flat, install upside down, backwards, or sideways.

Do not pace the TV set on a shelf, rug, bed or in a closet.

Do not cover the TV set with a cloth, such as curtains, or item such as newspaper, etc.

AC power cord

Handle the AC power cord and outlet as follows in order to avoid any risk of fire, electrical shock or damage and/or injuries:

Use only V DIGI supplied AC power cords, not those of other brands.

Insert the plug fully into the AC power outlet

Operate the TV set on a 110-240V AC supply only.

When wiring cables, be sure to unplug the AC power cord for your safety and take care not to catch your feet on the cables.

Disconnect the AC power cord form the AC power outlet before working on or moving the TV set.

Keep the AC power cord away form heat sources.

Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes:

Do not use the supplied AC power cord on any other equipment.

Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.

Do not modify the AC power cord.

Do not put anything heavy on the AC power cord.

Do not pull on the AC power cord itself when disconnecting the AC power cord.

Do not connect too many appliances to the same AC power outlet.

Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Broken pieces

Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.

As the TV set is not disconnected from the AC power when the TV set is just turned off, pull the plug from the AC power outlet to disconnect the TV set completely.

However, some TV set may have features that require the TV set to be left in standby to work correctly.

For children

Do not allow children to climb on the TV set.

Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur

Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or V DIGI service centre to have it checked by qualified service personnel.

When:

AC power cord is damaged.

Poor fitting of AC power outlet.

TV set is damaged by being dropped, hit or having something thrown at it.

Any liquid or solid object falls through opening in the cabinet.

Precautions

Viewing the TV

View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

Screen

Although the LED screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bight points of light (red, blue, or green) may appear constantly on the screen. This is a structural property of the screen and is not a malfunction.

Do not push or scratch the front filter, or place object on top of this TV set. The image may be uneven or the screen may be damaged.

If this TV set is used in a cold place, smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

The screen contains a small amount of liquid crystal. Mercury is sometimes contained depending on the kind of fluorescent tubes. Follow your local ordinances and regulations for disposal.

Handing and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set form AC power outlet before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

To remove dust form the screen surface/cabinet, wipe gently with a soft cloth of dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

Never use any type of abrasive pad, alkaline/ acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.

When adjusting the angle of the TV set, move it slowly so as to prevent the TV set form moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Stand Installation

Your TV is packaged with the TV stand base separated from the cabinet. To setup the TV table stand, please carry out the installation according to the instructions below.

Step One

Place the TV faced down on a soft cloth or cushion to prevent the panel from being damaged. Note:

1. The panel is easy to scratch, so please choose an absolutely flat surface to place the TV, and use soft cloth or cushion to protect the TV panel. Do not put TV on table directly.
2. Always unplug the AC cord first when installing or removing the stand.

Step Two

Take the stand base and insert it to the neck on the bottom of TV, you should take notice of direction about base installation.

Step Three

Insert the screws (which are totally the same) and tighten them.

Description of television of remote control

1 POWER:Switch between working status and standby status

②) MUTE: Turn on/off audio

③) 0-9: Press to select channel

4) -/--:Channel digit setup button

5) :Switch to the last channel

⑥) EPG:Show electronic program guide

7) SOURCE:Input source conversion button

8) MENU:Show the main menu

⑨) EXIT: Exit the OSD menu

10) ENTER: Confirm selection

▲/▼: Navigate on menu

11) VOL+/-: Change sound volume

12) CH+/-: Change channel

13) SUBTITLE: Select language of subtitle

14) AUDIO: Select audio output

15) USB: Select USB source input

16) DTV: Select DTV source input

17) FAV.LIST: Display/Define favorite channel

18) CH.LIST:Show channel list

19) PICTURE: Select the picture mode

20) SOUND: Select the sound mode

21) ASPECT: Adjust image display proportion

22) INFO: Show channel program information

23) SLEEP: Set the timer turn off TV automatically

24) FREEZE: Freeze the picture

25) TEXT: Not available

26) DVR.LIST: Show the Schedule List

27) PLAY/PAUSE/REW/FF/STOP/PREVIOUS/

NEXT: Available in multimedia

28) REP/REC: Personal video record button

29) ZOOM+/-: Zoom the size of screen(multimedia)

32) COLOR BUTTONS: Follow the on-screen instruction

Back Panel Buttons

INPUT: Displays the Source Select List.

MENU: Displays the TV Main Menu.

CH▲: Scans up through the channel list. In the TV menu system, it acts like the up arrow on the remote control and can be used to select menu options.

CH▼: Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control and can be used to select menu options.

VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used to select menu options.

VOL-: Decreases the volume. In the TV menu system, it acts like the left arrow on the remote control and can be used to select menu options.

POWER (💡): Turns the TV on and off.

Power Indicator: Light up in red when the TV is in standby mode. Light up in blue when the TV is on. Remote control sensor: Receives IR signals from the remote.(Do not put anything over the sensor, otherwise, the sensor may not operate property.)

Name Function Description
VGA VGA input
VGA AUDIO	VGA audio input
YPbPr Component input
YPbPr Audio L/R Component audio input
SPDIF	Coaxial output
RF Antenna input
AV2 Composite video and audio input
AV1(Video composite video input
Audio R/L	Composite audio input
USB	Reserve for external USB device
HDMI1, 2, 3, 4	HDMI input
Earphone	Earphone output

Power On /Off

1. Connect the TV unit to the wall outlet using power cord.
2. When the power indicator is in red, the TV is in standby mode. Now press the "POWER" button on remote control or "POWER" button on side panel to turn on the TV. The TV work normally when the power indicator is in blue.
3. Switch the TV to standby mode, just press "POWER" button on the remote control or the "POWER" button on side panel. Now the indicator will be in red.
4. If unused for a long time in standby mode, please disconnect the power cord from the wall outlet.

Note: The TV set will display "No signal" while there is no signal input.

Select Viewing Source

Press the "SOURCE" button to display the sources list.

Please use the ▲▼ buttons to select desired signal, and press ENTER to confirm.

Note:

Please make sure the connection for your choice is available.

If you want to adjust the display settings, please follow the instruction below

Press the "MENU" and ◀▶ buttons to browse the Video, Audio, TV, Setup, Parental menu.

Press ▲▼ button to select items and ENTER button to adjust it.

Press EXIT button to return to the previous menu.

Press MENU button to exit "MENU" mode.

Note: When an item in MENU is displayed as gray it means that the item is not available or can not be adjusted.

Video

Press MENU and buttons to select the Video.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu.

Picture: Terelec thepitture mode: user, standard, soft, vivid.

Brightness : Press ◀▶ button to adjust the brightness of the picture.

Contrast : Press ◀▶ button to adjust the contrast of the picture.

Saturation : Press ◀▶ button to adjust the color saturation.

Sharpness : Press ◀▶ button to adjust the sharpness level of the picture.

Color Temperature

Press ◀▶ button to select: cool, warm, standard, user.

Advanced Video

Press ▲▼ button to select the advanced video, and press ENTER or ▶ button to enter the sub menu:

Video

DNR (Digital Noise Reduction)

Press ◀▶ button to select the DNR mode: Off, Low, Middle, Strong.

MPEG NR (MPEG Noise Reduction)

Press ◀▶ button to select the DNR mode: Off, Low, Middle, Strong.

Flesh tone

Press ◀▶ button to select the flesh tone: Off, Low, Middle, High.

3D Setup

Press ▲▼ button to select the 3D setup, press ENTER or ▶ to enter the submenu. See page 43

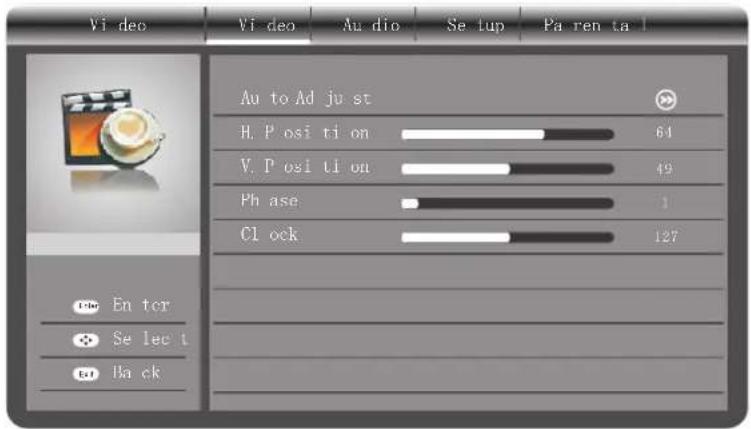

Screen (only available in VGA mode)

Press ENTER or ▶ button to enter the submenu, you can adjust: Horizontal Position, Vertical Position, Phase, Clock.

Audio

Press MENU and buttons to select the Audio.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu.

Balance: Press ◀▶ button to adjust the audio output between left and right speakers.

Bass: Press ◀ button to adjust the value of bass output.

Treble: Press ◀▶ button to adjust the value of treble output.

Sound Surround: Press ◀▶ button to turn on/off this function.

Equalizer: Press ◀ button to select Equalizer of Standard, Live, Dance, Techno, Classic, Off, Rock.

SPDIF Type: Press ◀▶ button to select SPDIF type of OFF/Dolby Digital/PCM.

(Available in DTV mode)

Auto Volume Control: Press ◀▶ button to turn on/off to control volume automatically.

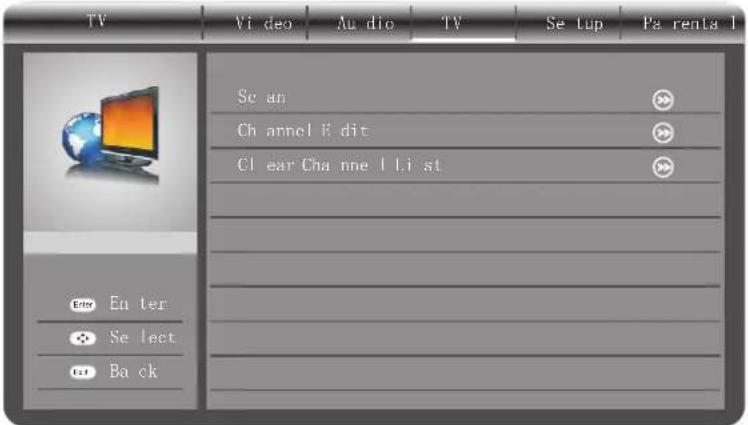

Press MENU and buttons to select the TV.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu.

Scan

Press ENTER or ▶ button to enter the submenu:

Auto Scan

Press ▲▼ buttons to select Auto Scan.

Press ENTER or ▶ button to enter the submenu, select the TV system and the color system, the TV will search channels automatically.

All channels will be saved once searching finished. In the course of auto searching, you can press "EXIT" to stop the searching process.

Update Scan

Press ENTER or ▶ button to enter the submenu, select the TV system and the color system, the TV will update channels automatically.

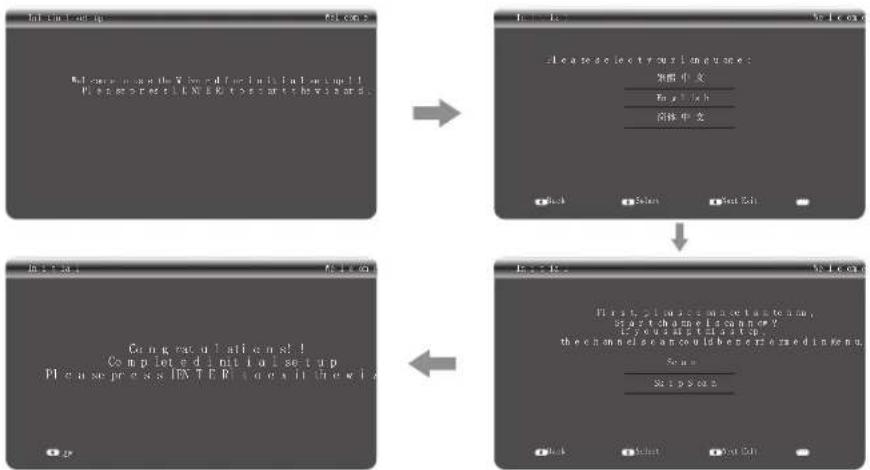

Note: If it is the first time installation it will start with Installation Guide Menu.


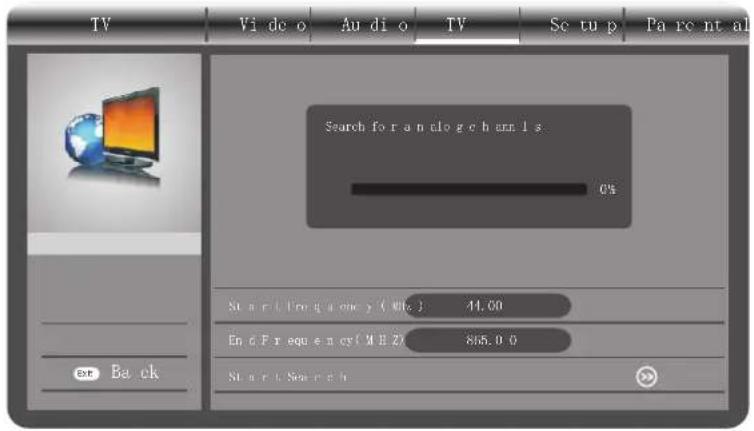

Analog Manual Scan

Press ENTER or ▶ button to enter the submenu:

Start Frequency: Press to enter the start frequency of the channels.

End Frequency: Press to enter the end frequency of the channels.

Start Search: Press Enter or ▶ button to search the channels.

Digital Manual Scan

You can also set program list again one by one by Digital Manual Scan function.

RF Channel: Press ◀▶ button to select the channel number, press ENTER button to search.

When a channel is found, the searching process will stop, the channel will be saved with

current channel number. If the program is not your expected one, please continue the searching.

Press EXIT button to exit.

Channel Edit

Swap: Press red button to swap the channel.

Insert: Press green button to insert the channel.

Delete: Press blue button to delete the channel.

Skip: Press ENTER button to skip the channel.

Clear Channel List

Press ▲▼ buttons to select Clear Channel List, and then press ENTER button to clear channel list.

Press MENU and buttons to select the Setup.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu.

OSD Language

Press ◀▶ buttons to select OSD language: Simply Chinese, Complex Chinese, English.

Screen mode

Press ◀▶ buttons to select screen mode: Original, 4:3, 16:9.

Menu Transparency

Press ◀▶ buttons to set the menu transparency.

Blue Mute

Press ENTER or ▶ button to select Blue Screen on/off. If the Blue Mute is turned on, the TV will display a blue background where there is no signal input.

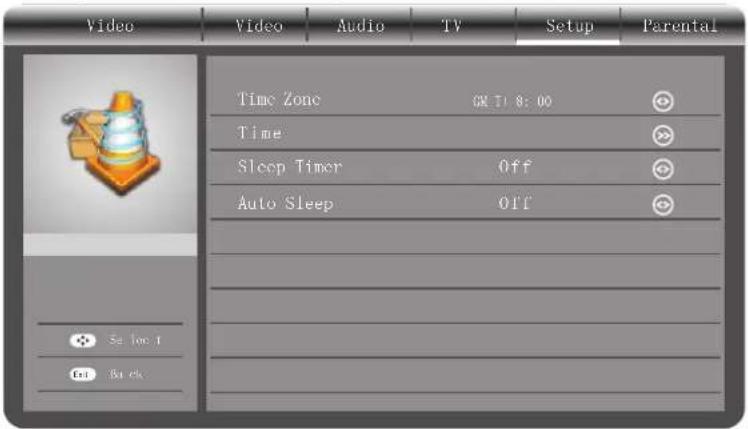

Time Setup

Press ENTER or ▶ button to enter the submenu, press ▲▼ button to select the item:

Time Zone, Time, Sleep Timer, Auto Sleep.

Time Zone: Press ◀▶ buttons to select the time zone.

Time: Press ENTER or ▶ buttons to enter the subemnu. you can turn on/off the auto synchronization, and set the time to turn on/off the TV automatically.

Sleep Timer: Press ◀▶ buttons to set the sleep timer: Off, 10, 20, 30, 40, 50, 60, 90, 120 (min).

Auto Sleep: Press ◀▶ buttons to set the time to auto sleep: Off, 1, 2, 5 (hour).

Version Info

Press ENTER or ▶ buttons to display the current TV system information.

Reset All

Press ENTER button to reset to TV system. All the settings will be reset to factory default.

Press MENU and buttons to select the Parental.

Press ▲▼ button to select the items.

Press ENTER or ▶ button to enter the submenu. (The initial password is "1234")

Channel Block: Press ENTER or unlocked. ▶ button to enter the submenu, set the channel locked or unlocked.

Input Block: Press ENTER or ▶ button to enter the submenu, set the input source locked or unlocked.

Change Password: Press ENTER ▶ button to enter the submenu, set the new password of Parental.

Clear All: Clear all the blocks in Parental.

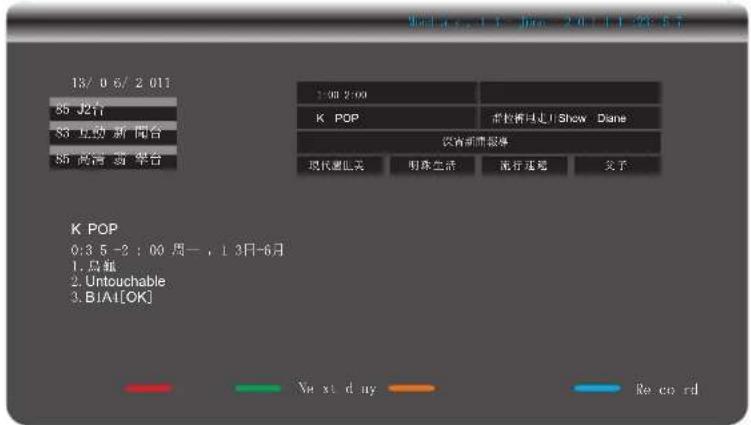

EPG

EPG ( only available in DTV mode)

Press EPG button in the DTV Mode to display electronic program guide.

Press the Blue button to display the recorder menu. See detailed information about the different ways of recording with the television onto a USB device.

Next day

Press Green button to scan the information on next day.

Press Red button to scan the information on prev. day.

Multimedia

Press SOURCE button, and then use ▲▼ button to select USB, press ENTER button to confirm.

Press ◀▶ button to select PHOTO, MUSIC, Video, TEXT, press ENTER button to confirm.

Note : The multimedia player function of TV supports the file formats given below:

Music : Mp3, WMA, ACC, Ac3

Picture: JPG, BMP, PNG

Video: DAT, VOB, AVI, MPG, RMVB, MKV

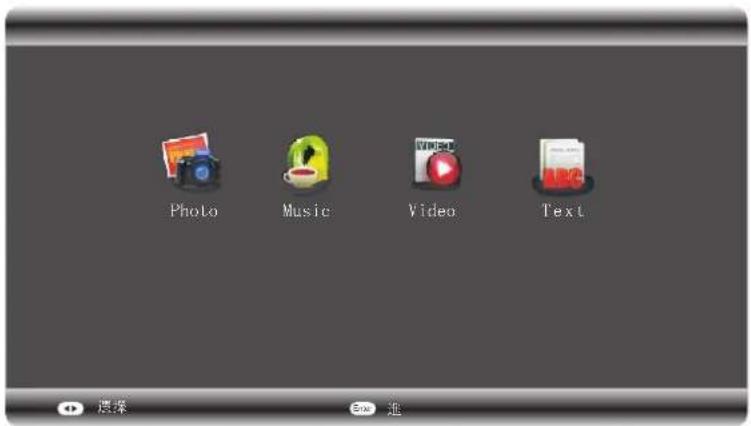

Media Interface:

1. Press ◀▶ button to select Photo, Music, Video, Text.
2. Press ▲▼◀▶ button to select the file, and press ENTER button to open the file or press ENTER button to play the media files.
3. Press EXIT button to stop the playing.

Ph ot o

Vi de o

In the USB mode, press Blue button to select Thumbnail/List mode.

Recursive/common Display

Recursive function shows all files in USB. As follows: (see next page)

Multimedia

1. In the browse mode, press Menu button to display the picture as given at the left side
2. Select recursive option
3. Press ENTER to enter recursive display
4. Select common display returns to the file display mode

Order

When browse file, press Menu, can select Date/File Name Order type as:

Music: File, Style, Artist, Album

Picture: Date, Name

Users can copy file from one folder to another; but cannot copy it under one folder, or in Recursive Display mode. Steps as follows:

1. Under browse mode, select the copied folder
2. Press Menu to display operate list
3. Press ▲▼ button to select Copy item
4. Press ENTER button to confirm
5. Switch to the targeted folder
6. Press Menu to display operate list
7. Press ▲▼button to select Paste item
8. Press ENTER button to finish to copy file. (it reminds to cover or not if it exists the same name file)

Delete File

Users can delete files. The playing file stops when Delete assured. Steps as follows:

1. When browse file, select file you want to delete
2. Press Menu to show the operate list
3. Press ▲▼ button to select file
4. Press Delete to del it

Menu in playing mode

When playing the Photo/Music/Video/Text, press MENU button to enter the picture as shown below, press ▲▼ button to select the item and press ENTER button to confirm.

Press MENU button to enter the picture as shown below, press ▲▼ button to select the item press ENTER button to confirm press EXIT button to exit

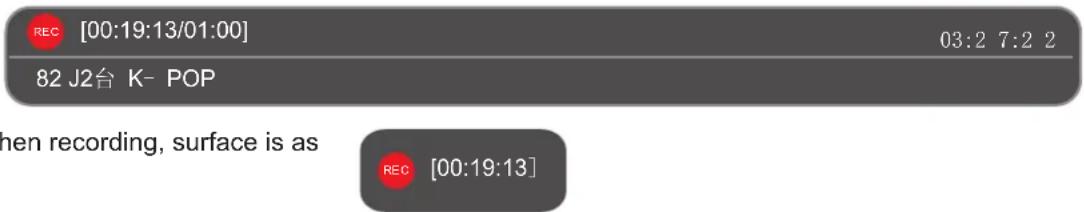

1. Direct Record

When there is DTV signal input, TV displays as follows:

1) Plug a available USB disk
2) Press REP/REC button to start to record, default recorded time is 30mins; press again to add more 30mins.

USB ready

4) Press Stop button to stop recording, and go to the USB to play the recorded program.

2. Timing Record

The operation as show below:

1. Press EPG button on the remote control
2. Press ▲▼◀▶ buttons to select program
3. Press Blue Button to add program to schedule list
4. Press ENTER button to finish to set timing record (Note: You can also press DVR.LIST to display the schedule list, and then press Red button to enter EPG menu to add the recorded schedule)

Channel number: Display the selected channel number. Start time & date: To set the time to record the program End time & date: To set the time to end to record the program

Schedule type: Including recording and reminding. When recording, schedule time is up, it records; when reminding, scheduled record window appears.

Repeat type: Including one time, every day, or every week.

Standby Record: When recording, or under it, press Power button can make TV standby. If under recording, it goes on recording, then standby; if under timing record, after schedule time is up, it records automatically, and then standby. The screen is off when TV is under standby-record. It plays while records when press Power button under standby record mode.

3. Timeshift

When it is under digital TV signal, plug available USB can make time shift; but please EXIT when you switch Channel or play multi-media program.

Initialization as follows:

1. Make TV under digital TV signal
2. Plug USB disk to the USB port
3. Press Pause (Timeshift) button to make time shift
4. Select Auto/Manual initialization: auto initialization checks data automatically, then set up file; manual initialization goes to the next

1. To format all the data, then it goes to the Next. If ignores, goes to the Next directly.

1. To select file capacity, the Min item is 512M
2. Test speed, suggests the Min Disk for 5M/s. The initialization complete.

2) Initialized Unit After complete initialization

Press Timeshift Key suspends the playing program. Press it again, starts to play the program where it stops.

When the USB disk records full, it plays automatically. It plays while burns.

Press Stop button to stop to the time shift.

Press REW/FR button, it plays program fast forward or fast backward.

You can watching the 3D image by using the 3D glasses.

WARNING

1. Note that watching 3D TV while sitting too close to the screen for an extended period of time may weaken your eyesight.

2. Note that watching TV while wearing 3D glasses for an extended period of time may cause a headache, fatigue, or dizziness. If you have a headache, tire, or dizziness, stops watching TV and rest.

3. Some 3D pictures may startle viewers. The pregnant, elderly, epileptic, and those suffering from serious physical conditions are advised to avoid utilizing the unit's 3D functionality.

4. If you are in bad physical condition, sleep deprived, or you have drunk alcohol, we strongly recommend you not to use 3D glasses or view 3D pictures.

5. Please be aware of the world around you. This product is designed to be immersive. Do not use this product near open stairwells, cables, balconies or other objects that can be tripped over, run into, knocked down, broken or knocked over. If you are startled or misconstrue the 3D images as real, you may crush a nearby objet or injure yourself trying to move your body.

6. When watching a 3D video, do not place anything nearby that can be easily broken. Involuntary movements or surprised reactions may occur as a result of watching 3D TV, causing you to break surrounding objects or hurt yourself.

7. Do not use the 3D glasses for any purpose other than the purpose it was designed for. Wearing the 3D glasses for any other purpose (as general spectacles, sunglasses, protective goggles, etc.) may physically harm you or weaken your eyesight.

8. Photosensitive seizure warning and other health risks

- Some viewers may experience an epileptic seizure or stroke when exposed to certain flashing images or lights contained a certain television pictures or video games. If you or any of your relatives has a history of epilepsy or strokes, please consult with a medical specialist before using the 3D function.

- Even those without a personal or family history of epilepsy or stroke may have an undiagnosed condition that can cause "photosensitive epileptic seizures."

- If you experience any of the following symptoms immediately stop watching 3D pictures and consult a medical specialist: (1) altered vision; (2) lightheadedness; (3) dizziness; (4) involuntary movements such as eye or muscle twitching; (5) confusion; (6) nausea; (7) loss of awareness; (8) convulsions; (9) cramps; and/or (10) disorientation. Parents should monitor and ask their children about the above symptoms. Children and teenagers may be more likely than adults to experience these symptoms.

- Do not watch 3D pictures when you feel incoherent, sleepy, tired or sick. Avoid watching 3D pictures for ling periods of time. Take breaks.

1. Parents careful supervision is required particularly when children or teenagers view 3D images.

3D Setup

When there is video signal input, press MENU button to display the main menu, select the 3D Setup in the Video menu, press ENTER button to enter the submenu:

Note: In the USB mode, when playing the 3D video, press MENU button, select Picture Setting to enter the main menu, and then select the 3D Setup.

3D Mode: To select the 3D mode of 2D to 3D, side by side, top bottom, off.

Note: When watching 3D movie from USB device, there are two type of 3D input source:

Side by Side: If the 3D input source is left/right, please select Side by Side in 3D Type menu.

Top bottom: If the 3D input source is top/bottom, please select Top bottom in 3D Type menu.

L-R Switch: To eliminate dizziness, you can adjust this function to swap the signal that eyes accept. Depth of Field: To adjust the depth of field of 3D picture.

Protrude from screen: To adjust the view point of 3D picture.

Distance to TV: To adjust the distance to TV.

3D to 2D: Auto switchover of 3D to 2D mode.

Note: Be sure to stay within the viewing angle and optimum TV viewing distance when watching 3D picture. Otherwise, you may not be able to enjoy proper 3D effects.

Note: The OSD menu pictures are only for reference, the products are subject to material object.

As some kind of external hard disk may not be compatible with the TV. We suggest to use Buffalo Drive Station (USB2.0) 3.5"

1TB or below external hard disk for recording.

1.YPbPr/HDMI

Resolution	Vert.Freq.(Hz)
480i	60
480p	60
720p	60
1080i	60
1080P	60

2.VGA

Resolution Vert.Freq.(Hz)
14 40 *90 0	60
10 24 *76 8	60
80 0*6 00	60
64 0*4 80	60

Model 3D200SQD32
Panel Size 32"
Resolution 1920×1080
Viewing Angle	2D 178H/178V
	3D 100H/22V
Brightness	2D 360 cd/m ^2
	3D 250 cd/m ^2
Contrast Ratio(Typ.) 3500:1
Response Time 6.5ms
TV System DMB-TII;PAL
Audio System BG;DK;I
Power Consumption		AC110~240V/Frequency 50/60Hz Power Input
		≤slant 80W
Input Terminal		Tuner In×1
		HDMI×4
		YPbPr In×1 YPbPr Auido R/L×1
		VGA×1
		PC Audio×1
		USB×1
		Mini AV×1 Video In×1 L/R×1
Output Termianl		SPDIF×1
		Earphone×1
Accessories		User Manual×1
		3D Glass×2
		Remote Controller×1
		Battery×2
		Warranty Card×1
Condition Explanation/Solution
There is no picture (screen is dark) and no sound.	Check the antenna/cable connection.Connect the TV to the AC power, and open the power supply on the TV.If the indicator lights up in red, press Power button.
Ghosting occurs, or double images appear.	Check the antenna/cable connection.Check the antenna/cable location and direction.
Only snow and noise appear on the screen.	Check if the antenna/cable is broken or bent.Check if the antenna/cable has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside).
The picture is distorted (dotted lines or stripes appear).	Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Check the antenna/cable connections.Keep the antenna/cable TV cable away from other connecting cables.
There is picture or sound noise when viewing a TV channel.	Check the antenna/cable connection.
Tiny back points and/or bright points appear on the screen.	The screen is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
The picture from equipment connected to different input ports is not displayed in colour, or is displayed in irregular colours.	Check the connection of different input ports and check if the ports are firmly seated in their respective ports.
No picture from the connected equipment appears on the screen.	Turn the connected equipment on.Check the cable connection.Press Source to display the list inputs, and then select the desired input.operations are not guaranteed for all USB devices. Also, operations differ depending on the features of the USB device and the video being played.
Sound
The picture is good, but there is no sound.	Press Vol +/- or Mute key.Check the audio cable L/R connectionWhen using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (COAXIAL) may not be able to output audio signal
Channels
You cannot select your desired channel.	Switch between digital and analogue mode, and select the desired digital/analogue channel.
Some channels are blank. The channel is for scrambled/subscription service only. Subscribe to a pay TV service.The channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
You cannot view digital channels.	Contact a local installer to find out if digital transmissions are provided in your area.Check if the antenna/cable is broken or bentUpgrade to a higher gain antenna.
General
The TV turns off automatically (the TV enters standby mode).	Check if the “Sleep off” is activated.
The remote does not function. Replace the batteries.
HDMI equipment cannot be recognized.	Check that your equipment is compatible with control for HDMI.
Not all channels are tuned for cable.	Contact the related cable broadcaster
There is light dot(s) or dark dot(s).	It is normal and acceptable if the light dot(s) or dark dot(s) is/are under 3 dot(s)

弘毅有限公司

Winning Perfect Limited

Room 506, Tower 2, Cheung Sha Wan Plaza, 833 Cheung Sha Wan Road,

Kowloon, Hong Kong

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Web site: www.vdigi.com.hk
