22E100SQB - Television VDiGi - Free user manual and instructions

Product Type	22-inch LED Television
Brand	VDiGi
Model	22E100SQB
Screen Size (Diagonal)	22 inches (55.9 cm)
Resolution	1920 x 1080 (Full HD)
Dimensions (W x H x D) with Stand	Approx. 50.5 x 32.0 x 15.0 cm
Dimensions (W x H x D) without Stand	Approx. 50.5 x 29.5 x 5.0 cm
Weight with Stand	Approx. 2.8 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption (Typical)	30W
Power Consumption (Standby)	< 0.5W
Connectivity	HDMI (1), USB (1), VGA (1), AV Input, Headphone Jack
Built-in Tuner	DVB-T/T2, DVB-C, DVB-S/S2
Sound Output	2 x 3W
Remote Control	Included
Wall Mount VESA	100 x 100 mm
Cleaning Instructions	Wipe with a soft, dry cloth. Avoid solvents.
Safety Features	Overvoltage protection, child lock
Spare Parts Availability	Remote control and stand available from manufacturer
Repairability	Designed for simple component replacement

Frequently Asked Questions - 22E100SQB VDiGi

How do I connect external devices like a DVD player?

Use the HDMI or AV input ports. For HDMI, simply plug the cable and select the corresponding source via the Input/Source button on the remote.

Can I mount this TV on a wall?

Yes, the TV is VESA compatible with a 100 x 100 mm pattern. Use a standard wall mount kit (not included).

What should I do if the remote control stops working?

First, replace the batteries with new AAA batteries. Ensure there are no obstructions between the remote and the TV sensor. If it still fails, contact support for a replacement.

How do I perform a factory reset?

Go to Menu > Settings > Factory Reset. Enter the PIN (default 0000) and confirm. This will erase all personal settings.

Why is there no sound from the TV?

Check that the volume is not muted and the audio output is set to internal speakers. If using external speakers, ensure correct connection.

How can I scan for digital channels?

Press Menu, select Channel or Installation, then choose Auto Scan. The TV will search for available broadcast channels.

Can I play media files via USB?

Yes, connect a USB drive to the USB port. Use the Media Player app to view photos, play music or videos. Supported formats include MP4, AVI, JPEG, MP3.

What is the energy consumption of this TV?

Typical power consumption is around 30W during operation, and less than 0.5W in standby mode.

How do I clean the screen safely?

Turn off the TV and wait for it to cool. Use a soft, lint-free cloth slightly dampened with water. Do not spray liquid directly on the screen.

Where can I find the user manual?

The manual is available for free download in PDF format from the manufacturer's website or from notice-facile.com.

USER MANUAL 22E100SQB VDiGi

Front view of a black CRT monitor with 'VDigi' branding on the front panel (no additional text or symbols visible)

24E100SQB/22E100SQB

目錄

目錄.... 1

安全資訊.... 2

預先注意事項.... 4

遙控器

面板功能描述.... 7

後置端子及功能描述....8

基本操作及菜單操作....9

頻道....10

影像....12

聲音及時間....13

選項....14

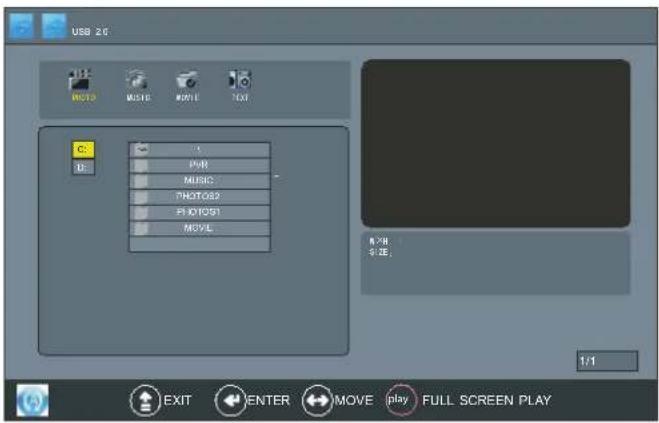

多媒體....15

圖片 16

音樂....17

電影....18

文本....19

錄影功能....20

技術規格....22

解決問題....23

Close-up of a white flower with detailed petals and stamens against a black background (no text or symbols)

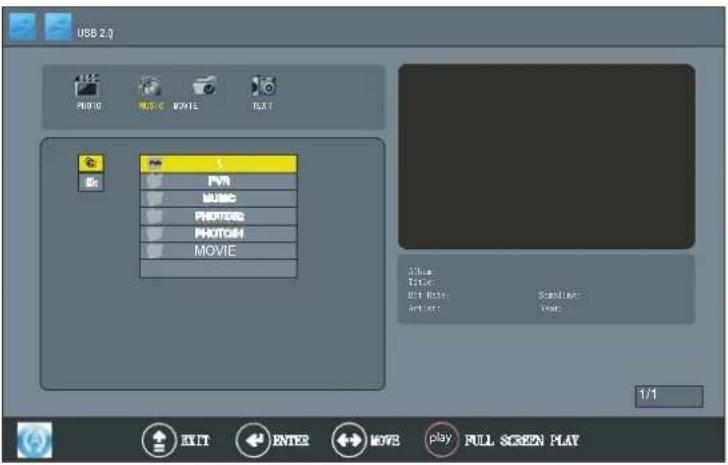

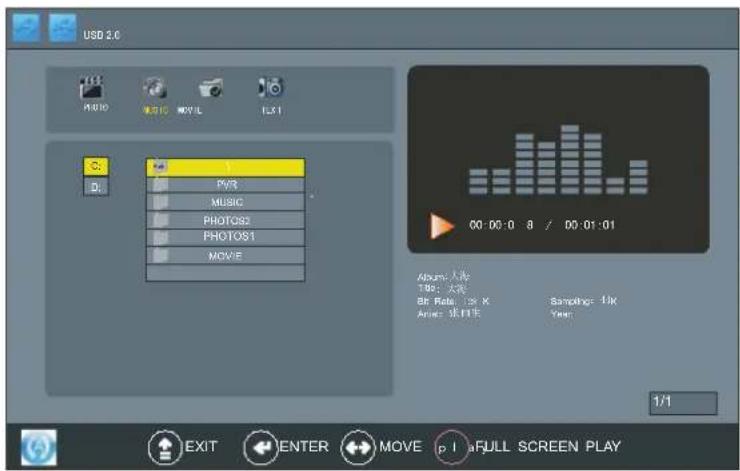

音樂

“FWD”鍵：按“FWD”鍵選擇快進模式：X2→X4→X8→X16

“REV”鍵：按“REV”鍵選擇快退模式：X2→X4→X8→X16

Table of Contents....25

Safety Information....26

Precautions....28

Remote Control 30

Functions of the parallel 3.1.

Rear Panel and Descriptions....32

Basic Operation 33

Menu Operation 34

Channel Menu.... 34

Picture Menu.... 36

Sound Menu....37

Time Menu.... 38

Option Menu....39

Media Menu.... 40

Photo....41

Music....43

Movie....44

Text....45

Standby Record 47

Specifications.... 49

Troubleshooting....50

Before operating the TV, please read “Safety Information” and retain this manual for the future reference.

Installation/Set-up

Install and use the TV set in accordance with the instructions below in order to avoid any risk of fire, electrical shock or damage and/or injuries.

Installation

The TV set should be installed near an easily accessible AC power outlet.

Place the TV set on stable, level surface to avoid it form falling down and cause personal injury or damage to the TV.

Only qualified service personnel should carry out wall installations.

For safety reasons, it is strongly recommended that you use V DIGI Accessories.

Transporting

Before transporting the TV set, disconnect all cables.

Two or more people are needed to transport a large TV set

When transport the TV set hand, hold it as shown on the right. Do not put stress on the LCD panel.

When lifting or moving the TV set, hold it firmly from the bottom.

When transporting the TV set, do not subject it to jolts or excessive vibration.

When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

Ventilation

Never cover the ventilation holes or insert anything in the cabinet.

Leave space around the TV set

To ensure proper ventilation and prevent the collection of dirt or dust.

Do not lay the TV set flat, install upside down, backwards, or sideways.

Do not pace the TV set on a shelf, rug, bed or in a closet.

Do not cover the TV set with a cloth, such as curtains, or item such as newspaper, etc.

AC adapter

Handle the AC adapter and outlet as follows in order to avoid any risk of fire, electrical - shock or damage and/or injuries:

Use only VDIGI supplied AC adapter, not those of other brands.

Insert the plug fully into the AC power outlet

Operate the TV set on a 110-240V AC supply only.

When wiring cables, be sure to unplug the AC power cord for your safety and take care not to catch your feet on the cables.

Disconnect the AC power cord form the AC power outlet before working on or moving the TV set.

Keep the AC adapter away form heat sources.

Unplug the AC power plug and clean it regularly. If the plug is covered with dust and it picks up moisture, its insulation may deteriorate, which could result in a fire.

Notes:

Do not use the supplied AC adapter on any other equipment.

Do not pinch, bend, or twist the AC power cord excessively. The core conductors may be exposed or broken.

Do not modify the AC adapter.

Do not put anything heavy on the AC adapter.

Do not pull on the AC power cord itself when disconnecting the AC power cord.

Do not connect too many appliances to the same AC power outlet.

Do not use a poor fitting AC power outlet.

Prohibited Usage

Do not install/use the TV set in locations, environments or situations such as those listed below, or the TV set may malfunction and cause a fire, electrical shock, damage and/or injuries.

Location

Outdoors (in direct sunlight), at the seashore, on a ship or other vessel, inside a vehicle, in medical institutions, unstable locations, near water, rain, moisture or smoke.

Environment

Places that are hot, humid, or excessively dusty; where insects may enter; where it might be exposed to mechanical vibration, near flammable objects (candles, etc). The TV shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the TV.

Situation

Do not use when your hands are wet, with the cabinet removed, or with attachments not recommended by the manufacturer. Disconnect the TV set from AC power outlet and antenna during lightning storms.

Broken pieces

Do not throw anything at the TV set. The screen glass may break by the impact and cause serious injury.

If the surface of the TV set cracks, do not touch it until you have unplugged the AC power cord. Otherwise electric shock may result.

When not in use

If you will not be using the TV set for several days, the TV set should be disconnected from the AC power for environmental and safety reasons.

As the TV set is not disconnected from the AC power when the TV set is just turned off, pull the plug from the AC power outlet to disconnect the TV set completely.

However, some TV set may have features that require the TV set to be left in standby to work correctly.

For children

Do not allow children to climb on the TV set.

Keep small accessories out of the reach of children, so that they are not mistakenly swallowed.

If the following problems occur

Turn off the TV set and unplug the AC power cord immediately if any of the following problems occur. Ask your dealer or V DIGI service centre to have it checked by qualified service personnel.

When:

AC power cord is damaged.

Poor fitting of AC power outlet.

TV set is damaged by being dropped, hit or having something thrown at it.

Any liquid or solid object falls through opening in the cabinet.

Precautions

Viewing the TV

View the TV in moderate light, as viewing the TV in poor light or during long period of time, strains your eyes.

When using headphones, adjust the volume so as to avoid excessive levels, as hearing damage may result.

LCD screen

Although the LCD screen is made with high-precision technology and 99.99% or more of the pixels are effective, black dots may appear or bight points of light (red, blue, or green) may appear constantly on the LCD screen. This is a structural property of the LCD screen and is not a malfunction.

Do not push or scratch the front filter, or place object on top of this TV set. The image may be uneven or the LCD screen may be damaged.

If this TV set is used in a cold place, smear may occur in the picture or the picture may become dark. This does not indicate a failure. These phenomena disappear as the temperature rises.

Ghosting may occur when still pictures are displayed continuously. It may disappear after a few moments.

The screen and cabinet get warm when this TV set is in use. This is not a malfunction.

The LCD screen contains a small amount of liquid crystal. Mercury is sometimes contained depending on the kind of fluorescent tubes. Follow your local ordinances and regulations for disposal.

Handing and cleaning the screen surface/cabinet of the TV set

Be sure to unplug the AC power cord connected to the TV set form AC power outlet before cleaning.

To avoid material degradation or screen coating degradation, observe the following precautions.

To remove dust form the screen surface/cabinet, wipe gently with a soft cloth of dust is persistent, wipe with a soft cloth slightly moistened with a diluted mild detergent solution.

Never use any type of abrasive pad, alkaline/ acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the screen surface and cabinet material.

Periodic vacuuming of the ventilation openings is recommended to ensure to proper ventilation.

When adjusting the angle of the TV set, move it slowly so as to prevent the TV set form moving or slipping off from its table stand.

Optional Equipment

Keep optional components or any equipment emitting electromagnetic radiation away from the TV set. Otherwise picture distortion and/or noisy sound may occur.

Description of television of remote control

1) POWER: Switch between working status and standby status

②) MUTE: Turn on/off audio

③) 0-9: Press to select channel

4) -/--:Channel digit setup button

5) :Switch to the last channel

⑥) EPG:Show electronic program guide

7) SOURCE:Input source conversion button

8) MENU:Show the main menu

⑨) EXIT: Exit the OSD menu

10) ENTER: Confirm selection

▲/▼: Navigate on menu

111) VOL+/-: Change sound volume

12) CH+/-: Change channel

13) SUBTITLE: Select language of subtitle

14) AUDIO: Select audio output

15) USB: Select USB source input

16) DTV: Select DTV source input

17) FAV.LIST: Display/Define favorite channel

18) CH.LIST:Show channel list

19) PICTURE: Select the picture mode

20) SOUND: Select the sound mode

21) ASPECT: Adjust image display proportion

22) INFO: Show channel program information

23) SLEEP: Set the timer turn off TV automatically

24) FREEZE: Freeze the picture

25) TEXT: Teletext switching.

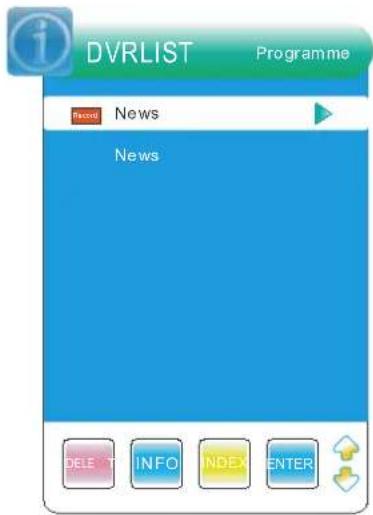

26) DVR.LIST: Show the DVR list

27) PLAY/PAUSE/REW/FF/STOP/PREVIOUS/

NEXT: Available in multimedia

28) REP/REC: Personal video record button

29) ZOOM+/-: Zoom the size of screen(multimedia)

32) COLOR BUTTONS: Follow the on-screen instruction

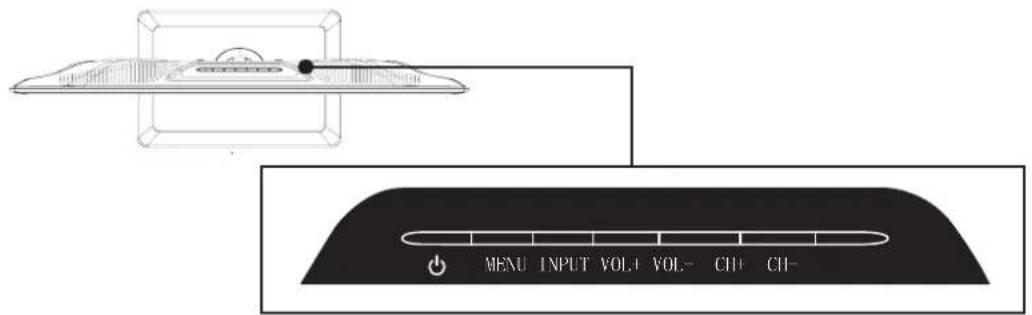

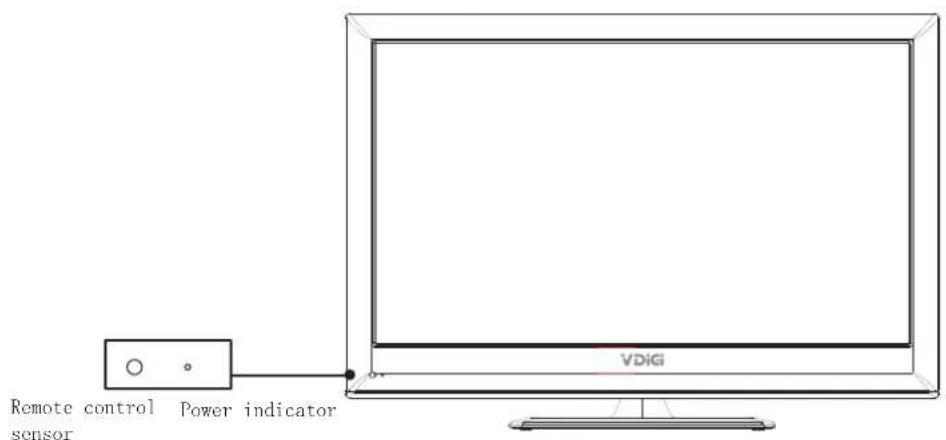

Top Panel Buttons

POWER ( ⏻): Turns the TV on and off.

MENU: Displays the TV Main Menu.

INPUT: Displays the Source Select List.

CH: Scans down through the channel list. In the TV menu system, it acts like the down arrow on the remote control and can be used to select menu options.

CH+: Scans up through the channel list. In the TV menu system, it acts like the up arrow on the remote control and can be used to select menu options.

VOL-: Decreases the volume. In the TV menu system, it acts like the left arrow on the remote control and can be used to select menu options.

VOL+: Increases the volume. In the TV menu system, it acts like the right arrow on the remote control and can be used to select menu options.

Power Indicator: Light up in red when the TV is in standby mode. Light up in blue when the TV is on. Remote control sensor: Receives IR signals from the remote.(Do not put anything over the sensor, otherwise, the sensor may not operate property.)

Rear Panel and Descriptions

DC HDMI2 USB2 USB1 VGA S-VIDEO YPbPrvGA-AUDIO

Name Function Description
USB1,USB2	Reserve for external USB device
HDMI1,HDMI2	HDMI input
VGA	VGA input
VGA audio	VGA audio input
YPbPr	Component input
YPbPr audio L/R	Component audio input
S-VIDEO	S-VIDEO input
SPDIF	Coaxial output
AV	Composite video input
AV audio L/R	Composite audio input
RF IN	Antenna input
DC	Power input

Power On /Off

1. Connect the TV unit to power source using power cord.
2. When the power indicator is in red, the TV is in standby mode. Now press the "POWER" button on remote control or "POWER" button on top panel to turn on the TV. The TV work normally when the power indicator is in blue.
3. Switch the TV to standby mode, just press "POWER" button on the remote control or the "POWER" button on top panel. Now the indicator will be in red.
4. If unused for a long time in standby mode, please disconnect the power cord from the wall outlet.

Note: The TV set can turn off automatically after 15 minutes while there is no signal input.

Select Viewing Source

Press the "SOURCE" button to display the sources list.

Please use the ▲/▼ buttons to select desired signal, and press ENTER or "◀/▶" button to confirm.

Note:

Please make sure the connection for your choice is available.

If you want to adjust the display settings, please follow the instruction below.

Press the "MENU" and "◀/▶" buttons to browse the CHANNEL Menu, Picture Menu, Sound Menu, Time Menu, Option Menu and Media Menu in turn.

Press ENTER or ▼button to enter the submenu.

Press '▲/▼' button to select items and '◀/▶' button to adjust it.

Press *MENU* button to return to the previous menu.

Press "EXIT" button to exit "MENU" mode.

Note: When an item in MENU is displayed as gray, it means that the item is not available or can not be adjusted.

Channel Menu

Press "MENU" and '▼/▲' buttons to select the CHANNEL.

Press tENETeRdtbtems

Press ▶ or ENTER button to enter the shubmeu

Auto Tuning

Press "◀/▶"

. to Start buttons select

Press ENTER button to enter Auto Tuning, the TV will search channels automatically.

All channels will be saved once searching finished.

In the course of auto searching, you can press "EXIT" to stop the searching process.

Note: If it is the first time installation, it will start with Installation Guide Menu.

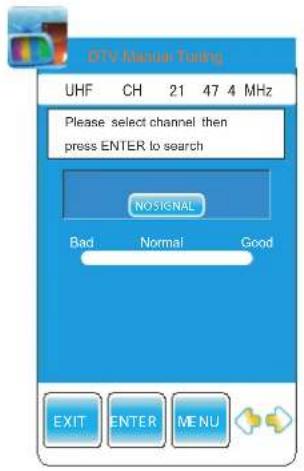

DTV Manual Tuning ( ) only available in DTV mode

You can also set program list again one by one by "DTV Manual Tuning" function.

Press to /▶

." "button select channel

Press ENTER button to search

When a channel is found, the searching process will stop,

the channel will be saved with current channel number

If the program is not your expected one, please press

"◀/▶"button to continue the searching.

Press" EXButton to exit.

ATV Manual Tuning (only available in TV mode)

If you find one channel is a little weak,

you can adjust the frequency of the channel.

It might improve the quality of picture and sound.

Storage TO

Press "▲/▼" button select to storage to channel

NO. from 1 to 100.

Color System

Can't be adjusted.

Audio System

Press◀/▶ "button to select Audion System:I—BG—DK.

CurrentCH

Press "◀/▶" button to select current channel.

Search

Press◀ "button to seach channel from high to low, until find the channel.

Press" ▶ "button to search channel from low to high, until find the channel.

Fine-Tune

Press "◀/▶" button to adjust frequency.

Skip

Press◀/▶ "button to turn on/off "SKIP".

Frequency

Display the current channel frequency.

Press "▲/▼" button select items . Press "◀/▶ button to adjust it.

Press the red button to save it. Press "EXIT" button to exit.

Channel Menu

Programme Edit

Press to ▲ /▼ button select items

Press red tbutt on delete the channel

Press green to button rename the channel

Note : Only the TV channel can be renamed

Press "◀/▶" to select the letter and press"▲/▼" to change the letter.

Press yellow button to move the channel.

Note: The list of programs include TV and DTV.

The programs can be moved only among the same kind.

Press "BLUE" button to skip the channel.

Press" FAV." button set the favorite channel

Picture Menu

Press "MENU" and "▼/▲" buttons to select the PICTURE MENU

Press "▲/▼" button to select items.

Picture Mode

Press * ◀/▶* button to select among, Standard, mild, user and dynamic modes.

(The function is not available for "STORAGE" mode.)

Contrast

Press ◀/▶ button to adjust the contrast of the picture.

Brightness

Press ◀◀/▶"button to adjust the brightness of the picture.

Color

Press ◀◀/▶"button to adjust the color saturation.

Sharpness

Press ◀◀/▶ button to adjust the sharpness level of the picture.

Picture Menu

Tint

Press button to adjust the tint of the picture.

(NTSC mode only)

Color Temperature

Press button to select among normal, warm, and cold mode.

Aspect Ratio

Press button to select the ratio of the screen: FULL-NORMAL-AUTO-panorama-ZOOM1-ZOOM2.

Noise Reduction

Press button to select among Auto, weak, middle and strong.

Screen (only available in PC RGB mode)

Press button to enter the submenu.

Press button to select items.

Press button to adjust it.

Press "EXIT" button to adjust it.

Sound Menu

Press "MENU" and "▼/▲" buttons to select the Sound Menu.

Press "▲/▼" button select items

Sound Mode

Press button to select among Standard, Music, Sports, and User.

(The function is not available for "STORAGE" mode.)

Sound Menu

EQ

Press button to POP-UP the submenu, as follow picture to display: (Only available in the "USER" sound mode).

Press button to change the value.

Balance

Press button to adjust the audio output between left and right speakers.

Auto Volume

Press button to turn on/off the function of auto volume.

Surround Sound

Press button to turn on/off the function of surround sound.

SPDIF Output

Press button to select PCM, Off, AC3.(Only available in DTV)

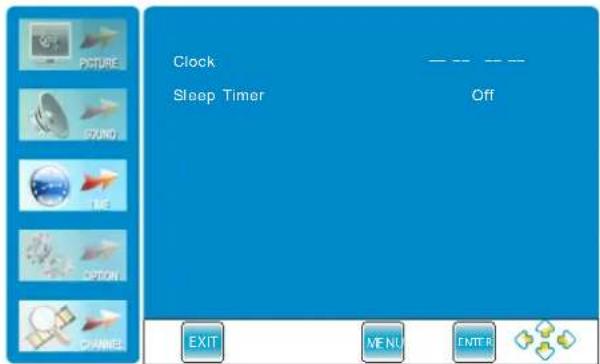

Time Menu

Press "MENU" and "▼/▲" buttons to select the TIME MENU.

Press . "▲/▼ button select items

Clock

Automatic reads digital television the clock display.

Sleep Timer

Press button to set the sleep timer.

Option Menu

Press "MENU" and buttons to select the Option Menu.

Press ↗ or ENTER button to enter the submenu.

Language

Press button to select between English and Traditional Chinese.

OSD Time Out

Press ◀/▶ button to select among the "OFF", "5SEC" "10SEC",

"15SEC", "20SEC", "30SEC", "45SEC" and "60SEC" Parameters.

OSD Tran spar ency

Press button " to select among the OFF ", "25%", "50%", "75%" and "100%" parameters.

Software Update

Press the" ▶ "button or ENTER button for software update.

(Note: No professionals, please do not easily use this function.)

Fact ory Defau It

Press" ▶ "button to POP-UP dialogue menu.

Press button to select yes/no, and press ENTER button to confirm.

Press"MENU button to return. Press EXIT button to exit.

Important Unique Button

EPG() only available in DTV mode

Press 'EPG' button to display the Electronic Programme Guide.

You can check the program information for the next 7 days.

(If the information is available from broadcast)

Press "▲/▼" button to select the channel.

Press "◀/▶" and yellow button to select the time.

Press "INFO" button to show the information of the program.

Media Menu

MEDIA

Press "MENU" and "▼/▲" button to select the "MEDIA".

Press "▶" or ENTER button to enter the submenu

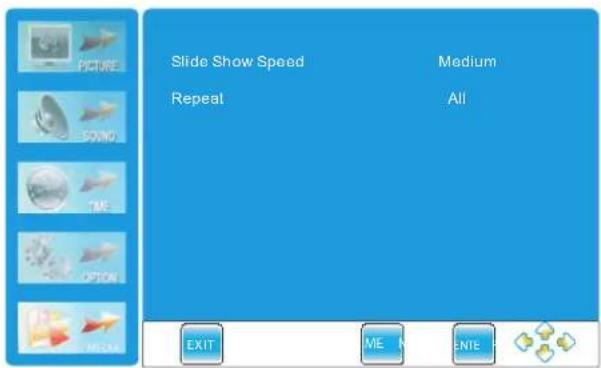

Slide show speed

Slide show speed:Press "◀/▶" button to select among slow,Medium and fast.

Repeat

Press "◀/▶" button to select among the "all", "select" and "none" modes.

Press "SOURCE" button to POP-UP the input source menu.

Press "▲/▼ button to select the "STORAGE", and press "►" or ENTER to enter the interface, as follow display:

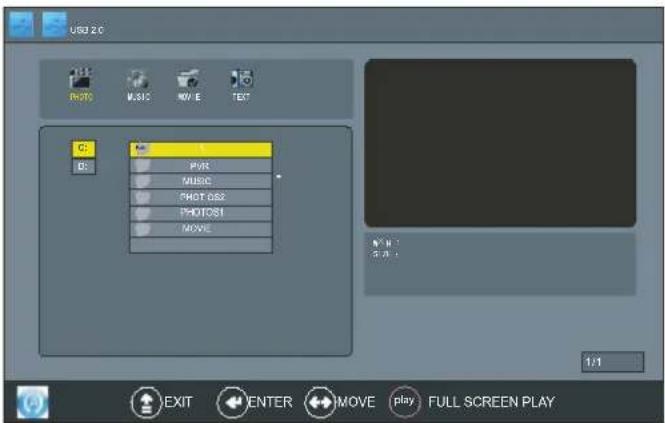

Press "◀/▶" button to select among the "PHOTO", "MUSIC", "MOVIE" and "TEXT" icons. Press ENTER button to confirm.


1. Press "◀/▶" button to select the "PHOTO"
2. Press ENTER button to enter the submenu

1. Press ◀, ▶, ▲, ▼ button to select the files, and Press ENTER button to oper the file, and Press *▲/▼ button to select the photo, Press ENTER button to confirm, Press it again to unselect the photo.

4.P ress "▲/▼" button to pre view the photo,as follow display:

5.P ress ENTER button to select the photo, Press it again to unselect.

1. Press "PLAY" button to play the photo, as follow display:

Pause

Press"PAUSE" button to pause playing the photo.

Play

Press "PLAY" button to play the selected photo.

Stop

Press"STOP" button to stop and return.

Monochrome close-up of a blooming lily flower with visible petals and stamens (no text or symbols)

Next

Press"NEXT"or"PREV."button to skip to view the photo which are selected the photo.

Exit

Press "EXIT" button to exit.

Music

1. Press "◀/▶ button to select the "MUSIC", as follow display :

Music

1. Press ENTER button into MUSIC interface.
2. Press "▲/▼" button to select the files.
3. Press ENTER button to open the file
4. Press "▲/▼" button to preview the music, and press ENTER

button to confirm to select the music.

(be used for skip in music player), and jpress ENTER button to unselect.

1. Press "PLAY" button into music player and playing the selected music, as follow display:

Press ^▲/▼ button to select the musics which were selected, and press ENTER button to confirm playing.

Movie

PAUSE

Press "PAUSE" button to pause the playing music.

PLAY

Press "PLAY" button to play the music.

PREV.

Press "PREV." button to skip the backward music.

NEXT

Press "NEXT" button to skip the forward music.

REV.

Press "REV." button to fast reverse amongx2, x4, x8, andx16 modes.

FWD.

Press "FWD." button to fast forward amongx2,x4,x8 andx16 modes.

STOP

Press "STOP" button to stop and return.

EXIT

Press "EXIT" button to exit, and then can select to view the photo at the same time.

MOVIE

Press ◀, ▶, ▲, ▼ button to select the "MOVIE", Press "OK" button into the "MOVIE" interface. as follow display:

Press button to select the files, and press ENTER button to confirm, as follow display:

1. Select the "PATH" icon, and press ENTER button to POP-UP the submenu, and press "◀/▶" button to select between "SELECT" and "UNSELECT" all files, and press ENTER button to confirm.
2. Press "▲/▼" button to select the movie, and press ENTER button to confirm the selected movie, and Press ENTER button again to unselect the movie.
3. Press the "PLAY" button to play the movie. Press the "PAUSE" button to pause the playing movie. Press "PREV." or "NEXT" button to skip the backward or forward. Press "REV." or "FWD." button to fast reverse or fast forward, press "STOP" or "EXIT" button to return.
4. Select the "UP FOLDER" icon, and press ENTER button to return one level the menu.
5. Press "EXIT" button to exit.

Text

TEXT

Press "◀/▶" button to select the "TEXT" icon, and press ENTER button to the TEXT interface, as follow display :

1. Press button to select the

Press button to select be tween the

"PATH" icon, and press ENTER button to POP-UP the submenu, and

"SELECT" and "UNSELECT" all files.

1. Press ◀/▶ button to select the file, and press ENTER button open the file or select the UP FOLDER icon, and press ENTER button to return one level the menu.

2. Press the "▲/▼" button to select the file, and press ENTER button to confirm.

3. Press "PLAY" button to open and play the file, as follow display :

Press "FWD." button to view a next page.

Press "REV." button to view a previous page.

Press "STOP" or "EXIT" button to return.

1. Press the "EXIT" button to exit.

1. In DTV mode, press EPG button to show programme list within 7 days.

1. Press ◀▶▲▼ buttons to select programme, press REC button to enter recording page:

1. When in recording page, press green button to enter recording task list:

1. When in recording page, press ENTER button will add a new task to recording task list.

二、When in standby mode, the system will finish recording programme according to the recording task list. Make sure that external USB device is connecting.

When the storage device is detected for the first time as a record, you need to format to achieve the following functions: Enter the OPTION menu, press ENTER or ▶ to DVR File System:

    I["Select Disk"] --> J["Check DVR File System"]
    J --> K["USB Disk Start"]
    K --> L["Format"]
    L --> M["Time Shift Size"]
    M --> N["USB Disk Speed"]
    N --> O["EXIT MENU BYTE"]

三、Play a recorded file

Press the DVR.LIST button on the remote control to enter the Record List as shown: Press the YELLOW button repeatedly to list the files named Program, Channel or Time. Press the ▲▼ button to select desired file and press the ▶ or the DISPLAY button to display the information of the program.

Press the ▲▼ button to select desired file and press the ENTER button to start to play. During playing a recorded file, press the PAUSE button to pause and press the ▶PLAY button to resume.

It will go to DTV program playback after the recorded file is played.

Note: The OSD menu pictures are only for reference, the products are subject to material object.

1. YPbPr/HDMI

Resolution	Vert.Freq.(Hz)
480i	60
480p	60
720p	60
1080i	60
1080P	60

2.VGA

Resolution Vert.Freq.(Hz)
14 40 *90 0	60
10 24 *76 8	60
80 0*6 00	60
64 0*4 80	60

Model	24E100SQB	22E100SQB
Panel Size	23.6inch	21.53inch
Resolution	1920(H)×1080(V)
Viewing Angle	160°	170°
Brightness	250 cd/m2	250 cd/m2
Contrast Ratio(Typ.)	800: 1	1000:1
Response Time	3ms	5ms
TV System	DMB-TH;PAL
Audio System	BG;DK;I
Power Input	AC100~240V/Frequency 50/60Hz
Power Consumption	≤48W	≤48W
Input Terminal	Tuner In×1
	HDMI×2
	S-Video×1
	YPbPr In×1 L/R×1
	VGA×1
	VGA Audio×1
	USB×2
	DC×1
	AV In×1 L/R×1
Output Termianl	SPDIF×1
Accessories	User Manual×1
	Remote Controller×1
	AC adapter×1
	Battery×2
	Warranty Card×1
Condition	Explanation/Solution
There is no picture (screen is dark) and no sound.	Check the antenna/cable connection.Connect the TV to the AC power, and open the power supply on the TV.If the indicator lights up in red, press Power button.
Ghosting occurs, or double images appear.	Check the antenna/cable connection.Check the antenna/cable location and direction.
Only snow and noise appear on the screen.	Check if the antenna/cable is broken or bent.Check if the antenna/cable has reached the end of its serviceable life (three to five years for normal use, one to two years when used at the seaside).
The picture is distorted (dotted lines or stripes appear).	Keep the TV away from electrical noise sources such as cars, motorcycles, hair-dryers, or optical equipment.When installing optional equipment, leave some space between the optional equipment and the TV.Check the antenna/cable connections.Keep the antenna/cable TV cable away from other connecting cables.
There is picture or sound noise when viewing a TV channel.	Check the antenna/cable connection.
Tiny back points and/or bright points appear on the screen.	The screen is composed of pixels. Tiny black points and/or bright points (pixels) on the screen do not indicate a malfunction.
The picture from equipment connected to different input ports is not displayed in colour, or is displayed in irregular colours.	Check the connection of different input ports and check if the ports are firmly seated in their respective ports.
No picture from the connected equipment appears on the screen.	Turn the connected equipment on.Check the cable connection.Press Source to display the list inputs, and then select the desired input.operations are not guaranteed for all USB devices. Also, operations differ depending on the features of the USB device and the video being played.
Sound
The picture is good, but there is no sound.	Press Vol +/- or Mute key.Check the audio cable L/R connectionWhen using HDMI input with Super Audio CD or DVD-Audio, DIGITAL AUDIO OUT (COAXIAL) may not be able to output audio signal
Channels
You cannot select your desired channel.	Switch between digital and analogue mode, and select the desired digital/analogue channel.
Some channels are blank.	The channel is for scrambled/subscription service only. Subscribe to a pay TV service.The channel is used only for data (no picture or sound).Contact the broadcaster for transmission details.
You cannot view digital channels.	Contact a local installer to find out if digital transmissions are provided in your area.Check if the antenna/cable is broken or bentUpgrade to a higher gain antenna.
General
The TV turns off automatically (the TV enters standby mode).	Check if the “Sleep off” is activated.
The remote does not function.	Replace the batteries.
HDMI equipment cannot be recognized.	Check that your equipment is compatible with control for HDMI.
Not all channels are tuned for cable.	Contact the related cable broadcaster

弘毅有限公司

Winning Perfect Limited

Room 506, Tower 2, Cheung Sha Wan Plaza, 833 Cheung Sha Wan Road,

Kowloon, Hong Kong

Tel: [phone]

Fax: [phone]

Email: [e-mail]

Web site: www.vdigi.com.hk
