GC556 - Steam cleaner PHILIPS - Free user manual and instructions

Product Type	Steam Cleaner
Brand	Philips
Model	GC556
Dimensions (L x W x H)	30 x 20 x 25 cm
Weight	1.5 kg
Power Supply	220-240 V, 50-60 Hz
Power Consumption	1500 W
Water Tank Capacity	500 ml
Steam Flow Rate	30 g/min
Heat-Up Time	30 seconds
Continuous Steam Duration	Up to 20 minutes
Accessories Included	Measuring cup, funnel, brush nozzle, fabric brush
Safety Features	Auto shut-off, overheat protection, safety lock on trigger
Maintenance	Descale every 3-6 months; clean nozzle after use
Spare Parts Availability	Replacement nozzles, brushes, and measuring cup available
Reparability	Repairable by authorized service centers; user-replaceable parts: nozzle, brush
Warranty	2 years

Frequently Asked Questions - GC556 PHILIPS

What type of water should I use in the Philips GC556 steam cleaner?

It is recommended to use distilled or demineralized water to prevent scale buildup. Tap water can be used but may require more frequent descaling.

How long does it take to heat up?

The GC556 heats up in approximately 30 seconds, as indicated by the ready light.

Can I use the steam cleaner on delicate fabrics?

Yes, but always test on a hidden area first. Use the fabric brush accessory for gentle steaming on curtains, upholstery, and clothing.

How do I descale the steam cleaner?

Mix a solution of 1 part white vinegar to 3 parts water, fill the tank, let it sit for 30 minutes, then operate the steam cleaner until empty. Rinse with clean water.

Why is the steam output weak?

Weak steam may be due to a clogged nozzle or scale buildup. Clean the nozzle with a pin and descale the unit as described above.

What accessories are included with the GC556?

The package includes a measuring cup, funnel, brush nozzle, and a fabric brush.

Can I use the steam cleaner on sealed hardwood floors?

Yes, but avoid prolonged exposure to moisture. Use the floor cloth accessory (sold separately) for best results.

How do I store the steam cleaner after use?

Allow the unit to cool completely, empty the water tank, and store it upright in a dry place. Wrap the cord loosely around the cord storage.

Is the steam cleaner safe to use around children and pets?

The steam is very hot. Keep children and pets away during use. The unit has an auto shut-off feature for safety.

Where can I purchase spare parts or accessories?

Philips spare parts are available online through the official Philips website or authorized retailers. Common replacements include nozzles and brushes.

USER MANUAL GC556 PHILIPS

Modern white industrial device with coiled tubing and a cylindrical top (no visible text or symbols)

User manual

用户手册

[Non-Text]

EN

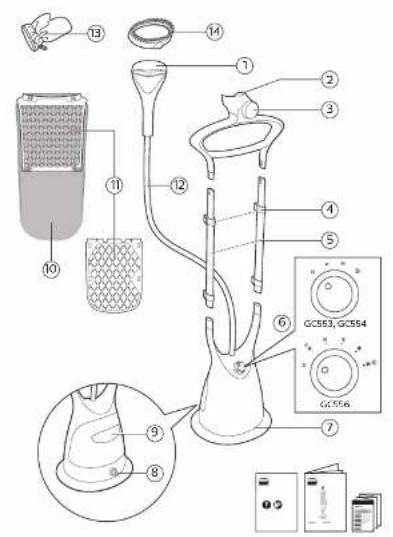

①FlexHead
② FlexHeadholder
③ Hang&lock
④ Pole lock clip
⑤ Pole
⑥ Steam knob
⑦ Base

⑧ De-calc knob
⑨ Water tank
⑩ Board cover
⑪ Board
⑫ Steam supply hose
⑬ Glove
⑭ Brush

SC

EN The board provides backing support to enhance the steaming performance.

Note: Do not wash the board cover as it may damage the foam material.

EN Your appliance has been designed to be used with tap water. In case you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use water without minerals such as distilled or purified water to prolong the lifetime of your appliance.

Note: Do not add perfume, vinegar, mineral water, starch, descaling agents, ironing aids, chemically descaled water or other chemicals into the water tank as they may cause water spitting, brown staining, or damage to your appliance.

FlexHead allows you to have contact with your garment from Top to bottom to avoid steam escape and for less kneeling and bending.

Note: Do not shake the steamer head vigorously.

SC FlexHead 灵动熨烫

EN Multi steam settings are provided to save water and energy. You can increase the steam setting for more steam power at any point of time. This appliance is safe to use on all fabrics at any setting.

Note: The steam supply hose becomes warm during steaming. This is normal.

The ring flashes after the water tank is empty for 10 minutes.

SC 自动关闭功能

水箱为零分钟后，该环闪烁。

EN Refill the water tank and insert it back. You can resume steaming after turning the steam knob. The ring should stop flashing.
SC 为水箱加水并将其插回。您可以在转动蒸汽旋钮后恢复蒸煮。环应停止闪烁。

EN If the water tank is not refilled within the next 10 minutes, the appliance starts to cool down and will shut off.
SC 如果水箱未在接下来10分钟内加水，则产品开始冷却，并停止。

EN For garments which require a formal look and crisp result, such as shirts, jackets and pants, it is recommended to use the board.

EN To make crisp pleats, start steaming from the bottom half of the pants and move onto the top half to prevent accidental wrinkles on parts which have already been steamed.

EN For a more natural look and quick touch-up on garments such as dresses, pleated skirts and T-shirts, it is recommended to use the board.

EN Put the glove on the hand you are using to hold a garment. The glove protects your hand against the steam from the steamer head.

ENThe brush improves steam penetration into thick and heavy fabrics for faster results. Brush slowly with the bristles touching the garment.

Caution: Do not attach or detach the brush while the steam is on or the steamer head is hot

SC毛刷可增强蒸汽对厚重纤维的渗入，更快定型。用刷毛缓慢刷拭衣物。

EN To maintain optimal steam performance and prolong the lifetime of the appliance, it is important to remove scale and impurities inside the appliance regularly. Therefore, it is recommended to perform the de-calc process at least once a month.

Before you start de-calc process, make sure there is some water in the water tank.

ENNote: Clean the appliance and wipe any deposits off the steamer head with a damp cloth and non-abrasive liquid cleaning agent.

Always empty the water tank after usage, to prevent calc build-up and maintain good steam performance.

Problem	Possible cause Solution
The appliance produces no steam or irregular steam.	The steamer has not heated up sufficiently.	Let the appliance heat up for approximately 45 seconds.
	Steam has condensed in the hose.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	Low water level in the tank or the tank is not inserted properly.	Refill the water tank and insert it properly.
	Too much scale has built up in the appliance.	Perform de-calc process. Refer to section.
Water droplets drip from the steamer head or the appliance produces a croaking sound.	You have left the steamer head and/or the steam supply hose in horizontal position for a long time.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	When the hose forms a U-shape, condensation in the hose cannot flow back into the water tank.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
An excessive amount of water drips out of the steamer head when the appliance is heading up.	The water in the appliance is dirty or has been left inside the appliance for a long time.	Perform de-calc process. Refer to section.
Water leaks out from the steamer base	You have not closed the water tank cap or de-calc knob security. The water tank is not inserted properly.	Close the water tank cap or de-calc knob securely. Insert the tank properly.

sc
