Product Type	Steam Cleaner (Garment Steamer)
Model	GC554
Brand	Philips
Dimensions (approximate)	35 x 30 x 170 cm (base plus pole)
Weight (approximate)	4.5 kg (base and pole)
Water Tank Capacity	1.1 L
Power Supply	220-240 V, 50-60 Hz
Power Consumption	1800 W
Steam Output	Adjustable; up to 40 g/min
Heat-up Time	Approximately 45 seconds
Auto Shut-off	After 10 minutes of empty water tank
FlexHead	Yes, pivoting head for better contact
Steaming Board	Included; provides backing support
Glove	Included; heat protection
Brush	Included; for thick fabrics
De-calc Function	Yes; regular de-scaling recommended (monthly)
Water Type	Tap water or distilled; avoid chemicals
Fabric Safety	Safe on all fabrics at any steam setting
Storage	Pole collapses; base stores accessories
Accessories Included	FlexHead, board, glove, brush, water tank, steam hose
Warranty	2 years (typical)

Frequently Asked Questions - GC554 PHILIPS

How long does it take to heat up?

The Philips GC554 heats up in approximately 45 seconds.

What type of water can I use?

You can use tap water. In hard water areas, distilled or purified water is recommended to reduce scale build-up. Do not add perfume, vinegar, or other chemicals.

Why is my steamer not producing steam?

Ensure the appliance has heated up for 45 seconds. Check the water tank is filled and properly inserted. If steam is irregular, lift the steamer head vertically to allow condensation to flow back. If scale has built up, perform the de-calc process.

How do I clean and descale the appliance?

Perform the de-calc process at least once a month. Ensure some water remains in the tank before starting. Follow the manual instructions. After descaling, wipe the steamer head with a damp cloth and non-abrasive cleaner. Always empty the water tank after use.

Can I use the steamer on all fabrics?

Yes, the GC554 is safe on all fabrics at any steam setting. For delicate items, use lower steam settings.

What is the FlexHead feature?

The FlexHead pivots to allow contact with garments from top to bottom, reducing bending and steam escape. Do not shake the steamer head vigorously.

How do I use the steaming board?

The board provides backing support for better steaming results. Use it for formal garments like shirts and pants to achieve crisp results. Do not wash the board cover as it may damage the foam.

What is the brush for?

The brush improves steam penetration into thick and heavy fabrics for faster results. Brush slowly with the bristles touching the garment. Do not attach or detach the brush while steam is on or the head is hot.

Why is water dripping from the steamer head?

This can happen if the hose is left horizontal for a long time. Lift the steamer head to straighten the hose vertically to allow condensation to flow back. Also check if the water tank is dirty or has been left filled for a long time; perform de-calc if needed.

What does the auto shut-off feature do?

The ring flashes after the water tank is empty for 10 minutes. If the tank is not refilled within another 10 minutes, the appliance cools down and shuts off automatically for safety.

USER MANUAL GC554 PHILIPS

User manual

用户手册

3

5

6

8

10

12

16

17

18

19

20

20

23

EN

①FlexHead
② FlexHeadholder
③ Hang&lock
④ Pole lock clip
⑤ Pole
⑥ Steam knob
⑦ Base
⑧ De-calc knob
⑨ Water tank
⑩ Board cover
⑪ Board
⑫ Steam supply hose
⑬ Glove
⑭ Brush

sc

① FlexHead 灵动熨烫

② FlexHead 灵动熨烫支架

③ 悬挂和锁定功能

④ 衣架锁夹

⑤ 衣架杆

⑥ 蒸汽旋钮

⑦ 基座

⑧ 除垢旋钮

⑨ 水箱

⑩ 熨衣板外罩

⑪ 熨衣板

⑫ 蒸汽输送管

⑬ 防烫手套

⑭ 毛刷

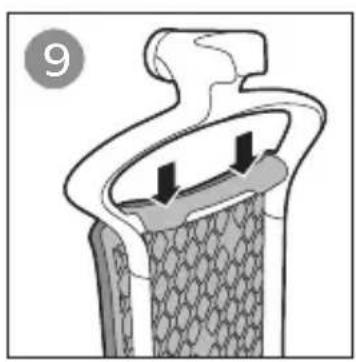

EN The board provides backing support to enhance the steaming performance.

Note: Do not wash the board cover as it may damage the foam material.

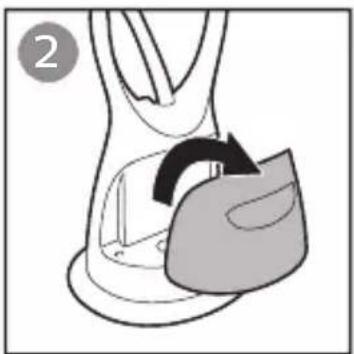

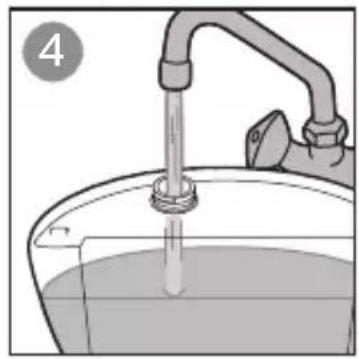

EN Your appliance has been designed to be used with tap water. In case you live in an area with hard water, fast scale build-up may occur. Therefore, it is recommended to use water without minerals such as distilled or purified water to prolong the lifetime of your appliance.

Note: Do not add perfume, vinegar, mineral water, starch, descaling agents, ironing aids, chemically descaled water or other chemicals into the water tank as they may cause water spitting, brown staining, or damage to your appliance.

EN FlexHead

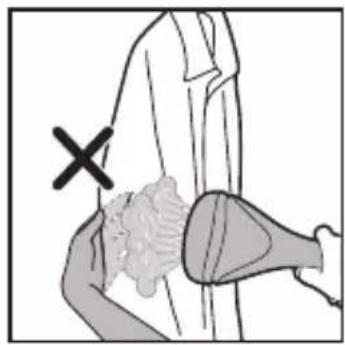

FlexHead allows you to have contact with your garment from top to bottom to avoid steam escape and for less kneeling and bending.

Note: Do not shake the steamer head vigorously.

SC FlexHead 灵动熨烫

EN Multi steam settings are provided to save water and energy. You can increase the steam setting for more steam power at any point of time. This appliance is safe to use on all fabrics at any setting.

Note: The steam supply hose becomes warm during steaming. This is normal.

GC556

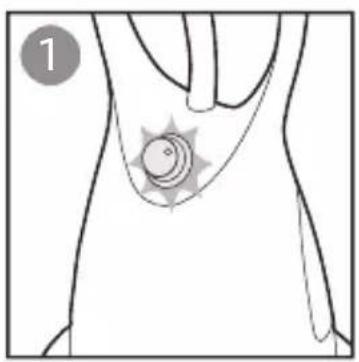

EN Auto shut-off

The ring flashes after the water tank is empty for 10 minutes.

SC 自动关闭功能

水箱为钟后，该环闪烁。

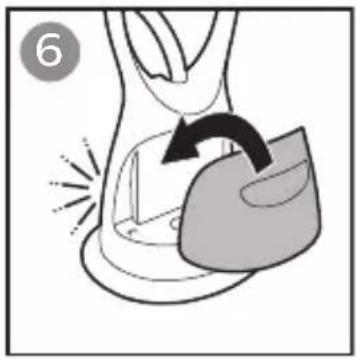

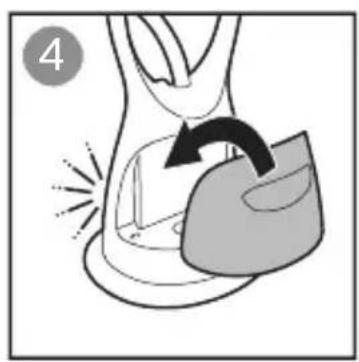

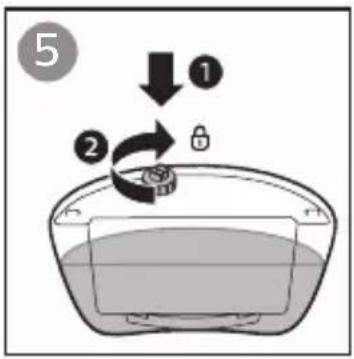

EN Refill the water tank and insert it back. You can resume steaming after turning the steam knob. The ring should stop flashing.

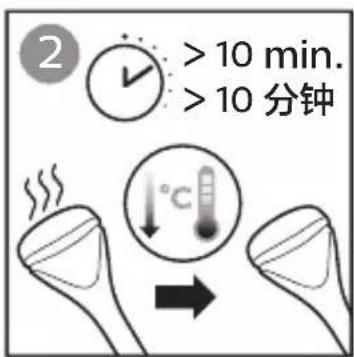

EN If the water tank is not refilled within the next 10 minutes, the appliance starts to cool down and will shut off.

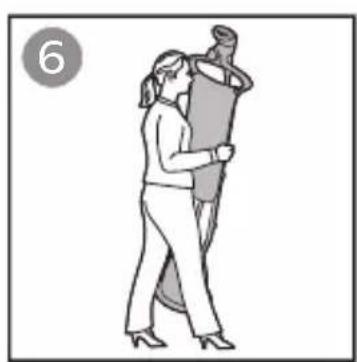

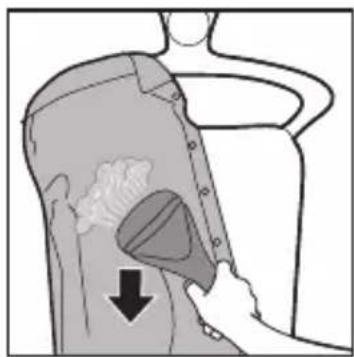

EN For garments which require a formal look and crisp result, such as shirts, jackets and pants, it is recommended to use the board.

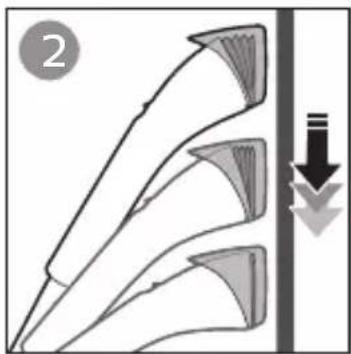

EN To make crisp pleats, start steaming from the bottom half of the pants and move onto the top half to prevent accidental wrinkles on parts which have already been steamed.

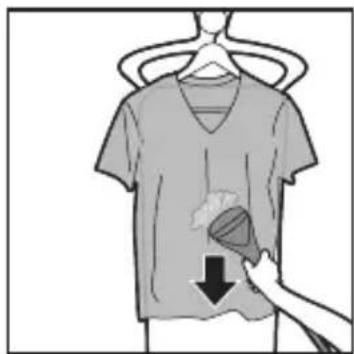

EN For a more natural look and quick touch-up on garments such as dresses, pleated skirts and T-shirts, it is recommended to use the board.

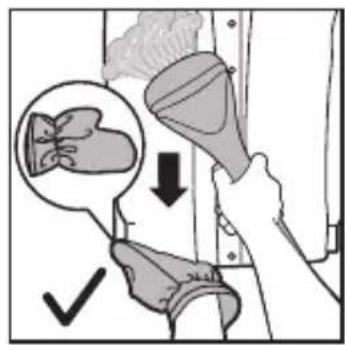

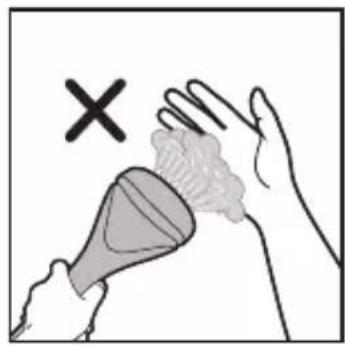

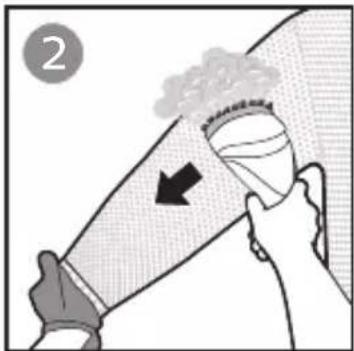

EN Put the glove on the hand you are using to hold a garment. The glove protects your hand against the steam from the steamer head.

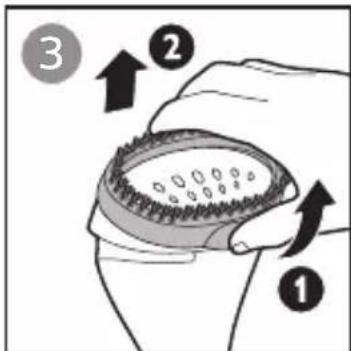

ENThe brush improves steam penetration into thick and heavy fabrics for faster results. Brush slowly with the bristles touching the garment.

Caution: Do not attach or detach the brush while the steam is on or the steamer head is hot.

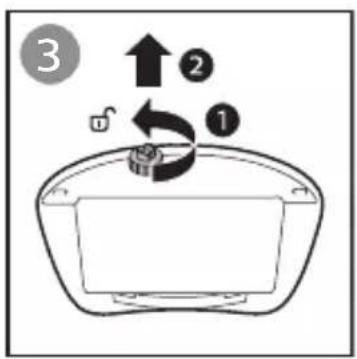

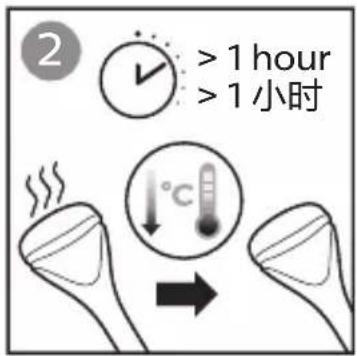

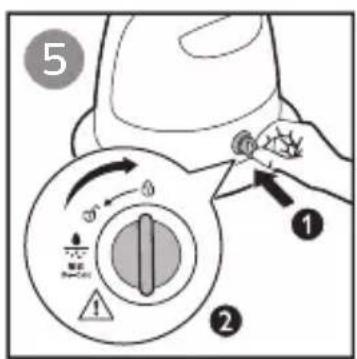

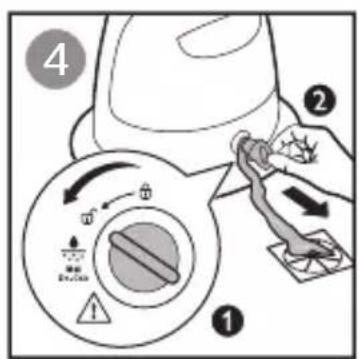

EN To maintain optimal steam performance and prolong the lifetime of the appliance, it is important to remove scale and impurities inside the appliance regularly. Therefore, it is recommended to perform the de-calc process at least once a month.

Before you start de-calc process, make sure there is some water in the water tank.

ENNote: Clean the appliance and wipe any deposits off the steamer head with a damp cloth and non-abrasive liquid cleaning agent.

Always empty the water tank after usage, to prevent calc build-up and maintain good steam performance.

EN

Problem	Possible cause Solution

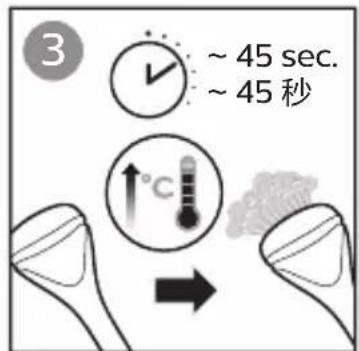

The appliance produces no steam or irregular steam.	The steamer has not heated up sufficiently.	Let the appliance heat up for approximately 45 seconds.
	Steam has condensed in the hose.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	Low water level in the tank or the tank is not inserted properly.	Refill the water tank and insert it properly.
	Too much scale has built up in the appliance.	Perform de-calc process.Refer to section.

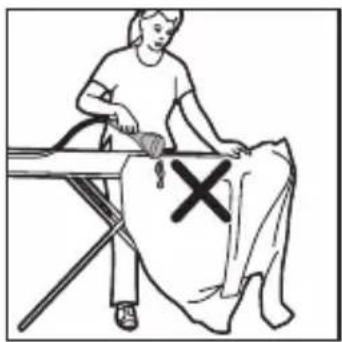

Water droplets drip from the steamer head or the appliance produces a croaking sound.	You have left the steamer head and/or the steam supply hose in horizontal position for a long time.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
	When the hose forms a U-shape, condensation in the hose cannot flow back into the water tank.	Lift the steamer head to straighten the hose vertically. This allows any condensation to flow back.
An excessive amount of water drips out of the steamer head when the appliance is heating up.	The water in the appliance is dirty or has been left inside the appliance for a long time.	Perform de-calc process.Refer to section.
Water leaks out from the steamer base.	You have not closed the water tank cap or de-calc knob securely.The water tank is not inserted properly.	Close the water tank cap or de-calc knob securely.Insert the tank properly.
