Product type	Portable air conditioner
Model	417-061
Brand	Anslut
Dimensions (W x H x D)	520 x 880 x 440 mm
Weight	33.5 kg
Voltage	230 V AC
Cooling power	3500 W
Cooling capacity	11874 BTU/hour
Energy class	A
Refrigerant	R410A (540 g)
Noise level	65 dB
Dehumidifying capacity	28.8 L/24h
Air flow	370 m³/h
Temperature range (cooling)	17–35 °C
Cord length	1.1 m
Operating modes	Cool, Heat (heat pump), Dry, Fan, Auto
Timer	Yes, 24-hour programmable start/stop
Sleep/Eco mode	Yes, gradual temperature adjustment for energy saving
Swing function	Yes, automatic horizontal air deflector

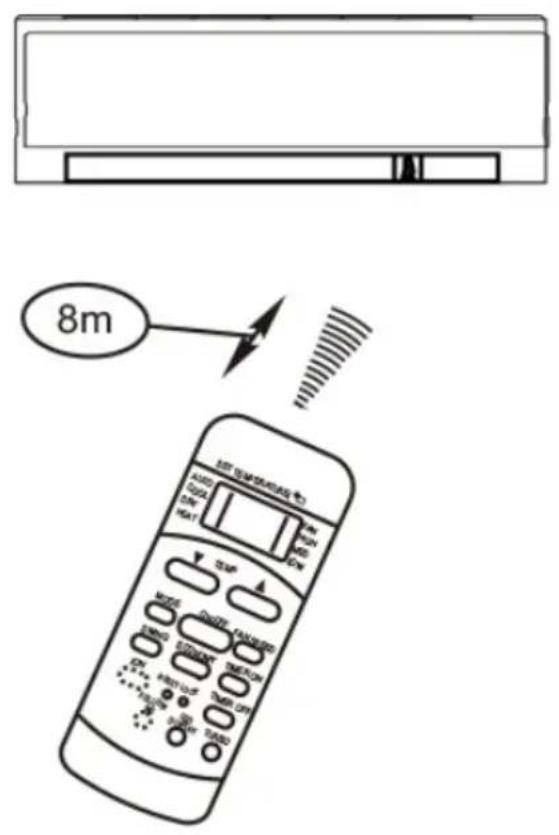

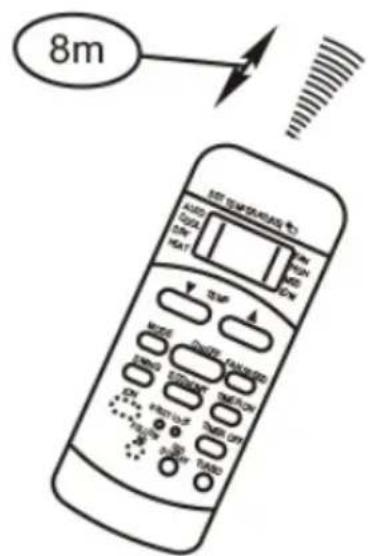

Remote control	Yes, with display and 8 m range
Air filter cleaning	Every 2 weeks with mild detergent and water
Drain installation	Top plug for dehumidification, bottom plug for heat pump; hose connection

Frequently Asked Questions - 417-061 Anslut

How do I set the timer on the Anslut 417-061 air conditioner?

Press the TIMER ON or TIMER OFF button on the remote control. Use the + and - buttons to adjust the delay in steps of 0.5 hours up to 10 hours, then 1 hour steps up to 24 hours. Wait 3 seconds to confirm.

What do error codes E1, E2, E3, E4 mean?

E1: Room temperature sensor error. E2: Evaporator temperature sensor error. E3: Condenser temperature sensor error. E4: Display communication error. Unplug and replug the power cord; contact dealer if persists.

How do I clean the air filters?

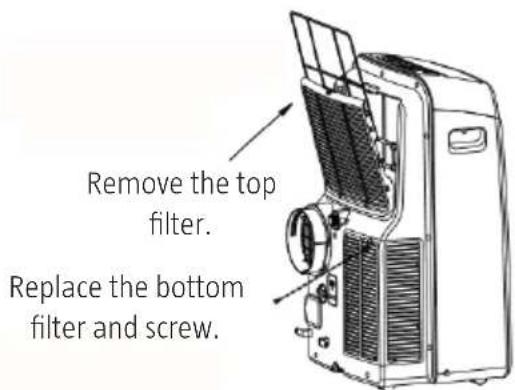

Switch off and unplug the appliance. Remove the top filter by pulling down, and the bottom filter by unscrewing the screw. Wash with warm water and mild detergent, rinse, dry, and reassemble.

Why does my air conditioner show P1 and stop cooling?

P1 means the bottom tray is full of water. Connect a drain hose to the bottom drain plug or remove the plug to drain the water. Replace plug before restarting.

Can I use an extension cord with this air conditioner?

No, do not use an extension cord or plug adapter. The appliance must be directly plugged into a correctly installed earthed mains socket.

How does the Follow Me function work?

Press the Follow Me button on the remote control. The remote sends the temperature at its location to the appliance every 3 minutes for precise control. Disables after 7 minutes without signal.

What is the difference between Sleep and Eco mode?

Sleep/Eco mode gradually adjusts the set temperature by 1 °C/°F every 30 minutes for 1 hour, then maintains the new temperature for 6–7 hours before returning to the original setting, saving energy.

How do I install the window insert?

Adjust the window insert to fit the window opening (min 67.5 cm, max 123 cm). Secure with screws. Seal gaps with foam rubber strips. The insert works for both vertical and horizontal sash windows.

Why does the appliance not start after being turned off?

There is a 3-minute safety delay after stopping the appliance to protect the compressor. It will start automatically after 3 minutes.

Can I use the air conditioner without the outlet hose?

The outlet hose must be installed for cooling, heating (heat pump), or auto modes. For fan or dehumidification modes, the hose is not required.

USER MANUAL 417-061 Anslut

White portable air conditioner unit with a small remote control panel on top (no visible text or symbols)

SE Bruksanvisning för luftkonditionering
NO Bruksanvisning for klimaanlegg
PL Instrukcja obsługi klimatyzatora
EN User Instructions for air conditioner

SE - Bruksanvisning i original

NO - Bruksanvisning i original

EN - Operating instructions in original

Date of production: 2014-01-10

© Jula AB

SVENSKA....7

SÄKERHETSANVISNINGAR....7

TEKNISKA DATA 8

BESKRIVNING 9

DELAR....9

DRIFTSFÖRHÅLLAnDEN 9

TILLBEHÖR 10

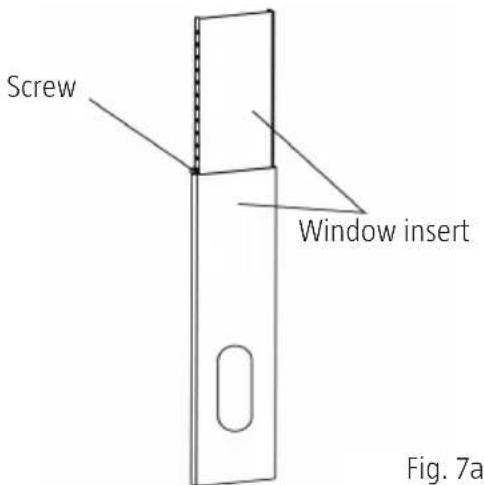

VERKTYG FÖR MONTERING AV FÖNSTERINSATS 10

MANÖVERPANEL OCH DISPLAY....11

FJÄRRKONTROLLEN 13

MONTERING....25

PLACERING 25

MONTERING AV FÖNSTERINSATS 25

MONTERING I SKJUTFÖNSTER SOM ÖPPNAS VERTIKALT (TILLVAL) .....26

MONTERING I SKJUTFÖNSTER SOM ÖPPNAS HORIZONTELLT (TILLVAL) 27

MONTERING AV UTLOPPSSLANG....28

MONTERING AV DRÄNERING....29

HANDHAVANDE 30

KYLDRIFT....30

VÄRMEDRIFT (INTE PÅ MODELLER MED ENDAST KYLNING) 30

LÄGE DRY 30

LÄGE AUTO 30

LÄGE FAN. 30

LÄGE TIMER....31

LÄGE SLEEP/ECO 31

ÖVRIGA FUNKTIONER 31

ALLMÄNT UNDERHÅLL OCH SKÖTSEL 32

LUFTFILTER 32

HÖLJE 32

GENERELT VEDLIKEHOLD OG PLEIE 59

LUFTFILTER 59

DEKSEL 59

HVIS APPARATET IKKE SKAL BRUKES PÅ LENGRE TID 59

FEILS∅KING....60

POLSKI 61

ZASADY BEZPIECZEŃSTWA 61

DANE TECHNICZNE 62

OPIS 62

CZEŚCI....62

WARUNKI UŻYTKOWANIA 63

AKCESORIA 63

NARZĘDZIA DO MONTAŻU WKŁADKI DO OKNA....64

PANEL STEROWANIA | WYŚWIETLACZ 65

PILOT ZDALNEGO STEROWANIA 67

MONTAŽ 79

LOKALIZACJA 79

MONTAŻ WKŁADKI DO OKNA 79

MONTAŻ W OKNIE PRZESUWANYM OTWIERANYM PIONOWO (OPCJA DODATKOWA) 80

MONTAŻ W OKNIE PRZESUWANYM OTWIERANYM POZIOMO (OPCJA DODATKOWA)....81

MONTAŻ RURY ODPROWADZAJĄCEJ....82

MONTAŻ DRENAŻU....83

OBSŁUGA 84

TRYB CHŁODZENIA 84

TRYB OGRZEWANIA (NIE W MODELACH WYŁĄCZNIE Z CHŁODZENIEM) .....84

TRYB DRY 84

TRYB AUTO 84

TRYB FAN 84

TRYB TIMER....85

TRYB SLEEP/ECO 85

POZOSTAŁE FUNKCJE....85

OGÓLNA KONSERWACJA I PIELEGNACJA .86

FILTR POWIETRZA 86

OBUDOWA 86

JEŚLI URZĄDZENIE NIE BĘDZIE UŻYWANE PRZEZ DŁUŻSZY CZAS .....86

KONSERWACJA 86

WYKRYWANIE USTEREK 87

ENGLISH 88

SAFETY INSTRUCTIONS 88

TECHNICAL DATA 89

DESCRIPTION 90

PARTS 90

OPERATING CONDITIONS 90

ACCESSORIES 91

TOOLS FOR MOUNTING WINDOW INSERT 91

CONTROL PANEL AND DISPLAY 92

REMOTE CONTROL 94

INSTALLATION 106

POSITIONING 106

FITTING THE WINDOW INSERT 106

INSTALLATION IN SASH WINDOW THAT OPENS VERTICALLY (OPTION) 107

INSTALLATION IN SASH WINDOW THAT OPENS HORIZONTALLY (OPTION) .....108

INSTALLATION OF OUTLET HOSE 109

INSTALLATION OF DRAIN....110

OPERATION....111

COOLING MODE 111

HEATING MODE (NOT ON MODELS THAT ONLY HAVE COOLING) 111

DRY MODE 111

AUTO MODE 111

FAN MODE 111

TIMER MODE 112

SLEEP/ECO MODE 112

OTHER FUNCTIONS....112

MAINTENANCE 113

GENERAL CARE AND MAINTENANCE 113

AIR FILTER 113

CASING 113

IF THE APPLIANCE IS NOT GOING TO BE USED FOR SOME TIME 113

TROUBLESHOOTING 114

SÄKERHETSANVISNINGAR

Simple line drawing of a rectangular object with a horizontal bar at the bottom (no text or symbols)

VIKTIGT!

Grader Celsius (°C): RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B31/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51 B25/(C)E, RG51 B27/(C)E, RG51 B30/(C)E.

Grader Fahrenheit (°F): RG51B/(C)EU, RG51B1/(C)EU, RG51B17/(C)EU, RG51B26/(C)EU, RG51B30/(C)EU, RG51B32/(C)EU, RG51B31/(C)EU.

FUNKTIONER

Modell RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51B31/(C)E, RG51B30/(C)E.

OBS!

• Modell RG51B16/(C)E, RG51B18/(C)E saknar funktionen SWING.
• Modell RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E saknar knappen LED DISPLAY.
• Modell RG51B19/(C)E-M saknar funktionen MED FAN.
• Modell RG51B31/(C)E har knapp ECONO→MY i stället för knapp SLEEP.
• Modell RG51B30/(C)E saknar funktionerna MED FAN och SWING.

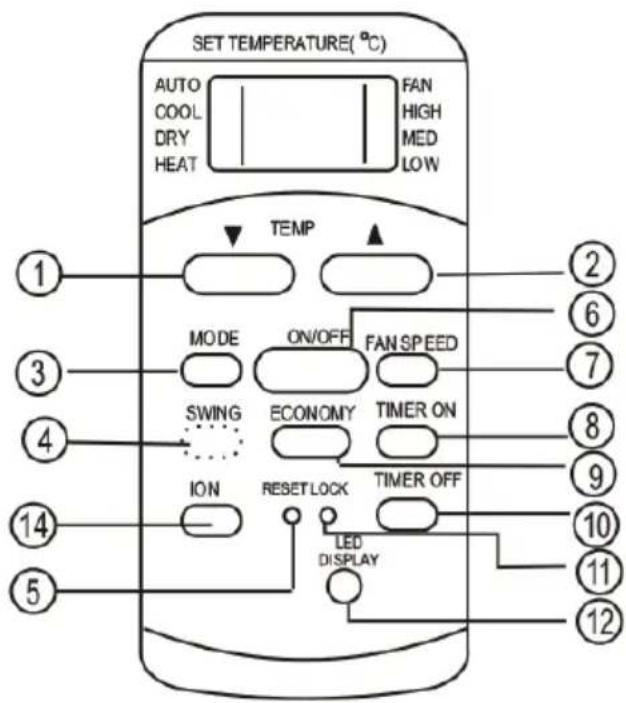

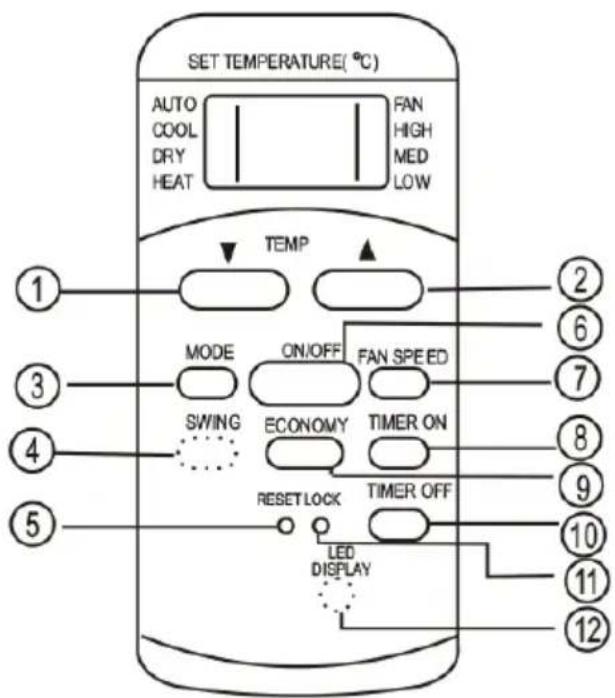

1. TEMP DOWN

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Fig. 6

Line drawing of a portable air conditioner unit with handle and ventilation slots (no text or symbols)

Fig. 7

PLACERING

Diagram of a curved pipe or channel with vertical supports, no text or symbols present

Fig. 11

Pure line drawing of a rectangular frame with no text, numbers, or symbols

Fig. 12

Line drawing of a cabinet or shelf unit with a double door and oval opening (no text or symbols)

Fig. 15

Diagram showing a device with a diagonal line crossing over a curved pipe or duct, no text or symbols present.

Fig. 19

Line drawing of a large air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with handle and side panel (no text or symbols)

Fig. 4

UNDERHÅLL

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Värna om miljön!

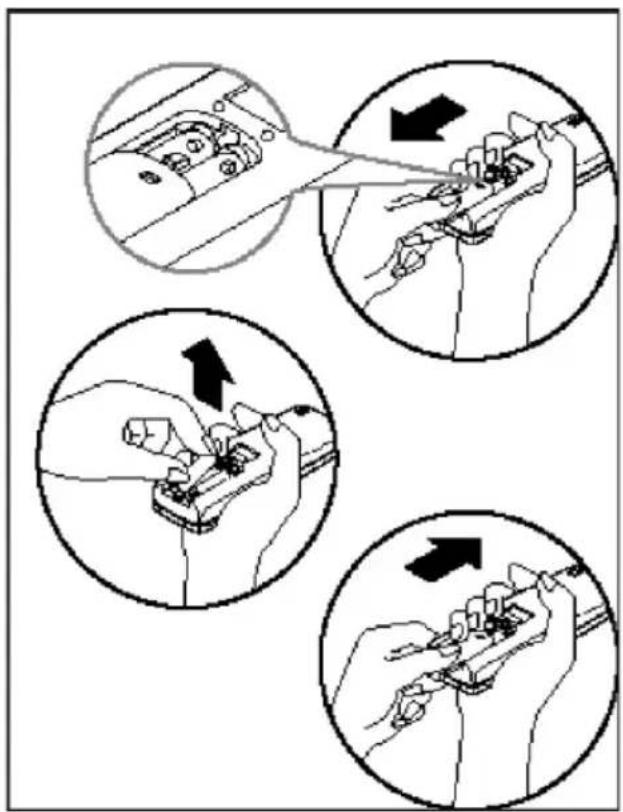

Fjernkontrollen har to batterier (R03) under et deksel på baksiden.

Grader celsius (°C): RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B31/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51 B25/(C)E, RG51 B27/(C)E, RG51 B30/(C)E.

Grader fahrenheit (°F): RG51B/(C)EU, RG51B1/(C)EU, RG51B17/(C)EU, RG51B26/(C)EU, RG51B30/(C)EU, RG51B32/(C)EU, RG51B31/(C)EU.

FUNKSJONER

Modell RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51B31/(C)E, RG51B30/(C)E.

OBS!

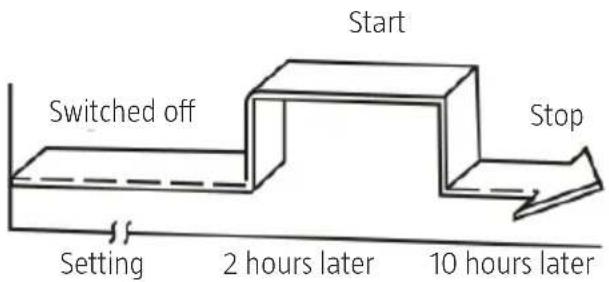

EKSEMPEL PÅ TIDSURINNSTILLING

6.0 h

TIMER ON

Line drawing of a portable air conditioner unit with a handle and control panel (no text or symbols)

Fig. 6

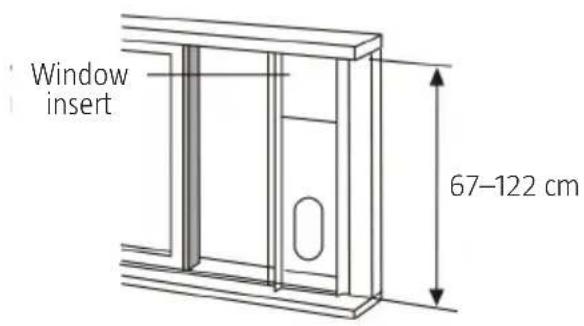

Vindusinnsats Min. 67,5 cm Maks. 123 cm

Line drawing of a portable air conditioner unit with ventilation slots and handle (no text or symbols)

Fig. 7

PLASSERING

Diagram of a curved mechanical component or beam with vertical supports, no text or symbols present

Pure line drawing of a 3D rectangular frame with no text, numbers, or symbols

Fig. 12

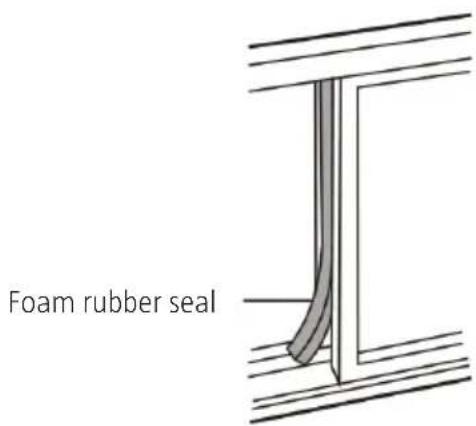

Skumgummitetning A (selvklebende)

Fig. 13

Fig. 14

Line drawing of a cabinet or cabinet with an open door and side panel (no text or symbols)

Fig. 15

Diagram showing a device connected to a curved pipe with a diagonal line crossing through it (no text or symbols present)

Fig. 19

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Line drawing of a portable air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Fig. 4

VEDLIKEHOLD

GENERELT VEDLIKEHOLD OG PLEIE

dolnego korytka

Simple line drawing of a rectangular object with a horizontal base and a small protrusion at the bottom (no text or symbols)

WAŻNE!

Model RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51B31/(C)E, RG51B30/(C)E.

UWAGA!

Line drawing of a portable air conditioner unit with cooling fins and ventilation slots (no text or symbols)

Rys. 6

Line drawing of a portable air conditioner unit with handle and ventilation slots (no text or symbols)

Rys. 7

Line drawing of a cabinet or cabinet frame with a handle and side panel (no text or symbols)

Rys. 15

Diagram showing a device with a diagonal line crossing over a curved pipe or duct, no text or symbols present.

Rys. 19

Line drawing of an air conditioner unit with cooling fan and ventilation slots (no text or symbols)

Read the Operating Instructions carefully before use.

Save these instructions for future reference.

Always follow basic safety precautions to reduce the risk of personal injury and/or material damage.

IMPORTANT:

• The appliance is not intended to be used by persons (children or adults) with any form of functional disorders, or by persons who do not have sufficient experience or knowledge on how to use it, unless they have received instructions concerning the use of the appliance from someone who is responsible for their safety. Keep children under supervision to make sure they do not play with the appliance. Do not allow children to use, clean or maintain the appliance without supervision.
• Keep children under supervision to make sure they do not play with the appliance.
• A damaged power cord must be replaced by an authorised service centre, or qualified person, to ensure safe use.
• The appliance should be installed in accordance with the instructions and local regulations.
• Do not use the appliance in damp or wet areas.
• Do not place the appliance closer than 1 m to any flammable material.
• Maintenance and any repairs should be carried out by qualified personnel.
• The installation should be carried out by qualified personnel.
• Recycle products that have reached the end of their useful life according to local regulations.
• Do not expose the appliance to moisture, condensation, or splashing water etc. Do not place or store the appliance where it could fall, or be pulled, into a bath or washbasin etc. Unplug the power cord immediately if this should happen.
• Transport the appliance upright. Place the appliance on a level, stable surface when in use.
• Switch off the appliance and unplug the power cord when it is not in use.
• Repairs should be carried out by qualified personnel. A damaged power cord must be replaced by an authorised service centre, or other qualified personnel, to ensure safe use.

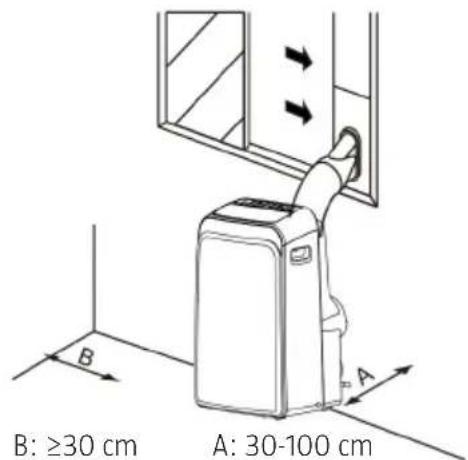

• Leave at least 30 cm of free space around the appliance to ensure adequate ventilation.
• Switch off the appliance immediately and unplug the power cord if it tips over or falls down when in use.

WARNING:

• Do not use the appliance in damp or wet areas.
• Do not handle the appliance, power cord or the plug with wet hands.
• Do not press the control panel buttons with any objects, use your fingers.
• Do not remove the casing on the appliance. Do not use the appliance if it is damaged or not working properly, or if the power cord or plug are damaged.
• Never pull out and plug in the power cord to stop and start the appliance.
  • Always use the power switch on the control panel.

• Do not block the openings on the appliance.

• Do not expose the appliance to strong or harmful chemicals.. Do not use the appliance in explosive environments, e.g. in the vicinity of flammable liquids, gases or dust, or in environments that contain toxic or harmful substances.

• Do not leave children unsupervised in the vicinity of the appliance when it is switched on.
• The appliance must only be used as it is intended to be used and in accordance with these instructions.
• Do not use the product in explosive environments, e.g. in the vicinity of flammable liquids, gas or dust.
• Do not use an extension cord or plug adapter, or the equivalent. Never modify the plug in any way.
• Check that the mains voltage corresponds to the rated voltage on the type plate.
• The plug must be plugged into a correctly installed earthed mains socket. Never modify the plug in any way. If the plug does not fit the mains socket, contact an authorised electrician to install an earthed mains socket.
• The mains socket should be easily accessible.

NOTE: The data on the type plate has been measured on installation without an extended outlet duct and without accessories.
TECHNICAL DATA

Voltage 230 VAC
Dehumidifying capacity 28.8 l/24 hours
EER	2.6
Output 1600 W
Cooling power 3500 W
Cooling capacity 11874 BTU/hour
Energy class A
Cord length 1.1 m
Refrigerant R410A (540 g)
Noise level 65 dB
Air flow 370 m	^3 /hour
Temperature range 17 to 35°C
Dimensions W520xH880xD440 mm
Weight 33.5 kg

DESCRIPTION

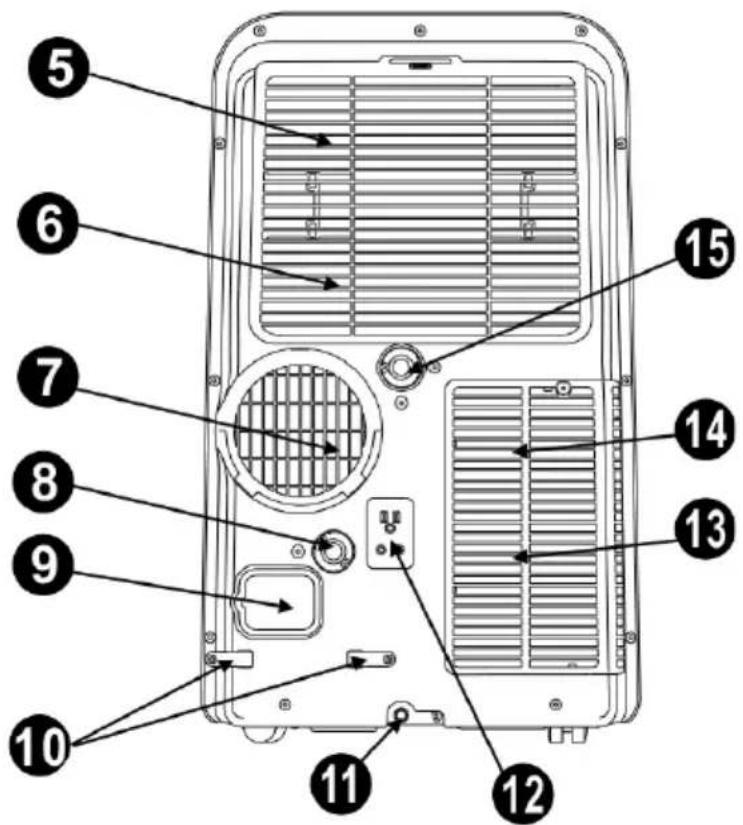

PARTS

1. Control panel
2. Horizontal air deflector (automatic swing)
3. Wheel
4. Handle (on both sides)
5. Top air filter (inside grille)
6. Top air inlet

7. Air outlet

8. Drain opening (only for models with heat pump)

9. Connection for power cord
10. Cord holder (for storage).

11. Drain opening for bottom tray

12. Plug holder (for storage).

13. Bottom air filter (inside grille)
14. Bottom air inlet
15. Drain opening

OPERATING CONDITIONS

The permitted operating temperatures for the appliance are shown in the table below.

MODE ROOM TEMPERATURE
COOL 17–35°C
DRY 13–35°C
HEAT (heat pump) 5–30°C
HEAT (electric heater) ≤ 30°C

ACCESSORIES

PART		DESIGNATION QTY
	or	Outlet hose with adapter I and adapter B (flat or round nozzle depending on model), window insert and screw	1 set
		Wall outlet adapter A (*)	1
		Adapter B (round nozzle) (*)	1
		Expansion plugs and wood screws (*)	4
		Expansion plugs and wood screws (*)	3
		Remote control med batteries (*)	1
		Drain hose with adapter (*)	1

NOTE: Options marked with (*) are not available on all models.

TOOLS FOR MOUNTING WINDOW INSERT

1. Medium Phillips screwdriver
2. Tape measure or ruler
3. Knife or scissors
4. Saw (if window insert needs to be adjusted to width of window)

CONTROL PANEL AND DISPLAY

Read these instructions carefully and familiarise yourself with the controls and how they are used. The appliance can be operated with the remote control or from the control panel.

1. POWER SWITCH

Starts/stops the appliance.

2. SLEEP/ECO

Used to activate SLEEP/ECO mode.

3. FAN/ION (ION is optional)

Used to set the fan speed. Press repeatedly to switch between LOW, MED, HI and AUTO modes. The status light indicates the set mode, with the exception of AUTO. In AUTO mode all the status lights are off.

NOTE: Press the button for 3 seconds to activate ION mode. The ionisation unit is activated and helps to remove pollen and impurities from the air by trapping them in the filter. Press the button for 3 seconds again to deactivate ION mode.

4. + and -

Used to increase/reduce the set point temperature in steps of 1^ C from 17 to 30^ C, or in steps of 1^ F from 62 to 88^ F, or to set the TIMER from 0 to 24 h.

NOTE: The temperature can be shown in °F or °C. To change units, press + and - at the same time for 3 seconds.

5. MODE

Used to select operating mode. Press repeatedly to switch between AUTO, COOL, DRY, FAN and HEAT modes (not on models that only have cooling). The status light indicates the set mode.

6. TIMER

Used together with the + and - buttons to set start time AUTO ON and stop time AUTO OFF. The status light indicates the set mode.

7. SWING

(only on models with swing function)

Used to activate automatic swing. Press once again to stop the air deflector at the required angle.

8. DISPLAY

Shows the set temperature in ^ C or ^ F (no unit shown for ^ F) and timer settings.

The room temperature is shown in DRY and FAN mode.

ERROR AND WARNING CODES

E1. Error on room temperature sensor. Unplug and plug in the power cord. Contact your dealer if the fault remains.
E2. Error on evaporator temperature sensor. Unplug and plug in the power cord. Contact your dealer if the fault remains.
E3. Error on condenser temperature sensor. Unplug and plug in the power cord. Contact your dealer if the fault remains.
E4. Display communication error. Unplug and plug in the power cord. Contact your dealer if the fault remains.
P1. The bottom tray is full. Connect the drain hose and drain off the water. Contact your dealer if the fault remains.

9. FOLLOW ME/TEMP SENSING (option)

NOTE: This function can only be enabled from the remote control. The remote control functions as a remote thermostat for precise temperature control where the remote control is located.

To enable the function Follow Me/Temp Sensing, point the remote control at the appliance and press the Follow Me/Temp Sensing button. The display on the remote control shows the actual temperature at the remote control. The remote control sends a temperature signal to the appliance at 3 minute intervals until the Follow Me/Temp Sensing button is pressed again. If the appliance does not receive a temperature signal in 7 minutes it gives an audio prompt to indicate that Follow Me/Temp Sensing is disabled.

10. ENERGY SAVING MODE

When the ambient temperature is lower (cooling) or higher (heating) than the set point temperature for a set time the appliance automatically switches to energy saving mode. The compressor and fan motor stop and the status light for the active mode goes on. When the ambient temperature is higher (cooling) or lower (heating) than the set point temperature for a set time the appliance automatically switches to energy saving mode. The status light goes off and the compressor and/or fan motor starts.

REMOTE CONTROL

Read the instructions carefully before use.

POSITIONING

- The remote control has a range of 8 metres. Point the remote control at the receiver on the appliance. An audio prompt confirms its reception.

IMPORTANT:

- Doors and curtains etc. block the signal on the remote control.

- Do not expose the remote control to water or any other liquid. Do not expose the remote control to heat or direct sunlight.

- Sunlight or strong artificial light can interfere with the receiver. Protect the receiver from strong light.

- If the remote control affects other appliances in the vicinity, move the appliances or contact your dealer.

REPLACING THE BATTERIES

The remote control has two batteries (R03) under a cover on the back.

1. Open the battery cover.
2. Remove the old batteries and insert new batteries with the correct polarity.
3. Replace the battery cover.

NOTE: All programs are deleted when the batteries are taken out and the remote control must be programmed again.

IMPORTANT:

• Do not mix old and new batteries, or different types of batteries.
• Remove the batteries if the appliance is not going to be used for 2 months, or more.
• Recycle used batteries in accordance with local regulations.

TECHNICAL DATA

Model RG51B1/(C)EU, RG51B14/(C)E, RG51B31/(C)E	RG51B/(C)EU, RG51B16/(C)E, RG51B31/(C)EURG51B17/(C)EU, RG51B18/(C)E, RG51 B32/(C)EURG51B19/(C)E-M, RG51 B20/(C)E, RG51 B30/(C)EURG51B25/(C)E, RG51 B26/(C)EU, RG51 B27/(C)E, RG51B30/(C)E.
Rated voltage 3.0 V (batteries R03)
Lowest voltage at which a signal can be given 2.0 V
Range 8 m
Operating temperature -5 to 60°C

TEMPERATURE DISPLAY

Degrees Celsius (°C): RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B31/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51 B25/(C)E, RG51 B27/(C)E, RG51 B30/(C)E.

Degrees Fahrenheit (°F): RG51B/(C)EU, RG51B1/(C)EU, RG51B17/(C)EU, RG51B26/(C)EU, RG51B30/(C)EU, RG51B32/(C)EU, RG51B31/(C)EU.

FUNCTIONS

1. Operating modes: AUTO, COOL, DRY, HEAT modes (not on models that only have cooling) and FAN.
2. 24 hour timer
3. Adjustable range for room temperature: 17 to 30°C and 62 to 88°F
4. LCD

NOTE: The diagrams in these instructions are only intended as illustrations. The appliance may deviate from the diagrams in these instructions.

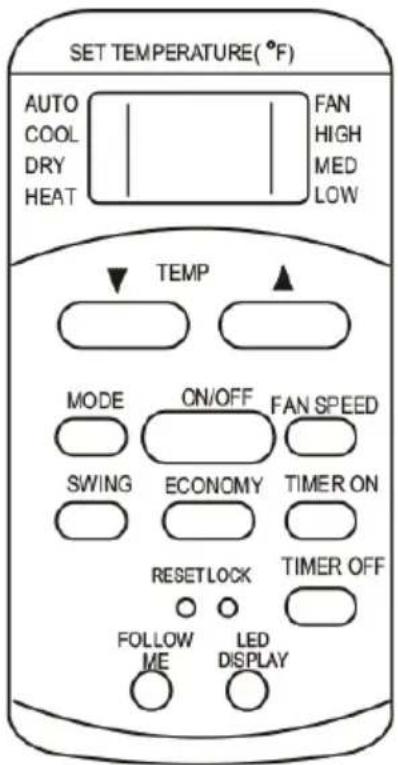

BUTTONS

Model RG51B14/(C)E, RG51B16/(C)E, RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E, RG51B31/(C)E, RG51B30/(C)E.

NOTE:

• Models RG51B16/(C)E, RG51B18/(C)E do not have the SWING function.
• Models RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E do not have the LED DISPLAY button.
• Model RG51B19/(C)E-M does not have the MED FAN function.
• Model RG51B31/(C)E has the ECONO-MY button instead of the SLEEP button.
• Model RG51B30/(C)E does not have the MED FAN and SWING functions.

1. TEMP DOWN

Reduces the set point temperature in steps of 1^ C down to 17^ C, or in steps of 1^ F down to 62^ F.

2. TEMP UP

Increases the set point temperature in steps of 1^ C up to 30^ C, or in steps of 1^ F up to 88^ F.

3. MODE

Switches between modes in the following order.

NOTE: HEAT mode is only available on models with both heating and cooling.

4. SWING (some models)

Starts and stops the air deflector to adjust the required direction of the air.

5. RESET

Resets the remote control to default. All the settings made are lost.

6. ON/OFF

Switches the appliance on and off.

7. FAN SPEED

Switches between speed settings as follows. Some models do not have MED FAN mode.

8. TIMER ON

Press to activate the setting of start delay. Each time you press the button the setting increases in steps of 0.5 hours up to 10 hours and steps of 1 hour from 10 to 24 hours. Cancel this function by setting the time to 0.0.

9. ECONOMY (SLEEP)

This function produces a comfortable temperature and saves energy when you are sleeping. The function can only be used in COOL, HEAT and AUTO mode.

• Model RG51B25/(C)E, RG51 B27/(C)E.
NOTE: Model RG51B25/(C)E does not have the SWING function.

• Model RG51B17/(C)EU

NOTE: If the appliance is in SLEEP mode this is interrupted if the ON/OFF, FAN SPEED, SLEEP or MODE button is pressed.

10. TIMER OFF

Press to activate the setting of stop delay. Each time you press the button the setting increases in steps of 0.5 hours up to 10 hours and steps of 1 hour from 10 to 24 hours. Cancel this function by setting the time to 0.0.

11. LOCK

Press this depressed button to lock the actual settings. The remote control does not respond to pressing any other buttons than LOCK. This function is used to prevent unintentional changes. Press the button again to deactivate the function. When the function is activated a lock symbol is shown on the display on the remote control.

12. LED DISPLAY

Press this button to clear the display on the appliance. Press again to activate the display NOTE: Models RG51B18/(C)E, RG51B19/(C)E-M, RG51B20/(C)E do not have the LED DISPLAY button.

13. FOLLOW ME/TEMP SENSING

• Press this button to activate the FOLLOW ME function.
• The display on the remote control shows the actual temperature at the remote control when the Follow Me function is activated. The remote control sends a temperature signal to the appliance at 3 minute intervals until the Follow Me button is pressed again.
• The Follow Me function cannot be used in DRY and FAN mode.
• The function is deactivated if the appliance is switched off and switched on.

14. ION

Press this button to activate the ionisation unit, which helps to remove pollen and impurities from the air.

• Model RG51B1/(C)EU, RG51B/(C)EU, RG51B26/(C)EU, RG51B30/(C)EU, RG51B32/(C)EU, RG51B31/(C)EU.

NOTE: Model RG51B/(C)EU does not have the SWING and FOLLOW ME buttons. Model RG51B1/(C)EU does not have the FOLLOW ME button. Model RG51B30/(C)EU does not have the SWING and FOLLOW ME buttons or the MED FAN function and has the SLEEP button instead of the ECONOMY button. Model RG51B32/(C)EU does not have the FOLLOW ME button and the MED FAN function and has the SLEEP button instead of the ECONOMY button. Model RG51B31/(C)EU has the FOLLOW ME button.

DISPLAY READINGS

USING THE BUTTONS

AUTO mode

Check that the appliance is connected to the mains. The status light on the appliance goes on.

1. Press the MODE button until AUTO mode is activated.
2. Press the TEMP button to set the required temperature from 17 to 30^ C in steps of 1^ C or from 62 to 88^ F in steps of 1^ F .
3. Press the ON/OFF button to start the appliance.

NOTE:

• In AUTO mode the appliance compares the actual room temperature with the set point temperature, which is set from the remote control and activates COOL, HEAT or DRY mode.
• In AUTO mode it is not possible to set the fan speed. The fan speed is controlled automatically.
• You can also set the required mode manually.

Cooling/heating/fan

Check that the appliance is connected to the mains.

1. Press the MODE button until the required mode is activated (COOL, HEAT (only on models with both heating and cooling) or FAN).
2. Press the TEMP button to set the required temperature from 17 to 30^ C in steps of 1^ C or from 62 to 88^ F in steps of 1^ F .
3. Press the FAN SPEED to set the required fan speed to AUTO, LOW, MED or HIGH.
4. Press the ON/OFF button to start the appliance.

NOTE: In FAN mode the set point temperature is not shown on display on the remote control and it is not possible to change the setting. Only steps 1, 3 and 4 should be carried out.

Dehumidification

Check that the appliance is connected to the mains. The status light on the appliance goes on.

1. Press the MODE button until DRY mode is activated.
2. Press the TEMP button to set the required temperature from 17 to 30^ in steps of 1^ or from 62 to 88^ in steps of 1^ .
3. Press the ON/OFF button to start the appliance.

NOTE: In DRY mode it is not possible to set the fan speed. The fan speed is controlled automatically.

Swing (some models)

Press the SWING button to adjust the air deflector.

1. Tap the button to swing the air deflector. The air deflector moves 6^ each time the button is pressed. Press repeatedly to move the air deflector to the required position.

NOTE: On some models the button only activates automatic swing.

1. Automatic swing is activated if the button is pressed for more than 2 seconds. The air deflector swings backwards and forwards continuously. Press again to stop the movement.

NOTE: If the air deflector comes in a position that affects the cooling/heating function, the direction of the air is changed automatically.

TIMER mode

Press the TIMER ON button to activate the setting of start delay. Press the TIMER OFF button to activate the setting of stop delay.

Setting the start delay

1. Press TIMER ON. The display on the remote control shows TIMER ON, the last set start delay, and the status in h.
2. Press the TIMER ON button once to set the required start delay. Each time you press the button the setting increases in steps of 0.5 hours up to 10 hours and steps of 1 hour from 10 to 24 hours.
3. When the time for TIMER ON is set a signal is sent to the appliance 0.5 seconds. After another 2 seconds the h status disappears and the set point temperature is shown again on the display.

Setting the stop delay

1. Press TIMER OFF. The display on the remote control shows TIMER OFF, the last set stop delay and the status in h.
2. Press the TIMER OFF button once to set the required stop delay. Each time you press the button the setting increases in steps of 0.5 hours up to 10 hours and steps of 1 hour from 10 to 24 hours.
3. When the time for TIMER OFF is set a signal is sent to the appliance after 0.5 seconds. After another 2 seconds the h status disappears and the set point temperature is shown again on the display.

IMPORTANT: Only the following times can be set. 0.5, 1.0, 1.5, 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 6.5, 7.0, 7.5, 8.0, 8.5, 9.0, 9.5, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23 and 24.

EXAMPLE OF TIMER SETTING

6.0h

TIMER ON

Setting 6 hours later

Setting
10 hours later

TIMER ON (automatic start)

The TIMER ON function is useful, for example, to start the appliance automatically before you get home.

Example

Follow the instructions below to set automatic start in 6 hours.

1. Press TIMER ON. The display on the remote control shows the last set start delay and the status in h.
2. Press the TIMER ON button repeatedly until 6.0h is shown on the display on the remote control.
3. Wait about 3 seconds until the temperature display is reset. The function is now enabled.

TIMER OFF (automatic stop)

The TIMER OFF function is useful, for example, to switch off the appliance automatically after you have gone to bed.

Example

Follow the instructions below to set automatic stop in 10 hours.

1. Press TIMER OFF. The display on the remote control shows the last set stop delay and the status in h.
2. Press the TIMER OFF button repeatedly until 10h is shown on the display on the remote control.
3. Wait about 3 seconds until the temperature display is reset. The function is now enabled.

AUTOMATIC STARTING AND STOPPING

Setting
2 hours later 10 hours later

This function is useful, for example, to switch off the appliance after you have gone to bed and to start it again before you get up.

Example

Follow the instructions below to set automatic stop in 2 hours and automatic start in 10 hours.

1. Press TIMER OFF.
2. Press the TIMER OFF button repeatedly until 2.0h is shown on the display on the remote control.
3. Press TIMER ON.
4. Press the TIMER ON button repeatedly until 10h is shown on the display on the remote control.
5. Wait about 3 seconds until the temperature display is reset.

This function is useful, for example, to start the appliance before you get up and to switch it off after you have left the house.

Example

Follow the instructions below to set automatic start in 2 hours and automatic stop in 5 hours.

1. Press TIMER ON.
2. Press the TIMER ON button repeatedly until 2.0h is shown on the display on the remote control.
3. Press TIMER OFF.
4. Press the TIMER OFF button repeatedly until 5.0h is shown on the display on the remote control.
5. Wait about 3 seconds until the temperature display is reset.

IMPORTANT: The mode that comes up first (TIMER ON or TIMER OFF) takes place first.

ECONOMY (SLEEP)

• Pressing the ECONOMY button increases (cooling) or reduces (heating) the set temperature by 1°C or 1°F after 30 minutes.
• After another 30 minutes the set temperature increases (cooling) or reduces (heating) by another 1^ C or 1^ F .
• The new temperature is maintained for 6 hours (7 hours on some models), after which the original set temperature is restored.

NOTE: On some models the set temperature increases (cooling) or reduces (heating) by 1°C or 1°F per hour for 2 hours. The new temperature is maintained for 5 hours, after which the appliance switches off.

NOTE: The ECONOMY/SLEEP function is only available in the COOL, HEAT and AUTO modes.

INSTALLATION

Fig. 5

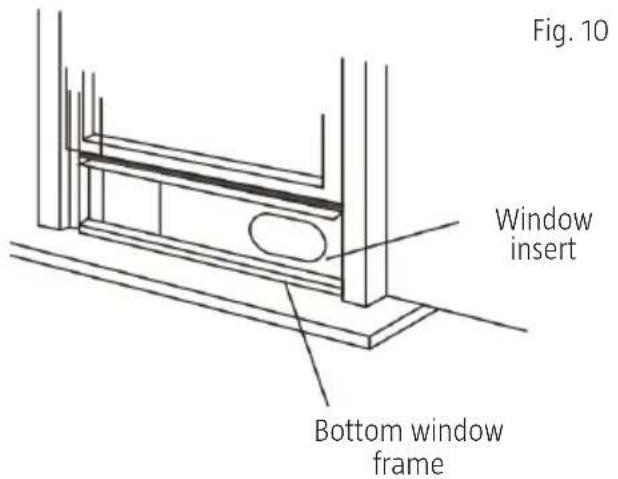

Window insert Min. 67.5 cm Max. 123 cm

Line drawing of a portable air conditioner unit with a handle and control panel (no text or symbols)

Fig. 6

Window insert Min. 67.5 cm Max. 123 cm

Line drawing of a portable air conditioner unit with handle and ventilation slots (no text or symbols)

Fig. 7

POSITIONING

• The appliance should be placed on a level, stable surface that can withstand the weight, to minimise noise and vibrations.
• Only move the appliance on the wheels on a level, smooth surface. Be careful when moving the appliance on carpets etc. Do not attempt to roll the appliance over objects.
• The appliance must only be connected to a correctly earthed mains outlet.
• Never block the air inlets or outlets on the appliance.
• Leave a free space of 30 to 100cm around the appliance for best functionality.

FITTING THE WINDOW INSERT

The window insert fits most sash windows that open horizontally or vertically. Some adjustment may be necessary.

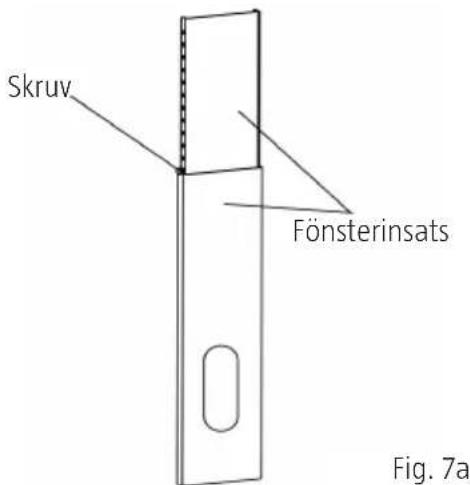

The maximum and minimum window openings are shown in fig. 6 and 7. The window insert is secured with a screw (fig. 7a).

NOTE: If the window opening is less than the minimum length of the window insert, the part with a hole can cut to a suitable length. Never cut through the hole in the window insert.

INSTALLATION IN SASH WINDOW THAT OPENS VERTICALLY(OPTION)

1. Cut the self-adhesive foam rubber seal to a suitable length and fasten it to the bottom window frame (fig. 8).
2. Align the window insert to the bottom window frame. Adjust the length of the window insert to the window. Cut the window insert if the width of the window is less than 67 cm.
3. Open the window and put the window insert on the bottom window frame (fig. 9).
4. Cut the self-adhesive foam rubber seal to a suitable length and fasten it to the top edge of the window insert (fig. 10).
5. Close the window so that it presses firmly against the window insert.

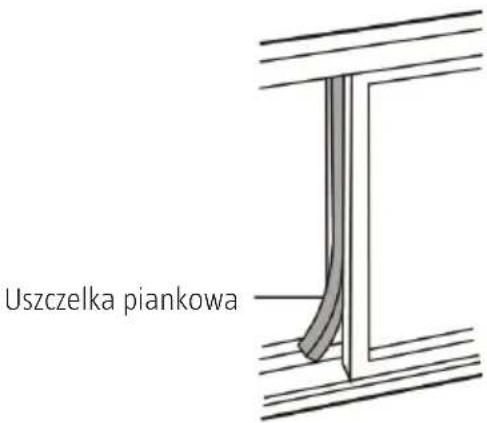

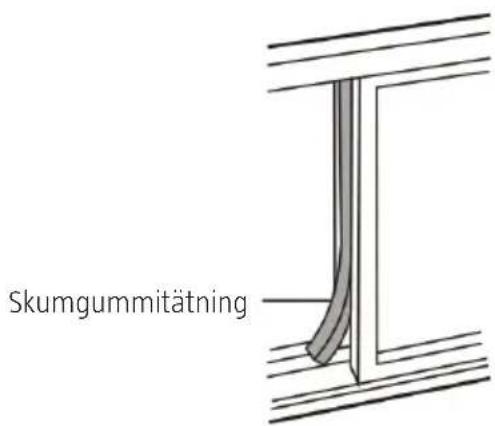

6. Cut the foam rubber seal to a suitable length and seal the gap between the window halves (fig. 11

INSTALLATION IN SASH WINDOW THAT OPENS HORIZONTALLY(OPTION)

Pure line drawing of a rectangular frame with no text, numbers, or symbols

Fig. 12
Foam rubber seal A (self-adhesive)

Fig. 13

Fig. 14

Line drawing of a cabinet or cabinet with an open door and side panel (no text or symbols)

Fig. 15

1. Cut the self-adhesive foam rubber seal to a suitable length and fasten it to the window frame (fig. 12).
2. Align the window insert to the window frame. Adjust the length of the window insert to the window. Cut the window insert if the height of the window is less than 67 cm.
3. Open the window and put the window insert on the window frame (fig. 13).
4. Cut the self-adhesive foam rubber seal to a suitable length and fasten it to the edge of the window insert (fig. 14).
5. Close the window so that it presses firmly against the window insert.
6. Cut the foam rubber seal to a suitable length and seal the gap between the window halves (fig. 15).

INSTALLATION OF OUTLET HOSE

Fig. 16a

Fig. 16b

Fig. 17

Fig. 18

Diagram showing a device with a diagonal line crossing over a curved pipe or duct, no text or symbols present.

Fig. 19

The outlet hose and adapter should be fitted, if necessary for the mode in use.

COOL, HEAT (heat pump) or AUTO	Installed
FAN, DEHUMIDIFY or HEAT(electric heater)	Not installed

1. Fit adapter B and adapter I on the outlet hose (fig. 16a or 16b). Fit the window insert according to the instructions above.

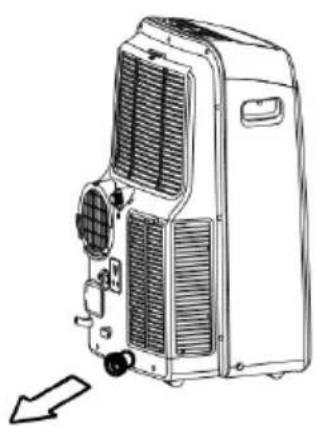

2. Hook the outlet hose connection in the fastener on the air outlet and move down in the direction of the arrow (fig. 17).

THE OUTLET HOSE CAN BE LED THROUGH A WALL

(does not apply for appliances without adapter A, expander plug and wood screws as accessories).

1. Make a hole in the wall. Fit the outlet adapter A on the outside of the wall with 4 expander plugs and wood screws (fig. 18). Screw tight.
2. Connect the outlet hose to outlet adapter A.

NOTE:

• Fit the adapter cover over the hole when the appliance is not in use.
• The outlet hose can be routed to a suitable length for the installation, but should be as short as possible.

IMPORTANT:

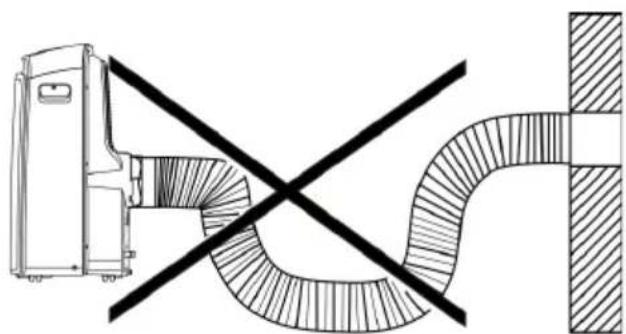

• Do not bend the outlet hose too sharply (fig. 19).
• Check that there are no obstacles within 50 cm of the air outlet, otherwise the outlet system will not work properly

INSTALLATION OF DRAIN

Line drawing of a large industrial air conditioner unit with cooling fan and cooling button (no text or symbols)

• In dehumidification mode, remove the top drain plug on the back of the appliance and connect the drain hose (sold separately). Use 3/4" hose with 5/8" coupling with external thread. For models without drain connection, connect the drain hose to the hole. Lead the hose to a suitable drain (fig. 20a).

• In heat pump mode, remove the bottom drain plug on the back of the appliance and connect the drain hose (sold separately). Use 3/4" hose with 5/8" coupling with internal thread. For models without drain connection, connect the drain hose to the hole. Lead the hose to a suitable drain (fig. 20b). NOTE: Check that the hose and coupling are tight. Make sure the hose is not creased or clenched. Lead the hose to a suitable drain and make sure that the end of the hose points down (fig. 20a, 20b, 21a). Never point the end of the hose up (fig. 21b).

• When the water level in the bottom tray reaches the specified level the appliance emits 8 beeps and the display shows P1. The air conditioning/dehumidification stops, but the fan continues to run.

• Carefully move the appliance to a suitable drain, remove the bottom plug and allow the water to drain out (fig. 22). Replace the bottom drain plug and start the appliance. P1 disappears from the display. Contact your dealer if the fault remains.

NOTE: Remember to replace the bottom drain plug before starting the appliance.

OPERATION

COOLING MODE

• Press the MODE button repeatedly until the COOL status light goes on.
• Set the required room temperature (set point temperature) with the + and - buttons. The temperature can be set from 17 to 30°C or from 62 to 88°F.
• Press the FAN SPEED button to set the fan speed.

HEATING MODE (NOT ON MODELS THAT ONLY HAVE COOLING)

• Press the MODE button repeatedly until the HEAT status light goes on.
• Set the required room temperature (set point temperature) with the + and - buttons. The temperature can be set from 17 to 30^ or from 62 to 88^ .
• Press the FAN SPEED button to set the fan speed. On some models the fan speed cannot be set in HEAT mode.

DRY MODE

• Press the MODE button repeatedly until the DRY status light goes on.
• In this mode it is not possible to adjust the set point temperature or fan speed. The fan motor runs at low speed.
• Keep doors and windows closed for best dehumidification function.
• Do not lead the hose through the window.

AUTO MODE

• In AUTO mode the appliance runs in cooling or heating mode (not on models that only have cooling) or fan mode only, depending on the room temperature the set point temperature.
• The appliance automatically maintains the room temperature close to the set temperature.
• In AUTO mode it is not possible to set the fan speed.

NOTE: In AUTO mode both the status light for AUTO mode and the status light for the actual mode go on.

FAN MODE

• Press the MODE button repeatedly until the FAN status light goes on.
• Press the FAN SPEED button to set the fan speed. It is not possible to set the temperature.
• Do not lead the hose through the window.

TIMER MODE

• When the appliance is running the stop delay can be activated when the TIMER button is pressed. The TIMER OFF status light goes on. Set the required stop delay with the + and - buttons. Press the TIMER button once within 5 seconds to activate the start delay setting. The TIMER ON status light goes on. Set the required start delay with the + and - buttons.
• When the appliance is switched off the start delay setting is activated when the TIMER button is pressed. Press the TIMER button once within 5 seconds to activate the stop delay setting.
• Press in the + or - button to change the time, in steps of 0.5 hours up to 10 hours and steps of 1 hour from 10 to 24 hours. The control system counts down the time to start/stop.
• If no buttons are pressed for 5 seconds the display automatically returns to show the current temperature setting.
• You can stop the countdown at any time to start/stop by switching off or starting the appliance, or by setting the time to 0.0.
• The timer function is also interrupted if there is an E1, E2, E3 or E4 error.

SLEEP/ECO MODE

Pressing this button increases (cooling) or reduces (heating) the set temperature by 1^ C or 1^ F after 30 minutes. After another 30 minutes the set temperature increases (cooling) or reduces (heating) by another 1^ C or 1^ F. The new temperature is maintained for 7 hours, after which the original set temperature is restored. Sleep/Eco mode then finishes and the appliance runs with the original settings.

NOTE: This mode cannot be used in FAN or DRY mode.

OTHER FUNCTIONS

AUTOMATIC RESTART (SOME MODELS)

When the power supply is reset after a power failure the appliance restarts with the previously set function.

START DELAY 3 MINUTES

When the appliance has been stopped it will not start for 3 minutes. This is a safety function, and is completely normal. The appliance starts automatically after 3 minutes.

SETTING THE AIR DIRECTION

Air deflector automatically set for required air direction.

• The air deflector opens fully when the appliance is started. Press the SWING button on the control panel or remote control to activate automatic swing.
• The air deflector swings automatically up or down.
• Do not attempt to move the air deflector manually.
• Press the SWING button again to stop the swing to the required air deflection setting.

Fig. 4

MAINTENANCE

Fig. 23

Fig. 24

Fig. 25

GENERAL CARE AND MAINTENANCE

• Switch off the appliance and unplug the power cord before cleaning and/or maintenance.
• Do not use strong chemicals, detergents or solvents.
• Do not pour or rinse water on the appliance – risk of electric shock.
• A damaged power cord must be replaced by an authorised service centre, or other qualified personnel, to ensure safe use.

AIR FILTER

- Clean the air filter at least every other week for best functionality.

DISMANTLING

- The appliance has two filters. Pull the top filter in the direction of the arrow and fold down (fig. 23). Remove the bottom filter by undoing the screw and taking out the filter (fig. 23).

CLEANING

- Wash the filter carefully with hot water and a mild detergent. Rinse and allow to dry.

ASSEMBLY

- Fit the filter by following the above instructions in the reverse order (fig. 24).

CASING

- Clean the casing with a soft cloth moistened with a mild detergent and wipe dry.

IF THE APPLIANCE IS NOT GOING TO BE USED FOR SOME TIME

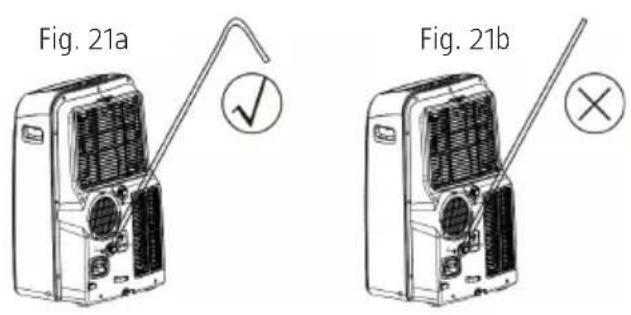

• Remove the drain plug on the back of the appliance and connect a hose. Lead the hose to a suitable drain (fig. 20 and 21).
• Remove the bottom drain plug to empty the bottom tray (fig. 22).
• Allow the appliance to run in FAN mode for 6 hours in a warm room to dry the inside and to reduce the risk of mildew.
• Switch off the appliance, unplug the power cord, and hang up the cord and plug in the holders on the back (fig. 25). Remove the batteries from the remote control.
• Clean and replace the air filter.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE ACTION

The appliance does not start when the power switch is pressed.	Error code P1 (full bottom tray) is shown on the display).	⇒	Empty the bottom tray.
	The room temperature is lower (cooling) or higher (heating) than the set point temperature.	⇒	Change the set point temperature.
The appliance does not produce enough cooling.	Windows or doors open.	⇒	Close all the doors and windows.
	Source of heat in the room.	⇒	Remove sources of heat if possible.
	Outlet hose blocked or not connected.	⇒	Connect the hose and arrange it so that it works properly.
	Set point temperature too high.	⇒	Set a lower set point temperature.
	Air filter blocked.	⇒	Clean the air filter.
Noise or vibration. Surface is uneven or not level.		⇒	Put the appliance on a smooth, horizontal surface.
Gurgling sound.	Caused by refrigerant in the appliance.	⇒	This is quite normal.
The appliance switches off in heating mode.	The overheating protection trips when the outgoing air temperature is higher than 70°C.	⇒	Allow the appliance to cool and restart it.

Jula reserves the right to make changes. In the event of problems, please contact our service department. www.jula.com

Care for the environment!

Must not be discarded with household waste!

This product contains electrical or electronic components that should be recycled.

Leave the product for recycling at the designated station e.g. the clocal authority's recycling station.
