Product Type	TFT-LED TV/Monitor with built-in DVD player
Screen Size	16 inches (16:9 aspect ratio)
Resolution	1366 x 768 pixels
Brightness	220 cd/m²
Contrast Ratio	500:1 (minimum)
Display Colors	16.7 million
Viewing Angle	90° (horizontal) / 60° (vertical)
Response Time	8 ms
Audio Output	3W x 2 (stereo)
Power Supply	DC 12V, 3A; AC 110–240V, 50/60Hz
Power Consumption	Max 36W
Included Accessories	Remote control, DC adapter, Mini YPbPr cable, 12V car cord, AAA batteries (x2), operation manual
Input/Output Ports	YPbPr, PC Audio, CI, VGA, Earphone, USB, HDMI, SCART, CVBS, RF in
OSD Languages	English, Swedish, and others
DVD Playback	Built-in DVD slot; supports DVD, VCD, CD playback

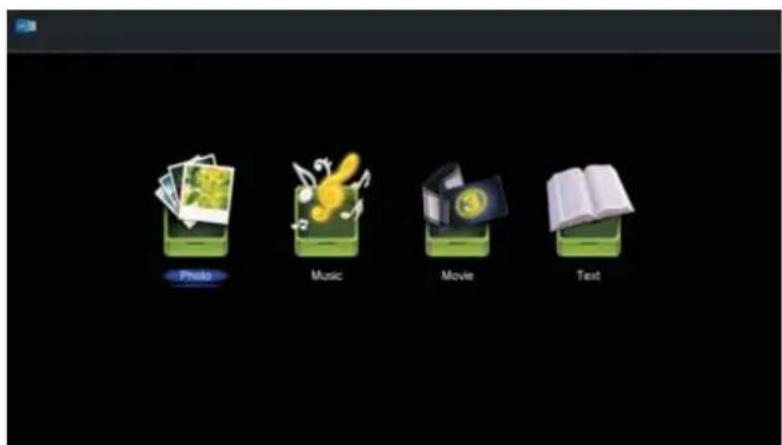

Multimedia Playback (USB)	Photo, Music, Movie, Text files
PVR Function	Yes (via USB, scheduled recording)
Teletext	Yes (in ATV, DTV, SCART modes)
Parental Control	Channel lock, rating lock, keypad lock
Sleep Timer	Off, 5, 15, 30, 60, 90, 120, 240 minutes
Aspect Ratios	4:3, 16:9, Zoom1, Zoom2, Full
Safety Features	Automatic shutdown, ventilation openings, grounding pin
Cleaning Instructions	Soft cloth with mild detergent; avoid alcohol, ammonia, abrasives

Frequently Asked Questions - LED-1605 LTC

How do I connect an external antenna to the LTC LED-1605?

Connect a 75Ω coaxial cable from your antenna to the RF IN port on the back of the TV. You can also use a 300-75Ω impedance converter if needed.

Can I use this TV as a computer monitor?

Yes, connect your PC to the VGA port using a VGA cable. Then press INPUT on the remote and select PC mode.

How do I set up channels automatically?

Go to Menu > Channel > Auto Scan. Choose your tuner type (Antenna or Cable), country, and mode (DTV, ATV, or both). Then select Start to begin scanning.

What should I do if the remote control stops working?

Check if the batteries are installed correctly (AAA type). Replace both batteries if needed. Ensure there are no obstructions between the remote and the sensor, and stay within 6 meters.

How can I play a DVD on this TV?

Insert a disc with the reflective side facing the front into the DVD slot. Press INPUT and select DVD source. Use the remote buttons (Play, Pause, Stop) to control playback.

Is it possible to record TV programs?

Yes, via the PVR function. Connect a USB drive, then go to Menu > Setup > PVR Settings. You can schedule recordings or record live TV.

How do I clean the screen without damaging it?

Use a soft, dry cloth slightly moistened with a mild detergent solution. Avoid using alcohol, spirits, ammonia, or abrasive cleaners. Never spray liquid directly on the screen.

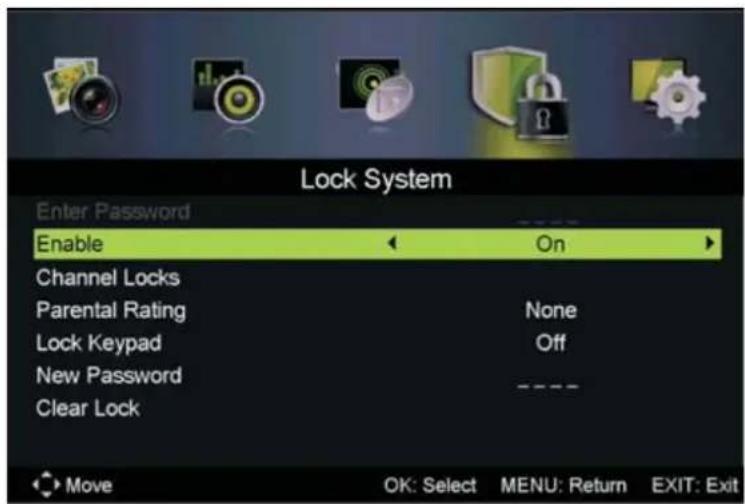

What is the default password for the parental lock?

The default password is 0000. You can change it in the Lock System menu. If you forget it, contact service center.

Can I connect headphones to this TV?

Yes, plug your headphones into the Earphone out jack on the back of the TV. The internal speakers will mute automatically.

How do I update the TV software?

Go to Menu > Setup > OAD (Over Air Download). Enable Auto Download or select Manual OAD Download to check for updates via the antenna signal.

USER MANUAL LED-1605 LTC

LTC TV displaying a person windsurfing water on a lake, with CD/DVD cable visible on the right (no readable text or symbols on the person or water)

LTCLED-1605g.7

Line drawing of a flat-screen computer monitor with no text or symbols

TV/Monitor

Fjärrkontroll Bruksanvisning

Simple line drawing of a rectangular block with a recessed slot (no text or symbols)

DCadapter

12V Ciggkabel

Batterier AAA x 2

Baksida LED 1605 g.7

Line drawing of a hand holding a pen or stylus, poised to write on a device (no text or symbols present)

Line drawing of a mechanical component with internal components (no text or symbols)

Line drawing of a hand holding a tool with arrows indicating motion or movement (no text or symbols)

1. Bildmeny

Signalinformation

Aktivera (Enable)

Textning (Subtitle)

Läge (Mode)

Tropical beach scene with palm trees and turquoise water under a clear blue sky (no text or symbols visible)

Musik

VII. DVD användning

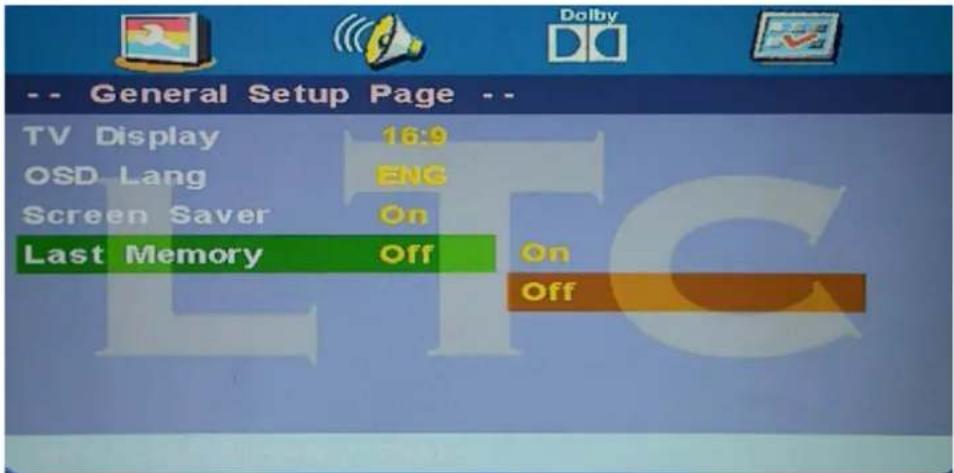

Skärmsläckare

Sista minne (Last Memory)

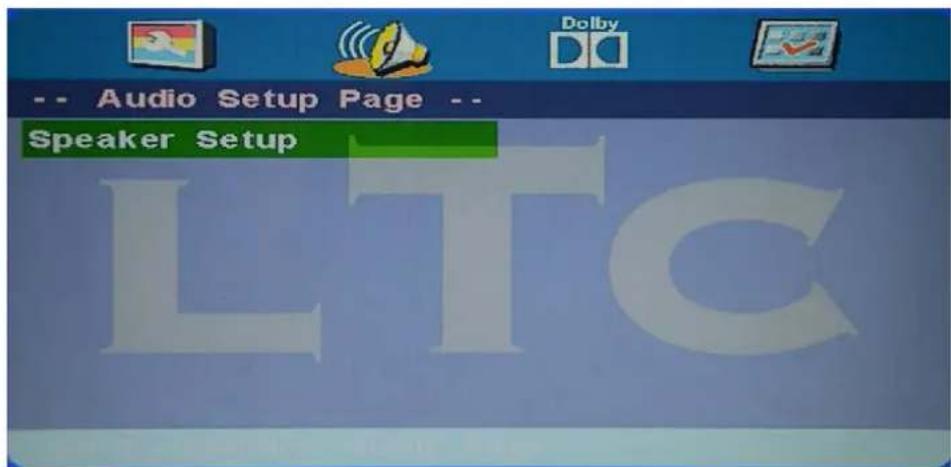

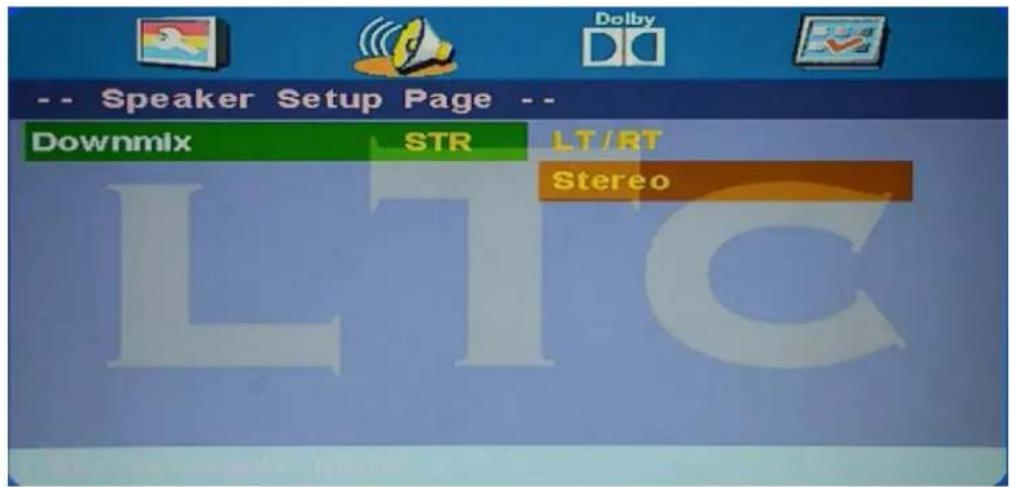

Downmix

• V/H (LT/RT)

Undertext (Subtitle)

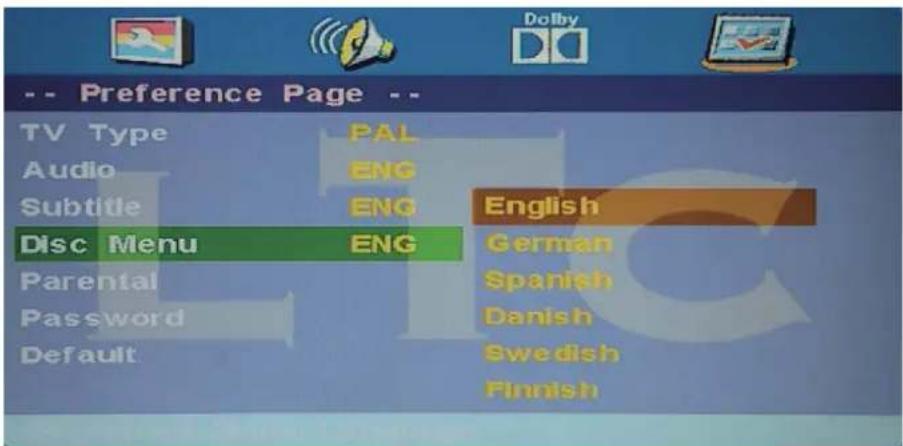

Skivmeny (Disc menu)

LTC LED-1605 g.7

The OSD Menu described in this manual may change and differ slightly from the one shown on your TV's screen without further notice due to continuous product improvement.

Dear Customers

Thanks for purchasing this TFT-LED TV/Monitor. We strongly recommend that you carefully read the safety and operation instructions before operating your TV/Monitor. FOLLOW INSTRUCTIONS AND HEED ALL WARNINGS on your TFT-LED TV/Monitor and in this manual.

Safety information

Note:

Before connecting the AC power cord to the DC adapter outlet, make sure that the voltage designation of the DC adapter corresponds to the local electrical supply. If you are unsure about your power supply, please ask the local power company.

Caution:

WARNING: SHOCK HAZARD-DO NOT OPEN AVIS: RISQUE DE CHOC ELECTRIQE-NE PAS OUVRIR

To avoid electric shock, never touch the inside of the LED TV/Monitor. Only qualified technicians should open the case of the LED TV/Monitor.

Warning:

Do not defeat the safety purpose of grounding-type. A grounding type plug has two blades and a third grounding pin. The third pin is provided for your safety. If the plug does not fit, ask the electrician to replace the obsolete outlet. Do not modify the plug!

To reduce the risk of fire or electric shock, and annoying interference, use the recommended accessories only.

Please read the below precautions carefully before operating the unit.

Power cord protection:

1. Never use your LED TV/Monitor if the power cord has been damaged. Do not put anything on the power cord, and keep the power cord away from where people can easily trip over it.
2. Be sure to hold the plug; do not pull the cord when disconnecting the LED TV/Monitor from an electric socket.
3. Locate your LED TV/Monitor near an easy accessible AC outlet.
4. The powers cable/disconnect device shall remain easy to operate/disconnect.

Placement:

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
2. An appliance and a cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
3. Never placing the LED TV/Monitor in areas under direct sun-light, with high temperature or with high humidity or high level of dust which may cause damages on the internal parts of the LED TV/Monitor.
4. Place the LED TV/Monitor on a solid surface and treat it carefully. The screen is made of thin glass with a plastic front surface and can be damaged by dropping, hitting or scratching.

Non-use periods:

Unplug the LED TV/Monitor when it is not being used for a long period.

Foreign objects:

Never insert any foreign object into the holes on the cabinet of the TV/Monitor. Doing so may cause the danger of electric shock.

Keep away from water/magnetic fields:

1. Do not expose the LED TV/Monitor to rain or use it near water source. If the LED TV/Monitor gets wet, unplug it and contact an authorized dealer immediately.
2. Do not clean the front panel with Ketone-type materials, ethyl alcohol, toluene, acid, methyl, or chloride since they may cause damage to the panel.
3. Keep the unit away from flower vases, tubs, sinks etc. if liquids spill into the unit, serious damage will occur.
4. Do not place magnetic objects close to the LED TV/Monitor.

Stacking:

Opening in the LED TV/monitor cabinet are provided for ventilation. To prevent overheating, these openings should not be blocked or covered. Never use the unit on a bed, sofa, rug, or other uneven surfaces. Doing so may block the ventilation openings in the bottom of the unit. If you place the LED TV/Monitor in a bookcase or some other enclosed place, please make sure to provide adequate space for ventilation.

Servicing:

1. If the LED TV/Monitor does not operate normally – In particular, if there are any unusual sounds or smells coming from the unit – just unplug it immediately and contact an authorized dealer or service center.
2. Unplug the LED TV/Monitor from the AC outlet before any service.
3. Make sure the service technician uses authorized replacement parts or their equivalents. Unauthorized parts any cause fire, electrical shock, or other hazard.
4. Following any service or repair, be sure the service technician performs safety checks to certify that the TFT LED TV/Monitor is in safe operating order.

Please make sure that the following items are included with your LED TV/Monitor. If any item is missing, please contact your dealer.

TFT LEDTV/ Monitor
Remote control	Operation manual
DC adapter	Mini YPb RF cablePr cable
12V Car Cord	Battery AAA x 2

I. View of the TV/Monitor

Front view

Backview

1. Indication light
2. Remote sensor
3. INPUT button
4. Menu button
5. CH+/- /Up/Down direction button
6. VOL+/-Right/Left direction button
7. DVD Play/Pause button
8. DVD Eject button
9. Power button
10. Power jack
11. Earphone out jack
12. PC-IN jack
13. VGA jack

14. MINI YPbPr in jack

15. SCART

16. CVBS Video in jack
17. Audio (Right/Left) jack
18. Coaxial out jack
19. TV RF antenna jack
20. HDMI jack
21. USB jack
22. Cl jack
23. DVD slot

II. Remote control reference guide

(1) Remote control function

1. ⏻ POWER

Turn on/standby the TV.

1. ASPECT

Adjust picture size.

1. PICTURE

Select the picture mode.

1. MUTE

Press to mute the sound, press again or press VOL+ to unmute.

1. SLEEP

Time shutting down.

1. SOUND

Select the sound mode.

1. 0-9 button

Choose channel.

FAV

Press to add or remove favorite channel.

2

Go to program you latest program.

1. DISPLAY

Display playing status.

1. MENU

TV system menu

1. INPUT

Source select.

1. Direction button

▲▼

Cursor up/down keys in OSD menu.

◀▶

Cursor left/right keys in OSD menu.

OK

Confirm button

1. EXIT

Exit the OSD menu.

13.TV/RADIO

To switch to TV or Radio state in DTV mode.

14.EPG

To show the Electronic Program Guide during no-menu state only in DTV mode.

1. VOL+ /-

Adjust the volume.

1. CH▲/▼

Scan through channels.

1. ▲

Load/eject DVD disc.

18. CH.LIST

Display the programs list.

19. SUBTITLE

Turn on/off the subtitle display in DTV mode.

22. TV/TXT

Turn off/on the Teletext display.

D.PRO

DVD edit the program and play.

CANCEL

Cancel the Teletext display.

D.REP

DVD repeat playing

REVEAL

Reveal anyhidden text.

D.GOTO

DVD Play your favorite title/chapter/track.

NICAM/A2

NICAM/A2 select.

D.SLOW

Play DVD programs at slow speed.

SIZE

Press to see top half of page double size,

Press again tosee thebottom

half of page double size. Press again for normal size.

D.ZOOM

Adjust picture size in DVD mode.

SUBPAGE

Press to enter subpages, pressagain to cancel.

D. TITLE

DVD title.

23. INDEX

Go to index.

HOLD

Hold or carry on the current subpage.

DVD function

◀◀ : Previous chapter.

▶▶ | : Next chapter.

◀ : Fast reverse.

▶▶ : Fast forward.

▶II : Play/Pause program.

■ : Stop program.

20.REC

Press to start record the program in DVB mode.

21.REC LIST

Record List.

24.Colour buttons

D.SET

DVD system setup.

D.MENU

DVD play list/Disc menu.

D.SUB

Turn on/off the subtitle display in DVD mode.

D.LAN

Select DVD disc language.

(2) Remote control battery installation and cautions

Replace battery by following the below steps:

Requires one pair of AAA batteries.

1. Open the battery cover as shown below:

Line drawing of a hand holding a device with a flag, no text or symbols present

1. Install the battery into the battery tray.

Line drawing of a battery internal structure with four terminals (no text or symbols)

1. Close the battery cover

Line drawing of a hand using a tool to adjust or install a component, with no visible text or symbols.

Caution:

1. Keep the battery out of children's reach.
2. Don't attempt to recharge, short-circuit, disassemble, heat or throw the batteries into the fire.
3. Always replace both batteries at the same time. Never mix new and old batteries or batteries of a different type.
4. If you don't intend to use the remote control for an extended period, remove the batteries to prevent possible leakage and corrosion.

Notes:

1. Do not drop, apply shock or step on the remote control.
2. Do not spill water on the remote control.
3. Do not use the remote control for other equipments at the same time
4. If the TV does not operate even when operating the remote control from a close range, you need to replace the batteries.
   Refer to the label on the back of the remote control for directions for replacing batteries.

III. Installation and connection

Connect the LED TV/monitor

1. Connect the TVRF source with the antenna port. TVRF signal including: Receiving antenna /satellite TV/CATV net. You can use 75Ω coaxial cable to connect the outdoor antenna.

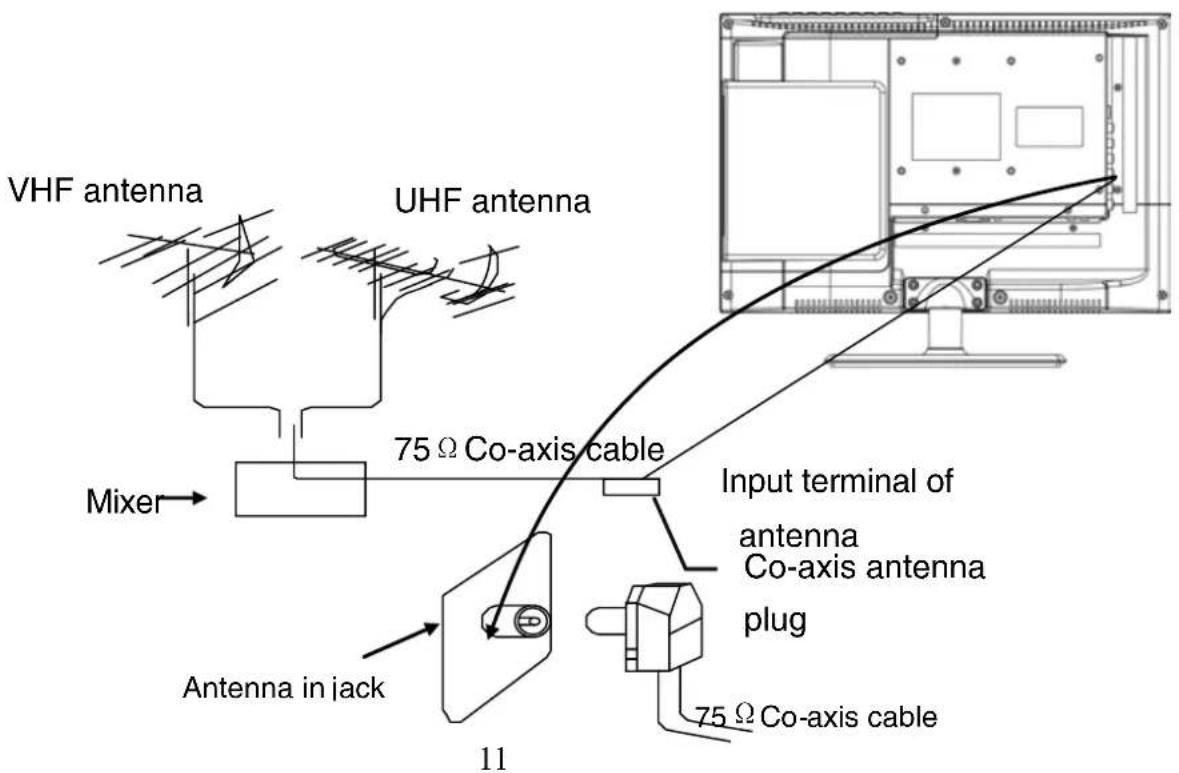

Outdoor Antenna Connection:

Use 75Ω coaxial cable plug or 300 -75Ω impedance converter to plug in antenna input terminal on the rear of the cabinet.

1. Connect the audio sources (Including DVD, VCDR, CAMCORDER and PC) to the proper AUDIO input jacks 'L' and 'R'.
2. Connect the video source to the VIDEO jack by RCA cable.
3. If the video source has a YPBPR output jack, you can connect the signal to the monitor by the YPBPR cable.
4. Insert the AC power to the DC adaptor, then connect 12V input jack from the monitor to its DC output jack.
5. When using the LED as a computer screen, connect the PC to the VGA jack from the monitor by the relevant cable.
6. If the video source has a HDMI output jack, you can connect the signal to the monitor by the HDMI cable.

IV. TV/Monitor screen operation

(1) Basic operation

1. Press the POWER button on the unit on the remote control to switch on the power, the indication light will be in green color. Press the POWER button again to switch off the power, and the light will be in red color.
2. The Picture setup, Sound setup, Previous channel can be memorized before you switch off the TV/Monitor. The TV/Monitor will re-start under the previous state when you switch on it again.
3. Press the VOL - or VOL + button to adjust the volume output. Press the VOL - button repeatedly to decrease the volume; press the VOL + button repeatedly to increase the volume from 0 to 100.

(2) View the TV plays.

1. Press the INPUT button on the remote control to select the TV function mode. Channel '1' will appear on the right top corner after channel searching is completed. Press the CH- or CH+ button to select the previous or next channels; or press the 0-9 buttons to enter a channel number directly, or press the -/-- button until the screen display '-' or '-' , then use the 0-9 numerical buttons to enter a channel number from

- ', then use the 0-9 numerical buttons to enter a channel number from 1 to 100.

1. Press the ⬆ button on the remote control to select from the present channel and the previous channel.
2. Press the PMODE button repeatedly to cycle through the available video picture modes from the below 4 types

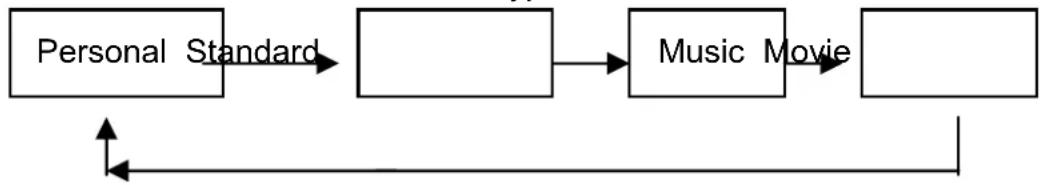

1. Press the SOUND button to repeatedly to cycle through the available sound modes from the below 5 types

1. Press the MUTE button to cut off the sound output, press this button again to resume sound output.
2. Press the DISPLAY button to display the preset TV channel play information
3. Press the ASPECT button to repeatedly to cycle through the available LED screen display size from the below 5 types

NOTE:

This available aspect size may be different in difference input source.

1. Press the SLEEP button to repeatedly to cycle through the available unit sleep time from the below 8 types

(3) View the AV signal sources (VCR/CAMCORDER)

Press the INPUT button on the remote control.

There will be a menu displayed on the screen as followed:

Select the suitable input to pickup the AV signal.

Press ▲ or ▼ button to select source, then press

▶ Button to confirm your selection.

(4) View the TELETEXT program (Optional. If TV has this function.)

SOURCE

DTV

ATV

SCART

AV

YPbPr

DVD

HDMI

PC

USB

1. Press INPUT button to select the TV mode. Then press the CH- or CH+ button on the remote control to select TV channel in order to pick up the picture signal of TELETEXT. (Firstly you must view the 1^st part of chapter V to complete the TV channel searching).
2. Press the CH- or CH+ button to select the previous page or the next page; use the 0-9 numerical buttons and the -/- - button to enter into a numerous page.
3. Refer to the chapter of 'Remote control reference guide' to grasp other functions of the TELETEXT buttons.

TEXT

Press TEXT button to enter into TEXT mode. Press this button again to return to the channel you are watching.

HOLD

Press this button to stop the move to the next page, and the hold symbol will appear in the top left hand corner of the screen. Press this button again to cancel operation.

INDEX

Press this button to go to the INDEX page.

SIZE

Press this button to enlarge the text shown on the teletext screen, and one half of page could be shown.

Press this button again to view the second half of this page.

Press this button third time to normal size text page view.

REVEAL

Press this button to reveal the cancelled information.

Press this button again to cancel the information.

SUBPAGE

Press this button to select sub page, and the sub page symbol will appear in the left top hand corner of the screen. Enter the number of sub page and use numeric buttons in the format 0001 for subpage 1. The teletext will search for the sub page

RED/GREEN/YELLOW/BLUE COLOR BUTTONS

Press these 4 color buttons to access directly to corresponding color page displayed at the lower parts of teletext screen.

(5) PC screen

Press the INPUT button to select the VGA input (TV into PC) mode. A 'PC' mark will appear on the right of the top corner of the monitor. The unit has a VGA jack for a normal computer. Connect the monitor with a PC by this jack and the unit can be used as the monitor for the PC.

V. Menu setting and adjustment

Note:

In this manual, the OSD Menu maybe changed and different from your real TV's screen shown without further notice, because this manual is just a sample to help you how to operate TV menu setting. Some item on OSD menu could not be operated based on difference input source signal.

First Time Step

Connect an RF cable from the TV's input called "RF-In" and to your TV Aerial socket.

OSD Language

Press ◀ / ▶ button to select the language to be used for menus and message.

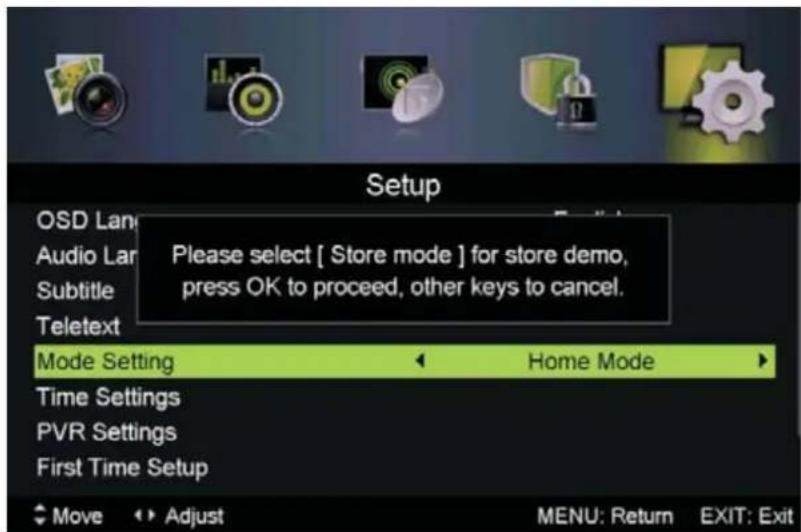

Mode Setting

Press ◀ / ▶ button to select mode.

Country

Press ◀ / ▶ button to select the country you want to.

Antenna Type

Press ◀ / ▶ button to select Antenna(DVB-T) or Cable(DVB-C).

Auto Scan

Press ◀ / ▶ button to select Mode: DTV+ATV, DTV, ATV.

Auto Tuning Status

First tuning digital , press Menu button to skip digital tuning,

Second tuning analogue , press Menu button to skip analogue tuning.

1. Picture Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button select PICTURE in the main menu, then press OK / ▼ to enter.

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK/ ◀ / ▶ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Picture MODE

Press ▼ / ▲ button to select Picture Mode, then press◀ / ▶ button to select.

(Available Picture mode: Standard, Mild, Personal, Dynamic).

TIPS: You can press PICTURE button to change the Picture Mode directly.

Brightness/ Contrast/ Sharpness/Saturation/Hue

Press ▼ / ▲ button to select option, then press ◀ / ▶ button to adjust.

Brightness Adjust the visual perception output of the entire picture, it will effect the iuminousness of the picture.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Saturation Adjust the saturation of the color based on your own like.

Hue Use in compensating color changed with the transmission in the NTSC mode.

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temp, then press ◀ / ▶ button to select Standard/Cool/Warm.

Standard Produces a vivid image.

Cool Produces a gentle blue-hued image.

Warm Produces a red-hued image.

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press ◀ / ▶ button to select.

Full/4: 3 /Zoom1/Zoom2 To select the available display format.

Advanced Settings

Adjust advanced video features to fine tune the picture.

Advanced Settings

NR

Set options to reduce video noise.

NR

Press ▼ / ▲ button to select, then press OK / ▶ button to enter sub-menu.

NR

Set options to reduce video noise.

Press ▼ / ▲ button to select NR, then press ◀ / ▶ button to select.

Off Select to turn off video noise detection.

Weak Detect and reduce low video noise.

Medium Detect and reduce moderate video noise.

Strong Detect and reduce enhanced video noise.

Mpeg NR

Set options to reduce MPEG noise.

Press ▼ / ▲ button to select Mpeg NR, then press ◀ / ▶ button to select.

Off Select to turn off MPEG noise detection.

Weak Detect and reduce low MPEG noise.

Medium Detect and reduce moderate MPEG noise.

Strong Detect and reduce enhanced MPEG noise.

Dynamic Contrast

Automatically adjust picture detail and brightness.

Dynamic Contrast

Press ▼ / ▲ button to select Dynamic Contrast, then press◀ / ▶ button to select.

(Available Dynamic Contrast: Off, Weak, Medium, Strong).

2. Sound Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button select SOUND in the main menu, then press OK / ▼ to enter.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.

2. Press OK/◄ / ► button to adjust.

3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Sound Mode

Press ▼ / ▲ button to select Audio Mode, then press ◀ / ▶ button to select.

(Available Sound mode: Standard, Music, Personal, Movie).

TIPS: You can press SOUND button on the remote control to change the Sound Mode directly.

Standard Produces a balanced sound in all environments.

Music Preserves the original sound.Good for musical programs.

Personal Select to customize picture settings.

Movie Enhances treble and bass for a rich sound experience

Treble/Bass/Balance

Press ▼ / ▲ button to select option, then press ◀ / ▶ button to adjust.

Treble Adjust the treble effect. Increases or decreases high-pitched sounds.

Bass Adjust the bass effect. Increases or decreases lower-pitched sounds.

Balance Adjust the balance between left and right speakers to adapt to your listening position.

Surround Sound

Press ▼ / ▲ button to select Surround Sound, then press ◀ / ▶ button to select On or Off.

Press ▼ / ▲ button to select, then press OK / ▶ button to enter sub-menu.

EQ Setting

Adjust the curve of 7 bands equalizer.

Press ▼ / ▲ button to select EQ Setting, then press OK / ▶ button to enter sub-menu.

AVL

Automatically reduces sudden volume changes, for example, when switching between the channels.

Press ▼ / ▲ button to select AVL, then press ◀ / ▶ button to select On or Off.

SPDIF

Press ▼ / ▲ button to select Digital Output, then press ◀ / ▶ button to select Off / Auto/PCM.

Audio Description

Press ▼ / ▲ button to select Audio Description, then press OK / ▶ button to enter sub-menu.

Audio Description

Turn on/off the AD switch.

or Off.

When the mode is On, Volume can be adjust by users.

Sound Type

Press ▼ / ▲ button to select Sound Type, then press◀ / ▶ button to select.

(Available Sound Type: Stereo, Dual I, Dual II, Mixed).

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position.

AVL: This item uses for reducing the difference between channel and program's volume automatically.

it made the overall water to be even. This function will also reduce the fluctuation of the sound.

3. Channel Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu, then press OK / ▼ to enter.

1. Press ▼ / ▲ button to select the option that you want to select in the CHANNEL menu.

2. Press OK button to enter sub-menu.

3. Press MENU button to return back to the previous menu.

Tuner Type

Press ▼ / ▲ button to select Tuner Type, then press ◀ / ▶ button to select Antenna or Cable.

Auto Scan

Press ▼ / ▲ button to select Auto Scan, then press OK / ▶ button to enter sub-menu.

Tuner type is Antenna

Tuner type is Cable

Country

Press ◀ / ▶ button to select country

Mode

Press ◀ / ▶ button to select Mode: DTV+ATV, DTV, ATV.

Scan Type

Press ◀ / ▶ button to select Scan Type: Advanced, Quick, Full.

Network ID

Press ◀ / ▶ button to select Network ID: Auto or enter digital numbers.

Frequency

Press ◀ / ▶ button to select Frequency: Auto or enter digital numbers.

Symbol Rate

Press ◀ / ▶ button to select Symbol Rate: Auto or enter digital numbers.

Start

Press OK / ▶ button to start the auto searching.

It will search digital channels first, then analog channels.

Before execute auto channel search, please confirm your antenna type is Antenna or Cable.

Wrong setting of Signal Type maybe cause finding no channel.

Manual Scan

Search for the channels manually.

Press ▼ / ▲ button to select Manual Scan, then press OK / ▶ button to enter sub-menu.

Digital Manual Scan

Press ▼ / ▲ button to select Digital Manual Scan, then press OK /

▶ button to enter sub-menu.

Tuner type is Antenna

Tuner type is Cable

Network ID

Press ◀ / ▶ button to select Network ID: Auto or nter digital numbers.

Frequency

Press ◀ / ▶ button to select Frequency: Auto or nter digital numbers.

Symbol Rate

Press ◀ / ▶ button to select Symbol Rate: Auto or nter digital numbers.

Modulation

Press ◀ / ▶ button to select

Modulation:Auto,16QAM,32QAM,64QAM,128QAM,256QAM.

Start

Press OK / ▶ button to start the channel searching.

Analog Manual Scan

Press ▼ / ▲ button to select Analog Manual Scan, then press OK /

▶ button to enter sub-menu.

Analog Scan

Press ◀ / ▶ button to select Analog Scan.

Channel to Save

Press ◀ / ▶ button to select Channel to Save.

Color System

Press ◀ / ▶ button to select Color System: Auto, PAL or SECAM.

Sound System

Press ◀ / ▶ button to select Sound System :Auto,DK,BG,I or L.

AFC

Auto Frequency control.

press◀ / ▶ button to select On or Off.

Start

Press OK /▶ button to start the channel searching.

Antonna Power

Turn on / off the antenna power output.

Channel Edit

Press ▼ / ▲ button to select Channel Edit, then press OK / ▶ button to enter sub-menu.

The three colored key are the shortcut key for programming the channels.

First press ▼ / ▲ to highlight the channel you want to delete or move or skip, then:

Press the Red button to delete the channel.

Press the Green button to skip the select channel.

(Your TV set will skip the channel automatically when using CH+/- to view the channels.)

Press the Blue button to set the channel to moving state. then press ▼ / ▲ to move it to the position you want to put, and press Blue button again to done the move operation.

Common interface

Press ▼ / ▲ button to select Common interface, then press OK button to enter sub-menu.

Only available when there is CI card under DTV.

Signal Information

Press ▼ / ▲ button to select Signal Information, then press the OK

button to see the detail information

about the signal. Only available when there is signal under DTV.

Lock System Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button select LOCK SYSTEM in the main menu, then press

OK / ▼ to enter.

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK SYSTEM menu.

2. Press OK/ ◀ / ▶ button to adjust.

3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Default password is 0000, and if forget what you set, please call the service center.

Enable

Press ▼ / ▲ button to select Enable then press ◀ / ▶ button to select On or Off.

Channel Locks, Parental Rating and Lock Keypad are available when Enable is On.

Channal Locks

Press ▼ / ▲ button to select Channal Locks, then press OK / ▶ button to enter sub-menu.

Parental Rating

Press ▼ / ▲ button to select Parental Rating, then press ◀ / ▶ button to select.

Lock Keypad

Set to prevent it from being used by young children, or other unexpected usage.

Press ▼ / ▲ button to select Lock Keypad, then press ◀ / ▶ button to select On or Off.

New Password

Press ▼ / ▲ button to select New Password, then enter a 4-digital number you want to set twice.

Clear Lock

Press ▼ / ▲ button to select Clear Lock.

CI Information

4. Setup Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SETUP in the main menu, then press OK / ▼ to enter.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SETUP menu.
2. Press OK /◀ / ▶ button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

OSD Language

Select an OSD menu language can be displayed. Default English is selected as menu language.

Press ▼ / ▲ button to select OSD Language, then press◀ / ▶ button to select.

Audio Languages

Select an audio language can be displayed. Default English is selected as audio language.

Press ▼ / ▲ button to select Audio Languages, then press OK button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select the Audi Primary Language and Audio Secondary Language.

Subtitle

Select a subtitle language can be displayed. Default English is selected as subtitle language.

Press ▼ / ▲ button to select Subtitle, then press OK button to enter sub-menu.

Mode

Press ▼ / ▲ button to select Mode then press, ◀ / ▶ button to select On or Off.

Press ▼ / ▲ / ◀ / ▶ button to select the Subtitle Primary Language and Subtitle Secondary Language.

Hearing Impaired

Press ▼ / ▲ button to select Hearing Impaired, then press ◀ / ▶ button to select On or Off.

Teletext

Adjust Teletext settings. Only available under DTV ,ATV and SCART source.

Press ▼ / ▲ button to select Teletext, then press OK / ▶ button to enter sub-menu

Under DTV source, press ◀ / ▶ button to select Digital Teletext Language and Decoding Page Language.

Under ATV and SCART source, press

◀ / ▶ button to select Decoding Page Language.

Mode Setting

Press ▼ / ▲ button to select Mode Setting.

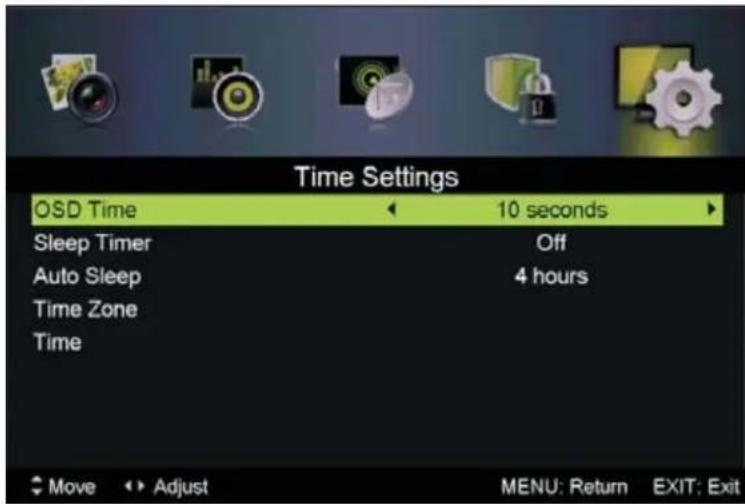

Time Settings

Press ▼ / ▲ button to select Time Settings, then press OK / ▶ button to enter sub-menu.

OSD Time

Press ▼ / ▲ button to select OSD Time, press ◀ / ▶ button to select.

(Available OSD Time:Off,10seconds,20seconds,30seconds,60seconds).

Sleep Timer

Set a timer for the TV to turn off automatically.

Press ▼ / ▲ button to select Sleep Timer, press ▼ / ▲ button to select.

(Available Sleep Timer:Off ,5mins, 15mins, 30mins, 60mins, 90mins, 120mins, 240mins).

Auto Sleep

Press ▼ / ▲ button to select Auto Sleep ,press ◀ / ▶ button to select Off,3 hours,4hours or 5 hours

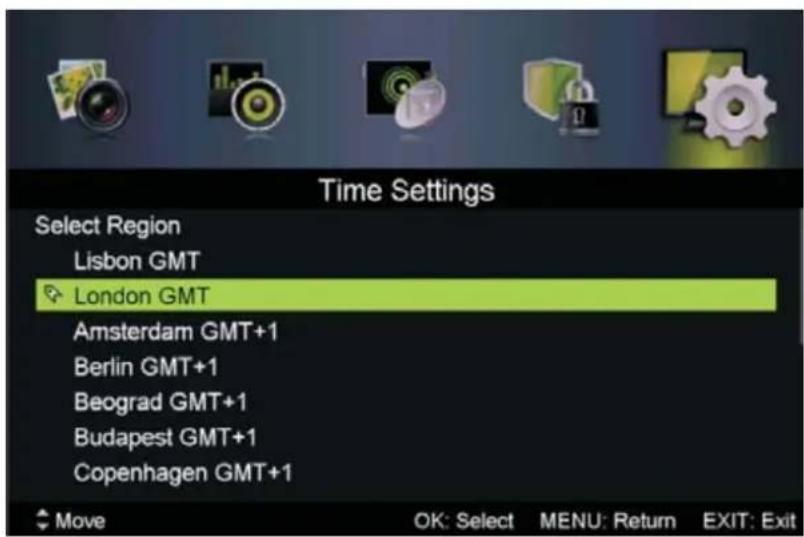

Time Zone

Select your time zone.

Press ▼ / ▲ button to select Time Zone, then press OK / ▶ button to enter sub-menu.

Time

Press ▼ / ▲ button to select Time, then press OK / ▶ button to enter sub-menu.

Set Auto Sync to Off,then you can set the time manually .

Note: In the case of loss of power, the clock setting will be lost.

PVR Settings

Press ▼ / ▲ button to select PVR Settings, then press OK button to enter sub-menu.

It will check the USB .

Press ◀ / ▶ button to select File Manager, then press OK button to enter sub-menu.

Press ◀ / ▶ button to select Device List, then press OK button to enter sub-menu.

Press ◀ / ▶ button to select Scheduled Record, then press OK button to enter sub-menu

First Time Setup

Press ▼ / ▲ button to select First time Setup, then press OK button to enter.

OAD

Press ▼ / ▲ button to select OAD, then press OK button to enter sub-menu.

Manual OAD Download

Press ▼ / ▲ button to select Manual OAD Download, then press OK button to enter sub-menu.

Auto Download

Press ▼ / ▲ button to select Auto Download, then press◀ / ▶ button to select On or Off.

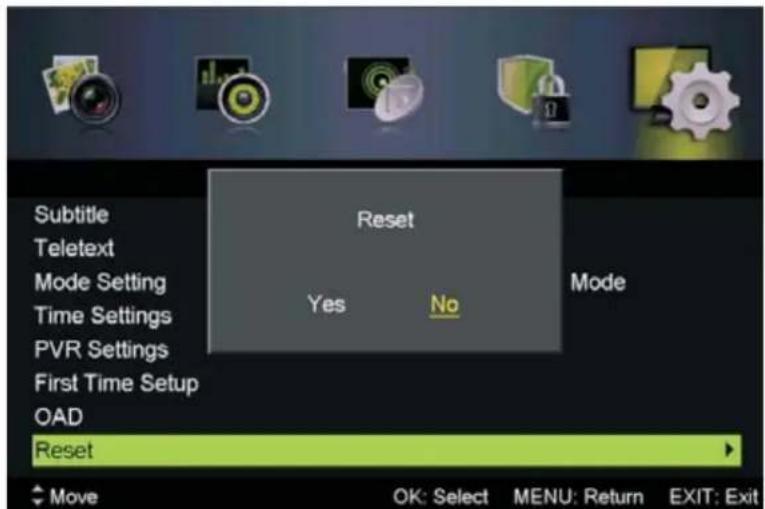

Reset

Press ▼ / ▲ button to select Reset, then press OK button to enter sub-menu.

If you are sure to reset, press Yes to reset.

5. EPG Menu

Press the button EPG in the remote control to enter EPG menu.

Press the RED button to display previous date.

Press the GREEN button to display next date.

Press the YELLOW button to see the setting you have done before.

Press the BLUE button to set the time you want to remind the program you want to see.

VI. Multimedia Operation

1. Note: Before operating USB menu, Plug in USB device, then press INPUT button to set the Input Source to USB.

Press ◀ / ▶ button to select USB in the Source menu, then press OK button to enter.

Press ◀ / ▶ button to select the option you want to adjust in the main USB menu, then press OK button to enter.


Press ◀ / ▶ button to select PHOTO in the main menu, then press OK button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press OK button to enter.

Press ▼ / ▲ button to select return option to back to the previous menu.

Tropical beach scene with palm trees and clear blue sky, no visible text or symbols

Music

Press ◀ / ▶ button to select MUSIC in the main menu, then press OK button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press OK button to enter.

Press ▼ / ▲ button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

Press to play or pause.

Press to play the previous song.

Press to play the next song.

Press to play backward.

Press to play faster.

Press to stop.

Press CH+/- to switch operation focus between File List and Player.

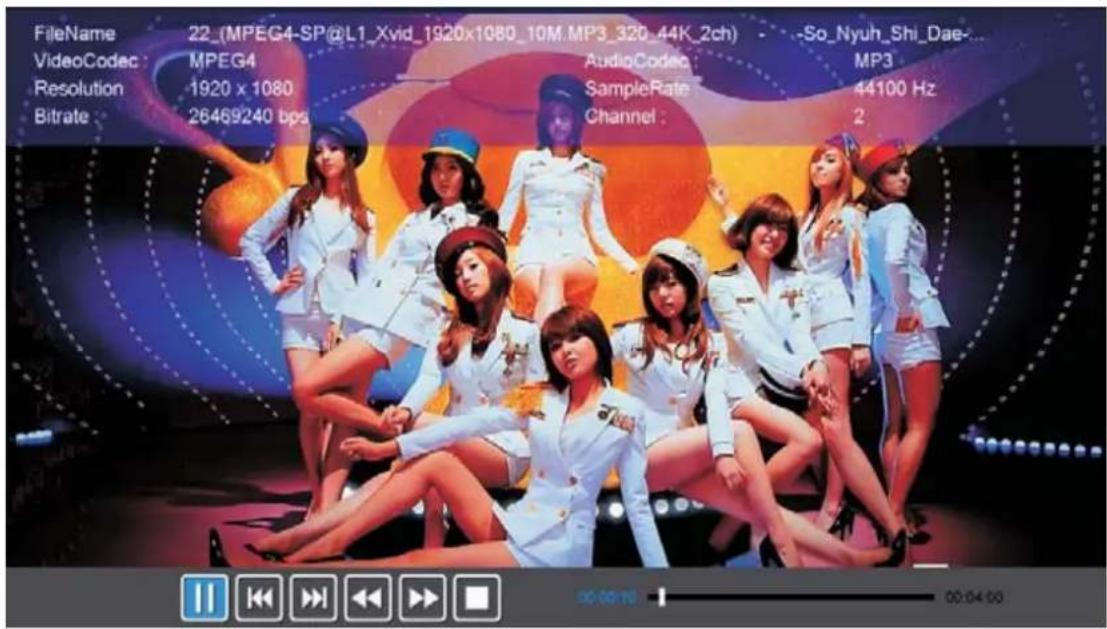

Movie

Press ◀ / ▶ button to select MOVIE in the main menu, then press OK button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press

OK button to enter.

Press ▼ / ▲ button to select return option to back to the previous menu.

Press to play or pause.

Press to play the previous movie.

Press to play the next movie.

Press to play backward.

Press to play faster.

Press to stop and back to the previous folder.

Text

Press ◀ / ▶ button to select TEXT in the main menu, then press OK button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press

OK button to enter.

Press ▼ /▲ button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

VII. DVD Player Operation

A. Basic play

1. Turn ON/OFF the DVD player

Turn on the LED TV and then press INPUT button to select DVD source

2. Insert Disc into the DVD player slot

The player will load the disc automatically.

Note:

- Insert disc with the reflective data side facing the front of the TV. If you insert the disc incorrectly, you may damage the DVD mechanism. Some slight picture noise and some sounds are produced when the disc is loading, unloading and during playback, this is normal and can be ignored.

- For some discs, after loading the disc, you may need to press ▶II button or select from the disc menu to start.

3. Playing a DVD

Depending on the disc content, a menu will display for your selection. When playing the disc, you may use ▶■ button to toggle between Play and Pause mode. This also supports Menu, Title, Sequential and Program playback.

B. DVD Setup Mode

- Setup Mode provides the menu for the configuration of General Setup Page, Speaker Setup Page, Dolby Digital, Setup and Preference Page."

- Item selection in the Setup Menu is done by using the Navigation Arrows, DVD SETUP button and the OK button navigation buttons to select and play the highlighted contents.

Press the DVD SETUP button firstly, enter into SETUP menu, then press the DIRECTION RIGHT button, you can enter into the next Submenu.

- Press the DVD SETUP button again to exit the Setup Menu.

1. General Setup

TV Display

This menu enables you to select one of the three aspect ratios:

4:3 PS/4:3LB/16:9

4:3PS(Normal)

Normal Pan and Scan is used for most normal television broadcasts and it is the default setting. It has an aspect ratio of 4:3. If you select this setting when viewing a DVD, the picture will fill the screen but you will not see the left and right edges of the picture.

4:3LB(Normal)

Normal Letter Box will show the DVD in its original aspect ratio .So depending on size of your television screen, you could see black boards above and below the picture

16:9 (Wide)

Choose this setting if you have a widescreen television

NOTE:

● Playback screen size may be varied according to the disc contents.
- For discs with 4:3 contents, using any mode would only display 4:3 screen
- Screen ratio selection should be according to the connected TV or display aspect ratio.

OSD Language

Use navigation buttons to select LANGUAGE setup icon, press OK

button to confirm. You could choose the suitable language as displayed menu on the screen.

Screen Saver

Start the Screen Saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged.

● On (Start the Screen Saver)
● Off (Remove the Screen Saver)

Last Memory

Can set the items on the last memory, "on" and "off" option.

Select “On”, the shutdown will shutdown the machine before the settings for memory, re-boot the machine settings. Set near the same time.

Select "Off", every time the machine automatically switched back to the default settings.

• On (Start the memory)
• Off (Remove the memory)

1. Audio Setup

Speaker Setup

In the “Audio Setup page” press ▼ button to select “Speaker Setup” item, press the “OK” button or ▶ button into “Speaker Setup page”.

Downmix

LT/RT

A disc recorded multi channel soundtrack, the output signal will be

incorporated to left and right channel.

- Stereo

A disc recorded multi channel soundtrack, the output signal will be incorporated to stereo.

Dynamic

This option is used to set the compression ratio in order to control the sound (Volume) contrast.

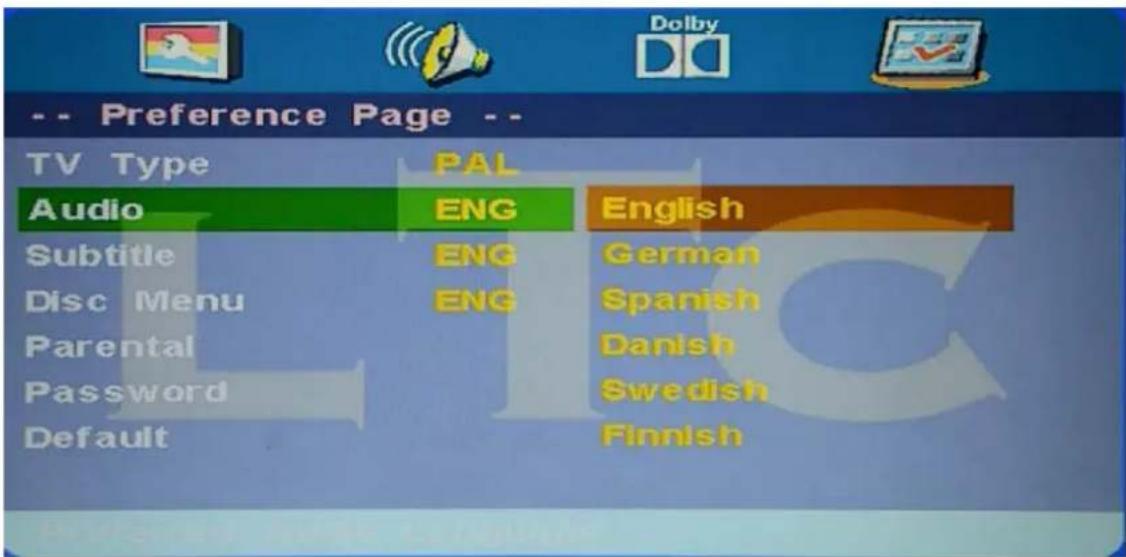

3. Preference Setup

You must press STOP twice to enter Preference Page or NO disc

TV Type

PAL

This is selected when the player is connected to an PAL system TV.

- Multi

The player will set the TV system according to the disc in the tray.

• NTSC

This is selected when the player is connected to an NTSC system TV.

Audio

You can play the sound in recorded list language.

Subtitle

You can set the subtitle to be displayed in recorded list language.

Disc menu

You can set the Menu to be displayed in recorded list language.

Parental

When playing disc with parental lock function, you may select an Age

Control according to grade of disc and you own preference. For example, if PG is selected, DVD Video disc rated higher than the PG grade can not be played.

KID SAF
G
PG
PG 13
PG R
• R
NC17
ADULT

Password

User can change the password that is required when the user wants to change the Age Control Grade in the Parental Lock function.

NOTE: Default password is 123456

Default

User can load the original factory setting by RESET and press OK button.

VIII. Other Operation

PC audio in operation

This unit possesses PC audio in jack. Connect this jack to PC main unit with related audio cable in PC mode and adjust the volume to what you want.

Earphone operation

This unit possesses earphone jack. Connect the earphone with the socket and adjust the volume to what you want. Once plugged in, the speaker output will be cut off automatically.

IX. Trouble shooting

Should the unit no function, please check the system according to this table to find out the possible problem. If you still can't solve the problem, please ensure the product is repaired by qualified service personnel.

Symptom Remedy
No power	1. Check whether the power plug is connected to the power supply.2. Pull out the plug and wait for 60 seconds, and then insert the power plug again and switch on the TV/monitor.
No picture	1. Check whether the antenna is connected properly.2. Adjust to another channel.3. Change the length and the contrast setting.4. Make sure that the AV picture input cable is connected properly.
No sound	1. Increase the volume value.2. Check whether the TV is in MUTE mode.3. Make sure that the sound system setting is proper.4. Ensure the AV audio signal input cable is connected properly.
Color distortion	1. Ensure that the equipment is connected properly.2. Ensure that the AV video signal input is connected properly.
Pictures/sound are interfered	1. Check whether the equipment is connected properly.2. Adjust the antenna if use an outdoor antenna.
Remote control no function	1. Make sure that the batteries are installed with correct polarities.2. Clean the remote sensor.3. Ensure that there is no foreign object between the remote control and the sensor.4. Operate the remote control at a distance not more than 6 meters from the remote sensor
Screen glittering under PC mode	Reset the computer and enter into the safety mode, then select the appropriate screen type by consulting the operation manual.
Screen traversed under PC mode	Maybe the phase is not appropriate. Enter into the PC setting and change to correct level.

X. Notes

(1) Please read these operating instructions carefully before you operate this unit.
(2) When you want to cut off the electricity supply of the whole unit's power, please press the POWER button on the unit. And take out the plug from wall outlet.
(3) Don't press any button if you are not using the unit. Set the POWER button to "OFF", and take out the battery from remote control before long time non usage.
(4) Be cautious of the safe mark.
(5) Repairs are to be referred to qualified service personnel. Don't take apart it by yourself.
(6) Because of a sudden change in temperature or humidity, or when warm air comes into contact with any cold parts in the unit, condensation may form. When condensation forms inside, the unit may not function well. Once condensation disappears, the unit will return to normal functioning. Placing the unit in a warm room will help to dry up condensation. This should take 1 to 2 hours, depending on environmental conditions. As condensation may also appear on the disc, it should be wiped from inside towards the outer side using a dry cloth.
(7) Use a soft cloth slightly moistened with a mild detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

WARNING:

To prevent fire or shock hazard, do not expose this unit to rain or moisture. Do not remove cover, no user serviceable parts inside, refer servicing to qualified service personnel.

XI. Specifications

Screen size, visible 16 inch
Screen format 16:9
		768*1366 noituloseR
Minimum contrast ratio 500:1
Minimum brightness 220 cd/m2
Display colors 16.7M
Minimum viewing angle		90° (horizontal) / 60° (vertical)
Maximum response Time		8 ms
Terminal	YPBPR	1
	PC Audio	1
	CI	1
	VGA	1
	Earphone	1
	USB	1
	HDMI	1
	SCART	1
	CVBS	1
	RF in	1
OSD language		English/Swedish, etc
Audio output		3W * 2
Power requirement		DC 12V---3A, AC110~240V, 50/60Hz
Power Consumption		Max 36W

* Design and specifications are subject to change without prior notice.

X. Display modes

Mode Resolution		Horizontal Freq. (KHz)	Vertical Freq. (Hz)
IBM	640X350 31.469 70.086
	720X400 31.469 70.087
MAC	640X480 35.000 66.667
	832X624 49.726 74.551
	1152X870 68.681 75.062
VESA CVT	720X576 35.910 59.950
	1152X864 53.783 59.959
	1280X720 56.456 74.777
	1280X960 75.231 74.857
VESA DMT	640X480 31.469 59.940
	640X480 37.861 72.809
	640X480 37.500 75.000
	800X600 37.879 60.317
	800X600 48.077 72.188
	800X600 46.875 75.000
	1024X768 48.363 60.004
	1024X768 56.476 70.069
	1024X768 60.023 75.029
	1152X864 67.500 75.000
	1280X1024 63.981 60.020
	1280X1024 79.976 75.025
	1280X800 49.702 59.810
	1280X800 62.795 74.934
	1280X720 45.000 60.000
	1280X960 60.000 60.000
	1360X768 47.712 60.015
	1440X900 55.935 59.887
	1440X900 70.635 74.984
	1680X1050 65.290 59.954
GTF	1280X720 52.500 70.000 VESA
	1280X1024 74.620 70.000
VESA DMT/DTVCEA	1920X1080p 67.500 60.000

1. Modes, which are not listed in the above table, may not be supported. For an optimal picture it is recommended to choose a mode listed in the table.
2. You have available modes compatible with Windows and MAC.
3. It can happen that the image is disrupted. This can occur as a result of a signal from the VGA card, which does not correspond with the usual standard. This is not, however, an error. You can improve this situation by altering any automatic setting or by manually changing the phase setting and the pixel frequency menu.
4. If you switch off the TV/monitor, interference lines can occur on your screen. But it's not a problem, no need to concern about it.
5. To extend the service life of the product, we recommend that you use your computer's power management function.

Note: Design and specifications are subject to change without notice.
