LED-2208 - Television LTC - Free user manual and instructions

Product Type	LED Television
Screen Size	22 inches (55.9 cm)
Screen Resolution	1366 x 768 pixels (HD)
Display Technology	LED
Aspect Ratio	16:9
Refresh Rate	60 Hz
Power Consumption (Operating)	30 W (typical)
Power Consumption (Standby)	<0.5 W
Input Voltage	100-240V AC, 50/60 Hz
Weight (with stand)	3.5 kg (approx)
Dimensions (with stand)	507 x 375 x 180 mm
Dimensions (without stand)	507 x 325 x 76 mm
Connectivity	2x HDMI, 1x USB 2.0, 1x VGA, 1x Composite AV, 1x Headphone Jack
TV Tuner	DVB-T/T2 (may vary by region)
Remote Control	Included
Wall Mount VESA	100 x 100 mm
Audio Output	2 x 3W speakers
Energy Class	A+
Main Functions	Channel scanning, sleep timer, child lock, EPG (Electronic Program Guide)
Maintenance	Wipe with a soft, dry cloth. Avoid strong cleaning agents.
Safety	Do not expose to rain or moisture. Ensure ventilation slots are not blocked.
Spare Parts Available	Remote control, stand base, power cord (contact LTC support)
Repairability	Repairs should only be carried out by qualified technicians. Do not open the device.

Frequently Asked Questions - LED-2208 LTC

How do I connect my laptop to the LTC LED-2208 TV?

Use an HDMI cable to connect your laptop to one of the TV's HDMI ports. Then select the corresponding HDMI input using the Source button on the remote.

Can I mount the TV on the wall?

Yes, the LED-2208 is VESA compatible (100x100 mm). Use a suitable wall mount kit (not included) and follow the installation instructions.

How do I perform a factory reset?

Go to Settings > System > Reset and confirm. This will restore default settings.

What file formats are supported via USB?

The TV supports MP4, AVI, MKV for video, MP3, WMA for audio, and JPEG, PNG for photos. Format the USB drive as FAT32 for best compatibility.

Why is there no sound?

Check that the volume is not muted. Also ensure the audio output settings are correct (e.g., TV speakers selected). If using external speakers, verify the connection.

How do I tune channels?

Press Menu, go to Channel > Auto Tuning. Ensure the antenna is connected. The TV will scan for available digital channels.

The remote control is not working. What should I do?

First, check the batteries and replace them if needed. Point the remote directly at the TV sensor. If still not working, try resetting the remote by removing batteries and pressing any button for 10 seconds.

Can I connect Bluetooth headphones?

This model does not support Bluetooth. Use the headphone jack on the side of the TV for wired headphones.

How do I clean the screen?

Use a soft, dry microfiber cloth. Gently wipe the screen in circular motions. Do not use any liquids, alcohol, or harsh chemicals.

What should I do if the TV does not turn on?

Ensure the power cord is firmly connected to the TV and the wall outlet. Check if the outlet is working. If the standby light is off, try a different power outlet. If the issue persists, contact LTC support.

USER MANUAL LED-2208 LTC

Two computer monitors, one blank and one with blank display, shown against a plain background (no text or symbols)

NICAM/A2: Välj TV Nicam/A2.

Beskrivning

Operations in Setting Menu are shown in the following table:

Satellite System
satellite		Transponder		Sitting
0001	HOTBIRD 6.7A,B	0001	10723 H 29900	HOTBRD 6.7A,B
0002	ASTRA 1H,19K,L	0002	10750 H 15000	LNB Type	9750/10000
0003	ASTRA 2A,25,2D	0003	10775 H 28000	LNB Power	On
0004	ASTRA 1C,16,3A	0004	10830 H 3303	22KBr	Auto
0006	NLESAT 101,10	0006	10853 H 27500	DisEqCI.0	Burst A
0006	EURELSAT W3A	0006	10892 H 27500	Motor	DisEqCI.3
0007	EUTELSAT W1	0007	10938 H 27508
8006	BADR-23-4EURO	0006	10971 H 27506

USB-information

Notera:

Notera:

Nermixning

• V/H

Two computer monitors displayed side by side, one blank and one with a blank screen (no text or symbols visible)

Read all of the instructions before using this TV and keep the instruction manual in a safe place for future reference.

Contents

Caution	1
Safety Information	2
Accessories	3
Product Introduction	4
Connections	5
Remote Control	6-7
Basic Operation	8
OSD Menu	9-17
1. Picture menu	9
2. Sound menu	10
3. Channel menu	11-14
4. Feature menu	15-16

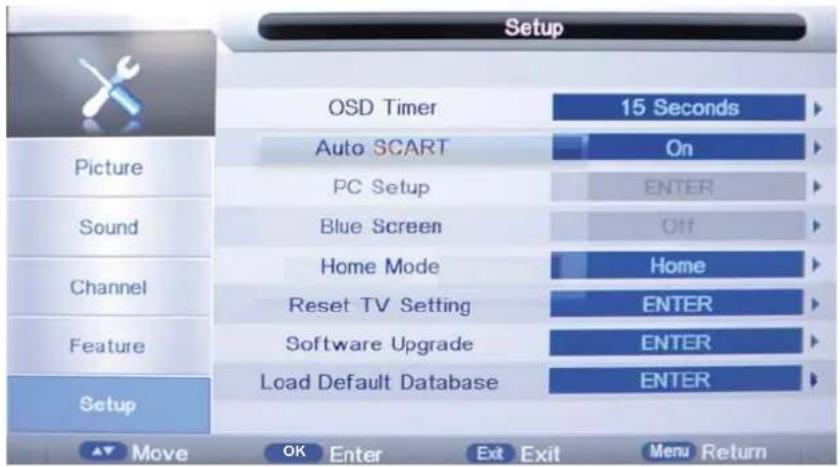

5. Setup menu	17
Multimedia Operation 18-20
Recording Operation 21-23
DVD Operation	24-31
Simple Troubleshooting	32

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons.

The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Correct disposal of this Product

(Waste Electrical & Electronic Equipment (WEEE)

Your product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life should be disposed of separately from your household waste.

Please dispose of this equipment at your local community waste collection/recycling center.

In the USA there are separate collection systems for used electrical and electronic products. Please help us to conserve the environment we live in!

This unit complies with European safety and electrical interference directives.

This unit complies with The Restriction of the use of certain Hazardous substances in Electrical and Electronic Equipment

To ensure reliable and safe operation of this equipment, please read carefully all the instructions in this user guide, especially the safety information below.

Electrical safety

• To prevent overload, don't share the same mains supply socket with too many other items of equipment.
• Do not place any connecting wires where they may be stepped on or tripped over.
• Do not place heavy items on the leads, which may damage them.
• Hold the Mains plug, not the wires, when removing from a socket.
• During a thunderstorm or while leaving the TV for long periods, disconnect the aerial (if outdoor) and mains power from the supply.
• Do not allow water or moisture to enter the TV. Do NOT use in wet or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
• the mains plug or cable is damaged.
• liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
• anything accidentally penetrates the ventilation slots.
• the set does not work normally.
• Do NOT remove the safety covers. There are no user serviceable parts inside.
  You may invalidate the warranty. Qualified personnel only are permitted to service this apparatus.
• To avoid battery leakage, remove exhausted batteries from the remote control handset, or when not using for along period.
• Do NOT break open or throw exhausted batteries on a fire.

Physical safety

• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet, but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For stubborn stains, you may use a damp soft cloth with diluted detergent.

Accessories

* Note: The configuration of the components may look different from the following illustration

Technical Specification

• TV System
  PAL BG/DK/I SECAM BG/DK L/L'
• Screen Size
  19"/22"/24 "inch(diagonal)
• Resolution
  1366X768 / 1920x1080
• Aerial input
  75 Ω (unbalanced)
• Audio output power
  2x3W
• Power Consumption
  12V = 3A 36W

Remote Control

Type	infrared
Control distance	5m
Control angle	30° (horizontal)
Batteries	2 x 1.5V, size AAA

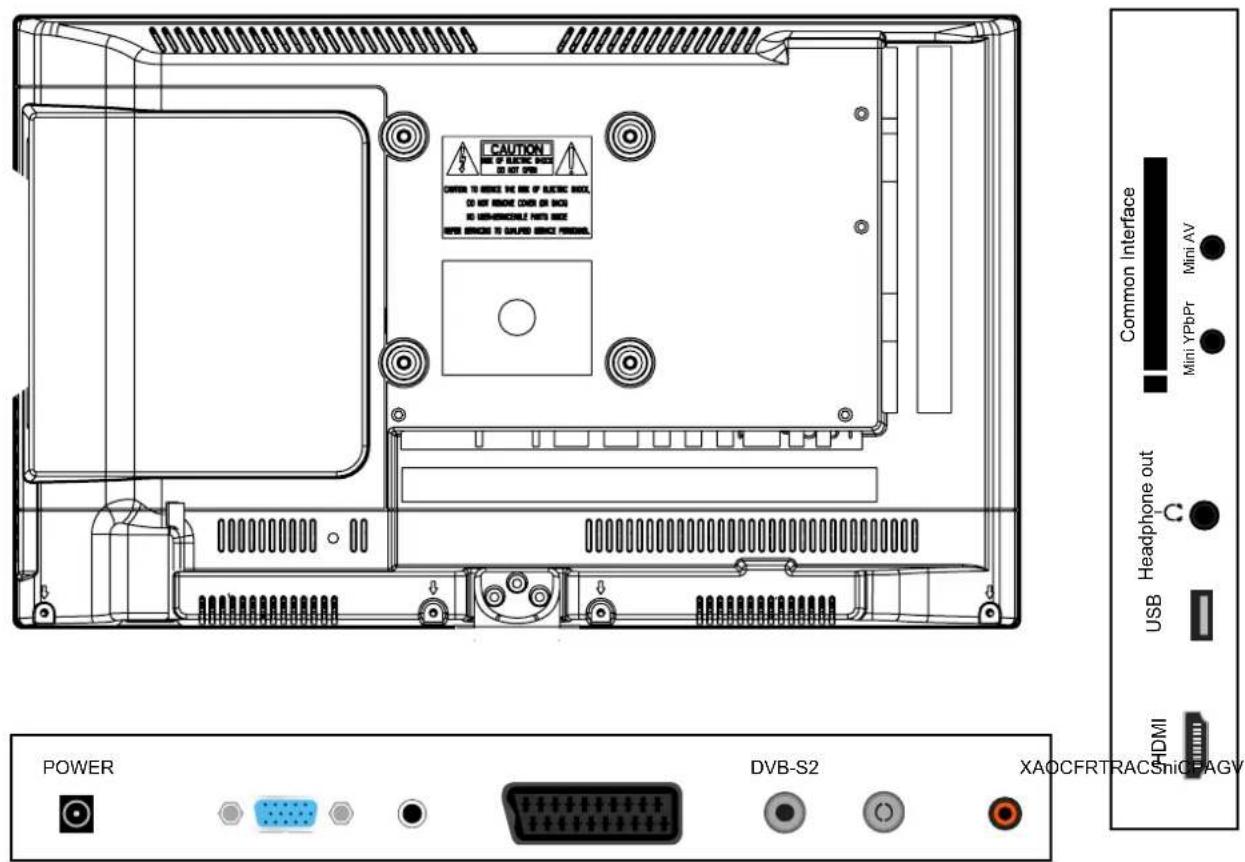

Product Introduction

(IR) Infrared Receiver: Receives IR signals from the remote control.

(Power on/Standby) LED indicator: Press ⬆ to turn on and standby.

Indicator on(Red)

Standby mode

Indicator on(Green)

Power on mode

The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30^ to the left or right side and 20^ above or below the control window.

INPUT: Display the input source menu.

MENU: Display/exit the OSD menu.

CH+/-: Scan through channels.

VOL+/-: Adjust the volume.

PLAY: Play/pause the disc playing.

EJECT: Eject the disc

Tunisia: Turn on/standby the TV set.

POWER: Connect to the mains adaptor.

VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.

PC in: Connect it to the audio output terminal of PC.

SCART: Connect them to the SCART video output terminal of DVD.

DVB-S2: Connect a Satellite signal.

RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.

Coax: Digital output to AV receiver.

HDMI: Connect it to the HDMI of DVD or other equipment.

USB: Connect to USB device for multimedia and PVR.

Headphone: Connect it to your headphone or other audio equipment.

Common Interface: CI slot.

Mini YPbPr: Connect it to the YPbPr video output terminal of DVD with the Converter cable.

Mini AV: Connect it to the audio & video output terminal of DVD with the Converter cable. (Audio terminals are shared with YPbPr)

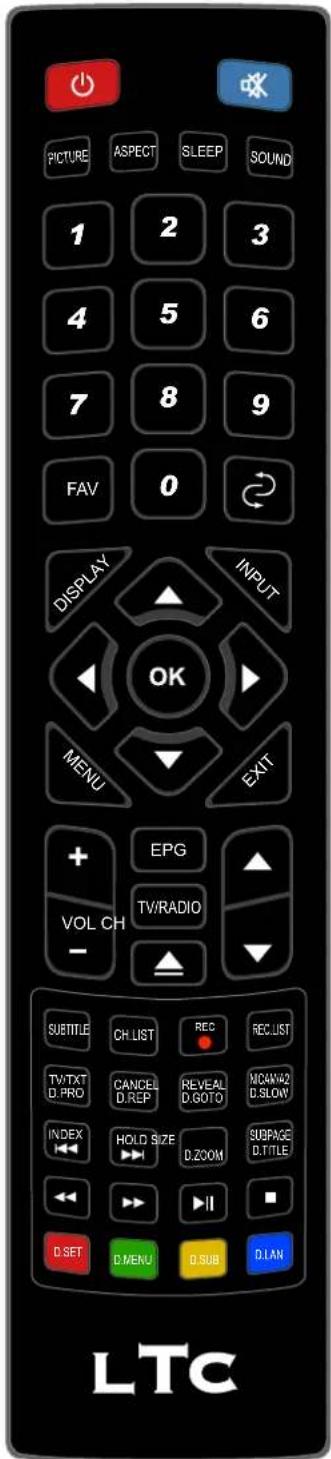

The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote control may not work correctly if it is operated out of range or out of angle.

: Turn the TV on/standby.

MUTE: Press to mute the sound, press again or press

VOL+ to unmute.

PICTURE: Select the picture mode.

ASPECT: Change the screen display mode.

SLEEP: Standby timer.

SOUND: Select the sound mode.

FAV: Display the favorite program list.

NUMBER BUTTONS

Press 0-9 to select a TV channel directly when you are watching TV.

Return to the previous channel viewed.

DISPLAY: Press to display the current mode's information.

INPUT: Press to display the input source menu.

MENU: System setup menu.

EXIT: Exit the OSD menu.

CURSOR KEYS (OK/◄/►/)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

VOL+/-: Adjust the volume.

CH▲/▼: Scan through channels.

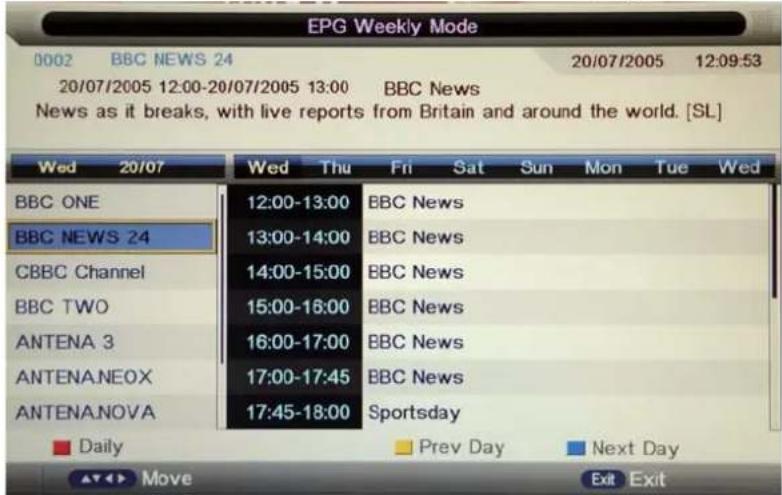

EPG: To show the Electronic Program Guide during no-menu state only in DTV mode.

TV/RADIO: Switch to TV/RADIO.

▲: Load/eject DVD disc.

PVR/DVD

REC : Press to start record the program in DTV mode.

▶I: Play/Pause program.
◀: Previous chapter.
▶: Next chapter.
■ : Stop program.
◀: Fast reverse.
▶: Fast forward.

SUBTITLE: Turn on/off the subtitle display in DTV mode.

CH.LIST: Display the channel list.

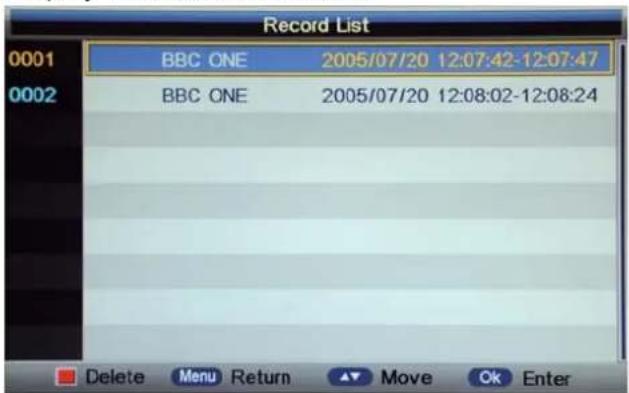

REC.LIST:Record List.

TV.TXT:Turn off/on the Teletext display.

CANCEL: Cancel the Teletext display.

REVEAL: Reveal any hidden text.

NICAM/A2: TV Nicam/A2 select.

INDEX: Go to index.

HOLD: Hold or carry on the current subpage.

SIZE: Press to see top half of page double size, Press again to see the bottom half of page double size. Press again for normal size.

SUBPAGE: Press to enter subpages, pressagain to cancel.

D.PRO: Edit the program and play.
D.REP: Repeat playing the title or chapter.
D.GOTO:Play your favorite title/chapter/track.
D.SLOW:Play DVD programs at slow speed.
D.ZOOM: Adjust picture size in DVD mode.
D. TITLE: DVD title.

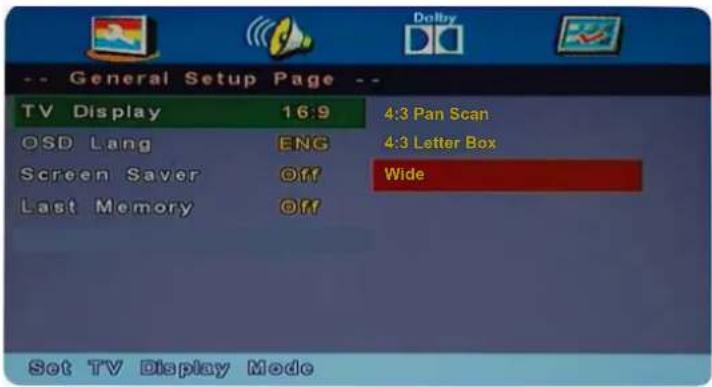

D.SET: DVD system setup.
D.MENU: DVD play list/Disc menu.
D.SUB: Turn on/off the subtitle display in DVD mode.
D.LAN: Select DVD disc language.

Basic Operation

Power on/off

1. Connect to the power supply with the adaptor.
2. -To turn on the TV
   Press button on the TV or remote control.
   -To turn off the TV
   Press ⏻ button on the TV or remote control.

Input Source select

Press INPUT button on the TV set or remote control to display the input source menu, and use CH+/- button on the TV set or ∧/∨ button on remote control to select the input source, press OK button on the remote control to enter.

Note: Before you select the input source, make sure the connections are prepared.

Basic OSD Menu operation

Press MENU button to display the OSD menu as below:

Use ∧ ∨ button to select the main menu, and press >OK button to enter the submenu. In the submenu, use ∧/∨ button to select the function item, press >/ OK button to enter the setup menu, then press </> button to adjust, or press ∧/∨ to select and press OK / </> button to confirm.

* (Press MENU / <button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)

Note1: Only when you input the suitable signal, the relevant items can be activated Note2: Please operating the OSD menu according to hint on the bottom of the banner.

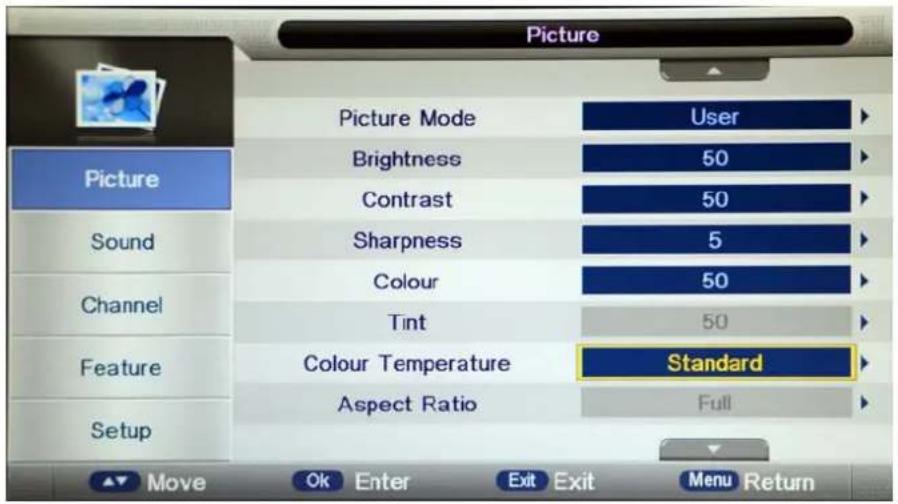

1. Picture menu

Description

Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User.

Brightness: Adjust image black level.

Contrast: Adjust image contrast.

Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode).

Colour: Adjust image colour from black and white.

Tint: Control the tint (NTSC mode only).

Colour Temp.: Select an optimum color temperature mode to suit your eyes for viewing from Warm, Cool, Standard.

Aspect Ratio: Change the aspect for the screen from 4:3,16:9,Zoom1,Zoom2 or Panorama etc....

Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction option to reduce the video noise level between Off, Low, Middle and High.

2. Sound menu

Description

Sound Mode: Select your desired sound mode from Standard, Movie, Music, Speech and User.

Bass: Adjust the level of the lower-pitched sounds.

Treble: Adjust the level of the higherpitched sounds.

Balance: Adjust the audio output between left and right speakers.

Surround: Turn on/off the surround sound function.

Auto Volume Level (AVL): The volumes of all sources will be maintained when the function's on.

SPDIF: Select the spdif mode for the TV from off, PCM and Auto.

Audio Description: Enter the Audio Description menu to turn on / off the function and adjust the volume.

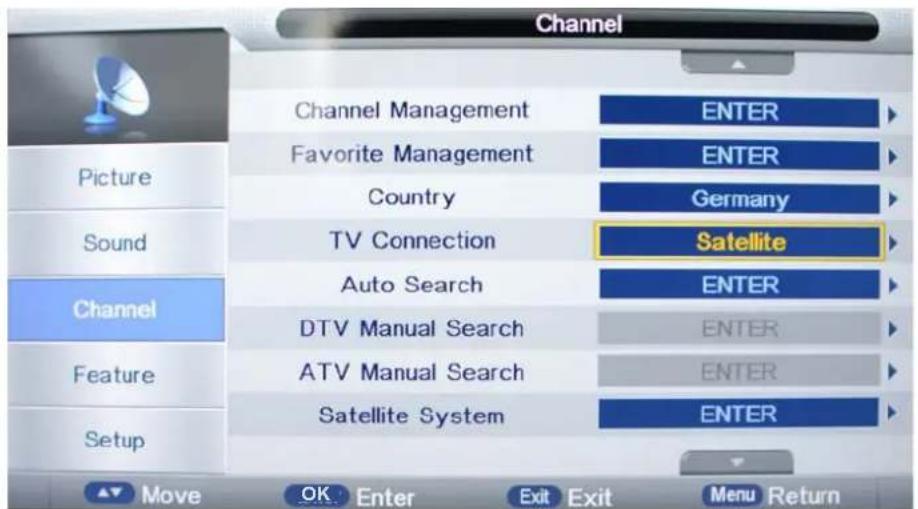

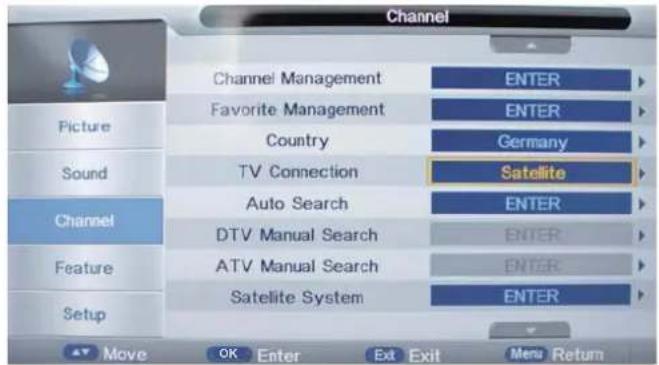

3. Channel menu(In ATV/DTV mode)

Description

Channel Management: Enter the Channel management menu to edit the channels.

Press REDtButton to sign the channels you want to delete, it will hint you when you exit.

Lock:User must set the "Lock enable"(Feature-Lock- Lock enable) at ON to active this function. Press GREEN button to sign(lock) or cancel(unlock) the channel. And you have to enter the password to view the program.

Skip: Press YELLOW button to skip the channel or cancel the setting, and the program will not be programmed by CH+/- button.

Swap: Press BLUE button to sign the channel, press ∧/∨ button to move, and press OK button to swap the position.

Favorite Management: Add or remove favourite channels by the colour buttons. Up to 4 favourite lists are available, RED-Fav1, GREEN-Fav2, YELLOW-Fav3, BLUE-Fav4.

Country: Select the country.

TV Connection: Select DTV type, you can choose Air(DVB-T), Cable(DVB-C), Satellite(DVB-S2), as you like.

When the Child Lock is on, please enter the Password (Lock Password in Feature menu) to start Auto and Manual Search.

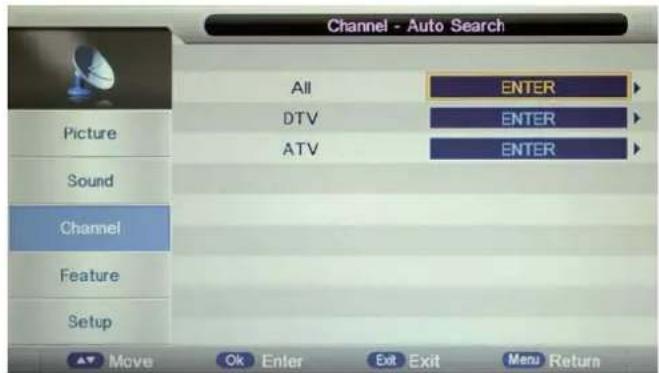

Auto Search: Press OK button to enter the Auto Search menu, select search mode, and press OK button to start auto search.

Note:

1. ALL: Auto search channels for DTV, ATV and Radio.

DTV: Auto search channels for DTV and radio. ATV: Auto search channels for ATV.

1. When the TV is auto tunning, you could press MENU button to stop auto tunning and return to preview menu.

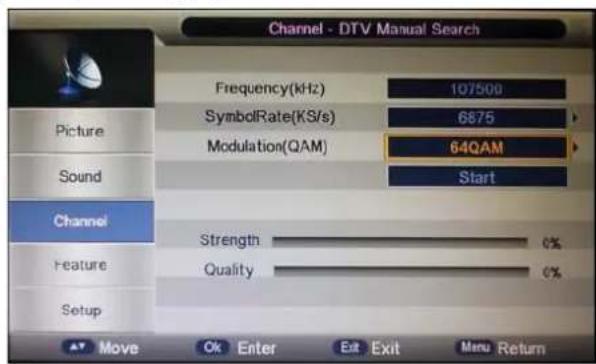

DTV Manual Search: Enter the DTV Manual Search menu.

Press ∧/∨ button to select the "Channel" item, and press </ > button to select the channel, then press ∧/∨ button to select the "Start" item, and press </ > button to manual search.

DVB-T DVB-C

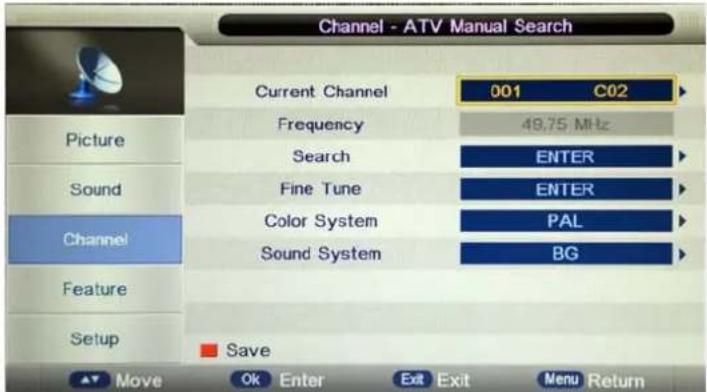

ATV Manual Search : Enter the ATV Manual Search menu.

Current Channel: Select the current channel for manual searching.

Search: Press OK button to enter the search menu, and manual search the frequency by < / > button.

Fine Tune: Press OK button to enter the Fine tune menu, and fine tune the frequency by < / > button.

Color/Sound System: Select the Color/Sound system for the program.

Satellite System

Press ∧/∨ button to select the "TV Conection", and set it on "Satellite".

Select "Auto Search" as follow:

Operations in satellite Auto Search menu are shown in the following table

Option	Value
Mode Default, Network Search, Full Search
Satellite	65 satellite for searching(3 user edit satellite)
Service Type All Services, Free Service
Channel Type All, TV Only

Satellite System

Press ∧/∨ button to select the "TV Convection", and set it on "Satellite".

Press ∧/∨ button to select the "Satellite System", show as follow:

Operations in Satellite List Menu are shown in the following table:

Satellite	Transponder		ASTRA 1E,1G,3A
0002 ASTRA 1H,1KR,L_	0001	11325 H 22000
0003 ASTRA 2A,2B,2D	0002	11357 H 22000	LNB Type	9750/10600
0004 ASTRA 1E,1G,3A	0003	11798 H 27500	LNB Power	On
0005 NLESAT 101, 10	0004	11836 H 27500	22KHz	Auto
0006 EUTELSAT W3A	0005	11876 H 27500	Toneburst	None
0007 EUTELSAT W1	0006	11914 H 27500	DisEqC1.0	None
0008 BADR-2.34EURO	0007	11954 H 27500	DisEqC1.1	None
0009 EUTELSAT SES_	0008	11992 H 27500
Strength: 0% Edit Quality: 0% Scan

	noitcAekortSyeK
KEY_UP use cursor to up
KEY_DOWN	use cursor to down
KEY_LEFT	switch operation to satellite system parameters setting list
KEY_RIGHT	switch operation to Transponder list
KEY_MENU Back to Main Menu.
KEY_EXIT	Exit Main Menu.
KEY_GREEN Enter satellite edit menu

Operations in Transponder List Menu are shown in the following table:

Key Stroke	Action
KEY_UP	use cursor to up
KEY_DOWN	use cursor to down
KEY_LEFT	switch operation to Satellite list
KEY_RIGHT	switch operation to satellite system parameters setting list
KEY_ENTER	Select/unselect cursor item Transponder.
KEY_MENU	Back to Satellite list.
KEY_EXIT	Exit Main Menu.
KEY_RED	Enter Transponder Add menu
KEY_GREEN	Enter Transponder Edit menu
KEY_YELLOW	Enter Transponder Delete confirm menu
KEY_BLUE	Enter Transponder scan menu

Operations in Setting Menu are shown in the following table:

Satellite System
Satellite		Transponder		Setting
0001	HOTBRD 6.7A,B	0001	10723 H 29900	HOTBRD 6.7A,B
0002	ASTRA 1HL10K,L	0002	10750 H 15000	LNB Type	9750/10900
0003	ASTRA 2A.2B,2D	0003	10775 H 28000	LNB Power	On
0004	ASTRA 1E.1G,3A	0004	10830 H 3333	22KBr	Auto
0005	NLESAT 10L,10	0005	10853 H 27500	DisEqC1.0	Burst A
0006	EUTELSAT W3A	0006	10892 H 27500	Motor	DisEqC1.3
0007	EUTELSAT W1	0007	10938 H 27500
8008	BADR-23.4EURO	0008	10971 H 27500

	ekortSke	noiA
KEY_UP	use cursor to up
KEY_DOWN	use cursor to down
KEY_MENU	Back to Transponder liat.
KEY_EXIT	Exit Main Menu.

Option	Value
LNB Type	9750/10600,9750/10750,05150,05750,09750,10600,10750,11300,11475,User Single,User Dual
LNB Power	On,Off
22KHz	Auto,off,on
DisEqC Mode	Off,LNB1,LNB2,LNB3,LNB4,Burst A,Burst B
Motor	None,DisEqC1.2,DisEqC1.3

5V antenna power

Turn on / off the 5V antenna power output.

4. Feature menu

Description

Lock: This menu allows you to lock certain features of the television so that they can not be used or viewed. For example if you don't want certain channels viewed by children or if the television is to be used in a hotel and you want certain channels be locked.

When you enter the system lock menu you will be asked for a password. As default it is 0000.

Lock Channel - Turn on/off the Lock functions.

Note: When it is be turned on, the functions of Parental Guidance and Change Pin code below will be locked, and the functions Lock(in Channel Management), Auto Search, DTV Manual Search, ATV manual Search in Channel menu will also be locked.

Parental Guidance - Select the Parental Guidance mode, or turn off the function.

Change Pin Code – Press OK button to enter, first enter the current code, then enter your new code and confirm your new code.

Language: Lets you adjust the different language options available.

Clock: Allows you to set the clock (as default the information is taken automatically from the digital signal).

Sleep Timer: Lets you set the sleep timer so the television automatically switches off after a certain amount of time.

Auto Power Off: The TV will switch off itself automatically if no change in status within the time you select. You can choose 1H, 2H, 4H or off.

Hearing Impaired: You can switch on the hearing impaired feature, this provides additional information and subtitles

CI Info: Pay per view services require a "smartcard" to be inserted into the TV.

If you subscribe to a pay per view service the provider will issue you with a 'CAM' and a "smartcard". The CAM can then be inserted into the COMMON INTERFACE PORT (CI Card In).

PVR/Timeshift: Setup menu for recording, please see the Recording Operation section.

5. Setup menu

Description

OSD Timer: Lets you adjust the amount of time the On Screen Menu stays on the screen before disappearing.

Auto SCART: The TV will be changed to SCART source automatically when you connect the TV to the SCART device.

PC Setup: Change the PC Settings in PC mode.

Auto Adjust: Setup the parameter of the screen automatically.

H/V-Position: Adjust the transverse/vertical position of the screen.

Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a stable image is obtained.

Clock: Adjust the pixel clock frequency, until the image size is maximized for the screen.

Blue Screen: Changes the background when there is no input between clear and a blue background (Only available in some sources).

Home Mode: Press to select from the following home modes: Home, Dynamic.

Reset TV Setting - This clears all the TV settings for the television.

Software Upgrade: From time to time we may release new firmware to improve the running of the television (available to download). This menu lets you upgrade that software onto the television. Further details of how to do this will be issued with the firmware. Contact the helpline or refer to the 'product support' section of the website.

Load Default Database: Import the default satellites and channel, so that the user can watch programs directly.

Multimedia Operation

Basic Operation

1). Press the INPUT button on the remote control to display the input source menu, select Media source by the ▲ /▼ buttons, and press OK button to enter the Multimedia menu as shown below.

2). Insert USB device, and select the Media mode form Photo, Music, Movie and eBook, then you will find the name of the device display on the screen as shown below.

Hints for operation

3). Press ∧/∨ button to select the USB device and press OK button to enter the file list as shown below.

Press ∧/∨ buttons to move (press OK button to select the file or unfold the folder);

Press RED button to delete the file; Press GREEN button to sign or cancel all the files to playlist;

Press OK button to sign or cancel the selected file to playlist.

Press < button to previous menu, Press EXIT button to select the file view type list(< ) or thurnbnail( ).

Press Exit again to return to the root MENU.

Then press ▶ button to program the files (be signed) you select or the files in the fold you select.

Press ■ button to stop and exit the full screen program, please notes the hints on the bottom.

Multimedia Operation

1. Photo

Play the photo

Press ◀/▶ button to select the option on the table, and press OK button to change.

Note: You could press OK button to display the option table when it disappears.

▶/II Play/Pause the photo playing.
■ Stop and exit the full screen program.
|◀▶| Play the previous or next file directly.
(2) Ratate the picture(0, 90, 180, 270).
Zoom in/out the picture, you could move the picture by Cursor left/right/up/down button in Zoom mode.
i Display the information of the current file.
Display the photo setup menu, and select the Repeat mode, Background Music, Slide Time, Effect.
■ Display the playing list.

2. Music

Play the music

Press ◀/▶ button to select the option on the table, and press OK button to change.

▶/II Play/Pause the music playing.
■ Stop and exit the music playing.
◀◀ ▶▶ Play fast backword or forward.
|◀▶ Play the previous or next file directly.
ALL Select the repeat mode for playing music.
Switch the window between "Information" and "Playlist".
Switch off the screen displaying (BLUE button as quick button), and it will be turned on by exepet power button)..

Multimedia Operation

3. Movie

Play the movie

Press ◀/▶ button to select the option on the table, and press OK button to change.

Note: You could press OK button to display the option table when it disappears.

▶/II Play/Pause the movie playing.
■ Stop and exit the full screen program.
◀◀ ▶▶ Play fast backword or forward.
▶ Play the movie in slow mode.
▶ Play the movie in step mode.
Set the A-B repeat playing mode.
|◀▶| Play the previous or next file directly.
■ Display the playing list.
i Display the information of the current file.
Display the movie setup menu, and setup the Program, Subtitle, Audio, Repeat mode.
Goto mode, Input the time and start playing directly.

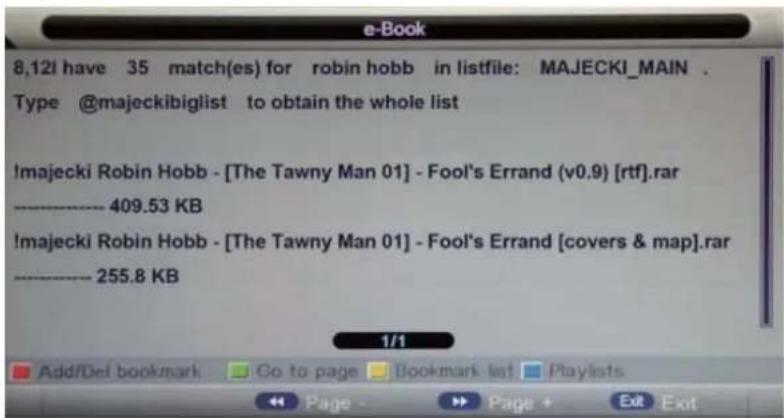

4. eBook

Play the text

◀◀ ▶▶ Turn to previous/next page of the text.

RED button: Add or delete the bookmark.

GREEN button: Goto the appoint page.

YELLOW button: Display the bookmark list.

BLUE button: Display the playlist.

Recording Operation

PVR settings

Press the MENU button select Feature-PVR/Timeshift menu, press OK button to enter the menu as below.

1). Record File Format
Select Record File Format mode from TS and PS for storing in the USB device.

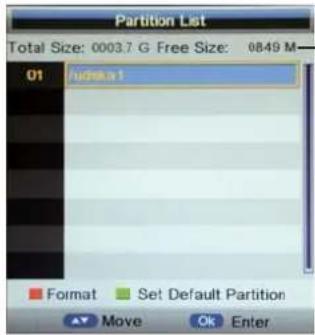

2). Partition Select

USB device informations

Format: Press RED button to format the selected USB device.

Set Default Partition: Press GREEN button to set the focus partition as the default partition. The recorders are stored in the default partition. It need to be reset if the default partition is full in recording progress.

Enter the Timer menu to setup the timer recording settings.

Press yellow button to add.

Recorder: Turn on/off the recorder function.

Type: Select the type of the program you want to recording.

Channel: Select the channel you want to recording.

Start Time: Setup the start time for recording the program.

Duration: Setup the duration time for recording.

Date: Select the date for recording.

Mode: Select the mode for recording.

Recording Operation

5). Record List

Display the Record list menu.

Delete: Press RED button to delete the selected record plan.

6). Recorder Start

Press OK button to start recording, as the function of the REC button on the remote control.

EPG and Timer Record

Press EPG button on the remote control to display the EPG menu.

EPG mode: Press RED button to change the EPG display mode.

Daily mode: shows the information of the programs to be broadcasted in daily mode.

Weekly mode: shows the information of the programs to be broadcasted in weekly mode.

Reminder: Press GREEN button once to remind the program for watching, and press GREEN button again to remind the program for recording. You could check it in Timer menu, and the TV will record the program according to your settings automatically.

Previous/Next Day: Press YELLOW/BLUE button to display the programs on previous or next day.

Recording Operation

Recording

Press REC button on the remote control to start recording in DTV mode. Press ■ a message window appears. Select "OK" item, and press OK to exit recording

Note:

a. Please make sure the USB device is on the TV.
b. Please mke sure the speed and free space of the USB is enough.
c. Press Recording list button to display the Recorder list, and you can play the program you selected.
d. You can also play the Recorded program in Multimedia mode.

Timeshift

Press button on the remote control to start timeshift in DTV mode.

Press ■ to stop timeshift.

Note:

a. Please make sure the USB device is on the TV.
b. Please make sure the speed and free space of the USB is enough.
c. Press ▶ button to pause the program you are watching, and the timeshift will start.
d. Timeshift time menu on the corner shows the time between the current picture and the living broadcasting picture;
e. During the recoding progress, if the signal is missing, the recording process will take a pause until the signal is stable again.

Basic Operation

Press the ⏻ button on the TV or the remote control, then press the INPUT button to select DVD mode. If there is no disc in the DVD player the screen will show "NO DISC".

Insert Disc according to picture next to disc slot.

Do not touch the playing surface.

Hold the disc around the outside with your fingers and place the disc into the slot. The player will automatically draw the disc into the player.

To "Eject" the disc, press the EJECT button on the TV or the "▲" button on the remote control.

DVD Setup Mode

• Setup Mode provides the menu for the configuration of General Setup Page, Audio Setup Page, Dolby Digital, Setup, Preference Page.
• Item selection in the Setup Menu is done by using the Navigation Arrows, SETUP button and the OK button.
• Press the SETUP button first, enter into SETUP menu, then press the DIRECTION RIGHT button, you can enter into the next Sub-menu.
• Press the SETUP button again to exit the Setup Menu.

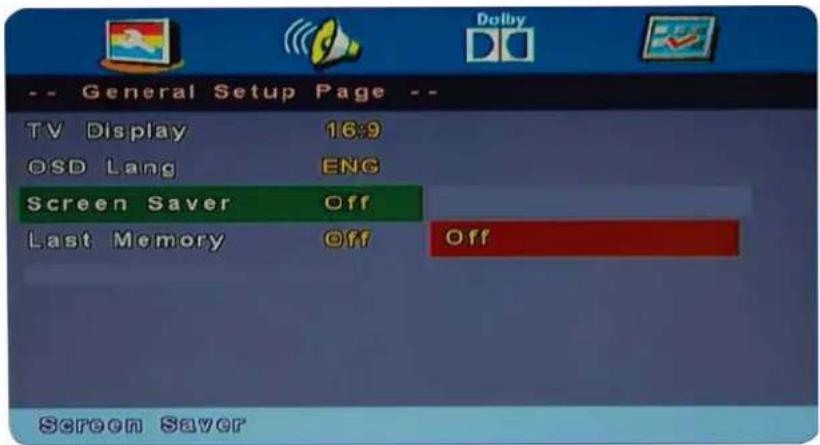

General Setup

TV Display

• 4:3 Pan Scan

This is selected when the DVD player is connected to a normal TV. Wide-screen images are shown on the screen, but with some parts cut automatically.

• 4:3 Letter Box

This is selected when the player is connected to a normal TV. Wide-screen images are shown on the screen, with black belt on the top and bottom.

- Wide

This is selected when the player is connected to a wide-screen TV.

DVD Operation

OSD Language

This is used to select the OSD language.

Screen Saver

Start the screen saver, the screen saver image will appear when the player stops or the picture is frozen for a few minutes. This saver can keep the screen from being damaged.

• On (Start the screen saver)
• Off (Remove the screen saver).

Last Memory

Can set the items on the last memory, "on" and "off" option.

Select "On", the shutdown will shutdown the machine before the settings for memory, re-boot the machine settings. Set near the same time.

Select "Off", every time the machine automatically switched back to the default settings

• On (Start the memory)
• Off (Remove the memory).

DVD Operation

AUDIO Setup

- Speaker Setup

In the "Audio Setup page" press "▼" button to select "Speaker Setup" item, press the "OK ENTER" or "►" button (play) into the "Speaker Setup Page".

DVD Operation

Downmix

• LT/RT

A disc recorded multi channel soundtrack, the output signal will be incorporated to left and right channel.

- Stereo

A disc recorded multi channel soundtrack, The output signal will be incorporated to stereo.

Dolby Digital Setup

Dynamic

This option is used to set the compression ratio in order to control the sound contrast.

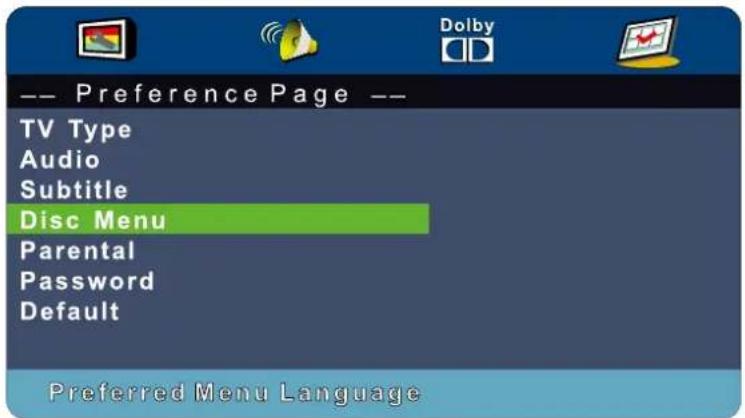

Preference Setup

You must press STOP twice to enter Preference Page or NO disc

TV Type

·PAL

This is selected when the player is connected to an PAL System TV.

• MULTI

The player will set the TV system according to the disc in the tray.

• NTSC

This is selected when the player is connected to a NTSC System TV.

Audio

If a language listed below is recorded on the disc, you can play the sound in such language. If not, the language recorded will be used.

DVD Operation

Subtitle

If a language listed below is recorded on the disc, you set the subtitle to be displayed in such language. If not, the language recorded will be used.

Disc Menu

If a language listed below is record on the disc, you can set the Menu to be displayed in such language. If not, the language recorded will be used.

DVD Operation

Parental

When playing disc with parental lock function, you may select an Age Control Grade according to grade of disc and your own preference. For example, if PG is selected, DVD Video disc rated higher than the PG grade cannot be played.

User can change the password that is required when the user wants to change the Age Control Grade in the Parental Lock function.

NOTE:(Default password is 123456)

DVD Operation

Default

User can load the original factory setting by choose RESET and press OK button.

Simple Troubleshooting

If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions. Remember to check the peripherals to pinpiont the source of the failure.

If the display still fails to perform as expected, connect your helpline for assistance.

No power

• Check all connections to the TV.
• Press either the power button or the Standby button on the Remote control.

No picture or sound

• Ensure that the TV is plugged in and the power is on.
• Ensure that the aerial is connected.
• Try a different program.

Poor picture quality

• Check the aerial connections.
• Check that the channel is tuned in properly.
• Adjust the picture settings:brightness,color,sharpness,contrast,hue.
• Make sure that the TV is not located close to electrical appliances that may emit radio frequency interference.

No colour

• Adjust the color setting.
• Check that the programme is broadcast in color.
• Check that the channel is tuned properly.

TV does not respond to remote control

• Check that there are no obstructions between the remote control and the unit.
• Check that the remote control is within range of the unit.
• Check that the batteries in the remote control and not weak or exhausted.

This TV is for household use and registered as harmless on electromagnetic waves.

Therefor,you can use it in every location as well as residential areas.
