LTV 5001 HD - Television Trevi - Free user manual and instructions

Product Type	Television
Brand	Trevi
Model	LTV 5001 HD
Screen Size	50 inches
Display Technology	LED
Resolution	1920 x 1080 pixels (Full HD)
TV System	PAL / SECAM
Digital Tuner	DVB-T2 (terrestrial)
Analog Tuner	Yes (ATV)
CI Slot	Yes (Common Interface)
USB Port	Yes (for media playback and PVR recording)
HDMI Input	Yes
VGA Input	Yes
SCART Input	Yes
Component Input (YPbPr)	Yes
Composite AV Input	Yes
Coaxial Audio Output	Yes (SPDIF)
Earphone Jack	Yes
Speaker Output	10W + 10W
Power Consumption	135W
Power Supply	AC 100-240V ~ 50/60Hz
Remote Control	Included (with AAA batteries)
Wall Mountable	Yes (VESA compatible, bracket not included)
Picture Modes	Dynamic, Standard, Mild, User
Sound Modes	Standard, Movie, Music, Speech, User
Sleep Timer	Yes (Off, 10-240 mins)
Auto Power Off	Yes (Off, 1-4 hours)
Parental Lock	Yes (PIN code, channel lock)
Hotel Mode	Yes (customizable settings)
Multimedia Playback	Photo, Music, Movie, eBook (via USB)
Stand	Included
Cleaning	Use a dry soft cloth

Frequently Asked Questions - LTV 5001 HD Trevi

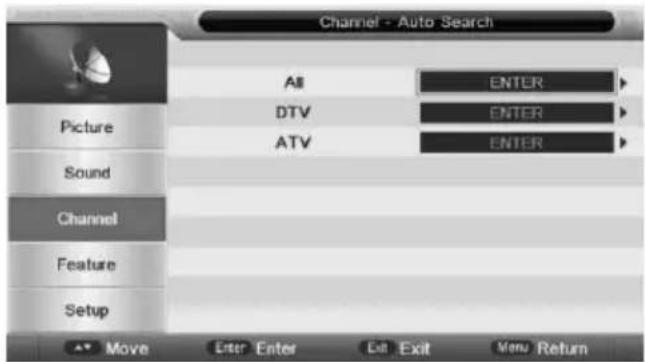

How do I perform an automatic channel search?

Press the MENU button, go to Channel Menu, select Auto Search, and choose All (for digital and analog), Digital, or Analog. The TV will scan and store available channels.

How can I connect external devices like a DVD player?

Use the HDMI, SCART, YPbPr, or AV inputs on the back of the TV. Select the corresponding source using the SOURCE button on the remote.

What should I do if the remote control is not working?

Check the batteries and ensure they are inserted correctly. Remove any plastic from the remote sensor. Point the remote directly at the sensor on the TV. If still not working, replace the batteries.

How do I enable parental lock?

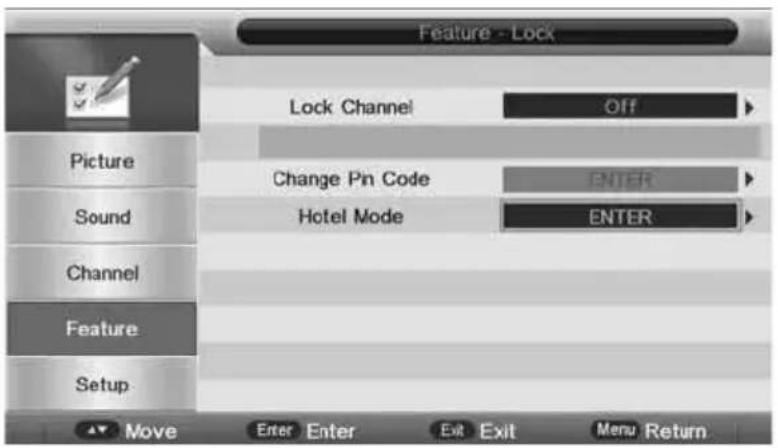

Go to Feature Menu > Lock. Set Lock Channel to On. You can change the PIN code (default 0000). Locked channels require the PIN to watch.

Can I record TV programs?

Yes, connect a USB storage device. The TV supports PVR (Personal Video Recorder) for digital channels. Use the Record function via the remote (if available). Refer to the manual for details.

How do I use the hotel mode feature?

Enter Feature Menu > Lock, enter password (0000), then select HotelMode. Turn on Hotel Lock and configure options like Max Volume, Default Source, and Channel Lock.

What should I do if there is no picture but sound is working?

Increase brightness and contrast in the Picture Menu. Check the antenna connection. If using a VGA source, ensure the cable is properly connected.

How do I reset the TV to factory settings?

Go to Setup Menu > Reset to Setting. If Lock Channel is on, enter the PIN. Confirm to reset all settings and return to the installation guide.

Can I mount the TV on a wall?

Yes, use a VESA compliant wall mount (not included). Remove the stand, attach the mount to the TV, and secure it to the wall following the manual's instructions. Ensure proper ventilation.

How do I clean the TV screen?

Turn off the TV and unplug it. Use a soft, dry cloth to gently wipe the screen. Do not use any liquids or abrasive cleaners.

USER MANUAL LTV 5001 HD Trevi

50" TV COLOR/MONITOR LED

HD DVB-T2 - CI SLOT - USB

Manuale D'uso

Instruction Manual

1 PREFAZIONE

Black remote control with multiple keypad and buttons (no visible text or symbols)

Telecomando

Manuale
d'uso

5 COMANDI E CONNESSIONI TELEVISORE

VOL+

VOL -

CH+

CH-

MENU

SOURCE

Diagram of a V-12 connector showing SCART and CO ports connected by a coiled cable (no text or symbols on the diagram itself)

7.6 COLLEGAMENTO TRAMITE CAVO RCA mini-A/V o mini-Y/Pb/Pr

9 TELEVISIONE DIGITALE TERRESTRE (DTV)

10 TELEVISIONE ANALOGICA (ATV)

9 TELEVISIONE DIGITALE TERRESTRE (DTV)

10 TELEVISIONE ANALOGICA (ATV)

Line drawing of a flat-screen monitor with a stand at the bottom (no text or symbols)

USER'S MANUAL

Read this manual carefully and retain for future reference

Table Of Contents

Preparations Guide

Safety Information....24

Important Safety Precautions....25

Installed And Connected TV

TV Bracket assemble....2\$

TV Buttons And Terminal Interface....27

External device connection diagram....28

Install And Connect TV....29

TV Stand installation Instructions....29

Function Description

Picture Menu....38

Sound Menu....31

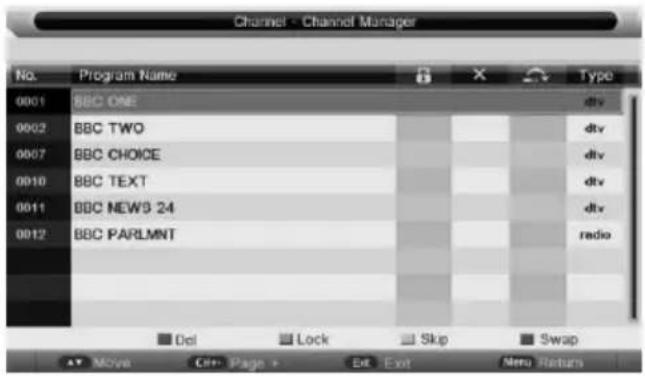

TV Channel....32

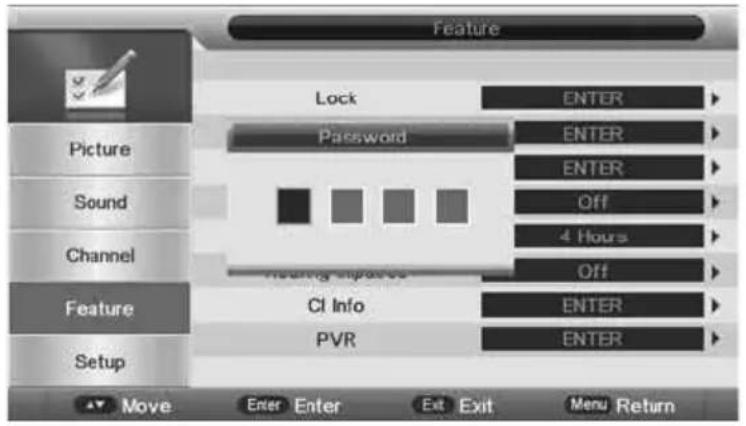

Feature Menu.... 34

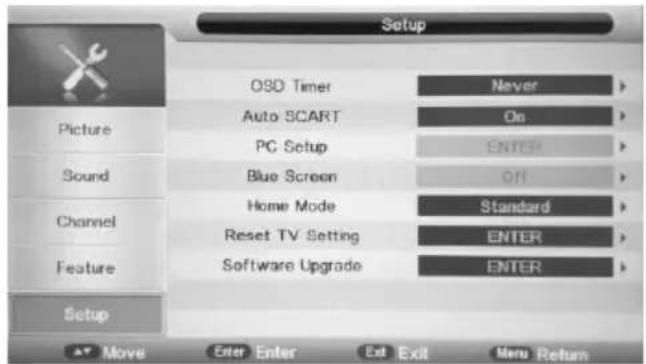

Setup Menu....35

Multimedia

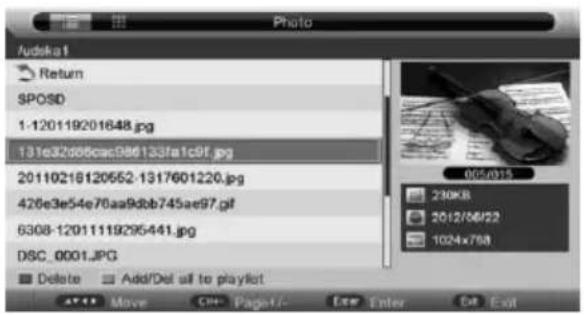

Photo....35

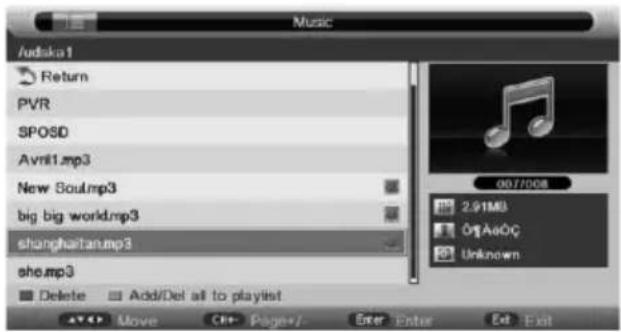

Music....37

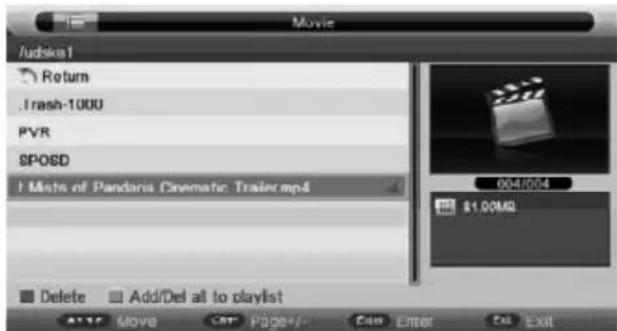

Movie....37

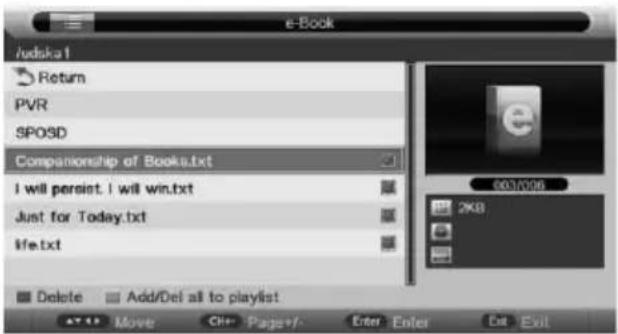

eBook.... 37

Other Information

HotelSetting User Manual....38

Help....42

Specifications....43

This user manual for reference only

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

Warning symbol: black exclamation mark inside a triangle (no text or numbers)

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons

Important Safety Precautions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and third grounding prong. The wide blade or third prong are provided for your safety. When the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. Warning to reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15. The apparatus shall be disconnected from the mains by placing the power/standby switch in the standby position and unplugging the power cord of the apparatus from the AC mains receptacle.

16. The socket-out shall be installed near the equipment and shall be easily accessible.

17. This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

18. Apparatus shall not be exposed to dripping or splashing.

19. Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21. Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22. The USB terminal should be loaded with 0.5 A under normal operation.

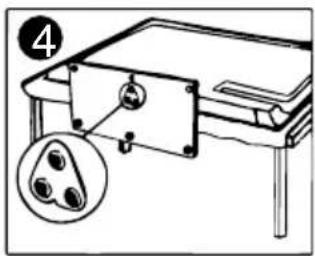

TV Bracket assemble

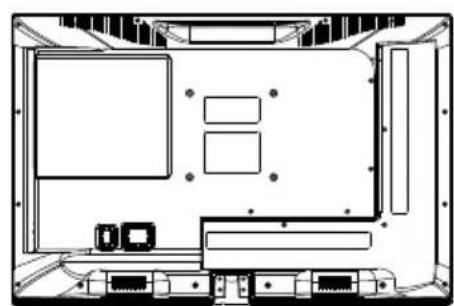

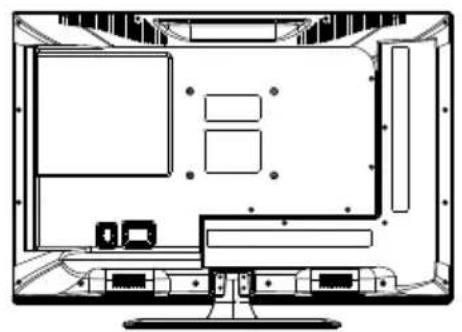

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.

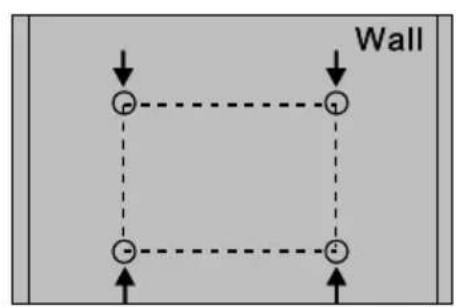

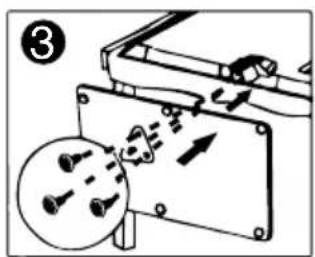

4. Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws.(optional parts)

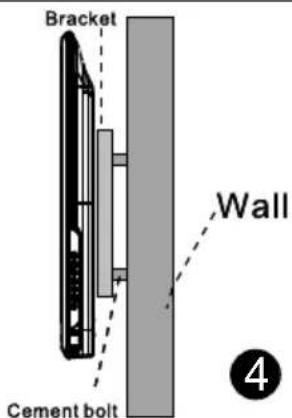

5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Top-down schematic of a computer monitor layout showing front, top, and side panels (no text or labels)

1

Top-down schematic of a computer room layout with no visible text or symbols

2

3

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface

TV Buttons

Note: The following is only functional schematic, And the actual position and arrangement of different models may be different.

VOL+

VOL-

CH+

CH-

MENU

SOURCE

(1):Turn ON/OFF Power.

SOURCE: External Signal Input Selection.

MENU: Display Main MENU And Confirm MENU Item Selection.

CH+/-:Selecting Channel.

VOL+/-:Adjusting Volume.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input And Relevant Rith/Left Sound Channel		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	CI SLOTThe card reader input CI(common interface) this requires CAM (conditional access module) used for pay TV.		USB inputConnect a USB device here to play its media files or to recordprograms via the PVR function.
	Y Pb Pr inputConnect to the composite terminal of your DVD/VCR (Some models without this interface)		SCART inputstandard, it supports composite and RGBsignal input. It is a connection for european (Some models without this interface)
	HDMI inputDigital signal input from HDMI video connector.		COAXIALConnect the SPDIF receiver.
	ANT 75Connect the antennal/cadle tv input (75/VHF/UHF)

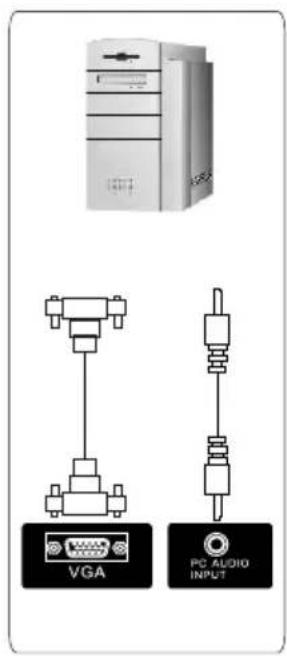

	VGA inputPC analog signal input
	PC AUDIO INPUTVGA input and audio input when VGA input

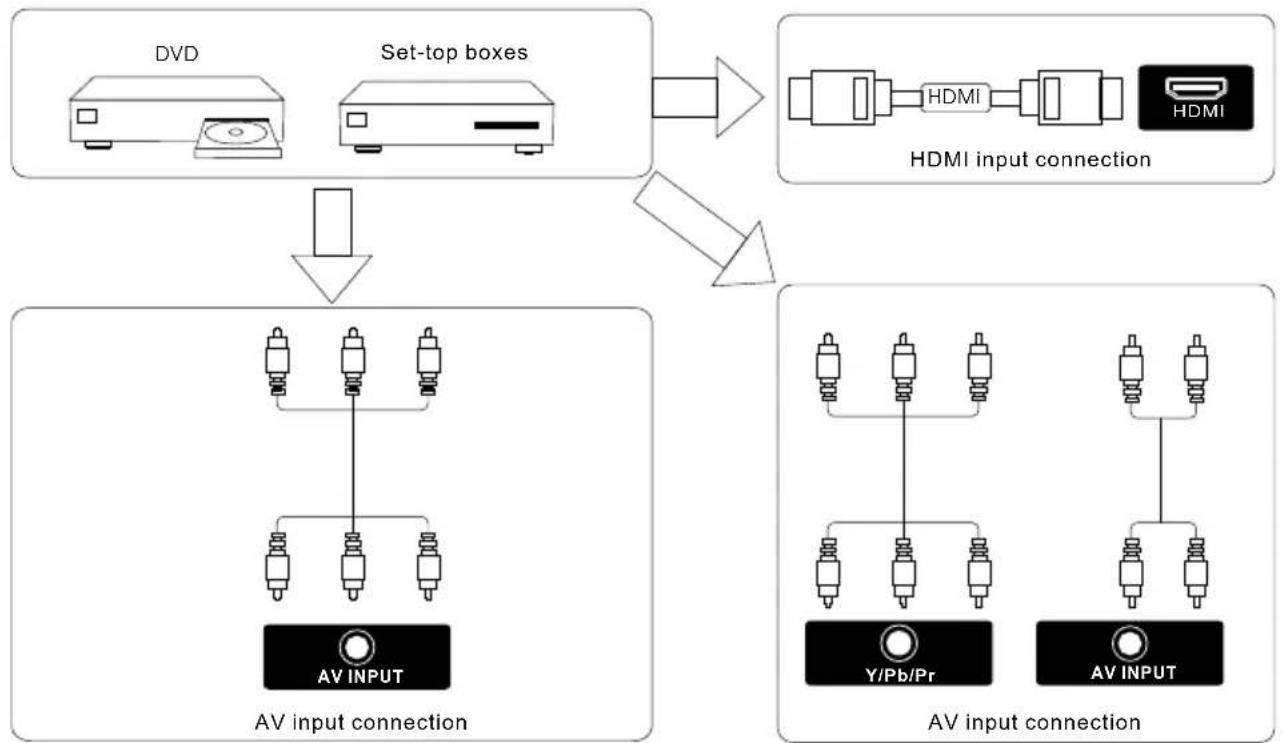

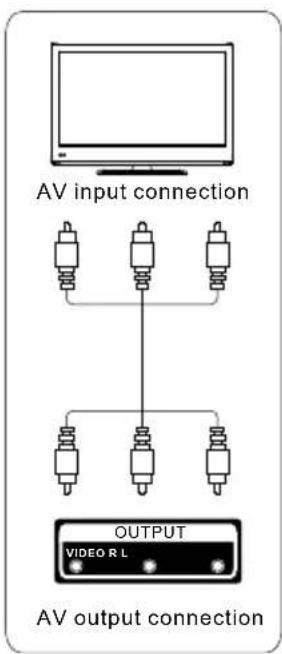

External device connection diagram

Install And Connect TV

Set your TV

To put your TV in a firm place which can bear the weight of the TV.

To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

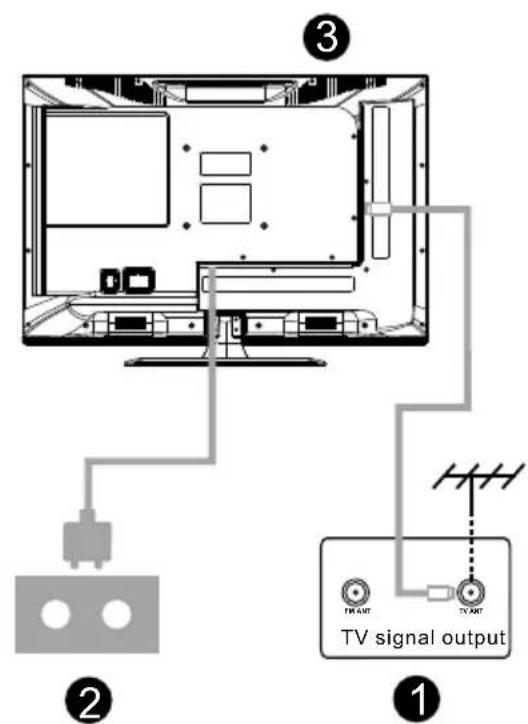

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV (AC 100-240V\~50/60Hz).

Turn on TV

1. Press the power button of the TV the indication light will turn to green. if it is on standby mode (the light is red), press the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

Please prevail in kind

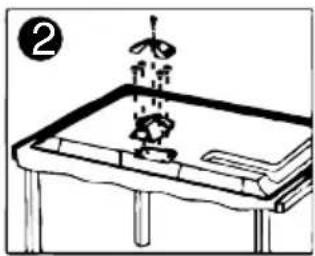

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. to avoid the injury of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress, the base of the neck is fixed on the TV with screws.
3. screw the base and connected to the TV.
4. the installation is complete.

Note:

Picture for reference purposes only.

Please prevail in kind

Simple line drawing of a mechanical setup with a lever and base, no text or symbols present

Function Description

Input

DTV

ATV

AV

SCART

YPbPr

HDMI

PC

Media

Select input source

• Press SOURCE button to display the input source list;
• Press ▼ / ▲ or SOURCE button to select the input source you want to watch;
• Press ENTER button to enter the input source;
• Press EXIT button to quit;

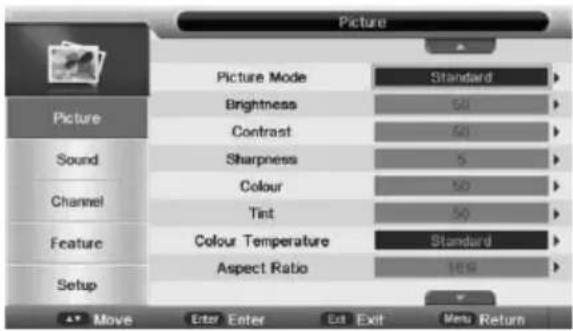

Picture Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Picture in the main menu, then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Picture menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Picture Mode

Available Picture Mode: Dynamic, standard, mild, user

Note: You can press P.MODE butten to change the Picture Mode directly.

Brightness/Contrast/ Sharpness/Colour/Tint

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Sharpness Aadjust the peaking in the detail of the picture.

Colour Adjust the color of the color based on your own like.

Tint It is not available unless Picture Mode is set to be user and the current TV system is NTSC.

Colour Temperature

Change the overall color cast of the picture.

Aspect Ratio

Change the overall color cast of the picture.

Note: You can press ASPECT butten to change the Picture Mode directly.

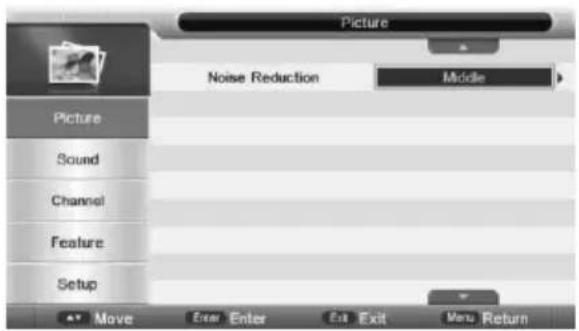

Noise Reduction

Noise reduction of the picture. To reduce noise and improve the appearance of the picture. No noise reduction operation if it's "off". From Low->Middle->High, noise reduction effects better but it will cause a blur on picture.

Function Description

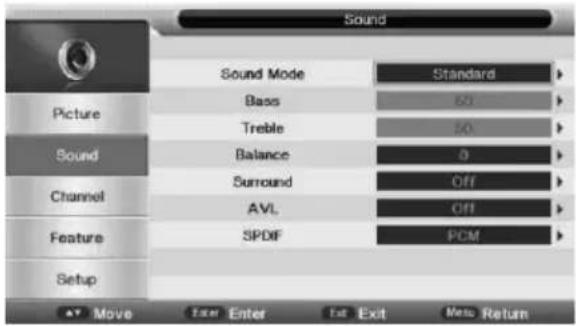

Sound Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Sound Menu in the main menu.then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Sound menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Sound Mode

Available Picture Mode: Standard, Movie, Music, Speech, User

Note: You can press S.MODE butten to change the Picture Mode directly.

Treble/Bass/Balance

Treble Adjust the treble effect. Increases or decreases high-pitched sounds.

Bass Adjust the bass effect. Increases or decreases lower-pitched sounds.

Balance Adjust the balance between left and right speakers to adapt to your listening position.

Surround

Press ENTER/RIGHT button to enter, then press UP/DOWN button to select On or Off.

AVL

press UP/DOWN button to select On or Off. Set the auto volume control.

SPDIF

Press ENTER/RIGHT button to enter, then press UP/DOWN button to select Off / Auto / PCM.

Function Description

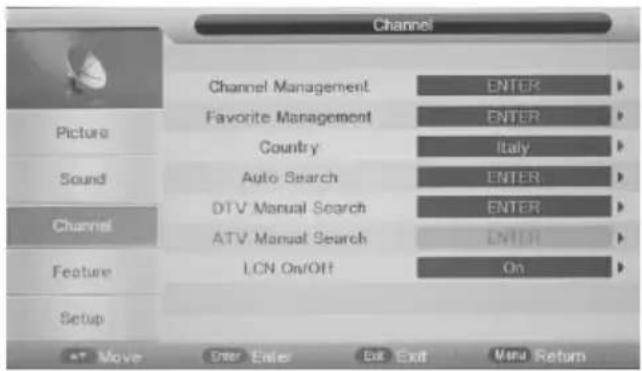

TV Channel

Press MENU button to display the main menu.

Press ENTER/RIGHT button select Channel Menu in the main menu.then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Channel menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

NOTE:TV Connection The functions of the parts not change please in kind prevail

Channel Manager

To manage (Delete/Rename/Swap/Lock/Skip) all channels

First press UP/DOWN to highlight the channel you want to delete or move or skip, then:

Press the RED button to delete the channel.

Press the GREEN button to skip the select channel.

(Your TV set will skip the channel automatically when using CH+/- to view the channels.)

Press the YELLOW button to to set the channel to moving state, then press UP/DOWN to move

it to the position you want to put.

Press the BLUE button to be swapped channel. then press UP/DOWN to select another channel and press "BLUE" key to swap them.

Function Description

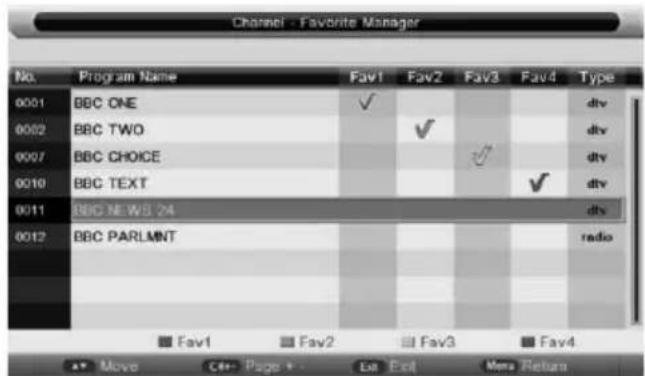

Favorite Management

To manage (Add/Delete) Favorite channels

Press UP /DOWN button to select the programs to be added into favorite list and press "RED", "GREEN", "YELLOW" or "BLUE" button to mark them

Country

press UP/DOWN button to select Country.

Auto Search

All Mode: Select "All" item to scan all digital channels carried by current signal mode firstly and then switch to scan all analog channels in selected country automatically. User can skip digital search to analog search directly by entering EXIT/MENU button and can also stop auto scan directly by entering EXIT/MENU button during analog scanning.

Digital Mode: Select "Digital" item to search all digital channels in selected country carried by current signal mode. User can stop search directly by entering EXIT/MENU button.

Analog Mode: Select "Analogue" item to search all digital channels in selected country carried by current signal mode. User can stop search directly by entering EXIT/MENU button.

Function Description

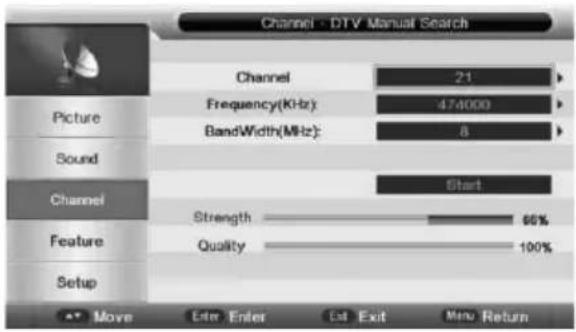

DTV Manual Search

Select channel number by ENTER/RIGHT button or entering number directly. The strength and the quality shows at the bottom. Press ENTER button on "Start" item to start current channel search. The manual searching UI and the auto searching UI are the same.

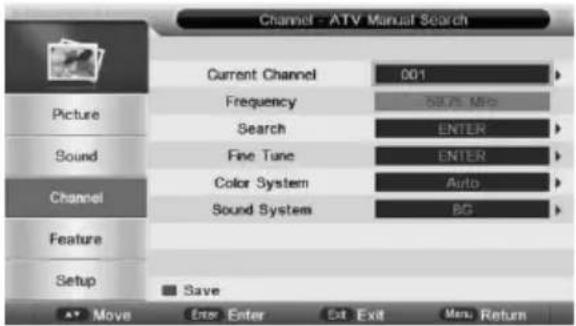

ATV Manual Search

Press UP/DOWN button to select option. Press ENTER/RIGHT button to enter, Press UP/DOWN button to select these parameters. Select "Search" item to enter analog channel tune, then press LEFT/RIGHT button to adjust.

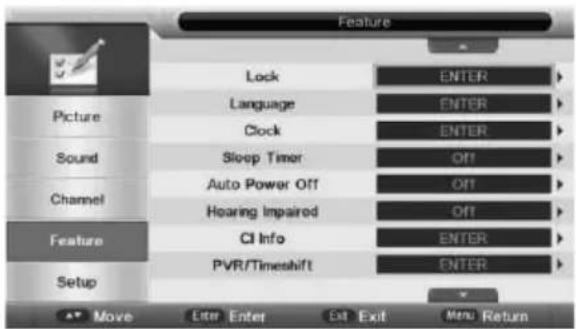

Feature Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button to select Feature Menu in the main menu.then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Feature menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
3. After finishing your adjustments. Press MENU/ENTER button to save and return back to the previous menu.

Function Description

Lock

Lock Channel: On: turn on Lock Channel. User need to enter password to watch the channels which are locked. Also need to enter password when user tries to change settings in items like "reset system"/"reset database" etc.

Off: turn off Lock Channel

Change Pin Code : Press ENTER/RIGHT button to set New Password, then enter a 4-digital number you want to set twice.

Pass word :0000

Language

Press UP/DOWN button to select Language.2.Press ENTER/RIGHT button to enter, then to select System language setting, includes OSD Language, Preferred Subtitle, Preferred Audio, Digital Teletext Language, Anglog Teletext Language

Clock

It is used to check out the current system time and set time zone/DST.(DST(daylight saving time): if it's "On", it'll be an hour earlier than the GMT. If Time Zone is set to "Auto"it's not available.)

Sleep Timer

When your TV is Running, start sleep function by setting Sleep Timer in any case. This function allows you to power off the TV within a period of time. Currently the supported time period are: Off, 10 Mins, 20 Mins, 30 Mins, 60 Mins, 90 Mins, 120 Mins, 180 Mins, 240 Mins,

Auto Power Off

When your TV is Running, start Auto Power Off function by setting Auto Power Off Timer in any case. This function allows you to power off the TV within a period of time. Currently the supported time period are: Off, 1 Hours, 2 Hours, 4 Hours.

Hearing impared

This function offers a subtitle such as a "stroke on the door" or "the bell starts to ring" for the current scene in case that the user is weak in hearing.

CI Info

It is only available in DTV source when PVR is not playing. Please prefer to Chapter 6 section 2 CI Setup for further information about the function of CI.

NOTE:CI info The functions of the parts not change please in kind prevail

Setup Menu

Press MENU button to display the main menu.

Press ENTER/RIGHT button to select Setup Menu in the main menu.then press ENTER/RIGHT button to enter

1. Press UP/DOWN button to select the option that you want to adjust in the Setup menu.
2. Press ENTER/RIGHT button to enter, then press LEFT/RIGHT button to adjust.
   3 After finishing your adjustments Press MENU/ENTER button to save and return back to the previous menu

Function Description

OSD Timer

Set up OSD Timer which means how long the menus will exist. The optional periods are 5, 10, 15, 20, 25, 30 Seconds and Never

Auto SCART

Switch for Auto SCART function.

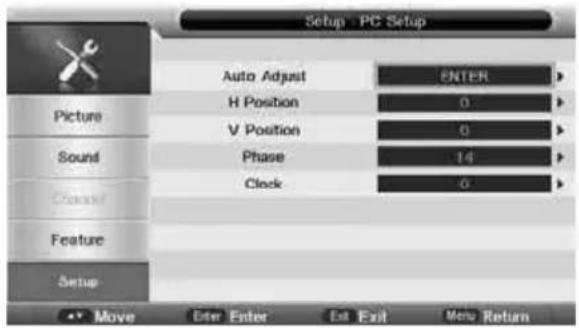

PC Setup

It is only available in PC source.

Auto Adjust: Auto Adjust the H Position, V Position, Phase, Clock

H Position: Manually adjust H Position

V Position: Manually adjust V Position

Phase: Manually adjust Phase

Clock : Manually adjust Clock

Blue Screen

It is not available in PC, DTV source or when it is not movie mode in multimedia source. In TV source, if there is no signal and Blue Screen is Off, it will show snow; if there is no signal and Blue Screen is On, it will show blue screen

Reset to Setting

If the Lock Channel is On in Feature Menu/Lock, it needs to enter the password to enter the Reset. It will Reset System Setting and Database. When the reset is complete, it will enter the Auto Installation settings page.

First, it will show a page to user to confirm.

Software Upgrade

Software upgrade by bin code. Put The bin code into the root directory of the media and media plugged into the

TV 's USB interface, press ENTER key to upgrade. Don't power off during the upgrading process. The system will restarts when the upgrading process is done.

Multimedia


press LEFT/RIGHT button to select PHOTO in the main menu, then press ENTER button enter photo page,

Music

press LEFT/RIGHT button to select Music in the main menu, then press ENTER button enter music page.

Movie

press LEFT/RIGHT button to select Movie in the main menu, then press ENTER button enter Movie page.

eBook

Only txt format eBook is supported.

press LEFT/RIGHT button to select eBook in the main menu, then press ENTER button enter eBook page.

HotelSetting User Manual

I.Enter into HotelSetting Mode

Manipulate 【Menu】with remote control into the Feature page, and adjust the cursor on Lock option, then into the Password dialog box by 【ENTER】key on remote control. The default Password is “000 0”, look at the picture 9202-1, please.

Picture 9202-1

Enter into the Feature-Lock page and adjust the cursor to HotelMode option, look at the picture 9202-2, please.

Picture 9202-2

Manipulate 【ENTER】key into the HotelSetting, look at the picture 9202-3, please.

II. Enter into the HotelMode function turn on the HotelLock Swich, and all option was activated

HotelSetting User Manual

Hotel Setting
Hotel Lock	On
Channel Lock	Off
Picture Lock	Off
Sound Lock	On
Feature Lock	Off
Setup Lock	On
Key Lock	Off
Source Lock	-->
Set Source	DTV
Channel Number	0
Max Volume	100
Default Volume	30
Clear Lock	-->
DataBase Export	-->
DataBase Import	-->

Picture 9202-3

1. Channel Lock

Adjust the cursor on Channel Lock option, use the left key or right key to change on or off. When the ChannelLock switch was turned on, channel page will be shielded in the Menu OSD.

2. Picture Lock

Adjust the cursor on Picture Lock option, use the left key or right key to change on or off. When the Picture Lock switch was turned on, Picture page will be shielded in the Menu OSD.

3.Sound Lock

Adjust the cursor on Sound Lock option, use the left key or right key to change on or off. When the Sound Lock switch was turned on, Sound page will be shielded in the Menu OSD.

4.Feature Lock

Adjust the cursor on Feature Lock option, use the left key or right key to change on or off. When the Feature Lock switch was turned on, all option will be shielded in Feature page except Lock option, and then into de Lock page, except outside HotelMode, the other option was shielded also.

5. Setup Lock

Adjust the cursor on Setup Lock option, use the left key or right key to change on or off. When the Setup Lock switch was turned on, Setup page will be shielded in the Menu OSD.

HotelSetting User Manual

6.Key Lock

Adjust the cursor on Key Lock option, use the left key or right key to change on or off. When the Setup Lock switch was turned on, the TV Keypad was turned off and then it is not in working mode, then the system will show "Keypad Locked".

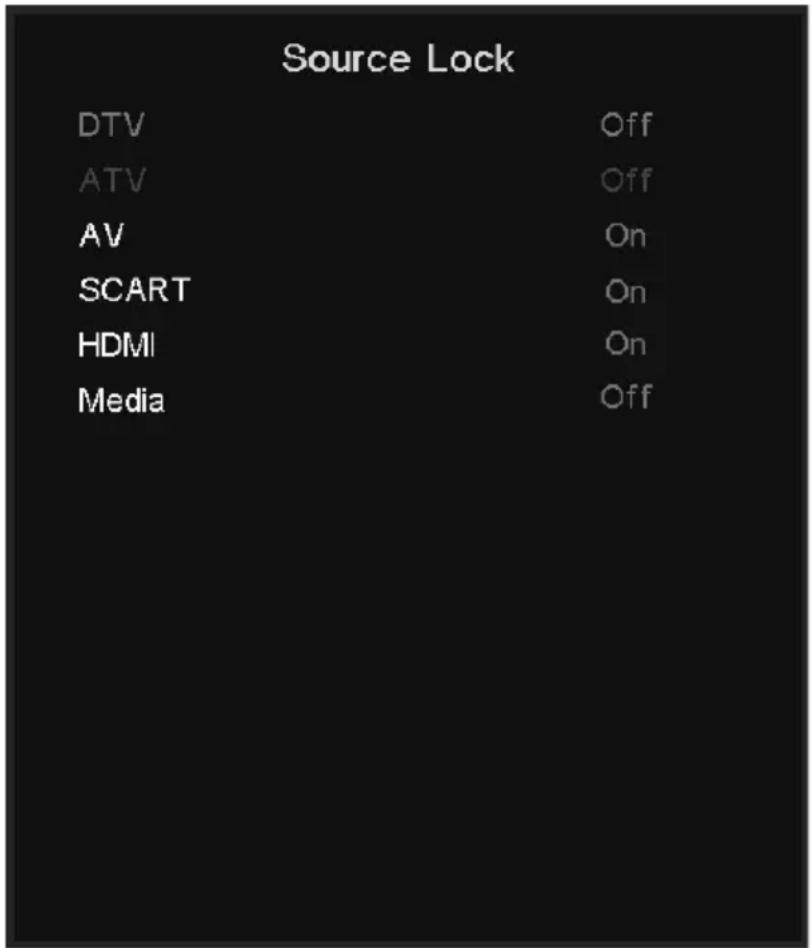

7. Source Lock

Adjust the cursor on Source Lock option, and use the left or enter keys entrance the SourceLock page, look at the picture 9202-4, adjust the cursor to the source and take it to turn on by which source wanted to closed. When it was turn on, this source will be shielded in input OSD. Input source was can't change.

Picture 9202-4

HotelSetting User Manual

8. Set Source

This function is setting for default source when the TV was starting up, adjust the cursor on Set Source option, and set the default source by left or right key, and the source cannot be selected by which one was shielded.

9.Channel Number

This fuction is setting for default channel when the SetSource on DTV/ATV/Radio, and this fuction is shielded when the SetSource doesn't on DTV/ATV/Radio.

10.Max Volume

Setting default Max Volume. Setting default Max Volume between 0 to 100 value, when the value was setting, the volume can't exceed in OSD volume.

11.Default Volume

Setting Default Volume, reboot TV, the volume is resetted by Default Volume. This option is less than Max Volume.

12.Clear Lock

Clear Hotel Mode setting, take it to default.

13. DataBase Export

Export the Menu or HotelSetting set to USB, and generate a bin named "CV_FACTORY_FlashData_SPV9202.bin" in CV_9202 folder.

14. DataBase Import

Import data by "CV_FACTORY_FlashData_SPV9202.bin" in USB.

Help

No Power	Check the AC cord of TV is plus in or not. If still no power, please Pull out the plug and replug in after60 seconds. And open the TV again
Signal receive not properly	To cause double image or phantom if there has high building or high mountain round TV. You can adjust image effect by manually operation: consult instruction of vernier regulation or change the direction of external antenna.If you use the indoor antenna . under certain circumstance, receive will be more difficult . So you can change the direction of the antenna to adjust the image effect . If can't change image receiving effect either , you have to use external antenna.
No picture	Check the antenna at the back of TV is connected properly or not.Try to select other channels and check whether the TV problem itself or not
but,Video is ok without audio	Increase the volume.Check the TV is in mute mode or not , and please press the mute button to make sound resume.
Audio is ok, but color error or no picture.	Increase contrast and brightness.
snow statics picture and noise	Check the antenna at the back of TV is connected or not.
Level broken line	vacuum, such as hair drier, Maybe has electrical appliance interfere:please turn off these kinds of electrical appliance, cleaner and so on.
Image or-Dual "simulacrum" The TV no response with the Remote.	Perhaps the location for the antenna is not good. Use the tall beamed antenna can be improved quality of the display image.Operate the remote direct to the remote sensor on the TV. If still no response for the TV, please check if the plastic bag on the remote take or not. And check if the location for the battery is correct. Change the new battery.The TV will shift to the STAND BY if no response from the remote in the few minutes.
.NO Video In (PC Mode)	Please check if the display cable connect to the VGA correcte.Please check if there has the bend on the display cable.
Vertical twinkling (PC Mode)	Enter the main menu, Use the clock regulator for the Video display noise to eliminate the vertical line.
horizontal ripping (PC Mode)	Adjust the Audio sound horizontal in the main menu to clear the horizontal ripping line.
The screen is too bright or too dark (PC Mode)	Adjust the contrast ratio or brightness in the main menu.
PC Function no response	Check the computer setting in the state of compatible display resolution
Ripping line in RCA connecting	Please use good quality connecting cable.
Problem still exist	Unplug the power cable and wait for 30 seconds, then connect. If there is some problem with our TV, do not repair it by yourself, please contact with the customer service center.

There will be complete picture and the brightness will come down if the TV is in: Note So please do not keep the TV in a state of same, the static picture for too long time Menu or same picture that has much difference in brightness and contrast ratio for too long time.

Machine Technical Specifications

Screen Size	TV System	Speaker Output
16"	PAL/SECAM	5W+5W
19"	PAL/SECAM	5W+5W
22"	PAL/SECAM	5W+5W
24"	PAL/SECAM	5W+5W
32"	PAL/SECAM	10W+10W
39"/40"	PAL/SECAM	10W+10W
42"	PAL/SECAM	10W+10W
46"	PAL/SECAM	10W+10W
50"	PAL/SECAM	10W+10W

Screen Size	Power Consumpt ion	Main accessories
16"	24W	User's manual x1Remote controller x1AAA Batteries x2
19"	36W/48W
22"	36W/48W
24"	48W
26"
32"	56W/65W/100W
39"/40"	75W/70W
42"	85W
46"	110W
50"	135W

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in “separate collection” and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.
