Product Type	32" LED TV
Brand	Trevi
Model	LTV 3202 HD
Screen Size	32 inches (81 cm)
Resolution	1366 x 768 pixels
Aspect Ratio	16:9
Display Colors	16.7 million
Contrast Ratio	1200:1
Brightness	230 cd/m²
Response Time	8 ms
Viewing Angle	178° (H) / 178° (V)
Backlight Life	50,000 hours
Power Supply	100-240V ~ 50/60Hz
Power Consumption	55W
Speaker Output	2 x 8W
Tuner	DVB-T (Digital terrestrial), Analog
Inputs	HDMI (x3), VGA, SCART, YPbPr, AV, RF, USB, CI slot
Outputs	Headphone 3.5mm, Coaxial (SPDIF)
VESA Mount	200x100 mm, screw M6 (max 8mm depth)
Stand Included	Yes
Remote Control	Yes, with batteries (AAA x2)
Dimensions (with stand)	Not specified, estimate: 73x48x20 cm
Weight (with stand)	Not specified, estimate: 6 kg

Frequently Asked Questions - LTV 3202 HD Trevi

What should I do if there is no picture or sound?

Check that the power cord is connected properly and the wall socket is on. Ensure the TV power switch is set to 'ON' and the POWER button on the remote or TV is pressed. Also check picture contrast and brightness settings.

How can I fix the remote control not working?

Make sure there are no obstructions between the remote and the TV sensor. Check batteries are inserted correctly (+ and -) and that they are not depleted. Replace with new AAA batteries if needed. Ensure the TV is not in bright sunlight.

How do I connect external devices like a DVD player?

Use an HDMI cable for best quality: connect to HDMI input on TV. Alternatively, use SCART, YPbPr, or AV cables. Select the correct source (HDMI, AV, etc.) using the SOURCE button on remote or TV.

How do I tune digital channels?

Press MENU, select CHANNEL, then choose 'Auto Scan'. Make sure the antenna is connected. The TV will search for both digital and analog channels. You can also use 'Manual Scan' for specific frequencies.

Can I play files from a USB drive?

Yes. Insert a USB device, press SOURCE and select USB. The TV supports Photo, Music, Movie, and Text files. Use the remote to navigate and play files.

How do I set the sleep timer?

Press the SLEEP button on the remote repeatedly to select the desired time (e.g., 30, 60, 90, 120 minutes). The TV will turn off automatically after that time.

What should I do if the screen looks wrong (color, bars, shaking)?

Go to PICTURE menu and adjust brightness, contrast, color, and sharpness. Check video cables are connected properly. If there are bars or shaking, try changing channel or check for interference from nearby appliances.

How do I clean the TV safely?

Turn off and unplug the TV. Use a soft, dry cloth for the screen. For plastic parts, use a lint-free cloth. Do not use wet cloths or strong chemicals like benzene.

How do I mount the TV on a wall?

Remove the stand by unscrewing the neck screws. Use a VESA 200x100 mm bracket with M6 screws (not supplied). Screw length should not exceed 8mm into the TV. Consult a qualified installer for safety.

What is the default password for the Parental Lock?

The default password is '0000'. You can change it in the LOCK menu under 'New Password'. To enable lock, set 'Enable' to On.

USER MANUAL LTV 3202 HD Trevi

32" TV COLOR/MONITOR TFT LED

HD DVB-T - CI SLOT - USB

Manuale D'uso

Instruction manual

1 PREFAZIONE

Black remote control with black buttons and a central play button (no visible text or symbols)

Telecomando

Manuale
d'uso

5 COMANDI E CONNESSIONI TELEVISORE

Technical line drawing of a computer monitor internal structure with no visible text or symbols

6 TELECOMANDO

6.1 INSTALLAZIONE

7.4 COLLEGAMENTO TRAMITE CAVO HDMI

7.6 COLLEGAMENTO TRAMITE CAVO RCA A/V o mini-Y/Pb/Pr

9 TELEVISIONE DIGITALE TERRESTRE (DTV)

10 TELEVISIONE ANALOGICA (ATV)

9 TELEVISIONE DIGITALE TERRESTRE (DTV)

Line drawing of a flat-screen computer monitor with a stand at the bottom (no text or symbols)

32" TV COLOR/MONITOR TFT LED

HD DVB-T - CI SLOT - USB

English

Instruction manual

Contents

Important safety instructions.... 1

Setting up and using your TV.... 4

What's included with your TV.... 6

Front and back connections of the TV....7

Basic installation 8

Remote Control Instruction.... 15

Remote control setup....17

Select Input Source.... 18

Basic menu operation.... 18

USB Multimedia p ayback formatl 33

If you're having problems.... 36

Specifications.... 38

Attaching the stand.... 39

Wall mounting assembly instruction.... 40

Important safety instructions

Warning

• Do not let your TV become wet(for example, by keeping it in a damp room, leaving it outside or dripping water on it)

• You must not put objects filled with water on your TV (including vases of water).

• Read these instructions carefully.

• Keep these instructions in a safe place.

3.Follow all the instructions.
4.Do not put your TV near water.

Cartoon illustration of a computer monitor with a smiling face and a money bag, no text or symbols present

1. Only clean your TV with a dry cloth.

Illustration of a smiling cartoon character interacting with a computer monitor (no text or symbols present)

6.Do not block the ventilation openings.

Cartoon illustration of a computer monitor with a sad face and wavy lines, surrounded by arms and splashes (no text or symbols)

1. Do not put your TV near any heat source (such as radiators or stoves), or near equipment (including amplifiers) that produce heat.

Cartoon illustration of a computer monitor with a sad face and a ringing phone, no text or symbols present

1. Your TV is either fitted with a polarised plug or grounding-type plug. A polarised plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, ask an electrician to replace your plug socket so that it fits your TV plug.

2. Do not walk on, trap, pinch or damage the power cord. Take care that the cord is not pulled, especially at plug sockets and where it comes out of the TV.

Cartoon illustration of a computer with a sad face and power plug, showing stress or shock (no text or symbols)

1. Only use attachments and access stories (included with your TV) that we have approved.

Important safety instructions

1. Only use TV trolleys, stands, tripods or table s that we approve. If you use a trolley/table with your TV, be careful when you move it. So that it doesn't tip over.

1. Unplug your TV both power and antenna during lightning storms or when you won't be using it for a week or more.

Cartoon illustration of a smiling computer monitor with arms and legs, surrounded by clouds and a bridge (no text or symbols)

1. If your TV needs repairing, use a qualified service technician. If you damage your TV, it will need to be serviced.

Illustration of a smiling computer monitor and a person holding a box, both pointing at (no text or symbols present)

1. Be careful when you plug the power cord into a socket. Do not overload wall sockets. They could damage your TV and could give you an electric shock or cause a fire. Check your TV's power cord from time to time, and unplug your TV if the power cord looks worn. Stop using it until you have had the power cord replaced by a qualified technician. Do not twist, kink or pinch the power cord.

2. Disposing of your TV. The fluorescent lamp inside your TV has a small amount of mercury in it. Phone your local council to find out where your nearest recycling centre is located to ensure the TV is scrapped in compliance with UK & EU regulations.

Note

-If your TV is cold, there may be some small 'flickers' when you turn it on. This is normal and there is nothing wrong with your TV.

-Avoid touching the LED screen with any object or holding your finger against it as this may cause damage.

Important safety instructions

You will see these stickers on your TV.

This symbol means there are wires in your TV which are not insulated. If you touch these wires, you may get an electric shock.

This symbol means you should read the servicing guide before you take further action.

[ Caution ]

-You should not service your TV unless you are qualified to do so. If your TV breaks down, contact a qualified TV engineer.

-Make sure you plug in your TV securely.

-If you use your TV to play video games or connect to your computer to use as a screen, keep brightness and contrast at a low level. Images with a high level of brightness or contrast may burn on to the screen permanently.

How to clean your TV

1 Wipe the TV screen with a soft, dry cloth
2 Do not use solvent methyl benzene. Strong chemicals may damage your TV screen.
3 Make sure you switch the TV off before you clean it.

Setting up and using your TV

1. Check the voltage shown on the serial number or rating label on your TV, and make sure your TV is compatible with the voltage in your home. If you are not sure about the voltage you have in your home, please contact your distributor or an electrician.
2. Make sure you plug the power cable into the socket securely. If you have problems plugging in your TV, please contact the shop you bought your TV from to replace the power cable.

The plug is designed , sothwall only fit one way If you have problems plugging in the socket properly, please contact the shop you bought your TV from

1. Do not overload power sockets or extension cords when you are setting up your TV. If you overload the power sockets or extension cords, you could receive an electric shock or cause a fire.
2. Do not place any objects on the power cord when you are setting up your TV. Keep your TV screen away from any sharp objects such as screw drivers or knives so that you don't scratch or damage the TV screen. Only use the correct power cord when you set up your TV.
3. Make sure you turn off your TV when you are not using it. If you won't be using your TV for a week or more, unplug both power and aerial connections.
4. The vents at the back of your TV are to let air cool the inside of your TV, so it doesn't overheat. Please make sure the vents are not blocked.
   5.Do not put your TV on a bed, sofa or carpet.This may block the vents.
5. Do not put your TV in an enclosed space, such as on a bookshelf or in a TV cabinet. Doing this may block the vents.
6. Keep your TV away from direct sunlight.
7. Do not place your TV on an unsteady shelf or desk. The TV could fall and injure you.
8. Do not put objects inside the TV (such as children's toys). Doing this could give you an electric shock or damage the parts inside your TV.

When you must call a technician

If any of the following happens, unplug your TV and contact the shop you bought your TV from or a qualified technician to repair your TV.

1. If the power cord or plug is damaged
2. If liquid gets into the screen
3. If your TV is damp or wet
4. If your TV is damaged
5. If the TV doesn't work properly.

The temperatures your TV will work in

Your TV will only work when the temperature is in the range of 0^ C- 40^ C.

Setting up and using your TV

Do not try to repair your TV yourself. There is high voltage inside it and you could receive an electric shock.

Safety notice

Your TV has a CE marking. This means your TV meets both the EMC directive (89/336/EEC), (93/68/EEC) and the Low Voltage Directive (73/23/EEC) that the European Community have issued.

When you need to throw your TV away

Please contact the shop that sold you your TV when you need to throw it away.

1. Do not throw your old TV away with your household waste.
2. You can also contact your local council to see if they can collect your old TV. If you throw your TV away at a landfill site, dangerous chemicals from your TV can leak into the ground and get into the food chain.
3. When you replace your TV with a new one, the shop who sold you your TV are legally responsible for taking your old TV and throwing it away.

END OF LIFE DISPOSAL

Warning ! This logo set on the product means that the recycling of this apparatus comes within the framework of the Directive 2002/96/CE of January 27, 2003 concerning the Waste of Electrical and Electronic Equipment (WEEE). This symbol means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

If you want to dispose of this equipment, please do not use the ordinary dust bin!

-The presence of dangerous substances in the electrical and electronic equipments can have potential consequences on the environment and human health in the cycle of reprocessing this product.

-Therefore, at the end of its lifetime, this product shall not be disposed with other non-recycled waste. Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

-Local authorities and resellers have set special procedures for or the purpose of collecting and recycling this product (please contact your local authority for further details). You have the obligation to use the selective waste collection systems put in place by your local authority.

-If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

-By disposing.of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

This unit complies with European Council Directive 2006 / 95 CE (Electromagnetic Compatibility & Low Voltage Directives)

What is included with your TV

Technical line drawing of a computer monitor rear panel with no visible text or symbols

TV SET Remote Control

Base

Column screws x4
AAA Batteries x2User guidend column

Base screws x4 and fixed base sheet

Screw driver

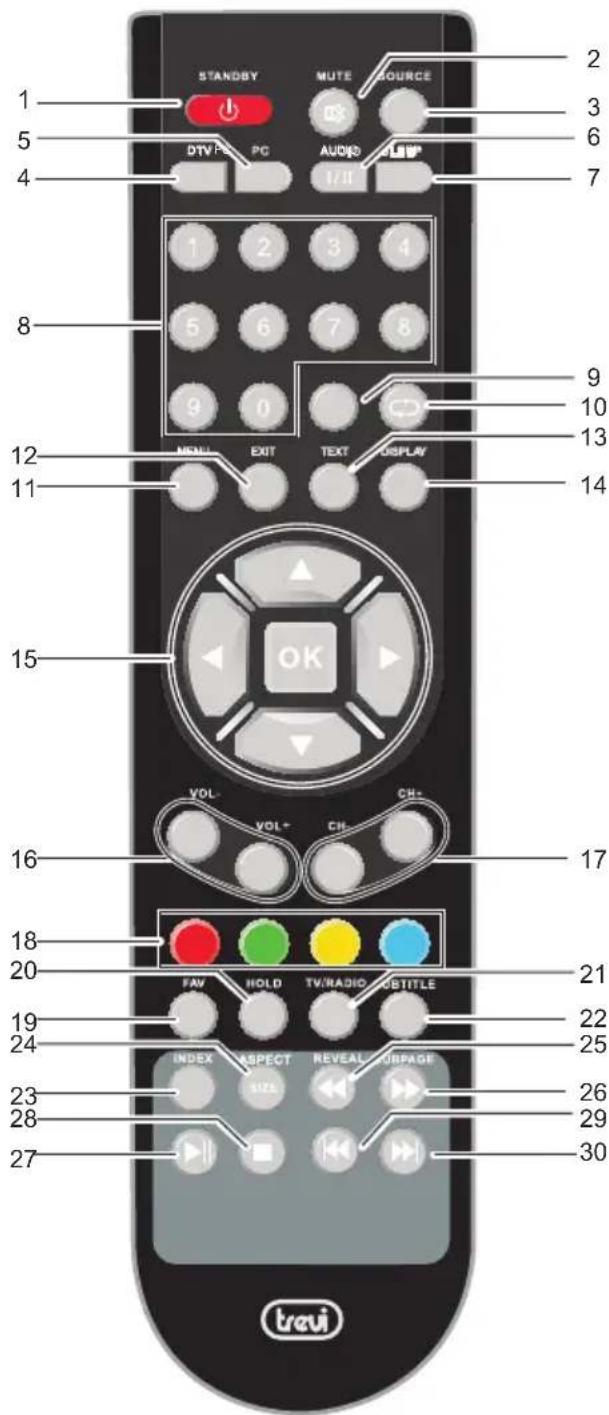

How to use your remote control

1. Take the back cover off your TV remote and put two AAA batteries into the remote control. Make sure the + and - symbols on your batteries match the diagram.
2. Replace the batteries. So they are facing the right way. If you won't be using the remote control for a long time, take the batteries out. Use your remote control carefully. Do not drop. Keep the remote control away from water, direct sunlight and hot surfaces.

Front and back connections of the TV

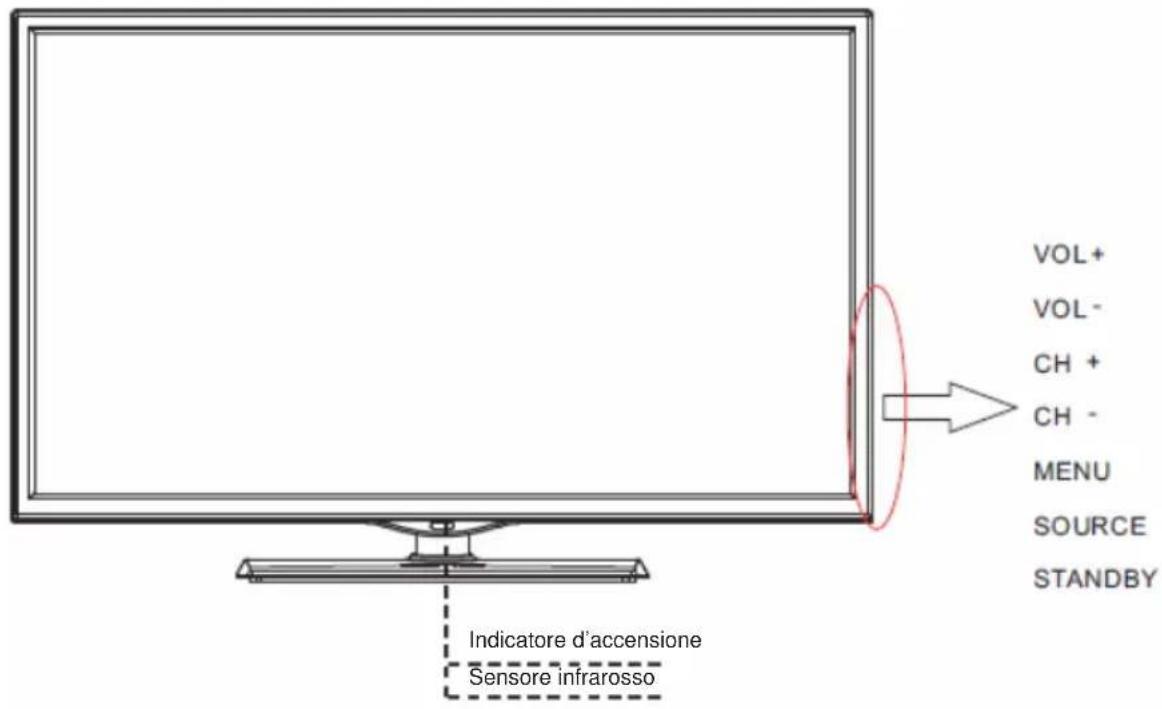

Front View

1. Press "VOL+" or "VOL-" to increase or decrease the volume.
2. Press "CH+" or "CH-" to scan through channels.
3. Press "MEING up the main menu on the screen.
4. Press "SOURCE the input source.
5. Press "STANDBY turn standby mode on or off.
6. POWER INDICATOR: Show red in standby mode, show green or blue when your TV is switched on.
7. REMÔTE SENSOR: Infrared sensor for the remote control.

Back View and Control Connections

Technical line drawing of a computer monitor internal structure with no visible text or symbols

Head phone

SCART

PC Audio

VGA Coax RF

HDMI1

Headphone: Connect the earphone.

SCART: Connect the SCART jack of VCR or DVD

PC AUDIO: Connect the Audio output jack of PC.

VGA: Connect a computer to these jacks.

Coax: Coax output.

RF IN: Connect the antenna.

HDMI1/2/3: Connect the HDMI output jack of DVD.

USB: Connect to portable usb device.

AV IN: Connect the Video and Video Audio output jack of DVD or VCR.

YPbPr:Connect the YPbPr output jack of DVD or VCR.

CI:Connect to the CI card.

Basic installation

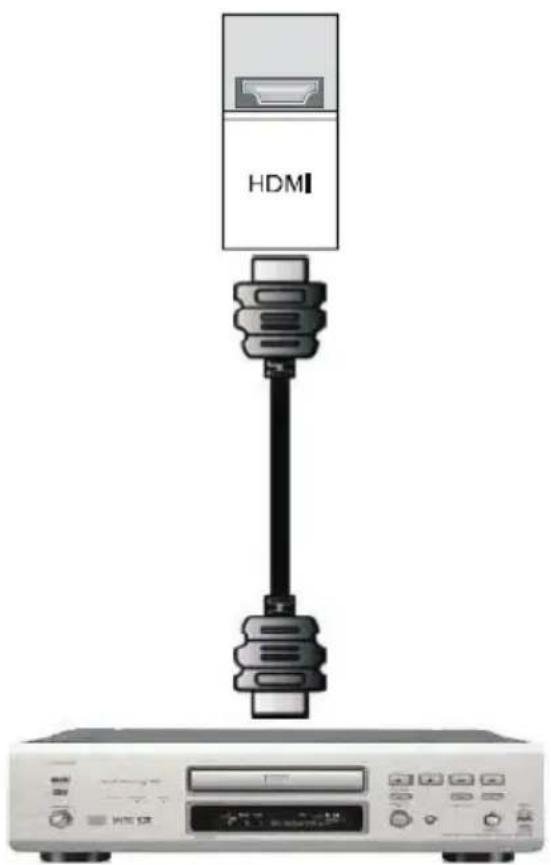

Connection signal HDMI Connection

Illustration of a HDMI connected to a CD-ROM via a cable (no text or symbols on the device itself)

1. Turn off the power to the LED TV and DVD player.
2. Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI input in the rear of your LED TV.
3. Turn on the power to the LED TV and your DVD player.
4. Select Digital HD using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the Remote Control.

Basic installation

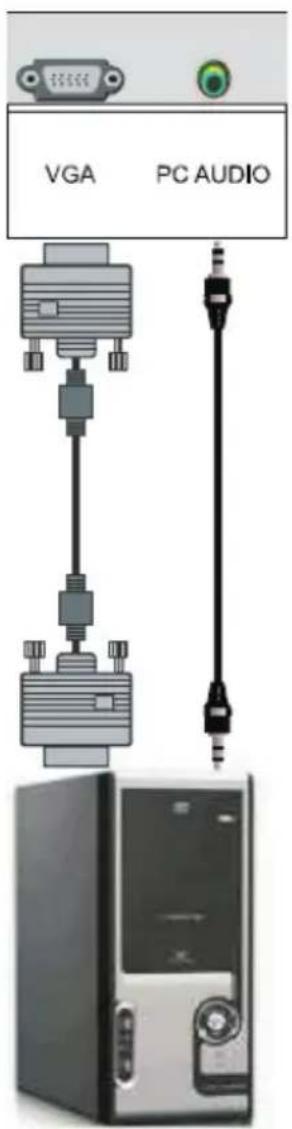

PC and audio Connection

1. Turn off the power to the your LED TV and Computer.
2. Connect a15-pin D-sub RGB (VGA) cable to the RGB output of your computer and the other end to the VGA input (purple area) in the rear of your LED TV.
3. Turn on the power to the your LED TV and Computer.
4. Select PC using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the Remote Control.

Basic installation

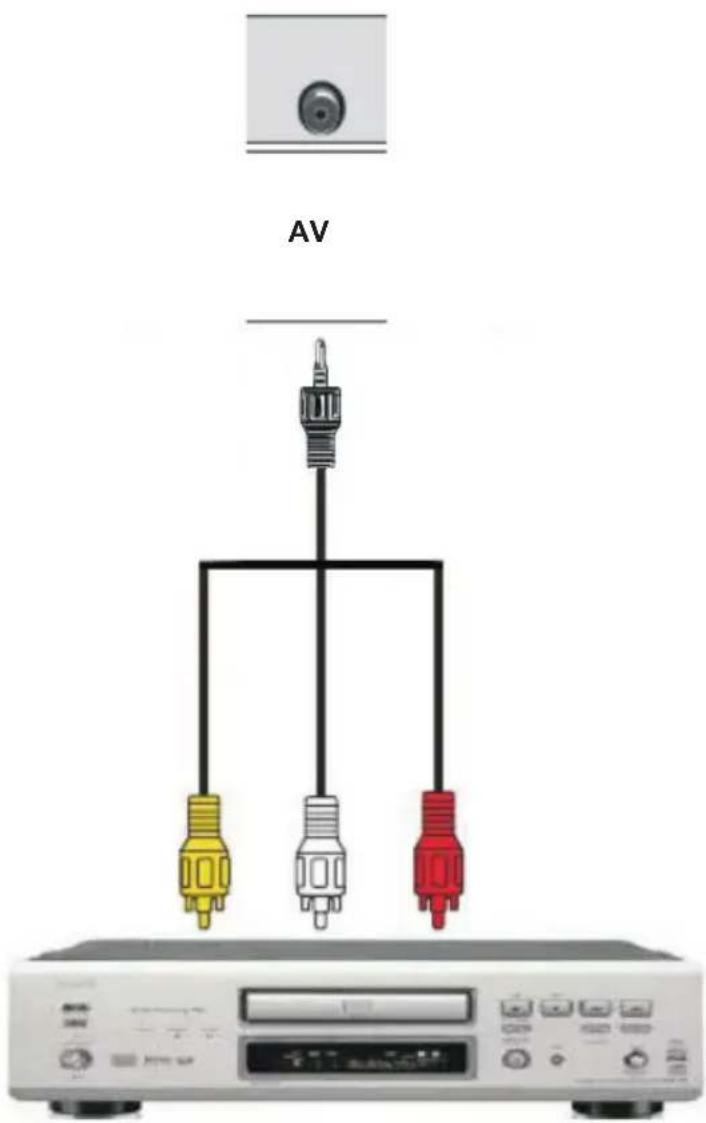

VIDEO and audio Connection

1. Turn off the power to the LED TV and DVD player.
2. Connect the VIDEO jack on the rear of your DVD player to the VIDEO out on the rear side of your LED TV.
3. Connect the R (red color) and L (white color) audio connectors on the rear of your DVD player to the AV audio input connectors in the side of your
   LED TV.
4. Turn on the power to the LED TV and DVD player.
5. Select AV using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the Remote Control.

Basic installation

YPBPR and audio Connection

1. Turn off the power to the LED TV and DVD player.
2. Using the connectors in the green color area, connect the y(green color) connector, Pb (blue color) connect to and Pr (red color) connector on the rear of your DVD player to the corresponding YPbPr(Black color) connector in the component Analog HD group in the rear of your LED TV.
3. Turn on the power to the LED TV and DVD player.
4. Select Component Analog HD using the SOURCE button on the remote or front of the LED TV or directly by pressing the SOURCE button on the Remote Control.

NOTE:

Refer to your DVD player user manual for more information about the video output requirements of the product.

Basic installation

SCART Connection

1. Turn off the power to the LED TV and DVD player.
2. Connect a SCART jack on the rear of your DVD player to the SCART jack.
3. Turn on the power to the LED TV and your DVD player.
4. Select SCART using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the Remote Control.

Basic installation

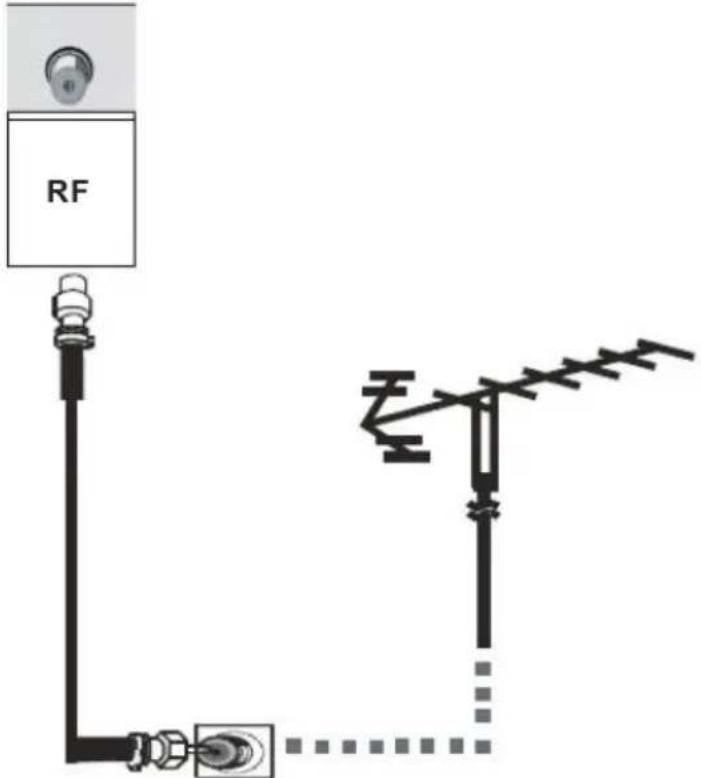

ANTENNA Connection

1. Turn off the power to your LED TV.
2. Connect a coaxial (RF) connector from your antenna, cable or cable box to the TV connector on the rear of your LED TV.
3. Turn on the power to your LED TV.
4. Select TV using the SOURCE button on the front of the LED TV or directly by pressing the SOURCE button on the Remote Control.

USB connection

Basic installation

HEADPHONE Connection

-You can connect a headphone to your TV if you wish to watch program without disturbing people around you.

-Insert some standard headphone with a 3.5mm jack plug into the 3.5mm jack on the back of the TV (see diagram).

NOTE:

1. HEADPHONE VOLUME WARNING.

Connect headphones with the volume set low and increase it if required.

Prolonged listening through some headphones at high volume settings can result in hearing damage.

1. You will not receive the sound from the TV when you connect headphones to the system.

Remote control instruction

1. STANDBY

Press this button to switch your TV on or put it into standby.

2. MUTE

Press MUTE to turn off the sound on your TV.

Press MUTE again to put the sound back on your TV.

3. SOURCE

Press this button to select an input source.

4. DTV

Press this button to enter DTV mode.

5. PC

Press this button to enter PC mode.

6. AUDIO

Press this button to select TV sound option.

7. SLEEP

Press this button to set up the amount of time before your TV switches off automatically.

8. Number buttons

Press 0-9 buttons to select a TV channel.

You can also use these buttons when you are entering the page number to watch teletext.

9

No role.

10.

Press this button to go back to the channel you were previously watching

11. MENU

Press this button to show and choose functions from the on screen display (OSD) menu.

12. EXIT

Press this button to leave the menu you're in.

13. TEXT

Press this button to switch teletext on or off.

14.DISPLAY

Press this button to show information about the TV programme you are watching.

15. THUMBSTICK(▲/▼/◄/►/OK)

Allows you to navigate the on-screen menus and adjust the system settings to your preference.

16. VOL +/-

Press this button to reduce or increase the volume on your TV.

17. CH +/-

Press this button to go through the channel list.

To go through channels quickly, press and keep holding the button down.

18. COLOR BUTTONS

Select 4Preferred TELETEXT Page.

19. FAV

Press this button to show the favourite channel menu on your TV when you watch digital video broadcasting signal TV programmes.

Remote control instruction

20. HOLD

Press this button to freeze or unfreeze the screen of text you are viewing.

21. TV/RADIO

Press this button to select the audio and video input signal when you want to watch TV or listen to radio.

22. SUBTITLE

Press this button to show subtitles for the programme you are watching. Press again to hide the subtitles.

23. INDEX

Press this button to show the index page.

24. ASPECT

This button changes the picture's cropping method.

SIZE

Press this button to change the screen size while you are on teletext.

25. REVEAL

Press this button to show or hide the TEXT.

Fast reverse key in MEDIA mode.

26. SUBPAGE

Press this button for sub coded pages.

Fast forward key in MEDIA mode.

27.

PLAY/PAUSE in PVR and MEDIA mode.

28.

Stop in PVR and MEDIA mode.

29.

Jump to previous track in MEDIA mode.

30.

Jump to next track in MEDIA mode.

Remote control setup

USING THE REMOTE CONTROL

- Point the remote control at the remote sensor located on the unit.

- When there is a strong ambient light source, the performance of the infrared remote sensor

·may be degraded, causing unreliable operation.

TO INSTALL THE BATTERIES

1. Open the battery door

Simple grayscale diagram of a cylindrical object with a downward arrow, no text or symbols present

1. Insert 2"AAA" batteries.

Two views of a battery component, one showing internal structure and the other a rounded shape with a small circular mark (no text or symbols)

BATTERY REPLACEMENT

When the batteries become weak, the operating distance of the remote control is greatly reduced and you will need to replace the batteries.

CAUTION : Danger of explosion if battery is incorrectly replaced.

NOTES

- If the remote control is not going to be used for a long time, remove the batteries to avoid damage caused by battery leakage corrosion.

- Do not mix old and new batteries. Do not mix ALKALINE, standard (CARBON-ZINC) or rechargeable (NICKEL-CADMIUM) batteries.

- Always remove batteries as soon as they become weak.

- Weak batteries can leak and severely damage the remote control.

WARNING :

Do not dispose batteries in a fire. Batteries may explode or leak.

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

Select Input Source

Basic Operation

Press SOURCE button on the remote control to display the input source list

Press ▼button to select the input source you want to watch.

Press OK button to enter the input source.

Press EXIT button to quit.

Picture Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select PICTURE in the main menu, it will highlight the first option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Picture Mode

Press ▼ / ▲ button to select Picture Mode, then press ◀ / ▶ button to select.

(Available Picture mode: Dynamic, Standard, Mild, Personal).

You can change the value of contrast, brightness, color and sharpness when the picture is in Personal mode.

TIPS: You can press PMODE button on the remote control to change the Picture Mode directly.

Brightness

Press ▼ / ▲ button to select Brightness, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Contrast

Press ▼ / ▲ button to select Contrast, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Sharpness

Press ▼ / ▲ button to select Sharpness, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Saturation

Press ▼ / ▲ button to select Saturation, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Hue

Press ▼ / ▲ button to select Hue, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Colour Temp

Press ▼ / ▲ button to select Color Temperature, then press ◀ / ▶ button to select.

(Available Color Temperature: Standard, Cool, Warm).

Aspect Ratio

Press ▼ / ▲ button to select Aspect Ratio, then press ◀ / ▶ button to select.

(Available Aspect Ratio: Auto, Full, Zoom1, Zoom2, 4:3).

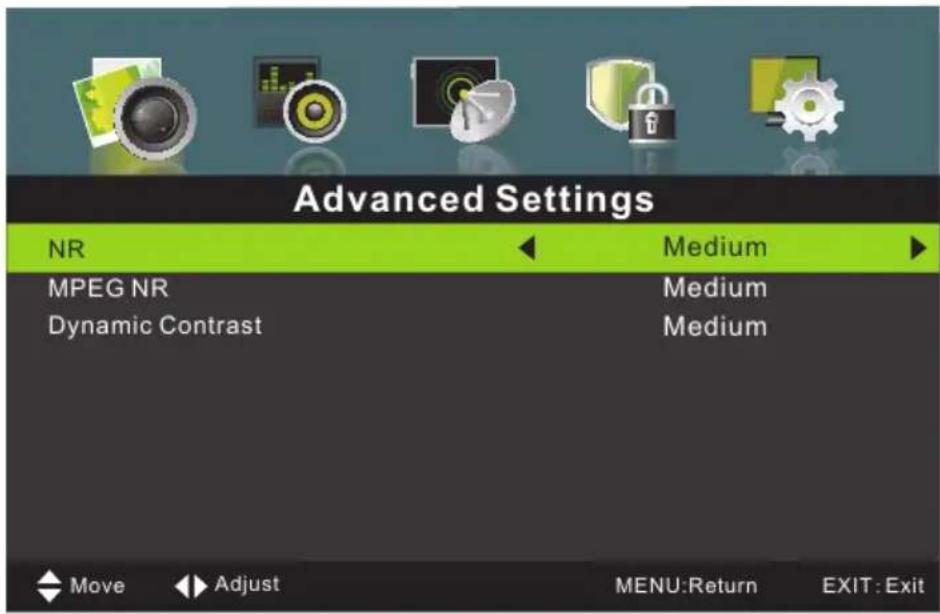

Advanced Settings

Press ▼ / ▲ button to select Brightness, then press OK / ▶ button to enter sub-menu. Press ▼ / ▲ button to adjust.

Sound Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select Sound in the main menu, it will highlight the first option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the SOUND menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Sound Mode

Press ▼ / ▲ button to select Sound Mode, then ▼ / ▲ button to select.

(Available Sound mode: Standard, Music, Personal, Movie).

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Treble

Press ▼ / ▲ button to select Treble, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Bass

Press ▼ / ▲ button to select Bass, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Balance

Press ▼ / ▲ button to select Balance, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

Surround Sound

Press ▼ / ▲ button to select Surround Sound, then press ◀ / ▶ button to select On or Off.

EQ Setting

Press ▼ / ▲ button to select EQ Setting, then press OK/▶ button to enter submenu.

AVL

Press ▼ / ▲ button to select AVL, then press ◀ / ▶ button to select On or Off.

SPDIF

Press ▼ / ▲ button to select SPDIF, then press ◀ / ▶ button to select Off, Auto, PCM.

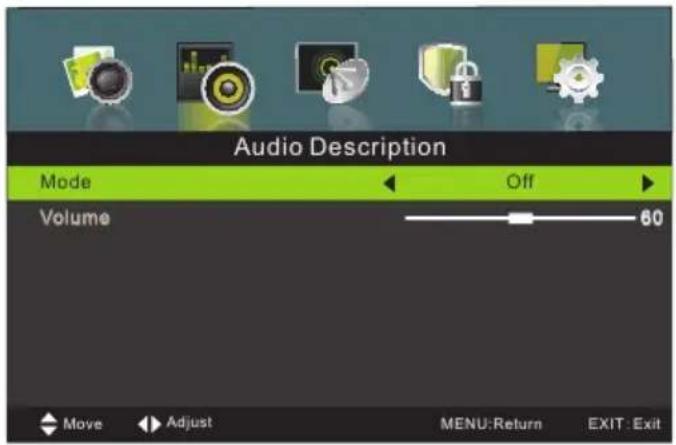

Audio Description

Press ▼ / ▲ button to select Audio Description, then press OK/▶ button to enter submenu.

Sound Type

Press ▼ / ▲ button to select Sound Type, then press ◀ / ▶ button to select. (Available Sound Type: Stereo, Dual I, Dual II, Mixed).

Channel Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select CHANNEL in the main menu, it will highlight the first option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the CHANNEL menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Tune Type

Press ▼ / ▲ button to select Tune Type, then press OK/▶ button to select Antenna or Cable.

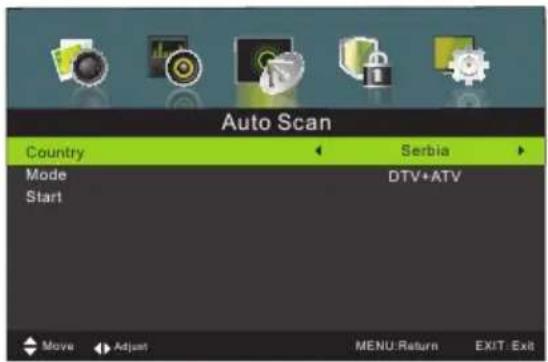

Auto Scan

Press ▼ / ▲ button to select Auto Scan, then press OK/▶ button to enter submenu.

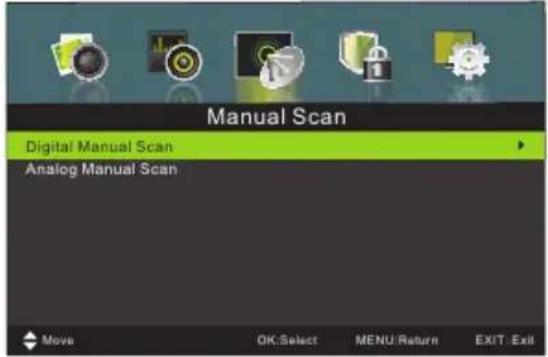

Manual Scan

Press ▼ / ▲ button to select Manual Scan, then press OK/▶ button to enter submenu.

Dignital Manual Scan

Press ▼ / ▲ button to select Digital Manual Scan, then press OK/▶ button to enter submenu.

Analog Manual Scan

Press ▼ / ▲ button to select Analog Manual Scan, then press OK/▶ button to enter submenu.

Channel Edit

Press ▼ / ▲ button to select Channel Edit, then press OK/▶ button to enter submenu.

The three colored key is the shortcut key for programming the channel. First press ▼ / ▲ to highlight the channel you want to delete or move or skip, then: Press the Red button to delete the channel. Press the Green button to skip the select channel. (Your TV set will skip the channel automatically when using CH+/- to view the channels.) Press the Blue button to to set the channel to moving state. Then press ▼ / ▲ to move it to the position you want to put.

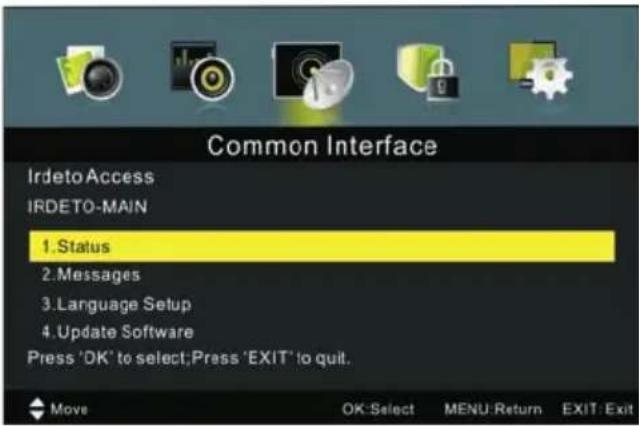

COMMON INTERFACE

Press ▼ / ▲ button to select Common Interface, then press OK/▶ button to enter submenu.

Only available when there is CI card under DTV.

SIGNAL INFORMATION

Press ▼ / ▲ button to select Signal Information, then press OK/▶ button to see the detail information about the signal.

Only available when there is signal under DTV.

Please Note:

The channel options are only available when you select DTV as your SOURCE. When you open the OSD menu on other sources (HDMI, YPbPr, AV, PC) these options will be grayed out.

Lock Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select LOCK in the main menu, it will highlight the first option.

1. Press ▼ / ▲ button to select the option that you want to adjust in the LOCK menu.
2. Press ◀ / ▶ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu.

Enter Password

Press ▼ / ▲ button to select Enter Password, then press OK button to make the following 4 options valid. (Default password is '0000'.)

Enable

Press ▼ / ▲ button to select Enable, then press Press ◀ / ▶ button to select On or Off. Channel Locks, Parental Rating and Lock Keypad are available when Enable is On

Channel Locks

Press ▼ / ▲ button to select Channel Locks, then press OK/▶ button to enter submenu.

Lock Keypad

Set to prevent it from being used by young child ren, or other unexpected usage.

Press ▼ / ▲ button to select Lock Keypad, then press ◀ / ▶ button to select On or Off.

New Password

Press ▼ / ▲ button to select New Passwor, then enter a 4-digital number you want to set twice

Clear Lock

Press ▼ / ▲ button to select Clear Lock, then press ◀ / ▶ button to select.

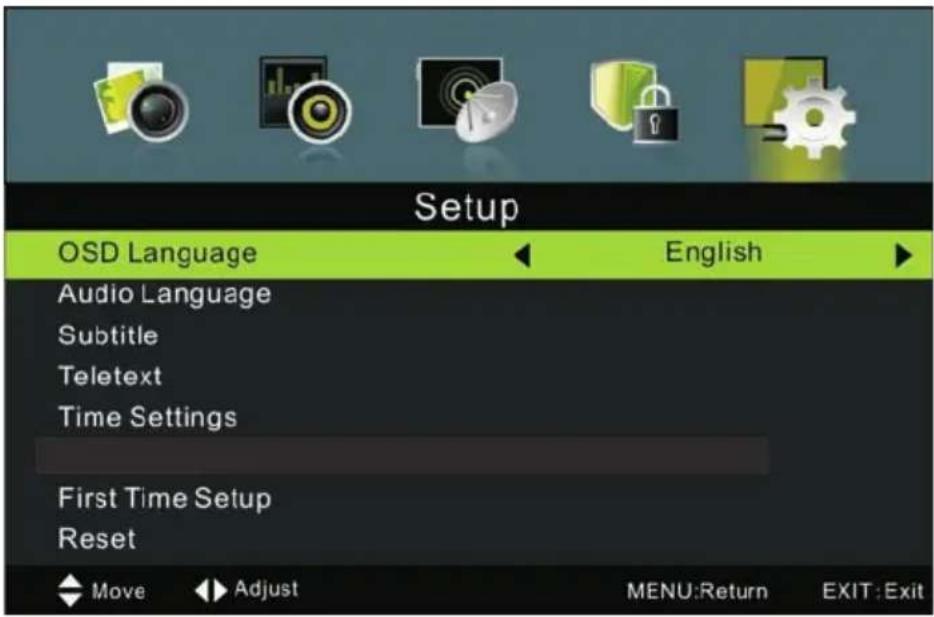

Setup Menu

Press MENU button to display the main menu.

Press ◀ / ▶ button to select SETUP in the main menu, it will highlight the first option.

OSD Language

Press ▼ / ▲ button to select th ◀ / ▶ button to select pressSDSLanguage

Audio Language

Audio Language, then press Press ▼ / ▲ button to select

◀ / ▶ button to select the Audio Primary Language and Audio Secondary Language

Subtitle

Press ▼ / ▲ button to select Subtitle, then press OK button to enter submenu.

Teletext

Adjust Teletext settings. Only available under DTV and ATV source.

Press ▼ / ▲ button to select Teletext, then press OK/▶ button to enter submenu.

Under DTV source, press ◀ / ▶ button to select Digital Teletext Language

Under ATV source, press ◀ / ▶ button to select Decoding Page Language

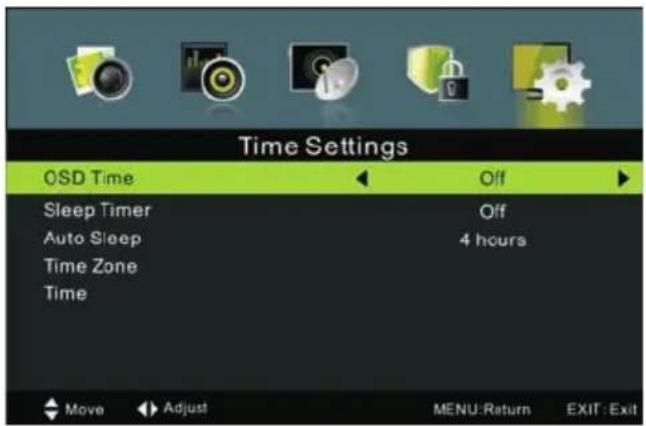

Time Settings

Press ▼ / ▲ button to select Time Settings, then press OK/ ▶ button to enter submenu.

First Time Setup

Press ▼ / ▲ button to select First time Setup, then press OK button to enter

Reset

Press ▼ / ▲ button to select Reset, then press OK/ ▶ button to enter

If you are sure to reset, press Yes to reset.

Software Update(USB)

Press ▼ / ▲ button to select, then press OK button to enter. Software Update(USB)

PC Menu

Press SOURCE button to display the main menu.

Press ▼ / ▲ button to select PC in the main menu, then press OK button to enter.

Press MENU button to display the main menu.

Press ◀ / ▶ button to select PICTURE in the main menu, then press OK button to enter.

Press ▼ / ▲ button to select PC Setting, then press OK button to enter.

1. Press ▼/▲ button to select the option that you want to adjust in the SCREEN menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

AUTO ADJUST

Press ▼ / ▲ button to select Auto Adjust, then press OK button to start adjusting automatically.

H POSITION

Press ▼/▲ button to select H Position, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

V POSITION

Press ▼/▲ button to select V Position, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

PHASE

Press ▼/▲ button to select Phase, then press OK button to enter sub-menu. Press ◀/▶ button to adjust.

CLOCK

Press ▼ / ▲ button to select Clock, then press OK button to enter sub-menu. Press ◀ / ▶ button to adjust.

ATV /SCART/HDMI/AV/YPbPr/PC

1. PC Setting in PICTURE menu is available in PC menu is available in HDMI Input only.
2. Audio Description and Sound Type in AUDIO menu is invalid.
3. SCART/HDMI/AV/YPbPr/PC mode has no CHANNEL menu.
4. Parental Rating and Channel Locks in PARENTAL CONTROL menu is invalid for SCART/HDMI/AV/YPbPr mode. Parental Rating is invalid for ATV mode. PC mode has no PARENTAL CONTROL menu.
5. Audio Languages, Subtitle and PVR Settings in SETUP option are invalid for SCART/AV/PC mode. Audio Languages, Subtitle, Teletext PVR Settings in SETUP option are invalid for HDMI/YPbPr mode.

Media Menu

Note: Before operating USB menu, Plug in USB device, then press SOURCE button to set the Input Source to USB. Press ◀ / ▶ button to select USB in the Source menu, then press OK button to enter.

Press ◀ / ▶ button to select the option you want to adjust in the main USB menu, then press OK button to enter.


Press ◀ / ▶ button to select PHOTO in the main menu, then press OK button to enter. Press ◀ / ▶ button to select drive disk you want to watch, then press OK button to enter. Press ◀ / ▶ button to select return option to back to the previous menu.

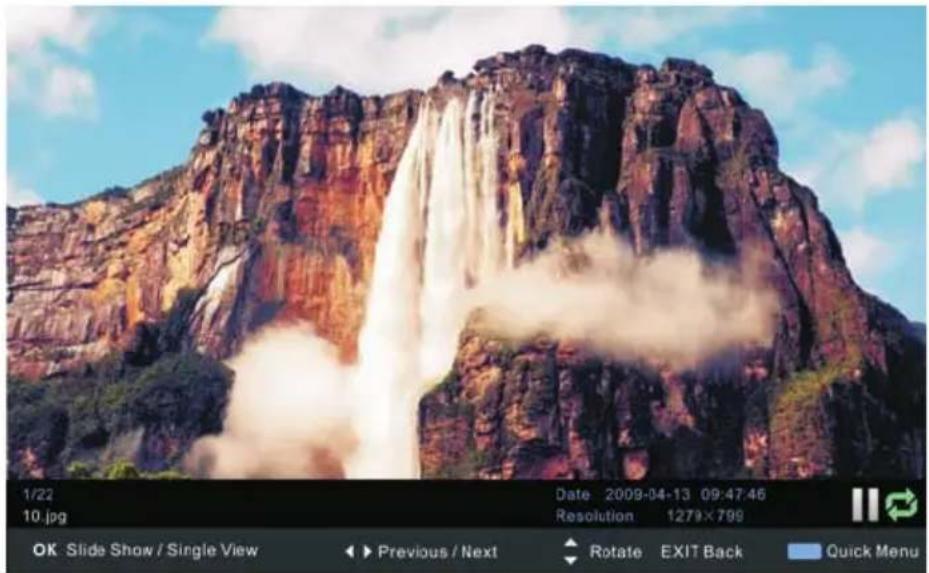

Waterfall cascading over a rocky cliff under a blue sky, with no visible text or symbols in the main image area.

Music

Press ◀ / ▶ button to select MUSIC in the main menu, then press OK button to enter. Press ▼ / ▲ button to select drive disk you want to watch, then press OK button to enter. Press ▼ / ▲ button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

Movie

Press ◀ / ▶ button to select MOVIE in the main menu, then press OK button to enter. Press ▼ / ▲ button to select drive disk you want to watch, then press OK button to enter. Press ▼ / ▲ button to select return option to back to the previous menu.

River scene with a ferry boat and city skyline under cloudy sky (no visible text or symbols)

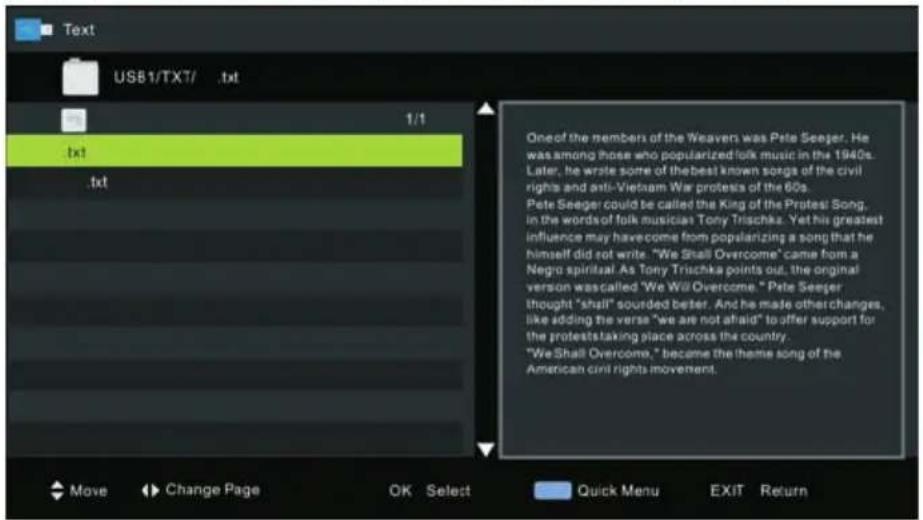

Text

Press ◀ / ▶ button to select TEXT in the main menu, then press OK button to enter.

Press ▼ / ▲ button to select drive disk you want to watch, then press OK button to enter.

Press ◀ / ▶ button to select return option to back to the previous menu.

When highlighting the option you select, the file information will appear on the right.

If you're having problems

If you are having problems with your TV, carry out the following checks first. If you are still having problems, unplug your TV and contact the service centre.

Problems and how to fix them

There is no sound and no picture coming from my TV.

-Check that you have connected the TV power cord properly and switched the wall socket on.

-Check that the power switch at the rear of the TV is set to "ON".

-Check that you have turned on the POWER button on your TV.

-Check the picture contrast and brightness setting.

There is a normal picture but no sound coming from my TV.

-Check that your TV is not muted or has the volum e down.

-Switch the channel, the problem may be with the channel you're on, not the TV.

-Check that your audio cable input has been plugged in properly. If you are using an external a multiplier.

The remote control does not work.

-Check to see if there is any object between your TV (such as a piece of furniture) that could block the remote control from connecting with the sensor on your TV.

-Have you put the batteries into the remote control the right way? ( So + to + and - to - )

-Correct remote operating mode was set (such as TV or VCR).

-The TV is not positioned in bright sunlight .

-Try fitting new batteries if none of the above work.

The TV has turned off suddenly.

-Check that you have not set the sleep timer.

-Check that you have not set the timer to control the socket which has your TV power cord on.

-Check that you have not set auto standby with the broadcast signal source which is connected to your TV.

The picture on my TV appears slowly after I have switched it on.

This is normal. The image takes a few seconds to appear after you have switched the TV on. Please contact your service centre if picture has not appeared after five minutes.

There is no or poor quality colour or a poor picture on my TV.

-Change the colour setting on the PICTURE MENU.

-Keep a distance between your TV and any VCR you may be using

-Try watching another channel. The problem may be with the channel you're watching.

-Are the video cables installed properly?

-Change the setting of picture brightness on PICTURE MENU.

There are horizontal and vertical bars on the screen, the picture is shaking.

-Check if any signal interference activities is going on nearby, such as an electrical appliance or power tool is in operation.

The reception is poor on some channels.

-The TV channel you're watching may be having problems. Change to another channel and see if the same is happening.

-TV broadcasting signal is weak or has been interrupted.

-Check whether signal sources have any possible interference.

There are lines or streaks on the pictures.

-Check if there is any damage to the aerial on the roof, try to change the direction of the aerial to receive a better signal.

One of the TV's speakers does not work.

-Check the sound balance setting on SOUND MENU.

If you're having problems

Note: This page only refer to Video Graphics adaptor (VGA) problems.

Problems and how to fix them

The signal is out of range.

-Change the resolution, horizontal or vertical frequency of your source (PC etc.).
-Check whether the signal cable is connected from the PC to your TV properly.
-Check the signal input source is connected properly.

There is a vertical bar or stripe on my TV screen.

-Turn on the auto configure or change the horizontal or vertical frequency position.

Screen colours aren't appearing as they should be or single colour.

-Check if the video signal cable is connected properly
-Reinstall your PC video card if the signal source is from your computer.

Maintaining your TV

If you clean your TV carefully and regularly, it helps your TV to last longer. Make sure you turn the power off and unplug the power cord on your TV before you begin to clean it.

Cleaning the screen

1. Here's a great way to keep the dust off your screen. Wet a soft cloth in a mixture of lukewarm water and a small amount of fabric softener or washing-up liquid. Wring the cloth until it's almost dry and then use it to wipe the screen.
2. Make sure there is no excess water on your TV when you have finished cleaning it.

Cleaning the plastic parts of your TV

Wipe the plastic parts of your TV with a soft, dry, lint-free cloth. Do not use a wet cloth.

If you are going to be away for a while

If you are not going to use your TV for a while (such as when you go on holiday), you should unplug the power cord from the socket and disconnect your aerial to protect your TV against possible damage from lightning or power surges.

SPECIFICATIONS

Panel	32inch
Pixel pitch	0.51 (H) x 0.51 (V)
Resolution	1366 x 768
Aspect Ratio	16:9
Display colours	16.7M colours
Contrast	1200:1
Brightness	230cd /m2
Response time	8 ms
Viewing angle	178 (H) x 178(V)
Backlight life	50,000 hours
Power supply	100-240V~ 50/60Hz
Power consumption	55W
Speaker	2x8W

Attaching the stand

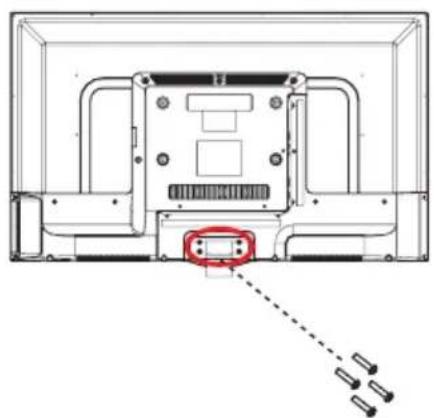

Technical line drawing of a computer monitor rear panel with a red arrow pointing to a button (no text or symbols present)

Place the TV face down on a protective surface.

Then the neck on the TV.

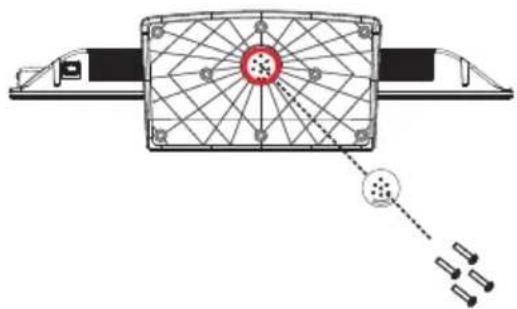

Technical line drawing of a computer monitor rear panel with a highlighted internal component and dotted lines indicating connection points (no text or symbols present)

Place insert the coldrews

4x12mm(found in the accessories box) in the circled area with the screw driver.

Diagram of a mechanical or electrical component with grid pattern and connection points (no text or symbols)

Place the startte TV screw the mounting bracket screw holes align, then insert and tighten the base screws 4x12mm(found in the accessories box) in the circled area with the screw driver.

Line drawing of a flat-screen computer monitor with a stand at the bottom (no text or symbols)

Then the TV is ready for use now.

Wall mounting assembly instruction

Remove the Stand

To remove the stand remove the screws in the circled area and the neck will come off.

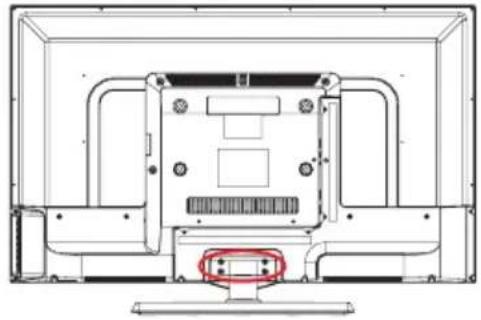

Technical line drawing of a flat-screen computer monitor with visible rear panel and mounting bracket (no text or symbols)

Wall-mounting the device

If you are mounting the device, place consult a qualified installer for further instructions on bracket support and wall support.

Mounting Specification:200mm x 100mm using screw size M6(not supplied).Length of screw should not exceed 8mm.

Please Note: The 8mm length of screw refers to how deep the screw can go inside the mounting holes.

When you're buying screws, you should add the original 6mm to the thickness of your mounting plate in order to get the total screw length

Precautions for correct disposal of the product.

The symbol shown on the equipment indicates that waste must be disposed of in "separate collection" and so the product must not be disposed of together with urban waste.

The user must take the product to special “separate waste collection centres” provided by local government, or deliver it to the retailer against the purchase of a new product.

Separate collection of waste and subsequent treatment, recycling and disposal operations promotes the production of equipment with recycled materials and limits negative effects on the environment and on health caused by improper handling of waste.

Illegal disposal of the product leads to the enforcement of administrative penalties.
