USER MANUAL AIVIA K8100 M6980X GIGABYTE

Aivia Gaming Keyboard

User's Manual

English 2
繁體中文 12
简体中文 22
Deutsch 32
Portugués 42
Français 52
Espanol. 62
Pycckn 72
YkpaHcbka 82
韓國海 92
Türkce 102
Polski 112

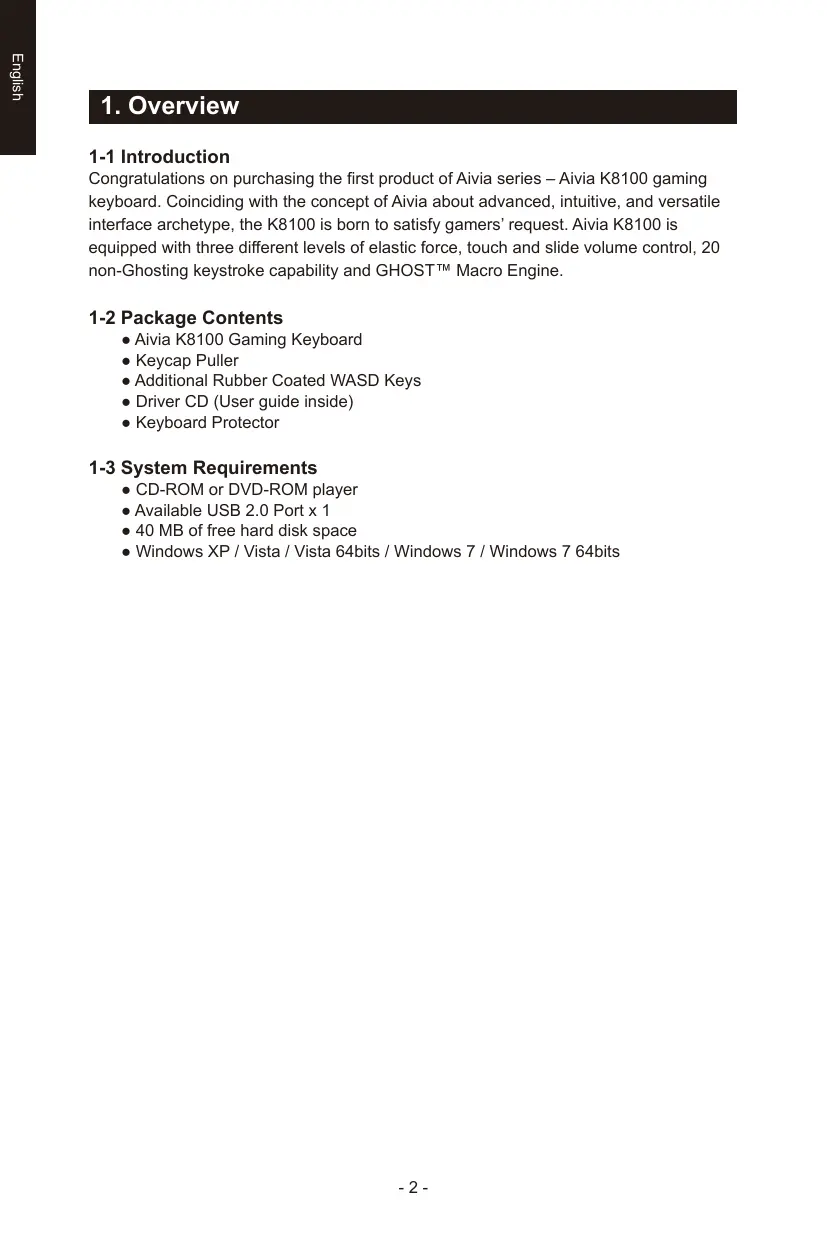

1. Overview

1-1 Introduction

Congratulations on purchasing the first product of Aivia series – Aivia K8100 gaming keyboard. Coinciding with the concept of Aivia about advanced, intuitive, and versatile interface archetype, the K8100 is born to satisfy gamers' request. Aivia K8100 is equipped with three different levels of elastic force, touch and slide volume control, 20 non-Ghosting keystroke capability and GHOST™ Macro Engine.

1-2 Package Contents

• Aivia K8100 Gaming Keyboard
  Keycap Puller
  Additional Rubber Coated WASD Keys
• Driver CD (User guide inside)
• Keyboard Protector

1-3 System Requirements

• CD-ROM or DVD-ROM player
  Available USB 2.0 Port x 1
• 40 MB of free hard disk space
• Windows XP / Vista / Vista 64bits / Windows 7 / Windows 7 64bits

2. Installation

2-1 Hardware Installation

Step 1 Plug USB connector into either desktop or laptop's USB port

Step 2 Open "Control Panel" "System" "Hardware" "Device Manager" and confirm the keyboard is working properly

2-2 Software Installation

Before installing the driver of K8100, we suggest checking whether any other keyboard drivers have been previously installed on your system. If yes, in order to prevent possible conflict, please un-install or remove them before installing K8100 driver. (The following steps assume your CD-ROM Drive is Drive D).

Step 1 Please insert the driver CD into CD-ROM, you will see GIGABYTE CD main menu. (If it does not show up, run "D:\setup.exe")
Step 2 Click "GhostTM Engine Installation" button to start GhostTM Engine installation.
Step 3 Please select language for the installation process.
Step 4 Click on "Next" button.
Step 5 Click on "Install" button to begin installation.
Step 6 Click on "Finish" to exit the wizard.

3. Keyboard Overview

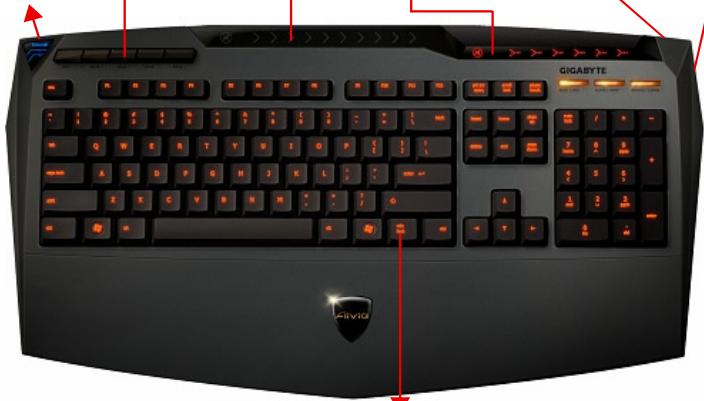

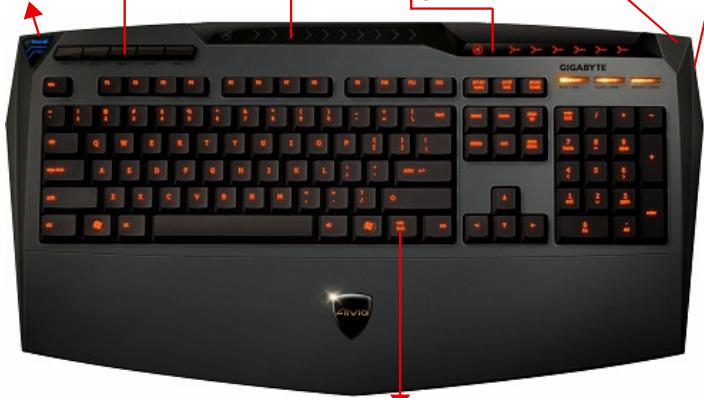

3
Touch and slide volume control area

2
Macro Key

4
Volume indicator

1
Profile Changer

6
Backlight On/OFF switch

5
USB 2.0 HUB

Win Luck

1 Profile Changer: Five colors to represent different profiles.

Tip

Red: mode 1, Green: mode 2, Blue: mode 3, Purple: mode 4, Light Blue: mode 5

2 Macro Keys: One profile mode is bundled with 5 programmable Macro hot keys.
Touch and slide volume control area: Built-in touch sensor with mute key and six levels of audio volume. Touching and sliding to control volume more smoothly and accurately.
Tip Keep sensor from far right or far left pressed, volume will increase or decrease linearly. (Sensitivity will be affected by environment static)

4 Volume indicator: LED light glows on as your finger moves.
USB 2.0 HUB
Backlight On/OFF switch: Press this button to switch backlight On/OFF
Win Luck: Prevent Windows key from interrupting game operation.

4. Software Ghost™ Engine Overview

4.1 Main Panel

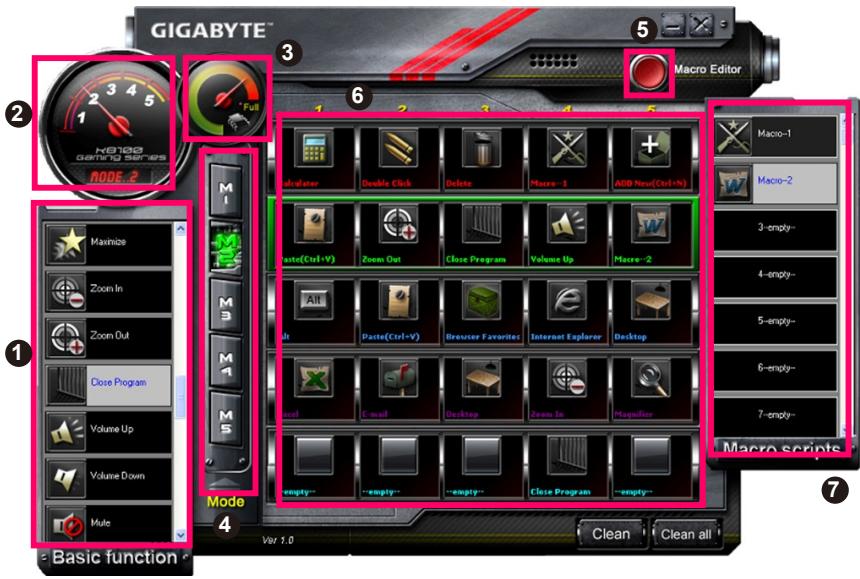

Basic Function
2 Profile Indicator
3 Memory Status (25 levels)
4 Profile Indicator
Macro Editor Button
Macro Hot Keys Monitor
7 Macro Scripts

4.1.1 Main panel Setting

Basic Function

Collects some regular functions for gamers as Forward scrolling, Double click and multimedia hot keys. You can directly drag one icon and drop it into Macro Hot Keys Monitor to set a Macro hot key.

2 Profile Indicator

Five different colors of Profile Changer represent each mode in use.

Memory Status (25 levels)

Display the amount of Macro hot keys in use.

4 Profile Indicator

The function is the same as item two.

Macro Editor Button

Press this button to boot Macro Editor. Edit advanced Macro sets.

Macro Hot Key Monitor

Display all status of Macro hot keys.

7 Macro Scripts

Display all status of Macro Scripts.

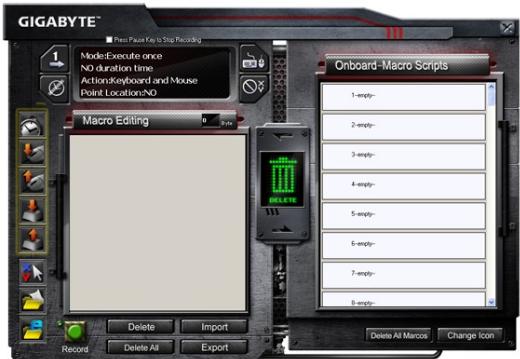

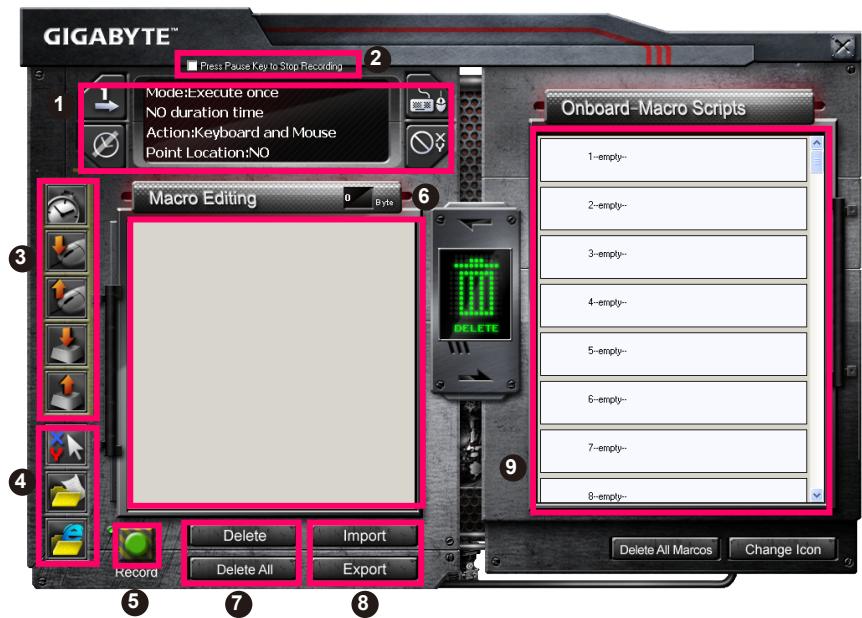

4.2 Macro Editor

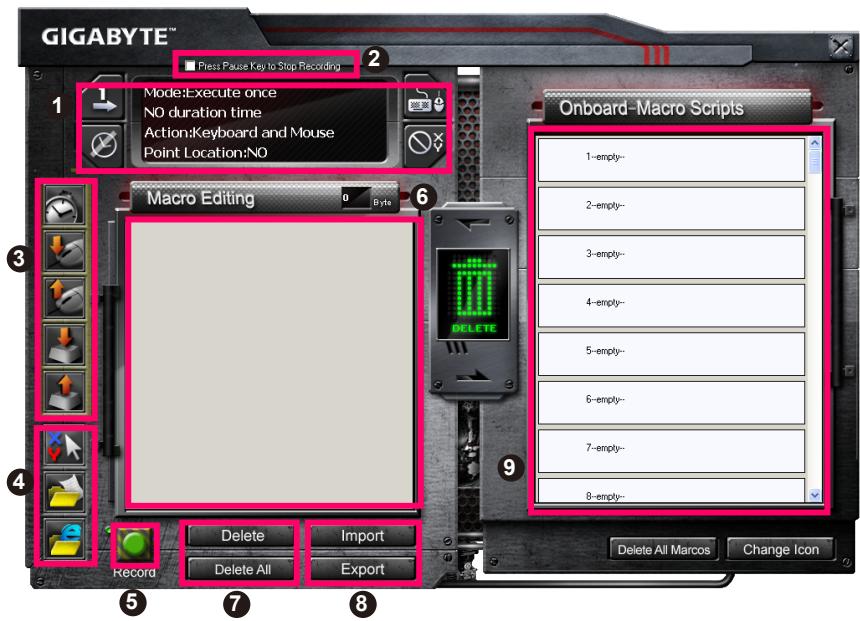

1 Macro Setting Panel
Press Pause Key to Stop Recording
3 Quick-insert Bar
4 Special Command
5 Record/Stop Button
Macro Editing Note
Macro Editing Note Delete/Delete All
Macro Editing Note File Import/Export
9 Onboard Macro Scripts

4.2.1 Macro Editor setting

Macro setting panel

• Macro Play Setting:

Execute Once

Loop Mode

Release to Stop

• Delay Time Setting:

Auto Detect Delay Time

Fix Time

No Delay Time

Device Recording Choice

Keyboard and Mouse

Keyboard

• Cursor Point Recording Depend on Device Recording Choice)

Location: Yes

Location: No

Press Pause key to stop recording

Helps you stop Macro recording easily and conveniently.

Quick-insert bar

Helps you further modify Macro Editing Note & Macro Script.

4 Special Command

• Open a file
• Open a Web

Note

1. These two special commands only support English address.

EX: www.google.com; C:\Program Files\GIGABYTE\K8100\GhostK.exe

1. When pressing a Macro hot key with special command, please minimize the Ghost™ Engine firstly.

When you drag the folder icon or IE icon to drop into Macro Editing note, you have two advance setting options.

Key-In: Please type in the desired folder path/website address directly.

• Paste:

(1) Open a file: You can press the Browse button to appoint a file address.

(2) Open a Web: Paste your favorite website address directly.

Record/Stop Button

Press this Button to Start / Stop Macro Recording.

Macro Editing Note

Display what Macro you are editing right now

7 Delete/Delete All

• Delete: delete one or multi- commands
• Delete All: delete all commands in Macro Editing Note

3 Import/Export

Call back a saved Macro Editing Note or back up a note

Onboard Macro Scripts

Drag an edited Macro Editing Note and drop it into a Script. Ghost™ engine will store it on board automatically.

4.3 GhostTM Engine Drag & drop user interface

The design concept of this application is based on Avatar system, just like in games.

Featuring easy to use drag-and-drop technology, it allows you to perform all actions in

GhostTM Engine application program. Simply drag the icon of specific functionality

you'd like to apply and drop it onto the intended keyboard Macro hot keys to finish assignment.

4.3.1 Main Panel

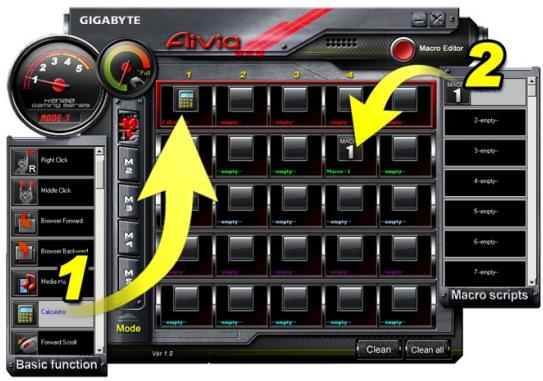

Drag one icon (Ex: Excel) from Basic function then drop in Profile one- Macro one.

When finish dropping icon, please close or minimize the Ghost™ Engine. The Macro hot key is then set up successfully.

Drag one icon (Ex: Macro One) from Macro Scripts then drop in Profile two- Macro four. When finish dropping icon, please close or minimize the Ghost™ Engine. The Macro hot key is then set up successfully.

4.3.2 Macro editor

Before editing Macro key, please set up the command of Macro Setting Panel, then press Record button to start Macro Editing.

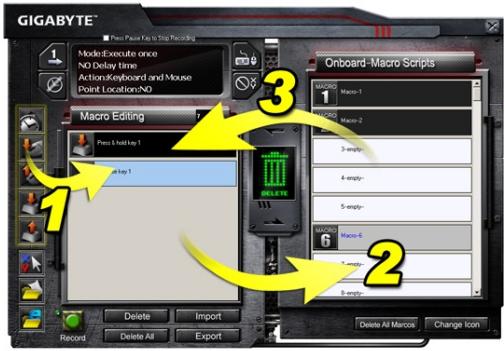

1. After you finish editing the Macro Editing Note, you can drag& drop icons from the Quick Insert Bar to further modify it. For the special command of folder and website address, please select one icon to drag& drop into Macro Editing Note setting.
2. When you finish a Macro setting process, please keep pressing the left button in the Macro Editing Note to drag & drop into Macro Scripts to define a Macro script. System will automatically name a number code for this new Macro script. You can rename and change icon for a script conveniently.
3. If you want to modify a Macro script, please drag& drop from Macro Scripts to Macro Editing Note to edit.

4.3.3 Delete a Macro Editing Note or Micro Script

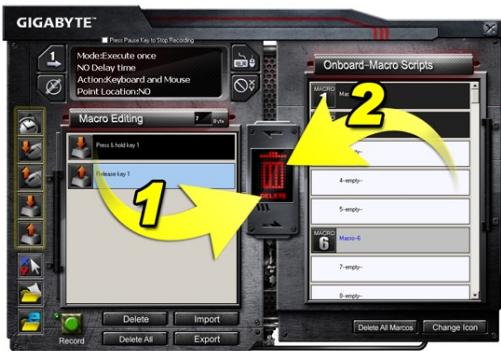

1. You can press Delete All button or drag& drop into trash bin to delete all commands of Macro Editing Note. (With Shift or Ctrl button of keyboard to multi-delete commands.)
2. Drag& drop one Macro script directly into trash bin.
