| Product Type | Pneumatic Impact Wrench |
| Brand | Proline |
| Model | 66472 |
| Max Supply Pressure | 0.63 MPa (6.3 bar / 91.3 psi) |
| Max Torque | 1356 Nm |
| Working Torque | 1084 Nm |
| Rotational Speed (No Load) | 9000 rpm |
| Drive Size | 1/2" |
| Air Inlet Size | 1/4" (12.8 mm) |
| Recommended Hose Size | 3/8" (10 mm) |
| Required Air Flow | 144 l/min (at 0.63 MPa) |
| Weight | 1.8 kg |
| Sound Pressure Level (Loaded) | 93.1 dB(A) |
| Sound Power Level (Loaded) | 104.1 dB(A) |
| Vibration Level (Loaded) | 5.5 m/s² |
| Max Thread Capacity | M16 |
| Torque Adjustment | 3 settings (1=low, 3=high) |
| Rotation Direction | Forward/Reverse (right/left) |
| Power Source | Compressed air (filtered and lubricated) |
| Safety Features | Requires hearing protection, safety goggles, gloves |
| Maintenance | Lubricate before use; clean with non-flammable agents; inspect every 100 hours |
| Manufacturer | PROFIX Sp. z o.o., Warsaw, Poland |
Frequently Asked Questions - 66472 PROLINE
User questions about 66472 PROLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Tower in PDF format for free! Find your manual 66472 - PROLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 66472 by PROLINE.
USER MANUAL 66472 PROLINE
66472
EN Operation manual PNEUMATIC IMPACT WRENCH 3
DE Gebrauchsanleitung DRUCKLUFT-SCHLAGSCHLÜSSEL 8
PL Instrukcja obsługi KLUCZ UDAROWY PNEUMATYCZNY....14
RU Инструкция по эксплуатации ГАЙКОВЕРТ ПНЕВМАТИЧЕСКИЙ УДАРНЫЙ...... 19
RO Instructiuni de utilizare CHEIE PNEUMATICĂ CU PERCUȚIE 25
LT Naudojimo instrukcija PNEUMATINIS SMÜGINIS SUKTUVAS....30
UK Інструкція з експлуатації ГАЙКОВЕРТ ПНЕВМАТИЧНИЙ УДАРНИЙ.... 35
HU Használati útmutató PNEUMATIKUS ÜTVECSAVAROZÓ......41
LV Lietošanas instrukcija PNEIMATISKĀ TRIECIENATSLĒGA....46
ET Kasutusjuhend PNEUMAATILINE LÖÖKMUTRIVÖTI....51
BG Инструкция за експлоатация ПНЕВМАТИЧЕН УДАРЕН ГАЙКОВЕРТ...... 56
CS Návod na obsluhu PNEUMATICKÝ PŘÍKLEPOVÝ KLÍČ......62
SK Návod na obsluhu PNEUMATICKÝ PRÍKLEPOVÝ KLÚČ......67
A
5
B
DEAR CUSTOMER,
Before you start using the pneumatic tool (hereinafter "a tool" or "a device"), please read this manual and follow the basic safety measures to avoid any health impairment and death, ensure protection against electric shock, injuries, explosion and fire.
The term "pneumatic tool" used in this manual refers to all tools powered by compressed air stream under the appropriate pressure.
PLEASE NOTE! This symbol is used for important descriptions, information on hazardous conditions, hazards or safety tips.
The failure to comply with the below warnings, incorrect use and/or modification of the pneumatic tool design makes any warranty rights invalid and releases the manufacturer from any liability for losses resulting from the tool operation incurred by people, animals, property or the tool.
Please keep this manual and tips, to refer to them any time. If the tool is given to another person, hand over also the user manual. We shall not be held liable for any accidents and damage resulting from the failure to comply with this manual and safety tips.
RESERVATION: As we improve our products all the time, we reserve the right to introduce modifications not included in this manual.
GENERAL SAFETY TIPS WHEN USING PNEUMATIC TOOLS:
■ Safety in the workplace:
a) Ensure your workplace is always neat and tidy and well lit. Insufficient light and mess may cause accidents.
b) Do not operate any pneumatic tools in the environment with increased explosion risk, containing flammable liquids, gases or vapours. The air sucked by the compressor must be free from any other gases and/or vapours as they may burn or explode in the compressor.
c) Do not point the pneumatic people at people, animals or oneself. Do not let children and unauthorised people enter the workplace. Loss of concentration may result in losing control of the tool.
■ Work safety
a) The pneumatic tool connector must match the port of the air hose. Do not modify the connector or the supply hose port.
b) All the hoses, connectors and ports must be clean, free from damage, in good technical condition and designed for pneumatic tools.
c) Pneumatic tools are not protected against contact with the sources of power so avoid contact with grounded surfaces, e.g. pipes, radiators and coolers. Your body grounding increases the risk of electric shock.
d) Do not expose the pneumatic tools to precipitation or moisture. Water and moisture which get inside the tool increase the risk of the tool damage and injuries.
e) Do not overload the hose supplying air to the tool. Do not use the high-pressure hose for carrying, connecting and disconnecting the
connector to/from the compressed air source.
f) Avoid contact of the supply hose with heat, oils, sharp edges and moving components.
g) Do not supply the pneumatic tool with oxygen, flammable or poisonous gases. Use only filtered and "lubricated" compressed air with adjustable pressure to supply the tool.
h) Ensure the machined item is held securely and well and will not move during machining.
■ Personal safety
a) This device is not designed for operation by people (including children) with limited physical, sensory or mental capacities or people not experienced or not acquainted with the equipment unless this takes place under the supervision or in accordance with the device operating manual ensured by the people responsible for their safety.
b) Ensure you are in good physical and mental condition when you start work. Pay attention to what you are doing. Do not work when you are tired or under the influence of drugs, alcohol or medications. Even a short lack of attention may cause serious personal injuries.
c) Always use protection equipment when you operate pneumatic tools. Use safety goggles and ear muffs. Using the protection equipment, e.g. dust-proof masks, non-slip footwear and helmet whenever required reduces the personal injuries. Operating the pneumatic tool, always use safety gloves to protect from mechanical injuries and thermal effect of the tool.
d) Avoid inadvertent starting. Before you connect to the compressed air source and before you raise or move the tool, ensure the switch is OFF. Carrying the tool with your finger on the switch or connecting the tool to the compressed air source with the switch ON may cause an accident.
e) Before you start the pneumatic tool, remove all wrenches and other tools used for its adjustment. The wrench left on the moving tool components may cause serious bodily injuries.
f) Ensure balance. Keep the proper posture all the time. This will facilitate getting control over the pneumatic tool in case of unexpected situations during your work.
g) Wear appropriate clothes. Do not wear any loose clothes or jewellery. Keep your hair, clothes and work gloves away from the moving parts. Loose clothes, jewellery or long hair may be caught by the moving tool parts.
h) The supply hose is pressurised which may cause its dynamic movements and risk of injuries. The stored compressed air energy may constitute a serious hazard. After you disconnect the quick-release coupling, hold the pressure hose connector to avoid injuries caused by the moving hose.
i) The compressor used with the pneumatic tool becomes very hot during the operation. Touching it may cause scalds.
■ Operation of the pneumatic tool
a) Avoid overloading the pneumatic tool. Use the tool appropriate for the task. Do not exceed the permissible
maximum working pressure. The appropriate choice of the tool for a given task will ensure more efficient and safer work.
b) Before you start any adjustment, accessory replacement or storage of the tool, disconnect the power cord to avoid inadvertent switching on of the pneumatic tool.
c) Keep the tools out of reach of children. Do not let any persons not having the appropriate training operate the tool. Pneumatic tools operated by users lacking proper training are dangerous.
d) Ensure appropriate maintenance of the tool. Check the tool for any maladjusted and loose moving parts. Check if no tool component is damaged. When you detect any defects, remove them before you use the pneumatic tool. Many accidents are caused by incorrect tool maintenance.
e) Always use pneumatic tools and accessories in line with these instructions. Use the tools in line with their designation, considering the type and conditions of work. Using the tools for any work other than they were designed for increases the risk of dangerous situations.
f) When you work, always consider the work tool may break which may result in fragments thrown at high speed and cause serious injuries.
g) Ensure the tool rotates in the appropriate direction. Unexpected rotation direction may cause dangerous situations.
h) Do not bring your hands close to moving components of the pneumatic tool as this may cause injuries.
i) If the ring securing the drive is damaged, the tool and fragments may be thrown at high speed. This may cause serious injuries.
j) The torque may rotate the tool. This may cause serious injuries if any body parts get into the range of the rotated tool. Always assume the appropriate posture when working and be prepared for the tool rotation.
k) Use only equipment designed for operation with pneumatic tools. Using inappropriate equipment may cause serious injuries.
1) If your tool loses power suddenly, release the tool switch immediately.
■ Repair and maintenance
a) The tool should be repaired solely by authorised companies, using only original spare parts. This will ensure proper safety of the pneumatic tool operation.
b) Do not clean the pneumatic tool with petrol, solvent or any other flammable liquid. The vapours may ignite, causing the tool explosion and serious injuries.
c) Always use high-quality products for the tool maintenance. It is prohibited to use any products other than those mentioned in the operation manual.
SPECIAL SAFETY TIPS FOR USING THE PNEUMATIC IMPACT WRENCH:
a) The user shall be obliged to ensure correct operation of the impact wrench. The source of energy for the impact wrench may be solely compressed air connected by means of the air inlet connector.
b) Always ensure the compressed air source enables to generate the required working pressure and provide the
appropriate air flow. In case of excessive supply air pressure, use the pressure regulator with a safety valve.
c) It is prohibited to supply pneumatic tools directly from the compressor. The pneumatic tool should be supplied via the water filter and lubricator system. This will ensure clean air lubricated with oil.
d) The filter and lubricator condition should be checked before every use. Whenever required, the filter should be cleaned and the oil in the lubricator filled up. This will ensure proper operation of the tool and extend its lifecycle.
e) The socket wrenches and other inserted tools must be designed for operation with pneumatic ones. The attached inserted tools must be in working order, clean and free from damage and their size must match the drive size. It is prohibited to modify the wrench sockets or drive. Use only impact sockets.
f) When operating the impact wrench, always use the required protective measures, including but not limited to noise-protecting ear-muffs, safety goggles, work gloves and hair net.
g) Adopt the appropriate posture to respond to the standard or unexpected movement of the tool caused by the torque. Any vibrations, pulls and incorrect posture may damage your arm or hands. Stop working when you feel tired or experience pain.
h) Check the technical condition of the device. Before you start working, check the technical condition of the tool components subject to ordinary wear and tear to ensure their correct operation. Check if the moving components do not hit or jam. Check if all the components are mounted correctly, if there are no visible cracks.
i) If you notice any leaks or other irregularities, detach the impact wrench from the compressed air source and remove the irregularity cause. Every damaged component should be repaired or replaced carefully by the specialist. Do not use the device with a malfunctioning power switch.
j) When you replace the work socket, the compressed air supply should be closed to avoid its ejection during the accidental tool start.
k) Do not leave the impact wrench on when you do not operate it. Hazard of injuries caused by detached parts.
1) Protect the tool from falls and impact, as well as from contamination e.g. by mud, water, sand etc. Maintain the tool in line with the operation manual and ensure good condition of hoses supplying compressed air.
m) The worn device should be disposed of in accordance with the applicable regulations.
DEVICE DESIGNATION AND DESCRIPTION:
The pneumatic impact wrench is a handy tool, powered by a compressed air stream under the appropriate pressure. It is designed for tightening and loosening threaded connections (max. M16) using replaceable impact sockets 1/2" inserted on the drive. Using the wrench for bolts with the diameter exceeding the one mentioned above may damage the impact mechanism.
It is permitted to use the appropriate adapters, universal connectors and adapters between the drive at the impact wrench outlet and the square socket port.
The wrench enables to adjust the torque and set the rotation direction
rightwards/leftwards.
PLEASE NOTE! The tool and accessories should be used (in line with their manufacturer's instructions) solely for the purposes they were designed for. It is strictly prohibited to
use the device for any other purposes.
Do not use the wrench as a hammer for removing or straightening the cross connectors. Never try to adapt the tool to any other designation or to modify it.
Every use of the tool incompliant with its above-mentioned designation is prohibited and shall invalidate the warranty, leading to the absence of any manufacturer's liability for the losses resulting therefrom.
Any modification of the device made by the user waive the manufacturer's liability for damage and losses caused to the user and the environment.
To ensure use compliant with the designation, follow also the safety tips, installation instructions and operation guidelines in the operation manual. Follow the applicable accident-prevention regulations (OH&S) as strictly as possible.
The correct use of the pneumatic tool entails also maintenance, storage, transport and repairs.
The device may be repaired solely in the service workshops authorised by the manufacturer. The tools supplied with compressed air should be repaired solely by authorised personnel.
Even given the use compliant with the designation, it is impossible to rule out certain residual risk factors. Due to the tool structure and design, the following hazards may appear:
- Hazard of injuries caused by detached parts.
- Hearing impairment in the failure to use the required hearing protection.
■ The set includes
- Pneumatic impact wrench - 1 pc.
- Warranty - 1 pc.
• Operation manual - 1 pc.
■ Device components

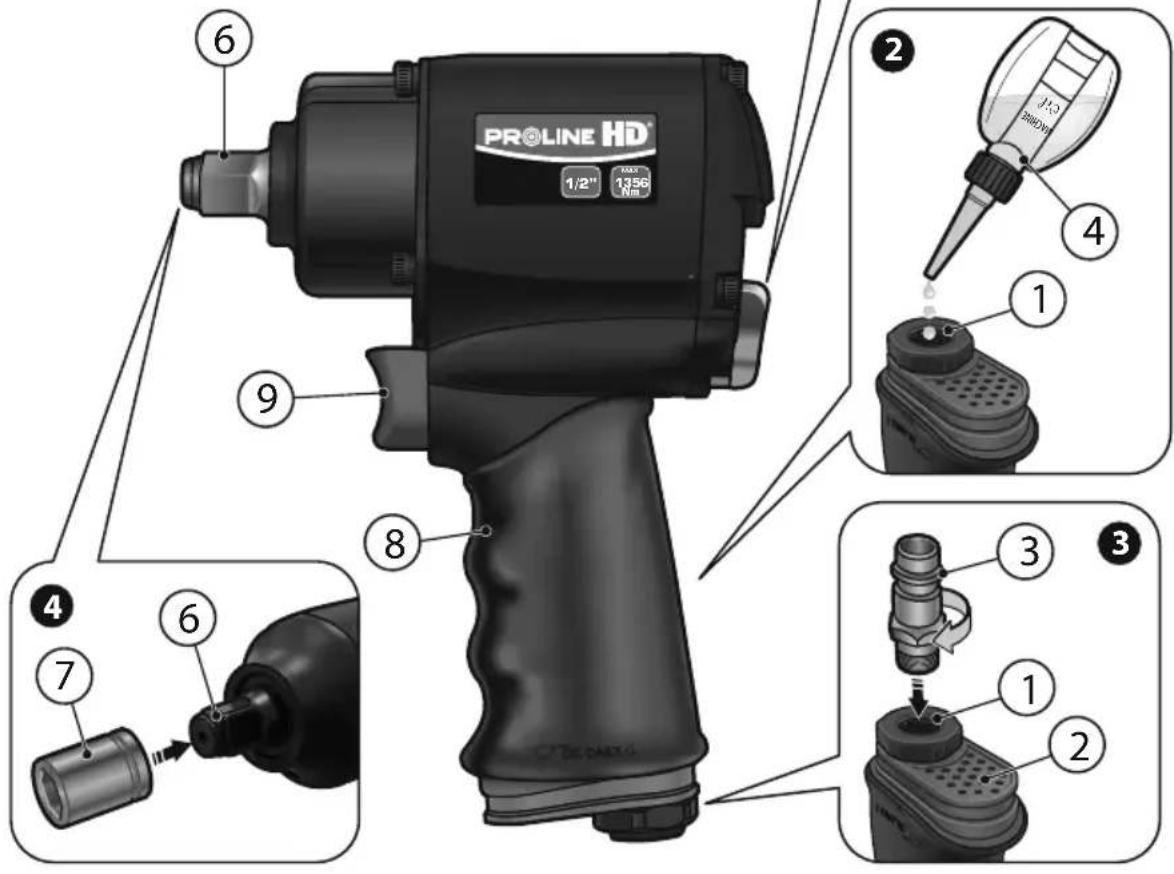

The device component numbers refer to the graphic presentation (fig. A) on page 2 of the operation manual:
- Air inlet
- Air outlet
- Air inlet connector*
- Oilcan*
- Pressure controller / Rotation direction switch
- Drive 1/2"
- Impact socket*
- Handle
- On/Off switch
* The described or presented accessory does not belong to the standard tool equipment in whole.
■ Pictograms
The explanation of symbols on the device nameplate (see Fig. A1).
Item 1: PLEASE NOTE! Read the operation manual before you switch on the device!
Item Dear protective goggles!
Item Hear hearing protection!
Item Wear protective gloves!
TECHNICAL DATA:
| MODEL | 66471 66472 | ||
| Max. supply pressure | 0,63 MPa | ||
| Torque | Working | 515 Nm | 1084 Nm |
| Max | 678 Nm | 1356 Nm | |
| Rotational speed | 11000 rpm | 9000 rpm | |
| Drive size | 1/2" | ||
| Supply inlet (air inlet) | 1/4"(12,8mm) | ||
| Hose size | 3/8"(10 mm) | ||
| Required air flow (at 0.63 MPa) | 135 l/min | 144 l/min | |
| Weight | 1,42 kg | 1,8 kg | |
■ Noise and vibration data
The NOISE was measured in accordance with ISO 15744, ISO 4871.
Sound pressure level (LpA) of the tool loaded/without load is:
Model 66471 - 91,2/93,6 dB(A)
Model 66472 - 93,1/96,5 dB(A)
Sound power level (LwA) of the tool loaded/without load is:
Model 66471 - 102,2/104,6 dB(A)
Model 66472 - 104,1/107,5 dB(A)
MeakurendB(A)tolerance pA wA
PLEASE NOTE! Wear hearing protection!
The VIBRATION was measured in accordance with ISO 28927, EN 12096.
The average vibration level when loaded is:
Model 66471 - 8,0 m/s (mKas 0.20 mm/s tolerance ^2
Model 66472 - 5,5 m/s (mKasur@ment tolerance) ^2
The measured vibration level is representative of the basic tool applications. If the tool is used for any other applications or with other work tools, and if it is not maintained sufficiently, the vibration level may deviate from the above.
INSTALLATION AND USE:
PLEASE NOTE! Before every use of the tool, ensure no pneumatic system component is damaged. If you notice any damage, replace the system components with new,
undamaged ones.
Before every use of the pneumatic system, remove the condensate inside the tool, compressor and hoses.
■ Connecting the tool to the pneumatic system
Ensure air supply to the tool by means of the air pre-treatment unit and air pressure measurement.
It is recommended to use an automatic lubricator in the line although lubrication may be done manually before you start work and after every hour of continuous device operation. To ensure the best results, lubricate the device frequently but not excessively. The excess oil could accumulate in the device and would be blown away with the outlet air.
Figure B on page 2 presents the recommended tool attachment method to the pneumatic system.
System components:
- Pneumatic tool
- Air inlet connector
- Quick-release coupling
- Pressure hose
-
Lubricator
-
Pressure regulator
- Air filter (dehydrator)
- Compressor
It is strictly recommended to install the air filter, pressure controller and lubricator as presented in the drawing. This will ensure clean air flow with the appropriate pressure and oil mist to the tool and the most effective use of the tool for a longer time.
PLEASE NOTE! The maximum supply pressure during the tool operation with the trigger fully pressed and full pressure controller opening should not exceed 0.63 MPa /
6.3 bar / 91.3 psi. Too low pressure reduces the device power and rpm, while too high may damage certain components permanently.

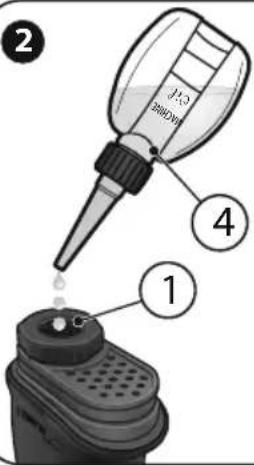

Before you start the tool for the first time, use the oilcan (4) to insert 3-5 drops of oil with SAE 10 viscosity directly to the air inlet (1) (see Fig. A2). Use only the oil designed for pneumatic devices. Do not use the oil with detergents or other additives as this could lead to sooner wear of the sealing components in the device.

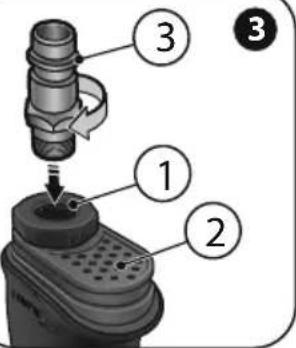

Screw the air inlet connector (3), enabling to connect the air supply hose, strongly and securely onto the air inlet thread. The Fig.1 conductor thread should be sealed with Teflon.
Install the appropriate impact socket (7) on the tool drive (6) see Fig. A4).
PLEASE NOTE! Use only accessories designed for impact tools for such tools.
Do not install the socket on the wrench drive without the
safety ring. Whenever possible, use the sockets with the lowest wear as the worn socket attachment may damage the drive.
Using the controller (5), set the appropriate rotation direction (see Fig. A.5) and adjust the pressure (the torque applied to the nut or bolt). Setting "1" of the controller corresponds to the lowest torque and is recommended for bolts and nuts with the smallest diameter. Setting "3" corresponds to the highest torque generated.
PLEASE NOTE! Switch the tool off before every change of the rotation direction and power. It may be damaged in any other case.
Connect the tool to the pneumatic system, using the hose with the minimum internal diameter of 10 mm and the maximum length of 6 m. Ensure the hose strength is at least 0.63 MPa.
Switch the tool on for a couple of minutes and check if it does not generate any strange noise or vibrations.
■ Work with impact sockets
Before you start screwing the bolt or nut in with the wrench, screw the bolt or nut manually onto the thread (at lease a couple of rotations).
Ensure you have selected the appropriate socket size for the item screwed in or out. Inappropriate size selection may damage both the socket and the nut or bolt.
■ Screwing out and in
PLEASE NOTE! When you screw bolts and nuts out, they are inside the impact socket. You, other people and property may be injured or damaged by ejected parts.
Ensure the rotation direction is set correctly before you operate the tool. Do not start the tool before you place the socket on the threaded connection!
When you operate the impact wrench, the vibrations caused by it may be transferred to the operator. Always use work gloves when you work.
-
Control the pressure in the pneumatic system to ensure it does not exceed the maximum value for a given tool.
-
Set the appropriate tool rotation direction and the torque in case of tightening.
- Install the appropriate socket on the tool drive.
- Connect the impact wrench to the pneumatic system.
- Insert the wrench with the socket installed on the item to be screwed out or in.
- Press the tool switch gradually (9).
- After you have finished working, disassemble the pneumatic system and carry out the tool maintenance.
PLEASE NOTE! When you open the quick-release coupling, hold the pressure hose to protect against being hit by it ("pulsating hose" effect). Injury hazard!
Instructions:
If you are unable to detach the connection within 5 seconds, stop the work with your tool. In such circumstances, you should use penetrating corrosion removers or freezing agents and try to dismount again.
When connecting the threaded connections, including but not limited to tightening the bolts holding the passenger vehicle wheels, always follow the maximum forces specified by the manufacturer. The impact wrench is designed solely for light screwing in (not heavy tightening) of bolts and nuts. The bolts and nuts should be tightened with a torque wrench in line with the appropriate requirements.
MAINTENANCE AND STORAGE:
Clean the tool thoroughly after you have completed the task.
Do not use petrol, solvent or any other flammable liquid to clean the tool. The vapours may ignite, causing the tool explosion and serious injuries.
Always store the impact wrench in dry rooms above 10^ C.
All pneumatic system components must be protected against pollution. Any pollutants that get inside the pneumatic system may damage the tool and other pneumatic system components.
During prolonged storage insert some drops of oil designed for pneumatic tools inside the tool. Connect the tool to the pneumatic system and start for a short time to spread the oil on the mating surfaces. After you disconnect the tool, remove excess oil which escaped via the outlet openings. If the oil is left, it may damage the tool seals.
After 100 hours of the tool operation or 6 months after the operation start, it is recommended to have the tool inspected and cleaned by the specialised service technicians. If the tool was used without the recommended air supply system, increase the frequency of the tool inspections.
If it is necessary to replace any part, always use the original components. Using other components may reduce the tool efficiency and eliminate any claims resulting from the warranty rights.
TRANSPORT:
The disassembled device should be transported and stored in the original packaging.
MANUFACTURER:
PROFIX Sp. z o.o.,
03-228 Warszawa,
Worn tools are recyclable and should not be discarded into the household
waste containers as they may contain substances hazardous for human health and the environment!
Households should contribute to recovery and recycling of worn tools. Please provide active help with respect to economical use of natural resources and natural environment protection by taking the worn tool to the worn tool collection centre. To reduce the waste amount, it is necessary to reuse, recycle or recover it in any other way.
TROUBLESHOOTING GUIDE:
Please stop using the tool immediately after you have detected any defect. Operating damaged tool may cause injuries. Any tool repairs or replacements must be carried out by the qualified personnel in the authorised repair workshop.
| PROBLEM | POSSIBLE CAUSE | SOLUTION |
| The tool's rpm is two low or it does not start. | a) Too low working pressure.b) Pollution inside the tool housing. | a) Check if the pressure hose is not twisted or clogged;Increase the work pressure to 0.63 MPa;b) Insert a small amount of a maintenance fluid (e.g. WD-40) by the air inlet opening. Switch the tool on for about 30 seconds.This will enable to spread the maintenance fluid inside the tool and clean it.PLEASE NOTE! WD-40 may not be used as the lubricating oil proper |
| The tool starts and then slows down. | Too low compressor capacity | Connect the device to the more efficient compressor. |
The policy of the PROFIX company consists in permanent improvements of the offered products and therefore the company reserves the right to make amendments to the product specification without a prior notice. The images included into the operation manual are only of the exemplary nature and may slightly differ from actual appearance of the device purchased.
This instruction manual is protected by copyright. Copying it without the written consent of PROFIX Co. Ltd. is prohibited.
OCHRANA PŘÍRODNÍHO PROSTŘEDÍ:
OCHRANA PŘÍRODNÍHO PROSTŘEDÍ:
(EN) EC/EU DECLARATION OF CONFORMITY
(EN) Person who was authorized to develop technical documentation:
(EN) Pneumatic impact wrench
(EN) The object of the declaration described above is in conformity with the relevant Union harmonisation legislation, meet essential requirement included into the following Directives of the European Parliament and the Council:
(EN) and have been manufactured in accordance with the standards:
Certification and Quality Assurance Specialist
(EN) This declaration of conformity is issued under the sole responsibility of the manufacturer. (DE) Diese Konformitätserklärung ist unter der alleinigen Verantwortung des Herstellers ausgestellt. (PL) Niniejsza deklaracja zgodności wydana zostaje na wyłączną odpowiedzialność producenta. (RO) Prezenta declaratie de conformitate este emisăpe răspunderea exclusivă a producătorului. (LT) Ši atitikties deklaracija išduota tik gamintojo atsakomybe. (UK) Ця декларация bідповідності видається під особисту відповідальність виробника. (HU) E megfelelőségi nyilatkozat a gyártó kizárólagos felelősségére kerül kibocsátásra. (LV) Ši atbilstíbas deklarăcija ir izdota vienîgi uz šäda ražotăja atbildibu. (ET) Kăesolev vastavusdeklaratsloon on välja antud alinvastutusel tootja. (BG) Настоящата декларация за съответствие еизадена на пълната отговорностна производителя. (CS) Toto prohlăšení oshodă vydalna vlastní odpovědnost výrobce. (SK) Toto vyhlásenie o zhode savydáva na výhradnú zodpovednost výrobcu.
DT-C1/d_zg/0227/03.2017
(GB) EC/EU DECLARATION OF CONFORMITY
(GB) Person who was authorized to develop technical documentation:
(GB) The object of the declaration described above is in conformity with the relevant Union harmonisation legislation, meet essential requirement included into the following Directives of the European Parliament and the Council:
(GB) and have been manufactured in accordance with the standards:
Certification and Quality Assurance Specialist
(GB) This declaration of conformity is issued under the sole responsibility of the manufacturer. (DE) Diese Konformitätserklärung ist unter der alleinigen Verantwortung des Herstellers ausgestellt. (PL) Niniejsza deklaracja zgodności wydana zostaje na wyłączną odpowiedzialność producenta. (RO) Prezenta declarație de conformitate este emisăpe răspunderea exclusivă a producătorului. (LT) Ši atitikties deklaracija išduyta tik gamintoj atsakomybe. (UA) Ця декларація відповідності видається під особисту відповідальність виробника. (HU) E megfelelőségi nyilatkozat a gyártó kizárólagos felelősségére kerül kibocsátásra. (LV) Ši atbilstíbas deklarăcija ir izdota vienîgi uz šäda ražotăja atbildíbu. (EE) Kăesolev vastavusdeklaratsloon on välja antud alnuvastutusel tootja. (BG) Настоящата деклараця за съответствие еизадедна на пълната отговорност на производителя. (CZ) Toto prohlăšení o shoděvydal navlastní odpovědnost výrobce. (SK) Toto vyhlásenie o zhode savydáva navýhradníz zodpovednost výrobcu.
NOTES:
NOTES:
- DEAR CUSTOMER,
- ■ Work safety
- ■ Personal safety
- ■ Operation of the pneumatic tool
- ■ Repair and maintenance
- SPECIAL SAFETY TIPS FOR USING THE PNEUMATIC IMPACT WRENCH:
- DEVICE DESIGNATION AND DESCRIPTION:
- To ensure use compliant with the designation, follow also the safety tips, installation instructions and operation guidelines in the operation manual. Follow the applicable accident-prevention regulations (OH&S) as strictly as possible.
- ■ The set includes
- ■ Device components
- ■ Pictograms
- ■ Noise and vibration data
- PLEASE NOTE! Wear hearing protection!
- INSTALLATION AND USE:
- ■ Connecting the tool to the pneumatic system
- System components:
- ■ Work with impact sockets
- ■ Screwing out and in
- Instructions:
- MAINTENANCE AND STORAGE:
- Do not use petrol, solvent or any other flammable liquid to clean the tool. The vapours may ignite, causing the tool explosion and serious injuries.
- TRANSPORT:
- MANUFACTURER:
- TROUBLESHOOTING GUIDE:
- OCHRANA PŘÍRODNÍHO PROSTŘEDÍ:
- NOTES:
Brand : PROLINE
Model : 66472
Category : Tower
