Product Type	Microwave oven with grill
Brand	Hanseatic
Model	HM19B1M
Capacity	19 liters
Microwave Power	800 W
Grill Power	1000 W
Power Consumption	1200 W
Power Supply	230 V ~ 50 Hz
Dimensions (W x D x H)	45.5 x 36.5 x 26.5 cm
Weight	12.5 kg
Control Type	Rotary knobs and buttons
Display	LED digital display
Defrost Function	Yes, by weight or time
Timer	Up to 99 minutes
Child Lock	Yes
Interior Light	Yes
Turntable	Glass turntable, diameter 25.5 cm
Auto Cook Programs	8 preset menus
Cleaning	Wipe with damp cloth, mild detergent
Safety Features	Automatic shut-off, door interlock
Repairability	Spare parts available; user replaceable turntable motor and fuse
Accessories Included	Glass plate, roller ring, instruction manual

Frequently Asked Questions - HM19B1M Hanseatic

How do I set the clock on the HM19B1M microwave?

Press the Clock button, then use the timer knob to set hours and minutes. Press Clock again to confirm.

Can I use metal containers in this microwave?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass or ceramic only.

How do I clean the microwave interior?

Wipe with a soft, damp cloth and mild detergent. Avoid abrasive cleaners. Remove the turntable and roller ring separately for cleaning.

What does the grill function do and how to use it?

The grill function uses a heating element for browning and crisping. Press Grill then set time using the timer knob.

How do I defrost food properly?

Select Defrost mode, enter weight (if using weight-based defrost) or time. The microwave will automatically set power levels.

Why is my microwave not heating?

Check that the door is fully closed, the timer is set, and the power cord is plugged in. If still not heating, the fuse or magnetron may be faulty.

How to activate child lock?

Press and hold the Stop/Cancel button for 3 seconds. The display will show a lock icon. Repeat to unlock.

What is the maximum cooking time?

The timer can be set up to 99 minutes. For longer cooking, you may need to restart the cycle.

Can I use the microwave without the turntable?

No, the turntable ensures even cooking. Without it, food may cook unevenly or the microwave may be damaged.

Where can I find spare parts?

Spare parts such as turntable, roller ring, fuse, and lamp are available from Hanseatic service centers or online retailers.

USER MANUAL HM19B1M Hanseatic

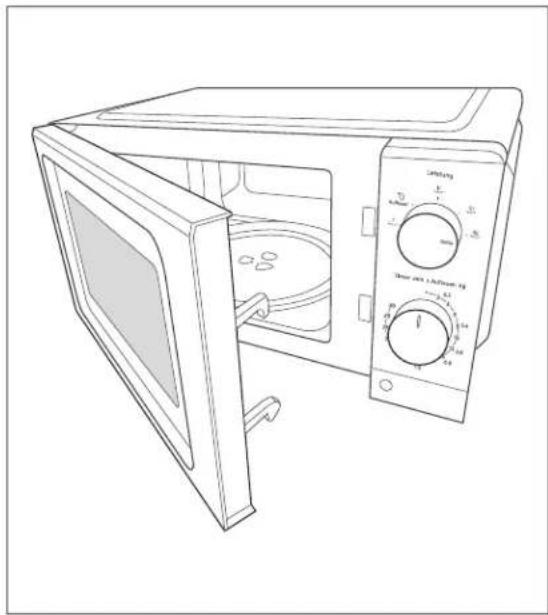

Line drawing of a microwave oven with control knobs and a front panel (no text or symbols)

Lieferumfang

Explanation of terms and symbols,

definitions ....EN-3

Explanation of terms .....EN-3

Explanation of symbols....EN-3

Safety ....EN-4

Intended use ....EN-4

Safety notices ....EN-4

Delivery....EN-11

Package contents .....EN-11

Checking the delivery .....EN-11

Start-up EN-12

Moving and unpacking ..... EN-12

Connection requirements..... EN-12

Cleaning before use ..... EN-13

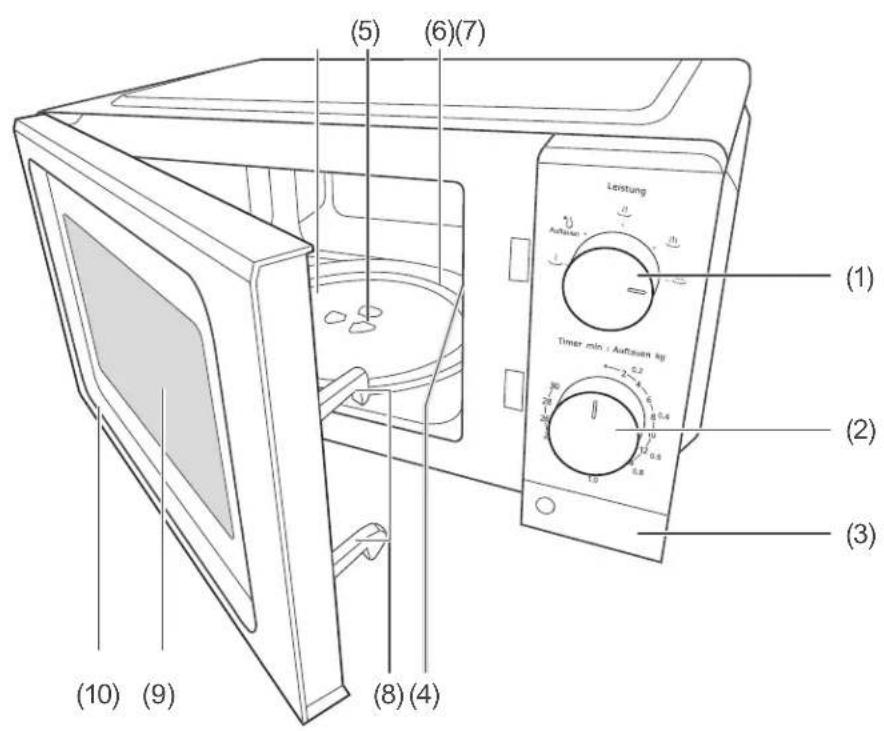

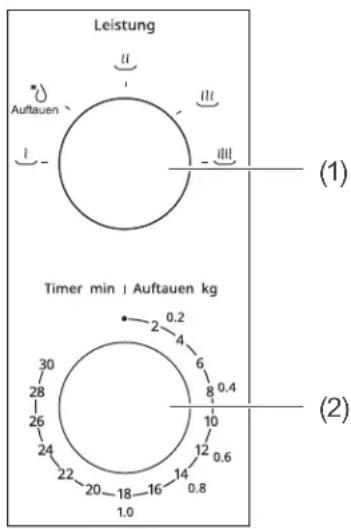

Appliance parts and control elements ... EN-14

Information about microwaves ..... EN-15

Suitable dishware ..... EN-16

Size and shape ...... EN-16

Using the turntable ..... EN-17

Operation ...... EN-18

Cooking levels ..... EN-18

Starting, pausing and ending the cooking process.... EN-19

Defrosting..... EN-19

Practical tips for microwaving ..... EN-21

The correct cooking temperature ..... EN-21

The correct quantity ..... EN-21

Order of dishes EN-21

Piercing and scoring ..... EN-21

Stir and turn.... EN-22

Care and maintenance ..... EN-23

Cleaning......EN-23

Maintenance ...... EN-23

Troubleshooting table ..... EN-25

Service EN-27

General customer service ..... EN-27

Spare parts ...... EN-27

Waste prevention, free return and

disposal...... EN-28

Waste prevention ...... EN-28

Free return of old electrical appliances . . . EN-28

Disposal...... EN-28

Packaging ...... EN-29

Appendix.... EN-30

Technical specifications ..... EN-30

Explanation of terms and symbols, definitions

Read the important safety instructions carefully and keep these for future use. Please read through the safety instructions and user manual carefully before using the appliance. This is the only way you can use all the functions safely and reliably.

Be sure to also observe the national regulations in your country, which are valid in addition to the regulations specified in this user manual.

Keep all safety notices and instructions for future reference. Pass all safety notices and instructions on to the subsequent user of the product.

Explanation of symbols

The following symbols can be found in this user manual or on the appliance.

This symbol warns of a hot surface.

This symbol refers to useful additional information.

Explanation of terms

The following symbols can be found in this user manual.

WARNING

This symbol indicates a hazard with a medium level of risk which, if not avoided, could result in death or serious injury.

CAUTION

This symbol indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.

NOTICE

This symbol warns against possible damage to property.

Safety

Intended use

The appliance is designed for warming, cooking and defrosting food.

The appliance is designed for use in private households and is not designed for commercial use or multiple use (e.g.: use by several parties in a block of flats).

It is not suitable for use outdoors or on non-stationary sites (e.g. ships).

Use the cooking chamber light only for illuminating the inside of the appliance. It is not suitable for lighting a room.

The appliance is not suitable

– for heating a room.
– for drying or storing food, clothes or other items.
– for heating up warming pads, slippers, sponges, damp cloths and similar.

Persons who are unable to operate the appliance safely due to their physical, sensory or mental abilities or lack of knowledge must be supervised during use.

Do not make any technical changes to the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Use the appliance exclusively as described in this user manual. Any other use is deemed improper and may result in damage to property or even personal injury. The manufacturer accepts no liability for damage caused by improper use.

Safety notices

In this chapter you will find general safety notices which you must always observe for your own protection and that of third parties. Please also observe the warning notices in the individual chapters on operation, setup etc.

Risks to children and certain groups of individuals

WARNING

Risk of suffocation for children!

Children can become entangled in the packaging fi lm or swallow small parts and suffocate.

■ Do not allow children to play with the packaging fi lm.
■ Prevent children from pulling small parts off the appliance or putting them in their mouths.
■ When disposing of the appliance, ensure that children cannot suffocate inside the appliance (e.g. do not remove the drawers, unscrew the appliance door/cover).

CAUTION

Risk of injury!

Children and certain groups of people have a higher risk of being injured when handling the appliance.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
■ Children shall not play with the appliance.
■ Cleaning and user maintenance shall not be made by children without supervision.

Risks in handling household electrical appliances

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Only use the appliance indoors. Do not use in wet rooms or in the rain.
■ Do not operate or continue to use the appliance, if it

– shows visible signs of damage, e.g. the power cord is defective,
- starts smoking or there is a smell of burning,
- makes unfamiliar noises.

In such cases, remove the mains plug from the socket or unscrew/isolate the fuse and contact our service department (see „Service“ on page EN-27).

■ The appliance corresponds to protection class I and may only be connected to a socket with a protective conductor that has been installed properly. When connecting the appliance, make sure that the voltage is correct. More detailed information about this can be found on the type plate.
■ To disconnect this appliance from the power supply, pull the mains plug out of the socket. The appliance must, therefore, be connected to an easily accessible socket so that it can be quickly disconnected from the power supply in the event of malfunction.
■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage

category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified professional if necessary (see „Service“ on page EN-27).

■ When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not kink the supply cord or lay it over sharp edges.
■ Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.
- Keep the supply cord away from naked flames and hot surfaces.
■ Always pull on the mains plug and not the mains cable.
■ Never touch the mains plug with wet hands.
■ Never immerse the mains cable or plug in water or any other liquids.
■ If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
■ Independent or improper repairs made to the appliance may cause damage to property and personal injury; any liability and warranty claims will be forfeited. Never try to repair the appliance yourself.
■ Inspections and repairs to the appliance may only be carried out by authorised specialists. Please contact our service department if necessary (see „Service“ on page EN-27).
■ Only parts corresponding to the original appliance specifications may be used for repairs.
In the event of a fault, as well as before extensive cleaning, pull out the mains plug or switch off/unscrew the fuse.

■ Do not put any objects in or through the housing openings, and also ensure that children cannot insert any objects into them.
- Do not remove the covers from the interior light. Do not attempt to replace the interior light. Please contact our service department if necessary (see „Service“ on page EN-27).
- Check the appliance regularly for damage.

Fire hazard!

Improper handling of the appliance can lead to fire and damage to property.

■ Do not connect to a timer or a separate remote-controlled system for distance monitoring and control.
■ Do not locate multiple portable socket- outlets or portable power supplies at the rear of the appliance.

NOTICE

Risk of damage to property!

Improper handling of the appliance may result in damage or explosions.

■ If a trolley is used to move the appliance, the appliance must be lifted as shown on the packaging.
■ Do not use the appliance door handle to lift the entire oven! The handle is not designed to carry the whole weight of the appliance.
■ Do not use sharp objects to unpack the appliance.

When cleaning, please note:

• Under no circumstances should sharp, coarse, sodium carbonate-based, acidic, solvent-based or abrasive cleaning agents be used. All-purpose cleaners with a neutral pH are recommended.
• The door seals can be damaged by unsuitable cleaning agents. Use care products only on the outer surfaces.
• Use only soft cloths.
• Ensure that water does not enter the ventilation slits or enter into the electrical components.

■ The lighting in the appliance is exclusively for lighting the cooking chamber. It is not suitable for lighting a room.

Risks when handling heat-generating appliances

CAUTION

Risk of burns!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements inside the oven.

■ Children less than 8 years of age shall be kept away unless continuously supervised.
■ Do not touch the parts of the housing!
■ Do not touch hot parts. Always protect hands with oven gloves or pot holders when working on the hot appliance. Only use dry oven gloves or potholders. Wet textiles are better heat conductors and can cause steam burns.

- Allow the appliance to cool completely before cleaning.

Fire hazard!

Improper handling of the appliance may result in fire and damage to property.

■ Do not operate the appliance unattended.
- To ensure sufficient air circulation, it is imperative that the instructions in the ‘Start-up’ chapter are followed.

■ Do not cover the appliance with blankets, cloths or similar, as these objects may become hot and catch fi re.

■ When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

■ The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition, or fire.

■ Do not place any objects in the cooking chamber (recipe book, oven gloves, etc.). Accidentally switching on the appliance can cause damage or even ignition. Do not use the cooking chamber for storage purposes.

■ Never heat fl ammable objects or dishes containing alcohol.

■ Never deep-fry or heat oil! The oil temperature cannot be monitored.

■ If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifl e any fl ames.

If a fire starts, keep the cooking chamber door closed, immediately pull the mains plug out of the socket or switch off the automatic circuit breakers and/or unscrew the fuses.

■ Never extinguish burning oil or fat with water. To extinguish the fi re, use a suitable fi re extinguisher with the designation ‘F’ or a fi re blanket.
■ Once the fi re has been extinguished, have the appliance checked by our Service department (see „Service“ on page EN-27).
■ Do not install the appliance behind a decorative facade, in order to avoid overheating.

Opening the cooking chamber door creates a draught. Baking paper could touch the heating elements and catch fire.

■ Never place loose baking paper on the accessories. Always secure baking paper with a piece of dishware or a baking dish.

■ Only line the required area with baking paper. Baking paper must not protrude over the accessory edges.

General risks when cooking food

CAUTION

Health hazard!

Improper use of this appliance can lead to damage to health.

■ Clean the appliance regularly and remove any traces of food leftovers immediately.

■ Particularly with poultry and dishes containing fresh egg, and when warming up meals, ensure that the food is fully cooked through to kill off all pathogens (e.g. salmonella).

Acrylamide may be carcinogenic. Acrylamide is produced when starch is exposed to excessive heat, e.g. in potatoes (fries, chips), biscuits, toast, bread etc.

• Keep cooking times as short as possible.
  ■ Only brown the food slightly, do not allow it to brown too much.
• Cut larger-sized fries and then bake at a maximum of 180°C.

Defrosting meat, poultry or fish in the oven can cause dangerous microorganisms (e.g. salmonella) to multiply rapidly. This increases the risk of food poisoning.

■ Do not defrost meat and fish in the appliance.
■ Only use the defrosting function to defrost vegetables, pre-cooked food, etc.
■ Take the frozen food out of the freezer ahead of time and let it defrost in the refrigerator. The fluid from the frozen food must be able to properly drain, otherwise harmful microorganisms can form.

The water that melts during defrosting can contain harmful bacteria, especially with meat and poultry.

■ Avoid any physical contact.
■ Pour defrost water away. Do not use it for any other purpose.
■ Thoroughly clean the crockery you have used.

Risks in microwave and microwave-combi mode

WARNING

Microwave hazard!

The cover in the cooking chamber serves to protect the magnetron, which emits the microwaves.

■ Never remove the cover inside the cooking chamber!

Microwaves can be emitted if the cooking chamber door is insufficiently sealed when closed. Under such circumstances, the appliance may not be used.

■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.
■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.

Danger of explosion!

Improper handling of the appliance may result in damage or explosions.

■ Only use utensils that are suitable for use in microwave ovens. Containers that become hotter than the food inside them are not suitable for microwave cooking. Do not use such containers.

■ Metallic containers for food and beverages are not allowed during microwave cooking. Metal in the cooking

chamber may cause sparks during operation! This can damage the viewing window or the entire appliance! Do not use metal pots, metal pans and metal lids or dishware with metal parts such as gold edges under any circumstances.

■ Do not use any aluminium foil, due to the fact that this can also cause sparks when coming into contact with the cooking chamber walls.
■ Never place a mixture of water and oil or fat into the appliance. This can explode.
■ Liquids and other foods must not be heated in sealed containers since they are liable to explode.
■ Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended. Prick holes in tomatoes, sausages, aubergines or similar food with a closed skin before cooking to prevent bursting.

CAUTION

Risk of scalding!

Microwave heating of beverages can result in delayed and eruptive boiling, therefore care must be taken when handling the container. The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration can cause the liquid to squirt out suddenly, e.g. when being taken out of the appliance.

■ To avoid a boiling delay, place a plastic or glass spoon in the container. The spoon must always maintain a minimum distance of 2 cm from the inner walls.

■ Do not use tall, thin containers with a narrow top section.
■ Please ensure you stir the food before eating and after half the cooking time has elapsed.
■ Please wait a short moment after heating up; carefully tip the dish and stir before removing the container from the cooking chamber.

Risk of burns!

Improper handling of the appliance can lead to burns. Accessible parts, accessories and dishes become very hot during operation.

■ Do not touch the parts of the housing!
■ Food is sometimes heated unevenly. The containers should not get as hot as the food inside. Please therefore ensure to check the temperature of any food thoroughly and carefully, especially for children.
■ Before heating up baby food, please remove the screw cap and suction teat from the feed bottle.
■ The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.
■ Set the power level and time exactly in accordance with the packaging instructions.

! NOTICE

Risk of damage to property! Improper handling of the appliance can lead to damage to property.

■ The appliance must never be operated without the turntable and roller ring and never without food in it.
■ Always place cooking containers on the turntable. This prevents liquid from seeping into the appliance if it should boil over.
■ When removing containers, make sure that the turntable does not move.
■ Do not exceed a weight of 4 kg on the turntable. Risk of breakage!
■ Do not place the hot turntable on a cold surface such as, for example, a work surface made of granite or tile. Otherwise, the turntable could shatter. Always place on top of a suitable mat.
■ Only heat plastic containers from the freezer for as long as is needed until the food can be decanted into another container.
■ Do not use any damaged containers! They could break and the leaked contents could damage the inside of the microwave.
If accessories such as the turntable are not completely inside the cooking chamber, the viewing panel may become scratched when closing the cooking chamber door. For this reason, always push accessories all the way into the cooking chamber.
■ The oven should be cleaned regularly and any food deposits removed.

■ Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.
■ The appliance must not be installed behind a decorative facade, in order to avoid overheating.

Delivery

Line drawing of a microwave oven with control panel and door (no text or symbols)

Package contents

• Microwave
• Turntable
• Roller ring
• User manual

Checking the delivery

1. Move the appliance to a suitable place and unpack it (see „Start-up“ on page EN-12).
2. Check that the delivery is complete.
3. Check whether the appliance was damaged during transit.
4. If the delivery is incomplete or the appliance has been damaged during transit, please contact our service department (see „Service“ on page EN-27).

WARNING

Risk of electric shock!

Touching live parts may result in severe injury or death.

■ Never use a damaged appliance.

You can find information on installation and start-up from pageSeite EN-12.

Start-up

CAUTION

Risk of injury!

The appliance is heavy and bulky.

• Seek the help of another person when moving the appliance.
  ■ Do not use the door as a step or for lifting.

Fire hazard!

Improper handling of the microwave may result in damage or cause a fire. Heat trapped inside the appliance may shorten its service life.

■ Ensure suffi cient ventilation. Do not cover the vents, for example with oven mitts or cookery books!
- When installing the appliance, follow the dimension specifications for ventilation (see “Positioning”).
■ Never remove the cover that is fastened inside the cooking chamber! It serves to protect the magnetron, which emits the microwaves.

NOTICE

Risk of damage to property!

Improper handling of the appliance may result in damage.

■ Do not use sharp objects to unpack the appliance.

Moving and unpacking

• Move the appliance using a dolly or with the help of a second person.
• Carefully unpack the appliance and remove all packaging items, plastic profiles, adhesive strips and foam padding from inside, outside and from the back plate of the appliance.

Positioning

• Place the appliance on a level surface. It must be at least 85 cm high, and provide at least 20 cm of space to the sides and 30 cm of space to the top, respectively.
• Do not place the appliance above a cooking surface or other heat-generating appliances. This source of heat could damage the appliance.
• Never remove the feet used for the appliance.
• Operating the appliance may interfere with radio or TV reception. Place the appliance as far away as possible from radio or TV sets.
• Do not place the appliance in a cabinet.

Connection requirements

• To connect your new appliance to the electricity supply, you will need a professionally installed earthed socket with adequate fuse protection (see „Technical specifications“ on page 30).
• The connection voltage of the appliance must correspond to the mains voltage in your home (see rating plate on the back of the appliance).
• Do not use multiplugs or extension cables!

Connection

WARNING

Risk of electric shock / fi re hazard!

Touching live parts may result in severe injury or death.

■ Since all poles of the appliance cannot be disconnected from the mains via an accessible disconnecting device, an all-pole disconnecting device in accordance with overvoltage category III must be connected within the house installation with at least 3 mm contact clearance; consult a qualified

professional if necessary (see „Service“ on page EN-27).

- Connect the appliance only to a professionally installed earthed socket with sufficient fuse protection (230 V\~/50 Hz/10 A).

Cleaning before use

The appliance should be cleaned before first use, for example to ensure that packaging remnants will not negatively affect the taste of food (see pageSeite EN-23).

Appliance parts and control elements

(1) Control dial "Level"
(2) Control dial "Timer"
(3) Button to open the cooking chamber door
(4) Magnetron
(5) Turntable drive
(6) Roller ring
(7) Turntable
(8) Appliance door locking system
(9) Viewing panel
(10) Cooking chamber door

Information about microwaves

What are microwaves?

Microwaves are electromagnetic waves like those for radio and television; as with radio and TV waves, they cannot be seen or felt.

Microwaves

– are reflected by all metals,
– can penetrate glass, porcelain, plastic and paper,
– are absorbed by foodstuffs.

What effect do microwaves have on foodstuffs?

– The microwaves penetrate foodstuffs to a depth of approximately 3 cm.
- The water, fat and sugar molecules are heated up (dishes with a high water content are heated up most quickly).

This heat then slowly penetrates the entire dish and leads to the dish being defrosted, heated and cooked.

– Due to the fact that the individual elements of the dish are heated unevenly, it is important to stir or turn the dish over to ensure that it is cooked through evenly.
- The cooking chamber and the air inside it are not heated – the food container becomes warm primarily due to the heat of the food.
- When heating liquids in a microwave oven, a phenomenon known as 'delayed boiling' can occur. The liquid then reaches boiling temperature without any outward visible sign of boiling. Even a small vibration may cause the liquid to suddenly spray out, for example when removing it from the microwave oven.
- Every dish requires a certain amount of energy for cooking or defrosting – a good rule of thumb is ‘high power, short time’ or ‘low power, long time’.

How does a microwave oven work?

– A microwave generator, the so-called ‘magnetron’ (4), generates the microwaves and disperses them into the cooking chamber.
– The cooking chamber walls and inner screen reflect microwaves, preventing them from being emitted out of the cooking chamber.
- The turntable (7) ensures that the microwaves are distributed evenly to the food.
- The microwave power can be set to several levels.

Suitable dishware

WARNING

Danger of explosion!

Improper handling of the appliance may result in damage or explosions.

■ Only use utensils that are suitable for use in microwave ovens. Containers that become hotter than the food inside them are not suitable for microwave cooking. Do not use such containers.
■ Metallic containers for food and beverages are not allowed during microwave cooking. Metal in the cooking chamber may cause sparks during operation! This can damage the viewing window or the entire appliance! Do not use metal pots, metal pans and metal lids or dishware with metal parts such as gold edges under any circumstances.
■ Do not use any aluminium foil, due to the fact that this can also cause sparks when coming into contact with the cooking chamber walls.

NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

• Do not use any containers made of porcelain, ceramic or plastic and any protective fi lms that are not resistant to high heat in grill or microwave-combi mode!
  ■ Do not use baking paper or similar!

Use only microwave-suitable dishware. This includes:

– fire-resistant glass, ceramic, porcelain
– fire and frost resistant glass ceramics
– highly heat-resistant plastic (e.g. roasting bag)
- microwaveable plastics

To find out if a piece of dishware is microwaveable, perform the following test:

1. Place the empty container into the cooking chamber, and close the cooking chamber door (10).

2. Let the appliance run at full power for 30 seconds.

3. If the dishware becomes hot or if sparks are produced, open the door immediately to stop the process: This dishware is not suitable!

4. If the dishware remains cold or only lukewarm, it may be used in the simple microwave mode.

Size and shape

• Flat, wide containers are more suitable than tall, narrow ones. "Flat" dishes can cook through more evenly.
  – Round or oval shaped containers are more suitable than square or rectangular containers. There is a risk of localised overheating in the corners!

Using the turntable

! NOTICE

Risk of damage to property!

Improper handling of the appliance can lead to damage to property.

■ Do not exceed a weight of 4 kg on the turntable. Otherwise, it could break.
- Do not place the hot turntable on a cold surface such as, for example, a work surface made of granite or tile. Doing so could shatter the plate. Always use a suitable mat underneath.

The turntable (7) must be used whenever the microwave is operated.

– It rotates during cooking, in order to ensure that the food is evenly heated.
– Maximum load: 4 kg.

1. Place the turntable drive (5) in the recess in the middle as required.
2. Insert the roller ring (6).
3. Place the turntable (7) on the cooking chamber floor and turn it until its centre clicks into place on the turntable drive.
4. Always place cooking containers on the turntable. This prevents liquid from seeping into the appliance if it should boil over.

Operation

WARNING

Microwave hazard!

A door that fails to close adequately can cause microwave radiation to escape. Under such circumstances, the appliance may not be used.

■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.
■ Do not use the appliance if the door is warped or damaged, or if the door latch, hinges, or door seals are defective, or if the door does not close tightly for any other reason.

CAUTION

Fire hazard!

Improper handling of the appliance may result in damage or cause a fire.

In case of a fire or smoke in the cooking chamber: Do not open the door! Switch off the microwave, pull out the mains plug or isolate the fuse in your fuse box.

CAUTION

Risk of scalding!

A boiling delay can occur when heating liquids. This may cause hot liquid to suddenly spray out, for example when removing it from the microwave.

■ To avoid a delayed (eruptive) boiling, place a plastic or glass spoon in the container.
■ Make sure that the spoon is always at least 2 cm away from the interior walls of the microwave.

NOTICE

Risk of damage to property!

Improper handling of the appliance may cause it to become damaged.

■ Never remove the cover from the cooking chamber! It serves to protect the magnetron, which emits the microwaves.
■ The appliance is not intended to be operated by means of an external timer or a separate remote-control system.
■ Never operate the appliance without the turntable and never without food!

Cookinglevels

The appliance offers the following cooking levels:

Symbol	Output Application
	17 %	Defrost ice cream
	33 %	Warming soups, softening butter, defrosting
	55 %	Stews, fish
	77 %	Rice, fish, chicken, minced meat
	100 %	Heating up, milk, boiling water, vegetables, hot drinks

Starting, pausing and ending the cooking process

• In order to set the cooking level, turn the control dial "Level" (1) to the desired level (see „Cooking levels“ on page EN-18).
• To set the cooking time, turn the control dial "Timer" (2) to the desired number of minutes. The appliance starts operating automatically.
• Once the cooking process is complete, the appliance beeps.
• In order to end the cooking process prematurely, turn the control dial "Timer" to ●.

The appliance will pause if the cooking chamber door (10) is opened while in operation.

If the cooking level "Defrost" ^4 has been selected, you can select the operating time using the kilogram values displayed. These are approximate values.

When the appliance is not in operation, always set the control dial "Timer" to ●.

Defrosting

WARNING

Health hazard!

The water that melts during defrosting can contain harmful bacteria, especially with meat and poultry!

■ Avoid any physical contact.
■ Pour defrost water away. Do not use it for any other purpose.
■ Thoroughly clean the crockery you have used.

Before getting started

• Ideally, use food which has been frozen at -18^ in portions that are as thin as possible.
• Removal all packaging.
• Weigh the food – its weight is needed to ensure the correct settings.
• Place the food in an appropriately large container which can collect the defrost water without overflowing.

• Do not cover the food.

• Place the container on the turntable (7) in the cooking chamber.

• Close the cooking chamber door (10).

You can select the required defrosting time either according to the food's weight as shown on the control dial

"Timer", or according to time. The maximum possible defrost time is 30 minutes.

1. Turn the control dial "Timer" (2) to set the defrosting time.

The appliance will start and the fan will switch on. When the time has elapsed, a beep sounds and the appliance switches off.

When removing the cooked food from the appliance, make sure the timer is set to ●. Never operate the appliance

without food. Otherwise, the appliance may overheat and the magnetron (4) may be damaged.

Practical tips for microwaving

The correct cooking time

Given that microwaves react with varying intensity to water, fat and sugar, the cooking time depends significantly on the composition of the dish.

• Dishes with a high fat or sugar content (doughnuts, puddings, fruitcakes) cook through more quickly and reach higher temperatures faster than other dishes. Make absolutely sure to follow recommended cooking times to avoid burning the food and damaging the appliance.
• Dishes that have a high water content (fish, vegetables, sauces) cook faster than "dry" dishes.
• “Dry” dishes (rice, grain products, dried beans) cook very slowly. Please add a little water to these before cooking.

The correct quantity

The larger the quantity to be prepared, the longer the cooking time. If, for example, a potato takes 4 minutes, then two potatoes will take 7 minutes.

Rule of thumb: Twice the quantity requires approximately twice the amount of time.

• Small food items cook more quickly than large food items. And food items of equal size cook through more evenly than food items of different sizes. If possible, cut all food into pieces of roughly the same size. Remember to do this when freezing!
• When defrosting, size and form play a key role. Small, flat food portions defrost faster and more evenly than larger, thicker food portions. During the defrosting process, separate portions that have already begun to thaw, as exposed pieces defrost faster.

Order of dishes

To achieve an even result, special attention must be paid to arranging the food correctly for cooking:

• Arrange food with several equally sized pieces (potatoes, meatballs, hamburgers) in a circle in the container and leave the middle empty.
• For pieces of different sizes, place the small or thin pieces in the middle, as these pieces will be the last to cook.
• For irregularly shaped pieces (e.g. fish) place the thin or flatter end towards the middle.
  – Lay thin slices of meat on top of each other or criss-cross them.
• Place thicker slices and pieces of meat (joints, sausages etc.) close together.
• Heat meat juices and sauces in a separate container; only fill this 23 full!

Piercing and scoring

Excess pressure can be caused in many dishes when heating them through. It is therefore recommended to pierce or score certain dishes, in order to prevent them from bursting.

• Do not microwave eggs in their shells – unless using special containers which are commercially available.
• Pierce food with peels or skins (potatoes, tomatoes, sausages, aubergines, egg yolks) to prevent it from bursting open.
  – Score the skin of whole fish to prevent it from tearing open.

Stir and turn

WARNING

Risk of burns!

Food is sometimes heated up unevenly in the microwave. The containers should not get as hot as the food inside.

■ Please therefore ensure to check the temperature of any food thoroughly and carefully, especially for children.
■ The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

• Always stir baby food in particular very thoroughly to avoid burns.
- It is essential to check the temperature by tasting the food.
- With poultry, with dishes containing fresh egg, and when warming up meals, make absolutely sure that the food is fully cooked through to kill off all pathogens (such as salmonella).
- Stir the food after half the cooking time has elapsed and turn it, as food does not heat through evenly in the microwave.

Careandmaintenance

Cleaning

WARNING

Health hazard!

Improper use of this appliance can lead to damage to health.

■ The oven should be cleaned regularly and any food deposits removed.
■ Cleaning and user maintenance shall not be made by children without supervision.

CAUTION

Risk of burns!

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements inside the oven.

■ Allow the appliance to completely cool down before cleaning.
■ Children less than 8 years of age shall be kept away unless continuously supervised.

Risk of electric shock!

Improper cleaning may lead to electric shocks and short circuits.

• Isolate the fuse and pull out the mains plug from the socket before cleaning. Always take hold of the plug itself, do not pull on the mains cord.
  ■ Ensure that no cleaning water or other liquids can penetrate the ventilation slits or the electrical components.
  ■ A steam cleaner is not to be used for cleaning. Steam can get into live components through cracks.

NOTICE

Risk of damage to property!

The surfaces and door seals can get damaged by improper handling.

■ Never use harsh, soda, acid, solvent or abrasive cleaners. All-purpose cleaners with a neutral pH are recommended.
■ Use care products only on the outer surfaces.
- The door seals are sensitive to oil and grease – making the rubber porous and brittle.
■ Only use soft cloths.

• If possible, clean the appliance after each use before any contaminants can dry.
• Clean the turntable (7) in the dishwasher.
• Clean the appliance, especially the cooking chamber floor and the door seals, with a damp, soft cloth. Use warm water and a standard all-purpose detergent or washing-up liquid and a soft sponge or cloth.
• Dissolve stubborn dirt with an undiluted all-purpose cleaner.
• Wipe down all surfaces after cleaning with a dry, soft cloth.
• Leave the cooking chamber door (10) open in order to allow the cooking chamber to dry out completely.

Maintenance

WARNING

Microwave hazard!

Microwaves can be emitted if the cooking chamber door is insufficiently sealed when closed. Under such circumstances, the appliance may not be used.

■ Pay particular attention to the cleanliness of the door seals and door seal faces along with all adjacent parts.
■ If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.
■ It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- For your own safety, please check regularly whether the appliance is intact:

• Are the mains cable and plug undamaged?
• Are the housing and the viewing panel (9) undamaged?
  – Is the turntable (7) undamaged?
  – Are the door seal faces clean?
• Can the door hinges move freely?
• Are both hooks for the locking system (8) undamaged?
• Does the door close properly, or is it warped?
• If the cooking chamber light stops working, contact our Service department (see pageSeite EN-27).

The bulb is not located under the cover that is fastened inside the cooking chamber! Never unscrew or damage

this cover! It serves to protect the magnetron, which emits the microwaves.

Troubleshooting table

Malfunctions can occur in all electrical appliances. This does not necessarily mean there is a defect in the appliance. For this reason, please check the tables to see if you can correct the malfunction.

WARNING

Risk of electric shock in case of improper repair!

Never attempt to repair the appliance yourself. You can put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.

Problem Possible cause	Solutions, tips
Appliance will not start.	No electricity to socket.	Check by connecting another appliance.
	Mains plug is loose.	Check the tightness of the mains plug.
Door does not close properly.	Foreign bodies on the door seal faces.	Clean the door seal faces thoroughly.
	Door is warped or door latch is defective.	Do not use the appliance! Contact our service team (see „Service“ on page EN-27).
Cooking compartment light does not illuminate.	Bulb defective.	Contact our service team (see „Service“ on page EN-27).
The turntable does not turn or does not turn properly.	The turntable is not correctly positioned on the drive motor.	Position the turntable correctly.
	The cooking chamber floor is dirty.	Clean the cooking chamber floor thoroughly.
Scratching, grinding sounds in the cooking chamber.	Turntable does not rotate properly. In	Insert the turntable correctly
	The food dish is either too large or is positioned incorrectly.	The container may not protrude over the edge of the turntable.
Exploding, popping sounds in the cooking chamber.	The dish is being cooked and/or defrosted with too much power, and will burst open.	Cancel the setting and reselect a lower power level.
Other noises or flashes of light in the cooking chamber.	Sparks – metal objects in the cooking chamber!	Pull out the mains plug or isolate the fuse immediately. Remove metal parts.
The dish is cooked unevenly.	The dish was not sufficiently rotated or stirred.	Stir or rotate the food dish, and allow it to heat up a little more.
Problem Possible cause Solutions, tips
The dish does not get sufficiently hot.	The power or time is set too low.	Heat the dish for a little more time in the appliance.
	The dish was very cold when being placed inside.
	Container is unsuitable if it becomes hotter than the dish.	Use a suitable container.
Door/viewing window steams up.	Moisture is escaping from the food. This is normal.	Wipe up the moisture after operation.
TV reception is interrupted.	The microwave's operation may interfere with TV reception.	Choose a location that is removed from TV sets.
Illumination is dim.	When operating at a low level, the illumination may be weaker.	This is normal; no further action is required.

Service

Please note!

You are responsible for the condition of the appliance and its proper use in the household.

Damage resulting from non-compliance with this manual cannot be recognised.

In order for us to help you quickly, please tell us:

Name of appliance	Colour Model Order number
hanseatic Microwave B	ack HM19B1M 61799644
hanseatic Microwave W	white HM19W1M 75567241

General customer service

Please contact your mail order company's product advice centre if you have questions, complaints or accessory orders.

Spare parts

Customers in Germany

Please contact the company Hermes Fulfilment GmbH:

Phone: [phone]

Monday–Thursday 8 a.m.–3 p.m., Friday 8 a.m.–2 p.m.

Customers in Austria

Please contact your mail order company's customer service centre or product advice centre.

Waste prevention, free return and disposal

Waste prevention

According to the provisions of Directive 2008/98/EC, waste prevention measures always take priority over waste management.

For electrical and electronic devices, waste prevention measures include extending the lifespan of defective devices through repair and reselling used working appliances instead of disposing of them.

Please help us reduce waste and contact our customer service if your product is faulty.

More information can be found in the brochure 'Waste Prevention Programme of the German Government with the Involvement of the Federal States'.

Free return of old electrical appliances

Upon purchasing a new electrical appliance of the same type with essentially the same function, consumers may return an old electrical appliance to a distributor obliged to take back old appliances, at no extra cost for the consumers. This option also exists for deliveries made to a private household. For distance selling, the option of having old electrical equipment collected for free applies only in the case of purchase of new electrical equipment with heat exchangers (e.g. refrigerators, dehumidifiers), screens and display devices with a screen surface > 100 cm ^2 , and large devices with at least one of its external dimensions measuring more than 50 cm.

In addition, consumers may return up to three old electrical appliances of the same type to a distributor's collection point for free, without having to purchase a new electrical appliance. In this case, however, the old appliances' external dimensions may not exceed 25 cm.

Disposal

Disposing of old electrical devices in an environmentally friendly manner

Electrical appliances contain harmful substances as well as valuable resources.

Every consumer is therefore required by law to dispose of old elec-

trical appliances at an authorised collection or return point. They will thus be made available for environmentally-sound, resource-saving recycling.

You can dispose of old electrical appliances free of charge at your local recycling centre.

Please contact your dealer directly for more information about this topic.

Don't forget to erase data!

If necessary, each consumer is responsible for erasing personal data from electrical and electronic equipment.

Batteries and rechargeable batteries, lamps and bulbs

If necessary, old single-use and rechargeable batteries that are not encased by an old electrical appliance, as well as lamps/bulbs that can be removed from an old electrical appliance without being destroyed, must be removed and disposed of separately before you return the appliance.

This symbol means that single-use and rechargeable batteries must not be disposed of with other household waste.

Consumers are required by law to

bring all single-use and rechargeable batteries, regardless of whether they contain harmful substances*) or not, to a collection point operated by their communal authority

or borough or to a retailer, so that they can be disposed of in an environmentally friendly manner and so that valuable resources (e.g. cobalt, nickel or copper) can be recovered.

Single-use and rechargeable batteries can be returned free of charge.

Some of the possible contents (e.g. mercury, cadmium and lead) are toxic and, if improperly disposed of, can have adverse effects on the environment. Heavy metals, for instance, can have detrimental health effects on humans, animals and plants and accumulate in the environment and food chain, and then enter the body indirectly through the consumption of food.

There is a high risk of fire with old lithium batteries. Special care must therefore be taken to properly dispose of old lithium batteries and rechargeable batteries. Improper disposal can also lead to internal and external short circuits due to thermal effects (heat) or mechanical damage. A short circuit can lead to a fire or an explosion and have serious consequences for people and the environment. It is therefore important to tape off the terminals of lithium batteries and rechargeable batteries before disposing of them to prevent an external short circuit.

Single-use and rechargeable batteries that are not built into the device should be removed before disposal and then disposed of separately.

Please only dispose of single-use and rechargeable batteries in a discharged state!

If possible, use rechargeable batteries in place of disposable batteries.

*) labelled with:

Cd = Cadmium

Hg = Mercury

Pb = Lead

Packaging

Our packaging is made of environmentally friendly, recyclable materials:

– Outer packaging made of cardboard
– Moulded parts made of foamed, CFC-free polystyrene (PS)
– Films and bags made of polyethylene (PE)
– Tension bands made of polypropylene (PP)
- Saving energy also protects against excessive global warming. Your new appliance uses little energy due to its environmentally friendly insulation and technology.

If you have sufficient space, we recommend retaining the packaging, at least during the warranty

period. If the appliance needs to be sent out for repairs, only the original packaging will provide sufficient protection.

If you would like to dispose of the packaging, please dispose of it in an environmentally friendly way.

Appendix

Technical specifications

Manufacturer hanseatic
Name of appliance Microwave
Model HM19B1M, HM19W1M
Microwave output power in W 700
Rated frequency in MHz 2450
Microwave power levels 5
Fuse in A 10
Microwave power consumption in W 1020
Supply voltage in V~/50 Hz 230 - 240
Cooking chamber volume in litres 19
Turntable diameter in mm 245
Appliance dimensions (height × width × depth) in cm 24	1 × 329 × 434
Empty weight in kg 6.1
Order no.	61799644, 75567241

This microwave corresponds to the device category:

Group 2, Class B.

• Group 2: Generates high-frequency electromagnetic radiation that is suitable for the treatment of food.
• Class B: May be operated in the living area and directly from the normal mains at a voltage of up to 230 volts (low voltage network).
