USER MANUAL VELOCITY REFERENCE SUBWOOFER VPW 380 BLAUPUNKT

Two black speaker drives with visible branding and ventilation slots, labeled 'BLAUPUNKT Velocity Series' and 'VPw 380' (no additional text or symbols)

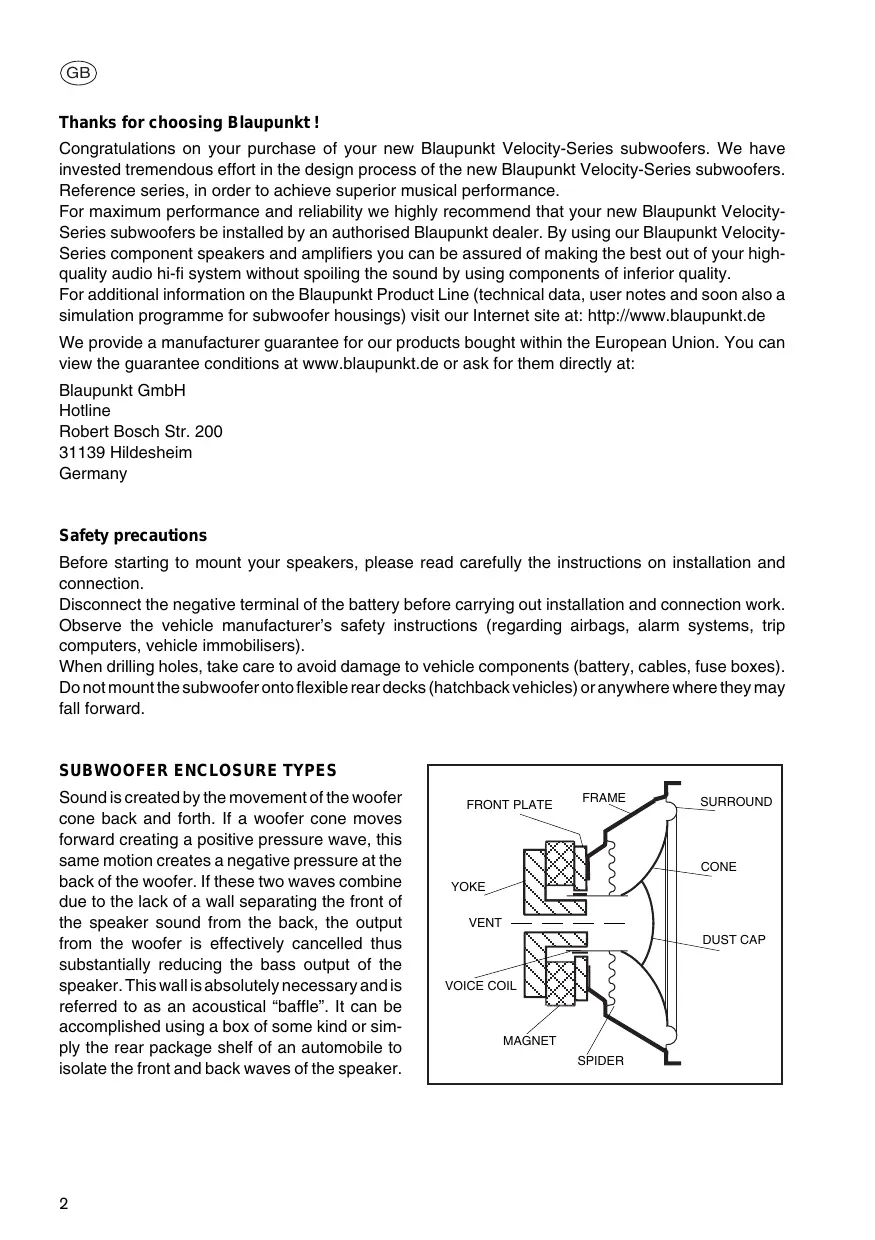

Thanks for choosing Blaupunkt!

Congratulations on your purchase of your new Blaupunkt Velocity-Series subwoofers. We have invested tremendous effort in the design process of the new Blaupunkt Velocity-Series subwoofers. Reference series, in order to achieve superior musical performance.

For maximum performance and reliability we highly recommend that your new Blaupunkt Velocity-Series subwoofers be installed by an authorised Blaupunkt dealer. By using our Blaupunkt Velocity-Series component speakers and amplifiers you can be assured of making the best out of your high-quality audio hi-fi system without spoiling the sound by using components of inferior quality.

For additional information on the Blaupunkt Product Line (technical data, user notes and soon also a simulation programme for subwoofer housings) visit our Internet site at: http://www.blaupunkt.de

We provide a manufacturer guarantee for our products bought within the European Union. You can view the guarantee conditions at www.blaupunkt.de or ask for them directly at:

Blaupunkt GmbH

Hotline

Robert Bosch Str. 200

31139 Hildesheim

Germany

Safety precautions

Before starting to mount your speakers, please read carefully the instructions on installation and connection.

Disconnect the negative terminal of the battery before carrying out installation and connection work. Observe the vehicle manufacturer's safety instructions (regarding airbags, alarm systems, trip computers, vehicle immobilisers).

When drilling holes, take care to avoid damage to vehicle components (battery, cables, fuse boxes). Do not mount the subwoofer onto flexible rear decks (hatchback vehicles) or anywhere where they may fall forward.

SUBWOOFER ENCLOSURE TYPES

Sound is created by the movement of the woofer cone back and forth. If a woofer cone moves forward creating a positive pressure wave, this same motion creates a negative pressure at the back of the woofer. If these two waves combine due to the lack of a wall separating the front of the speaker sound from the back, the output from the woofer is effectively cancelled thus substantially reducing the bass output of the speaker. This wall is absolutely necessary and is referred to as an acoustical "baffle". It can be accomplished using a box of some kind or simply the rear package shelf of an automobile to isolate the front and back waves of the speaker.

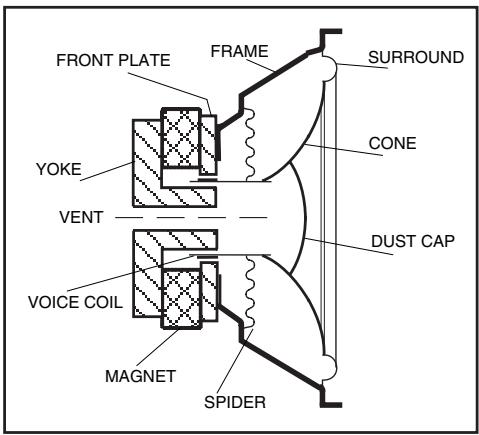

FRONT PLATE YOKE VENT VOICE COIL MAGNET FRAME SURROUND CONE DUST CAP SPIDER

COMMON ENCLOSURE TYPES

In the car audio world there are five types of subwoofer enclosures commonly used: INFINITE BAFFLE, SEALED BOX (closed box), VENTED BOX (bass reflex), SINGLE-VENTED BANDPASS (often incorrectly referred to as “5th” order), DUAL-VENTED BANDPASS (often incorrectly referred to as “7th” order). No single design is superior because each has its own compromise in performance, power handling and design complexity. The bandpass name implies a “built-in” acoustical response which has a natural highpass response (30 Hz for example) but also a lowpass response suppressing high frequencies (e.g., > 80 Hz).

INFINITE BAFFLE (fig. a) designs simply use the trunk of the car for its acoustical enclosure and the rear deck to isolate the front and rear sound paths. Advantages include simple installation and adequate performance for most systems. Disadvantages include poor power handling capacity and substandard transient response.

Diagram of a speaker with sound waves and directional arrows, labeled 'a)' (no text or symbols beyond label)

SEALED boxes (fig. b) offer one of the best compromises in power handling and performance. Because of the “air spring” provided by the box the advantages include simple box construction, higher power handling, excellent transient response, and smooth low frequency roll-off. Disadvantages include only moderate efficiencies at low frequencies and the need for large box volumes.

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

VENTED boxes (fig. c) extend the low frequency response below that of the sealed box by using a port tube. Advan-tages include extended low frequency response, lower distortion due to smaller cone movements in its passband, good efficiency, good transient response, moderate size boxes and higher power capacity. Disadvantages include increased complexity in box design and possible woofer damage due to over-excursion of the woofer cone below the cut-off frequency of the vented box.

Pure electrical circuit lines without any symbols

SINGLE-VENTED BANDPASS boxes (fig. d) are relatively new (about 5 years in the car) but offer some advantages of both the sealed and vented designs. Advantages include reasonable efficiency, small box volumes, good transient response, extended low frequency performance and can be used with very high power amplifiers. Disadvantages include slightly lower efficiency compared to a vented box and increased complexity in box design and construction.

Pure diagram of a funnel-shaped structure with arrows indicating flow or movement, no text or symbols present.

DUAL-VENTED BANDPASS boxes (fig. e) vent the sound from the front and back of the woofer through individually tuned enclosure on the front and rear of the woofer. The advantage of this design is its high efficiency over a narrow frequency band. Disadvantages include complex design and construction, large box volumes, poor transient response and susceptibilities to cone over-excursions (damage) for sound outside its primary frequency band.

Pure diagram of a funnel inside a rectangular chamber with arrows indicating flow direction (no text or symbols)

ISOBARIC WOOFER CONFIGURATIONS

Increasing in popularity in recent years is the compound woofer design, more commonly known as the “Isobaric” design. Isobaric actually means “constant pressure” which is the case having two woofers moving an encapsulated pocket of air between them in the same direction.

This arrangement acts like a single speaker which effectively reduces the required box volumes for a subwoofer system by 50% which is substantial if you are space-limited. Unfortunately, the trade-off for space is the 3 dB loss in efficiency but this is usually recovered with increased amplifier power. Care must be taken to avoid air leaks between the two woofers and final speaker wiring and impedance loads must be carefully watched.

2Ω + - PARALLEL 8Ω + - SERIES 4Ω 4Ω 4Ω 4Ω

ISOBARIC CONFIGURATION (TANDEM)

2Ω - PARALLEL 8Ω - SERIES 4Ω 4Ω 4Ω

SUBWOOFER ENCLOSURE CONSTRUCTION

Before starting final box assembly some basic construction issues should be mentioned:

• Infinite baffle construction in a car is done by simply cutting a piece of wood which will act as an acoustical divider isolating the front and rear sound of the woofer. This piece of wood is mounted inside the trunk of the car under the rear deck, or against the back of the rear seat, and should have some kind of caulking to seal off all residual air leaks.
• Box construction can take on nearly any shape since we are dealing with low frequencies. Odd shapes that are difficult to cut and glue should be avoided.
• Particle board, MDF, or high grade birch plywood are good materials to build boxes of thicknesses of 19 to 25mm .
• All seams in the box should be glued, screwed and caulked to prevent wall separation over time due to vibration and environmental changes within the car.
  – Cross bracing is important for large boxes to prevent wall vibration.
• Acoustical damping material (sheep wool or fibreglass batting 5 to 10cm thick), attached to 50% or more of the interior walls helps reduce box noise and also increases the box volume seen by the woofer by 10 - 20% . The application of self-adhesive damping mats to the inside walls also helps to eliminate wall resonances.
• The cables running from the amplifier to the subwoofer should be as short as possible with a cable cross section of at least 4 mm2.
• The final box should be rock solid and air tight but should also remain serviceable should a woofer be damaged for any reason.
• When possible, use 10 to 15 cm diameter port tubes to avoid wind noise from smaller diameter sizes. PVC plumbing pipe in various diameters is available at most hardware stores with „elbow“ pipes allowing you to bend the tubes inside the box.
• Try to always use active (electronic) crossovers, such as those built into our Velocity amps, for example.

Diagram of a speaker with sound waves and directional arrows, labeled (a), showing no text or symbols beyond the label.

Simple diagram of a speaker inside a rectangular frame with bidirectional arrows indicating sound or motion (no text or symbols)

Pure electrical circuit lines without any symbols

Pure diagram of a funnel-shaped container with arrows indicating flow or movement, no text or symbols present.

Pure diagram of a mechanical or fluidic component with directional arrows, no text or symbols present

ISOBARE WOOFERKONFIGURATIONEN

Diagram of a speaker emitting sound waves, labeled 'a)' (no text or symbols on diagram)

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

Pure diagram of a rectangular device with internal components and directional arrows, no text or symbols present.

Pure diagram of a funnel-shaped container with arrows indicating flow or movement, no text or symbols present.

Pure diagram of a mechanical or fluidic component with directional arrows, no text or symbols present.

CONFIGURATIONS ISOBARES DE WOOFERS

Diagram of a speaker emitting sound waves, labeled 'a)' (no text or symbols on diagram itself)

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Diagram of a funnel-shaped container with internal flow arrows, no text or symbols present

Pure diagram of a mechanical or fluidic component with directional arrows, no text or symbols present

Pure geometric diagram of a speaker inside a rectangular frame (no text or symbols)

MESSA A PUNTO DELLE SCATOLE DI SUBWOOFER

TYPEN SUBWOOFER-BOXEN

Diagram of a speaker emitting sound waves, labeled 'a)' (no text or symbols on diagram itself)

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

Pure diagram of a rectangular frame with internal arrows and a small block, no text or symbols present.

Pure diagram of a container with inlet and outlet, no text or symbols present

Pure diagram of a funnel inside a rectangular chamber with arrows indicating flow direction (no text or symbols)

ISOBARE WOOFERCONFIGURATIES

Diagram of a speaker with sound waves and directional arrows, labeled 'a)' (no text or symbols beyond label)

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

Pure diagram of a speaker inside a rectangular frame with directional arrows, no text or symbols present

Pure diagram of a funnel-shaped structure with arrows indicating flow or movement, no text or symbols present.

Pure diagram of a funnel inside a rectangular chamber with arrows indicating flow direction (no text or symbols)

LÅGBASLÅDOR AV TYP ISOBARIK

ATT BYGGA LÅGBASLÅDA

Diagram of a speaker emitting sound waves, labeled 'a)' (no text or symbols on diagram itself)

Simple diagram of a rectangular frame with directional arrows indicating rotation or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Pure diagram of a funnel-shaped structure with arrows indicating flow direction, no text or symbols present

Pure diagram of a funnel inside a rectangular chamber with arrows indicating flow direction (no text or symbols)

CONFIGURACIONES ISOBÁRICAS DEL WOOFER

Diagram of a speaker emitting sound waves, labeled 'a)' (no text or symbols on diagram itself)

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Pure diagram of a funnel-shaped container with arrows indicating flow direction (no text or symbols)

Pure diagram of a mechanical or fluidic component with directional arrows, no text or symbols present

Diagram of a speaker with sound waves and directional arrows, labeled (a), showing no text or symbols beyond the label.

Simple diagram of a rectangular frame with internal arrows indicating rotation or movement (no text or symbols)

Pure electrical circuit lines without any symbols

Pure diagram of a funnel-shaped structure with arrows indicating flow or movement, no text or symbols present.

Pure diagram of a container with internal flow arrows, no text or symbols present

ISOBARE WOOFERKONFIGURATIONER

SUBWOOFER-KABINETTERS OPBYGNING

12" SUBWOOFER • TECHNICAL DATA
Nominal diameter	12.0 in (300 mm)
Nominal impedance	2/2 Ω (ea. coil)
DC resistance (Re)	2 Ω (ea.)
Resonance frequency (fs)	42 Hz
Frequency Response	40-200 Hz
Total Q factor (Qts)	0.48
Mechanical Q (Qms)	4.3
Electrical Q (Qes)	0.54
Equivalent air volume (Vas)	13.5 ltr's
Effective cone area (Sd)	41,5 in ^2
Voice coil diameter	75,5 mm
Voice coil former material	Carbon,Fiberglass (CFG)
Linear excursion (Xmax)	±15 mm
Continuous power (Pe)	1200 W (3600 peak)
Sensitivity (SPL)	93 dB

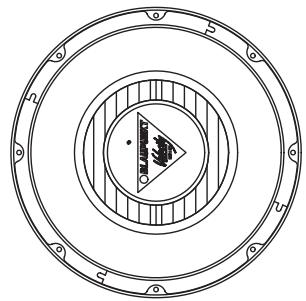

Circular diagram with concentric rings and a central triangular pattern, no text or symbols present

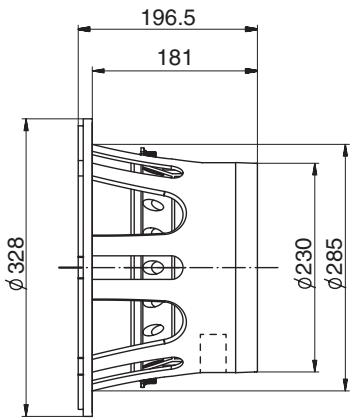

196.5 181 φ328 φ230 φ285

VPw 300

Recommended box designs • Boxenempfehlung • Conception recommandée des enceintes • Box raccomandati • Aanbevolen boxen • Rekommendationer • Recomendaciones de cajas de altavoz • Caixas recomendadas • Anbefaling af bokse

Sealed:	no recommendation
Vented:	30 litersPort: D = 10 cm, L = 60 cm rounded on both sides
Bandpass:	no recommendation

VPw 380

Specifications • Technische Daten • Caractéristiques techniques • Specifiche • Specificaties • Specifikationer • Especificaciones • Especificações • Specifikationer

15" SUBWOOFER • TECHNICAL DATA
Nominal diameter	15.0 in (380 mm)
Nominal impedance	2/2 Ω (ea. coil)
DC resistance (Re)	2 Ω (ea.)
Resonance frequency (fs)	28 Hz
Frequency Response	25-200 Hz
Total Q factor (Qts)	0.37
Mechanical Q (Qms)	3.6
Electrical Q (Qes)	0.37
Equivalent air volume (Vas)	60.6 ltr's
Effective cone area (Sd)	73 in ^2 (0.051 m ^2 )
Voice coil diameter	100.0 mm
Voice coil former material	Carbon,Fiberglass (CFG)
Linear excursion (Xmax)	±15 mm
Continuous power (Pe)	1500 W (4.500 peak)
Sensitivity (SPL)	93 dB

Symmetrical concentric circular diagram with diagonal hatching and central diamond shape (no text or symbols)

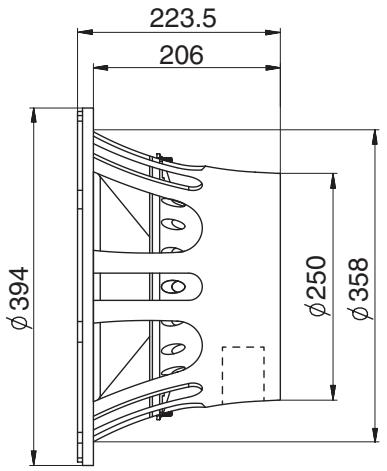

223.5 206 φ394 φ250 φ358

VPw 380

Recommended box designs • Boxenempfehlung • Conception recommandée des enceintes • Box raccomandati • Aanbevolen boxen • Rekommendationer • Recomendaciones de cajas de altavoz • Caixas recomendadas • Anbefaling af bokse

Sealed:	no recommendation
Vented:	45 litersPort: D = 10 cm, L = 65 cm rounded on both sides
Bandpass:	no recommendation

VPw 460

Specifications • Technische Daten • Caractéristiques techniques • Specifiche • Specificaties • Specifikationer • Especificaciones • Especificações • Specifikationer

18" SUBWOOFER • TECHNICAL DATA
Nominal diameter	18.0 in (460 mm)
Nominal impedance	2/2 Ω (ea. coil)
DC resistance (Re)	2 Ω (ea.)
Resonance frequency (fs)	37 Hz
Frequency Response	20-200 Hz
Total Q factor (Qts)	0.60
Mechanical Q (Qms)	3.8
Electrical Q (Qes)	0.71
Equivalent air volume (Vas)	36,7 ltr's
Effective cone area (Sd)	113 in ^2
Voice coil diameter	100.0 mm
Voice coil former material	Carbon,Fiberglass (CFG)
Linear excursion (Xmax)	±15 mm
Continuous power (Pe)	1800 W (5.400 peak)
Sensitivity (SPL)	94 dB

Symmetrical concentric circular diagram with central triangle and patterned segments (no text or symbols)

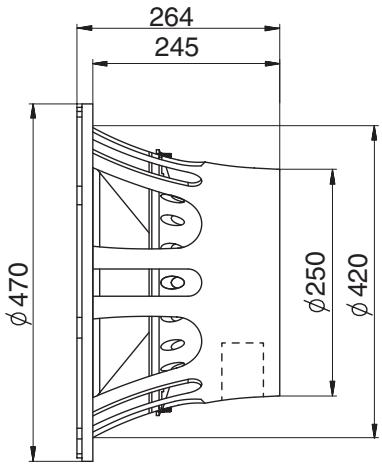

264 245 φ470 φ250 φ420

VPw 460

Recommended box designs • Boxenempfehlung • Conception recommandée des enceintes • Box raccomandati • Aanbevolen boxen • Rekommendationer • Recomendaciones de cajas de altavoz • Caixas recomendadas • Anbefaling af bokse

Sealed:	no recommendation
Vented:	60 liters2x Port: D = 10 cm, L = 80 cm rounded on both sides
Bandpass:	no recommendation
