Product Type	Subwoofer
Brand	Blaupunkt
Model	XLf 200 AW
Type	Passive (unpowered)
Maximum Power (RMS)	200 W
Impedance	4 ohms
Sensitivity	90 dB (1W/1m)
Frequency Response	20 Hz – 200 Hz
Dimensions (W x H x D)	300 mm x 300 mm x 300 mm
Weight	10 kg
Cone Material	Polypropylene
Surround Material	Rubber
Mounting Depth	150 mm
Recommended Enclosure Volume	Sealed: 30 L; Ported: 50 L
Connection Type	Spring terminals
Included Accessories	Mounting screws, manual
Cleaning	Wipe with dry cloth; avoid liquids
Safety	Do not expose to moisture; ensure proper ventilation

Frequently Asked Questions - XLf 200 AW BLAUPUNKT

What is the recommended amplifier power for the Blaupunkt XLf 200 AW?

For optimal performance, use an amplifier delivering 200 W RMS at 4 ohms. Make sure the amplifier's power does not exceed the subwoofer's handling to avoid damage.

Can the XLf 200 AW be used in a sealed or ported enclosure?

Yes, it works in both. For a sealed enclosure, use approx. 30 liters for tight bass. For a ported enclosure, use approx. 50 liters for louder, deeper bass. Tune the port to around 35 Hz.

What is the impedance of the subwoofer?

The subwoofer has a single voice coil with 4 ohms impedance. Connect it to an amplifier that is stable at 4 ohms.

How do I connect the subwoofer to my amplifier?

Use the spring terminals on the subwoofer. Connect the positive (+) terminal to the amplifier's positive output and negative (-) to negative. Ensure the amplifier is turned off during connection.

What is the mounting depth required?

The mounting depth is 150 mm. Ensure your enclosure has at least this depth to fit the subwoofer without obstruction.

How should I clean the subwoofer?

Use a soft, dry cloth to gently wipe the cone and surround. Avoid any liquids or cleaning agents, as they may damage the materials. Keep the subwoofer away from dust and moisture.

Is the Blaupunkt XLf 200 AW suitable for car audio?

Yes, it is designed for car audio use. It can handle the vibration and temperature variations typical in a vehicle. Ensure proper mounting to prevent movement.

What is the frequency response of this subwoofer?

The frequency response is 20 Hz to 200 Hz. This covers deep bass notes up to the lower midrange, making it ideal for supplementation with smaller speakers.

Can I use multiple XLf 200 AW subwoofers together?

Yes, you can use multiple units. If using two, ensure the total impedance matches your amplifier. For example, two 4-ohm subwoofers wired in parallel give 2 ohms; in series they give 8 ohms.

What size is the subwoofer?

The subwoofer has a 12-inch (300 mm) cone diameter. The overall frame dimensions are approximately 300 mm x 300 mm x 300 mm, but actual cutout and mounting dimensions may vary slightly.

USER MANUAL XLf 200 AW BLAUPUNKT

Enjoy it.

CAUTIONS

Proper system planning is vital in order to maximize the device's performance and road safety. Plan your installation carefully to avoid compromising performance reliability of the system. Consult an authorized Blaupunkt dealer for installation or reparation. Read the manual carefully before operating the device for the first time.

Safety Notes

Ensure to follow below safety notes during installation and wiring connection :

• Ensure positions of the holes are nowhere near the vehicle component to avoid any damage during drilling.
• Ensure cross section of the cable is no less than 2.5mm ^2 if the positive and negative cables are too long.
• Incorrect installation may result in malfunction of the device or the car sound system.

Installation and Connection Instructions

• Select a dry and well-ventilated location to install the device.
  • The device must not be installed in overly exposed location such on the rear shelf, rear seat etc.
  • The installation location must be suitable for screw holes and have stable ground support.

Voltage Supply

• Use the supplied power extension cable to connect to the positive battery terminal.
• Firmly and carefully connect the ground lead to a bare metal point on the vehicle chassis.
  • The control of the device should be a two-channel control, either via the preamplier outputs or the loudspeaker, output of the car sound system.
• A control solely via the right or left channel is also possible since the low-frequency portion of the music is generally identical on both channels.

Integrated Fuse

The integrated fuse in the device protects the output voltage and the entire electrical system in case of malfunction. Do not replace damaged fuse with higher current.

Switching On/Off

This device will automatically turn on if a music signal is detected. The device will also automatically turn off if no music signal is received.

Remote Control

Disclaimer

In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.

USA & CANADA: This product is not intended for sale in the United States and Canada. If purchased in the U.S. or Canada, this product is purchased on as-is basis. No warranty, whether expressed or implied is provided in the U.S. or Canada.

Recycling and Disposal

Do not dispose of your old unit in the household trash!
Use the return and collection systems available to dispose of the old device.

This manual may be updated from time to time without any notice.

SPECIFICATION

Subwoofer

• Speaker Size: 12" Diameter
• Magnet Type : Ferrite
• Cone Composition: Composite Fiber Glass
• Enclosure Housing Material : Aluminum

Amplifier

• Amplifier Technology : AB Class
• Normal Output Power (RMS) : 150W
• Max. Output Power : 450W
• Audio in Sensitivity: 1V
• Signal / Noise Ratio : >90dB
• Output impedance: 2 ohms
• Frequency Response: 20Hz - 150 Hz

• Low Pass Filter (LPF): 50Hz - 150Hz
• Voltage: 12V (10V-14V)
• Phase Switch: 0 deg / 180 deg
• Automatic On/Off : High Level Only
- Fuse Rating: 25A
• Variable Bass Boost: 0 - 12dB

Accessories

• Remote Controller: Wired
- DC Cord:4.0m
• Screws (Parker-type) : 8 x 200mm / 8 x 160mm
• Bracket A: 66 x 8mm with screw M3 x 6
• Overall Net Weight : 9.8kg (Without Accessories)
• Enclosure Dimension (L x W x H) : 340 x 320 x 160mm

INSTALLATION POSITION

Technical line drawing of a mechanical device with mounting base and rotating knob (no text or symbols)

SIDE FIRING POSITION

Simple line drawing of a three-legged device with no text or symbols

UP FIRING POSITION

Line drawing of a mechanical device with three vertical axis lines (no text or symbols)

WIRING DIAGRAM

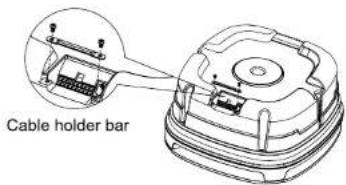

1. Use the supplied cable and wire harness to connect the outputs correctly by referring to Diagram 1 & Diagram 2. Use only one of the audio inputs, otherwise, it may lead to audio interference.

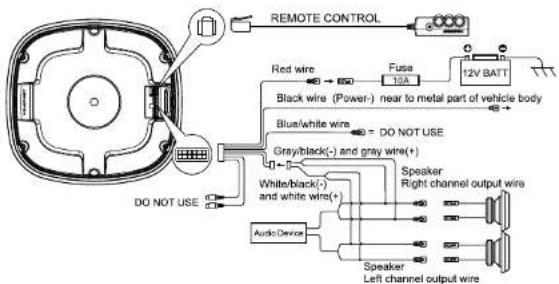

Diagram 1 (High Level Input -Speaker Input)

With control via the High-Level Inputs, first the speaker harness will need to be spliced the wire side of the splitter. Then connect the white wire to the left (1), white/black wire to the left (-) it can be identified whether the left or right channel via the attached harness label, grey to the right (+), and grey/black to the right (-) corresponding vehicles wires, and finally plug the supplied harness into the High-Level Inputs/power matching connector on the amplifier panel of the subwoofer.

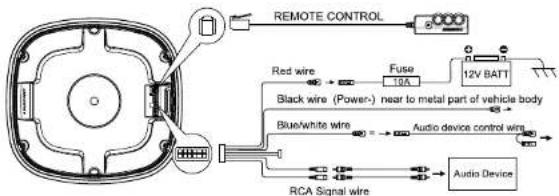

Diagram 2 (Low Level Input -Speaker Input)

With control via the Low Level Inputs (also referred to as RCA Inputs), connect the blue colour remote wire from XLf 200 AW to the vehicle's head unit so XLf 200 AW will turn on and off with systems.

WIRING DIAGRAM

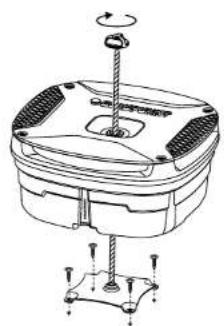

1. Securely mount the subwoofer to chassis with the provided bolt. (Fastener assemble direction has been enclosed.)

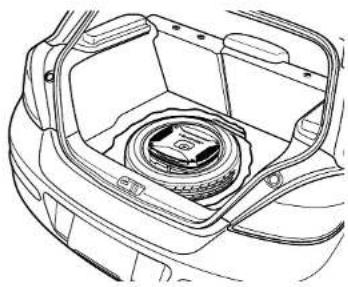

1. After the connection, place in the spare wheel active subwoofer to the right location, make sure the subwoofer been firmly press down.

Technical line drawing of a car interior showing the engine compartment and dashboard (no text or symbols)

1. Set the bolt tightly to ensure the subwoofer firmly fixed with the car, at the same time can prevent the screw of spare tire dislocation.

Technical line drawing of a mechanical assembly with no visible text or symbols

TROUBLESHOOTING

If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist.

Problems	Solutions
Power up failure	Examine if the ground connection is intact.
	Examine if remote input has at least 5V DC.
	Ensure supplied voltage is minimum 12V.
	Examine if fuse is broken and replace if necessary.
	Restart the device if protection LED light is on.
Protection LED lights on when turn on	Examine speaker wire if had short-circuit.
	Turn volume down from head unit to prevent overdriving the device.
	Device might need service or repair, if protection LED light is still on after resetting the device.
No sound output	Examine fuses and replace if necessary.
	Examine ground connection if intact.
	Examine if remote input has at least 5V DC.
	Examine if RCA audio cables are connected to the right inputs.
	Examine if speaker wiring is intact.
Low sound output	Reset Level Control
Buzzing noise	Observe if the device is still producing noise after turning on and off the amplifier. If yes, examine if the cables are correctly connected and if the cables and radio are in good condition. Repair or replace if the cables or the radio are not in good condition.
Squealing noise interference	Ensure RCA connections are properly connected.
Distorted sound output	Ensure input level of the device matches the signal level of the head unit.
	Always set the input level to the lowest.
	Examine if speaker wire had short-circuit.
Temperature Increased	Examine if minimum speaker impedance for the device is correct.
	Ensure good air ventilation around the device. Add external cooling fan if necessary.
Engine noise (static sound) interference	Usually caused by poor RCA cable quality, which release noise. Use only the best quality cables, and route them away from power cables.
Engine noise (alternator whine) interference	Examine if RCA cable are nowhere near or attached to the vehicle chassis.
	Examine if head unit is properly connected to the wires.

Designed and engineered by Blaupunkt Competence Centre 11 113 18 006 02 01
