4954-2 - Measurement Hazet - Free user manual and instructions

Product Type	Brake Fluid Tester
Brand	Hazet
Model	4954-2
Dimensions (approx.)	200 x 150 x 80 mm (tester in case)
Weight (approx.)	0.5 kg (including case and accessories)
Power Supply	12 V DC from car battery (via included connection cables)
Measuring Principle	Heating of brake fluid to determine wet boiling point
Measurement Range	up to 320 °C (608 °F)
Compatible Fluids	Brake fluids DOT 3, DOT 4, SUPER DOT 4, DOT 5, DOT 5.1
Display	LCD with temperature reading and error codes
Indicator Lamp	Red (standby), Green (heating), Yellow (test complete)
Automatic Shut-Off	Yes, after 1 minute of inactivity
Error Codes	E-1 (no/inadequate fluid), E-2 (voltage error), E-3 (probe/cable problem)
Included Accessories	Carrying case, test container, syringe, battery connection cables
Maintenance	Clean probe with water after each test; wipe dry
Storage Temperature	-10 °C to +40 °C (14 °F to 104 °F)
Storage Humidity	Max. 60% relative humidity
Safety Features	Burn protection (stops heating if probe not submerged), automatic shut-off
Required Personal Protective Equipment	Working gloves and safety glasses
Reparability	Service by qualified personnel only; use original spare parts
Disposal	Electronic waste must be disposed of by authorized specialists

Frequently Asked Questions - 4954-2 Hazet

What is the Hazet 4954-2 brake fluid tester used for?

The Hazet 4954-2 is used to measure the wet boiling point of brake fluid to determine moisture content and contamination. This helps assess whether the brake fluid needs to be replaced.

How do I connect the tester to a car battery?

Connect the negative terminal (-) first, then the positive terminal (+) of the battery connection cable to the car battery. Ensure the battery voltage is 12 V.

What does error code E-1 mean?

E-1 indicates no fluid or insufficient fluid on the probe. The heating process stops automatically. Ensure the probe is submerged to the 'To The Line' marking and repeat the test.

What does error code E-2 mean?

E-2 indicates a voltage error: either below 10.8 V or above 15.7 V. Check the battery and connections. If voltage is normal and error persists, contact service.

What does error code E-3 mean?

E-3 indicates a problem with the probe or connection cable. Please contact Hazet service center for assistance.

How do I perform a calibration check?

Use clean water instead of brake fluid. If the tester is accurate, it should display 100 °C (212 °F) (boiling point of water). Perform this test periodically to verify accuracy.

How long does a test take?

The heating process takes approximately 19 to 30 seconds. Keep the power button pressed until the test completes, indicated by a beep and yellow indicator lamp.

Can I test brake fluid directly in the vehicle?

Yes, testing directly on the vehicle is permissible if there is space, but using the supplied test container is recommended for accurate results. Ensure proper fluid level.

How do I clean the tester after use?

Allow the brake fluid to drip off the probe, then wash it with clean water and wipe it dry. Do not submerge the probe past the 'To The Line' marking. Also wipe the test container and syringe.

What are the storage requirements?

Store the tool in a dry, dust-free place away from liquids and aggressive substances. Keep out of reach of children. Temperature range: -10 °C to +40 °C, max. 60% relative humidity.

USER MANUAL 4954-2 Hazet

Operating Instructions Tester for brake fluid

1. For your information....13
2. For your safety 14
3. Design and function......16
4. Maintenance and care ...... 21

pl

Spis treści

Two circular icons: one showing a hand gesture above another showing a person wearing glasses (no text or symbols)

Black hard-shell toolbox containing medical or industrial equipment including syringe, tubing, and clamps (no visible text or symbols)

Close-up of hands using a pipette to measure a car engine component (no visible text or symbols)

Hand pouring green liquid into a glass beaker (no text or symbols visible)

Hand holding a handheld electronic device with a screen displaying a small display (no visible text or symbols)

E-3: bedeutet

Auswertung

• Please make sure that the user of this tool carefully reads these operating instructions and fully understands all the information provided before using the tool for the first time.
• These operating instructions contain important advice that is necessary for the safe and trouble-free operation of your HAZET tool.
• For intended use of the tool, it is essential that all safety and other information in these operating instructions is adhered to.
• For this reason, always keep these operating instructions together with your HAZET tool.
• This tool has been designed exclusively for specific applications. HAZET emphasises that any modification to the tool and/or use in a way that does not correspond to its intended application is strictly forbidden.
• HAZET will not be liable for any injuries to persons or damage to property originating from improper or inappropriate application, misuse of the tool or a disregard of the safety instructions.
• Furthermore, the general safety regulations and regulations for the prevention of accidents in the application range of this tool must be observed and respected.

2. Explanation of symbols

ATTENTION: Pay strict attention to these symbols!

Read the operating instructions!

The owner of this tool is obliged to observe the operating instructions and instruct any users of this tool according to the operating instructions.

NOTE!

This symbol indicates advice that is helpful when using the tool.

WARNING!

This symbol marks important specifications, dangerous conditions, safety risks and safety advice.

CAUTION!

This symbol indicates advice which, if disregarded, results in damage, malfunction and/or functional failure of the tool.

QUALIFIED PERSONNEL!

The tool may only be used by qualified personnel. Handling by non-qualified people may lead to injuries to persons or damage to the tool or workpiece.

Electrical energy may cause serious injuries! Always wear personal protective equipment!

1. Owner's liability

• This tool was developed and manufactured according to the technical norms and standards valid at the time and is considered to be operationally reliable. Nevertheless, the tool may present a danger when it is not used as intended or used in an inappropriate way by non-qualified personnel. Please make sure that any person using this tool or carrying out maintenance work carefully reads and fully understands these operating instructions before using the tool.
• Modifications of any kind or any additions or modifications to the tool are prohibited.
• All safety instructions, warning and operation notices on the tool must be kept legible at all times. All damaged labels or stickers must be replaced immediately.
• All specified installation values or setting ranges must be observed.
• Keep the operating instructions together with the tool at all times.
• The tool may only be used if it is in good working order.
• All safety equipment must always be within reach and should be checked regularly.

2. Intended use

Operational reliability is only guaranteed if the device is used as intended in accordance with the information provided in the operating instructions. In addition to the occupational health and safety information in these operating instructions, the regulations for general safety, the prevention of accidents and for environmental protection valid for this tool's application range must be observed and respected.

Use and maintenance of the tool must always comply with relevant local and national regulations.

• The brake fluid tester measures the boiling point of the brake fluid in order to determine the degree of contamination / water content.
• To avoid hazards, do not use the tester with other liquids such as petrol, diesel or other flammable liquids.
• The tool must only be used if it is in good working condition.
• All safety equipment must always be within reach and should be checked regularly.
• Any incorrect use of the HAZET tool or use that fails to comply with the safety instructions can result in serious injury or even death.
• Any deviation from the intended use and/or any misapplication of the tool is not allowed and will be considered as improper use.
• Any claims against the manufacturer and/or its authorised agents because of damage caused by improper use of the tool are void.
• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the operator.

Electrical energy may cause serious injuries! Always wear personal protective equipment!

3. Dangers that may arise from the tool

- Before each use, check the HAZET tool for full functionality. Do not use the tool set if its functionality cannot be ensured or if damage is detected. If the tool is used when it is not in full working order, you risk severe injuries to persons and damage to property.

- Electric energy may cause serious injuries to persons. The following safety instructions must be observed and adhered to in order to avoid electric shock, injuries or fire:

- The connecting cables and housing must not be damaged. Tools/chargers that have been dropped or damaged must be checked by qualified personnel before being used again.

- Never use tools with a defective on/off switch. Any tools that cannot be switched on or off with the On/Off switch are dangerous and must be repaired.

- The cables must not touch hot or sharp parts or become damaged in any other way. The cables must be laid in such a way that they do not present a tripping hazard.

- All service or repair work must be carried out by qualified personnel only. Only use original spare parts so as to guarantee its long-term operational safety.

- Safety devices and/or cover parts may not be removed.

- Never operate the tool when a protective cover is missing or when not all of the safety devices are fitted and in perfect working order.

- Only use the tool within the prescribed places, and governed under the current regulations relating to the working environment and to electrical systems.

- For safety reasons, any modification to the HAZET tool is strictly forbidden. Any modification of the tool set will result in immediate exclusion from express or implied warranty and liability.

Wear working gloves and safety glasses.

- Keep children away from HAZET tools. Unattended tools could be used by unauthorised persons and could cause injury to them or to other persons.

- Do not use the tool in an explosive atmosphere. Electric tools can cause sparks or ignite combustible materials.

- Stop using any tool immediately if you feel unwell or jittery or if you start feeling pain.

• Make sure that the working area is clean, well ventilated and always well lit.

- Never use the tool whilst under the influence of alcohol or drugs.

- Repairs must be performed by authorised personnel only.

- Do not clean plastic parts with solvents.

- Solvents such as petrol, benzene, carbon tetrachloride, and alcohol can deform or crack the plastic parts. Do not come in contact with the above-mentioned solvents.

Electrical energy may cause serious injuries! Always wear personal protective equipment!

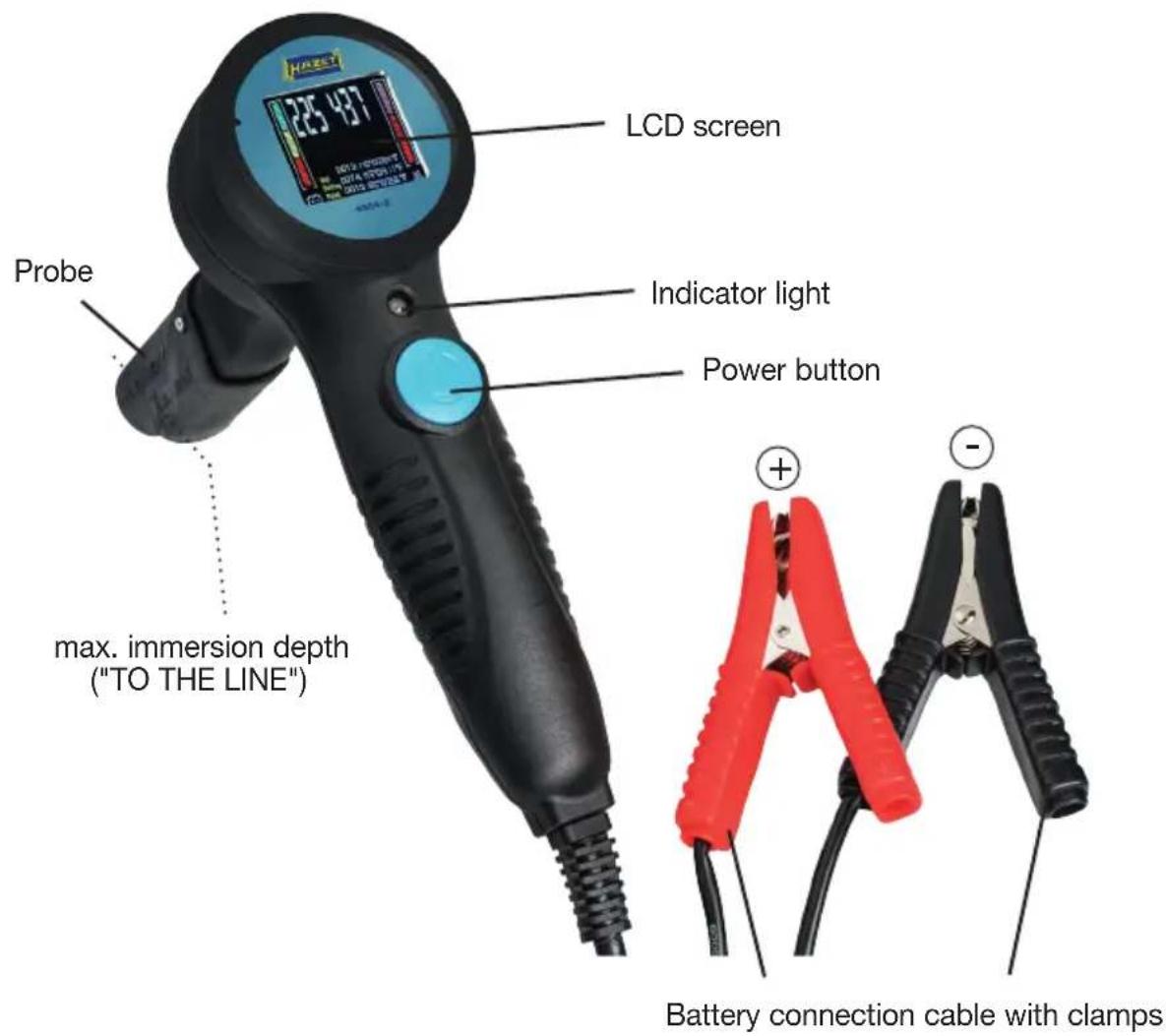

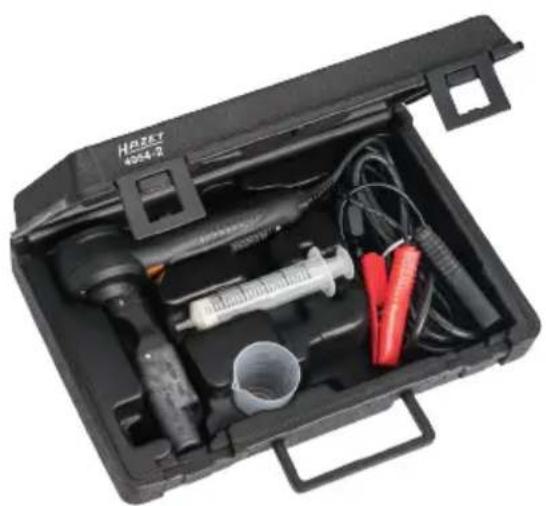

1. Technical data / tool components: HAZET Tester for brake fluid 4954-2

Black hard-shell toolbox containing various electronic components including a syringe, test tube, and clamp (no visible text or symbols)

2. Included in delivery: Tester for brake fluid 4954-2

• Tester for brake fluid 4954-2 in case
• Test container
• Syringe

Electrical energy may cause serious injuries! Always wear personal protective equipment!

Precautions and warning indications

1. Use the car battery for the power source.

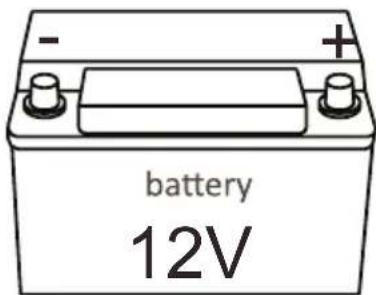

2. First connect the negative terminal (-) and then the positive terminal (+).

1. Never use the tester without fluid!

2. Do not press the power button if the probe is not submerged to the required fluid level.

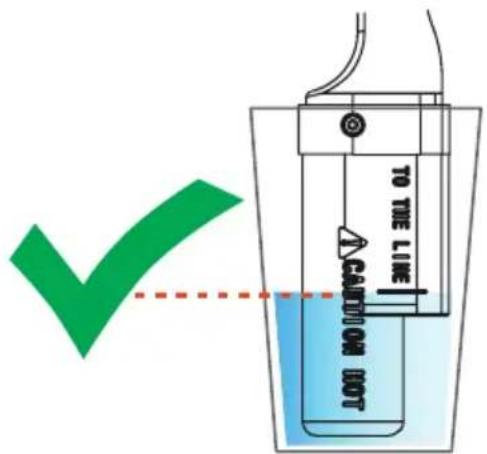

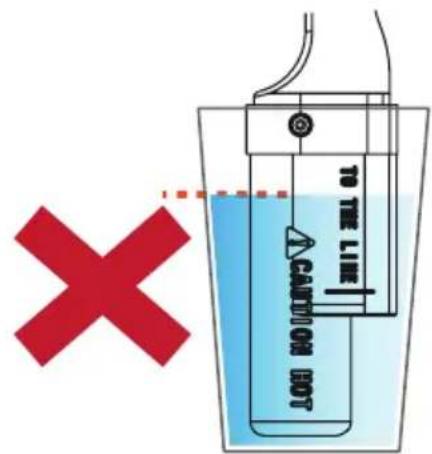

3. Make sure the fluid level does not exceed the position TO THE LINE during the test. If an abnormal situation comes up during the test, terminate the battery connection immediately.

4. Use the supplied test container to get accurate test results. Testing directly on the vehicle is also permissible if there is space.

1. Clean the tester before each test. Cleaning: When the test is complete, allow the rest of the brake fluid to drip off the probe, wash it with clean water and wipe it dry. Do not dip the probe into water over the "To The Line" marking. Wipe the test container and syringe dry and carefully place them back into the supplied case.

Instructions

Voltage detection

1. Make sure the battery voltage is 12 V.
2. Connect the battery connection cable as described above with the car battery.

Electrical energy may cause serious injuries! Always wear personal protective equipment!

3. LCD display.

• If the battery is weak, the tester does not activate and the indicator lamp lights up red.
• Energy-saving design: After 1 minute without action, the tester shuts off automatically to save energy.
• Burn protection: If a test is conducted without the probe touching the fluid, "E-1" is displayed and the heating process is stopped. This is a safety concept used to protect the tool.
• If there is no action after the battery is connected, make sure that the battery connection cable is connected to the correct battery terminal.

Preparing the test fluid

Close-up of hands using a pipette to measure a car engine component (no visible text or symbols)

1. Use the syringe to draw the brake fluid from the main cylinder.

Hand pouring green liquid into a glass beaker (no text or symbols visible)

1. Transfer the brake fluid into the test container (approx. 25 ml).

1. Keep the probe in the container. Ensure the correct filling height! If the brake fluid is under "TO THE LINE" during the test, the data are inaccurate. Please repeat the test with the correct quantity.

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

Performing the test

Hand holding a handheld electronic device with a screen displaying a small electronic component (no visible text or symbols)

1. The indicator lamp lights up red in standby mode. Press the power button to heat the brake fluid and keep it pressed until the test is complete. It takes about 19 to 30 seconds.

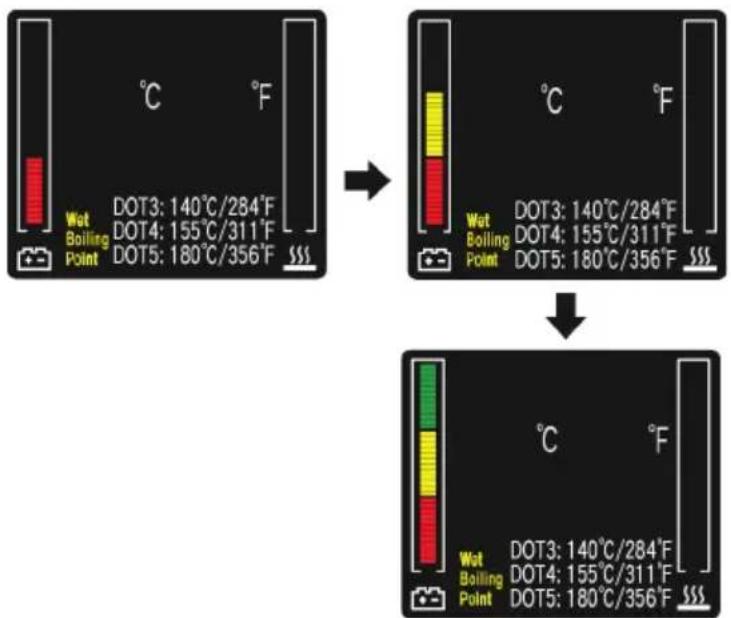

1. During the heating process, the LED flashes GREEN and the display (right) moves.

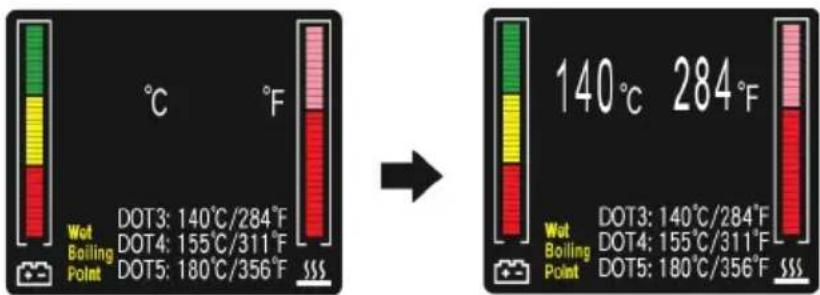

2. The tester emits a short beep after the test is completed. The result of the boiling point temperature is shown on the LCD display.
3. The indicator lamp lights up yellow when the test is completed. Wait until the light is red before starting the test again.

Display of operational failures

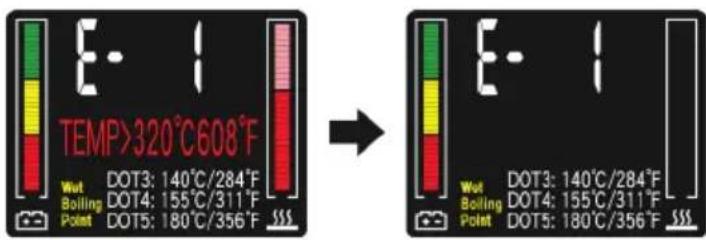

E-1: means there is no or insufficient fluid

Notes

If the tester is used without touching the fluid, "E-1" is displayed and the heating process is stopped. This is the security measure used to protect the tester.
② The indicator lamp lights up yellow and emits a longer beep.
③ Release the power button. TEMP> 320 °C / 608 °F fades out and only "E-1" is displayed. After approx. 1 minute, the display automatically fades out on the screen.
4 Reconnect the battery in order to use the tester again. If the problem persists, please contact our service center.

Electrical energy may cause serious injuries! Always wear personal protective equipment!

Display without pressing the power button

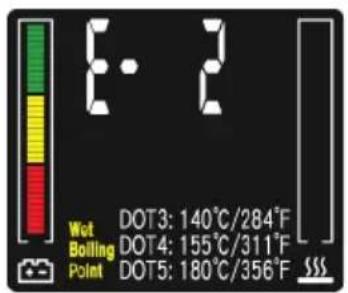

E-2: means

① either the voltage is too low (lower than 10.8 V),
② or the voltage is too high (higher than 15.7 V).
3 If the power supply is normal (between 10.8 V and 15.7 V) and "E-2" is still displayed during heating, contact our service center.

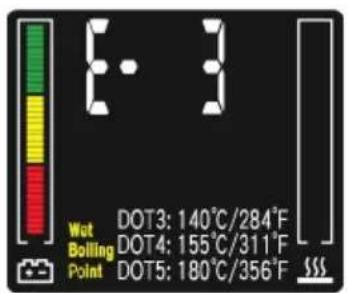

E-3: means

① either there is a problem with the probe
② or the connection cable
③ Please contact our service center.

Calibration test

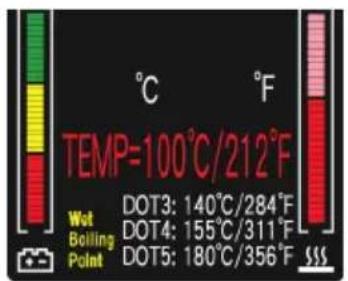

1. To check the accuracy of the tester, perform a water test with clean water.
2. If there is no problem, the result is TEMP = 100 °C / 212 °F.

Evaluation

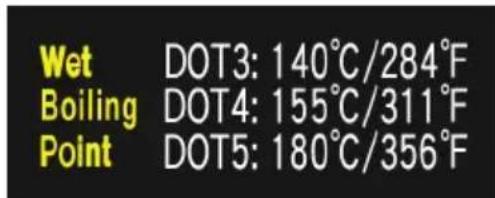

The temperature shown on the display refers to the wet boiling point of the brake fluid. It is a tool for deciding whether the brake fluid needs to be changed.

The boiling point should not be under the following temperatures:

(a) DOT 3: 140 °C (284 °F)
(b) DOT 4: 155 °C (311 °F)
(c) SUPER DOT 4: 155 °C (311 °F)
(d) DOT 5: 180 °C (356 °F)
(e) DOT 5.1: 190 °C (374 °F)

Electrical energy may cause serious injuries!

Always wear personal protective equipment!

Storage:

The tool must be stored under the following conditions:

• Keep the tool in a dry and dust-free place.
• Do not expose the device to liquids and/or aggressive substances
• Do not store the tool outdoors.
• Keep tool out of reach of children.
  • Storage temperature: -10 up to +40 °C.
  • Relative air humidity: max. 60 %.

Disposal:

• Electronic waste, electronic components, lubrication and other auxiliary materials must be treated as hazardous waste and may only be disposed of by authorised specialists!
• Reducing environmental pollution and preserving the environment are the main focus of our activities!

Electrical energy may cause serious injuries! Always wear personal protective equipment!

Notizen / Notes

Black hard-shell toolbox containing medical equipment including syringe, tubing, and connectors (no visible text or symbols)

Close-up of hands using a pipette to measure a car engine component (no visible text or symbols)

Hand pouring green liquid into a glass of yellow liquid (no text or symbols visible)

Hand holding a handheld digital thermometer with a small screen displaying a green sensor or sensor (no visible text or symbols)

E-3: oznacza

Ocena
