Product Type	Split Air Conditioner (Wall-Mounted)
Model	ASX12XB32N
Brand	Bosch
Cooling Capacity	12000 BTU (approx. 3.5 kW)
Heating Capacity	12000 BTU (approx. 3.5 kW) (Heat Pump)
Power Supply	220-240 V, 50 Hz, 1-Phase
Maximum Input Power	Approx. 1.5 kW (Cooling) / 1.6 kW (Heating)
Refrigerant	R32
Indoor Unit Dimensions (WxHxD)	Approx. 800 x 290 x 215 mm
Outdoor Unit Dimensions (WxHxD)	Approx. 700 x 550 x 250 mm
Indoor Unit Weight	Approx. 9.5 kg
Outdoor Unit Weight	Approx. 28 kg
Smart Connectivity	Wi-Fi via Home Connect app (requires Smart Kit)
Wireless Standard	802.11 b/g/n, 2.4 GHz
Security Encryption	WPA-PSK/WPA2-PSK/WPA3-SAE
Operating Temperature Range	-20°C to 85°C (Wi-Fi module)
Air Filter	Washable mesh filter
Modes	Cool, Heat, Dry, Fan, Auto
Noise Level (Indoor)	Approx. 25-40 dB(A)
Noise Level (Outdoor)	Approx. 50-55 dB(A)
Energy Class	A/A+ (estimated)
Remote Control	Included (IR)
Accessories	Smart Kit (wireless module) optional

Frequently Asked Questions - ASX12XB32N BOSCH

How do I install the Smart Kit for Wi-Fi control?

Remove the protective cap from the Smart Kit, open the front panel of the indoor unit, and insert the module into the reserved interface. Ensure the interface is only compatible with the manufacturer's Smart Kit. Then follow the Home Connect app instructions to connect to your Wi-Fi network.

What mobile app is required to control the air conditioner?

You need the Home Connect app, available for iOS and Android. Download it from the App Store or Google Play, then follow the in-app setup to pair your device.

How do I clean the air filter?

Turn off the unit and disconnect power. Open the front panel and remove the filter. Wash it with lukewarm water and mild detergent, then dry it thoroughly before reinstalling. Clean every 2 weeks for optimal performance.

What should I do if the remote control stops working?

Check the batteries and replace if needed. Ensure there are no obstacles between remote and unit. If it still doesn't work, try using the Home Connect app as an alternative, or reset the remote by removing batteries for 30 seconds.

Can I use the air conditioner without the Wi-Fi feature?

Yes, the unit functions normally with the standard remote control. The Smart Kit is optional for wireless control. If not installed, simply operate via remote or manually.

How do I reset the Wi-Fi module to factory settings?

Press and hold the reset button on the Smart Kit (if available) for 10 seconds. Alternatively, in the Home Connect app, go to settings and select 'Reset to factory settings'. This will clear all connections.

What does the error code 'E1' mean?

Error code E1 typically indicates a communication error between indoor and outdoor units. Check connections and ensure both units are powered. If the problem persists, contact Bosch service.

Is it normal for the outdoor unit to produce water?

Yes, during cooling mode, the outdoor unit may produce condensation or defrost water. This is normal. Ensure proper drainage to avoid water buildup.

How long is the warranty period?

Bosch typically offers a 2-year warranty on the air conditioner and 5 years on the compressor. Check your local warranty card or contact Bosch support for exact terms.

What are the dimensions of the indoor and outdoor units?

Indoor unit: approximately 800 x 290 x 215 mm. Outdoor unit: approximately 700 x 550 x 250 mm. These are estimates; refer to the installation manual for exact measurements.

USER MANUAL ASX12XB32N BOSCH

USER MANUAL OF SMART KIT

ASI09VW32N-ASO09VW32N

ASI12VW32N-ASO12VW32N

ASI18VW32N-ASO18VW32N

ASI24VW32N-ASO24VW32N

ASI12XB32N-ASO12XB32N

ASI18XB32N-ASO18XB32N

ASI12AW42N-ASO12AW42N

ASI18AW32N-ASO18AW32N

IMPORTANT NOTE:

Read the manual carefully before installing or connecting your Smart kit(Wireless module). Make sure to save this manual for future reference.

CONTENTS

① SPECIFICATION.... 1
② PRECAUTIONS ...... 1
③ INSTALL THE SMART KIT.... 2
④ HOME CONNECT .... 3

DECLARATION OF CONFORMITY

Hereby, we declare that this Smart kit is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. A copy of the full DoC is attached. (European Union products only)

1 SPECIFICATION

Model: EU-ODZ106

Antenna Type: Printed PCB Antenna

Frequency Band: 2400-2483.5MHz

Operation Temperature: -20^ to +85^ / -4^ 185^

Operation Humidity: 10%\~85%

Power Input: DC 5V/500mA

Maximum TX Power: <20dBm

2 PRECAUTIONS

• Applicable system: iOS, Android.
- Please keep you APP up to date with the latest version.
- Due to special situation may be occurred, we explicitly claims below: Not all of the Android and iOS system are compatible with APP. We will not be responsible for any issue as a result of the incompatibility.

• Wireless safety strategy

Smart kit only support WPA-PSK/WPA2-PSK/WPA3-SAE encryption and none encryption.

WPA-PSK/WPA2-PSK/WPA3-SAE encryption is recommended.

- Cautions

- Due to different network situation, control process may return time-out sometimes. If this situation occurs, the display between board and App may not be the same, please do not feel confused.

- Smart Phone camera needs to be 5 million pixels or above to make sure scan QR code well.

• Due to different network situation, sometimes, request time-out could happen, thus, it is necessary to do network configuration again.
• The APP system is subject to update without prior notice for product function improvement. The actual network configuration process may be slightly different from the manual, the actual process shall prevail.
• Please Check The Service Website For More information.

3

INSTALL THE SMART KIT(wireless module)

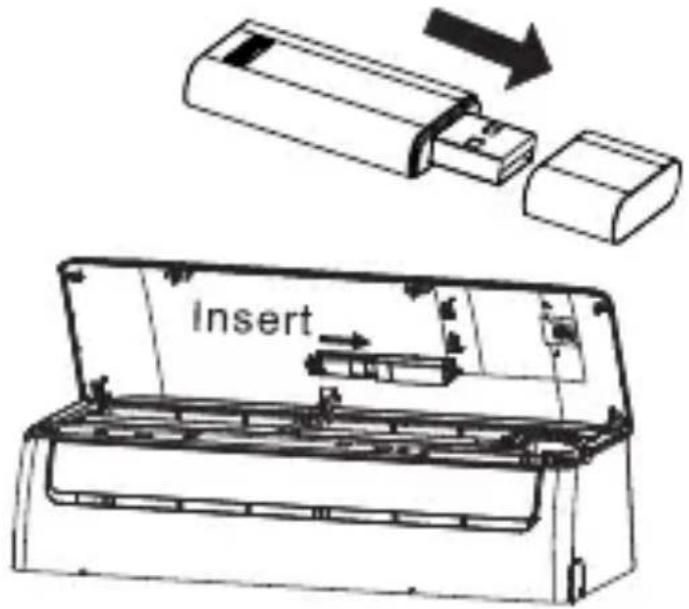

① Remove the protective cap of the smart kit (wireless module)
② Open the front panel and insert the smart kit (wireless module) into the reserved interface.

WARNING: This interface is only compatible with SMART KIT(wireless module) provided by the manufacturer.

HOME CONNECT

This appliance is network-capable. Connect your appliance to a mobile device to control its functions via the Home Connect app.

The Home Connect services are not available in every country. The avail-ability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com.

To be able to use Home Connect, you must first set up the connection to the WLAN home network and to the Home Connect app.

→ "Connecting the appliance to WLAN home network"

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tips

• Please consult the documents supplied by Home Connect.
• Please also follow the instructions in the Home Connect app.

■ 4.1 Home Connect quick start

Connect your appliance to a mobile device quickly and easily.

Installing app

1. Install the Home Connect app on your mobile device.

1. Start the app and set up access for Home Connect. The Home Connect app guides you through the entire login process.

Connecting the appliance to WLAN home network Requirements

• Home Connect app is installed on your mobile device.
  ● Network on the router is activated.

• The appliance receives signals from the WLAN home network at its installation location.

• With the help of Home Connect app scan the QR code.

1. Follow the instructions in the Home Connect app.

■ 4.2 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your appliance.

4.3 Remote Start

You can use the Home Connect app to start the appliance with your mobile device.

Requirements

• The appliance is connected to your WLAN home network.
• The appliance is connected to the Home Connect app.
• A program and related options are selected.

■ 4.4 Software update

You can use this function to update the software of your appliance, e.g. for optimization, troubleshooting or safety-relevant updating.

The Home Connect app informs you about available software updates.

■ 4.5 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the network communication module installed).
• Security certificate of the network communication module (to ensure a secure data connection).
• The current software and hardware version of your appliance.
• Status of any previous reset to factory settings.

The initial registration prepares the Home Connect functions for the use and is only required when you want to use the Home Connect functions for the first time.

Note: please note that the Home Connect functions can only be utilised with Home Connect app. Information on data protection can be retrieved in the Home Connect app.

Declaration of Conformity

BSH Ev Aletleri Sanayi ve Ticaret A.Ş. hereby declares that the appliance with wifi module (Smart kit) functionality meets the essential requirements and the other relevant provisions of the Directive 2014/53/EU. A detailed RED

Declaration of Conformity can be found online at https://www.bosch-home.com.tr/among the additional documents on the product page for your appliance.

Company will not be liable for any issues and problems caused by Internet, Wireless Router and Smart Devices. Please contact the original provider to get further help.
