Product Type	Wireless Sport and Bicycle Pump
Brand	Navitel
Model	AIR8 MINI
Dimensions	70 x 41 x 28 mm
Weight	110 g
Battery Specifications	2 x 350 mAh, 7.4 V (total 700 mAh)
Charging Port	USB-C, 5 V, 1.5 A
Full Charging Time	Approximately 25 minutes
Max Inflation Pressure	100 PSI / ~7 bar
Inflation Rate	Up to 8 L/min
Working Time at Full Charge	Up to 250 seconds
Included Nozzles	Presta valve adapter, Schrader valve adapter, Ball needle
Additional Accessories	Protective case, flexible extension tube, Velcro tape, lanyard, USB-C charging cable, user manual, warranty card
Main Functions	Inflating tires, balls, and other inflatables; also functions as a reflector when attached to bike
Safety Features	Automatic shut-off after use; indicator lights for battery and charging status; overheat protection via protective case
Maintenance & Cleaning	Keep dry; avoid exposure to moisture, high heat, or fire; do not disassemble; clean with soft dry cloth
Spare Parts & Repairability	No user-serviceable parts; contact authorized service center for repairs
General Information	Complies with EMC Directive 2014/30/EU; full declaration of conformity at navitel.com

Frequently Asked Questions - AIR8 MINI Navitel

What can I inflate with the Navitel AIR8 MINI?

The pump can inflate bicycle tires, sports balls (using the ball needle), and other inflatables up to 100 PSI. It comes with adapters for Presta and Schrader valves.

How long does it take to charge the device?

Full charging takes approximately 25 minutes using a USB-C cable and a 5V/1.5A adapter (not included). The indicator light turns green when fully charged.

How long does the battery last on a full charge?

The pump can run continuously for up to 250 seconds (about 4 minutes) on a full charge, enough to inflate several tires or balls.

How do I turn on/off the pump?

Press and hold the On/Off button to turn the device on or off. A short press starts/stops inflation. The button lights red when on and green when fully charged.

Can I use the pump while charging?

No, the device must be disconnected from the charging cable during use. The pump will not operate while connected to USB-C.

What is the maximum pressure the pump can deliver?

The maximum pressure is 100 PSI (~7 bar). Do not exceed this to avoid damaging the device or inflatable.

How do I attach the pump to my bike?

Use the included Velcro tape to attach the device to the back of your bike frame. It can also be used as a reflector for safety.

What should I do if the pump gets hot during use?

The pump may become hot during extended use. Always use the supplied protective case to avoid burns. Let it cool down before recharging.

Can I repair the pump myself if it breaks?

No, the device is not user-serviceable. Do not disassemble it. Contact an authorized Navitel service center for repairs.

Is the Navitel AIR8 MINI water-resistant?

No, the device is not waterproof. Keep it away from moisture, rain, and high humidity to prevent damage.

USER MANUAL AIR8 MINI Navitel

Exterior view of a gray NAVTEL device with black ventilation slots and a spherical logo (no readable text beyond branding)

NAVITEL AIR8 MINI
SPORT AND BICYCLE PUMP

Úvod

Vážený zákazníku!

Uspořádání

Gerätelayout

Seadme paigutus

Thank you for purchasing this NAVITEL® product. Please, read this manual carefully before using this device and keep it for future reference.

NAVITEL AIR8 MINI is a high-efficient wireless sport and bicycle pump, that has many features described in this user manual.

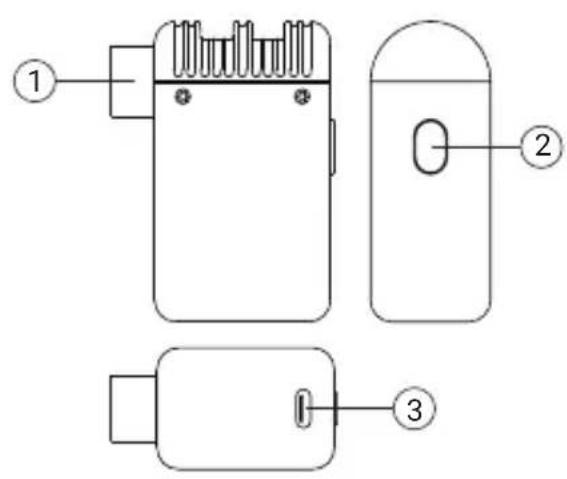

Device layout

1. Nozzle
2. On/off button. Color indicator of battery charge
3. USB-C port

Package contents

1. Sport and bicycle pump NAVITEL AIR8 MINI
2. Protective case
3. "Needle" for inflating balls
4. Schrader valve adapter
5. Presta valve adapter
6. Flexible extension tube
7. USB-C charging cable
8. Velcro tape
9. Lanyard
10. User manual
11. Warranty card

Specification

Battery specifications 2×350 mAh, 7.4 V
USB-C port Yes, 5 V, 1.5 A
Weight 110 g
Inflation rate Up to 8 l/min

Size 70x41x28 mm
Maximal inflating pressure up to 100 PSI/~7 bar
Working time of compressor with full battery charge	up to 250 s
Full charging time of the device ~25 min

Note: the package, appearance, specifications that do not change the overall functionality of the device may be changed by the manufacturer without prior notice.

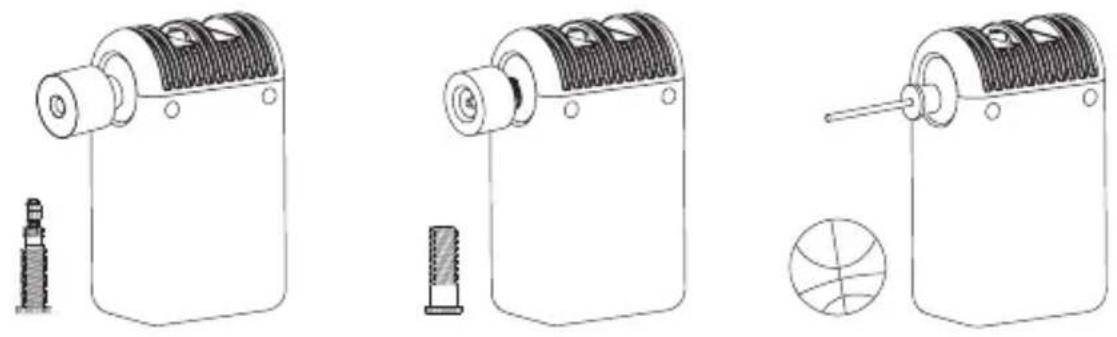

Air nozzle connector type

Presta valve adapter Schrader valve adapter Ball needle

Start of work

1. Choose the required nozzle.
2. Hold the on/off button to turn off the device. After turning on the device will beep, and the turn on/off button will light up red.
3. Connect the compressor to the tire valve/ball.
4. Press briefly the on/off button to start air supply.
5. When the pumping is finished, press briefly the on/off button to stop air supply.
6. Hold on/of buuton to turn off the device. After turning off the on/off button will go out.

Note: when pumping, make sure your device is disconnected from the USB-C cable. For the first time to use or a long time no use, please charge the device before use.

Using the compressor as a reflector

1. Hold the on/off button to turn off the device. After turning on the device will beep, and the turn on/off button will light up red.
2. Use the velcro tape to attach the device to the back of your bike frame.

Charging the device

1. Connect one end of the cable to the device and the other to the appropriate connector on the adapter.
2. When charging starts, the device will beep and the on/off button will light up red.
3. When charging is finished, the on/off button will light green.
4. Disconnect the device from the USB-C cable. Once disconnected, the on/off button will go out.
   Note: the adapter is not included with the device package contents and have to be purchased separately.

Precautions

• Do not expose the device to mechanical impact.
• Do not disassemble or repair device by yourself. In case of device failure, contact the service center.
• Do not expose the device to moisture, fire or high temperatures. Exposure to fire or high temperatures may shorten the life of the device.
• Keep a hand on the device during the work.
  • The device may get very hot during the work. To avoid personal injury, use the protective case included with the device package contents.
• Strictly follow the laws and regulatory acts of the region where the device is used. This device can not be used for illegal purposes.
• Do not allow children to use the device.

NAVITEL s.r.o. hereby declares that the device NAVITEL AIR 8 MINI is compatible with the European directive EMC 2014/30/EU. The full text of Declaration of conformity is available at the following internet address: https://www.navitel.com/declaration_of_conformity
