Product Type	4K/UHD HDMI Extender Kit with Ethernet, Control, and Bidirectional Remote Power
Brand	Atlona
Model	AT-AVA-EX100CE-BP-KIT
Video Resolution	4K/UHD up to 60Hz 4:2:0, 1080p
Maximum Distance	330 ft (100 m) at 4K and 1080p with CAT6/6a/7
Audio Support	Multi-channel audio (e.g., Dolby TrueHD, DTS-HD)
Ethernet	100Base-T pass-through
Control	RS-232 and IR pass-through
Remote Power	Bidirectional (power over cable from TX or RX)
HDBaseT	Yes, over CAT6A/7
ARC	Available on HDMI connections
EDID Filtering	Yes
HDBaseT Link Test	Push button with LED status indicator
Firmware Update	Via micro-USB on transmitter
Power Supply	48V DC, included
Connectors (TX)	HDMI IN, HDBaseT OUT, LAN, RS-232, IR IN/OUT, DC 48V, micro-USB
Connectors (RX)	HDMI OUT, HDBaseT IN, LAN, RS-232, IR IN/OUT, DC 48V, micro-USB
Mounting	Surface mount with included brackets
Cable Recommendation	CAT5e/6/6a/7, TIA/EIA 568-B termination
Package Contents	TX, RX, power supply, IEC cable, captive screw connectors, IR emitter, mounting brackets and screws, installation guide
Warranty	View at atlona.com/warranty

Frequently Asked Questions - AT-AVA-EX100CE-BP-KIT Atlona

What is the maximum distance supported by the AT-AVA-EX100CE-BP-KIT?

The extender supports distances up to 330 feet (100 meters) for both 4K/UHD and 1080p signals using CAT6/6a/7 cables.

Can I power the transmitter and receiver separately?

Yes, the kit supports bidirectional remote power. You can connect the included 48V power supply to either the transmitter or the receiver, and power will be sent over the HDBaseT cable to the other unit.

How do I update firmware on the device?

Download the firmware .bin file from the Atlona support page, connect the transmitter's micro-USB port to a PC, then drag and drop the .bin file into the detected folder. The receiver updates automatically when connected to the transmitter.

What type of Ethernet connection does this extender support?

The LAN ports on the transmitter and receiver provide 100Base-T Ethernet pass-through, allowing network connectivity between a source and display or network switch.

How do I use the RS-232 control?

Connect a 3-pin captive screw connector to the RS-232 port. The pinout is RX, TX, and Ground. Commands are passed bidirectionally between the transmitter and receiver.

How do I test the HDBaseT cable quality?

Press the TEST button on the transmitter. The LED will show: solid green for good cable, solid yellow for one or two pairs not working, solid red for multiple pairs failing. Refer to the LED descriptions in the manual.

Does the extender support ARC (Audio Return Channel)?

Yes, ARC is available on the HDMI connections to minimize cabling in audio return applications.

What cables are recommended for best performance?

Atlona recommends CAT6A or CAT7 cables with TIA/EIA 568-B termination. For stranded/patch cables, use UTP6A or STP6X from Atlona.

Can I use IR control with this kit?

Yes, the kit supports IR pass-through. Connect a 3rd party controller to the IR IN port and an IR emitter to the IR OUT port. Different connector types are available for TX and RX.

How do I mount the transmitter and receiver?

Use the included mounting brackets and screws. Attach brackets to each unit, then secure to a flat surface using the oval holes. Brackets can be inverted for under-table mounting.

USER MANUAL AT-AVA-EX100CE-BP-KIT Atlona

4K/UHD HDMI Extender Kit with Ethernet, Control, and Bidirectional Remote Power

AT-AVA-EX100CE-BP-KIT

The Atlona AT-AVA-EX100CE-BP-KIT is an Avance™ Series HDBaseT transmitter and receiver set that supports Ethernet, control pass-through, and bidirectional remote power capabilities. The kit transmits 4K/UHD 60Hz 4:2:0 video up to 330 feet (100 meters). In addition to video with embedded multi-channel audio, 100Base-T Ethernet data, RS-232 and IR control signals, and remote powering by either the transmitter or the receiver are supported on the single CAT6A/7 cable. Integrated HDBaseT link status testing allows quick verification of cable, termination, and link quality. HDMI clock stretching and EDID filtering are included to ensure the integrity of video transmission as well as compatibility with the widest array of sources and display devices. ARC is available on the HDMI connections to minimize cabling in audio return applications. Compact enclosures and included brackets allow the transmitter and receiver endpoints to be surface mounted in furniture or behind a display. The AT-AVA-EX100CE-BP-KIT delivers a cost-effective solution for extension of video, audio, Ethernet, control, and bidirectional power at resolutions up to 4K/UHD.

Package Contents

1 x AT-AVA-EX100CE-BP-TX
1 x AT-AVA-EX100CE-BP-RX
1 x 2-pin captive screw connector
2 x 3-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5-pin captive screw connector

1 x IR emitter
4 x Mounting brackets
8 x Mounting screws
1 x 48V DC power supply
1 x IEC cable
1 x Installation Guide

IMPORTANT: Visit https://atlona.com/product/AT-AVA-EX100CE-BP-KIT for the latest firmware updates and Installation Guide.

Panel Descriptions

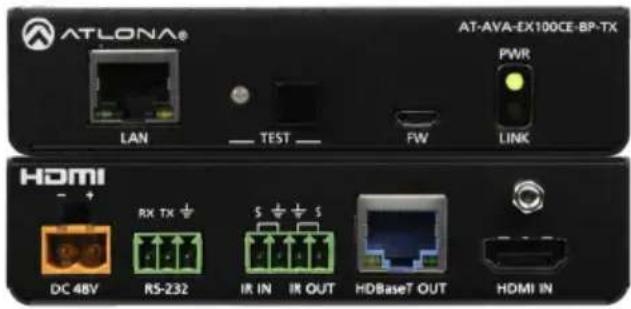

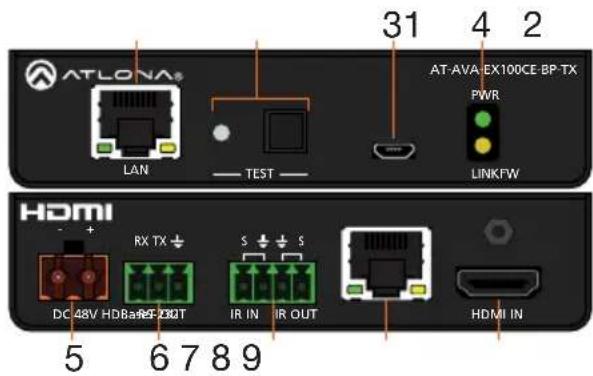

1 LAN

Connect an Ethernet cable from this port to a Local Area Network (LAN) or source for pass through.

2 TEST

Quick and easy test for category cables. Use the button to start the test and the LED to determine pass or fail.

3 FW

Connect a micro-USB to USB-A type cable from this port to a computer, to update the firmware.

4 POWER and LINK LEDs

The power LED will illuminate green when receiving power. The link LED will glow yellow when signal is being sent/received between the transmitter and the receiver.

5 DC 48V \*Optional\*

Connect the included power supply to either this port or the power port on the receiver.

6 RS-232

Bidirectional control port, used for pass through of commands to or from the receiver.

7 IR IN/OUT

Connect a 3rd party controller to the IR IN port or an IR emitter to the IR OUT port.

8 HDBaseT OUT

Connect an HDBaseT cable from this port to the HDBaseT IN port on the receiver.

9 HDMI IN

Connect an HDMI cable from a source to this port. e.g. HDR BluRay Player

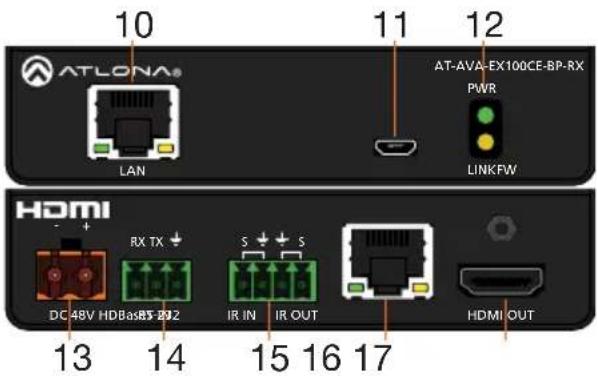

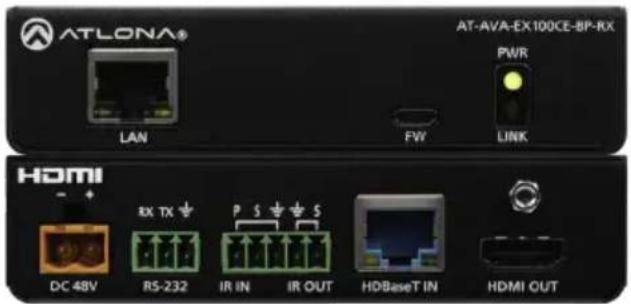

10 LAN

Connect an Ethernet cable from this port to a Local Area Network (LAN) or display for pass through.

11 FW

Not used at this time.

12 POWER and LINK LEDs

The power LED will illuminate green when receiving power. The link LED will glow yellow when signal is being sent/received between the transmitter and the receiver.

13 DC 48V \*Optional\*

Connect the included power supply to either this port or the power port on the transmitter.

14 RS-232

Bidirectional control port, used for pass through of commands to or from the transmitter.

15 IR IN/OUT

Connect an IR receiver to the IR IN port or an IR emitter to the IR OUT port.

16 HDBaseT IN

Connect an HDBaseT cable from this port to the HDBaseT OUT port on the transmitter.

17 HDMI OUT

Connect an HDMI cable from this port to an HDMI display.

HDBaseT LED Descriptions

b ba a

a Green LED

When a category cable is connected and receiving signal this LED will be illuminated. If no cable or signal is being received, the LED will be off.

b Yellow LED

This LED displays the status of the HDBaseT firmware. When the LED is blinking slowly, the firmware is good. If the LED is blinking rapidly or off, there is no firmware or the firmware has been corrupted.

RS-232

A 3-pin captive screw connector for RS-232 has been included.

Green 3D model of a mechanical connector or terminal block (no text or symbols visible)

Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and ± (Ground).

IR

Two captive screw connectors for IR have been included. A 4-pin connector for the transmitter and a 3-pin connector for the receiver.

Green 3D component with three circular holes, no text or symbols visible

IR IN is connected by a ground and signal wire. Use with 3rd party control systems. For easy termination, Atlona recommends using the 2 meter IR cable AT-LC-CS-IR-2M (purchasable through atlona.com).

IR OUT is connected by a ground and signal wire. Use the included IR emitter with this port.

Green 3D electronic component with multiple slots and mounting holes (no text or symbols visible)

IR IN is connected by a power, ground, and signal wire. Use a 12V IR receiver with it (e.g. AT-IR-CS-RX purchasable through atlona.com).

IR OUT is connected by a ground and signal wire. Use the included IR emitter with this port.

Power

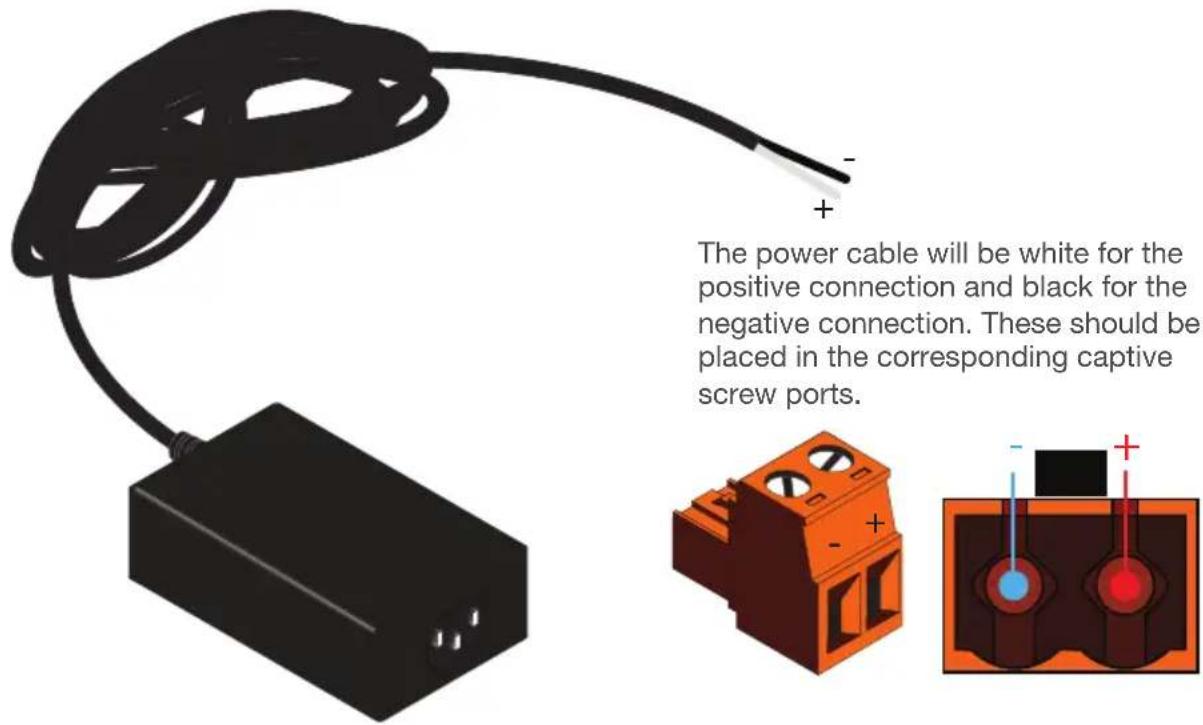

A 2-pin captive screw connector for the power supply has been included.

Mounting Instructions

The AT-AVA-EX100CE-BP-KIT includes two mounting brackets and four mounting screws each, which can be used to attach the units to any flat surface.

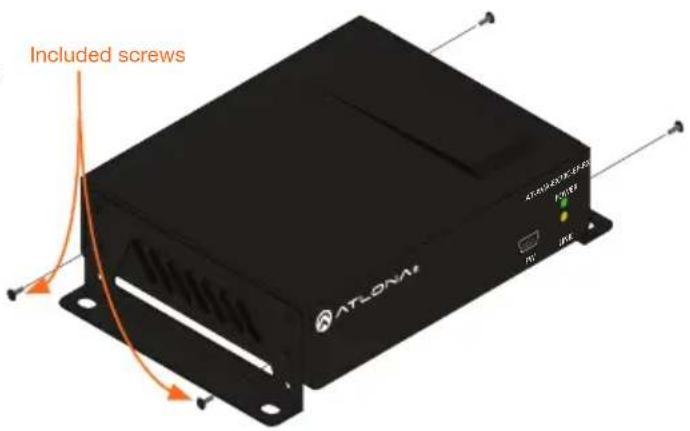

1. Position one of the mounting brackets, as shown below, aligning the holes on the side of the enclosure with one set of holes on the mounting bracket.

2. Use the enclosure screws to secure the mounting bracket to the enclosure.

3. Repeat the above steps to attach the second mounting bracket to the opposite side of the unit.

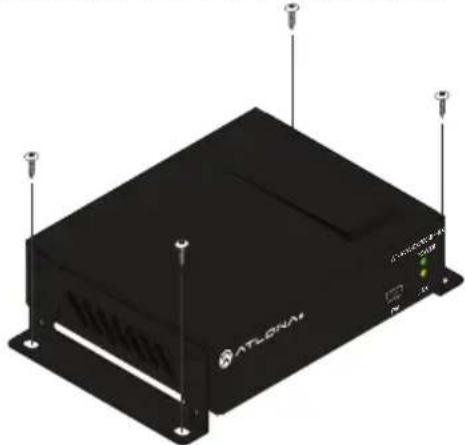

1. Mount the unit using the oval-shaped holes, on each mounting bracket. If using a drywall surface, a #6 drywall screw is recommended.

NOTE: Mounting brackets can also be inverted to mount the unit under a table or other flat surface.

Exterior view of a black ATLONAM device with ventilation slots and ports (no readable text or symbols)

Installation

1. Connect a source to the HDMI IN port on the transmitter.
2. Connect a display to the HDMI OUT port on the receiver.
3. Connect an HDBaseT cable, from the HDBaseT OUT port on the transmitter, to the HDBaseT IN port on the receiver.
4. *Optional* Connect a 3rd party controller to the transmitter using either the 3-pin RS-232 or the 2-pin IR IN ports.
5. *Optional* Connect an IR receiver to the IR IN port of the receiver.
6. *Optional* Connect an IR emitter to the IR OUT port of the transmitter or receiver.
7. *Optional* Connect a network switch (if the receiver is not connected) or source to the LAN port of the transmitter, for IP control, system configuration, or Ethernet routing.
8. *Optional* Connect a network switch (if the transmitter is not connected) or display to the LAN port of the receiver, for IP control, system configuration, or Ethernet routing.
9. Connect the included 48V power supply into the transmitter or receiver.
10. Connect power supply to an AC outlet.

Cable Recommendation Guidelines

Refer to the tables below for recommended cabling when using Altona products with HDBaseT. The green bars indicate the signal quality when using each type of cable. Higher-quality signals are represented by more bars.

Core Shielding CAT5e CAT6 CAT6a CAT7
Solid UTP (unshielded) N/A
STP (shielded)
Performance Rating (MHz)	350	500	600	800

IMPORTANT: It is recommended to use UTP6A (https://atlona.com/product/utp6a/) and STP6X (https://atlona.com/product/stp6x/) if a stranded/patch cable is needed. These cables have been tested and approved to work with these extenders for full functionality.

Cable*	Max. Distance @ 4K	Max. Distance @ 1080p
CAT5e	295 feet (90 meters)	330 feet (100 meters)
CAT6/6a/7	330 feet (100 meters)	330 feet (100 meters)

*Atlona recommends TIA/EIA 568-B termination for optimal performance.

TEST

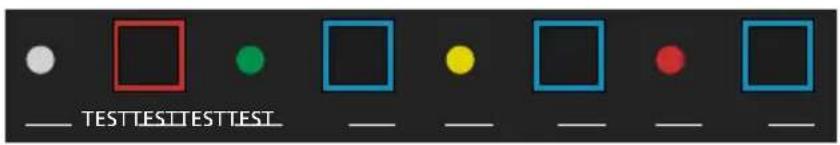

The transmitter has the ability to test the HDBaseT cable quality through the front panel. Press the test button on the front panel of the transmitter to start the test, the LED will display the testing results.

Button:

• Blue Blinking: The test is running properly and the button will blink 10 times during the testing process.
• Red Light: There is no signal for the test to check.

LED:

• No Light: There is no HDBaseT cable plugged in.
• Blinking: There is no HDBaseT signal coming through.
  • Solid Green: The HDBaseT cable is good.
• Solid Yellow: One or two HDBaseT pairs are not working, reterminate the cable.
• Solid Red: Multiple pairs are not working. Reterminate the cable and if the LED turns yellow or red again, replace the cable.

Updating Firmware

1. Download the firmware .zip file from the firmware tab located at https://atlona.com/product/AT-AVA-EX100CE-BP-KIT.
2. Unzip the .bin file to an easy to locate area of the local PC.
3. Connect the transmitter's FW micro USB port to a PC using a micro USB to USB A cable (purchased separately).
4. The PC should automatically detect the unit and display the autorun options. Select the view files in folder option. A new window will open.
5. If there are any files inside the folder, delete them, otherwise drag and drop the .bin file into the folder. While the firmware loads to the unit, the green power LED on the front panel will flash. This process can take up to 5 minutes to complete.
6. Once the green LED goes solid, disconnect the unit from the PC. The firmware update is finished.

NOTE: Only the transmitter will be used for updating firmware. The receiver will be updated once it has been connected to the transmitter if it is not connected at the time of the firmware update.

Warranty

To view the product warranty, use the following link or QR code: https://atlona.com/warranty/.

Version 3

English Declaration of Conformity

The English version can be found under the resources tab at: https://atlona.com/product/at-ava-ex100ce-bp-kit/.

Chinese Declaration of Conformity 中国RoHS合格声明

由SKU列出於:

https://atlona.com/about-us/china-rohs/.

ATLONA.

a Payout company

Toll free US International

atlona.com • 877.536.3976 • 41.43.508.4321

25144-R3

© 2021 Atlona Inc. All rights reserved. "Atlona" and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice. Actual products, product images, and online product images may vary from images shown here.
