Product Type	Range Hood
Brand	Nodor
Model	NorBreeze BISE 900 SS
Width	900 mm
Installation Type	Built-in
Extraction Mode	Ducted or Recirculating (with charcoal filter)
Control Type	Touch control
Number of Speeds	4
Lighting	LED, dimmable (20% to 100%), color temperature adjustable
Timer	10-minute timer, automatic shut-off after 4 hours
Grease Filter	Removable, washable (hand or dishwasher), saturation indicator resets after cleaning
Charcoal Filter	Replaceable (every 6 months), required for recirculating mode
Motor Type	Internal, auto speed reduction (4th to 3rd after 6 min if capacity >650 m³/h)
Electrical Class	Class I (must be earthed)
Voltage	220-240 V
Standby Power Consumption	< 0.5 W
LED Bar Replacement	Can be replaced by removing grease filter and unclipping springs
Self-Diagnostics	15 seconds after power restore

Frequently Asked Questions - NorBreeze BISE 900 SS NODOR

How should I install the range hood?

Before installation, ensure no parts are damaged. Use the shortest possible air outlet pipe, limit bends, and maintain a constant diameter of 150 mm. Do not connect the air outlet to a flue used for other fumes. The appliance must be earthed (Class I). Follow all local regulations.

Can I use the hood in recirculating mode?

Yes, the hood can be used in filtering (recirculating) version. In this case, you need an active charcoal filter. The air is purified through the grease filter and charcoal filter, then recirculated back into the room via a hole on top of the cabinet.

How do I clean the grease filter?

Remove the grease filter by pushing its handle toward the back of the hood and turning it downward. Clean it by hand with warm water and neutral detergent or in a dishwasher. Clean at least every 2 months. After cleaning, reset the saturation indicator by pressing the timer button when the buttons light up (after 30 hours of use).

How do I replace the charcoal filter?

First remove the grease filter. Then pull the plastic tongue of the charcoal filter until it unfastens from its slot. Insert the new filter by operating in reverse. Replace the charcoal filter every 6 months or depending on use.

How do I adjust the light brightness?

The lights are dimmable. To dim, continuously press the light key on the control panel. Brightness ranges from 20% to 100%. Release the key to keep the desired level. A short press toggles on/off at 100%.

How do I change the color temperature of the lights?

Ensure lights and fan are off. Hold the TIMER key to turn on the light at previously set temperature. Then press and hold the Light key to cycle from warm to cold. Release to select. Exit by pressing ON/OFF key.

What is the timer function?

The hood has a 10-minute timer (key E). It also has an automatic shut-off after 4 hours of operation from the last manual action. For models with max capacity >650 m³/h, the speed automatically reduces from 4th to 3rd after 6 minutes of operation.

How do I reset the grease filter saturation indicator?

After cleaning the grease filter, press the timer button to reset the indicator. The indicator lights up after 30 hours of operation to remind you to clean the filter.

Is the hood safe to use with a gas cooktop?

Yes, but ensure adequate ventilation when using the hood simultaneously with gas or other fuel-burning appliances. The room must have proper air intake. Do not flambé food under the hood. Also, accessible parts may become hot during cooking.

What should I do if the power cord is damaged?

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or a similarly qualified person to avoid hazard. Do not attempt to replace it yourself.

USER MANUAL NorBreeze BISE 900 SS NODOR

DISEGNO TECNICO

TECHNICAL DRAWING

DIBUJO TÉCNICO

DESENHO TÉCNICO

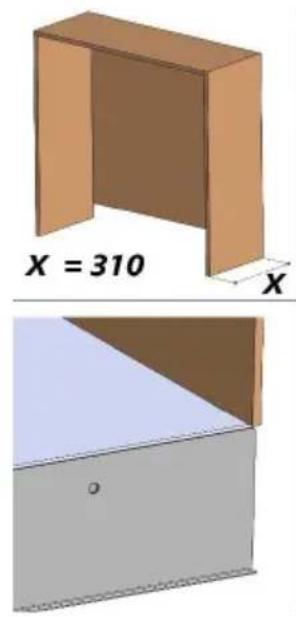

MISURE PER L'INSTALLAZIONE MEASUREMENTS FOR INSTALLATION MEDIDAS PARA LA INSTALACIÓN MEDIDAS PARA A INSTALAÇÃO

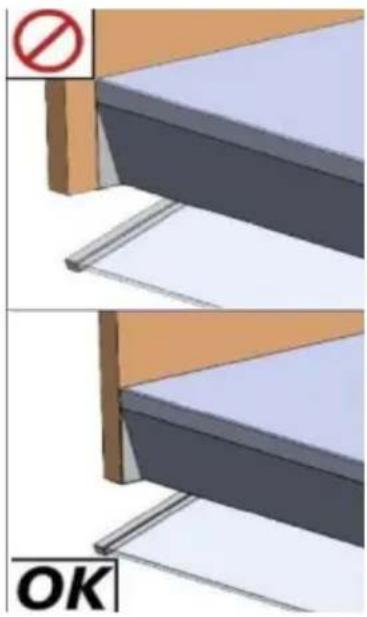

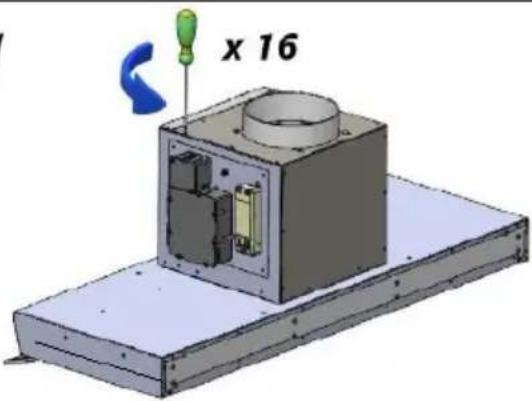

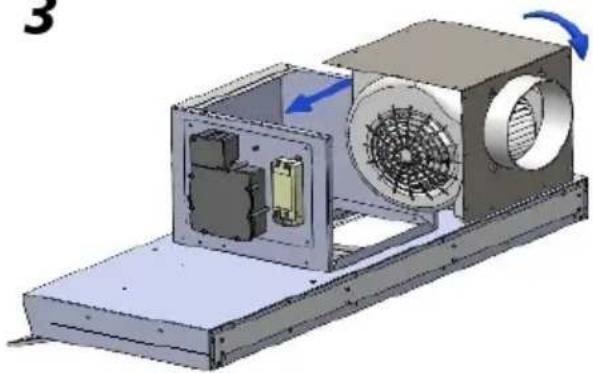

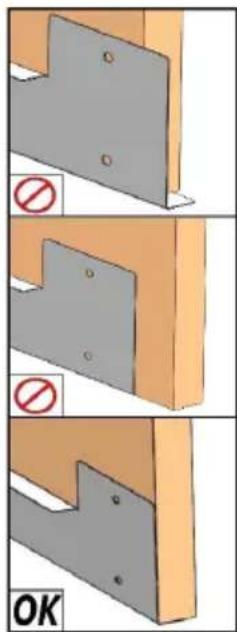

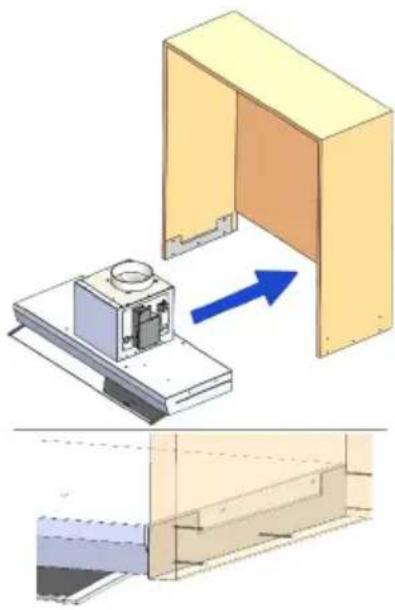

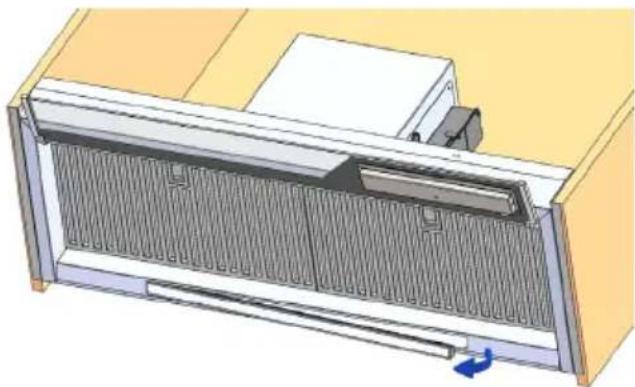

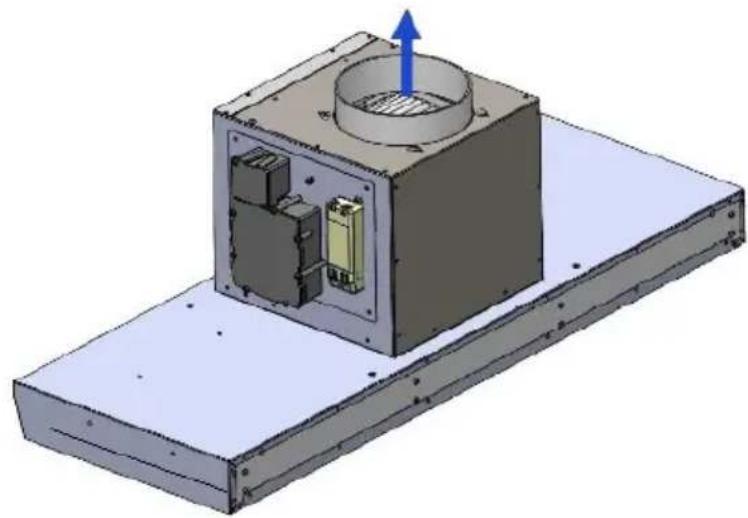

INSTALLAZIONE - INSTALLATION - INSTALACIÓN - INSTALAÇÃO

1

3

3

4

5

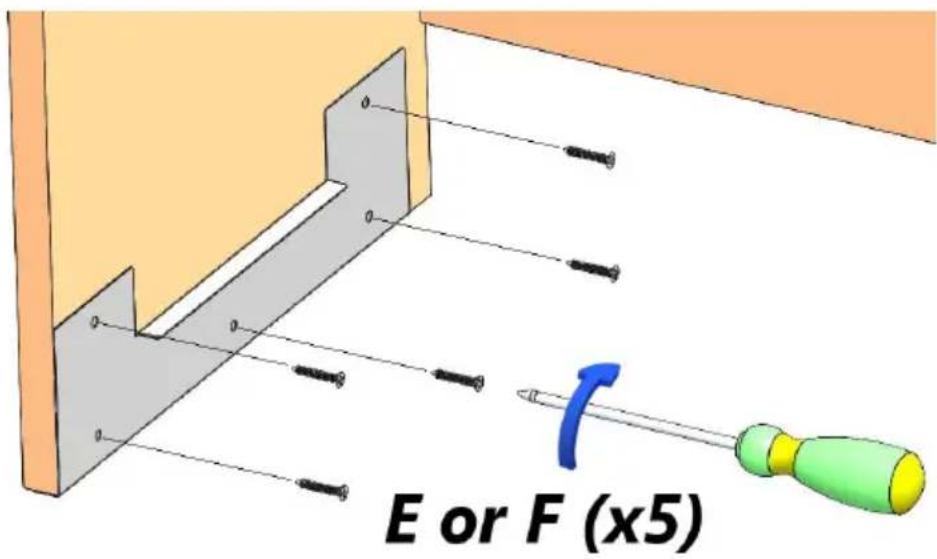

E or F (x5)

6

10

11

12

16

17

INDICE

Avvertenze

Versioni d'uso

Funzionamento

Manutenzione

AVVERTENZE

The air outlet of the appliance must not be connected to a flue which is used for exhausting other fumes from appliances, such as a central heating, boilers etc..

For the external exhausting of the fumes, comply with the regulations in force.

The motor of the peripheral exhausting group is powered by the coo ker-hood placed in the kitchen.

Before connecting the coo- ker hood to the mains supply, make sure that the voltage in- dicated in the rating plate cor- responds to the mains voltage in the home.

Before carrying out any sort of maintenance or cleaning operation, make sure that the appliance is disconnected from the electrical mains.

An appropriate maintenance ensures a good working and a good per formance in the long run.

All models are built in class I, therefore they must be earthed.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under stand the hazards involved.

- Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- If the power cable is damaged, it must be replaced by a cable or a special assembly, available from the manufacturer or its service de partment technique.

- The room must have adequate ventilation when using the kitchen hood simultaneously with other appliances that use gas or other fuels (not yes applies to appliances that simply release the air back into the room);

- There is the possibility of fire if the cleaning operations are not carried out as indicated in the instructions;

- Do not prepare flambéed food under the kitchen hood.

ATTENTION: The accessible parts can burn if used in conjunction with the cooking appliances.

USES

The appliance is already arranged both for filtering and for suction performances.

* In its filtering version, the air and fu mes conveyed by the appliance are depured both by a grease filter and by an active coal filter, and put again into circulation through the hole made on the top of the cabinet.

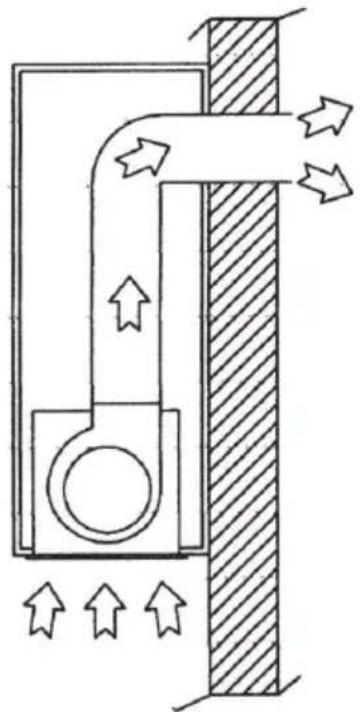

* In its sucking version, fumes are directly conveyed outside, through an evacuation duct connected with the superior part of the wall or the ceiling. Both coal filter and air deflector are not necessary in this case.

INSTALLATION

Before installing the appliance, make sure that none of the parts is damaged in any way.

In case of damaged parts, contact your retailer and do not proceed with installation.

Read all of the following instructions fully care before installing the appliance.

- Use an air outlet pipe of the shortest possible length.

- Limit the number of pipe bends.

- Use a material approved by standards and regulations.

- Avoid any sudden changes in pipe section (recommended constant diameter: 150 mm or equal surface area).

- The manufacturer shall not respond for air capacity or noise problems due to non-compliance with above mentioned instructions, and no warranty shall be given.

WORKING

A: Light switch On/Off
B: Reduce speed / OFF motor
C: Luminous telltale
D: ON motor/increase speed
E: 10 - minute timer

The touch control key allows the function desired by touching the relative key.

If the electrical power supply to the product SLTC is cut, 15 seconds are needed for selfdiagnostics after the functions are restored.

In the meanwhile, its operation may be incorrect. The products are endowed with an electronic device which allows the automatic switching off after 4 hours working from the last operation.

DIMMABLE LIGHTS FUNCTION

THIS FUNCTION PROVIDES FOR LIGHTS DIMMABILITY, RANGING FROM 20% TO 100%, BY CONTINUOUSLY PRESSING THE LIGHT KEY ON THE REMOTE CONTROL. FUNCTIONS ARE THE FOLLOWING:

- HOOD LIGHT OFF - SHORTLY PRESS THE KEY - LIGHT ON AT 100%.

- LIGHT ON AT 100% - SHORTLY PRESS THE KEY - LIGHT OFF.

- LIGHT ON AT 100% - CONTINUously PRESS THE KEY - BRIGHTNESS REDUCTION.

- RELEASING THE KEY DURING REDUCTION OR INCREASE - LIGHT KEEPS THE LUMINOUS INTENSITY REACHED.

- LIGHT ON - DIMMED - CONTINUously PRESS THE KEY - BRIGHTNESS IS INVERTED IF COMPARED TO THE PREVIOUS FUNCTION.

COLOUR TEMPERATURE SETTING

Make sure that the lights and the fan are off.

Holding down the TIMER key will turn on the light at the previously set colour temperature.

Press and hold the Light key to change the colour temperature.

As long as the key is kept pressed, the colour temperature is changed from warm to cold, just leave the Light key to select the desired colour.

Exit the colour temperature selection function by pressing the ON/OFF key.

TIMING

As a result of the new EU65 “Energy label” and EU66 “Ecodesign” regulations issued by the European Commission, which came into force as from January 1st, 2015, our products have been adapted to comply with these new requirements. All of the models complying with the energy label requirements, are equipped with new electronics including a timer device for suction speeds control, when the air capacity exceeds 650m³/h .

Internal motor models, with maximum air capacity higher than 650m³/h , are equipped with a timer de vice that automatically switches the suction speed from 4th to 3rd speed, after 6 minutes operation.

The energy consumption of the appliance in stand – by mode is lower than 0.5W.

MAINTENANCE

* An accurate maintenance guarantees good functioning and long-lasting performance.

* An accurate maintenance guarantees good functioning and long-lasting performance.

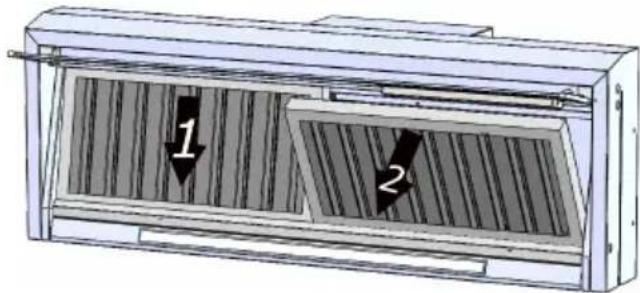

* Particular care is due to the grease filter panel. It can be removed by pushing its special handle toward the back-side of the cooker hood and turning the filter downwards so to unfasten it from its slot.

To insert the filter just perform the opposite operation.

After 30 hours working (model), the push button control panel will signal the saturation of the grease filter by lighting all the buttons. Press the timer button to reset ⏻.

The grease filter needs cleaning by regular hand-washing or in dishwashers every two months at least or depending on its use.

* In case the appliance is used in its filtering version, the active coal filter (Fig. B) needs to be periodically replaced. The coal filter can be removed by removing the grease filter first (Fig. A), and by pulling its special plastic tongue until it is unfastened from its slot. Re-insert the coal filter by operating in the opposite way. The coal filter needs replacing depending on the use, but however every six months at least.

* To clean the appliance itself tepid water and neutral detergent are recommended, while abrasive products should be avoided. For steel appliances specialized detergents are recommended (please follow the instructions indicated o the product itself to obtain the desired results).

LED BAR REPLACEMENT

Remove the grease filter and put pressure on the led bar placed in the internal part of the built-in hood until you can unhook the springs, then disconnect the connector and replace the bar with a similar one.

* If the supply cord is damaged, it must be replaced by the manufacturer or its sevice agent or a similarly qualified person in order to avoid a hazard.

ÍNDICE

Advertencias

Usos

Funcionamiento

Mantenimiento

ADVERTENCIAS

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. This appliance is marked according to the European directive 2012/19/EC on waste electrical and electronic equipment (WEEE).
