Type de produit	Component speaker system
Modèle	Signum SXE6.2T
Marque	ESX
Catégorie	Car speaker
Configuration	2-way component system
Woofer size	6.5 inches (165 mm)
Tweeter size	1 inch (25 mm) soft dome
Crossovers	External passive crossovers included
Tweeter attenuation	-3dB by cutting loop
Power handling (RMS)	80 Watts
Power handling (peak)	160 Watts
Frequency response	50 Hz - 22 kHz
Impedance	4 ohms
Sensitivity	91 dB
Mounting depth (woofer)	55 mm
Mounting hole (woofer)	142 mm
Weight (per speaker)	1.2 kg (approx.)
Material	Polypropylene cone, rubber surround
Installation	For car doors or rear deck
Recommended amplifier power	50-120 Watts RMS per channel
Warranty	1 year

Frequently Asked Questions - Signum SXE6.2T ESX

What is included in the ESX Signum SXE6.2T package?

The package typically includes two 6.5-inch woofers, two tweeters, two external crossovers, mounting hardware, and a user manual.

How should I connect the crossover to the speakers and amplifier?

Follow the wiring diagram: connect the amplifier output to the crossover input (marked L and R), then connect the woofer to the woofer output and tweeter to the tweeter output. Ensure correct polarity (+ and -) for all connections.

Can I adjust the tweeter level?

Yes, you can reduce the tweeter output by -3dB by cutting the designated cable loop on the crossover.

What is the recommended mounting location for tweeters?

Mount tweeters as close as possible to the midbass speakers, preferably at ear level, on the same plane and at equal distances from the listener for optimal imaging.

How important is speaker polarity?

Polarity is crucial: all speakers must be connected with correct polarity (+ to +, - to -) to ensure proper phase and soundstage. Reverse polarity can cause cancellation of bass frequencies.

What happens if I connect the speaker to ground or chassis?

Never connect speaker terminals to the vehicle's electrical ground or chassis, as this can damage the amplifier and speakers.

Can I install the speakers in a custom enclosure?

Yes, but ensure the mounting surface is sturdy and free of obstructions behind. The speaker basket must be securely mounted without gaps to avoid rattling and maximize performance.

How do I clean the speakers?

Use a soft, dry cloth to clean the exterior. Do not use water or cleaning agents, as they may damage the cone or tweeter diaphragm.

What is the impedance of the SXE6.2T system?

The system has a nominal impedance of 4 ohms, compatible with most car amplifiers.

Is the SXE6.2T compatible with factory audio systems?

Yes, but you will need an external amplifier because factory head units typically do not have enough power for component speakers. Use the supplied crossovers and connect to an aftermarket amplifier.

USER MANUAL Signum SXE6.2T ESX

Close-up of a black electronic component with a wire and a 3dB marker, no readable text or symbols beyond the label.

The first step of installing a speaker system is thorough planning. Choose a suitable location for your speaker components carefully. Follow these suggestions to ensure proper imaging and maximum performance:

1. Choose a location that offers the least amount of obstruction between the components and your ears. Pay also attention to the position of the seats, headrests and other constructional systems in the interior space of the car.
2. Try to mount the speakers on the same arrangement. They should be installed at the same height and directly across from each other. Do not mount one speaker higher, lower, further forward or further backward from the opposite speaker.
3. The tweeter should always be installed as close as possible to the midbass speaker.
4. Always take a look behind the chosen mounting locations to ensure that there is proper clearance for the rearside of the speakers and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
5. Maximum performance is achieved when the speaker is securely mounted to a door panel or rear speaker deck. There should be no gaps between the speaker basket and the mounting surface
6. Please handle the components with care, otherwise they will get damaged.
7. Please pay attention to the correct polarity (+ or -) for all terminals and connections.
8. Never connect the speakers to the electrical ground or with the body of the vehicle.

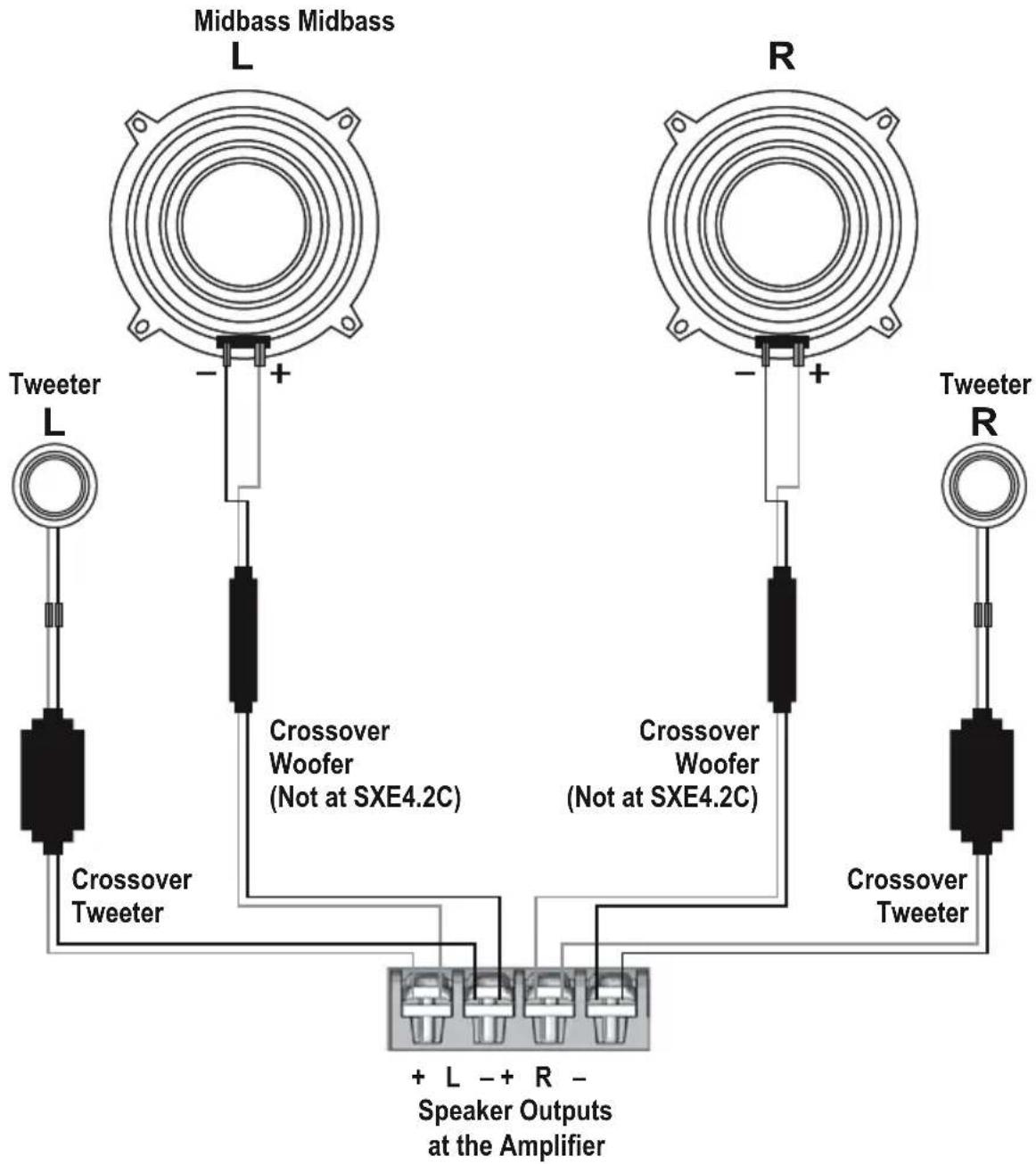

INTERCONNECTION SXE4.2C, SXE5.2C, SXE6.2C, SXE6.2T

IMPORTANT:

Please pay attention to the correct polarity (+ or -)

for all terminals and connections.

TWEETER ATTENUATION SXE4.2C, SXE5.2C, SXE6.2C, SXE6.2T

Close-up of a black electronic component with a wire and a 3dB marker, no readable text or symbols beyond the label.

Optional:
Cut the cable loop on the tweeter crossover for a tweeter attenuation of -3dB.

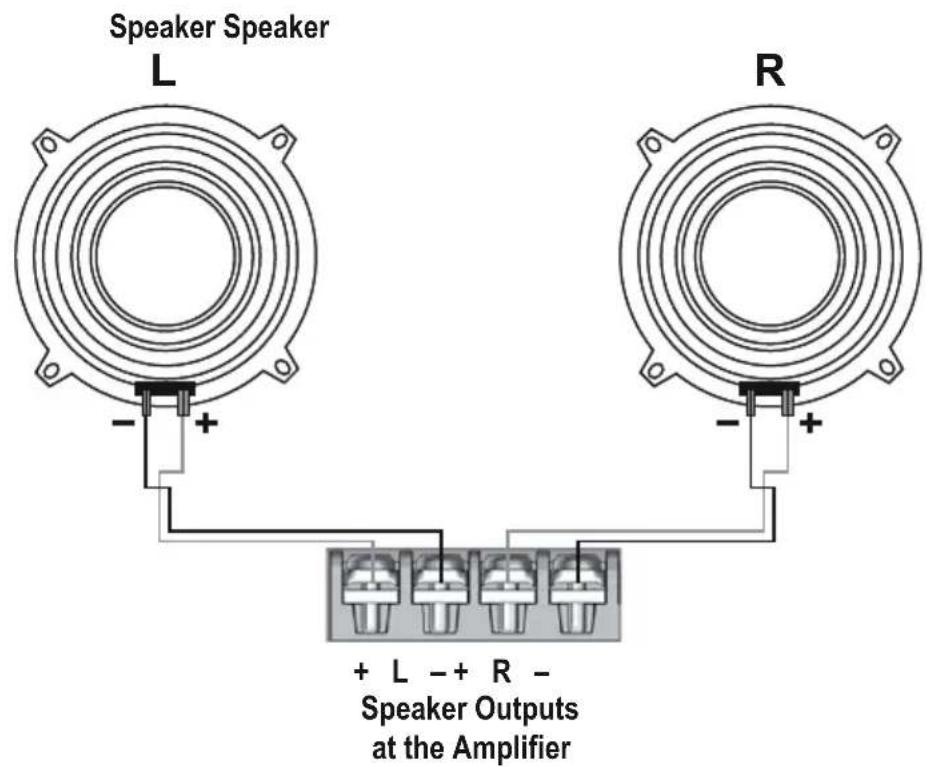

INTERCONNECTION SXE42, SXE52, SXE62, SXE6.2W

IMPORTANT:
Please pay attention to the correct polarity (+ or -)
for all terminals and connections.

Abstract logo design featuring stylized 'S' and 'X' elements with a registered trademark symbol (no readable text or numbers)

SIGNUM

Audio Design GmbH

Am Breilingsweg 3 · D-76709 Kronau/Germany

Tel. +49 7253 - 9465-0 · Fax +49 7253 - 946510

www.esxaudio.de • www.audiodesign.de

© Audio Design GmbH, All Rights Reserved
