Brand	ESX
Model	XE5.2C
Product Type	Component Speaker System
Speaker Size	5.25 inches (13.3 cm)
Impedance	4 Ohms
Power Handling (RMS)	60 Watts
Power Handling (Peak)	120 Watts
Frequency Response	55 Hz - 22 kHz
Sensitivity	90 dB (1W/1m)
Mounting Depth	55 mm
Cone Material	Polypropylene with rubber surround
Tweeter Type	1-inch silk dome neodymium
Crossover Type	External passive crossover (included)
Dimensions (Speaker)	5.5 x 5.5 x 2.5 inches (14 x 14 x 6.4 cm)
Weight (pair)	3.2 kg (7.05 lbs)
Color	Black
Mounting Hardware	Included
Warranty	1 year
Applications	Car audio front or rear stage
Certifications	CE, RoHS

Frequently Asked Questions - XE5.2C ESX

What is the impedance of the ESX XE5.2C speakers?

The impedance is 4 Ohms, suitable for most car audio amplifiers.

What is the RMS power handling of these speakers?

The RMS power handling is 60 Watts per speaker, with a peak power handling of 120 Watts.

What is the mounting depth of the XE5.2C?

The mounting depth is 55 mm (2.17 inches), so ensure your installation location has sufficient clearance.

Does the XE5.2C come with a crossover?

Yes, it includes an external passive crossover network for optimal sound separation.

What size are these speakers?

These are 5.25-inch (13.3 cm) component speakers.

Are the tweeters separate?

Yes, it is a component system with separate 1-inch silk dome tweeters for better soundstage.

Can the XE5.2C be used for rear fill?

Yes, they work well for both front and rear applications, but are commonly used as front stage.

What is the sensitivity of these speakers?

Sensitivity is 90 dB (1W/1m), which means moderate efficiency.

What is the frequency response range?

Frequency response is 55 Hz to 22 kHz, covering low bass to high treble.

Are installation instructions included?

Yes, a manual with installation and wiring diagrams is included in the package.

USER MANUAL XE5.2C ESX

BENUTZERHANDBUCH OWNER'S MANUAL

Abstract geometric logo design with stylized letter 'S' and diagonal line (no text or symbols)

XENIUM

XE5.2C

The first step of installing a speaker system is a well-thought-out planning. Choose a suitable location for your speaker components carefully. Please observe the following suggestions to ensure proper results and best performance:

1. Choose a location which offers none or just a minimum of obstacles between the components and your ears. Please observe at thereto, the positions of the driver's seat, the headrests and other constructions of the inside of vehicle interior.
2. Mount the left and right speakers in the same array on each side, which means that they are installed at the same height and directly across from each other. Do not install one speaker higher, lower, further forward or further back from the opposite speaker.
3. Always check what's behind the chosen mounting locations to ensure that there is proper clearance for the back of the speaker components and avoid obstructions such as window tracks, wire harnesses, gas tank etc.
4. The best performance will be achieved, when the speakers are securely mounted to a designated speaker opening in a door panel or a rear speaker shelf. There should be no gaps between the speaker basket and the mounting surface.

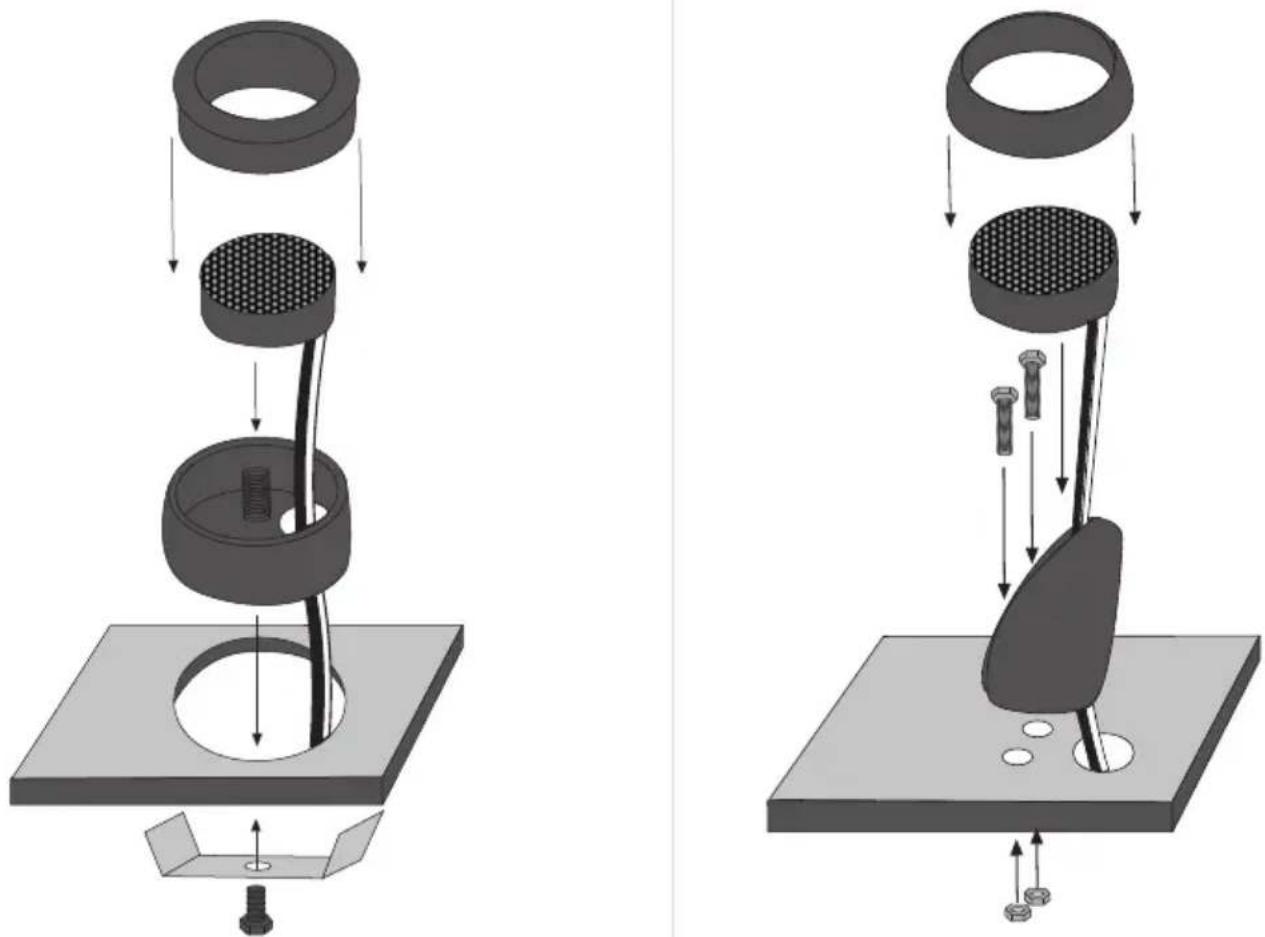

TWEETER MOUNTING

A.) Flush mount with standard housing B.) Angle mount with built-on housing

ENGLISH

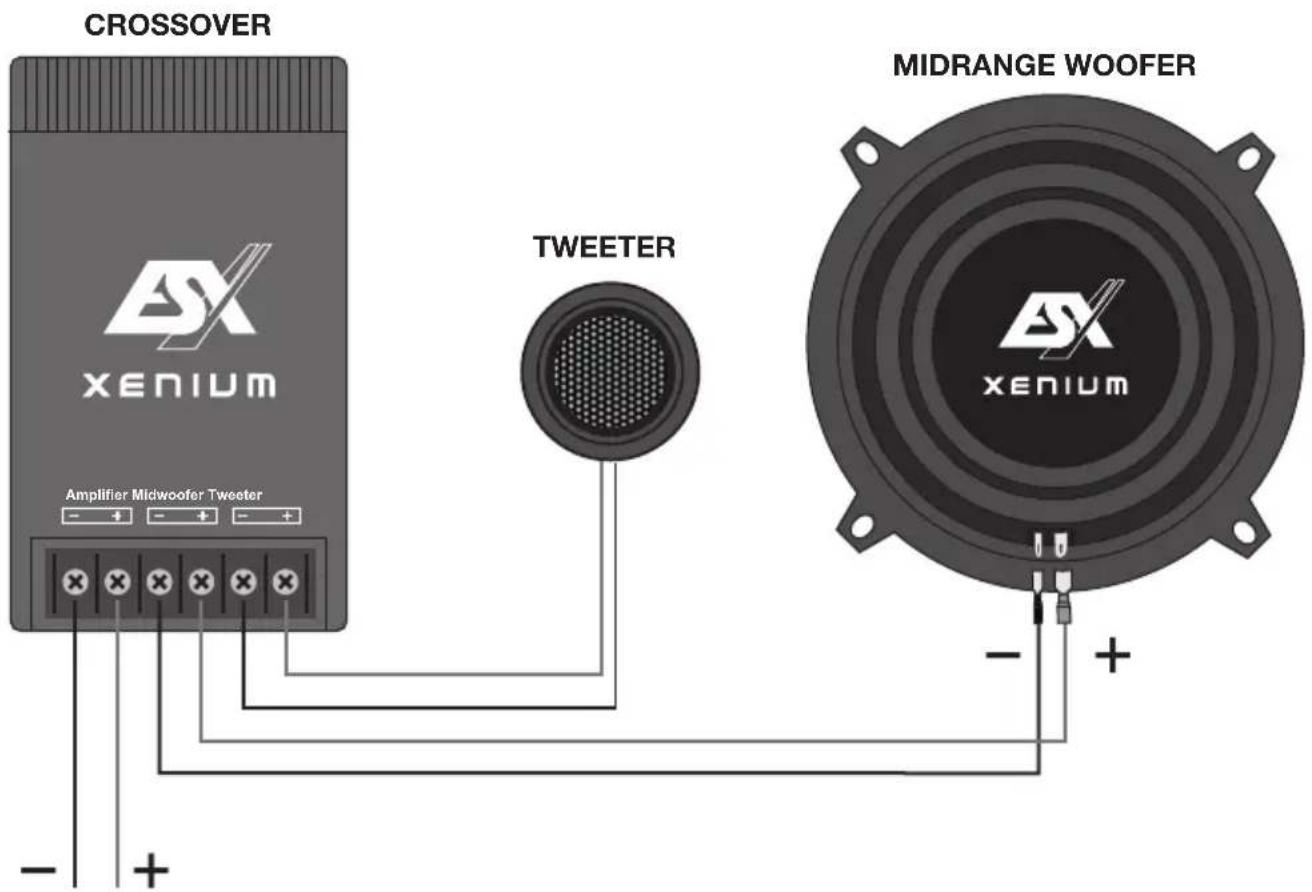

MIDRANGE WOOFER INTERCONNECTION

• Connect the positive terminals (+") and the negative terminals (−") of the midrange woofers with the according terminals "MIDWOOFER" of the crossover.
• Use for the interconnection the supplied cables with jacks (white and black).

TWEETER INTERCONNECTION

- Connect the positive connectors ("+" red marked) and the negative connectors ("−") of the tweeters with the according terminals "TWEETER" of the crossover.

CROSSOVER INTERCONNECTION

• Connect the positive terminals (+") and the negative terminals (-") of the amplifier speaker outputs with the according terminals "AMPLIFIER" of the crossover.
• Use for the interconnection the supplied cables (white and black).

Repeat all three steps for the channel pair on the opposite side of the vehicle.

TO THE SPEAKER OUTPUTS OF THE AMPLIFIER

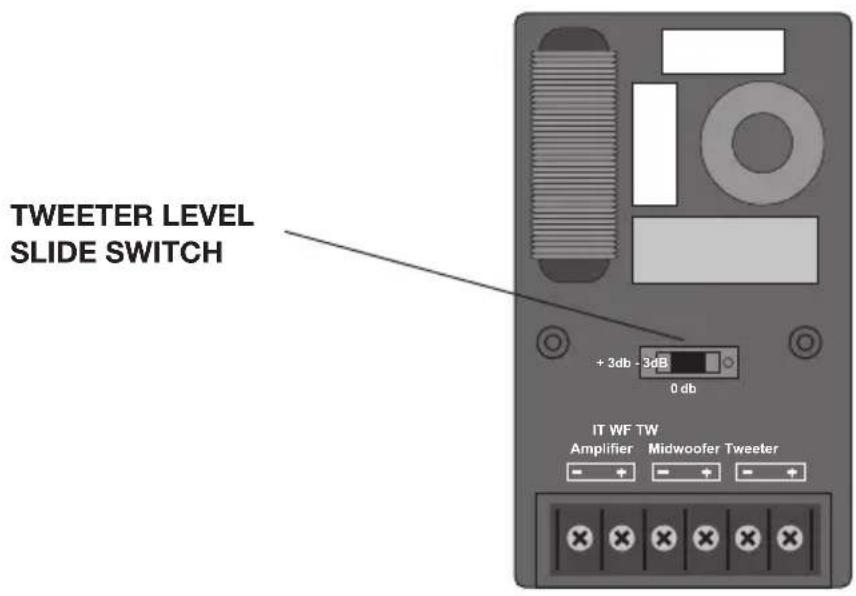

TWEETER LEVEL ADJUSTMENT OF THE CROSSOVER

The XENIUM XE crossovers offers the opportunity to match the tweeter level of the loudspeaker system with the characteristics of the interior environment and the complete soundsystem. Please remove carfully the cover of the crossover to get access to the slide switch for the level adjustment.

- To adjust the tweeter level set the 3-way slide switch to the following positions: "+ 3dB" (high level), "0dB" (mid level) and "-3dB" (low level)

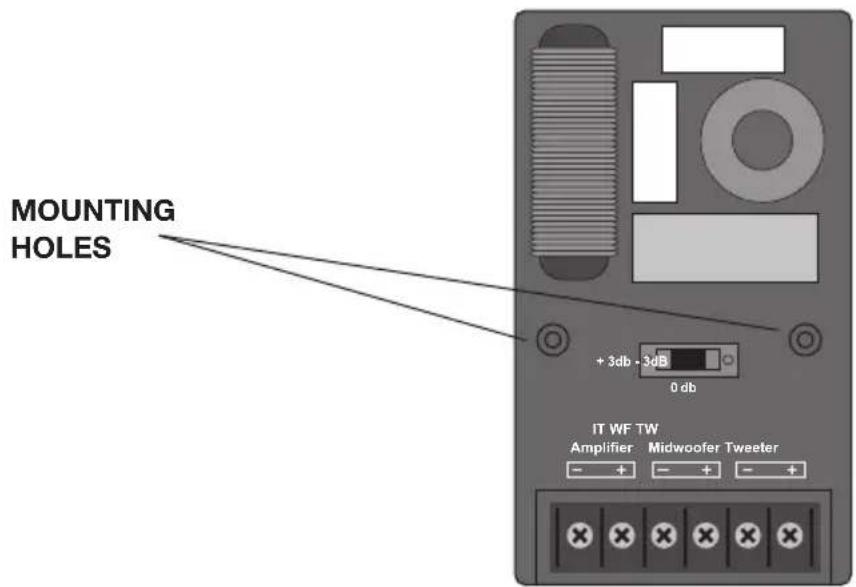

INSTALLATION OF THE CROSSOVER

Under specific circumstances it will be necessary to mount the crossover to the vehicle. The mouting holes sit on the left and right center. Use appropriate screws, depending on the surface, where the housing will be installed on.

Abstract geometric logo design with stylized letter 'S' and diagonal line (no text or symbols)

CAR AUDIO SYSTEMS

Audio Design GmbH · www.audiodesign.de

Am Breilingsweg 3 · D-76709 Kronau (Germany)

Tel. [phone] - 9465-0 · Fax [phone] - 946510
