MP17 - Pepper/Salt Mill Eldom - Free user manual and instructions

Type de produit	Salt and pepper mill
Modèle	MP17
Marque	Eldom
Matériau	Stainless steel and acrylic
Dimensions (H x L x P)	Approx. 20 x 5 x 5 cm
Poids	Approx. 300 g
Alimentation	4x AA batteries (not included)
Mécanisme de broyage	Ceramic adjustable grinding mechanism
Capacité	Approx. 100 g of salt or pepper
Fonction principale	Electric grinding of salt and pepper
Réglage de mouture	Adjustable from fine to coarse
Mise en marche	Push-button operation
Lumière LED	Built-in LED for illumination during use
Nettoyage	Wipe with damp cloth; do not immerse in water
Sécurité	Auto-stop when button released; battery compartment lock
Pièces détachées	Ceramic grinding mechanism available as spare part
Réparabilité	Repairable by replacing grinding mechanism or battery contacts
Garantie	2 years manufacturer warranty
Couleur	Black with silver accents
Accessoires inclus	Instruction manual

Frequently Asked Questions - MP17 Eldom

How do I adjust the grind size on the Eldom MP17?

Turn the top knob to adjust the grind from fine to coarse. The ceramic mechanism allows precise adjustment.

What batteries does the MP17 use and how do I replace them?

The mill uses 4 AA batteries. Open the battery compartment at the top, insert batteries with correct polarity, and close securely.

Can I use the MP17 for both salt and pepper?

Yes, the Eldom MP17 is designed for both salt and pepper. Clean thoroughly between uses to avoid flavor mixing.

How do I clean the MP17?

Wipe the exterior with a damp cloth. Do not immerse in water. For the grinding mechanism, use a dry brush to remove residue.

Why is my MP17 not grinding?

Check if batteries are installed correctly and have charge. Ensure the grinding chamber is not blocked. If problem persists, contact customer service.

Is the MP17 suitable for wet salt?

No, use only dry salt and pepper. Wet ingredients can damage the ceramic mechanism.

How long do the batteries last?

Battery life depends on usage. Typically, 4 AA batteries last for several months of regular use.

Can I replace the grinding mechanism?

Yes, the ceramic grinding mechanism is a spare part available from Eldom. Consult the manual for replacement instructions.

Does the MP17 have a warranty?

Yes, it comes with a 2-year manufacturer warranty against defects.

How do I disassemble the MP17 for deep cleaning?

Refer to the manual. Typically, you can remove the top part and the grinding chamber for cleaning. Do not force any parts.

USER MANUAL MP17 Eldom

Red and transparent red product filter with a small metallic knob, labeled 'eldom' at the bottom (no other text or symbols visible)

model: MP17

BEZPIECZEŃSTWO UŻYTKOWANIA

Top-down view of a red plastic mechanical component with numbered parts (4 and 5), no visible text or symbols.

OBSŁUGA

• Before first use familiarize with the entire content of this manual.
• do not merge the unit in water and do not spray any liquids on it
• use the appliance to grind pepper only. Grinding of other spices makes guarantee terminated
• do not expose the appliance to sunlight, hot surfaces and humidity
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks.
  Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• the unit is designed to work at a household
• do not use the unit outdoors
• do not use the appliance if it has been dropped or there are traces of a damage

SAFETY OF THE USER

• do not open and repair the appliance (guarantee may expire) in case of any technical problems please have the appliance repaired by authorized service point
• the unit may be repaired by a manufacturer's authorized service center only. All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
• Eldom Sp. z o. o. shall not be liable for potential damages arising from improper use of the unit.

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be reprocessed or recycled
• they should be handed over to a relevant point which deals with the collection and recycling of electric and electronic appliances

WARRANTY

• the appliance is intended for a private use in a household
• it cannot be used for professional purposes,
• the warranty is invalid in the case of improper operation

User's Manual for

Pepper grinder M17

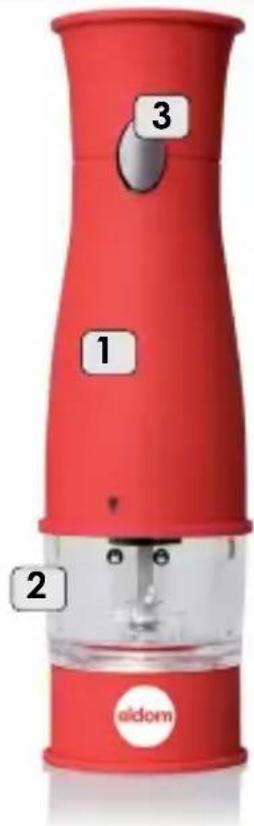

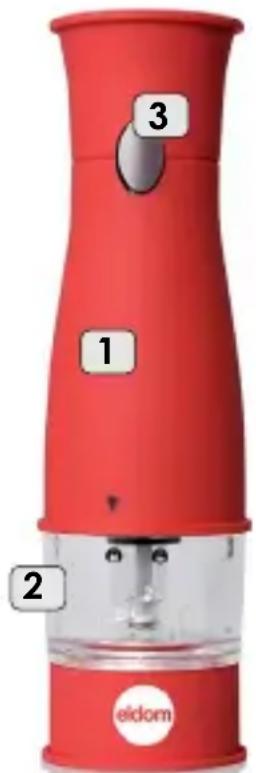

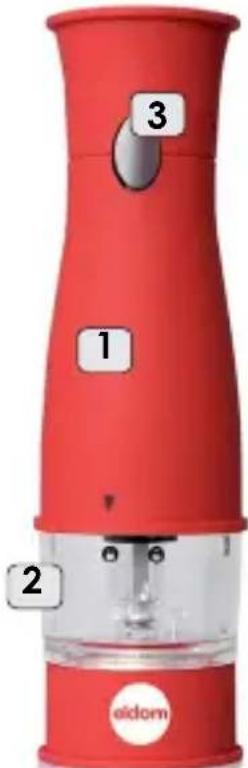

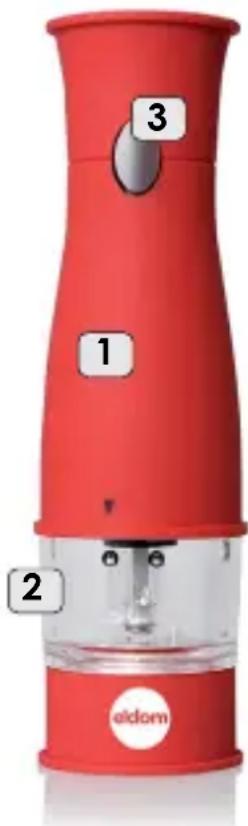

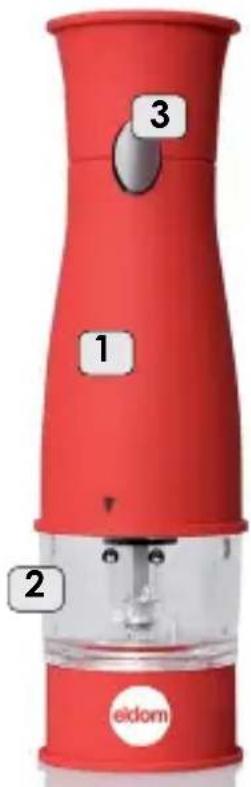

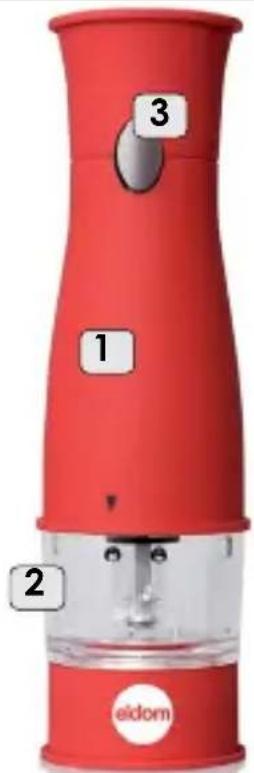

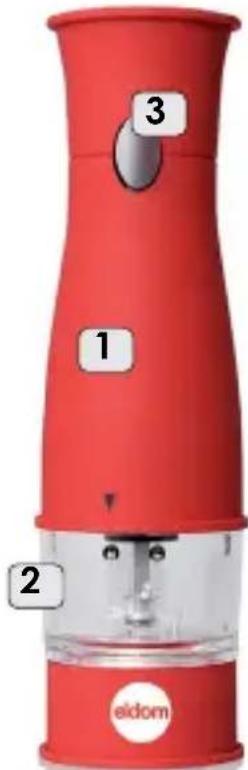

GENERAL DESCRIPTION

1. Body
2. Pepper tank
3. PUSH-BUTTON
4. Thickness of grinding – regulation
5. Light

TECHNICAL DATA

- power supply: AA batteries, 4 pcs. Batteries do not pose the grinder's equipment

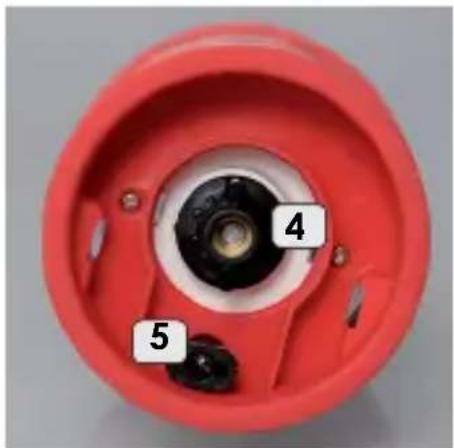

Top-down view of a red mechanical component with numbered parts (4 and 5) indicating specific parts, no text or symbols present.

OPERATING

The grinder is intended for pepper grinding. Grinding of other spices makes guarantee terminated.

Power supply

The grinder is powered with AA alkaline batteries (1.5V). In order to fix of replace worn batteries, open the cover (1) by twisting it anti-clockwise and raising it carefully. Insert the batteries as per directions given. Put the cover (1) back and turn clockwise to lock it.

Used batteries should be thrown away the containers specially designed for this purpose.

Spice grinding

Access to spices tank is provided after removal shield of grinding chamber (1) and pulling out battery chamber.

After filling the tank with spices, insert battery chamber and fox the cover (1). Mill is activated by pressing and holding the button.

It is recommended to keep the spices tank 80% full.

In the lower part of the appliance there is thickness regulation available. To set desired thickness of grinding, twist the regulator (4) clockwise (fine particles) or anti-clockwise (thick particles).

The light (5), which helps in dosing spices, turns on when grinder is operating. Do not change the grinding thickness when the grinder is operating.

Avoid humidity. Do not grind the pepper directly over evaporating plates since humidity may cause clogging of the appliance and damages to the drive.

Cleaning and maintenance

• do not merge the unit in water
• clean the casing with a wet cloth

BEZPEČNOSTNÍ DOPORUČENÍ

Top-down view of a red plastic mechanical component with numbered parts (4 and 5), no visible text or symbols.

OBSLUHA

Top-down view of a red plastic mechanical component with numbered parts (4 and 5) indicating internal features.

BEDINGUNG

Top-down view of a red plastic mechanical component with numbered parts (4 and 5) indicating internal features.

Top-down view of a red mechanical component with numbered parts (4 and 5) indicating specific parts, no text or symbols present.

POUŽÍVANIE ZARIADENIA

Top-down view of a red mechanical component with numbered parts (4 and 5), no visible text or symbols.

HASZNÁLAT

Top-down view of a red mechanical component with numbered parts (4 and 5), no visible text or symbols.

Uso

• control of grind thickness
- ceramic querns
- easy refill
- user-friendly
• lighting which helps in optimal
- spices dosing
- battery: 4 × AA (1.5V)

CS

ELEKTRICKÝ MLÝNEK NA PEPŘ
