MP9 - Pepper/Salt Mill Eldom - Free user manual and instructions

Product Type	Pepper/Salt Mill
Model	MP9
Brand	Eldom
Grinding Mechanism	Ceramic burr grinder
Adjustable Coarseness	Yes, via knob on top
Operation	Manual twist
Material	Stainless steel body with acrylic window
Height	Approx. 20 cm
Diameter	Approx. 5 cm
Weight	Approx. 0.3 kg
Capacity	Approx. 100 ml (peppercorns or salt)
Filling	Unscrew top cap
Cleaning	Wipe exterior with damp cloth; do not immerse
Maintenance	Occasional lubrication of spindle with food-safe oil
Safety	Keep away from children; do not use with wet hands
Spare Parts	Grinding mechanism available from Eldom service
Repairability	User-replaceable grinding mechanism
Warranty	2 years limited warranty
Compatible Spices	Black peppercorns, white peppercorns, sea salt, rock salt
Included Accessories	None

Frequently Asked Questions - MP9 Eldom

How do I adjust the grind coarseness?

Turn the coarseness knob on the top of the mill. Turn clockwise for finer grind, counterclockwise for coarser. Adjust while grinding to feel the resistance.

Can I use this mill for salt?

Yes, the ceramic burr is suitable for both peppercorns and salt. However, avoid using wet salt to prevent clogging.

How do I fill the mill?

Unscrew the top cap (the knob) and pour peppercorns or salt into the opening. Do not overfill; leave some space. Then screw the cap back on.

How do I clean the mill?

Wipe the exterior with a damp cloth and dry immediately. For the grinding mechanism, run some dry rice through it to clean residues. Do not immerse in water.

The mill is not grinding properly. What should I do?

First, check if it's empty. If not, adjust coarseness to a coarser setting. If still stuck, the mechanism may be clogged. Clean by grinding dry rice. If issue persists, contact Eldom service.

Is the grinding mechanism replaceable?

Yes, the ceramic burr can be replaced. Contact Eldom customer service to order a replacement part. Installation instructions are in the manual.

Can I grind other spices besides pepper and salt?

It is designed for dry peppercorns and salt crystals only. Other spices may damage the ceramic burr.

Does the mill have a warranty?

Yes, Eldom provides a 2-year limited warranty against defects in materials and workmanship. Retain your receipt.

How do I store the mill when not in use?

Store in a dry place away from direct sunlight. Keep it upright to prevent leaks. Avoid high humidity.

Can I use this mill with wet hands?

No, keep hands dry when operating the mill to avoid slipping or damage. Moisture can also affect the grinding quality.

USER MANUAL MP9 Eldom

Exterior view of a modern stainless steel Eldom brand water heater with control panel and glass base (no text or symbols on main body)

Eldom Sp. z o.o.

Close-up of a white electrical plug socket with labeled terminals A and B (no additional text or symbols)

fot. 2

Close-up of a mechanical press or clamping device with no visible text or symbols

fot. 3

• Before first use familiarize with the entire content of this manual.
• do not merge the unit in water and do not spray any liquids on it
• use the appliance to grind pepper pepper and salt only. Grinding of other spices makes guarantee terminated
• do not expose the appliance to sunlight, hot surfaces and humidity
• The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks.
  Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
• the unit is designed to work at a household
• do not use the unit outdoors
• do not use the appliance if it has been dropped or there are traces of a damage

SAFETY OF THE USER

• do not open and repair the appliance (guarantee may expire) in case of any technical problems please have the appliance repaired by authorized service point
• the unit may be repaired by a manufacturer's authorized service center only. All modifications or use of non-original spare parts or any other elements is prohibited and makes use of the unit hazardous.
• Eldom Sp. z o. o. shall not be liable for potential damages arising from improper use of the unit.

Cleaning and maintenance

• do not merge the unit in water
• clean the casing with a wet cloth

ENVIRONMENTAL PROTECTION

• the appliance is made of materials which can be reprocessed or recycled
• they should be handed over to a relevant point which deals with the collection and recycling of electric and electronic appliances

WARRANTY

• the appliance is intended for a private use in a household
• it cannot be used for professional purposes,
• the warranty is invalid in the case of improper operation

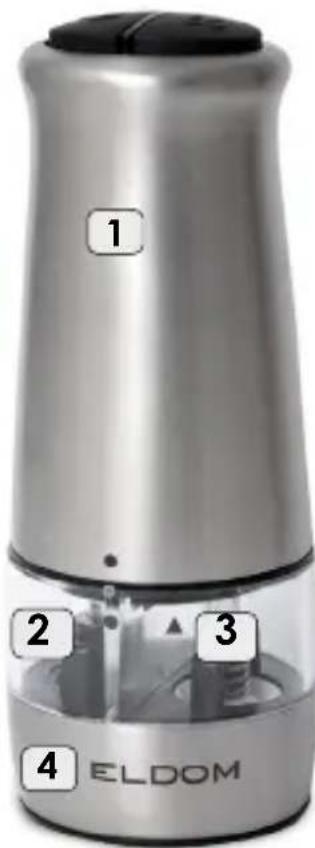

GENERAL DESCRIPTION

1. Body
2. Container for pepper
3. Container for salt
4. Base
5. On/Off switch for pepper (P)
6. On/Off switch for salt (S)

A. Salt grinding thickness regulator
B. Pepper grinding thickness regulator

photo 1

TECHNICAL DATA

- power supply: AAA batteries, 6 pcs.

OPERATING

The electric grinder MP9 is intended for pepper and salt grinding. Grinding of other spices makes guarantee terminated.

POWER SUPPLY

The grinder is powered with 6 AAA alkaline batteries (1.5V). Batteries are not included.

To fix a battery:

Twist the body (1) gently counter-clockwise and pull it up. Fix the batteries according to the symbols on the container. Place the body (1) photo 3 and lock it twisting it clockwise.

Used batteries should be thrown away to the containers specially designed for this purpose.

SPICE GRINDING

Pour spices to the containers (2) and (3). In order to do this, twist the body (1) gently counter-clockwise and pull it up.

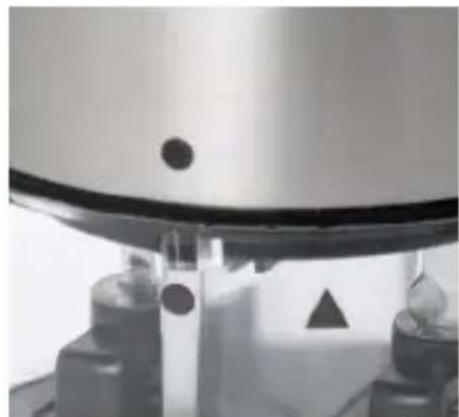

To facilitate, querns are made of different colours. Grey in the container (2) designed for pepper and white in the container (3) designed for salt photo 4.
After pouring spices into containers, fix the body (1) photo 3 and lock it by twisting clockwise.

Avoid humidity. Do not grind the spice directly over evaporating plates since humidity may cause clogging of the appliance and damages to the drive.

Mill starts operation after pushing and holding the switch (5) or (6):

- switch "P" - pepper grinding,

- switch "S" - salt grinding.

- switch "P" - pepper grinding, - switch "S" - salt grinding.

The grinding thickness regulation is placed if the base (4) of the mill (fot 1)

- knob A: salt grinding thickness regulation

- knob B: pepper grinding thickness regulation

Do not change the grinding thickness when the grinder is operating.

Close-up of a black electrical plug socket with labeled terminals A and B (no additional text or symbols)

photo 2

Close-up of a laboratory apparatus with metallic components and a triangular symbol (no visible text or labels)

photo 3

BEZPEČNOSTNÍ DOPORUČENÍ

Close-up of a black plastic electrical plug with two labeled terminals (A and B), no visible text or symbols beyond labels.

Close-up of a laboratory glassware setup with droplets and a triangular object, no visible text or symbols

SICHERHEITSHINWEISE

Close-up of a mechanical component with labeled parts A and B, no visible text or symbols beyond labels

Close-up of a laboratory instrument with a triangular component and mechanical components (no visible text or symbols)

МЕРЫ БЕЗОПАСНОСТИ

Close-up of a black plastic electrical plug with three labeled ports (A, B), no visible text or symbols beyond labels

ГАРАНТИЯ

Close-up of a mechanical device with no visible text or symbols
