Perfect Juicer PJ600S - Juicer Eldom - Free user manual and instructions

Product Type	Low-speed Masticating Juicer
Model	Perfect Juicer PJ600S
Brand	Eldom
Power	150 W
Voltage	230 V ~ 50 Hz
Maximum Continuous Operation	10 minutes
Required Break Time	10 minutes
Filter Types	3 (A: fine mesh for watery juice, B: large mesh for dense juice, C: for frozen fruit)
Juice Jug Capacity	Approximately 1 L
Pulp Container Capacity	Approximately 1.5 L
Motor Unit Material	Plastic
Filter Material	Stainless steel
Safety Features	Microswitch (only operates when properly assembled), overload protection (reverse function 'R')
Included Accessories	Pusher, lid, extracting bolt, filter, base filter, juice collector, pulp container, juice jug, cleaning brush, tofu set
Dishwasher Safe Parts	All detachable plastic parts (place away from heating element)
Motor Unit Cleaning	Wipe with a damp cloth; do not immerse in water
Weight	Approximately 2.5 kg
Dimensions (H x W x D)	Approximately 40 x 20 x 20 cm
Warranty	Household use only; warranty void for commercial use or misuse
Disposal	Do not dispose with household waste; recycle at designated collection points

Frequently Asked Questions - Perfect Juicer PJ600S Eldom

How do I assemble the Perfect Juicer PJ600S?

Ensure the cap (8a) on the bottom of the juice collector (6) is pushed in. Place the juice collector into the main body (11). Insert the filter base (5), filter (4), and extracting bolt (3). Position the pulp container (13) and juice jug (14) under the respective spouts. Place the lid (2) on the collector and turn it right to lock. Slide the pusher (1) into the feeding tube.

Why won't my juicer start?

The juicer will only start if all parts are properly assembled and the microswitch is unlocked. Check that the lid is correctly locked and the juice collector is seated. Also ensure the control knob is turned to 'ON'.

How do I choose the right filter?

Use filter A (fine mesh) for watery juice like citrus, filter B (large mesh) for thicker juice from soft fruits, and filter C for processing frozen fruit. The filters are labeled A, B, and C on the bottom.

What should I do if the extracting bolt gets blocked?

Set the control knob to 'R' (reverse) for 3-5 seconds, repeating two to three times. Then turn off, unplug, and disassemble to remove the blockage. Never force the bolt.

Can I juice frozen fruit without the special filter?

No, frozen fruit should only be processed with filter C mounted. Using other filters may damage the juicer.

How should I clean the juicer after use?

Unplug and disassemble. Wash detachable plastic parts with warm soapy water using the included brush, or place them on the top rack of the dishwasher away from the heating element. Wipe the motor unit with a damp cloth; never immerse it in water.

Can I juice hard fruits like sugar cane?

No, the juicer is not designed for very hard or starchy fruits/vegetables such as sugar cane, as they may damage the appliance.

What is the maximum continuous operating time?

The maximum continuous operation is 10 minutes. After that, allow a 10-minute break before resuming to prevent motor damage.

How do I slow down browning of apple juice?

Add a few drops of lemon juice to the apple juice immediately after extraction. This helps slow oxidation and browning.

Is the juicer suitable for leafy greens?

Yes, wrap leafy greens or herbs into a bundle before feeding, or combine them with other ingredients to ensure efficient juicing.

USER MANUAL Perfect Juicer PJ600S Eldom

Perfect Juicer PJ600B/PJ600C/PJ600S

v.2

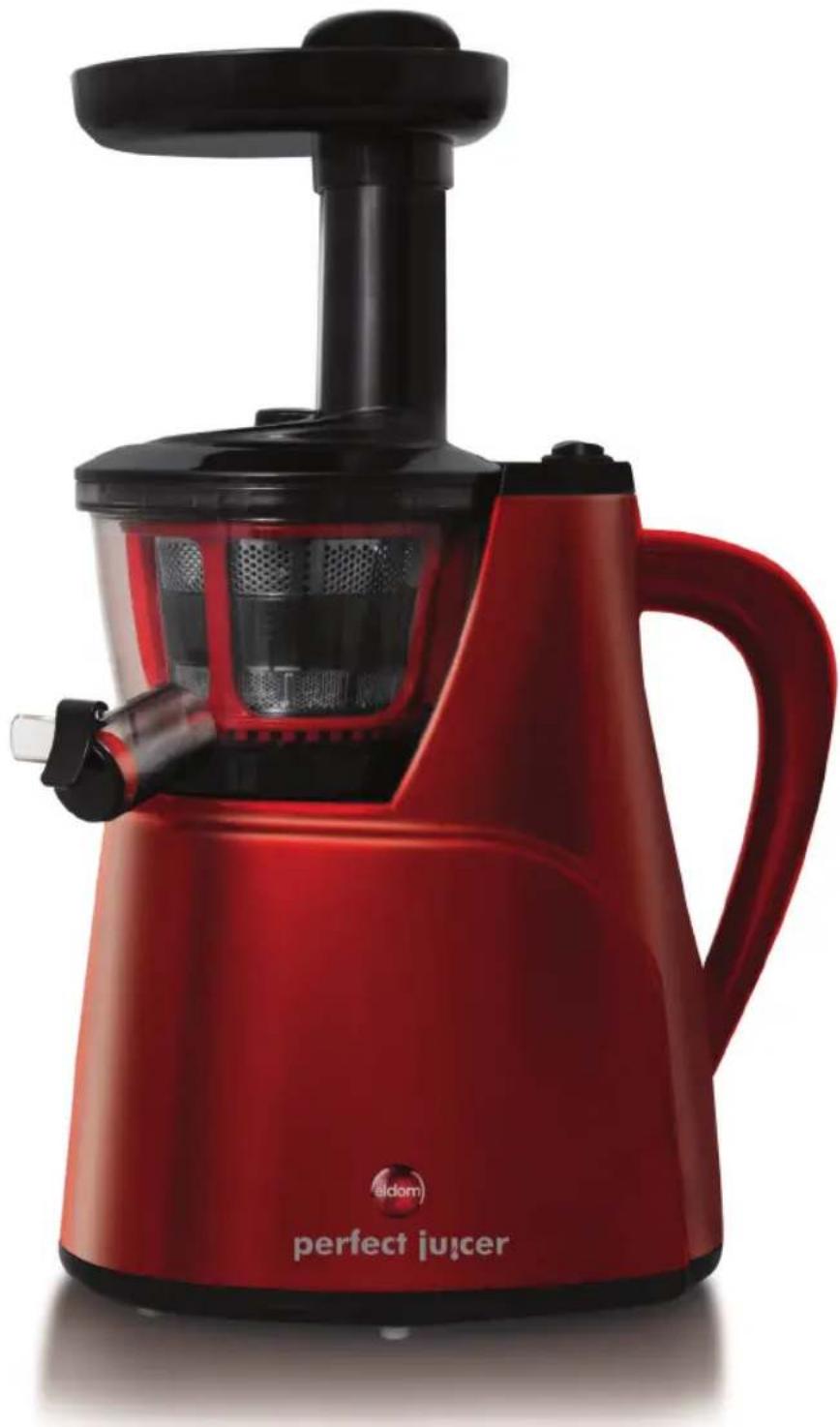

Red electric juice maker with black handle and white interior, no visible text or symbols on the device itself.

Eldom Sp. z o.o.

Two line drawings of a container with handles, labeled 13 and 14 (no text or symbols on the objects themselves)

DANE TECHNICZNE

Stacked cylindrical container with black and silver bands, labeled 'A' at bottom left (no other text or symbols)

Close-up of a black cylindrical device with a textured surface and labeled 'B' (no text or symbols on the device itself)

Black and silver striped cylindrical object with a dotted line indicating a measurement (no text or symbols)

1. Please acquaint precisely with whole of this instruction before using the blender for the first time.
2. The power cable must be plugged in the socket with parameters the same as those given in that instruction manual.
3. Do not immerse the cable or the appliance in water.
4. Only intended for household use.
5. Do not use the appliance outdoors.
6. Before switching the appliance on, make sure that all of its elements are appropriately assembled.
7. Do not leave your device without supervision.
8. Always unplug the appliance after operation.
9. The device can be used by children aged 8 and older and by persons with limited physical, sensory or mental capabilities, or persons without sufficient experience and knowledge only under supervision or if previously instructed on the safe use of the appliance and the possible risks. Children shall not play with the appliance. Cleaning and maintenance that are the responsibility of the user shall not be carried out by children without supervision. Protect the appliance and the power cord against children under 8 years old.
10. Do not touch the appliance with wet hands.
11. Always pull the plug of the socket before cleaning.
12. Do not use the juicer when the filter is damaged.
13. Do not exceed the maximum time of continuous operation of the appliance.
14. Do not move during use.
15. Never reach into the feeding tube with your fingers or an object while the appliance is running. Only the pusher is to be used for this purpose.
16. Do not operate the juicer for more than 40 seconds at a time when juicing heavy loads and let it cool down sufficiently afterwards.
17. Never use the appliance if the supply cord is damaged. If found dama ged in any way, consult the producer's authorized service centre. The list of service centres is to be found in the appendix and on www.eldom.eu.
18. The appliance can be used only with the originally included accessories.
19. Refer servicing to an authorized service centre. Modifying the appliance or using spare parts or elements other than the original ones is forbidden and can expose the user to hazard.

Operating instruction GB

Perfect Juicer PJ600B/PJ600C/PJ600S

GENERAL DESCRIPTION

1. Pusher
2. Lid
   2a. Bridge
3. Extracting bolt
4. Filter
5. Bottom of the filter
6. Juicer collector
7. Pulp spout
8. Juice spout
   8a. Cap

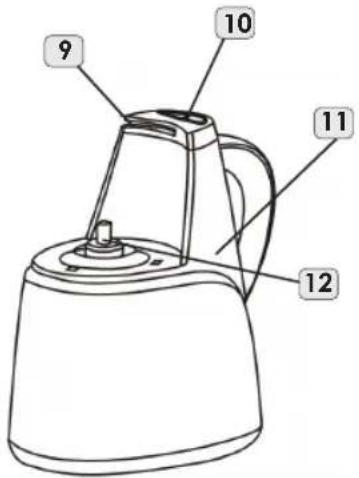

9. Microswitch
10. Control knob (On, Off, R)
11. Main body
12. Drive spindle
13. Pulp container
14. Juice jug
    15.Brush for cleaning
    16.Tofu set

TECHNICAL DATA

• power: 150W
• mains voltage: 230V \~ 50Hz
• maximum time
  of continuous operation: 10 minutes
• break before continuation

of operation: 10 minute

3

4

2017年1月1日

The image is too blurry to recognize any text content.

HOW TO USE THE APPLIANCE

PERFECT JUICER is designed for processing most of fruits and vegetables in a more efficient way than traditional juicer. Apart from standard components, it is also included a tofu set, advices and recipes can be found on-line. Before using the appliance

• Read these instructions for use carefully before using the appliance
• make sure that none of elements are demaged
• wash all detachable parts,
• assemble the appliance

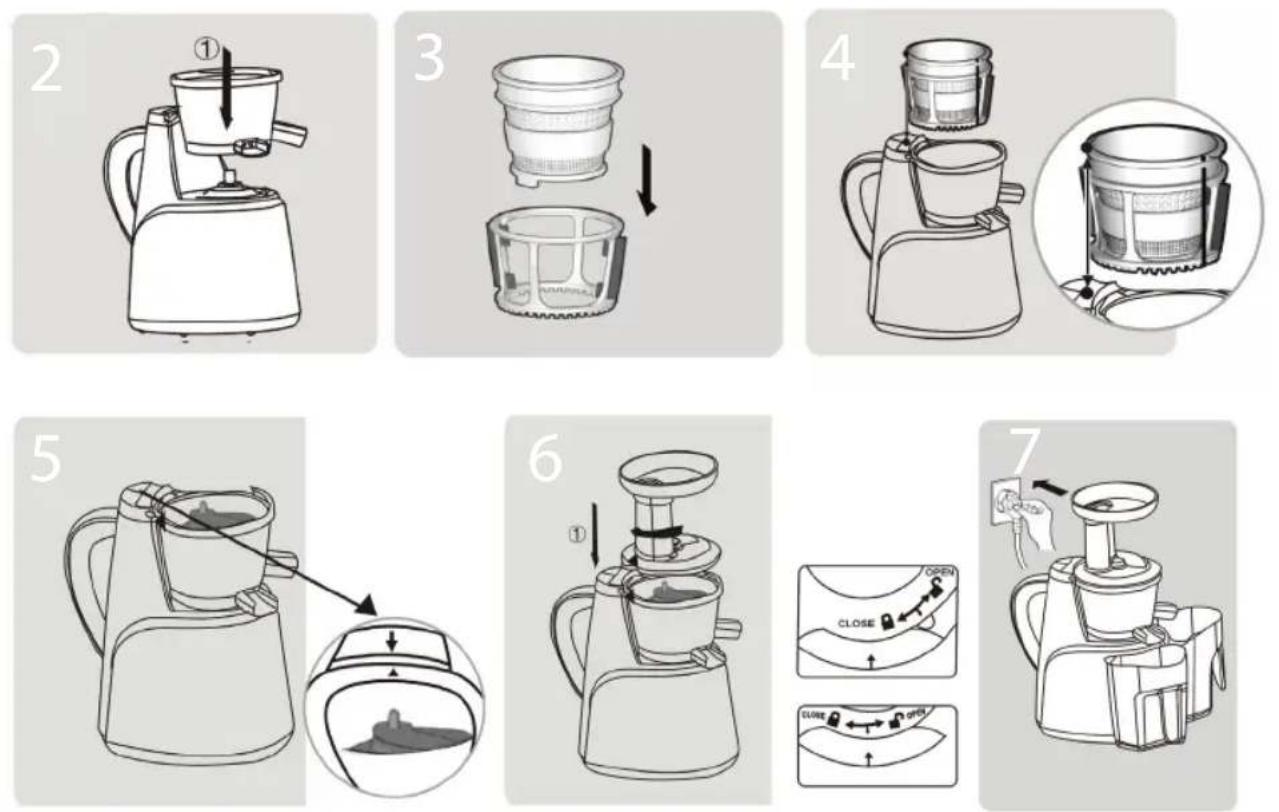

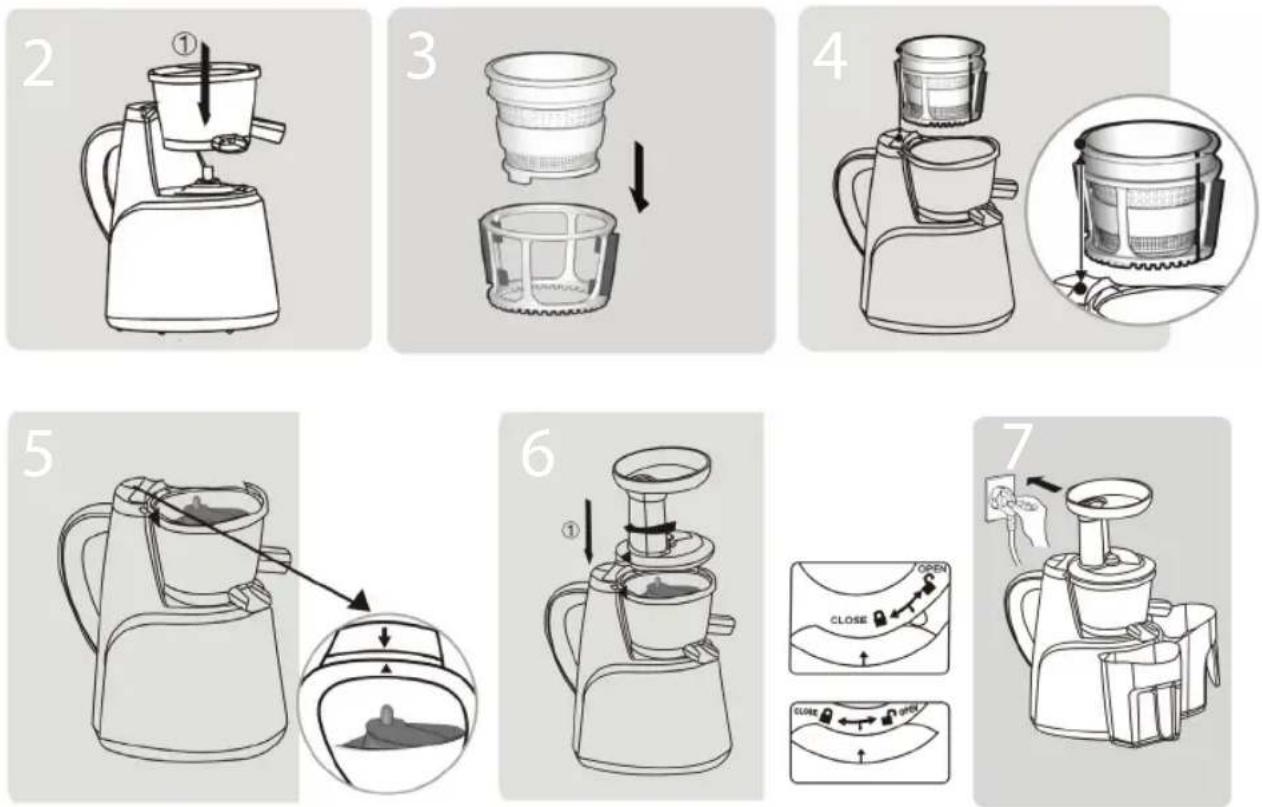

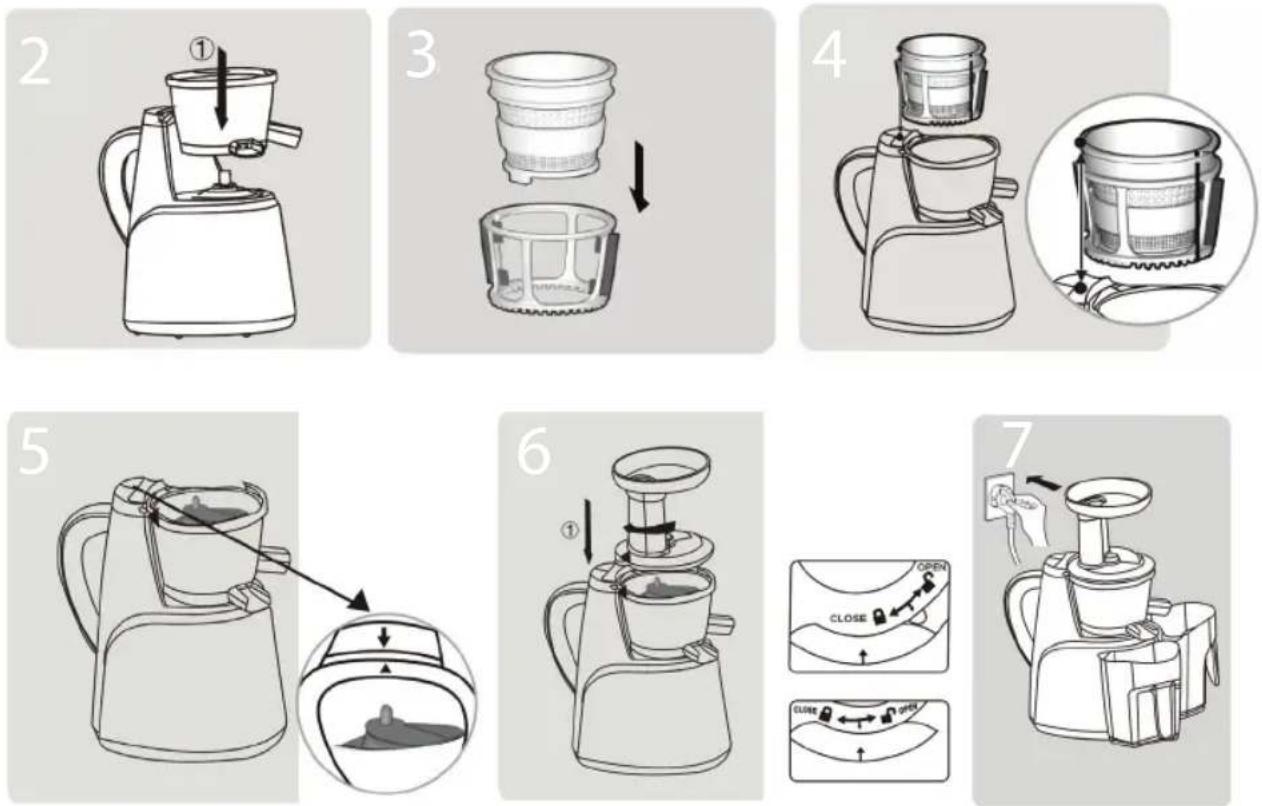

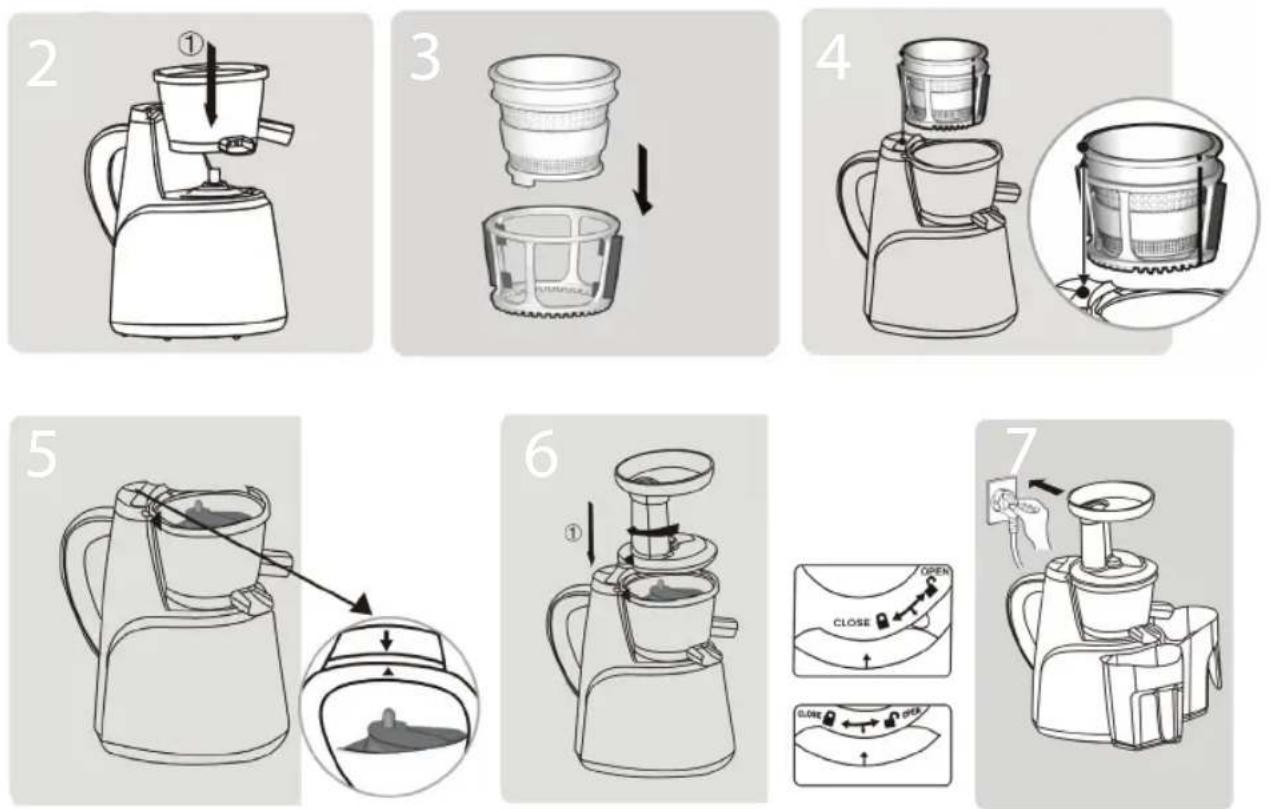

Montage

• ensure that the cup (8a) on the bottom of the collector 6 is pushed in (drawing 1)
• Place the juice collector (6) into main body (11) (pic. 2).

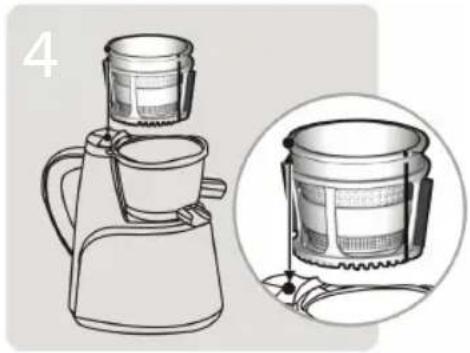

• In juicer collector (6) set: filter base (5), filter (4) (pic. 3) and extracting bolt(3) (pic. 4),
• set the containers (13,14) under the spouts (7,8)
• on the juicer collector (6) put the lid (2) according with the indicators. and turn it right (pic. 6)
• Slide the pusher into the feeding tube in the lid (2)

Three-step diagram showing a mechanical assembly with a valve and housing, connected by a tool (no text or labels)

pic.1

USING THE APPLIANCE

The appliance will only function if all parts have been properly assembled and only than the microswitch will be unlocked.

• always operate the product on a flat, stable surface
• put the plug in the wall socket
• slice products into pieces which fit into the feeding tube that is in the lid (2). Do not cut products into too small pieces.
• make sure the juice jug (14) has been placed under the juice spout (8).
• make sure that pulp container (13) has been placed under the pulp spout (7)
• switch the appliance on by turning the control knob (12) to the position „ON"
• put prepared fruits/vegetables in the feeding tube and gently press them down towards the rotating bolt by means of the pusher. Do not exert too much pressure on the pusher, as that could affect the quality of the end result or even blocked the appliance.

Never insert your fingers or an object into the feeding tube.

• The juice will flow directly in the juice jug (14), and the pulp will be collected in the pulp container (13).
• If the Extracting bolt is locked, you need to set the switch (10) to "R" for 3 to 5 seconds. Repeat the process two to three times, then turn off, and disassemble items of PERFECT JUICER (see CLEANING section) to remove the blcking element.
• After you have processed all ingredients and the juice flow has stopped, switch the appliance off and wait until the filter has stopped rotating
• Make sure you observe the maximum time of continuous operation of the appliance. Exceeding the time limit and failing to provide appropriate breaks during the operation of the appliance may cause irreparable damage to the engine.

A- filter with small meshes, watery juice

B- filter with big meshes, dense juice

C- for frozen fruit

Stacked cylindrical container with black and silver bands, labeled 'A' at bottom left (no text or symbols on the object itself)

B

Close-up of a black and white textured brush holder (no text or symbols visible)

C

Close-up of a black and silver cylindrical object with horizontal bands (no visible text or symbols)

TIPS

• Clean fruits and vegetables, before juicing
• Use fresh fruit and vegetables, as they contain more juice.
• Thick peels, e.g. those of oranges, pineapples and uncooked beetroots need to be removed.
• products should be sliced into pieces which fit into the feeding tube that is in the lid (2). Do not cut the food into too small pieces.
• do not process the ice or frozen fruits
• If juicing herbs or leafy vegetables, wrap them together to form a bundle before placing in the juicer or combine them with other ingredients
• Apple juice turns brown very quickly. You can slow down this process by adding a few drops of lemon juice.
• frozen fruit may be processed only with filter no 3 mounted on
• fruit with small seeds (e.g. chokeberry, raspberry, blackcurrant) must be processed in small batches only, about 0.5 kg. Before putting the next batch, turn the device off and remove the components for cleaning (see CLEANING).
• The juicer is not suitable for juicing very hard and starchy fruits or vegetables such as sugar cane
• When juicing fruit and vegetables of different consistency it may help to juice first soft products, and than hard.

CLEANING

When device is not used or before cleaning, disconnect it from the network.

The appliance is easier to clean if you do so immediately after use.

Do not use abrasive cleaning agents, scourers, acetone, alcohol etc. to clean the appliance.

Place the detachable plastic parts on the top tray of the dishwasher. Make sure they are placed well away from the heating element.

Switch the appliance off, remove the plug from the wall socket. Next disassemble the appliance in the following order:

• Remove the pushe (1)
• unlock (turn to the left) and remove the lid (2),
• unlock (turn to the left) and remove the juice collector (6) together with the base filter (5), filter (4) and extracting bolt (3) and disassemble the appliance.
  -Clean these parts with a cleaning brush in warm water with some washing-up liquid and rinse them under the tap.
  -Clean the motor unit with a damp cloth

Never immerse the motor unit in water nor rinse it under the tap.

WARRANTY

• only intended for household use,
• it cannot be used for commercial purposes
• the warranty loses validity in case of inappropriate use

ENVIRONMENTAL PROTECTION

• the device is made of materials that can be reused or recycled
• it should be handed to the special collection point,
  that deals with collection and recycling of electronic and electric devices,

DOPORUČENÍ PRO OBLAST BEZPEČNOSTI

CZ

Line drawings of two containers, one open and one closed, with no text or symbols present.

TECHNICKÉ ÚDAJE

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

obr. 1

OBSLUHA

Close-up of a black and silver cylindrical object with horizontal bands, labeled 'A' in the corner (no text or symbols on the object itself)

Close-up of a black plastic buffer with mesh insulation and a textured inner layer, labeled 'B' in the corner (no text or symbols on the buffer itself)

Close-up of a black and silver cylindrical object with a dotted line indicating a measurement or edge (no text or symbols visible)

DOPORUČENÍ

Two line drawings of a container or holder with handles, labeled 13 and 14 (no text or symbols on the diagrams themselves)

Technische Daten

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Abb. 1

BEDIENUNG

Stacked cylindrical container with black and silver bands, labeled 'A' (no text or symbols on the object itself)

Close-up of a black cylindrical object with a textured surface, labeled 'B' at the bottom left (no other text or symbols visible)

Stacked cylindrical mechanical component with black and silver bands, labeled 'C' at bottom left (no text or symbols on the component itself)

HINWEISE

Line drawings of three different household appliances: a blender, a cup with a handle, and a toothbrush (no text or symbols present)

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

рис.1

Stacked black and silver cylindrical container with a labeled section 'A' (no other text or symbols visible)

Close-up of a black plastic coffee maker with mesh pattern (no text or symbols visible)

Stacked cylindrical object with black and silver bands, labeled 'C' at bottom left (no other text or symbols)

ПОЛЕЗНЫЕ СОВЕТЫ

Line drawings of two containers, one with a handle and label '13', the other with a handle and label '13' (no text or symbols on the containers themselves)

URČENIE ODŠTAVOVAČA S NÍZKÝMI OTÁČKAMI PJ600

Three-step diagram showing a mechanical component before and after processing, with no visible text or symbols.

obr. 1

OCHRANA ŽIVOTNÉHO PROSTREDIA

Line drawing of a kitchen blender with handle and spout, no text or symbols present

Diagram showing a mechanical component being inserted into a plastic housing, with no visible text or symbols.

Line drawing of a blender with a lid and side view showing its internal structure (no text or symbols)

Line drawing of a kettle with a magnified inset showing internal components (no text or symbols)

Line drawing of a coffee maker with a handle and spout, showing mechanical components and a pointer indicating motion (no text or symbols)

Line drawing of a hand using a power switch to clean or adjust the product (no text or symbols present)

OBSLUHA

Stacked cylindrical container with black and silver bands, labeled 'A' in corner (no text or symbols on the object itself)

Close-up of a black cylindrical object with a textured surface and patterned top layer, labeled 'B' in the corner (no readable text or symbols on the object itself)

Stacked cylindrical mechanical component with black and silver bands, labeled 'C' at bottom left (no text or symbols on body)

POKYNY

Line drawings of three different household appliances: a cup, a tray, and a tool (no text or symbols present)

A PJ600 ALACSONY FORDULATSZÁMÚ GYÜMÖLCSPRÉS RENDELTETÉSE

Three-step diagram showing a mechanical component before and after processing, with no visible text or symbols.

Close-up of a black and silver coffee maker with horizontal bands (no visible text or symbols)

Close-up of a black cylindrical object with a textured surface and patterned top layer, labeled 'B' in the corner (no other text or symbols visible)

Black and silver striped cylindrical object with a dotted line indicating a measurement or edge (no text or symbols)

Two line drawings of a container or holder with handles, labeled 13 and 14 (no text or symbols on the diagrams themselves)

DATOS TÉCICOS

Three-step diagram showing a mechanical component before and after assembly, with no visible text or symbols.

Fig. 1

MODO DE EMPLEO

Stacked black and silver cylindrical objects with no visible text or symbols

B

Close-up of a black cylindrical object with a textured surface and patterned top layer (no visible text or symbols)

C

Close-up of a black and silver cylindrical object with horizontal bands, no visible text or symbols.

CONSEJOS

The disposal of used electrical and electronic equipment (applies to European Union countries and other European countries with separate waste-collection systems).

This symbol on the product or its packaging indicates that it should not be classified as household waste. It should be handed over to an appropriate company dealing with the collection and recycling of electrical and electronic equipment. The correct disposal of the product will prevent potential negative consequences for the environment and human health resulting from hazardous substances present in the product. Electrical devices must be handed over to restrict their re-use and further treatment. If the device contains batteries, remove them, and hand them over to a storage point separately. DO NOT THROW EQUIPMENT INTO THE MUNICIPAL WASTE BIN. Material recycling helps to preserve natural resources. For detailed information on how to recycle this product, please contact your local authority, the recycling company, or the shop where you bought it.
