Jola ZFS1016 - Slicer Zelmer - Free user manual and instructions

Product Type	Electric Slicer
Brand	Zelmer
Model	Jola ZFS1016
Dimensions (approx.)	300 x 200 x 250 mm
Weight (approx.)	3.2 kg
Power Supply	220-240 V, 50 Hz
Power Consumption	150 W
Blade Diameter	170 mm
Blade Material	Stainless Steel
Maximum Slice Thickness	15 mm
Thickness Adjustment	Stepless, with knob
Food Carriage	Removable, with food pusher
Safety Features	Safety switch, non-slip feet, blade guard
Housing Material	Plastic (ABS)
Cleaning	Removable parts dishwasher safe; blade hand wash
Maintenance	Blade sharpening recommended periodically
Accessories Included	Food pusher, slice thickness adjustment guide
Spare Parts Availability	Blade, carriage, pusher available separately
Repairability Index	Moderate; blade and electrical parts replaceable
Warranty	2 years (standard)

Frequently Asked Questions - Jola ZFS1016 Zelmer

How do I adjust the slice thickness on the Zelmer Jola ZFS1016?

Turn the thickness adjustment knob located on the side of the slicer. The scale indicates the slice thickness from 0 to 15 mm. Turn clockwise for thicker slices, counterclockwise for thinner.

What is the maximum slice thickness?

The maximum slice thickness is 15 mm (about 0.6 inches).

Can I wash the blade and carriage in the dishwasher?

The food carriage and pusher are dishwasher safe. However, the blade should be hand washed with mild detergent and dried immediately to prevent rust.

How do I sharpen the blade?

The blade can be sharpened using the built-in sharpening stone (if equipped) or a separate knife sharpener. Refer to the manual for specific instructions. Alternatively, replace the blade with a new one (order spare part).

Is the slicer safe to use?

Yes, the Zelmer Jola ZFS1016 includes a safety switch that prevents operation when the blade cover is open. It also has non-slip feet for stability. Always use the food pusher to keep hands away from the blade.

What types of food can I slice?

The slicer is designed for cold meats, cheese, bread, vegetables, and fruits. Do not use on frozen food, bones, or very hard items as they may damage the blade.

How do I clean the slicer after use?

Unplug the slicer. Remove the carriage and blade guard (if removable). Wash these parts in warm soapy water or dishwasher. Wipe the main body with a damp cloth. Do not immerse the motor unit in water.

Where can I find spare parts for this model?

Spare parts such as the blade, carriage, and pusher are available through Zelmer authorized service centers or online retailers. Check the product manual for part numbers.

The blade is not cutting evenly. What should I do?

First, ensure the blade is clean and not dull. If it's dull, sharpen or replace it. Also check that the food carriage moves smoothly and the thickness adjustment is correct. If problem persists, contact customer support.

What is the power consumption of the Zelmer Jola ZFS1016?

The slicer has a power consumption of 150 W and operates on 220-240 V, 50 Hz.

USER MANUAL Jola ZFS1016 Zelmer

White JOLA portable radio with a circular lens and control knob (no visible text or symbols on body)

White Alicia Alicja portable radio device with a circular lens and control knob (no visible text or symbols on body)

PL INSTRUKCJE UŻYTKOWANIA

Krajalnica

EN USER MANUAL

Meat slicer

DE BENUTZERHANDBUCH

White Zeimer portable device with a circular control knob and labeled dial (no text or symbols beyond branding)

DZIEKUJEMY ZA WYBÓR MARKI ZELMER. DOKŁADAMY STARAŃ, ABY PRODUKT DZIAŁAŁ W SPOSÓB ZADOWALAJĄCY I PRZYJEMNY.

OSTRZEŻENIE

PRZED UŻYCIEM PRODUKTU NALEŻY UWAŻNIE PRZECZYTAĆ INSTRUKCJĘ UŻYTKOWANIA. PRZECHOWUJ JĄ W BEZPIECZNYM MIEJSCU DO WYKORZYSTANIA W PRZYSZŁOŚCI.

OPIS

Diagram of a computer monitor with a circular dial and a black arrow indicating the blade (no text or symbols present)

Rys. 1

Technical line drawing of a mechanical device with no visible text or symbols

Rys. 2

Rys. 3

WE WOULD LIKE TO THANK YOU FOR CHOOSING ZELMER. WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

1. Main Body
2. Base
3. Sliding Platform
4. Food pusher
5. On/Off Button
6. Safety Button
7. Thickness adjustment knob
8. Blade
9. Thickness Guide
10. Blade blokade
11. Small gear

SAFETY INSTRUCTIONS

Check that your mains voltage corresponds to that stated on the appliance.

From time to time check the cord for damages. Never used the appliance if cord or appliance shows any signs of damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

All repairs should be made by a competent qualified electrician.

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Mark sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Mark sure the appliance is set on a flat surface. Unplug the appliance when not in use.

Only use this slicer for cooking applications. Only cut articles such as cheese, meat, bread and preparations. Never cut frozen food with this slicer.

Never cut food only by using your hands, always use the slide and its food guide unless it is impossible because of the size of the article. Make sure never to touch the knife. This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops.

The blade of the appliance is extremely sharp, always be careful when cleaning the appliance.

It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food.

Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever.

Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

The device must not be used by children. Keep the device and power cord out of children's reach. Children shall not play with the appliance.

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

Any other servicing should be performed by an authorized service representative.

This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

B&B Trends S.L. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

BEFORE USE

Clean all parts that come into contact with food before using the appliance before the first time (or after prolonged storage).

USE

IMPORTANT: After 3 minutes of continuous use it needs to rest for 10 minutes. After 5 cycles, it needs to rest for half an hour.

NOTE: Only use this appliance to cut soft foods. Do not use to cut frozen foods, bones or other solid food types.

Place the appliance on a flat and dry surface. The person using the appliance should operate the buttons with the left hand and the food pusher with the right hand.

Plug the appliance into the mains.

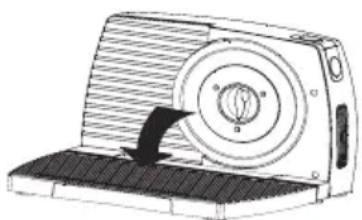

To unfold the slicer, pull the base (2) from the body (1) and place it on a dry and stable surface with good grip.

Diagram of a mechanical device with a circular component and a black arrow indicating rotation or movement (no text or symbols)

Diag. 1

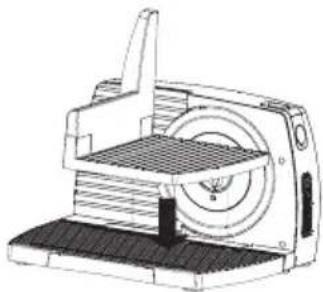

Insert the sliding platform (3) into the base (2).

Technical line drawing of a mechanical device with no visible text or symbols

Diag. 2

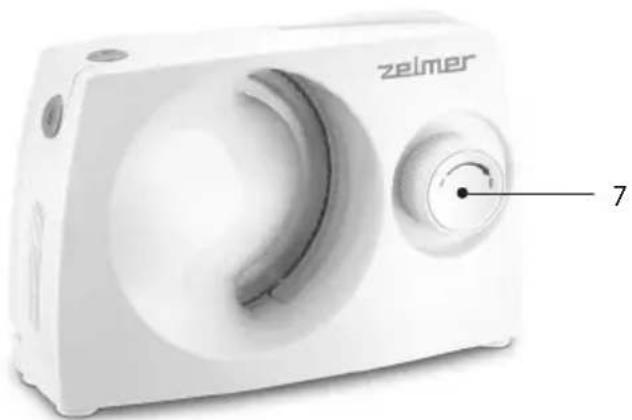

Select the required slice thickness from 0-15mm. Turn the thickness adjustment knob

(7) clockwise for thicker slices or counter-clockwise for thinner slices.

Place the food to be sliced on the sliding platform (3), and press it lightly against the thickness guide (9) using the food pusher (4).

Press and hold the safety button (6), and press the on/off button (5). The blade starts rotating.

Move the sliding platform back and forth to slice the food. Always keep your right hand's fingers to the right of the food pusher.

BLADE CLEANING OR BLADE REPLACEMENT in ZFS1017 Model

Note: Only the ZFS1017 model features 2 replaceable blades.

Keep extreme caution when removing or replacing the blade; it is very sharp!

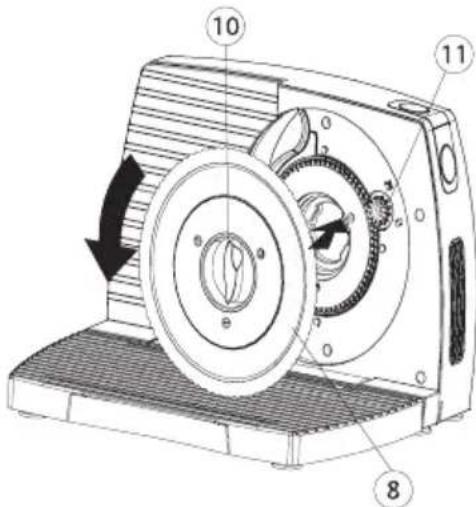

Ensure that the slicer is TURNED OFF and DISCONNECTED from the power source. Rotate the blade lock (10) clockwise to unlock it. Remove the blade (8).

To reattach the blade (8), align the notches on the blade with the holes in the small gear (11) located inside the device, as shown in the diagram (3). Once the blade (8) is properly placed in the small gear (11), rotate the blade lock (10) anti-clockwise to lock it in the ready-to-use position.

Diag. 3

By following these instructions, you can safely remove the blade for cleaning or replacement.

TIPS

To slice meats wafer thin, chill thoroughly for 2-4 hours in freezer before slicing.

When slicing warm boneless roasts, remove from oven and let set 15 to 20 minutes before slicing. Cold cuts keep longer and retain flavor if sliced as needed.

Foods with an uneven texture-like fish and thin steaks- are often difficult to slice. Partially freeze before slicing.

The appliance can also slice e.g. carrots or potatoes in thin slices for chips.

MAINTENANCE AND CLEANING

Before cleaning, always unplug the appliance.

Wipe the inside and outside of the appliance with a paper towel or a soft cloth. It should not be washed in a dishwasher.

Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

Do not immerse in water or any other liquid.

The blade can be taken off by turning the blade-locking knob like it is said on diagram 3.

Caution: the blade is very sharp. After having cleaned the blade, turn the knob anti-clockwise to lock the blade.

Dry all parts well before storage.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

WIR MÖCHTEN UNS BEI IHNEN BEDANKEN, DASS SIE SICH FÜR ZELMER ENTSCHIEDEN HABEN. WIR HOFFEN, DASS DAS PRODUKT ZU IHRER ZUFRIEDENHEIT FUNKTIONIERT.

ACHTUNG

Line drawing of a computer monitor with a circular dial and a black arrow pointing to the screen (no text or symbols)

Bild 1

Technical line drawing of a mechanical device with a base and top component (no text or symbols)

Bild 2

Bild 3

Diagram of a computer monitor with a circular dial and an arrow indicating the blade (no text or symbols present)

Obr.1

Technical line drawing of a mechanical device with a base and top component (no text or symbols)

Obr. 2

Diagram of a computer monitor with a circular dial and an arrow indicating the blade (no text or symbols present)

Obr. 1

Technical line drawing of a mechanical device with no visible text or symbols

Obr. 2

Nasad'te tlmič (4) na posuvnú platformu (3).

Diagram of a computer monitor with a scroll wheel and a black arrow indicating the scroll (no text or symbols present)

Ábra 1

Technical line drawing of a mechanical device with no visible text or symbols

Ábra 2

Ábra 3

Diagram of a computer monitor with a circular dial and a black arrow indicating the blade (no text or symbols present)

Technical line drawing of a mechanical device with a circular component and base plate (no text or symbols)

Fig. 2

ELIMINAREA PRODUSULUI

Diagram of a computer monitor with a circular button and a black arrow pointing to the screen (no text or symbols present)

Рис. 1

Technical line drawing of a mechanical device with no visible text or symbols

Рис. 2

Рис. 2

СОВЕТЫ

Diagram of a computer monitor with a circular dial and a black arrow pointing to the screen (no text or symbols present)

Снимка 1

Technical line drawing of a mechanical device with a central component and base plate (no text or symbols)

Снимка 2

Снимка 2

Technical line drawing of a mechanical device with a circular component and a curved arrow indicating motion (no text or symbols)

Мал. 1

Technical line drawing of a mechanical device with no visible text or symbols

Мал. 2

B&B TRENDS, S.L. guarantees compliance of this product for the use for which it is intended for a period of two years. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfill or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B&B TRENDS, S.L. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, S.L. authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, S.L., or the careless or improper use of the same shall render this warranty null and void. The warranty must be fully completed and delivered along with the receipt or delivery docket for the effective exercise of rights under this warranty.

This warranty should be retained by the user as well as the invoice, receipt or the delivery docket to facilitate the exercise of these rights. For technical service and after-sales care outside the Polish territory, please submit your query to the point of sale where you purchased the item or check for further aftersales information at www.zelmer.com
