USER MANUAL VP416 Bimar

Illustration of a four-blade electric fan with a stand (no text or symbols)

VENTILATORE A PIANTANA STAND FAN

type VP416 (mod.YF-ST1601)

Close-up of a textured, mesh-like object with a downward arrow indicating a detail (no visible text or symbols)

Close-up of a mechanical component with a circular housing and a small attached part, labeled '1' (no visible text or symbols on the object itself)

Close-up of a mechanical component with a circular head and cylindrical body, labeled with number 16 (no readable text or symbols beyond the number)

Close-up of a mechanical component with a numbered label pointing to a feature (no readable text or symbols)

Close-up of a propeller blade with a circular head and segmented body, labeled with number 14 (no text or symbols on the blade itself)

Please read these instructions carefully before using the appliance, and instruct other persons using it, too, if necessary. Keep the manual handy for future use. If when reading these instructions manual certain parts should be difficult to understand, or if there is any confusion, contact the company indicated on the last page before using the product.

This symbol indicates that the appliance is a class II appliance. This means the plug on the power cord is not earthed.

This symbol highlights instructions and precautions for safe use. Warnings and appliance installation, use, cleaning and maintenance procedures may be updated slightly from those described in this manual; for further details, please consult the updated on-line manual at www.bimaritaly.it.

This symbol shows that tower fan is suitable for tropical climate for room temperature about 40^ C.

GENERAL NOTICES

• This device is intended for home use only, to ventilate rooms: do not use it for any other purpose. Any other use is to be considered inappropriate therefore dangerous. The manufacturer cannot be held responsible for damage caused by inappropriate, improper or irresponsible use repairs made to the product by unauthorised personnel.

• Examples of devices for domestic use are appliances typically used in the home, which can be used for typical domestic tasks even by no

• in shops, offices and other such places of work;

• in agricultural businesses or similar;
• by clients in hotels, motels and other residential type environments

• bed and breakfast type environments

• Do not insert any tool, or your fingers, into the grille protecting the blades.

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of knowledge if they are supervised or if they have been given in concerning the use of the appliance in a safe way and if they use

hazards involved. Children must not play with the appliance. C maintenance must not be performed by children without supe

- The appliance must be kept out of children's reach.

- Warning: when using electrical appliances, the basic safety precautions must always be observed to avoid risks of fire, electric shocks and p

- Do not use the appliance if it is not operating correctly or seems damaged; if in doubt, contact professionally qualified personnel.

- Make sure that the fan is working correctly: if not, turn the appliance off and have it checked by professionally qualified personnel.

- Do not move the appliance when it is running.

- If the appliance is not in use, unplug it from the plug point.

- Always unplug the appliance before you assemble, disassemble or clean the appliance.

- Do not leave the appliance exposed to the weather (sun, rain, etc.).

- Do not touch the appliance with wet hands or feet.

- Do not pull on the cord to move the appliance.

- Do not pull on the cord or the appliance itself to disconnect the plug from the plug point.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid ris

- Check that the fan does not come into contact with water of liquids. If it is accidentally wet or immersed in a liquid, first d the power supply by turning off the control panel switch, an then remove the plug from the power socket. Dry both the p the power socket carefully before reactivating the power so Reconnect the plug to the power socket and then use the ap If in doubt, call in qualified staff.

• This appliance must not be operated by means of an external timer or a separate remote control system, to avoid the risk of fire if the / or is positioned incorrectly. It must also not be used together device that can automatically turn on the unit, thus avoiding the / or to people, animals or property.
• If the appliance breaks or there is a malfunction, switch off the appliance and have it checked by qualified personnel; repairs carried out by a personnel may be dangerous and nullify the guarantee.
• Ensure that the fan is switched off from the supply mains before removing the guard.

INSTALLATION

• After removing the packing materials, check the integrity of the appliance; if you are unsure, do not use it and ask for qualified professional help. The packing materials (plastic bags, polystyrene, nails, etc.) must kept out the reach of children because they are potential sources of danger.
  All packaging elements must be disposed of according to their raw material (see the symbol stamped on each one) and according to the provisions of their municipality. The bag containing the screws or other parts, which is unmarked due to its small size, therefore you have to follow the procedures for the disposal of their municipality.
• Before connecting the appliance, check that the voltage indicated on the data plate correspond to those of the electricity network. In the event of incompatibility between the plug point and the plug of the appliance, have the plug replaced with q suitable one by professionally qualified personnel, who will make sure that the section of the wires of the outlet is suitable for the power drawn by the appliance. In general, the use adapters or extension cords is not recommended; if their use is necessary, they must conform to existing safety standards and their current capacity (amperes) must not be less than the maximum of the appliance
• The power socket must be easy to reach so the plug can be removed quickly in case of emergency.
• Keep the appliance away from:

- heat sources (e.g. open flame, gas stove, etc.)

• liquid receptacles (e.g. sinks, etc.) to avoid water splashing onto the appliance or it falling in (minimum distance of 2 meters)

• fabrics (curtains, etc.) or floating materials that could obstruct the air intake grille; make sure that the front is free of floating materials (dust, etc.).

• This device is NOT suitable to use it in an explosive environment (in the presence of flammable substances such as gas, vapor, mist or dust, in atmospheric conditions when, after ignition, the combustion is spread in the air).

• The appliance must not be used in dusty environments or in the presence of floating materials or used in a room where there is a fire risk.
• Stand the appliance on a smooth, horizontal surface or table; do not place it on a inclined surface (the appliance could fall over).

ASSEMBLY

Before each use, verify that the unit is in good condition, the electric cord is not damaged, if the power cord is damaged, it must be replaced by the manufacturer or a competent qualified electrician or a person with similar qualifications, in order to avoid any risk.

If in doubt, have the appliance checked or assembled by a qualified professional person. For assembly, refer to figure.

Attention: always unplug the appliance before you assemble.

Attention: the fan can be used only when completely and correctly assembled, that is complete with its

Cross base with quick-fit feet and locking clip and protection grid.

1. Motor shaft
2. Oscillation button
3. Body
4. Pole attachment ring nut
5. Cover
6. Screw
7. Foot
8. Selectors
9. Fixed pole
10. Adjustable pole
11. Handle
12. Front grille
13. Fan attachment ring nut
14. Screw for the plastic ring
15. Grille attachment ring nut
16. Rear grille
17. Fan

Stand

Mechanical assembly diagram showing two components with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a lever and base component (no text or symbols)

Line drawing of a three-bladed mechanical component with no text or symbols

Stand

1. Insert and screw the column (9) into the relative seat of the support (5).
2. Insert each foot fully into its seat on the support, so that the clip engages in its slot.
3. Lengthen the adjustable pole (9) until the height desired and lock it by tightening the pole attachment ring nut.

Fan

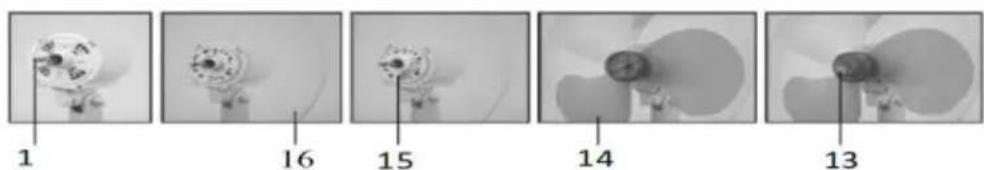

1. Unscrew the ring nuts: fan fixing (13) and rear grid (15) on the motor shaft.
2. Insert the rear grille (16) in the motor housing, so that the handle (11) appears at the top (as figure), and position it so that the pins fit in their corresponding holes and lock it with the ring nut provided (15).
3. Insert the fan (14) on the motor shaft (1), so that the slot matches the spline. Lock using the ring nut (13), (turning it counter clockwise to tigh

1. Couple the front grille (12) to the rear one (16) locking it with the closing hooks. For safety reasons, you must make sure that it is attached by using the screws and nuts provided, which are to be used in the holes in the edge of the grilles (the holes for the screw must be in the lower part).
2. Attach the fan body to the stand by inserting the lower hole on the adjustable pole of the stand and lock it by tightening the stand attachment screw (4).

USE

Plug the fan in the power supply.

Ventilation: select the desired speed with the selectors (8):

1 – Minimum speed 2 – Medium speed 3 – Maximum speed 0-Off

Horizontal oscillation (right-left): this is selected with the button (2) located on the motor body. To stop the motion and keep the ventilator still, press the button.

Vertical inclination (high-low): it is regulated by gripping the motor body and orienting it in the direction desired; you will hear "clicks" that indicate the fan's various positions.

To turn the fan off, press the "0" key and then remove the plug from the socket.

When not in use for long periods, the plug must always be removed from the socket.

CLEANING AND MAINTENANCE

Attention: before normal cleaning, remove the plug from the socket.

• Clean the body with soft, slightly damp, cloth; do not use abrasive or corrosive products.
• Do not immerse any part of the fan in water or other liquid: if this should happen, do not put your hand in the liquid, but first remove the plug from the socket. Carefully dry the appliance and make sure that all the electrical parts are dry: in the case of doubt, ask for professionally qualified help.
• It is essential that the motor's air holes be kept from dust and lint.
• If the fan will not be used for long periods, it must be protected from dust and humidity; we recommend storing it in its original packaging.

- Should you decide not to use the appliance any more, we recommend making it inoperative by cutting the power cord (after making sure you have disconnected the plug from the socket) and make dangerous pa harmless if children are allowed to play with them (such as the blade).

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2011/65/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

it is advised to register the appliance on the website https://www.bimaritaly.it/it/garanzia or to scan the QR code on the side to properly register the warranty (fill out the form to acivate the warranty on the product you purchased).

General guarantee terms

Guarantee coverage starts from the moment of purchase of the appliance as indicated by a fiscally mandatory delivery document (bill or tax receipt or shipping document). Guarantee coverage lasts 24 months and terminates after the prescribed term. Guarantee coverage covers all replacements or repairs that become necessary due to defects in material or manufacture. Guarantee coverage does not cover all those parts which become defective due to failure to comply with installation, operating or maintenance instructions, shipping damage, operating neglect or negligence, improper use or any circumstances which are not due to manufacturing defects of the appliance. Guarantee coverage is also excluded for replacement or repair of all parts subject to fair wear and tear or to expiry, as well as removable parts, light bulbs, glass components, ceramic parts, external tubes, batteries and disposable (throw-away) accessories. Replacements or repairs that come under guarantee coverage are performed free of charge for goods delivered free the Manufacturer's factory or to one of our Technical Service Centres. The Customer must only pay for shipping costs. Guarantee coverage is not granted if repairs are performed by personnel not belonging to authorized Technical Service Centres or when non-genuine spare parts are used. This warranty is governed by and construed in accordance with applicable laws in force in the country where the product is purchased. For details, contact the Customer Support in your country or the Bimar website. (www.bimaritaly.it). The Manufacturer declines all responsibility for any direct or indirect harm to persons, pets or property consequent to failure to comply with all the provisions specified in the appliance instruction booklet and especially those regarding appliance maintenance, operation, installation or warnings.

Via G.Amendola, 16/18 25019 Sirmione (BS) – ITALY www.bimaritaly.it
