USER MANUAL ARMWALL StarTech.com

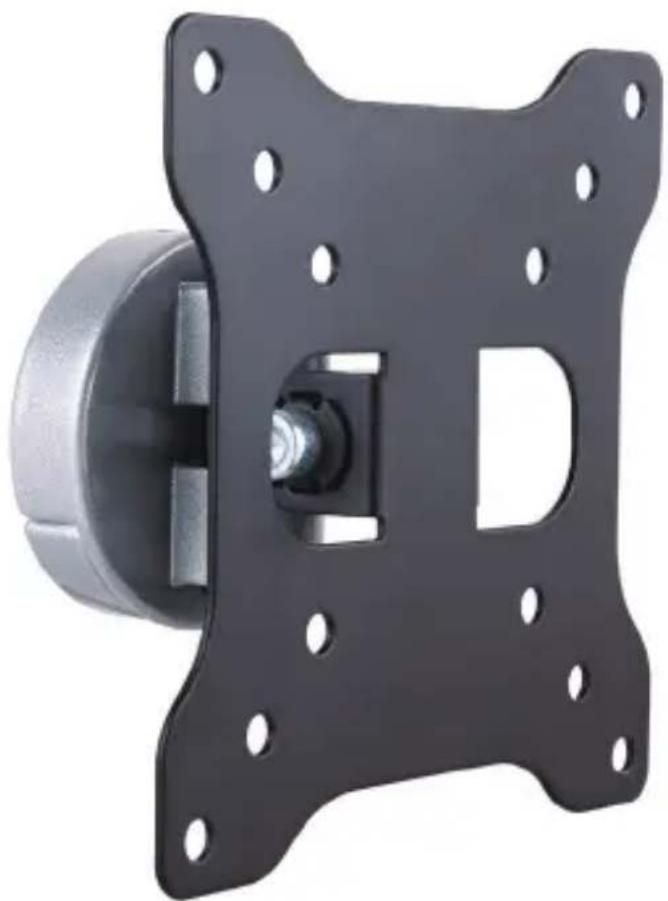

Monitor Wall Mount - Aluminum

ARMWALL

Close-up of a black mechanical component with mounting flanges and central bore (no text or symbols visible)

*actual product may vary from photos

For the latest information, technical specifications, and support for this product, please visit www.StarTech.com/ARMWALL.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

PHILLIPS ^® is a registered trademark of Phillips Screw Company in the United States or other countries.

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Warning statements

Make sure to assemble this product according to the instructions. Failure to do so might result in personal injury or property damage.

Make sure that the weight of the TV doesn't exceed the weight capacity of this product. If you exceed the weight capacity, you might experience personal injury or damage to the equipment. This product can support the following weight: Up to 15 kg (33 lb.).

Never operate this product if parts are missing or damaged.

Wall structures vary, and it's important to make sure that the type of wall structure and mounting hardware that you're using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage. The wall structure should be capable of supporting at least four times the weight of the mounted equipment.

The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall structure that you're using, contact a construction professional to install the wall mount or to provide specific mounting instructions for your wall structure.

Varningsmeddelanden

Technical specifications 2

Package contents....3

Requirements 4

Installation 5

Attach the display mount to a wall....5

Attach a monitor to the display mount....6

Adjust the tilt tension....8

Attach the display mount to the mounting plate 9

Technical support....10

Warranty information....10

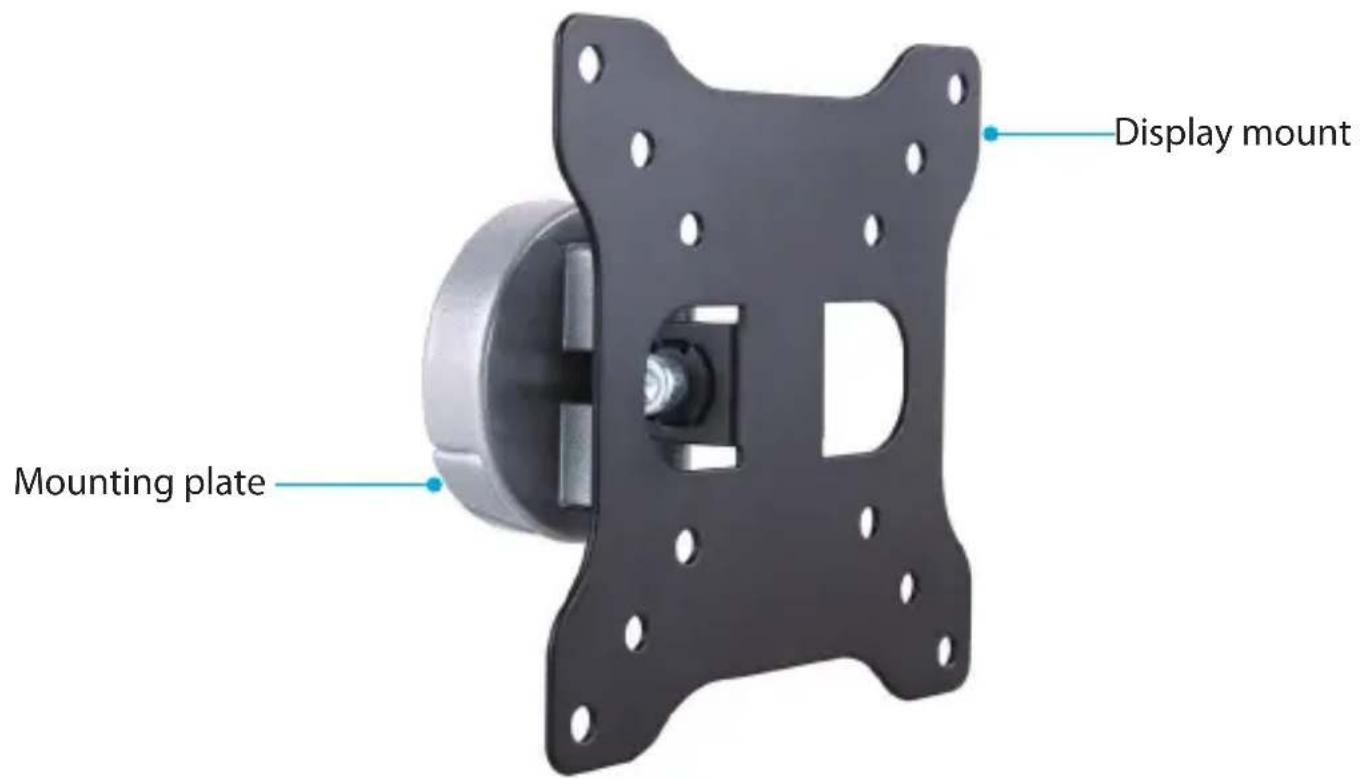

Introduction Product diagram

Technical specifications

Type of measurement Measurement

VESA mounting hole pattern	50x5075x75100x100
Rated load	Up to 15 kg (33 lb.)

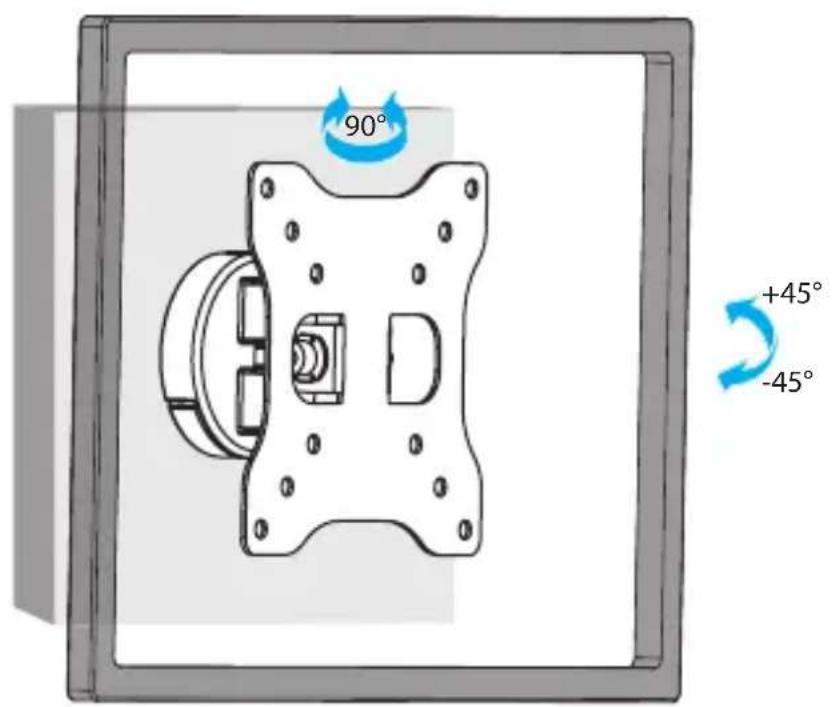

Tilt	+45° to -45°
Screen size	Between 330 mm and 863.6 mm(13 in. and 34 in.)
Swivel	+45° to -45°

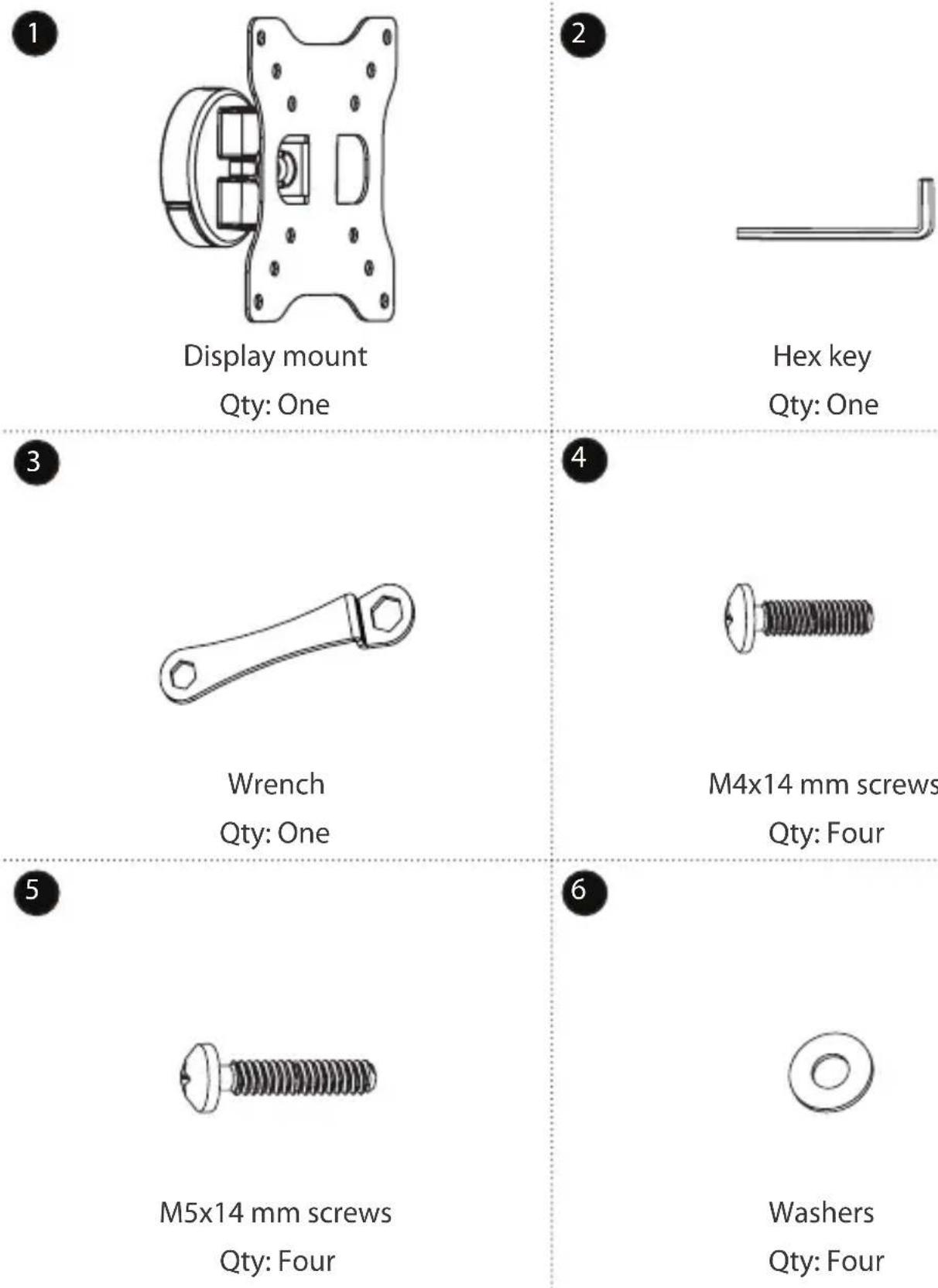

Package contents

Mounting screws

Qty: Two

Screw anchors

Qty: Two

Instruction manual

Qty: One

Requirements

• A monitor or display that is compatible with one of the VESA mounting hole patterns that ARMWALL supports
  • A Phillips screwdriver

Requirements are subject to change. For the latest requirements, please visit www.StarTech.com/ARMWALL.

Installation

Attach the display mount to a wall

Warning! Wall structures vary, and it is important that you make sure that the type of structure and mounting hardware that you are using will properly support the mounted equipment. Failure to do so may result in personal injury and/or equipment damage. The wall structure should be capable of supporting at least four times the weight of the mounted equipment.

Warning! The mounting hardware included with this product might not be adequate for some wall structures. If you lack the necessary expertise to attach this product to the wall that you are using, contact a construction professional to install the ARMWALL or to provide specific mounting instructions for your wall structure.

1. Use a Phillips screwdriver to remove the screw from the top of the display mount.

Tip! Make sure you put the screw in a safe place because you will need it when you reassemble the mounting plate and the display mount.

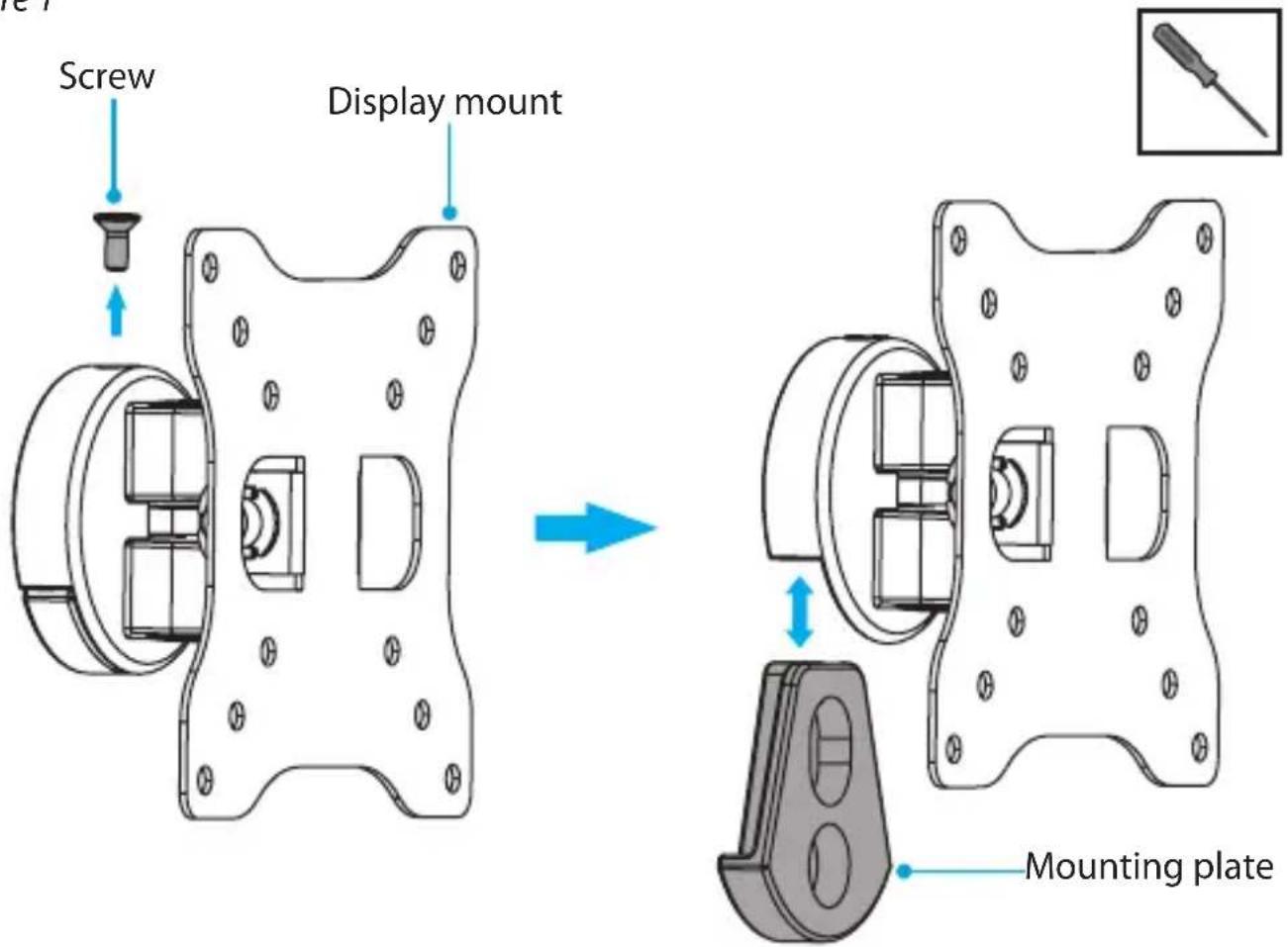

1. Remove the mounting plate from the bottom of the display mount. (figure 1)

figure 1

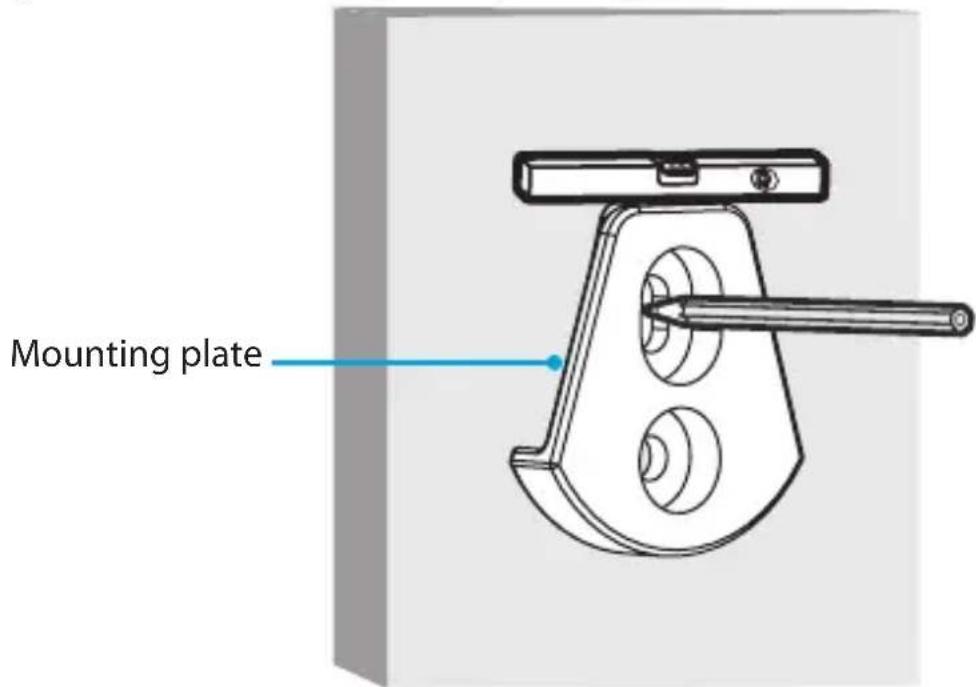

1. Use the holes in the mounting plate as a template and use a pencil to mark the location on the wall where you want to attach the display mount. (figure 2)
2. Follow the appropriate steps for the type of wall that you're using and attach the mounting plate to the wall.

figure 2

Attach a monitor to the display mount

To accommodate different monitor sizes, the ARMWALL comes with two sets of screws that are different lengths and diameters.

To select the appropriate screws for the type of monitor that you're using, complete the following:

• Determine the depth of the mounting holes on the monitor.
• Determine the diameter of the mounting holes on the monitor.

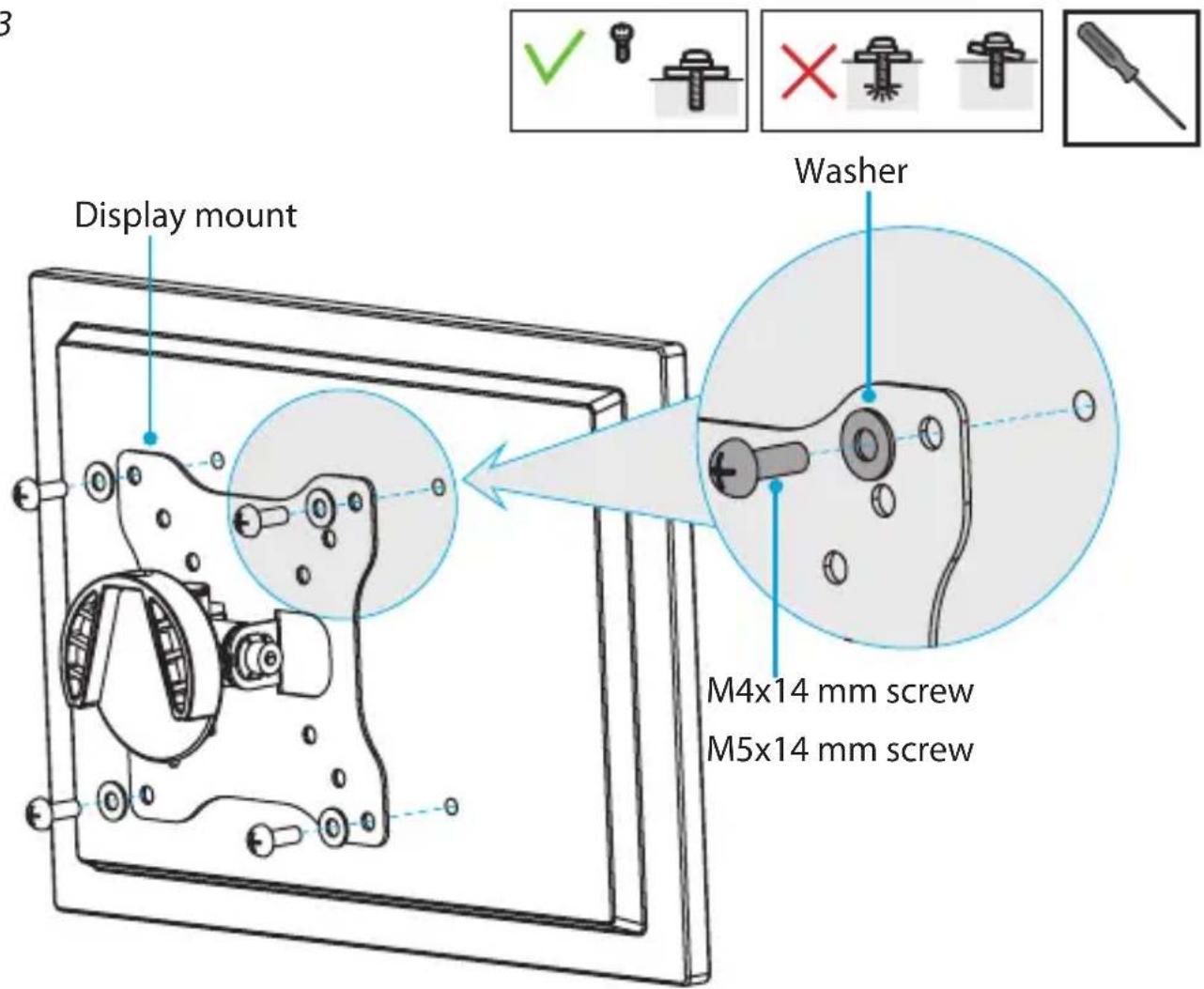

1. Line up the mounting holes on the display mount with the mounting holes on the back of the monitor.
2. Place the washers over the mounting holes on the display mount.

3. Insert the M4x14 mm screws or the M5x14 mm screws through the washers, the display mount, and into the back of the monitor.

4. Use a Phillips screwdriver to tighten the screws.(figure 3)

Warning! Do not over-tighten the screws. If you encounter resistance while you're tightening the screws, stop tightening. Failure to do so could result in damage to the monitor.

figure 3

Adjust the tilt tension

1. Use the hex key to prevent the screw on the display mount from moving as you tighten the nut.

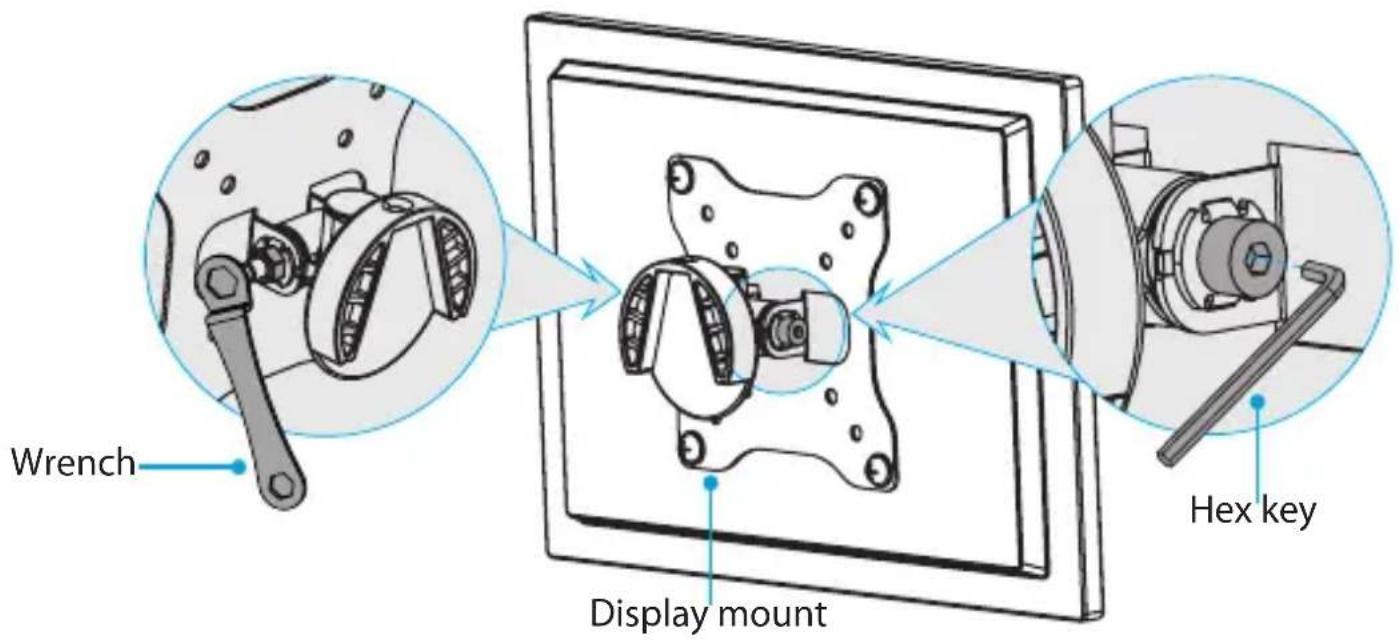

2. Use the wrench to tighten the nut on the side of the display mount. (figure 4)

figure 4

Attach the display mount to the mounting plate

Warning! Attaching the monitor is a two-person job. Do not attempt to complete this task by yourself.

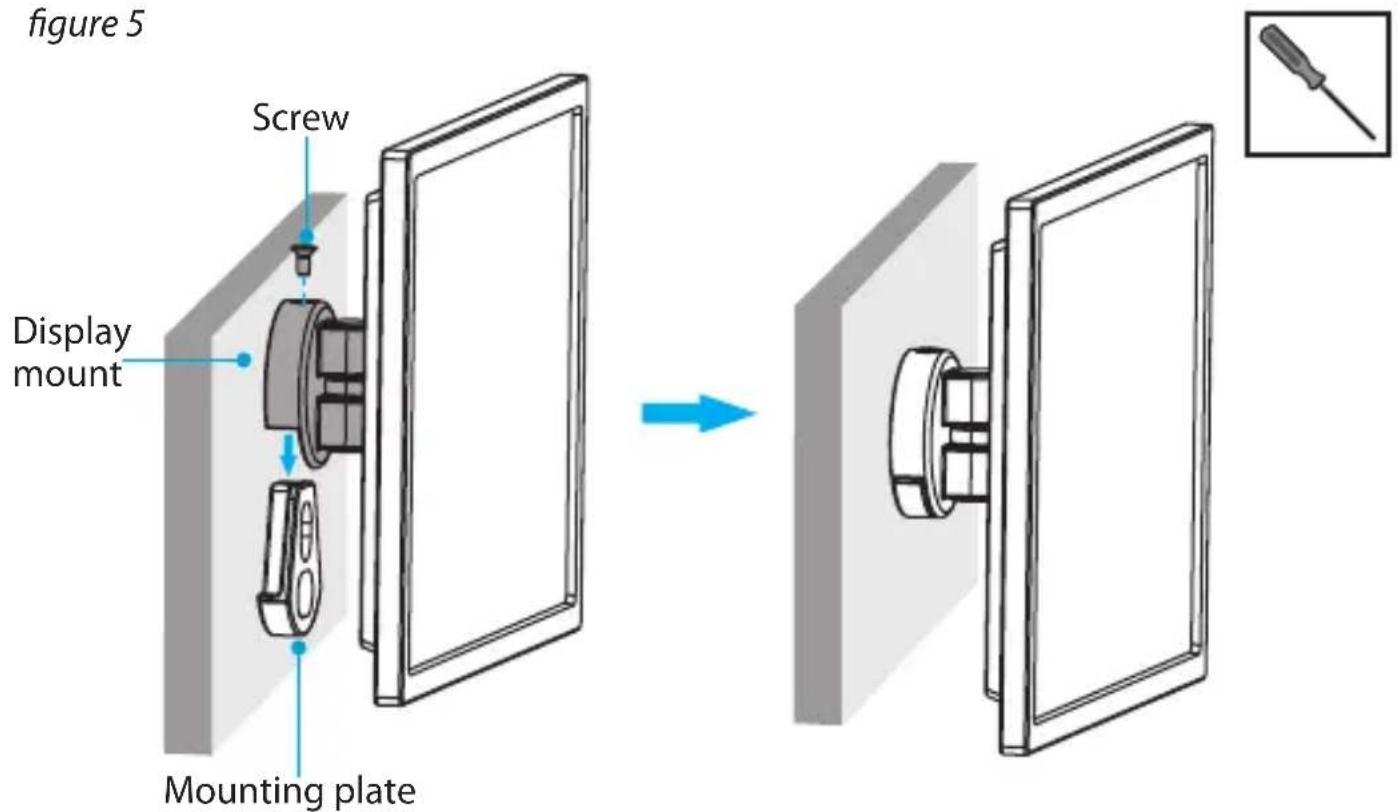

1. Carefully pick up the display mount with the monitor attached and slide it onto the mounting plate.
2. Insert the screw into the display mount and mounting plate.
3. Use a Phillips screwdriver to tighten the screw. (figure 5)

Technical support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

For the latest drivers/software, please visit www.startech.com/downloads

Warranty information

This product is backed by a five-year warranty.

StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
