BC23TFK68W - Measurement Be Cool - Free user manual and instructions

Product Type	Door/Window Contact Sensor
Brand	Be Cool
Model	BC23TFK68W
Power Supply	3V DC via 2 x AAA batteries (not included)
Battery Type	2 x AAA 1.5V (non-rechargeable recommended)
Standby Power Consumption	≤45 µA
Active Power Consumption	19-59 mA
Wireless Connectivity	WiFi 802.11b/g/n, 2.4 GHz only
Transmit Power	max. 18 mW
Installation Distance (sensor to magnet)	< 2 cm
Trigger Detection Distance	2-3 cm
Sensor Dimensions	76 x 32 x 20 mm
Magnet Dimensions	46 x 12 x 16 mm
Color	White
Material	Plastic
App Compatibility	Smart Life (iOS/Android)
Mounting Method	Double-sided adhesive tape or screws (included)
Indoor Use Only	Yes
Cleaning	Soft, lint-free cloth; no chemicals
Safety	Keep away from children under 8; do not use with wet hands
Regulatory Compliance	CE, WEEE, Directive 2012/19/EU, Battery Directive 2006/66/EC
Warranty	2 years (valid in Austria)

Frequently Asked Questions - BC23TFK68W Be Cool

How do I install the door/window contact sensor?

Mount the sensor (A) on the door/window frame and the magnet (B) on the door/window. Align the arrows on the sensor and magnet so they are directly opposite each other, with a gap no larger than 2 cm. Use the supplied double-sided adhesive tape or screws.

How do I connect the sensor to the Smart Life app?

Download the Smart Life app from Google Play or the App Store, create an account, and press the '+' symbol. Select 'Door Sensor (Wifi)' from the 'Security Sensor' category and follow the in-app instructions. Ensure your phone is on a 2.4 GHz WiFi network.

What type of batteries does the sensor use?

The sensor requires 2 x AAA 1.5V batteries. Do not use rechargeable batteries with less than 1.5V as they may cause malfunction.

Why is my sensor not connecting to the app?

Make sure the sensor is turned on (slider to 'ON'), the LED is blinking after pressing the Set button for 5-8 seconds, and your phone is connected to a 2.4 GHz WiFi network. 5 GHz networks are not supported.

How far can the sensor be from the magnet?

The sensor and magnet must be within 2 cm of each other for proper installation. The trigger distance (when the door opens) is 2-3 cm.

Can I use the sensor outdoors?

No, the sensor is designed for indoor use only. It should not be exposed to outdoor elements.

How do I clean the sensor?

Clean the surface with a soft, lint-free cloth. Do not use metal brushes, chemicals, or abrasive cleaners to avoid damage.

How do I dispose of the sensor or batteries?

Dispose of the sensor as WEEE at a designated collection point. Batteries must be disposed of separately at municipal collection points. Look for recycling symbols on batteries (Li, Al, Mn). Do not throw in household waste.

What should I do if the sensor is not working?

Check the batteries, ensure the sensor is turned on, and verify correct alignment with the magnet. If issues persist, contact the service centre at www.becool.at or call [phone].

Is the sensor compatible with 5 GHz WiFi?

No, the sensor only supports 2.4 GHz networks. Ensure your router broadcasts a 2.4 GHz signal.

USER MANUAL BC23TFK68W Be Cool

3D rendering of two white cylindrical objects with rounded surfaces, no text or symbols visible

HERZLICHEN GLÜCKWUNSCH!

Close-up of a white cylindrical object with a metallic tool inserted, showing internal structure (no text or symbols visible)

Close-up of a white electronic device with a metallic tool inserted, showing no visible text or symbols.

Schuss Home Electronic GMBH

A-1140 Wien, Scheringgasse 3

IMPORTANT SAFETY AND LOCATION INFORMATION.

1. Use this appliance only in accordance with the guidelines in the instruction manual. Any other use not recommended by the manufacturer could result in fire, electric shock or personal injury.
2. Remove the packaging and make sure that the appliance is not damaged. If in doubt, do not use the appliance and contact the service centre or your dealer.
3. Keep children away from packaging materials. There is a danger of choking if swallowed.
4. It is forbidden to adapt or modify the characteristics of this appliance in any way and use only spare parts and accessories recommended by the manufacturer (failure to do so will invalidate the guarantee and warranty).
5. If the appliance has a defect, switch it off and contact your dealer or the customer hotline.

BE COOL

1. Always and only contact service centres authorised by the manufacturer for any repairs to the appliance. You can find the service centres online at www.becool.at.
2. Children under the age of 8 and persons with reduced physical, mental, sensory or intellectual capabilities or lack of experience and knowledge should not use this appliance unless they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Children must not play with the appliance.
4. Do not use the appliance with wet hands.
5. Do not use the appliance outdoors.
6. Do not operate the appliance in areas where gas, oil or sulphur are present.
7. keep the appliance in good condition by maintaining and cleaning the appliance. If you have any questions about maintenance, you can contact the customer hotline/service centre authorised by the manufacturer.
8. keep and store the appliance in a safe, dry place, inaccessible to children, when not in use.

Intended use

The door/window contacts are used to monitor the status of doors and windows. The prerequisite for intended use is proper installation and observance of and compliance with the instructions in this operating manual.

Any use other than that described in the intended use is considered improper use. Unauthorised modifications or conversions are not permitted and will damage your door/window contacts.

BE COOL

Recycling, disposal, declaration of conformity

	RECYCLINGThe packaging materials can be recycled. Therefore, it is recommended to dispose of them in sorted waste.
	DISPOSALThe symbol "crossed-out dustbin" requires the separate disposal of waste electrical and electronic equipment (WEEE). Electrical and electronic equipment may contain hazardous and environmentally dangerous substances. Therefore, do not dispose of this in unsorted residual waste, but at a designated collection point for waste electrical and electronic equipment. By doing so, you will help to protect resources and the environment. For more information, please contact your dealer or local authorities. Directive 2012/19/EU.
	BATTERY DISPOSALIn accordance with Legislative Decree 188 of 20 November 2008 transposing Directive 2006/66/EC on batteries, accumulators and related waste, the crossed-out wheeled bin symbol on the battery indicates that it is prohibited to dispose of waste batteries in household waste.Batteries and accumulators contain highly polluting substances. The user is obliged to dispose of used batteries at the collection points in the municipality or in the appropriate containers. The service is free of charge. In this way, the legal requirements are met and the environment is protected.You will find these signs on batteries:Li = Battery contains lithiumAl = Battery contains alkaliMn = battery contains manganeseCR 2025 (Li); AA (Al, Mn); AAA (Al, Mn)
	DECLERATION OF CONFORMITYWe hereby certify that this article complies with the essential requirements, regulations and directives of the EU. You can

BE COOL

view the detailed declaration of conformity at any time at the following link:https://www.schuss-home.at/downloads

Errors and technical modifications excepted.

Sope of Delivery

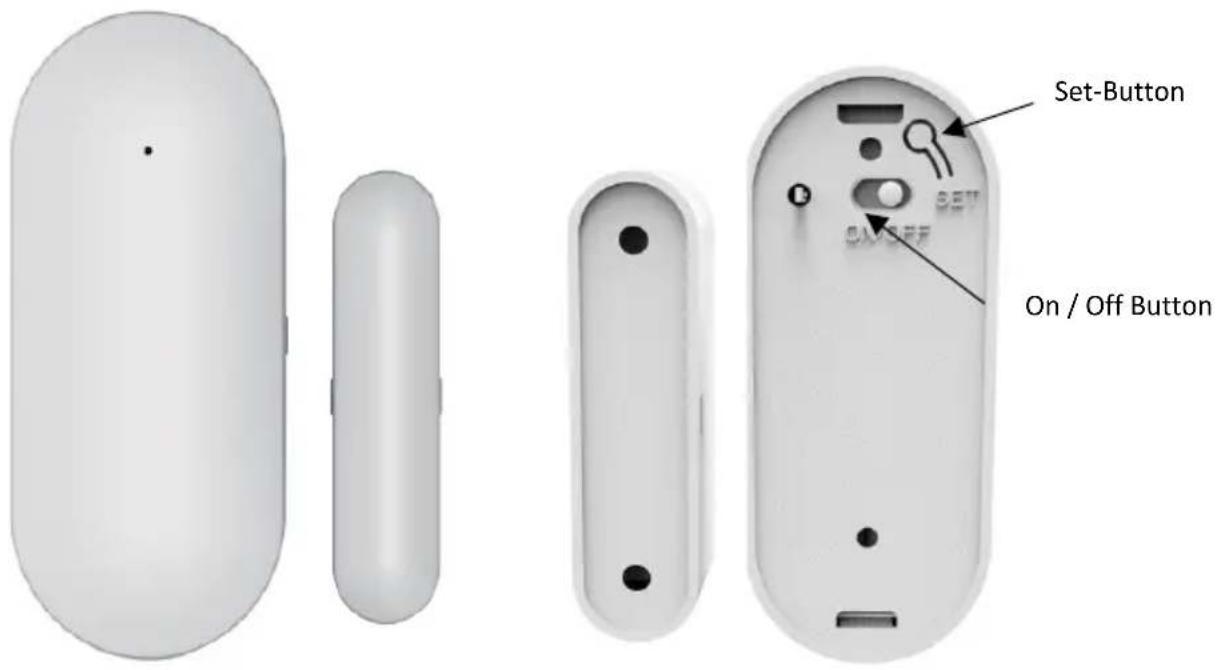

Description oft he Device

Front view
Rear view

Commissioning

Close-up of a white cylindrical object with a metallic tool inserted, showing internal structure (no text or symbols visible)

Close-up of a white electronic device with a metallic tool inserted, showing no visible text or symbols.

• Remove the unit from the packaging and remove all packaging material.

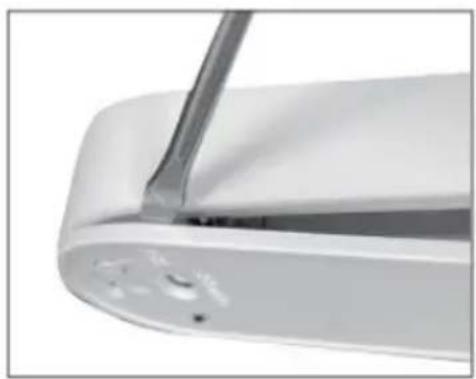

• Open the unit by removing the back cover and insert 2 AAA 1.5V batteries. When inserting the batteries, make sure that the +/- polarity is correct to avoid damage.

BE COOL

- Close the unit by first hooking the upper end of the rear cover and then pressing the lower end onto the housing.

Before Using

• Open Google Play on your smartphone or the app store on your iPhone and search for the "Smart Life" app.
• Download the app to your smartphone, open it and create a user account.

Usage

• Switch on the unit by moving the slider on the back to "ON" and wait 5-10 seconds.
• Press the "Set" button for 5-8 seconds until the LED indicator lights up.
• Start the "Smart Life" app and press the "+" symbol in the upper right corner and select "Add device"
• Now select the "Door Sensor (Wifi)" icon from the "Security Sensor" category and follow the further "Instructions" in the Smart Life App.

Important

Please note that only 2.4GHz networks are supported!

Transmitting power: max. 18mW

Notice

Enable and allow push notifications for the Smart Life app in your smartphone settings to receive notifications of an unauthorised opening of one of your windows or doors.

BE COOL

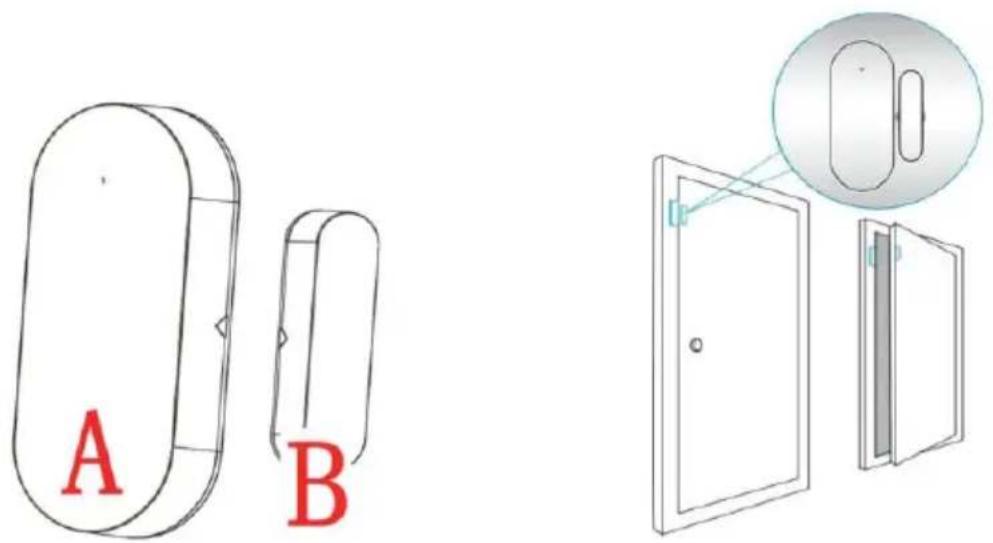

Assembly

• Mount the sensor (A) and the magnet (B) separately.
• Sensor (A) must be attached to the door/window frame, magnet (B) is attached to the door/window.
• Use the supplied double-sided adhesive tape or the supplied screws for mounting.
• Align the sensor and the magnet so that the two arrows on the sensors are directly opposite each other.
• Make sure that the distance between the sensor and the magnet does not exceed 2 cm.

Notice

When installing the unit, ensure that there are no other magnetic fields in the vicinity of the unit in order to avoid false alarms and to guarantee the function of the unit.

BE COOL

Battery change

• Open the unit by removing the rear cover.
• Remove the empty batteries and dispose of them in an environmentally friendly manner according to the laws of your country.
• Insert two AAA 1.5V batteries. When inserting the batteries, make sure that the +/- polarity is correct to avoid damage.

Attention!

• Batteries are not toys and do NOT belong in children's hands!
• In case of leakage, remove the battery from the unit immediately to avoid damage.
• Avoid contact with skin, eyes and mucous membranes! In case of contact with battery acid, immediately rinse the affected areas with clean water and consult a doctor immediately!
• Do not use rechargeable batteries with less than 1.5V voltage. This can lead to a malfunction or defect of the door/window contact.

- Do not charge or short-circuit non-rechargeable batteries, there is a DANGER OF EXPLOSION!

- Do not open batteries or subject them to mechanical pressure.

- Dispose of batteries in an environmentally friendly manner and in accordance with the regulations of your country.

Cleaning and Care

Clean the surface of the housing with a soft, lint-free cloth. Do not use metal brushes, chemicals, abrasives or other aggressive cleaning agents to avoid scratches or damage to the unit.

BE COOL

Technical Information
Rated Voltage:	3V DC
Installation distance:	< 2 cm
Trigger distance:	2 ~ 3 cm
Network:	Wifi (802.11b/g/n)
WIFI-transmission frequency:	2,4GHz
Transmitting power:	18mW
Power consumption Standby:	≤45 uA
Power consumption:	19-59 mA
Battery	2 x AAA
Size:	76 x 32 x 20mm + 46 x 12 x 16mm
Contact address for further Information and service line	Schuss Home Electronic GmbHScheringgasse 3,A-1140 Vienna Tel: [phone]www.becool.atFB-Nr: 236974 t / FB-Court: Vienna

BE COOL

WARRANTY!

With this quality product from BE COOL, you have made a decision for innovation, durability and reliability.

For this BE COOL appliance we grant a warranty period of 2 years from the date of purchase valid in Austria!

If, contrary to expectations, service work should nevertheless be necessary on your unit during this period, we hereby guarantee to repair (spare parts and labour) or (at the discretion of Schuss) replace the product free of charge. If neither repair nor replacement is possible for economic reasons, we reserve the right to issue a credit note for the current value.

This guarantee does not cover:

• Illuminant
  • In the event of improper use, we do not accept any liability for consequential damage, repair or replacement of parts due to normal wear and tear.
• Damage due to non-observance of the operating instructions. appliances that are used - even only partially - for commercial purposes. equipment that has been mechanically damaged by external influences (falling, impact, breakage, improper use, etc.) as well as signs of wear and tear of an aesthetic nature.
  • Equipment that has been improperly handled.
  • Units that have not been opened by our authorised service centre.
  • Consumer expectations not fulfilled.
  • Damage caused by force majeure, water, lightning, overvoltage.
• Units where the type designation and/or serial number on the unit has been altered, erased, made illegible or removed.
  • Services outside our authorised workshops, the transport costs to an authorised workshop or to us and back as well as the associated risks.

Please note that the direct costs of returning the goods to the service centre are to be borne by the consumer.

The absolute warranty period of 2 years from the date of purchase is not extended by the provision of a warranty service (repair or replacement of the appliance).

The 2-year warranty is only valid on presentation of the purchase receipt (must contain the name and address of the dealer as well as the complete designation of the unit) and the corresponding warranty certificate, on which the type of unit as well as the serial number (visible on the box and on the back or bottom of the unit) must be noted! Without presentation of the guarantee certificate, only the legal guarantee applies!

We expressly point out that the statutory warranty rights are not affected by this warranty and continue undiminished.

Schuss Home Electronic GmbH and its vicarious agents shall only be liable for damages in the event of gross negligence or intent. In any case, liability for loss of profit, expected but not realised savings, consequential damage and damage from third party claims is excluded. Damages to or for recorded data are always excluded from the liability for damages.

Congratulations on your choice. We wish you much pleasure with your BE COOL device!

Be Cool Vertrieb

Schuss Home Electronic GMBH

A-1140 Wien, Scheringgasse 3

In the event of a warranty claim, this warranty certificate must be handed over together with the appliance to the authorised service centre or the dealer from whom you purchased the appliance!

BE COOL

Authorized representative of manufacture
