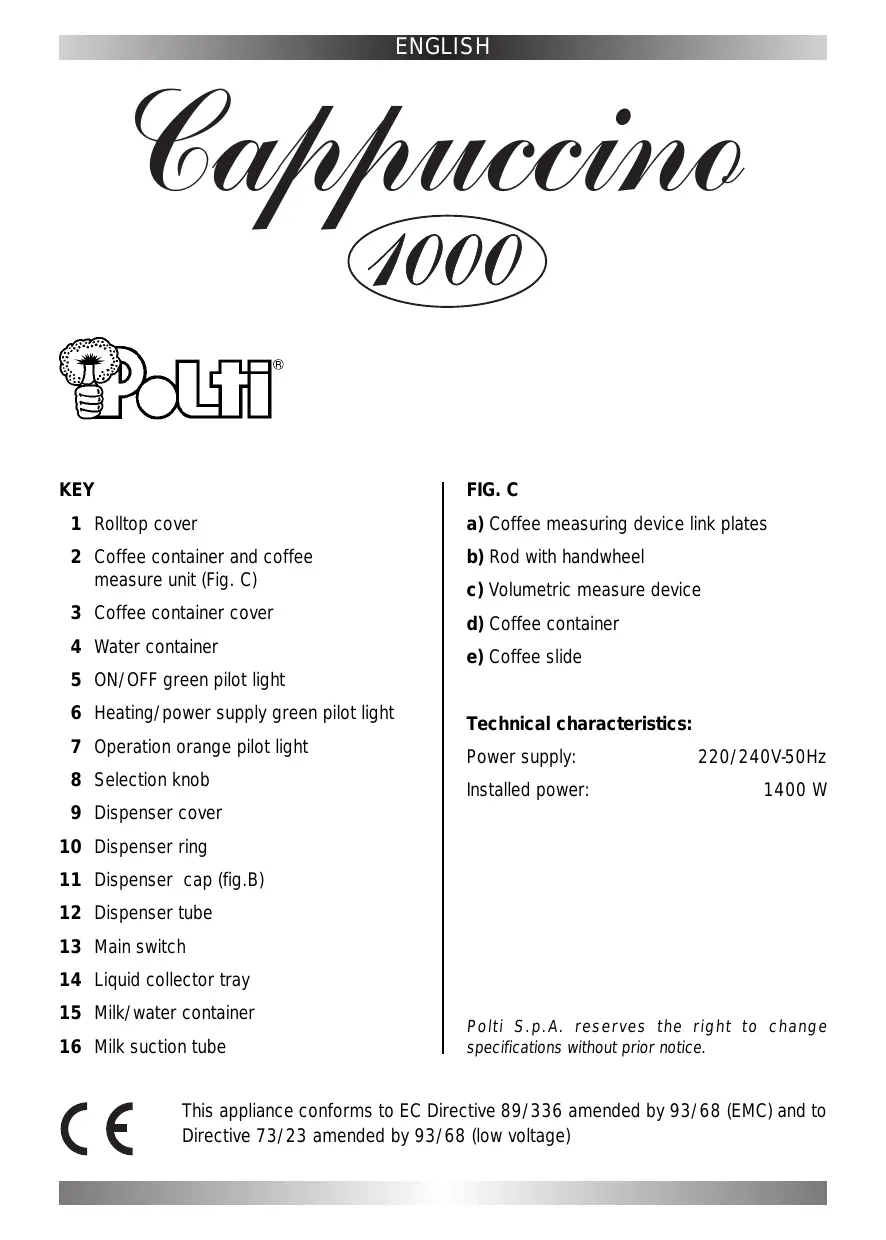

P U L I Z I A D E L G R U P P O D O S AT O R E C A F F E ' ( F I G . C ) (NECESSARIA DOPO CIRCA 20/30 EROGAZIONI) Fig. L I N S T R U C T I O N S D ' U T I L I S AT I O N II. a) Coffee measuring device link plates 2 Coffee container and coffee measure unit (Fig. C) b) Rod with handwheel 3 Coffee container cover 4 Water container c) Volumetric measure device d) Coffee container e) Coffee slide 5 ON/OFF green pilot light 6 Heating/power supply green pilot light 7 Operation orange pilot light 8 Selection knob Technical characteristics: Power supply: Installed power: 220/240V-50Hz 1400 W 9 Dispenser cover 10 Dispenser ring 11 Dispenser cap (fig.B) 12 Dispenser tube 13 Main switch 14 Liquid collector tray 15 Milk/water container 16 Milk suction tube Polti S.p.A. reserves the right to change specifications without prior notice. This appliance conforms to EC Directive 89/336 amended by 93/68 (EMC) and to Directive 73/23 amended by 93/68 (low voltage) ENGLISH PRECAUTIONS Attention! Do not use the appliance without reading the instructions.

• Before using the POLTI CAPPUCCINO read this manual carefully and store it for future use.
• Before connecting the appliance, ensure that the mains power supply and the power supply stated on the appliance match and that the mains socket is equipped with an earth.
• Do not touch the appliance with wet hands or feet when it is plugged into the mains.
• Do not place the appliance in water or in any other liquid.
• Unplug the appliance before performing any maintenance.
• Do not allow children to use the machine or any others who may not know how to operate it .
• Should CAPPUCCINO not be in use, it is advisable to unplug it from the mains.
• Do not switch off or disconnect the machine before the pilot light is off (7). ENGLISH

INSTRUCTIONS FOR USE

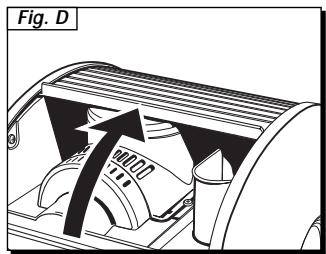

II. Open the rolltop cover (1) completely allowing it to slide in its guide (D). III. Fill the container (4) with tap water (fig.E), the capacity is about 250 cc., sufficient to prepare about 20 cappuccinos. To make filling easier, the water container can be taken out and then correctly replaced in its housing.

IV. Insert the plug into a suitable mains socket equipped

with an earth and press the main switch (13). The ON/OFF green pilot light (5) will switch on. When the machine reaches its ideal conditions for the preparation of the drink, the heating green pilot light (6) will switch on (For the first dispensing always wait for the green pilot light (6) to switch on, otherwise it may happen that the drink is not perfect).

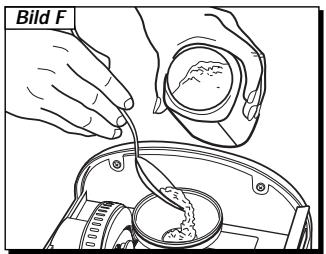

Open the coffee container by removing the cover (3). Place soluble granular type coffee in the container (d) and close it (fig. F). A safety microswitch stops the electric power supply when the cover (3) is not in place. So make sure that the cover is well closed.

VI. Release the container (15) and fill it with the desired

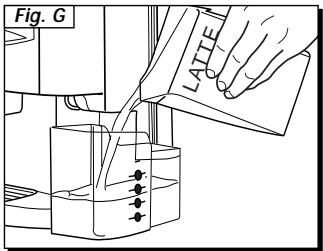

amount of cold milk (fig. G). Each level corresponds to the dosage for a cup of cappuccino.

VII. Correctly replace the tray in its housing paying

attention that the suction tube is correctly positioned.

VIII. Position the cup on the liquid collector tray (14) (fig.

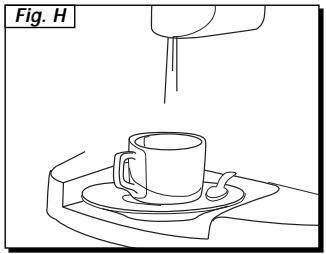

H). The machine is now ready to prepare the cappuccino. Fig. D Fig. E Fig. F Fig. G

Before operating the machine, check that all components are correctly installed as shown in the figure (fig. A) and that the knob on the control plate is on "▼" position. L AT

Fig. H ENGLISH P R E PA R I N G A C A P P U C C I N O

• Fill the container (15) with cold milk as previously described in point VI and VII of the "Instructions for use" paragraph.
• Turn the knob (8) anticlockwise, towards the indicator , the pilot light (7) switches on. A dose of coffee is installed and the milk is drawn up to dispense an excellent cappuccino. Do not worry if you do not hear any noise after turning the selection knob (8); the machine prepares your CAPPUCCINO silently. When the desired amount of milk is reached, turn the knob (8) back to the initial position, indicated with "▼". During all the operation phase the pilot light (7) remains on. Wait a few seconds after the pilot light (7) switches off before withdrawing the cup to collect all the milk in the tube. P R E PA R I N G W H I P P E D M I L K
• Fill the container (15) with cold milk as previously described in point VI and VII of the "Instructions for use" paragraph.
• Turn the knob (8) clockwise, towards the indicator , the pilot light (7) switches on and the milk will pour into the cup in just a few seconds. When the milk inside the cup reaches the desired amount, turn the knob (8) back to the initial position indicated with "▼". During the operation phase the pilot light (7) remains on. Wait a few seconds after the pilot light (7) switches off before withdrawing the cup to collect all the milk in the circuit. P R E PA R I N G E S P R E S S O

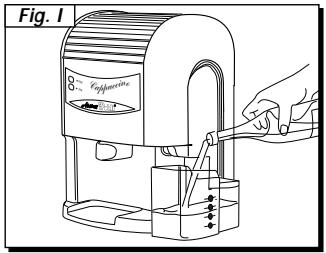

• Fill the container (15) with water, instead of milk (fig. I) and perform the same operations described in the "Preparing a Cappuccino" paragraph. Fig. I

Cappuccino P R E PA R I N G H O T C H O C O L AT E D R I N K

• To prepare a good hot chocolate drink, add two teaspoons of soluble hot chocolate powder to the empty cup and then perform the same operations described in the "Preparing whipped milk" paragraph. ENGLISH

CLEANING AFTER USE

Before switching the machine off after use, clean it following the instructions below.

• Do not switch off or disconnect the machine before the pilot light (7) is off.
• Rinse the milk container (15), fill it with water and replace it in its housing.
• Place an empty container over the liquid collector grill and perform the dispensing operation by turning the knob (8) clockwise towards the indicator until the equivalent of a cup full of hot water pours out. Turn the knob back to the initial position "▼". By allowing water to pass through the circuit, a self-cleaning operation is performed which eliminates any residual milk. IT IS NECESSARY TO PERFORM THE CLEANING OPERATION EVERY TIME YOU USE THE MACHINE. THIS DOES NOT MEAN THAT YOU HAVE TO CLEAN IT AFTER THE DISPENSING OF EVERY SINGLE DRINK, BUT ONLY WHEN YOU FINISH USING THE MACHINE. IN ANY CASE, IT IS NOT ADVISABLE TO LEAVE THE CIRCUIT DIRTY WITH MILK FOR MORE THAN AN HOUR. NOTE: IF YOU DO NOT USE THE MACHINE FOR A LONG TIME, IT IS NECESSARY TO EMPTY THE COFFEE CONTAINER BY FOLLOWING THE INSTRUCTIONS IN THE "CLEANING THE COFFEE CONTAINER" PARAGRAPH. CLEANING THE COFFEE MEASURE UNIT (FIG.C) (NECESSARY AFTER ABOUT 20/30 DISPENSINGS) It is necessary to periodically clean the coffee measure unit. To perform this operation proceed as follows: Fig. L

• Ensure the machine is unplugged from the mains.
• Remove the coffee container cover (3) (fig. L). Press the two thin plates (a) placed under the coffee container (fig. M), at the same time push the rod with handwheel (b) towards the inside of the machine. Remove the coffee measure unit lifting it upwards. Empty the container (2) from any coffee residue.
• For cleaning the dosing system, separate the volumetric measure device (c) of the coffee container (d) by turning the container left or right (fig. N). Fig. M Fig. N ENGLISH
• Unscrew the red screw (f) used to lock the piston (g). Slide the piston out for cleaning (fig. 0). Fig. O

• Wash the components with soap and warm water, then rinse and dry well. It is essential to check that the mechanism is dry before reassembling it. Reassemble the parts by performing the above functions in reverse order.

CLEANING THE DISPENSER RING

(ADVISABLE AFTER ABOUT 20/30 DISPENSINGS) Fig. P The dispenser ring (10) should be cleaned periodically. To perform this operation proceed as follows:

• Remove the dispenser cover (9) by pulling it towards you.
• Remove the dispenser ring (10) by pulling it out of the machine (fig. P).
• Lift the cover (11).
• Wash the two parts in soap and warm water and dry them thoroughly.
• Replace the cover carefully over the dispenser ring and insert the unit into the machine.
• Replace the dispenser cover (9). C L E A N I N G T H E L I Q U I D C O L L E C T O R T R AY
• Periodically empty and clean the liquid collector tray (14) with soap and warm water, by simply removing it from its housing (fig. Q). Replace it after cleaning. Fig. Q USEFUL ADVICE
• Do not leave unused milk in the container.
• To obtain a creamier product it is advisable to use cold milk.
• For a richer coffee, use mineral water instead of tap water. ENGLISH GUARANTEE POLTI CAPPUCCINO is guaranteed to the original purchaser for one year from purchase date against manufacturing or raw material defects. The guarantee is not valid if the appliance has been misused in any way or if the instructions have not been adhered to. In case of damage or malfunctioning, contact the nearest authorised Help Centre. Unauthorised alterations or repairs to the machine will automatically invalidate this guarantee. POLTI S.p.A. declines any responsibility in case of accidents arising from using the CAPPUCCINO 1000 maker in ways not complying with the instructions contained herein. ATTENTION The appliance is built according to the current recycling rules. It is recommended not to throw away the transport protection packing materials, but take them to the relevant collection centre. TROUBLESHOOTING TROUBLE CAUSE SOLUTION The dispensing does not start or it stops Lack of water in the container (4) Fill the water container Turbulent dispensing with steam output The milk or water are not cold enough Use milk or water at refrigerator temperature (about 10 °C) Failure to dispense coffee Lack of coffee in the container. The coffee measure unit is scaled. Fill the container. Clean the coffee container (see instructions) The operation cycle does not start The coffee container cover (3) is not in the right position Put the cover in its place The dispensing does not start and you can hear a tick The coffee measure unit (2) is scaled Clean the unit following the instructions in the "Cleaning the coffee measure unit" paragraph NEDERLANDS Cappuccino BESCHRIJVING FIG. C 1 Rooster d) Koffie reservoir 5 Controlelampje aan/uit H E T R E I N I G E N VA N H E T K O F F I E R E S E R V O I R ( F I G . C ) (NODIG NA ONGEVEER 20/30 GEBRUIK) Fig. L
