BKS 1226 - Vacuum Cleaner BEKO - Free user manual and instructions

Brand	Beko
Model	BKS 1226
Product Type	Canister Vacuum Cleaner
Nominal Power	2000 W
Maximum Power	2600 W
Supply Voltage	220-240 V~, 50 Hz
Net Weight	5 kg
Dust Capacity	3 L
Power Cord Length	6 m
Filtration System	Foam filter, Motor protection filter
Accessories Included	Parquet/carpet brush, Telescopic tube, Crevice tool, Wide-mouth nozzle
Dust Indicator	Red light when bag full
Suction Power Adjustment	Rotary knob on body
Parking Feature	Vertical and horizontal parking
Safety Features	Automatic shut-off not specified; recommended to unplug before maintenance

Frequently Asked Questions - BKS 1226 BEKO

How do I replace the dust bag?

Press the lid release button (6) to open the top lid. Lift the dust bag upwards, remove it from the bag holder, then pull it from its clips. Close the cover of the full bag and dispose it. Push the new dust bag into the holder ensuring it is fully seated. Close the upper cover. Do not force the lid.

How often should I clean the filters?

Clean the filters after every 5 dust bag replacements. This may vary depending on usage frequency and area. Wash the foam filter and motor protection filter under running water, gently wring, and let them dry completely before reinstalling.

What does the red dust indicator mean?

The dust indicator (9) lights red when the dust bag is full. You should replace the dust bag promptly to maintain optimal suction.

Can I vacuum liquids with this vacuum cleaner?

No. Do not vacuum water or any other liquid materials. The appliance is designed only for dry vacuuming.

How do I adjust the suction power?

Turn the suction power adjustment knob (4) on the body clockwise to increase suction for carpets, and counterclockwise to decrease for hard floors.

How do I attach the hose?

Push the hose cap (12) onto the suction nozzle until the tabs on the cap seat correctly. To remove, press the tabs and pull the hose out.

What is the correct way to store the vacuum cleaner?

After use, switch off and unplug the appliance. Wind the power cord by pressing the cord winding button (1). You can park the brush vertically or horizontally by inserting the brush hook into the parking channel.

What filters does this vacuum cleaner use?

It uses a foam filter and a motor protection filter. There is also a micro filter mentioned in the manual. Always ensure filters are dry before reinstalling.

Is it safe to use on stairs?

Yes, but always place the vacuum cleaner body below the user when cleaning stairs to prevent accidents.

Can I use non-original dust bags?

It is recommended to use original dust bags from authorized dealers. Non-original bags may tear quickly and damage the appliance, voiding the warranty.

USER MANUAL BKS 1226 BEKO

Simple line drawing of a decorative pattern inside a square frame (no text or symbols)

BKS 2226

BKS 1226

EN - TR - TM - KK - RU - BS - MK - SQ - SR - TH - HR

01M-8833063200-3722-09

01M-8913783200-3722-01

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Protection class for electric shock.

CONTENTS

1 Important instructions for safety and environment 4-5

1.1 General safety 4
1.2 Compliance with the WEEE Directive and disposal of waste products.... 5
1.3 Package information 5

2 Your vacuum cleaner 6

2.1 Overview 6
2.2 Technical data....6

3 Use 7-8

3.1 Intended use ....7
3.2 Attaching/removing the hose....7
3.3 Attaching/removing the telescopic tube ...7
3.4 Attaching/removing the parquet/ carpet brush 7
3.5 Adjusting the parquet/carpet brush .....7
3.6 Operation 7
3.6.1 Adjusting the suction power .....7
3.6.2 Dust indicator 7
3.7 Accessories....8
3.8 Switching off and parking the vacuum cleaner

4 Cleaning and maintenance 8-9

4.1 Replacing the dust bag....8
4.2 Cleaning the filters....9
4.2.1 Motor protection filter 9
4.2.2 Foam filter 9
4.3 Storage....9

1 Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international security standards.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.

• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• The mains supply of the appliance must be secured with a minimum 16 A fuse.
• Do not use the appliance with an extension cord.
• In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.
• Do not vacuum water or other liquid materials.
• Protect the appliance from rain, humidity and heat sources.

1 Important instructions for safety and environment

• Never use the appliance in or near to combustible or inflammable places and materials.
• Unplug the appliance before cleaning and maintenance.
• Do not dip the appliance or its cable in water to clean it.
• Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.
• Do not attempt to dismantle the appliance.
• Only use the original parts or parts recommended by the manufacturer.
• If heavily used for cleaning dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.
• Do not use the appliance without filters; otherwise it can get damaged.
• When vacuuming the stairs, the appliance should be located below the user.

- If your store the package material, keep it out of the reach of children.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

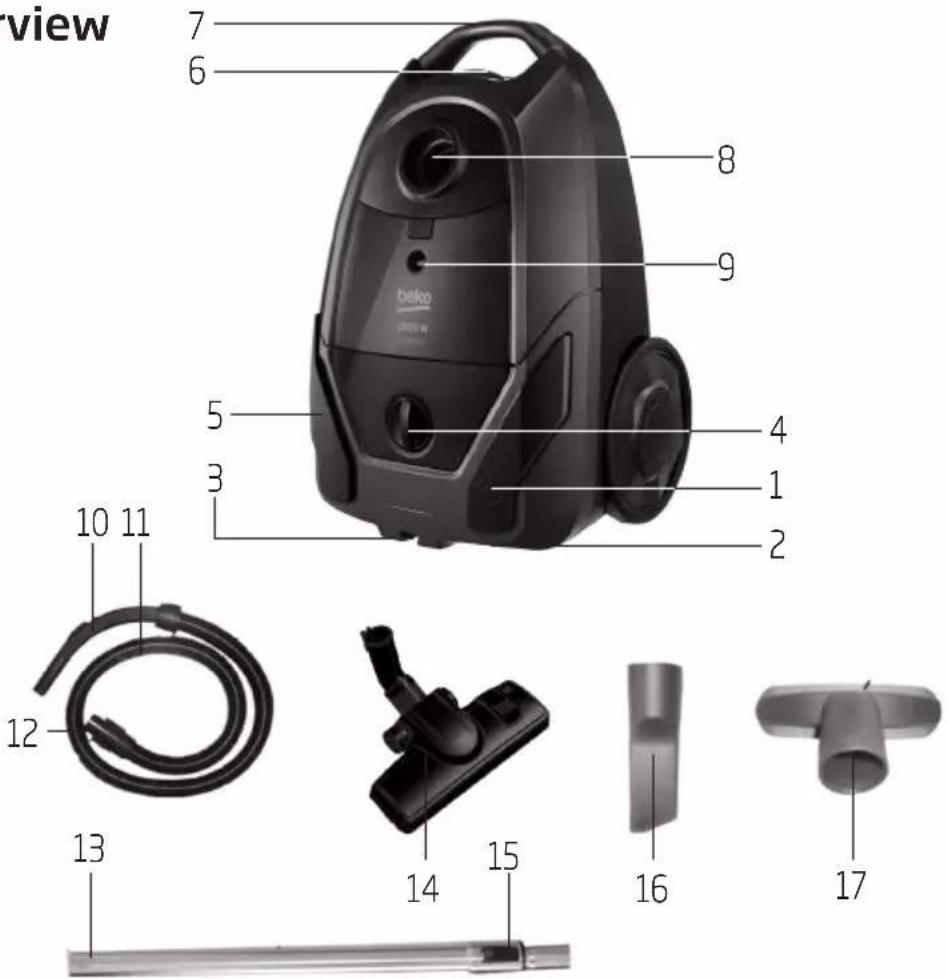

2 Your vacuum cleaner

2.1 Overview

1. Power cable winding button
2. Plug
3. Park channel
4. Suction power adjustment knob
5. On/Off button
6. Lid release button
7. Carrying handle
8. Suction nozzle
9. Dust indicator
10. Handle
11. Hose
12. Hose cap
13. Telescopic tube
14. Parquet/carpet brush
15. Telescopic tube adjustment latch
16. Narrow crevice tool
17. Wide-mouth nozzle

2.2 Technical data

Nom. power : 2000 W

Max power : 2600 W

Net weight : 5 kg

Supply voltage : 220-240 V\~, 50 Hz

Dust Volume : 3L

Power cord length : 6 m

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Use

3.1 Intended use

The appliance was designed to be used in houses, and is not fit for industrial use.

3.2 Attaching/removing the hose

1. To attach the hose (11) push the hose cap (12) to match it with the suction nozzle.
2. The tabs on the hose cap (12) must be seated correctly.
3. To remove the hose (11) press on the tabs on the hose cap (12) and pull it.

3.3 Attaching/removing the telescopic tube

1. Attach the telescopic tube (13) to the handle (10).
2. Pull the telescopic tube from the handle (10) to remove it.
3. Push the telescopic tube adjustment latch (15) in the arrow direction and pull the telescopic tube (13) to adjust its length.

Close-up of a cylindrical mechanical shaft with an arrow indicating direction (no text or symbols)

3.4 Attaching/removing the parquet/carpet brush

You can install/remove the telescopic tube (13) from/to the parquet carpet brush (14).

3.5 Adjusting the parquet/ carpet brush

By pressing the adjustment latch (14) located on the parquet carpet brush;

- Use position for hard surfaces and parquet.

- Use "" for carpets.

3.6 Operation

1. Plug the appliance after pulling the power plug located at the back of the appliance.
2. Press on/off button (5) to switch on your appliance.

3.6.1 Adjusting the suction power

You can adjust the suction power of the appliance by turning the suction power button (4) located on the body of the device clockwise according to the type of the surface to be cleaned. To decrease the suction power turn the button counterclockwise.

3.6.2 Dust indicator

When the dust bag is full the dust indicator (9) on the body will light in red. Replace the dust bag (see 4.1).

3 Use

3.7 Accessories

Crevice tool

Simple 3D illustration of a cylindrical object with a shaded cross-section (no text or symbols)

Suitable for the cleaning of the surfaces which are difficult to clean, such as the areas remaining under the sofas and furniture.

Wide-mouth nozzle

Suitable for the cleaning of the floorings, stair steps, inside of the cars, sofas, armchairs etc.

WARNING: Do not make cleaning by using the handle's (10) end part.

3.8 Switching off and parking the vacuum cleaner

1. Switch off the appliance with the on/off button (5) and unplug it.
2. Wind the electric cable by pressing the power cable winding button (1).

Vertical parking feature

Insert the hook of the parquet/carpet brush into the parking channel located at the bottom section of the appliance.

Horizontal parking feature

Insert the hook of the parquet/carpet brush into the parking channel located at the rear section of the appliance.

4 Cleaning and maintenance

Switch off and unplug the appliance before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Replacing the dust bag

When the dust indicator (9) on the body turn to red replace the dust bag.

1. Open the top lid pressing the button (6) for opening the dust container.
2. Lift the dust bag upwards and remove it from the bag holder.

3. Remove the dust bag from its guide pulling it from its clips.

4. Close the cover of the full dust bag and dispose it.

5. Holding its clips, push the new dust bag into the bag holder. Ensure that it is fully seated.
6. Close the appliance's upper cover.

WARNING: Do not forcethe top lid to close it, otherwise the plastic sections can be damaged.

WARNING: Dust bags provided from locations other than the authorized dealers and services are not original. Such dust bags have a lesser quality and they become torn in a shorter period and render your appliance unoperational. Faults caused by using unauthentic dust bags are not covered by the scope of the warranty.

4 Cleaning and maintenance

WARNING: Do not wash the dust bag.

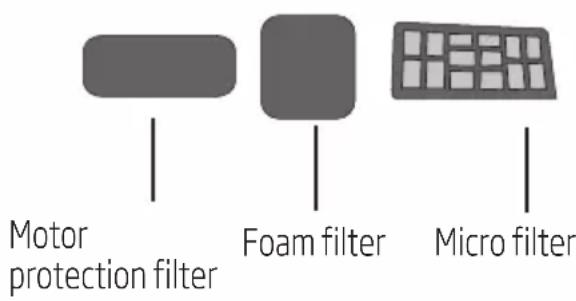

4.2 Cleaning the filters

After each 5 dust bag replacement (may vary depending on the frequency and area of usage) clean the filters.

WARNING: Do not use appliances producing hot air such as hair dryer or heater to dry the filters.

WARNING: Do not install the filters without completely drying them; otherwise smell of moisture may occur during the use, water can leak from the back of the appliance or the filters may get damaged.

WARNING: When the filters dry, replace them into their positions.

4.2.1 Motor protection filter

1. Open the top lid pressing the button (6) for opening the lid.
2. Remove the foam filter from the grid inside.
3. Wash it under running water after shaking it off.
4. After washing the foam, gently wring it and leave it to dry.

4.2.2 Foam filter

1. Open the rear cover.
2. Remove the foam filter behind the cover and wash it.
3. After washing the foam, gently wring it and leave it to dry.

4.3 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.

Mechanical shaft component with a directional arrow indicating motion (no text or symbols)

Simple 3D illustration of a cylindrical object with a shaded cross-section (no text or symbols)

Three gray rectangular shapes with vertical lines beneath each, next to a grid-patterned panel (no text or symbols)

Motor koruma Sünger filtre Mikro filtre filtresi

- https://twitter.com/beko_tr

-https://www.facebook.com/bekoturkiye/

-https://www.youtube.com/user/BekoChannel

* Posta Adresimiz:

Simwollaryň manylary

Mechanical shaft component with a directional arrow indicating motion (no text or symbols)

3.4 Parket/haly sübsesini dakmak/aıyrmak

Siz teleskopik turbany (13) parket haly sübsesine/ den gurnap/aýyryp bilersiňiz(14).

3.5 Parket/haly sübsesini sazlamak

Parket haly sübsesinde yerleşyän (14) sazlayys ilginçegini basmak bilen;

- Gaty we parket rüzler üçin"____"pozisiany ulanyň.

Simple 3D illustration of a cylindrical object with a shaded cross-section (no text or symbols)

Close-up of a cylindrical mechanical shaft with a pointed end and an arrow indicating direction (no text or symbols)

Simple 3D illustration of a cylindrical object with a textured top surface (no text or symbols)

Close-up of a cylindrical mechanical shaft with a pointed end and an arrow indicating direction (no text or symbols)

Simple 3D illustration of a cylindrical object with a textured top and base, no text or symbols present.

Three abstract geometric shapes: a rounded rectangle, a rounded square, and a grid-patterned rectangle, each mounted on a vertical line (no text or symbols)

Фильтр для защиты

Close-up of a cylindrical mechanical shaft with a pointed end and an arrow indicating direction (no text or symbols)

3.4 Stavljanje/skidanje četke za parket/tepih

Simple 3D illustration of a cylindrical object with a shaded cross-section (no text or symbols)

• If you do not intend to use the appliance for a long time, store it carefully.
• Pull the appliance's plug out.
• Keep the appliance out of the reach of children.

Mechanical shaft component with a highlighted section and an arrow indicating direction (no text or symbols)

When the dust bag is full the dust indicator (9) on the body will light in red. Replace the dust bag (see 4.1).

3.7 Продолженија

3D rendered object resembling a conical or folded structure, no text or symbols visible

Mechanical shaft component with a directional arrow indicating movement (no text or symbols)

Simple 3D illustration of a cylindrical object with a shaded cross-section (no text or symbols)

Close-up of a cylindrical mechanical shaft with a pointed end and an arrow indicating direction (no text or symbols)

3.4 Stavljanje/skidanje četke za parket/tepih

Možete staviti ili skinuti teleskopsku cev (13) sa četke za tepih i parket (14).

3.5 Prilagođavanje četke za parket/tepih

Simple 3D illustration of a cylindrical object with a shaded cross-section (no text or symbols)

Uzbekistan St. Chhattis, Thailand, Malaysia

Mechanical shaft component with a directional arrow indicating movement (no text or symbols)

Simple 3D illustration of a cylindrical object with a shaded top section (no text or symbols)

Mechanical shaft component with a directional arrow indicating movement (no text or symbols)

3.4 Spajanje/uklanjanje četke za parket/tepih

Možete postaviti/ukloniti uski kraj teleskopske cijevi (13) iz/na četke za parket/tepih (14).

Simple 3D illustration of a vertical cylindrical object with a shaded cross-section (no text or symbols)

الفوهة العريضة

Mechanical shaft component with a highlighted section and an arrow indicating direction (no text or symbols)

Simple 3D illustration of a vertical cylindrical object with a textured surface (no text or symbols)

سَدْرِى دَهَان گَشَاد

Close-up of a cylindrical mechanical component with an arrow indicating a feature or detail (no text or symbols visible)

Simple line drawing of a decorative pattern inside a square frame (no text or symbols)

BKS 2226

BKS 1226

FA - AR
