BKS 1515 - Vacuum Cleaner BEKO - Free user manual and instructions

Product type	Canister vacuum cleaner
Brand	Beko
Model	BKS 1515
Dimensions (L x W x H)	40 x 30 x 25 cm
Weight	4.5 kg
Power supply	Mains 220-240 V ~ 50/60 Hz
Power	800 W
Tank capacity	1.5 L
Filter type	Washable activated carbon filter
Operating radius	8 m
Noise level	78 dB(A)
Main functions	Dry vacuuming, power adjustment, integrated parquet brush
Maintenance and cleaning	Clean the tank after each use, wash the filter every month
Safety	Automatic shutdown in case of overheating, overcurrent protection
Spare parts and repairability	Filter, dust bag, brush, hose, tube available
Number of pages of the manual	96 pages
Available languages	FR, EN, MK, RU, SQ, TH, TR

Frequently Asked Questions - BKS 1515 BEKO

How to plug in the Beko BKS 1515 vacuum cleaner?

The vacuum cleaner plugs into a standard 220-240 V mains socket. Make sure the switch is in the off position before plugging in.

How to change the dust bag?

Open the front cover, remove the full bag by pulling the tab. Insert a new bag by aligning the opening with the holder. Close the cover.

What to do if the vacuum loses suction power?

Check if the bag is full or the filter is clogged. Clean or replace the filter. Make sure the hose and brush are not blocked.

How to clean the vacuum filter?

The activated carbon filter is washable. Remove it, rinse with lukewarm water, dry completely before reinstalling. Do not use detergents.

Can I use the BKS 1515 vacuum without a bag?

No, this vacuum requires a dust bag. Use only compatible Beko bags.

How to adjust the suction power?

Use the adjustment slider on the vacuum body. Max position for hard floors, min for carpets.

What to do if the vacuum overheats?

The vacuum stops automatically. Unplug it, let it cool for 30 minutes, check that nothing is blocking the air inlets.

How to use the integrated parquet brush?

Press the button on the main brush to deploy the side brushes. Ideal for hard floors.

Where to find spare parts for the BKS 1515?

Spare parts (filters, bags, brushes) are available from authorized Beko dealers or on the official website.

How to start the Beko BKS 1515 vacuum?

Plug in the appliance, press the on/off switch on top of the body. To stop, press again.

USER MANUAL BKS 1515 BEKO

Please read this user manual first!

Dear Customer,

Thank you for preferring a Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Explanation of symbols

Throughout this user manual the following symbols are used:

Important information or useful hints about usage.

Warning for hazardous situations with regard to life and property.

Protection class for electric shock.

This product has been produced in environmentally friendly, modern facilities.

CONTENTS

1 Important safety and environmental instructions 4-5

1.1 General safety 4
1.2 Compliance with the WEEE Directive and disposal of waste products.... 5
1.3 Package information 5

2 Your vacuum cleaner 6

2.1 Overview 6
2.2 Technical data....6

3 How to Use 7-8

3.1 Intended use ....7
3.2 Assembling the appliance....7
3.3 Telescopic tube (BKS 1515 only) .....7
3.4 Using the cleaning tools .....7
3.5 Instructions 8
3.6 Operation 8
3.7 Suction power regulation(BKS 1515) ..... 8

4 Cleaning and maintenance 9-10

4.1 Dust bag full indicator....9
4.2 Replacing the dust bag....9
4.3 Motor protection filter 9
4.4 Air outlet filter 10
4.5 Parking position....10
4.6 Storage 10

1 Important safety and environmental instructions

This section contains safety instructions that will help protect from risk of personal injury or property damage.

Failure to follow these instructions invalidates the granted warranty.

1.1 General safety

• This appliance complies with the international security standards.
- This appliance can be used by the children who are at the age of 8 or over and by the people who have limited physical, sensory or mental capacity or who do not have knowledge and experience, provided that they are supervised or they understand the instructions with regard to safe use of the product and potential dangers. Children should not play with the appliance. Cleaning and maintenance works should not be performed by children unless they are supervised by an adult.

• Do not use it if the power cable or the appliance itself is damaged. Contact an authorized service.
• Your mains power supply should comply with the information supplied on the rating plate of the appliance.
• The mains supply of the appliance must be secured with a minimum 16 A fuse.
• Do not use the appliance with an extension cord.
• In order to prevent the power cable from getting damaged, make sure that it doesn't get stuck, twisted or rub against sharp surfaces.
• Do not touch the appliance or its plug when it is plugged if your hands are damp or wet.
• Do not pull the power cable when unplugging the appliance.
• Do not vacuum flammable materials and when vacuuming cigarette ashes make sure that it got cold.

1 Important safety and environmental instructions

• Do not vacuum water or other • Do not use the appliance liquid materials. without filters; otherwise it
• Protect the appliance from can get damaged.
  rain, humidity and heat sources.
• Never use the appliance in or near to combustible or inflammable places and materials.
• When vacuuming the stairs, the appliance should be located below the user.
• If your store the package material, keep it out of the reach of children.

- Unplug the appliance before cleaning and maintenance.

- Do not dip the appliance or i cable in water to clean it.

- Check the hose of the appliance regularly. Do not use if it is damaged and contact an authorized service.

- Do not attempt to dismantle the appliance.

- Only use the original parts parts recommended by the manufacturer.

- If heavily used for clean dust such as cement or grout the dust indicator will lit earlier then expected, in such case replace the dust bag even it is empty.

2 Compliance with the WEEE Directive and disposal of waste products

This product does not include harmful and prohibited materials specified in the "Regulation for Supervision of the Waste Electric and Electronic Appliances" issued by the Ministry of Environment and Urban Planning. This appliance conforms to the WEEE regulation. This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Ask the local authority in your area for these collection points. Contribute to the preservation of environment and natural sources by taking the used products to the recycling points.

13 Package information

Package of the product is made of recyclable materials in accordance with our National Legislation. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Your vacuum cleaner

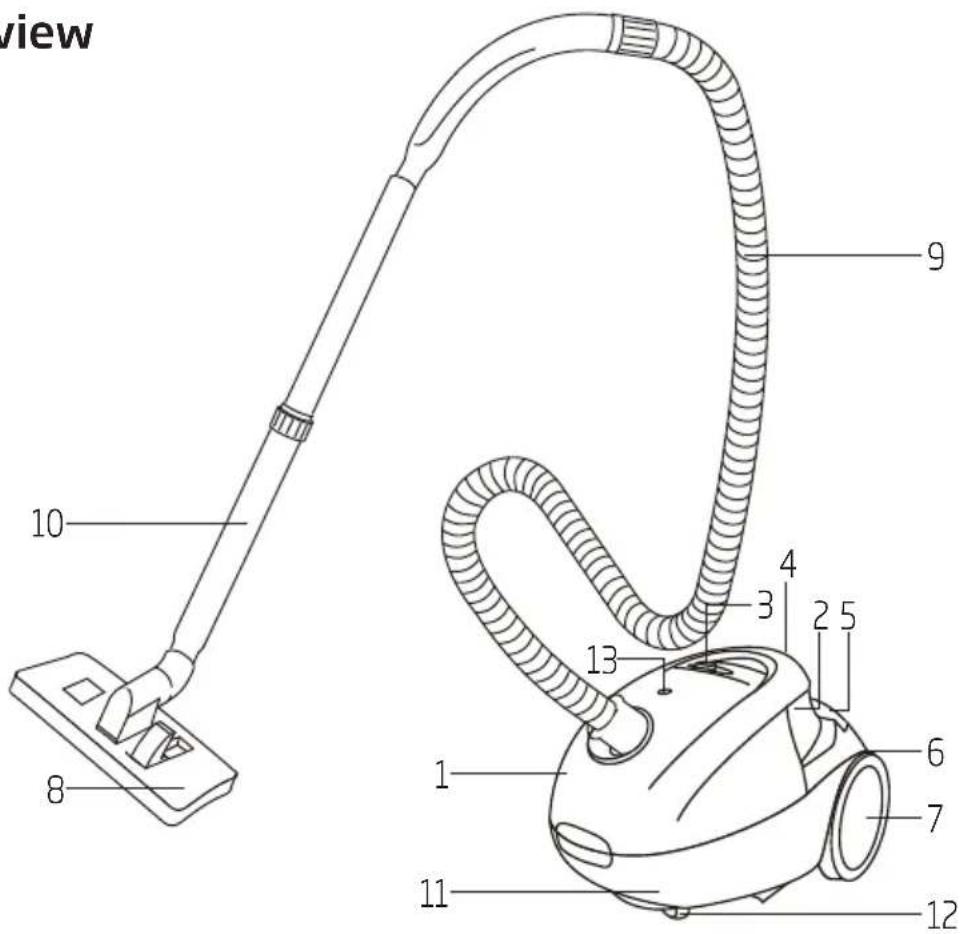

2.1 Overview

1. Front cover
2. Rear cover
3. Power regulator (BKS 1515 only)
4. On/Off button
5. Cord rewinding button
6. Supply cord
7. Rear wheel
8. Hard floor/carpet nozzle
9. Hose
10. 2 pcs. plastic extension tubes
    (BKS 1510-BKS 1511)
    Metal telescopic tube (BKS 1515)
11. Lower body
12. Rotating wheel
13. Dust bag full indicator

2.2 Technical data

Power supply : 220-240 V\~, 50/60 Hz

Power max : 1600 W (BKS 1510-BKS 1511)

:1800 W (BKS 1515)

Dust capacity : 2,0L

Radius of operation : 8m

Net weight : 3,9kg

Rights to make technical and design changes are reserved.

The values which are declared in the markings affixed on your product or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 How to Use

3.1 Intended use

The appliance was designed to be used in houses, and is not fit for industrial use.

3.2 Assembling the appliance

Insert the hose in the coupling on the appliance and press as far as it will go.

3.3 Telescopic tube (BKS 1515 only)

Connect the telescopic tube to the end of the hose handgrip.

The telescopic extension enables the hose to be extended to the required length.

All vacuuming tools can be connected either directly to the hose handgrip or to the telescopic extension.

3.4 Using the cleaning tools

- Two position carpet/floor brush

Pos.1: to clean hard floors, bristles out.

Pos.2: to clean carpets and rugs, bristles in.

- Crevice tool

Ideal for removing dust from fabric, furniture books, curtains, frames and clothing.

3 How to Use

3.5 Instructions

Before using the appliance, extract the power cable completely and plug into the mains. To rewind the cable, unplug and press the cable wind button.

3.6 Operation

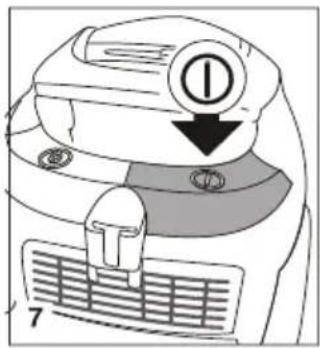

To turn the vacuum cleaner on, lightly press the ON/OFF button.

3.7 Suction power regulation(BKS 1515)

Move the power regulator to electronically regulate suction power according to the type of surface to be cleaned.

The maximum power of the appliance can therefore be exploited to vacuum dust from carpets or hard floors (marble, ceramics, cotto, etc) and a lower suction power to clean curtains or other light fabrics.

The hose handgrip also incorporates a mechanical suction regulator. This enables suction power to be varied rapidly and practically by simply moving the slide.

4 Cleaning and maintenance

Switch off and unplug the appliance, before cleaning it.

WARNING: Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

4.1 Dust bag full indicator

The dust bag full indicator warns when the dust bag needs changing or the vacuum hose is blocked.

4.2 Replacing the dust bag

To change the paper dust bag, pull the bag compartment opening lever and lift the cover. Remove the dust bag holder and throw away the old bag. Insert the new bag in place of the old one and put the dust bag holder back in the compartment.

Close the cover with slight pressure. You should change the dust bag frequently when vacuuming up very fine dirt such as flour, talcum powder, etc.

To avoid the appliance giving off unpleasant smells, you should replace the dust bag at least twice a year.

The appliance has a safety device which prevents the dust bag compartment cover being closed when there is no dust bag in place.

4.3 Motor protection filter

To extend the working life of the appliance and protect the motor, it is vital to keep the motor protection filter clean.

To access the filter, open the dust bag compartment, exact the dust bag and remove the filter holder.

If the filter is not excessively dirty, simply remove the dust.

If the filter is very dirty, wash by hand in cold or warm water.

4 Cleaning and maintenance

Make sure the filter is dry before putting it back in the appliance.

When replacing the filter, make sure it is positioned correctly.

WARNING: Never wash the filter in the washing machine or dry with a hairdryer.

4.4 Air outlet filter

Remove the rear grill, take out the sponge filter and when visibly dirty, clean it. You should clean the filter at least every 5 dust bag changes.

WARNING: Never use the appliance without the filter.

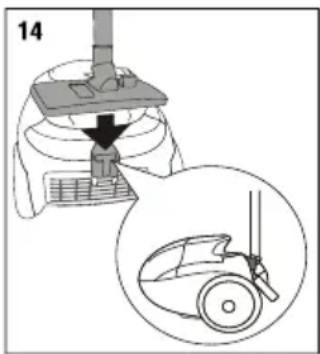

4.5 Parking position

The appliance is provided with a parking base at the bottom to enable it to be put away safely and tidily in the parking position. If you have to interrupt cleaning for a brief period, the appliance has

a convenient hose "parking" system.

Insert the bracket on the brush joint into the housing on the bottom of the appliance. Insert the bracket on the brush joint into the housing in the parking base at the rear of the appliance.

WARNING: Malfunction of the appliance (low power, unusual noise or complete breakdown) could be caused by obstructed nozzles or hoses or faulty electrical components.

Check the nozzles, dust bag and motor protection filter.

If this does not resolve the problem, take the appliance to an authorised service centre.

4.6 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
  • Pull the appliance's plug out.
• Keep the appliance out of the reach of children.

- Suceur plat

3 Utilisation

3.5 Instructions

3.6 Fonctionnement

3.3 Teleskobik boru (BKS 1515)

• Two position carpet/floor brush

- Dar ağızlı uç

3 Kullanım

3.6 Çalıştırma

3.7 Emiş gücü ayarı (BKS 1515)

4 Temizlik ve bakım

- Щелевая насадка

3.6 Эксплуатация

4 Уход и чистка

- Uski nastavak

Idealan za usisavanje prašine sa tkanina, namještaja, knjiga, zavesa, ramova za slike i odeće.

3 Kako se koristi

3.5 Instrukcije

Prije upotrebe uređaja izvucite do kraja strujni kabl i ubacite utikač u utičnicu. Da biste namotali strujni kabl, izvucite utikač iz struje i pritisnite dugme za namotavanje kabla.

3.6 Rad uređaja

3.7 Regulisanje snage usisavanja (BKS 1515)

Zatvorite poklopac blagim pritiskom. Trebalo bi da često mjenjate kesu za prašinu kada usisavate fine čestice prašine poput brašna, talka itd. Kako se u usisivaču ne bi pojavili neprijatni mirisi, mjenjajte kesu za prašinu najmanje dva puta godišnje.

Uređaj ima bazu za stajanje na dnu, čime je moguće bezbjedno čuvanje u uspravnom položaju. Ako na kratko prekidate usisavanje, uređaj ima zgodan sistem za "parkiranje" crijeva.

3.3 Телескопска цевка (само моделот BKS 1515)

- Тесно продолжение

3 Како се користи

3.5 Инструкции

3.3 Gypi teleskopik(vetëm model BKS 1515)

- Stojca e ngushtë

3 Si përdoret

3.5 Instruksionet

3.3 Teleskopska cev (samo model BKS 1515)

Postavite teleskopsku cev na kraj ručice za držanje creva.

- Uski nastavak

Idealan za usisavanje prašine sa tkanina, nameštaja, knjiga, zavesa, ramova za slike i odeće.

3 Kako se koristi

3.5 Instrukcije

Pre upotrebe uređaja izvucite do kraja strujni kabl i ubacite utikač u utičnicu. Da biste namotali strujni kabl, izvucite utikač iz struje i pritisnite dugme za namotavanje kabla.

3.6 Rad uređaja

3.7 Regulisanje snage usisavanja (BKS 1515)

Ubacite polugu na zglobu na četki za usisavanje na dno uređaja. Ubacite polugu na zglobu četke u kućište na delu baze za parkiranje sa zadnje strane uređaja.

Važno: Kvar uređaja (mala snaga usisavanja, neobični zvukovi ili uređaj ne radi) može biti posledica zapušenih nastavaka za usisavanje ili creva, kao i kvar električnih komponenti.

Proverite nastavke, kesu za prašinu i filter za zaštitu motora.

Ako to ne reši problem, odnesite uređaj do najbližeg ovlašćenog servisera.

4.6 Čuvanje uređaja

• Ukoliko ne planirate da koristite uređaj duže vreme, pažljivo ga ostavite.
• Izvucite utikač iz struje.
• Ostavite uređaj na mesto van dometa dece.
