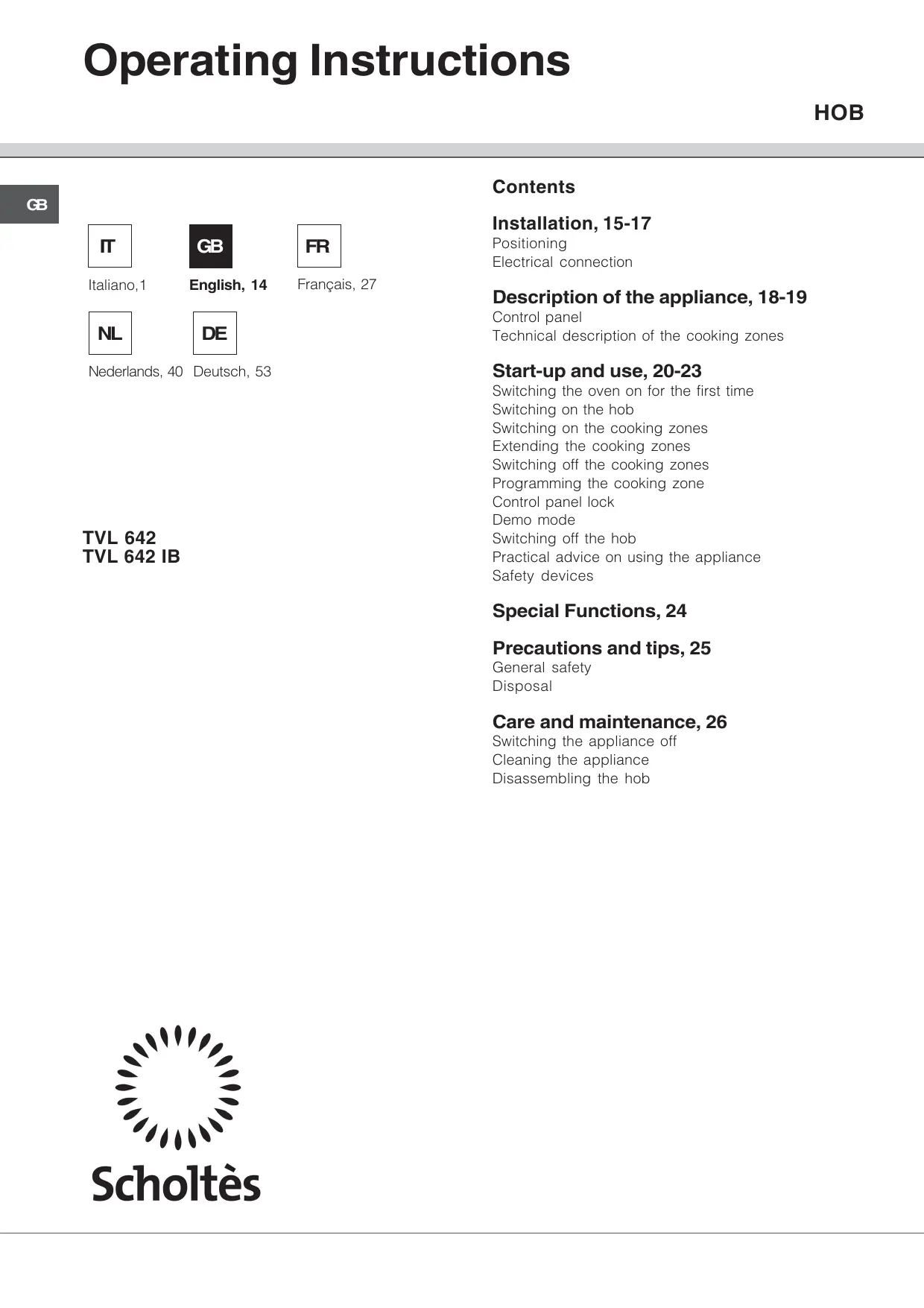

Operating Instructions HOB Contents

Français, 27 Installation, 15-17 Positioning Electrical connection Description of the appliance, 18-19 Control panel Technical description of the cooking zones Start-up and use, 20-23 Switching the oven on for the first time Switching on the hob Switching on the cooking zones Extending the cooking zones Switching off the cooking zones Programming the cooking zone Control panel lock Demo mode Switching off the hob Practical advice on using the appliance Safety devices Special Functions, 24 Precautions and tips, 25 General safety Disposal Care and maintenance, 26 Switching the appliance off Cleaning the appliance Disassembling the hob Installation Before operating your new appliance please read this instruction booklet carefully. It contains important information concerning the safe operation, installation and maintenance of the appliance. 5 mm Please keep these operating instructions for future reference. Pass them on to possible new owners of the appliance.

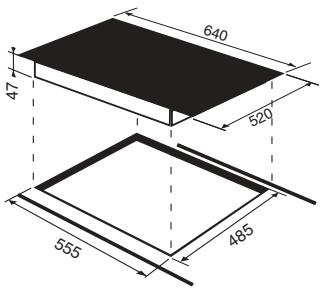

min. 20 mm COMPARTMENT min. 40 mm Keep all packaging materials out of the reach of children. It may present a choking or suffocation hazard (see Precautions and tips). The appliance must be installed by a qualified professional in accordance with the instructions provided. Incorrect installation may damage property or cause harm to people or animals. 5 mm Positioning min. 20 mm FAN-ASSISTED OVEN min. 40 mm Built-in appliance Use the appropriate cabinet to ensure that the appliance functions properly. • The supporting surface must be heat-resistant up to a temperature of approximately 100°C. • If the appliance is to be installed above an oven, the oven must have a forced ventilation cooling system. • Avoid installing the hob above a dishwasher: if this cannot be avoided, place a waterproof separation device between the two appliances. • The cabinet compartment must possess the following measurements: Fixing The appliance must be installed on a perfectly level supporting surface. Any deformities caused by improper fixing could change the features and the operation of the hob.

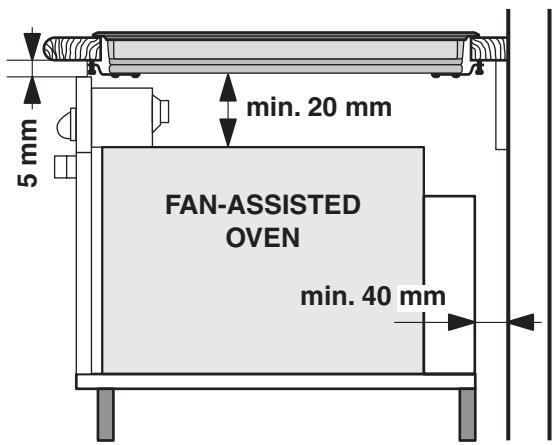

Ventilation To allow adequate ventilation and to avoid overheating of the surrounding surfaces the hob should be positioned as follows: • At a minimum of 40 mm from the back panel and 600 mm from any other vertical surfaces. • So that a minimum distance of 20 mm is maintained between the installation cavity and the cabinet underneath.

Fix the hob as follows:

1. Use short flat-bottomed screws to fix the 4 alignment

springs in the holes provided at the central point of each side of the hob.

2. Place the hob in the cavity, make sure it is in a central

position and push down on the whole perimeter until the hob is stuck to the supporting surface. The screws for the alignment springs must remain accessible. Connect the wires in accordance with the instructions given in the following table and diagrams: Voltage and mains frequency Electrical cable Wire connection : yellow/green; 400V - 2+N ~ 50 Hz N: the two blue wires together L1: black 230V 3 ~ 50Hz L2: brown : yellow/green; All parts that ensure the safe operation of the appliance must not be removable without the aid of a tool. Electrical connection The electrical connection of the hob and any built-in oven must be carried out separately, both for safety purposes and to make extracting the oven easier. Terminal board On the lower part of the appliance there is a connection box for the different types of electricity supply (the picture is only an indication and is not an exact representation of the purchased model). 230V 1+N ~ 50 Hz Wire connection

1. Use a suitable supply cable, H05RR-F or higher, with

the right dimensions (cable section: 25 mm).

2. To open the terminal board, insert a screwdriver into

the side tabs of the cover (see Terminal board picture).

3. Loosen the cable clamp screw and the terminal board

screws according to the type of connection required and position the connection supports as shown in the following table and diagrams.

4. Position the wires according to the following table and

diagrams and connect the appliance by tightening all the screws for the springs as much as possible. If the mains supply corresponds with one of the following: Voltage and mains frequency • 380V +N ~ 50 Hz • 230V 3 ~ 50 Hz • 380V + 2N ~ 50 Hz Electrical connections 400V 3-N ~ ı 50

Terminal board Three-phase 400

5. Secure the power supply cable by fastening the cable

clamp screw, then put the cover back on. : yellow/green; N: the two blue wires together L: brown and black together Other types of connection

The cable provided is not suitable for the following types of installation.

Electrical cable L1: black If the mains supply corresponds with one of the following: Voltage and mains frequency • 400V 3 - N ~ 50 Hz proceed as follows:

The hob is equipped with a pre-connected electricity supply cable, which is designed for single-phase connection. Connect the wires in accordance with the instructions given in the following table and diagrams: N2: blue L2: brown Voltage and mains frequency Single-phase connection Voltage and mains frequency 400V - 2+2N ~ ı 50

In order to adhere to safety standards, the appliance must not come into contact with electrical parts once it has been installed.

Three-phase 400 Phase Phase Phase Neutral Earth U-bolt connection support Connecting the electricity supply cable to the mains

The appliance must be directly connected to the mains using an omnipolar circuit-breaker with a minimum contact opening of 3 mm installed between the appliance and the mains, suitable for the load indicated and complying with current electrical regulations (the earthing wire must not be interrupted by the circuitbreaker). The supply cable must not come into contact with surfaces with temperatures higher than 50°C. The installer must ensure that the correct electrical connection has been made and that it is fully compliant with safety regulations. Before connecting the appliance to the power supply, make sure that: • The appliance is earthed and the plug is compliant with the law. • The socket can withstand the maximum power of the appliance, which is indicated on the data plate located on the appliance itself. • The voltage is in the range between the values indicated on the data plate. • The socket is compatible with the plug of the appliance. If the socket is incompatible with the plug, ask an authorised technician to replace it. Do not use extension cords or multiple sockets. Once the appliance has been installed, the power supply cable and the electrical socket must be easily accessible. The cable must not be bent or compressed. The cable must be checked regularly and replaced by authorised technicians only. The manufacturer declines any liability should these safety measures not be observed.

Description of the appliance

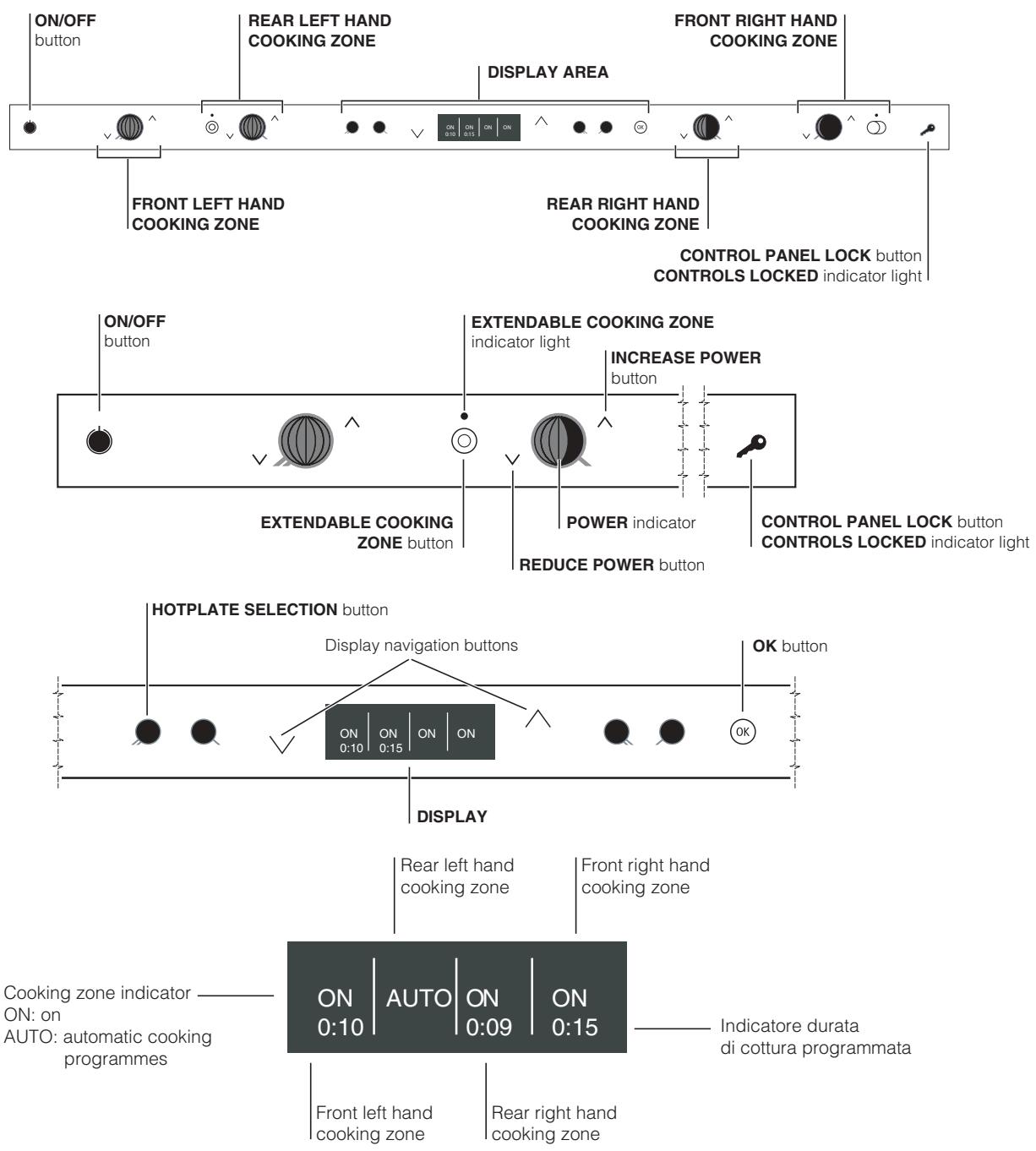

DISPLAY Rear left hand cooking zone Cooking zone indicator ON: on AUTO: automatic cooking programmes

0:10 0:09 Front left hand cooking zone • ON/OFF button switches the appliance on and off. • EXTENDABLE COOKING ZONE button switches on the entire cooking zone (see Start-up and use). • EXTENDABLE COOKING ZONE indicator light shows the entire cooking zone has been switched on. • REDUCE POWER button controls the power and switches off the hotplate (see Start-up and use). • POWER indicator provides a visual display for the current heat level.

Front right hand cooking zone

0:15 Indicatore durata di cottura programmata Rear right hand cooking zone • INCREASE POWER button switches on the hotplate and controls the power (see Start-up and use). • HOTPLATE SELECTOR buttons are used to enter the menu for each cooking zone (see Start-up and use). • OK button confirms each selection. • CONTROL PANEL LOCK button prevents accidental changes to the hob settings (see Startup and use). • CONTROLS LOCKED indicator light shows the control panel has been locked (see Start-up and use). Technical description of the cooking zones Halogen heating elements This type of element emits heat via radiation from the halogen lamp it contains. It has similar properties to a gas burner: this type of element is easy to control and reaches set temperatures quickly, allowing you to actually see the power it is providing. Radiant heating elements This type of element is composed of a series of coils, which allows heat to be distributed evenly at the base of the cookware so that all slow-flame cooking may be performed successfully, for example stews, sauces or reheated dishes. HOBS Cooking zone Back right Front right Front left Back left Maximium total wattage

TVL 642 - TVL 642 IB

Wattage H 1200 W RO 1800 W – 1000 W R 600 W DH 2500 W – 1050 W 6100 W Key: H = single halogen cooking zone R = single radiant cooking zone DH = double halogen cooking zone RO = radiant oval cooking zone

The glue applied on the gaskets leaves traces of grease on the glass. Before using the appliance, we recommend you remove these with a special nonabrasive cleaning product. During the first few hours of use there may be a smell of rubber which will disappear very quickly. A few seconds after the hob is connected to the electricity supply, a buzzer will sound. The hob may now be switched on. Switching the oven on for the first time After the appliance has been connected to the electricity supply, the first time it is switched on a list of languages appears. To set the desired language select it using the and buttons at the side of the display. The character in bold indicates which language has been selected. To confirm press the “OK” button. Once the selection has been made, the display will show the following parameters: LANGUAGE Language selection KEY TONES Keypad volume adjustment CONTRAST Contrast adjustment FINE TUNING Power level adjustment (6 or 12) TIMER Timer setting function EXIT Exit the main menu Key tone Enables the volume of the control panel to be adjusted. To set the desired level, select a value using the and buttons at the side of the display and press the “OK” button to confirm. There are 3 available options: OFF volume off (although the buzzer remains active). MIN: minimum volume. MAX: maximum volume. Contrast Enables the contrast of the display to be adjusted. To set the desired brightness level, select a value using the and buttons at the side of the display and press the “OK” button to confirm. There are 6 different brightness levels to choose from.

Fine tuning Enables the number of the power level for each cooking zone to be adjusted. To set the desired level, select a value using the and buttons at the side of the display and press the “OK” button to confirm. There are 2 available options: 6: the power indicator will be divided into 6 equal parts. 12: the power indicator will be divided into 12 equal parts. Timer Enables the timer to be set independently of the cooking zone operation. Adjust the minutes by pressing the and buttons and press “OK” to confirm. The timer begins counting down immediately. When the set time period has elapsed a buzzer will sound (for 1 minute). During the setting process, press the and buttons at the side of the display to reset the time value to zero. The modification of the general operating parameters of the hob may only take place when the buttons hob is switched on and the at the side of the display are not lit up. Press the and buttons at the side of the display to access the options detailed above. Switching on the hob To switch the hob on, press and hold the for approximately one second. button Switching on the cooking zones Each cooking zone is controlled by a device consisting of two buttons ( and ) at the side of the power level indicator. • Press the button to activate the hotplate, then set the power to the required level using the and buttons. • To set the power to maximum, hold down the button briefly. Extending the cooking zones A button allows the user to extend the relevant cooking zones (these may be concentric or oval).

button to activate the hotplate, then set the power to the required level using the and buttons. button to switch on the entire,

fully-extended cooking zone. To return to using the smaller cooking zone, simply press the extension button again. The indicator light above the extendable cooking zone button remains lit for the entire time during which the large surface is being used. Repeat the above procedure for each hotplate you wish to programme. The buzzer may be stopped by pressing any button on the hob. Turbo Reduces the time needed to reach the set power level. The cooking zone must be switched on. Programming the cooking zones

button at the side of the display which corresponds to the hotplate you wish to programme.

2. Press the and buttons at the side of the

display to select the “TURBO” command and press “OK” to confirm.

3. Select the ON option by pressing the and

buttons and press the “OK” button to activate the turbo function.

4. Select the OFF option by pressing the and

buttons and press the “OK” button to stop the turbo function.

5. Select the “EXIT” command and press “OK” to

confirm. This setting will be memorised. Cooking programme duration Power level The cooking zone must be switched on. The cooking zone must be switched off. All the cooking zones may be programmed for a length of time between 1 minute and 3 hours. Enables a pre-set power level top be selected when the cooking zone is switched on. Switching off the cooking zones • Press the button at the side of the power level indicator: the power of the cooking zone will progressively decrease until it is switched off. • Alternatively, the and buttons may be pressed simultaneously. The cooking zone will switch off.

button at the side of the display which corresponds to the hotplate you wish to programme.

and buttons at the side of the display to select the “DURATION” command and press “OK” to confirm.

3. Adjust the minutes by pressing the and buttons.

4. Press “OK” to confirm.

5. Select the “EXIT” command and press “OK” to

confirm. This setting will be memorised. If the setting is not confirmed by pressing the “OK” button within 20 seconds, the duration will be memorised automatically. During the setting process, press the and buttons at the side of the display to reset the time value to zero. The timer begins counting down immediately. A buzzer sounds for approximately 1 minute and the cooking zone switches off when the set programme has finished.

buttons at the side of the display corresponding to the hotplate you wish to programme.

2. The display will show the menu dedicated to that

and buttons to select the “POWER LEVEL” command and press “OK” to confirm.

4. The display will present the following options:

DEFAULT: factory setting HIGH: maximum power MEDIUM: 50% power LOW: minimum power.

5. Press the and buttons to select the desired option

and press “OK” to confirm. This setting will be memorised.

6. Select the “EXIT” command and press “OK” to confirm.

For example: if the MEDIUM option has been selected by pressing the buttons at the side of the power level indicator, the hotplate will switch on at half power.

Memorising information The cooking zone must be switched off. A single sequence for all the cooking zones may be memorised. The maximum duration of this entry is 3 and a half hours. It is not possible to recall more than one memo function at a time. It enables an entire cooking cycle to be recorded. This includes power levels and all relevant durations.

button at the side of the display which corresponds to the hotplate you wish to programme.

2. The display will show the menu dedicated to that

3. Press the and buttons to select the “MEMORISE”

command and press “OK” to confirm.

4. The display will present the following options:

RECORD: enables the memorisation process to begin. CANCEL: enables the user to exit the memorise function.

and buttons to select the “RECORD” option and press “OK” to confirm. The display will show “MEMORISE REC”. This means memorisation has started.

6. Select the desired power level. The function will

record all subsequent changes.

7. Press the “OK” button to confirm the memorisation

8. The display will present the following options:

SAVE: enables the recently completed sequence to be memorised. CANCEL: enables the user to exit the memorise function without entering the recently completed sequence.

9. Press the and buttons to select the desired option

and press “OK” to confirm. If you select SAVE the memorised sequence will be entered automatically with the name “MEMO”.

10. Select the “EXIT” command and press “OK” to confirm.

During the memorisation process, it is possible to operate the other cooking zones, but it is not possible to programme them. A memorised programme may be recalled only if the cooking zone is switched off.

button at the side of the display which corresponds to the cooking zone for which a sequence has been memorised.

2. The display will show the menu dedicated to that

3. Press the and buttons to select the “MEMO”

command and press “OK” to confirm.

4. Press the and buttons to select the “START”

command and press “OK” to confirm.

5. The cooking zone switches on and repeats the

sequence memorised previously, until it is complete and switches off. Each change in power level is indicated by the sounding of a buzzer. A memorised programme may be cancelled only if the cooking zone is switched off.

button at the side of the display which corresponds to the cooking zone for which a sequence has been memorised.

2. The display will show the menu dedicated to that

3. Press the and buttons to select the “MEMO”

command and press “OK” to confirm.

4. Press the and buttons to select the “DELETE”

command and press “OK” to confirm.

5. The sequence memorised previously will be deleted.

It is also possible to delete the sequence by memorising a new one. The function may record a maximum of 10 changes in the power level. Updating occurs every 10 seconds. Control panel lock It is possible to lock the oven controls in order to avoid accidental changes being made to the settings (these may be made by children, during cleaning, etc.). If the button is pressed for 3 seconds the controls are locked, the display shows “CONTROL PANEL LOCK” and the CONTROLS LOCKED indicator light illuminates. To use any of the controls (e.g. to stop cooking), you must switch off this function. Press the button for 3 seconds and the lock function will be removed. When the controls are locked it is still possible to switch off the hob. To deactivate it, switch the hob on and press the illuminated button for 3 seconds. Demo mode The hob is able to operate in DEMO mode: all heating elements are deactivated, and controls remain operative. To activate the DEMO mode:

1. Switch on the hob

and buttons simultaneously

and hold for 6 seconds. A buzzer sounds and the display shows the text DEMO ON.

3. The hob is now operating in Demo mode.

To deactivate the DEMO mode:

1. To deactivate the DEMO mode

and and buttons in sequence, then press the button and hold for 2 seconds. A buzzer sounds and the display shows the text DEMO OFF.

3. The hob will now operate normally.

Switching off the hob Press the button to switch the appliance off. If the control panel lock has been activated, the controls will continue to be locked even after the hob is switched on again. In order to switch the hob on again, you must first remove the lock function. Practical advice on using the appliance To obtain the best results from your hob: • Use pans with a thick, flat base to fully utilise the cooking zone. • Always use pans with a diameter that is large enough to cover the hotplate fully, in order to use all the available heat. • Avoid using the same cookware that has been used on gas burners: the heat concentration on gas burners may distort the base of the pan, causing it not to adhere correctly. Safety devices Residual heat indicators After the pan has been removed from one of the cooking zones, part of the power level indicator will flash while the temperature of that particular zone remains above 60°C. This reduces the risk of burns and scalds. Overheating protection If the electronic components overheat, the hob switches off automatically and the power level indicator will show the two external parts or the two internal and the two external parts as active. When the temperature has reached a more appropriate level, this message disappears and the hob may be used again. Safety switch The appliance has a safety switch that automatically switches off the cooking zones when they have been in operation for a certain amount of time at a given power level. When the safety switch has been triggered, the display shows “0”. For example: the right rear hotplate is set to 5 and will switch off after 3 hours of continuous operation, while the front left hotplate is set to 2 and will switch off after 10 hours. Buzzer Can also indicate several irregularities: • An object (a pan, cutlery, etc.) has been placed on the control panel for more than 10 seconds. • Something has been spilt on the control panel. • A button has been pressed for too long. All of the above situations may cause the buzzer to sound. Remove the cause of the malfunction to stop the buzzer. The control panel locks automatically in the above situations. To unlock it press the [key icon] button, the settings will have been maintained. If the cause of the problem is not removed, the buzzer will keep sounding and the hob will switch off. • Make sure that the base of the cookware is always dry and clean, to fully utilise and extend the life of both the cooking zones and cookware.

The hob is equipped with three automatic cooking functions. The OIL and BUTTER functions can be activated on the rear left hand cooking zone. The SAUCE function can be activated on the front left hand cooking zone. SAUCE This function is designed for simmering sauces on a low heat. OIL Preheats oil without altering its properties before food is added to the pan. BUTTER Melts butter without altering its properties before food is added to the pan. Activating the automatic functions The cooking zone must be switched off. button at the side of

the display corresponding to the rear left hand cooking zone in order to activate the OIL and BUTTER function, or the button corresponding to the front left hand zone to activate the SAUCE function.

2. The display will show the specific menu dedicated

to that cooking zone.

3. Select the cooking function by pressing the

and buttons at the side of the display and press “OK” to start cooking. The power level indicator for the selected hotplate will display the different power levels during the automatic cooking function. Cooking with the automatic functions It is not possible to programme a cooking time when using the OIL and BUTTER cooking programmes. When the contents of the pan reach the optimal temperature, the hob buzzer will sound, two short beeps will be emitted every 15 seconds and the display will show the text AUTO OK. Food may then be placed in the pan in the OIL and BUTTER cooking programmes; the sound signal is interrupted and the automatic adjustment of the hob continues. When the SAUCE cooking programme is started the display requests that a duration is set. Adjust the minutes by pressing the and buttons at the side of the display and press “OK” to confirm.

The timer countdown for the SAUCE cooking programme begins once the optimal reduction temperature has been reached. When the set time has elapsed the cooking zone switches off. To modify the duration set previously, press the button at the side of the display corresponding to the cooking zone being used. Press the and buttons to select the “DURATION” option and press “OK” to confirm. Adjust the minutes by pressing the and buttons at the side of the display and press “OK” to modify the time. During the setting process, press the and buttons at the side of the display to reset the time value to zero. If a duration of 0:00 is set, the cooking zone will switch off as soon as the optimal temperature has been reached. To display the previously set function during the cooking programme, press the button at the side of the display corresponding to the cooking zone being used. The display will show the name of the active function and the remaining time, if set. The power level of the cooking zone cannot be modified while any of the automatic functions are in operation. If the manual controls are not adjusted, the automatic control maintains its temperature and both the visual and sound alarms continue. If you do not interrupt this automatic process within ten minutes, the hotplate switches off. The buzzer may be stopped by pressing any button on the hob. Deactivating the automatic functions Press the button at the side of the display corresponding to the cooking zone being used. Press the and buttons to select the active function and press “OK” to confirm. Select the OFF option by pressing the and buttons at the side of the display and press the “OK” button to stop the active function. Alternatively, the and buttons may be pressed simultaneously. The cooking zone will switch off. Precautions and tips This appliance has been designed and manufactured in compliance with international safety standards. The following warnings are provided for safety reasons and must be read carefully. This appliance conforms to the following European Economic Community directives: - 73/23/EEC dated 19/02/73 (Low Voltage) and subsequent amendments; - 89/336/EEC dated 03/05/89 (Electromagnetic Compatibility) and subsequent amendments; - 93/68/EEC dated 22/07/93 and subsequent amendments. - 2002/96/EEC General safety • The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use. • The appliance must not be installed outdoors, even in covered areas. It is extremely dangerous to leave the appliance exposed to rain and storms. • Do not touch the appliance with bare feet or with wet or damp hands and feet. • The appliance must be used by adults only for the preparation of food, in accordance with the instructions provided in this booklet. Do not use the hob as a worktop or chopping board. • The glass ceramic hob is resistant to mechanical shocks, but it may crack (or even break) if hit with a sharp object such as a tool. If this happens, disconnect the appliance from the electricity mains immediately and contact a Service Centre. • If the surface of the hob is cracked, switch off the appliance to prevent electric shocks from occurring. • Ensure that power supply cables of other electrical appliances do not come into contact with the hot parts of the hob. • Remember that the cooking zones remain relatively hot for at least thirty minutes after they have been switched off. An indicator light provides a warning when residual heat is present (see Start-up and use). • Keep any object which could melt away from the hob, for example plastic and aluminium objects, or products with a high sugar content. Be especially careful when using plastic film and aluminium foil or packaging: if placed on surfaces that are still hot, they may cause serious damage to the hob. • Always make sure that pan handles are turned towards the centre of the hob in order to avoid accidental burns. • When unplugging the appliance, always pull the plug from the mains socket; do not pull on the cable. • Never perform any cleaning or maintenance work without having disconnected the appliance from the electricity mains. • The appliance should not be operated by people (including children) with reduced physical, sensory or mental capacities, by inexperienced individuals or by anyone who is not familiar with the product. These individuals should, at the very least, be supervised by someone who assumes responsibility for their safety or receive preliminary instructions relating to the operation of the appliance. Disposal • When disposing of packaging material: observe local legislation so that the packaging may be reused. • The European Directive 2002/96/EC relating to Waste Electrical and Electronic Equipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the cost of re-using and recycling the materials inside the machine, while preventing potential damage to the atmosphere and to public health. The crossed-out dustbin is marked on all products to remind the owner of their obligations regarding separated waste collection. For further information relating to the correct disposal of exhausted household appliances, owners may contact the public service provided or their local dealer.

Care and maintenance

Switching the appliance off Disconnect your appliance from the electricity supply before carrying out any work on it. Cleaning the appliance Do not use abrasive or corrosive detergents (for example, products in spray cans for cleaning barbecues and ovens), stain removers, anti-rust products, powder detergents or sponges with abrasive surfaces: these may scratch the surface beyond repair. Never use steam cleaners or pressure cleaners on the appliance. • It is usually sufficient simply to wash the hob using a damp sponge and dry it with absorbent kitchen roll. • If the hob is particularly dirty, rub it with a special glass ceramic cleaning product, then rinse well and dry thoroughly. • To remove more stubborn dirt, use the scraper provided. Remove spills as soon as possible, without waiting for the appliance to cool, to avoid residues forming crusty deposits. You can obtain excellent results by using a rust-proof steel wire sponge - specifically designed for glass ceramic surfaces - soaked in soapy water. The scraper provided is sharp: be careful when using it. • If the plastic or sugary substances are accidentally melted on the hob, remove them immediately with the scraper, while the surface is still hot. • Once it is clean, the hob may be treated with a special protective maintenance product: the invisible film left by this product protects the surface from drips during cooking. This maintenance should be carried out while the appliance is warm (not hot) or cold. • Always remember to rinse the appliance well with clean water and dry it thoroughly: residues can become encrusted during subsequent cooking processes.

Stainless steel frame (only in models with outer frame) Stainless steel can be marked by hard water that has been left on the surface for a long time, or by cleaning products containing phosphorus. After cleaning, it is advisable to rinse the surface well and dry it thoroughly. If water is spilt on the surface, dry it quickly and thoroughly. Some hobs have an aluminium frame which is similar to stainless steel. Do not use any cleaning or degreasing products which are not suitable for use with aluminium. Disassembling the hob If it is necessary to disassemble the hob:

1. Loosen the screws fixing the alignment springs on

2. Loosen the screws holding the fixing hooks in

3. Take the hob out of its installation cavity.

Do not attempt to repair the appliance yourself. If the appliance breaks down, contact a Service Centre. Mode d’emploi
