SVC21 - Vacuum Cleaner PRIME3 - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	PRIME3
Model	SVC21
Power Consumption	700 W
Power Supply	220-240 V ~ 50/60 Hz
Dust Bag Type	Blaupunkt ACC042 or Swirl Y98
Filter Set	Prime3 SVC21.1 (includes inlet and outlet filters)
Nozzles Included	Multi-purpose brush nozzle, 2-in-1 crevice tool
Telescopic Tube	Yes, plastic
Hose Length	Approx. 1.5 m (estimated)
Cord Length	Approx. 5 m (estimated)
Dimensions (approx.)	35 x 28 x 25 cm (H x W x D)
Weight (approx.)	4.5 kg
Noise Level	Not specified
Dust Bag Capacity	Not specified (standard size for Y98)
Full Bag Indicator	Yes (visual indicator on hose handle)
Suction Control	Yes, on hose handle
Cord Rewind	Yes, automatic with foot pedal
Power Switch	Foot pedal on body
Filtration System	Inlet and outlet filters; replace outlet filter every 6-12 months
Safety Features	Overheat protection? Not specified; manual warns against vacuuming hot debris
Recommended Use	Domestic, dry surfaces only
Certifications	CE marked, compliant with EU LVD and EMC directives
Manufacturer Contact	2N-Everpol Sp. z o.o., [e-mail]

Frequently Asked Questions - SVC21 PRIME3

How do I replace the dust bag?

Open the bag compartment cover catch, remove the full bag, and insert a new one (Blaupunkt ACC042 or Swirl Y98). Ensure the bag is correctly seated before closing the cover.

When should I replace the filters?

Replace the inlet air filter every three bag replacements. The outlet air filter should be replaced every 6-12 months depending on usage.

Why is the suction power weak?

Check if the dust bag is full or if the filters are clogged. Also inspect the hose and nozzles for blockages. The full bag indicator (5) will light up when the bag needs changing.

Can I vacuum with a wet filter?

No. This vacuum is for dry surfaces only. Using it on damp or wet carpets can damage the appliance and create a shock hazard.

What should I avoid vacuuming?

Do not vacuum fine dust like flour, cement, or toner, nor hot debris such as ash, cigarette butts, or matches. These can damage the motor or cause a fire.

How do I rewind the power cord?

Press the cord reel button (6a) while holding the plug to prevent whipping. The cord will retract automatically.

Is this vacuum safe for pets?

Yes, but supervise pets around the device. Do not allow them to play with it. The vacuum should not be used to suck up pet fur excessively without regular filter cleaning.

What nozzles come with the SVC21?

It includes a multi-purpose brush nozzle and a 2-in-1 crevice tool for corners and upholstery.

Can I use an extension cord?

Yes, but ensure the extension cord rating is sufficient for the vacuum's 700W power and that it is arranged to avoid tripping hazards.

Where can I find spare parts?

Use the filter set Prime3 SVC21.1 and dust bags Blaupunkt ACC042 or Swirl Y98. Contact PRIME3 service at [e-mail] for further assistance.

USER MANUAL SVC21 PRIME3

White and black vacuum cleaner device with visible branding (no text or symbols on body)

Important notes

Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

Do not let cord hang over edge of counter, or touch any hot surface.

• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source without supervision.
• Never put the power cable, the plug or the whole device into the water or any other liquids.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric

heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

- Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorized repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Be careful not to pass the vacuum cleaner or suction brushes over the power cord.

• Do not vacuum without first ensuring that filters are installed correctly.
• You cannot vacuum very fine dust such as flour, cement, gypsum powder, toners, or dirt that may be hot, such as ash, cigarette butts, and matches.
• You should use the vacuum cleaner to clean dry surfaces only. Do not use the vacuum cleaner on damp and wet cleaned carpets and flooring.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL PARAMETERS

Power: 700W

Power supply: 220-240V\~50/60Hz

Filter set: Prime3 SVC21.1

Dust bag: Blaupunkt ACC042 or Swirl Y98 type

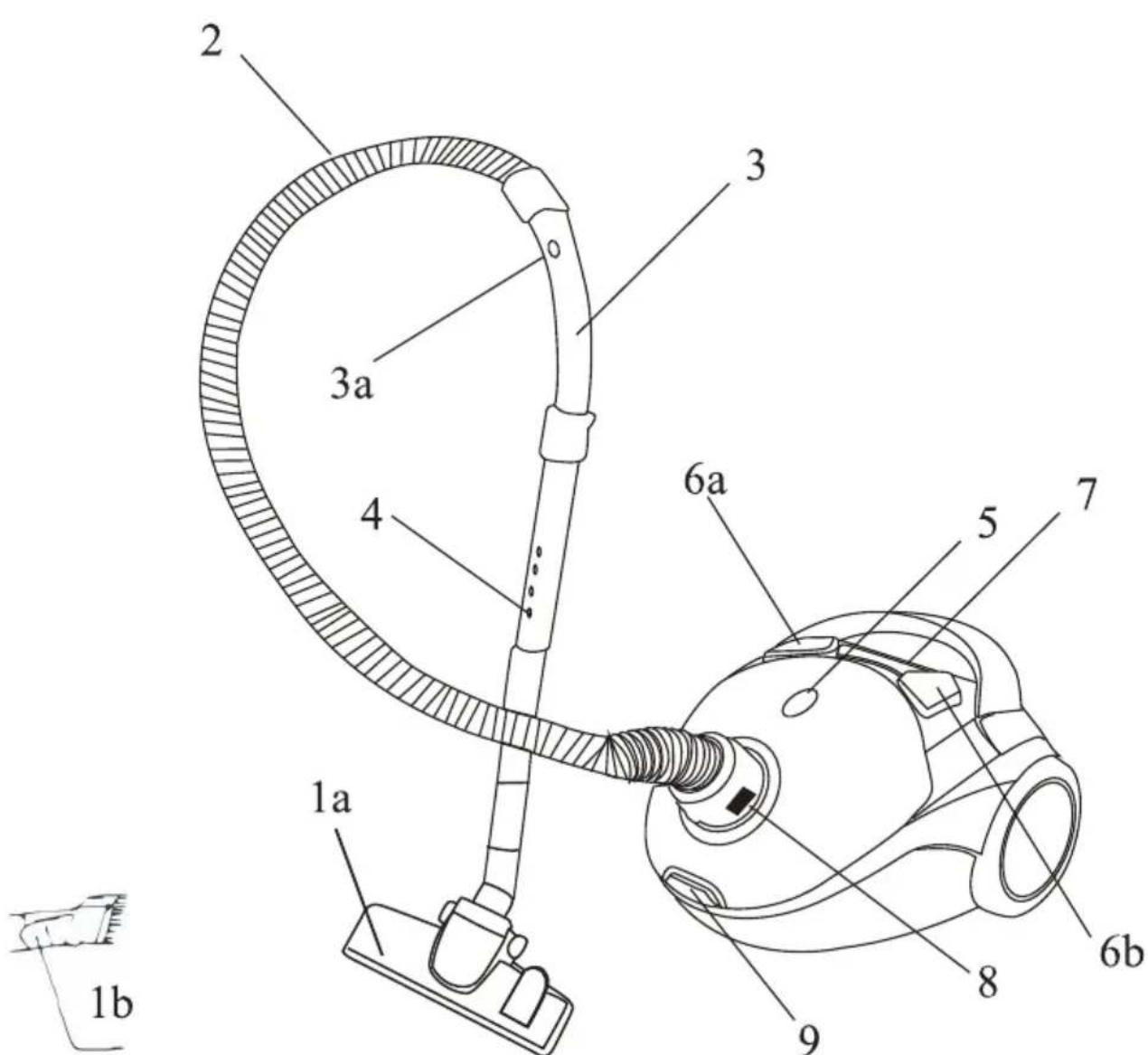

1. Nozzles:
   1a. Multi-purpose brush nozzle
   1b. 2-in-1 crevice tool
2. Plastic tube
3. Hose handle
   3a. Suction control on the hose handle

4. Hose

5. Full bag or airflow blockage indicator

6. Button:
   6a. cord reel
   6b. power switch
7. Air outlet grille with outlet filter
8. Hose connector
9. Bag compartment cover catch

PREPARATION OF THE VACUUM CLEANER FOR WORK

Make sure that the bag has been correctly placed into the vacuum cleaner compartment and it is not full. Insert the hose connector into the vacuum cleaner inlet and lock it. Connect the hose handle with the telescopic tube or nozzle. Put an appropriate nozzle on the telescopic tube. By grabbing the plug, unwind the power cord. Pay attention to the yellow band on the cord which signals the end of the cord. Connect the plug to a power socket. Turn on the vacuum cleaner with the switch button (6b).

WHEN THE VACUUM CLEANING IS DONE

Unplug the power cord from the wall socket. It is recommended that the cord be rewound by pressing the cord reel button (6a). Make sure that the cable is loose, it is not blocked by anything and gently hold the cord to prevent it from tangling and to avoid the strong impact of the plug on the housing. Disconnect the nozzle, tube and hose. Clean these parts. The vacuum cleaner may be stored in a vertical or horizontal position. Be careful not to bend the hose excessively, this may result in its deformation or damage.

CLEANING AND MAINTENANCE

Regularly clean the nozzle, tube, and hose from hair and other impurities. Wipe the body with a slightly damp cloth, then wipe until it is dry. Replacement of the bag is recommended when it seems to be full or when you feel a drop in suction power or when it is signalled by the full bag indicator (5). If you used a disposable bag, remove and discard it. Replace the inlet air filter once per three bag replacements. Included in the PRIME3 SVC21.1 set. Failure to replace the inlet air filter can lead to a decrease in the suction power, and in extreme cases in dust getting into the motor and damage to the appliance. Place the dust bag on the holder following the indications. It is recommended that the air outlet filter be replaced every 6-12 months depending on the intensity of use of the vacuum cleaner.

WICHTIGE INFORMATIONEN

White rectangular electronic device with a circular button and 'SPRING' branding (no visible text or symbols on body)

SAP51

White electronic device with black top panel and digital display (no visible text or symbols)

SAP52

White rectangular electronic device with black top and bottom edges, labeled 'EPRM' (no other text or symbols visible)

SAP81

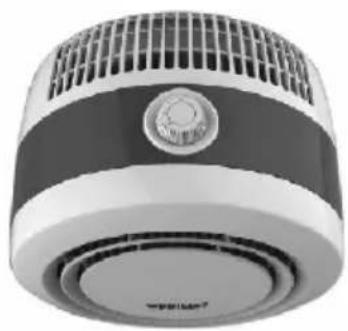

Close-up of a modern air purifier with a circular vent and control knob (no visible text or symbols)
