SVC61 - Uncategorized PRIME3 - Free user manual and instructions

Product Type	Cordless vacuum cleaner
Brand	PRIME3
Model	SVC61
Dimensions (H x W x D)	112 x 25 x 23.5 cm
Weight	3.1 kg
Power Supply Voltage	DC 26 V, 0.5 A
Charger Input	100-240 V ~50/60 Hz
Battery Type	Lithium-ion
Charging Time	4-5 hours
Runtime (Max Power)	15 minutes
Runtime (Min Power)	40 minutes
Dust Container Capacity	0.5 L
Suction Power Settings	2
Filter Type	Pre-filter and HEPA filter
Included Accessories	Universal floor electro-brush, long crevice nozzle, wall bracket
Maintenance	Clean filters after each use; replace HEPA filter every 4 months
Safety Certifications	CE, WEEE
Color	Black and silver with orange handle and blue base
Manufacturer	PRIME3, 2N-Everpol Sp. z o.o., Warsaw, Poland

Frequently Asked Questions - SVC61 PRIME3

How do I charge the vacuum cleaner?

Connect the power cord to the charging socket on the vacuum cleaner and the power adapter to a mains outlet. The battery will charge fully in 4-5 hours.

How long does the battery last?

A fully charged battery provides approximately 15 minutes of operation at maximum suction power and up to 40 minutes at lower suction power.

How do I empty the dust container?

Press the container opening button; the flap will drop down and eject the dust. For thorough cleaning, detach the dust container, unscrew the filter, and empty it completely.

How do I clean the filters?

Clean the pre-filter and HEPA filter each time you empty the dust container. Rinse them under running water and let them dry completely before reinserting.

How often should I replace the HEPA filter?

It is recommended to replace the HEPA filter every 4 months, depending on frequency of use.

Can I use the vacuum cleaner on wet surfaces?

No, this vacuum cleaner is designed for dry surfaces only. Do not use it on damp or wet carpets or flooring.

What should I not vacuum?

Avoid vacuuming very fine dust (flour, cement, gypsum), hot dirt (ash, cigarette butts, matches), or any liquids. These can damage the device.

How do I adjust the suction power?

Press the suction power adjustment button on the handle to switch between two power levels: maximum for strong suction, lower for longer runtime.

What accessories are included?

The package includes a universal floor electro-brush, a long crevice nozzle, and a wall bracket for storage.

How do I store the vacuum cleaner?

Use the included wall bracket to store the device. Ensure the dust container is empty and the battery is charged before storing.

USER MANUAL SVC61 PRIME3

Black and silver vacuum cleaner with orange handle and blue base (no text or symbols visible)

Owner's manual

Bedienungsanleitung

Instrukcja obsługi

Cordless vacuum cleaner

Akku-Staubsauger

Three technical diagrams showing electrical components: a plug, cable, and socket (no text or symbols)

Fig. 1

Fig. 2

Fig. 3

IMPORTANT NOTES

• Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.
  • This device is for domestic use only. Do not use for any other purposes.
• The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.
• Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.
• This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks.
• The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.
• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.
• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.
• Never use the product close to combustibles.
• Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).
• Only Original accessories should be used, as well as accessories recommended by the manufacturer.
• Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• The AC adapter should be connected to an outlet with characteristics consistent with the values on the rating label.

• If the cord or power plug or adaptor is damaged or the plug has a loose electrical outlet, do not charge the device and do not power it from the mains.

• Unplug the AC adapter from the electrical outlet when not in use.
• Do not connect or disconnect the adaptor from the power source with wet hands.
• Do not vacuum without first ensuring that filters are installed correctly.
• You cannot vacuum very fine dust such as flour, cement, gypsum powder, toners, or dirt that may be hot, such as ash, cigarette butts, and matches.
• You should use the vacuum cleaner to clean dry surfaces only.
• Do not use the vacuum cleaner on damp and wet cleaned carpets and flooring.
• Keep the cable out of reach of children and babies to avoid the risk of electrocution and strangulation, keep the appliance and its cable out of the reach of children under 8 years of age.

CE

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating labe

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment

TECHNICAL SPECIFICATIONS OF THE POWER SUPPLY UNIT

Shenzhen CHANZEHO Technology Co., Limited

CHANZEHO Technology Park114-1 Longxing North Road, Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

• Input voltage: 100-240 V \~50/60 Hz
• Maximum output current: 0,5A 13 W
• Average active efficiency: 85.49 %
• No-load power consumption: <0,085 W

1. Suction cups:

a) Universal floor electro-brush
b) Long crevice nozzle

1. Power cord with power adapter
2. Handle
3. Lithium battery pack
4. Charging socket
5. Battery pack release buttons
6. Power on/off switch button
   8 Suction power adjustment button

DEVICE SPECIFICATIONS

• Power Supply: DC 26 V, 0,5 A
• Filter Set: Blaupunkt ACC071
- Two suction power settings
• Dust container 0.5 l
• Dimensions: 112 x 25 x 23.5 cm
- Weight: 3.1 kg

1. Button for opening the dust container
2. Tube fixing element
3. Dust container

a) Container
b) Container cover latch
c) Container attachment latch
d) Pre-filter
e) HEPA filter
f) Knob of cleaning the HEPA filter
12. Wall bracket for storing the device

BEFORE STARTING THE VACCUUM CLEANER

To charge the vacuum cleaner's battery, plug the power cord into the vacuum cleaner's power socket, and the power adapter into an electrical outlet. Charging takes up to 4-5 hours.

Make sure that the vacuum cleaner's dust chamber is empty and the filters are correctly inserted.

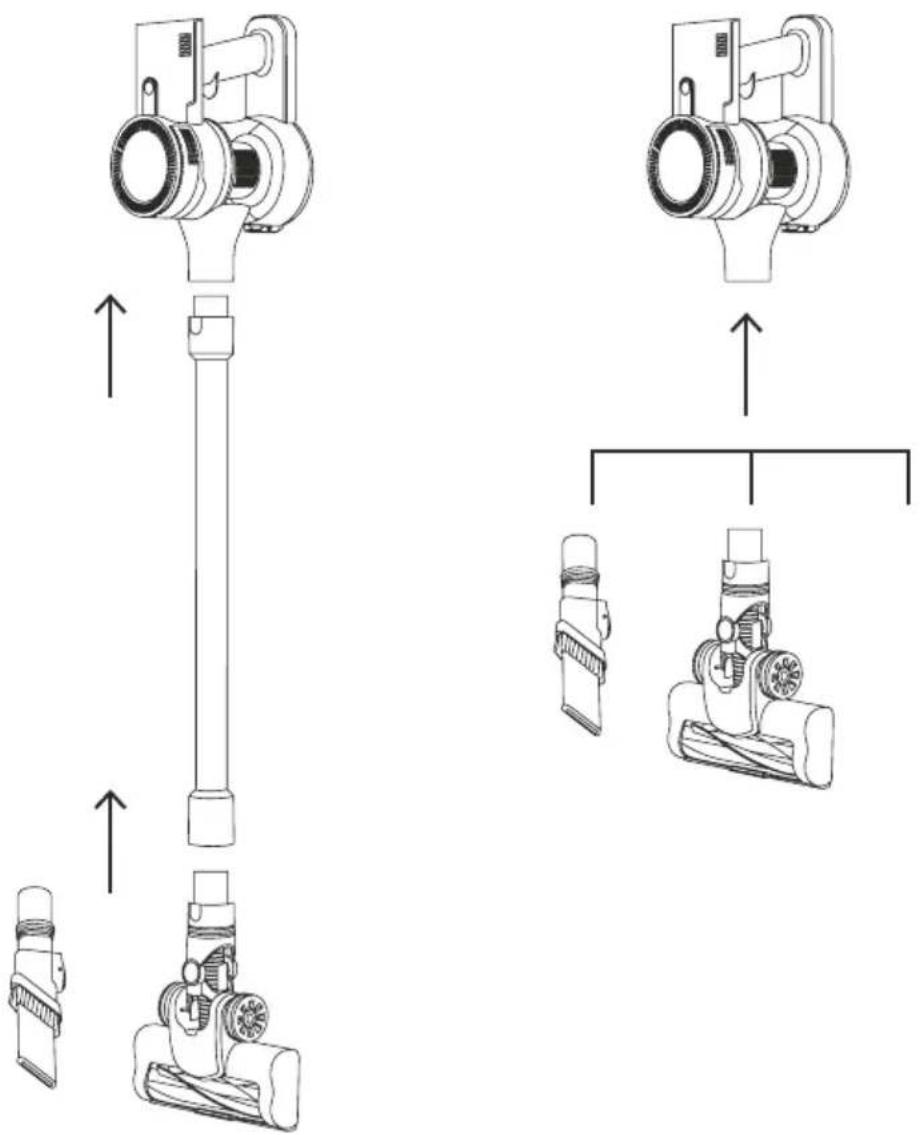

Attach the hose and the general-purpose nozzle brush with the power brush or the crevice nozzle.

To switch on the vacuum cleaner, press the power button. To adjust the suction power, press the suction-adjustment button. A fully charged battery provides approximately 15 minutes of operation with maximum suction power, or 40 minutes with less suction power.

AFTER VACUUMING

Remove the nozzle. Clean the accessories. Empty the container.

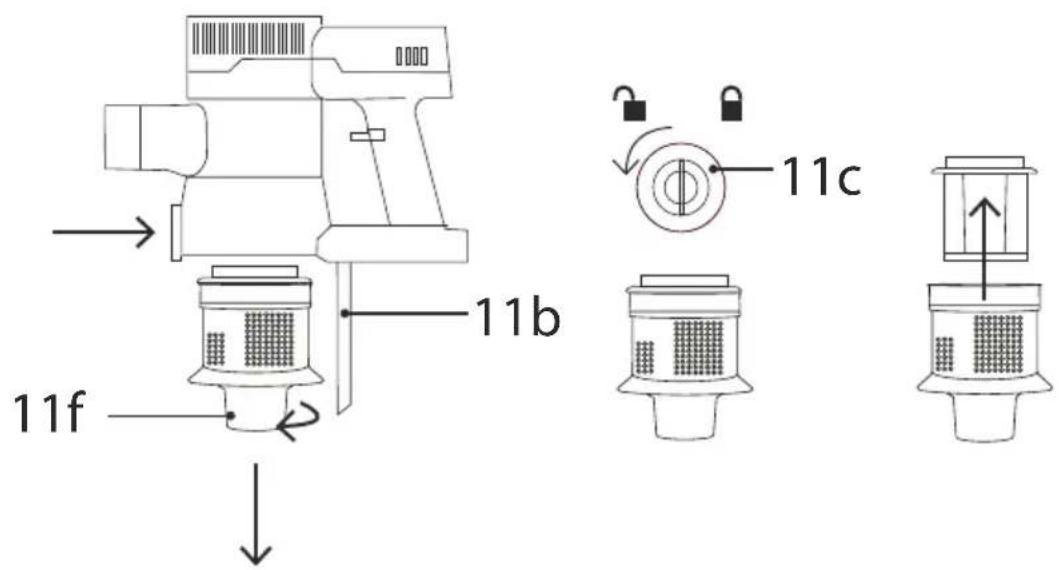

EMPTYING THE DUST CONTAINER

To open the dust container, press the container opening button. When the button is pressed, the flap that closes the container will drop down and eject the collected dust.

To thoroughly clean the container, detach the dust container part from the motor part, detach the filter by unscrewing it according to the picture diagram.

CLEANING AND MAINTENANCE

Clean the nozzles and container and remove the dust on a regular basis.

The main unit can be wiped with a damp cloth and then immediately wiped dry.

Clean the filters each time you empty the dust container. It is recommended to clean the filters thoroughly under running water. After cleaning the filters, replace them only when they are completely dry.

It is recommended to replace the HEPA filter every 4 months, depending on the frequency of use.

Replace the filters according to the instructions provided in the section on emptying the container.

WICHTIGE INFORMATIONEN

CHANZEHO Technology Park114-1 Longxing North Road,

Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen, Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

CHANZEHO Technology Park114-1 Longxing North

Road,

Longtian Community

Longtian Street, Pingshan District 518118 Shenzhen,

Guangdong

PEOPLE'S REPUBLIC OF CHINA

CZH013260050EUWH

Replace the filters according to the instructions provided in the section on emptying the container.

PRIME ^3

2N-Everpol Sp. z o.o.

ul. Pulawska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.prime3.pl

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
