SSF41 - Fan PRIME3 - Free user manual and instructions

Product Type	Floor Fan
Brand	PRIME3
Model	SSF41
Dimensions (Height x Width x Depth)	Approx. 120 x 40 x 40 cm
Weight	Approx. 2.5 kg
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	50 Watts (max)
Number of Speed Settings	3
Oscillation	Yes, 90° wide-angle
Timer Function	Up to 2 hours
Adjustable Height	Yes, telescopic pole
Blade Diameter	16 inches (approx. 40 cm)
Remote Control	Included
Noise Level	Approx. 60 dB (max speed)
Material	ABS plastic, metal stand
Cleaning and Maintenance	Wipe with a damp cloth; do not immerse in water
Safety Features	Overheat protection, tip-over switch
Certifications	CE, RoHS
Spare Parts Availability	Replacement blades and motor available via support
Warranty	1 year limited warranty

Frequently Asked Questions - SSF41 PRIME3

How do I assemble the PRIME3 SSF41 fan?

Refer to the manual for detailed steps. Generally, attach the base to the pole, then the motor housing, and finally the fan blades and front grille. Tighten all screws securely.

Can I control the fan without the remote?

Yes, the fan has manual buttons on the control panel for power, speed, oscillation, and timer.

How do I clean the fan?

Unplug the fan. Use a soft, damp cloth to wipe the grille and blades. Do not use harsh chemicals or immerse any part in water.

What should I do if the fan makes a loud noise?

Check if the blades are properly attached and balanced. Ensure the fan is on a level surface. If noise persists, contact support.

Does the fan have a timer function?

Yes, the SSF41 has a timer that can be set up to 2 hours. Use the remote or control panel to set it.

Is the fan safe to use in a bathroom?

No, this fan is not rated for use in wet or humid environments. Keep it away from water to avoid electrical hazards.

How do I enable oscillation?

Press the oscillation button on the control panel or remote. The fan will swing left and right. Press again to stop.

What is the maximum height of the fan?

The telescopic pole allows height adjustment from approximately 100 cm to 130 cm.

Can I replace the fan blades?

Yes, replacement blades are available. Contact PRIME3 customer service for compatible parts.

Why is the fan not turning on?

Check that it is plugged in and the power outlet is working. Ensure the fuse in the plug is intact. If using the remote, try the manual buttons. If still not working, contact support.

USER MANUAL SSF41 PRIME3

White outdoor fan with a circular grille and four legs, standing on a stand (no text or symbols visible)

Owner's manual

Bedienungsanleitung

Instrukcja obsługi

Stand fan

Stehender Lüfter

Wentylator stojący

Efficiency information

SSF41
Description	Symbol	Value	Unit
Maximum fan flow rate	F	64,22	m3/min
Fan power input	P	54	W
Service value	SV	1,19	(m3/min)/W
Standby power consumption	PSB	0	W
Fan sound power level	LwA	59,3	dB(A)
Maximum air velocity	C	2,59	meters/sec
Measurement standard for service value	IEC 60879: 1986
Contact details for obtaining more information	2N-Everpol Sp. z o.o.ul. Puławska 403A02-801 Warsaw, Polandphone: [phone]e-mail: [e-mail]

Important notes

• Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.
• This device is for domestic use only. Do not use for any other purposes.
• The device should only be connected to an socket with values corresponding to the values on the rating label.
• It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.
• If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating.
  Extension cords should be arranged in such a way as to avoid tripping hazards.
• Do not let cord hang over edge of counter, or touch any hot surface.
• The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.
• Before maintenance work always disconnect the unit from the power supply.
• When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.
  Damage to the power cord or plug can lead to an electrocution hazard.
• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

- Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

- Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not block the airflow or cover the device. Regularly clean the fan of dust so that dirt does not block the air flow.
• Do not insert any objects between the machine's protective grilles.
• Do not use the fan in rooms with high humidity, such as bathrooms, etc. Do not place the fan in places where it could fall into a bathtub, wash basin or other water tank.
• Never use the fan without the fan grilles installed.
• Do not turn on the fan if it is not assembled properly, particularly when fan grilles are not installed.
• Do not place the fan near curtains or other objects that can get accidentally caught by the fan.

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)
  Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data:

Power: 55 W

Power supply: 220-240 V \~50 Hz

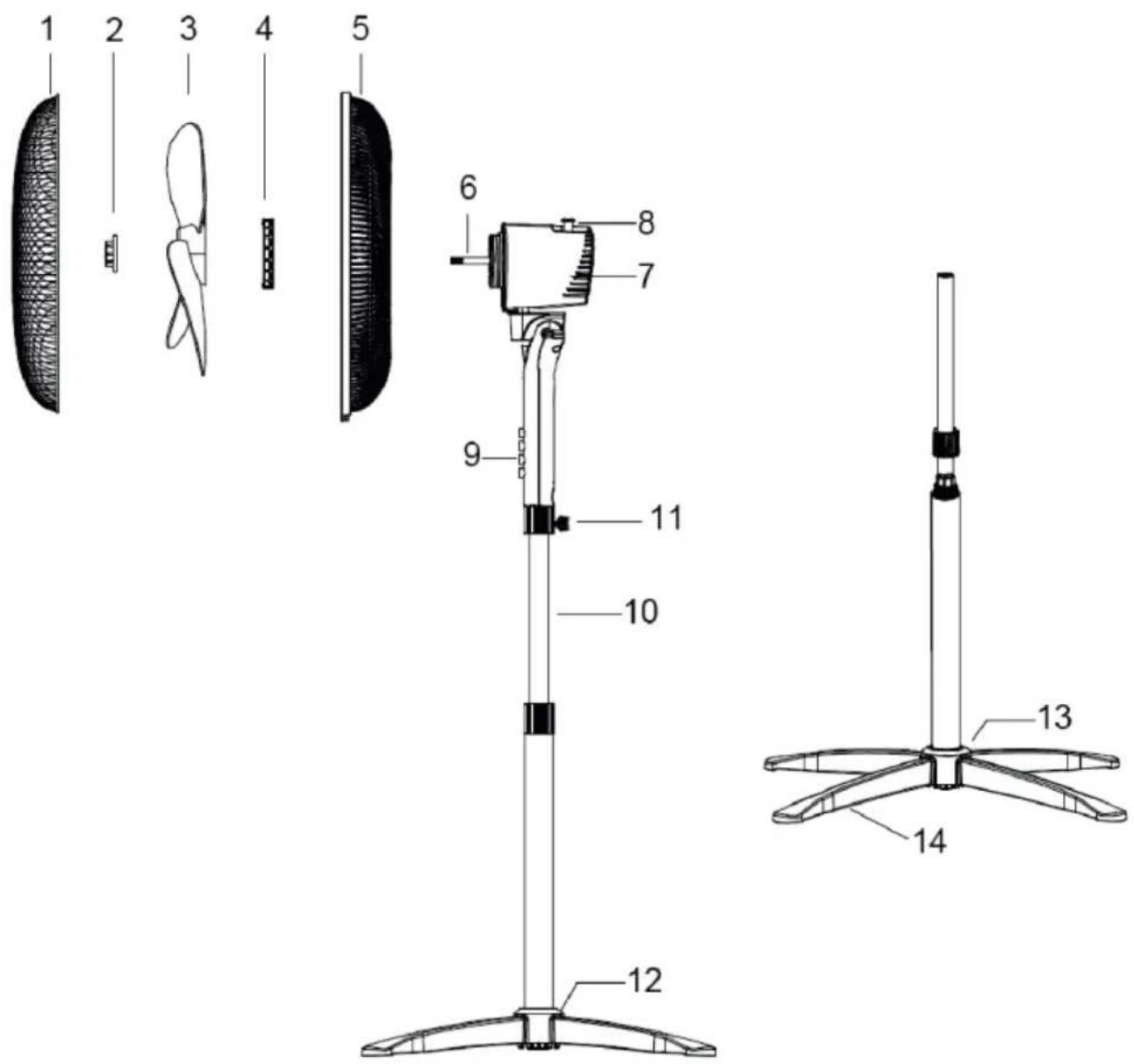

1. Front guard
2. Blade nut
3. Fan blade
4. Back guard fixing nut
5. Back guard
6. Motor shaft stem

7. Motor housing

8. Oscillation lock

9. Guard fixing screw
10. Control panel with push buttons
11. Telescopic fan stand
12. Fan stand's height locking screw
13. Fan base screw cap
14. Fan foot mounting screws
15. Fan feet

APPLIANCE ASSEMBLY AND DISASSEMBLY

1. Make sure the appliance is disconnected from the power source.
2. Assembly:
   a) Arrange the fan feet (15) on a flat surface so that they form a cross base
   b) Place the fan stand (11) on the cross base (15) and fasten it with screws (14)
   c) Install the cap (13) of the fan base screws on the stand, so that it covers the screws
   d) Adjust the height of the stand (11) and screw in the locking screw (12)
   e) Mount the motor housing (7) on the fan stand (11)
   f) Install the back guard (5) on the motor body (pay attention to the notches).
   g) Install the back guard mounting nut (4).
   h) Install the fan blade (3) paying attention to the notches in the stem (6) and in the blade centre opening.
   i) Tighten the the blade fixing nut (2)
   j) Install the front guard (1) by fitting its edge into the catches on the back guard. Then, secure it by tightening the guard fixing screw (9).
3. Disassembly:
   a) Perform the disassembly in the reverse order of the assembly procedure.

FAN OPERATION

1. Before connecting the fan to the power supply, make sure that the button on the control panel is set to 0. Connect the appliance to the power supply.
2. To start the fan, press one of the buttons on the control panel:

1 - low speed
2 - medium speed
3 - high speed
3. To turn off the fan, press the 0 button on the control panel.
4. Oscillation. To enable the fan's oscillation movement, press the oscillation lock. To disable the fan's oscillation movement, lift the oscillation lock.
5. Vertical tilt adjustment. To change the fan tilt, hold the appliance in position and tilt the motor body.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure that the fan has been disconnected from the power source.

The fan should be cleaned regularly. Body, posture should be wiped with a dry cloth. The interior should be blown out with compressed air or vacuumed with a vacuum cleaner.

White portable air purifier with ventilation slots and a black lid (no visible text or symbols)

SAC41

White electronic device with a circular button and 'SPMS' logo (no readable text beyond branding)

SAP41

Front view of a white appliance with a digital display and control buttons (no visible text or symbols)

SAP51

White rectangular electronic device with black top and bottom edges, no visible text or symbols on body

SAP81

PRIME ^3

2N-Everpol Sp. z o.o.

ul. Pulawska 403A

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.prime3.pl

In case of questions or problems

please contact our service.

Tel.[phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
