Product Type	Range Hood
Brand	Thermex
Model	Glasgow
Width	600 mm
Depth	500 mm
Height (min - max)	600 - 1100 mm
Weight	12 kg
Power Supply	220-240 V ~ 50 Hz
Rated Power	200 W
Motor Power	180 W
Number of Motors	1
Fan Speeds	3
Maximum Extraction Rate	650 m³/h
Noise Level (max speed)	65 dB(A)
Lighting	2 x 3 W LED
Filter Type	Aluminium Grease Filter
Charcoal Filter (optional)	Yes, for recirculation mode
Control Type	Push buttons
Duct Diameter	150 mm
Installation Type	Wall-mounted
Operation Modes	Ducted / Recirculating
Maintenance	Clean grease filter monthly
Spare Parts Available	Filters, LED bulbs, motor

Frequently Asked Questions - Glasgow Thermex

How do I install the Thermex Glasgow range hood?

Installation should be done by a qualified professional. Ensure the hood is mounted securely on a wall at least 65 cm above an electric hob or 75 cm above a gas hob. Use the provided template and screws. Connect to a 220-240V power supply. For ducted mode, connect to a 150 mm duct. For recirculating mode, install charcoal filters.

How do I clean the grease filter?

Remove the grease filter by releasing the clips. Wash it in warm soapy water or in a dishwasher at low temperature. Dry thoroughly before reinstalling. Clean monthly or more often with heavy use.

How do I replace the charcoal filter?

Charcoal filters are used in recirculating mode. Remove the grease filter first, then slide out the old charcoal filter and insert a new one. Replace every 3-6 months depending on usage.

How do I change the LED bulbs?

Ensure the hood is off and cool. Access the lamp housing, remove the old LED bulb gently, and insert a new compatible LED bulb (3W G4). Do not touch the bulb with bare hands.

Why is my range hood not working?

Check the power supply and ensure the plug is inserted. Check if the fuse or circuit breaker has tripped. If still not working, contact Thermex customer service.

How to reduce noise from the range hood?

Ensure the hood is properly installed and not vibrating against cabinets. Clean the filters regularly. Use lower fan speeds for quieter operation. Check for loose parts.

Can I use the hood without a duct?

Yes, the Thermex Glasgow can be used in recirculating mode with activated charcoal filters. These filters remove odours and recirculate clean air back into the kitchen.

What is the extraction rate?

The maximum extraction rate is 650 m³/h, suitable for kitchens up to 20 m². Use higher speeds for stronger odours or steam.

How often should I maintain the hood?

Clean the exterior regularly. Grease filter: monthly. Charcoal filter: every 3-6 months. Check and clean the fan as needed. Wipe the control panel with a damp cloth.

Where can I buy spare parts?

Spare parts such as filters, LED bulbs, and motors can be purchased from Thermex authorized dealers or online through the Thermex website. Use only genuine parts.

USER MANUAL Glasgow Thermex

SAFETY INSTRUCTIONS 2

INSTALLATION (VENT OUTSIDE) 4

TROUBLESHOOTING 8

MAINTENANCE AND CLEANING 8

ENVIRONMENTAL PROTECTION:....11

SAFETY INSTRUCTIONS

This manual explains the proper installation and use of your cooker hood, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference.

Never to do:

• Do not try to use the cooker hood without the grease filters or if the filters are excessively greasy!
  ● Do not install above a cooker with a high level grill.
• Do not leave frying pans unattended during use because overheated fats or oils might catch fire.
  ● Never leave naked flames under the cooker hood.

• If the cooker hood is damaged, do not attempt to use.
  ● Do not flambé under the cooker hood.
  ● CAUTION: Accessible parts may become hot when used with cooking appliances.
  ● The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, this distance shall be at least 65 cm)
  ● The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.

Always to do:

● Important! Always switch off the electricity supply at the mains during installation and maintenance such as light bulb replacement.
● The cooker hood must be installed in accordance with the installation instructions and all measurements followed.
● All installation work must be carried out by a competent person or qualified electrician.
● Please dispose of the packing material carefully. Children are vulnerable to it.
● Pay attention to the sharp edges inside the cooker hood especially during installation and cleaning.
● Make sure the ducting has no bends sharper than 90 degrees as this will reduce the efficiency of the cooker hood.
●Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards
● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Always put lids on pots and pans when cooking on a gas cooker.
- When in extraction mode, air in the room is being removed by the cooker hood. Please make sure that proper ventilation measures are being observed. The cooker hood removes odours from room but not steam.
● Cooker hood is for domestic use only.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  ● This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

● Warning: Before obtaining access to terminals, all supply circuits must be disconnected.

Always to do:

● Caution: The appliance and its accessible parts can become hot during operation. Be careful to avoid touching the heating elements. Children younger than 8 years old should stay away unless they are under permanent supervision.
● There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
● There is a fire risk if cleaning is not carried out in accordance with the instructions
● Regulations concerning the discharge of air have to be fulfilled.
● Clean your appliance periodically by following the method given in the chapter MAINTENANCE.
● For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
● Regarding the details about the method and frequency of cleaning, please refer to maintenance and cleaning section in the instruction manual.
●Cleaning and user maintenance shall not be made by children without supervision.
- When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
● WARNING: Danger of fire: do not store items on the cooking surfaces.
●A steam cleaner is not to be used.
● NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

INSTALLATION (VENT OUTSIDE)

MOUNTING OF THE V-FLAP

If the cooker hood does not have an assembled V-flap 1, you should mount the half-parts to its body. The images only show an example of how to mount the V-flap, the outlet may be various according to different models and configuration.

To mount the V-flap 1 you should:

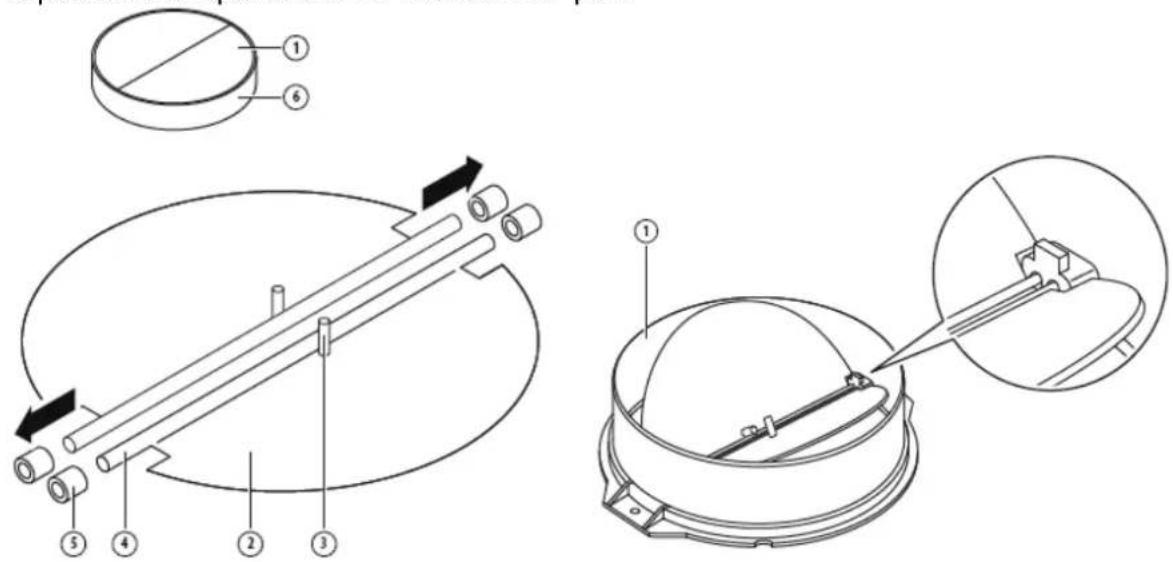

• Mount two half-parts 2 into the body 6
• a pin 3 should be top oriented;
• the axis 4 should be inserted in the holes 5 on body;
• repeat all the operations for the 2nd half-part

INSTALLATION

If you have an outlet to the outside, your cooker hood can be connected as below picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-flammable material with an interior diameter of 150mm)

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

1. Before installation, turn the unit off and unplug it from the outlet.

1. The cooker hood should be placed at a distance of 65\~75cm above the cooking surface for best effect.

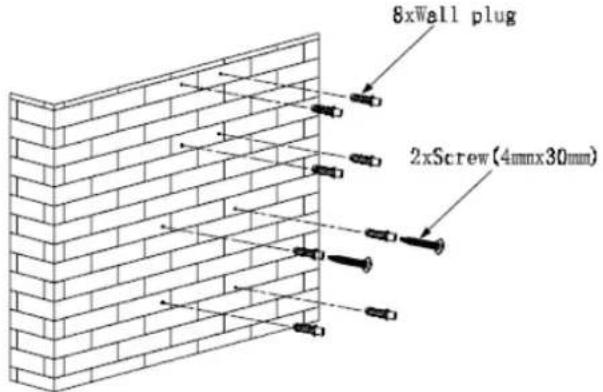

1. After confirm the installation height of the hood, and then, fix the installation hole for the hood, inside chimney bracket and safety hole as per the hood size. Make the holes on the wall.

Pic. 2

1. Install the expansion pipe onto the cooker hood and tie it with cable tie.

1. Install the chimney bracket on the chimney.

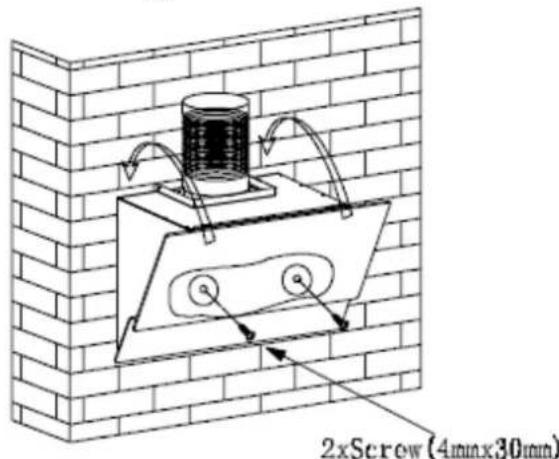

1. Make the hood hang on the wall in the fixed position, adjusting the cooker hood position, fix the cooker hood with screws (safety screws). Note: The two safety vents are positioned on the back housing, with diameter of 6mm.

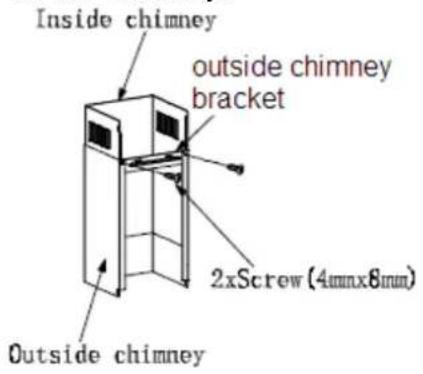

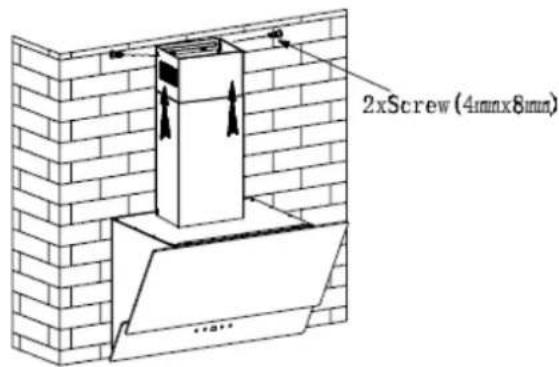

1. Fix the chimneys onto the cooker hood: Use 2pcs of ST4*8mm screws to fix the outside chimney bracket onto the cooker hood, then fix the outside chimney bracket on the wall by ST4*40mm screws.

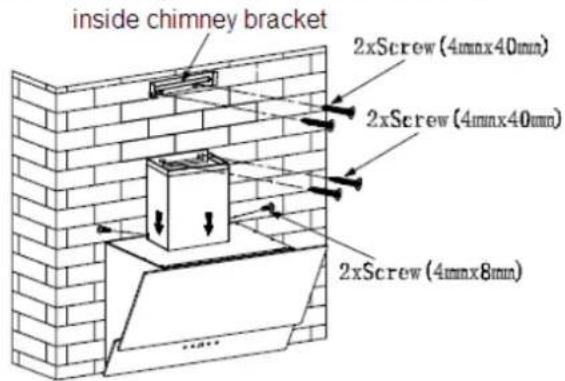

2. Adjust the height of the inside chimney to the position of the inside chimney bracket and fix on it by 2pcs ST4*8mm screws.

HINTS FOR EXHAUST DUCT INSTALLATION

The following rules must be strictly followed to obtain optimal air extraction:

• Keep exhaust duct short and straight
• Do not reduce the size or restrict exhaust duct
• When using flexible duct always install the duct pulled taut to minimize pressure loss
• Failure to observe these basic instructions will reduce the performance and increase noise levels of the range hood.
• Any installation work must be carried out by a qualified electrician or competent person.

- Do not connect the ducting system of the hood to any existing ventilation system which is being used for any other appliance, such as warmer tube, gas tube, hot wind tube.

•The angle of the bend of the ventilation pipe should not be less than 120^ ; you must direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point and should be led to an outer wall.

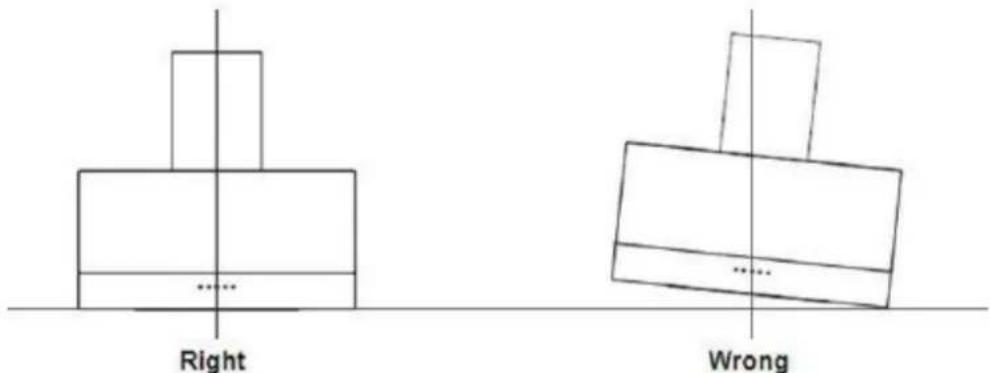

•After the installation, make sure that the cooker hood is level to avoid grease collection at on end.

Ensure the exhaust ducting selected for installation complies with relevant standards and is fire retardant.

WARNING:

For safety reason, please use only the same size of fixing or mounting screw which are recommended in this instruction manual.
Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

Start Using Your Cooker Hood

Touch control with LED display

Timer

Lamp

Speed

Power

1. Press the "Power" button, the button control the "on" & "off" of the hood.
2. Press the button "Speed" time after time, the motor runs as low / mid / high / low / mid..., the speed runs circularly; and the LED display will indicate as 1-2-3-1-2... circularly.
3. Press "Lamp" button, the light is on, press this button again, the light is off. Please note the Lamp is not under control of the on/off button.
4. When the hood is working, if press the "Timer" button, the hood will go into the status of acquiescent working (acquiescent time is 9mins), and then, LED display will be shown 9.8.7.6 ...decreasing by 1,when time is up, the hood will be off automatically and the lamp will extinguish. If pressing "Timer" button, the hood will go in or go out "Timer" function.

TROUBLESHOOTING

Fault Possible Cause Solution
Light on, but motor does not work	Fan switch turned off	Select a fan switch position.
	Fan switch failed	Contact service center.
	Motor failed	Contact service center.
Light does not work, motor does not work	House fuses blown	Reset/Replace fuses.
	Power cord loose or disconnected	Refit cord to power outlet.Switch power outlet on.
Oil leakage	One way valve and the outlet are not tightly sealed	Take down the one way valve and seal with sealant.
	Leakage from the connection of chimney and cover	Take chimney down and seal.
Lights not working	Broken/Faulty globes	Replace globes as per this instruction.
Insufficient suction	The distance between the range hood and the gas top is too far	Refit the range hood to the correct distance.
The Range hood inclines	The fixing screw not tight enough	Tighten the hanging screw and make it horizontal.

NOTE:

Any electrical repairs to this appliance must conform to your local, state and federal laws. Please contact the service centre if in any doubt before

undertaking any of the above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCE AND CLEANING

Caution:

- Before maintenance or cleaning is carried out, the cooker hood should be disconnected from the main power supply. Ensure that the cooker hood is switched off at the wall socket and the plug removed.

Abstract line drawing of a stylized animal figure with a cat and a pig, no text or symbols present

- External surfaces are susceptible to scratches and abrasions, so please follow the cleaning instructions to ensure the best possible result is achieved without damage.

GENERAL

Cleaning and maintenance should be carried out with the appliance cold especially when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on the surfaces.

STAINLESS STEEL

The stainless steel must be cleaned regularly (e.g.weekly) to ensure long life expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may be used.

NOTE:

Ensure that wiping is done along with the grain of the stainless steel to prevent any unsightly crisscross scratching patterns from appearing.

CONTROL PANEL SURFACE

The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is clean and well wrung before cleaning. Use a dry soft cloth to remove any excess moisture left after cleaning.

Important

Using neutral detergents and avoid using harsh cleaning chemicals, strong household detergents or products containing abrasives, as this will affect the appliance appearance and potentially remove any printing of artwork on the control panel and will void manufactures warrantee.

GREASE MESH FILTERS

The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a grease-loosening detergent then brush it gently with a soft brush. Please do not apply too much pressure, avoid to damage it . (Leave to dry naturally out of direct sun light)

Filters should be washed separately to crockery and kitchen utensils. it is advisable not to use rinse aid.

INSTALLING GREASE MESH FILTERS

• To install filters for the following four steps.
- Angle the filter into slots at the back of the hood.
- Push the button on handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

CARBON FILTER

Activated carbon filter can be used to trap odors. Normally the activated carbon filter should be changed at three or six months according to your cooking habit. The installation procedure of activated carbon filter is as below.

1. Before installing or replacing the carbon filters, please remove power to the unit.

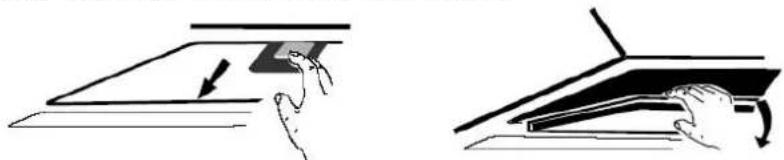

2. Press the filter lock and remove the mesh filter.

Two-step diagram showing hand pressing down on a flat surface, with arrows indicating direction (no text or symbols)

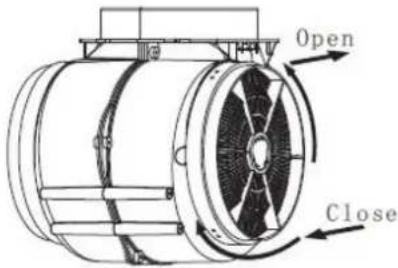

1. Turn the carbon filter on both side of the motor anti-clockwise. Replace the carbon filters with the new carbon filters.

2. Place the mesh filter.

3. Connect the power supply to the wall socket.

NOTE:

• Make sure the filter is securely locked. Otherwise, it would loosen and cause dangerous.
• When activated carbon filter attached, the suction power will be lowered.

BULB REPLACEMENT

Important :

The bulb must be replaced by the manufacturer, its service agent or similarly qualified persons.
* Always switch off the electricity supply before carrying out any operations on the appliance. When handling bulb, make sure it is completely cool down before any direct contact to hands.
When handling globes hold with a cloth or gloves to ensure perspiration does not come in contact with the globe as this can reduce the life of the globe.

Note:

● Before changing the lights, make sure that the appliance is plugged off.
● Protect against danger when changing lights, such as wearing gloves.

Changing the lights:

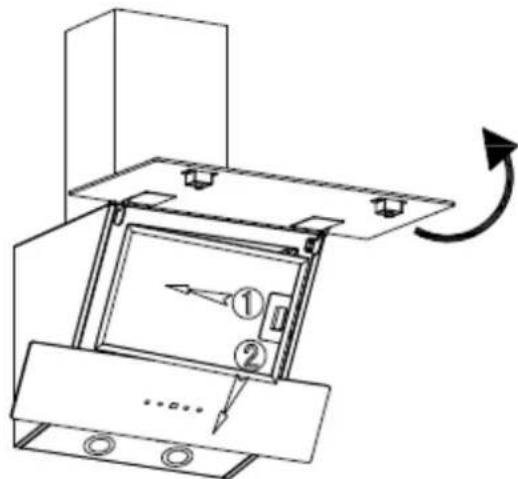

• Open the upper glass and remove the aluminium filter, put a hand into the cavity and slightly pull one end of the LED light out.
• Use another hand to pull the light out from the outside, then take out the lighting fixture and dismantle the terminal of the light connecting wire.
• Apply the reverse procedure to install the light back.

Mechanical assembly diagram showing a rotating component with arrows indicating motion direction (no text or labels)

Pic 1

Diagram of a ceiling lamp with internal components and directional arrows indicating assembly (no text or symbols)

Pic 2

ENVIRONMENTAL PROTECTION:

This product is marked with the symbol on the selective sorting of waste electronic equipment. This means that this product must not be disposed of with household waste but must be supported by a system of selective collection in accordance with Directive 2012/19/EU. It will then be recycled or dismantled to minimize impacts on the environment, electrical and electronic products are potentially dangerous for the environment and human health due to the presence of hazardous substances. For more information, please contact your local or regional authorities.

NOTE:

The following shows how to reduce total environmental impact (e.g. energy use) of the cooking process).

(1) Install the cooker hood in a proper place where there is efficient ventilation.
(2) Clean the cooker hood regularly so as not to block the airway.
(3) Remember to switch off the cooker hood light after cooking.
(4) Remember to switch off the cooker hood after cooking.

INFORMATION FOR DISMANTLING

Do not dismantle the appliance in a way which is not shown in the user manual. The appliance could not be dismantled by user. At the end of life, the appliance should not be disposed of with household waste. Check with you Local Authority or retainer for recycling advice.

INNEHÅLL

INNEHÅLL....12

SÄKERHETSFÖRESKRIFTER....13

INSTALLATION (VENTIL UTOMHUS) 15

FELSÖKNING 19

UNDERHÅLL OCH RENGÖRING 19

MILJÖSKYDD: 22

SÄKERHETSFÖRESKRIFTER

Black and white pictogram showing a person crossed out of a diagonal line, no text or symbols present

INSTALLATION (VENTIL UTOMHUS)

MONTERING AV V-KLAFF

INSTALLATION

Diagram of airflow around a mechanical component with directional arrows indicating movement (no text or symbols)

RÅD FÖR INSTALLATION AV UTSUGSKANAL

Abstract line drawing of a stylized animal figure with a cat and a pig, connected by a string (no text or symbols)

INSTALLERA FETTGALLERFILTER

Simple line drawing of a hand pressing down on a ruler and ruler (no text or symbols)

Simple line drawing of a hand pressing down on a laptop (no text or symbols)

OBS:

Mechanical assembly diagram showing a rotating component with arrows indicating motion direction (no text or labels)

Pic 1

Diagram of a ceiling lamp with hanging components and directional arrows indicating airflow or movement (no text or symbols)

Pic 2

MILJÖSKYDD:
