Ocean Blue SIS-2400BL - Iron WILFA - Free user manual and instructions

Brand	Wilfa
Model	Ocean Blue SIS-2400BL
Product Type	Steam Iron
Power Consumption	2400 W
Soleplate Material	Stainless Steel
Water Tank Capacity	Approximately 200 ml (based on typical irons)
Spray Function	Yes, via spray button
Burst of Steam	Yes, via burst of steam button
Vertical Steam	Yes, possible with burst steam
Dry Ironing	Yes, steam control to OFF
Self-Clean Function	Yes, via self-clean button
Anti-Calc System	Yes, permanent filter inside water tank
Anti-Drip System	No (only on model SIT-2400G)
Auto Shut-Off	No (only on model SIT-2400G)
Temperature Settings	3 levels: low (silk), medium (wool), high (cotton/linen)
Pilot Light	Yes, indicates heating
Cord Length	Approximately 2 m (estimation)
Weight	Approximately 1.2 kg (estimation)
Dimensions	Not specified
Color	Ocean Blue
Usage	Household only
Warranty	Not specified, refer to manufacturer
Included Accessories	Iron, user manual

Frequently Asked Questions - Ocean Blue SIS-2400BL WILFA

Is it normal for the iron to produce smoke the first time I use it?

Yes, it is normal for the iron to give off a small amount of smoke during the first use. This will quickly disappear.

What type of water should I use in the iron?

It is recommended to use tap water. Do not use distilled or demineralized water as it can make the anti-calc system ineffective.

How do I fill the water tank?

Hold the iron upright so that the water filling inlet is horizontal. Ensure both the steam control dial and temperature control dial are in the OFF position. Fill with water until it reaches the MAX mark, and never above.

How do I set the temperature for different fabrics?

Refer to the garment label. If unknown, use the table: Silk (low heat), Wool (medium heat), Cotton/Linen (high heat). For mixed fabrics, select the temperature for the most delicate fabric.

How does the steam function work?

After setting the temperature and waiting for the pilot light to turn off, turn the steam control dial to the desired position. Steam is produced when the iron is held horizontally.

How do I use the burst of steam feature?

Press the burst of steam button to release a powerful steam burst. This can be used for vertical steaming of curtains or hung garments. Wait a few seconds between presses. Use only at high temperature.

How do I clean the iron?

After use, empty the water tank by turning the iron upside down. Plug in and set temperature to MAX for 1-2 minutes to evaporate remaining water. Then unplug and let it cool before storing.

Does this iron have an auto shut-off feature?

No, the SIS-2400BL does not have auto shut-off. That feature is only available on the SIT-2400G model.

What is the self-clean button for?

The self-clean button is used to flush out mineral deposits from the steam chamber. Refer to the manual for detailed instructions on using this feature.

Can I use the iron without steam?

Yes, for dry ironing, keep the steam control dial in the OFF position and follow the temperature settings for steam ironing.

USER MANUAL Ocean Blue SIS-2400BL WILFA

White iron 2400W stainless steel solepiste iron, showing blade and handle (no text or symbols on body)

Wilfa OCEAN BLUE Wilfa FOREST GREEN

Steam iron

Bruksanvisning

Bruksanvisning

Operating Instructions

SIS-2400BL, SIT-2400G

LES ALLE ANVISNINGER F∅R BRUK

LÄS IGENOM ALLA INSTRUKTIONER INNAN PRODUKTEN ANVÄNDS

LÆS ALLE VEJLEDNINGER INDEN BRUG

LUE OHJEET HUOLELLISESTI ENNEN KÄYTTÖÄ

READ ALL INSTRUCTIONS BEFORE USING

OVERSIKT OVER SIT-2400G

F∅R F∅RSTE GANGS BRUK

ÖVERSIKT AV SIT-2400G

FÖRE FÖRSTA ANVÄNDNING

F∅R IBRUGTAGNING

YLEISKUVA TUOTTEESTA SIT-2400G

ENNEN ENSIMMÄISTÄ KÄYTTÖKERTAA

Read carefully and keep for future reference.

IMPORTANT SAFETY INSTRUCTIONS....5

Overview of SIS-2400BL 7

Overview of SIT-2400G 8

Before first use....9

Operation....9

How to clean and store....11

IMPORTANT SAFETY INSTRUCTIONS

• Make sure the power used corresponds with the one indicated on the rating label.
• Never use the iron for anything else than its intended use.
• For household use only.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• Close supervision is necessary when any appliance is used near children. Do not leave iron unattended while connected or on an ironing board. Burns can occur from touching hot metal parts, hot water or steam.
• Keep the iron out of reach of children.
• Unplug the iron from the mains electrical supply before:
  1) Cleaning
  2) Filling with water or emptying the water tank
  3) Immediately after use
• Do not let cord touch hot surfaces.
• To protect against a risk of electric hazards, do not immerse the iron in water or any other liquid.
• Keep the iron and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

- This appliance can be used by children from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- The iron must not be left unattended while it is connected to the supply mains

- The plug must be removed from the socket-outlet before the water reservoir is filled with water.

- The iron must be used and rested on a stable surface.

- When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

- The iron is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.

OVERVIEW OF SIS-2400BL

① Spray Nozzle
② Water filling inlet
③ Steam control dial
④ Burst of steam button
⑤ Spray Button
⑥ Temperature control dial
⑦ Up cover

⑧ Power cord protector
⑨ Rear cover
⑩ Body
⑪ Skirt
⑫ Self clean button
⑬ Water tank
⑭ Soleplate

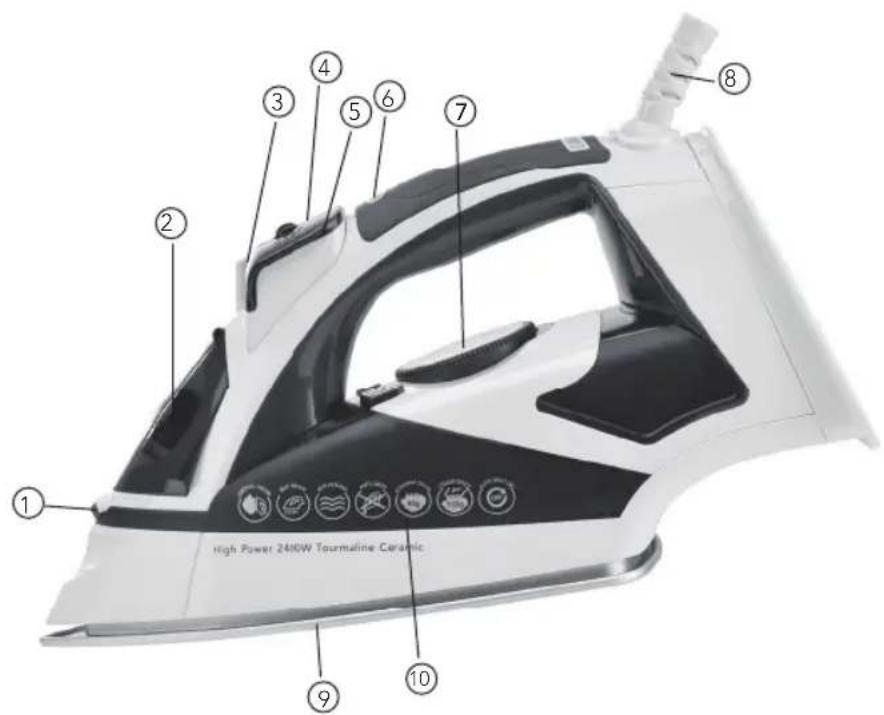

OVERVIEW OF SIT-2400G

① Spray Nozzle
② Water filling inlet
③ Steam control dial
④ Burst of steam button
⑤ Spray Button
⑥ Auto shut off light
⑦ Temperature control dial

⑧ Power cord protector
⑨ Soleplate
⑩ Water tank

BEFORE FIRST USE

• It is normal for iron to give away a small amount of smoke the first time, this will quickly disappear.
• When using the steam function for the first time, do not direct the steam towards the laundry, as there could be residuals in the steam vents.

OPERATION

Filling with water

• We recommend the use of tap water.
- Make sure that both the Steam Control turning Knob and Temperature Control Dial are in "OFF" position.
- Hold the iron upright so that the water-filling inlet is in a horizontal position.
- Fill with water through Water Filling Inlet until the water reach the "MAX" mark indicated on the side of the iron, and never fill above this mark.

Setting temperature

Follow the ironing instructions on the garment label. If there is no instruction but you do know the kind of fabric, please consult the following table.

Note: If the fabric consists of various kinds of fabrics, always select the temperature required by the most delicate fabrics.

Fabric Temperature	control Temperature requirement
Silk	●	Low temperature
Wool	●●	Medium temperature
Cotton, linen	●●●	High temperature

Steam ironing

1. Place the iron in a vertical position and set the temperature control dial at the minimum/low heat setting.
2. Insert the plug into the socket, and then turn the temperature control dial to the "high heat" marking. The pilot light will come on, indicating that the iron is heating up.
3. When the pilot light turns off, the set temperature has been reached and the iron is ready to use.
4. During ironing, the pilot light on the iron automatically switches on/off as the thermostat maintains the set temperature (you may continue ironing during this process).
5. Turn the steam control turning knob to the required position.
6. Steam is produced as soon as the iron in held horizontally.

Spraying

- Press the spray button to spray water on clothes, as often as required.

Note: When using the water spray function, ensure that there is enough water in the water tank, in addition you may have to pump the spray button serval times at the first time you use the iron in order to start the spraying function.

Burst or vertical steam ironing

• Press the burst of Steam button to generate a powerful burst of steam that can penetrate the fabrics and smooth the most difficult and tough creases. Wait for a few seconds before pressing again.
• By pressing the Burst of Steam Button at intervals you can also iron vertically (curtain, hung garments, etc.)

Note: The burst steam function can only be used at high temperature. Stop the emission when the pilot light turns on, then start ironing again only after the pilot light has turned off.

Dry ironing

For ironing without steam, follow the instruction in section "steam ironing", however, the steam control turning knob should remain in position "OFF" (no steam).

Anti-calc system

A special filter inside the water tank softens the water and prevents scale build-up in the soleplate. The filter is permanent and does not need replacing.

Note: Use tap water only. Distilled and demineralized water makes the anti-calc system ineffective by altering its physicochemical characteristics.

Anti-dripping system (SIT-2400G only)

This iron is equipped with drip stop function: the iron automatically stops steaming when the temperature is too low to prevent water from dripping out of the soleplate. With the anti-dripping system, you can perfectly iron even the most delicate fabrics.

Auto shut-off (SIT-2400G only)

An electronic safety device will automatically switch the heating element off if the iron has not been moved more than 30 seconds in a horizontal position. If in a vertical position, this will happen after 8 minutes. To indicate that the heating element has been switched off, the auto-off pilot light will start blinking.

• When picking up the iron again, the auto-off pilot light will turn off. The power pilot light will turn on. This indicates that the iron is heating up again.
• Wait for the power pilot light to turn off. Then the iron is ready for use.

HOW TO CLEAN AND STORE

1. After using, lift the iron with the filling hole downwards to empty the remaining water from the Water tank.
2. Insert the plug into the socket, and set the Temperature Control Dial to "MAX" for 1-2 minutes to evaporate the remaining water, and then unplug the iron and let it cool down before storing it.

Under the Waste Electrical and Electronic Equipment Directive (WEEE), such waste must be collected separately and processed. If in future you need to discard this product, please do not throw it out with your normal rubbish. Please send this product to a collection point where one is available.
